US Water Systems Pulsar Bodyguard 390-PWFMS1-A User manual

Visit us online at
www.uswatersystems.com
REVISION # 1.2
REVISION DATE January 8, 2018
US Water Systems Corporate Office
1209 Country Club Road
Indianapolis, IN 46234
1-800-608-8792
[e-mail]
Owners Manual
390-PWFMS1-A, 390-PWFMS1-B, 390-PWFMS1-C
US Water Systems Pulsar Bodyguard Whole
House Chemical Removal Filter

2
Unpacking/Inspection………………………………………………………………………………..………...2
Safety Guide…………………………………………………………………………..………………………..2
System Overview……………………………………………………………………………………………….3
System Dimensions………………………………….….………………...…………………………….…….4
Pulsar Magna Filter Specification and Operation…………………...……….……………..………………6
Bodyguard Equipment Introduction……………………………….………………………………………….8
Pulsar Magna Filter Installation Instruction………………………..………..…...…………..………………9
Pulsar Magna Filter Startup Instructions………………………………………..…………..……………...13
Bodyguard Tank Installation………………………………………………………………………………….14
Bodyguard Tank Startup……………………………………………………………………………………...18
Pulsar Magna Filter Cartridge Replacement Instructions……………………………..………….……….19
Pulsar Bodyguard Warranty Information………………………………….…………...………..…………..22
Safety Guide
Be sure to check the entire system for any shipping damage or parts loss. Also note damage to the shipping
cartons. Contact US Water Systems at 1-800-608-8792 to report any shipping damage within 24 hours of de-
livery. Claims made after 24 hours may not be honored.
Small parts, needed to install the system, are in a parts bags. To avoid loss of the small parts, keep them in the
parts bag until you are ready to use them.
Unpacking / Inspection
 Check and comply with your provincial / state and
local codes. You must follow these guidelines.
 Use care when handling the filter system. Do not
turn upside down, drop, drag or set on sharp protru-
sions.
 WARNING: This system does not remove biolog-
ical contaminants. US Water Systems recommends
that bacteria levels be checked periodically to en-
sure there is no bacteria present. Coliform and
E.coli most importantly.
Table of Contents

3
Magna Filter
Pulsar Bodyguard System

4

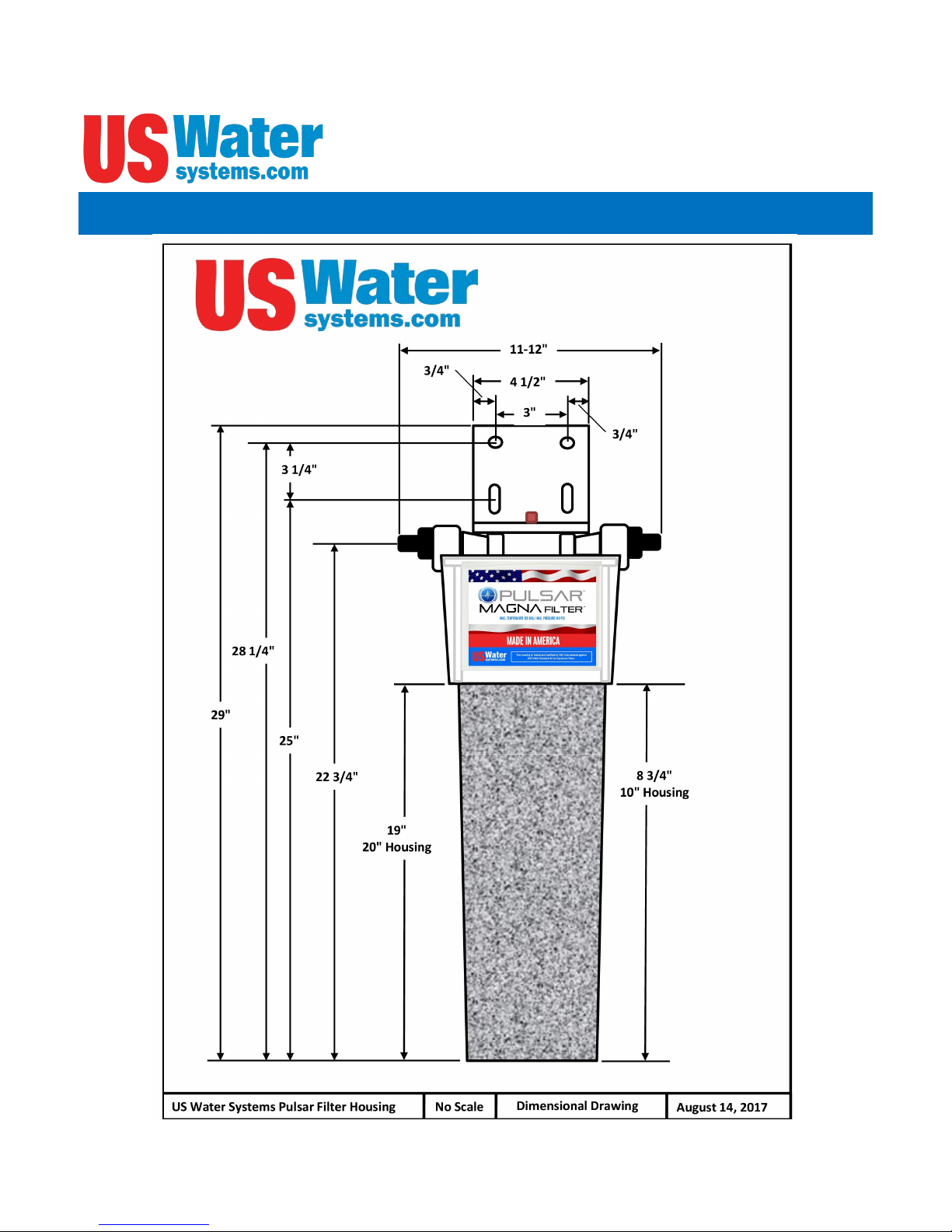

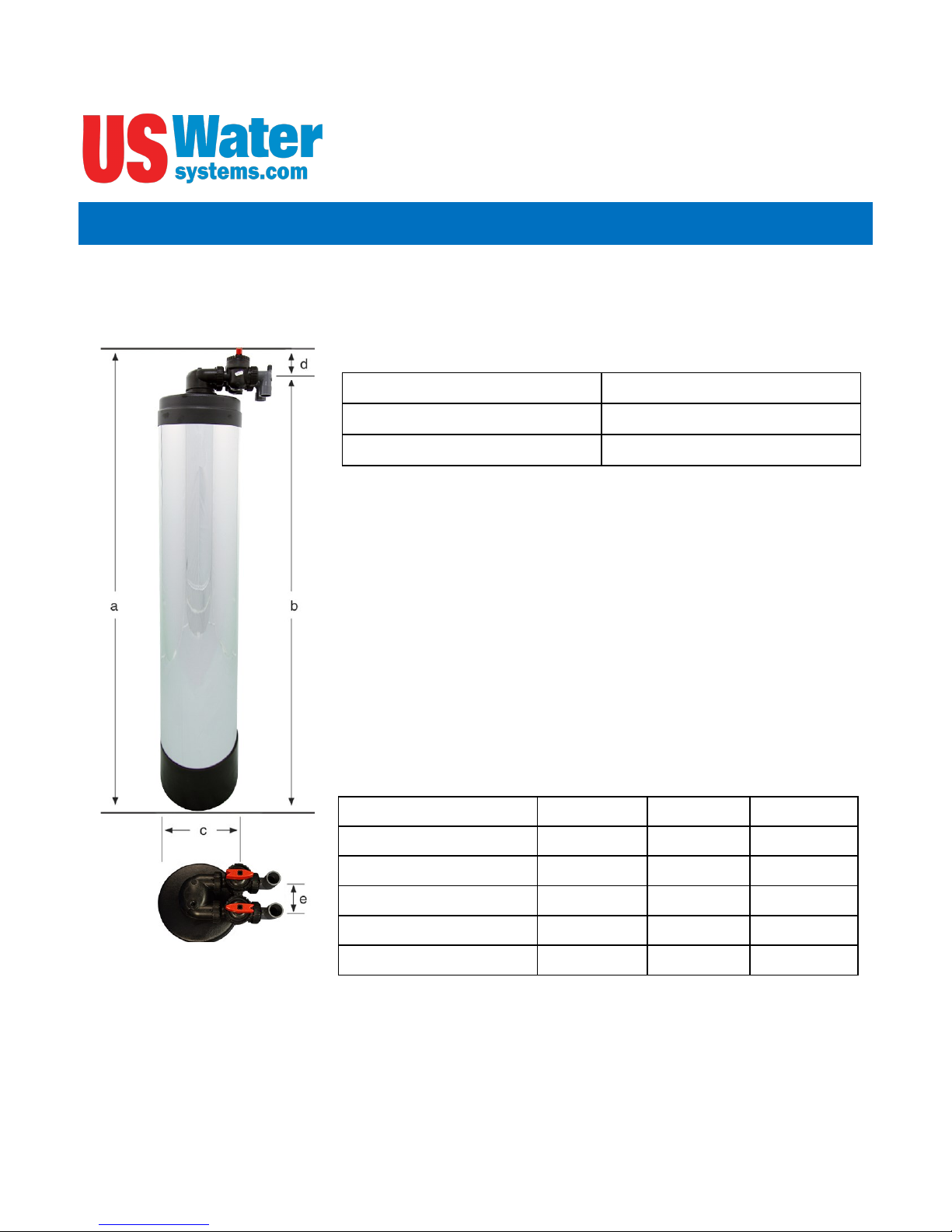

System Dimensions

5
Pulsar Bodyguard systems are complete, self-contained, loaded with media and ready to use.
A simple inlet and outlet connection is all that is required for installation. Please review
operating pressures, temperatures and water chemistry limitations to ensure compatibility.
Specifications
Inlet/Outlet Connection 1” NPT
Temperature 40° - 110°F
Water Pressure 15 min, 100 max (PSI)
Dimensions (nominal - inches)
PWFMS2-APWFMS2-BPWFMS2-C
A55.0 61.0 61.0
B52.5 58.5 58.5
C9.0 10.0 13.0
D2.5 2.5 2.5
E3.0 3.0 3.0
System Dimensions

6
Magna Benefits
 Magna Seal - It has a positive “o-ring seal” unlike traditional “flat top” filters
 Magna Media – A 10” filter has 18 square feet of pleated polyester commercial grade me-
dia, and a 20” filter has 36 square feet of pleated polyester commercial grade media – com-
pare that to other brand pleated filters which have 30-50% less.
 Magna Contaminant Capacity – Traps 12 times sediment depth filters, 8 times string
wound filters, 2 times other pleated sediment filters.
 Magna Clear Sump – Enables you to see when the filter is getting dirty.
 Magna Made in USA – Nothing made outside of the U.S. and conforms to NSF/ANSI 61
Certified by WQA
Magna is a Latin word which means “ great,” and that is the true and accurate meaning
of the Pulsar Magna Filter. The Magna Filter comes in two sizes: 4.5” x 10” for homes up to 3
bathrooms and 4.5” x 20” for homes with more than 3 bathrooms. This is a true commercial-
grade filter.
Features
 Cartridge has 222 double o-ring seal for a positive barrier
 System conforms to NSF/ANSI 61 Certified by WQA
 Low pressure drop - typically < 3 PSID (clean)
Specifications
 Micron Rating: 5 Microns
 Media: Pleated Polyester
 Peak Flow:
 4.5” x 10” - 12 GPM
 4.5” x 20” – 25 GPM
 Maximum Pressure: 100 PSID
 Pipe Size: 1” MNPT
Pulsar Magna Filter Specifications and Operation

7
Maintenance
The Magna Pre-filter can be installed for up to a year. The Magna filter should be changed an-
nually or sooner depending on the water usage or water conditions.
Pretreatment Guidelines
 Turbidity < 3 NTU
 pH 5-9.5
 Iron < .3 ppm
 Manganese < .05 ppm
This systems’ performance is dependent upon the incoming water quality and factors such as
iron, sulfur and manganese need to be addressed ahead of the Pulsar Magna Pre-Filter. Life
expectancy of the filter varies with the water supply, but many users experience filter change
intervals in excess of a year when coupled with proper pre-treatment
Where to Install
The Magna Pre-filter should be installed as the first line of treatment in the Pulsar system. In
cases where there is extreme sediment levels in the water, it may be beneficial to install a
backwashing sediment filter before the Magna Pre-filter. Water feeds with iron and other pre-
cipitants may cause premature failure. If there are known extreme contaminant levels, those
contaminants should be removed first. For installation questions please call 1-800-698-8792.
WARNING: If extreme contaminant levels are present in the feed water, iron removal
and sediment control should be installed prior to the Pulsar Magna.
Pulsar Magna Filter Specifications and Operation

8
Bodyguard Equipment Introduction
Pulsar Bodyguard™ Premium Whole House Chemical Removal Filter
The Pulsar BodyGuard is a non-electric carbon filter that removes chlorine, chloramines,
chemicals, pesticides and a multitude of other contaminants through Prolonged Contact to de-
liver the way nature intended it, using all NSF & WQA Certified Components.
The BodyGuard delivers clean, great-tasting water from every tap in your home by removing
chlorine, chloramines and other chemicals in your tap water. The Pulsar BodyGuard removes
the highest percentage of most contaminants of any filtration system on the market, due to the
large amount of carbon that it contains. In many cases, the BodyGuard has 2 or 3 times the
amount of carbon as our competitors*. It also reduces or removes other harmful contaminants
including the following:
 Chemicals
 Chlorine
 Chloramines
 Dioxin
 Heavy Metals
 Herbicides
 Odors
 Pesticides
 Pharmaceuticals
 Tastes
 TCE
 THM
 VOC’s
 … and many others
Benefits
 The system reduces or removes chlorine and other chemicals
 Unlike ordinary carbon filters it also removes or reduces chloramine
 Delivers great-tasting water from every tap in your house
 Softer skin and hair – You will see the difference after one shower
 Great tasting beverages, coffee and tea
 Eliminates Bad Tastes
 Eliminates Foul Odors
 Treats up to 1,000,000 Gallons or 5 Years
 Extremely User Friendly
 Easy to Install
 Wastes No Water
 Uses No electricity
 Lifetime Warranty on all Parts
 5-Year Performance Warranty
 90-Day Satisfaction Guarantee
Includes bypass valve and 1” MIP connection fittings. Installation kit is available.

9

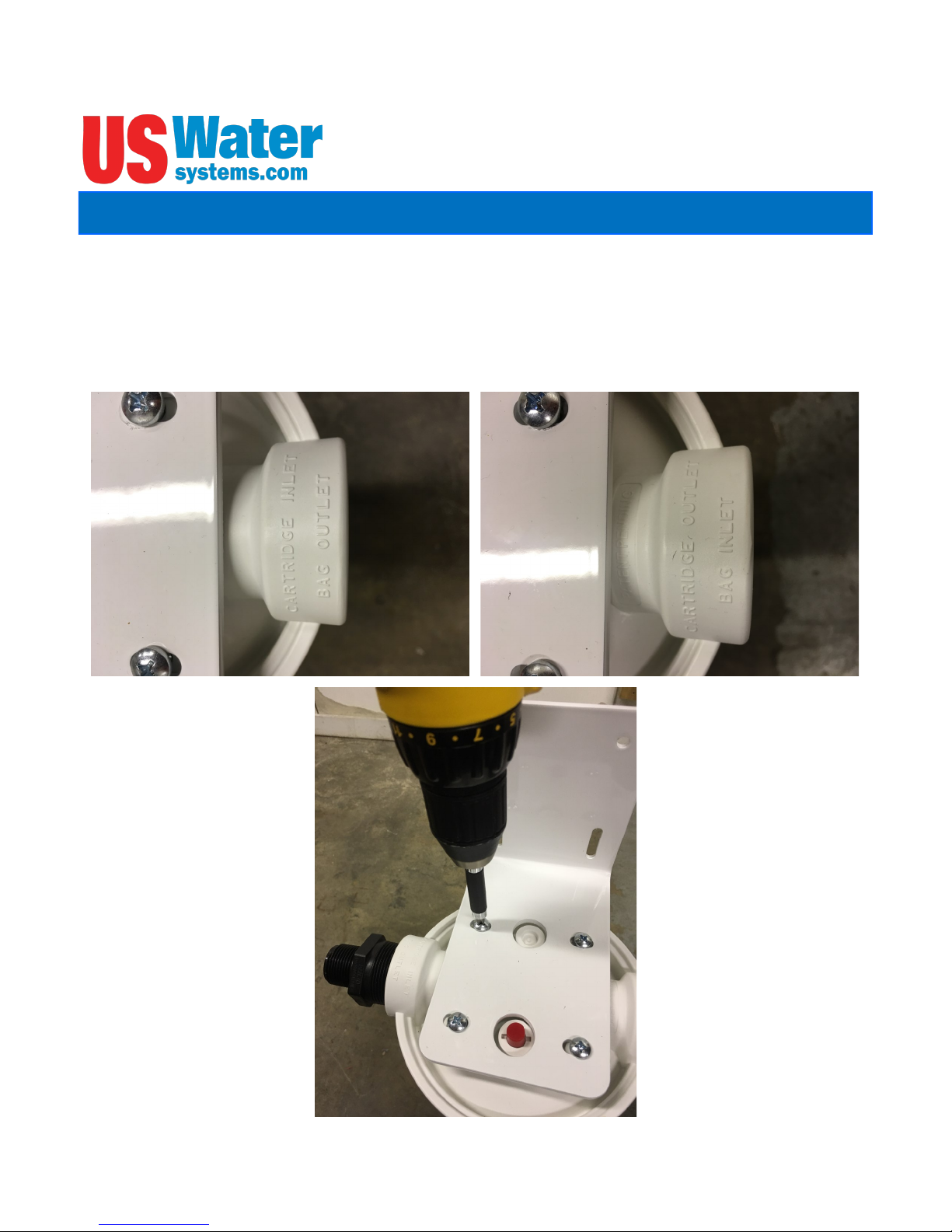

1. Install the Pulsar Magna system in the desired location in the water treatment system. Typi-
cally this will be the first component in the line of treatment. The cap are marked “Cartridge
INLET” (Bag Outlet) and “Cartridge OUTLET” (Bag INLET) on the top of the housing. We
will be using the Cartridge inlet and outlet configuration.
2. Mount the housing to the bracket using the supplied screws, orienting the housing to match
the applications desired flow direction.
Pulsar Filter Installation Instructions

10
3. Install the supplied 1 1/2” x 1” reducing nipples in the housing. Be sure to use Teflon tape
on the fittings. Tighten them with channels locks. If flex pipes with rubber gaskets are used
there is no need to Teflon tape the outer fittings. If a normal plumbing fitting is used then
be sure to Teflon tape the outer fitting.
4. Mount the Pulsar filter to the wall using the necessary fasteners for the wall type. Mark the
hole locations on the wall using a marker or pencil while holding the filter housing level. If
this is to be mounted to a studded wall, a mounting board can be used. A shelf board or
plywood can be mounted to the studs, then the filter housing can be screwed to the ply-
wood or shelf board. (Shelf board pictured below).
Pulsar Filter Installation Instructions

11

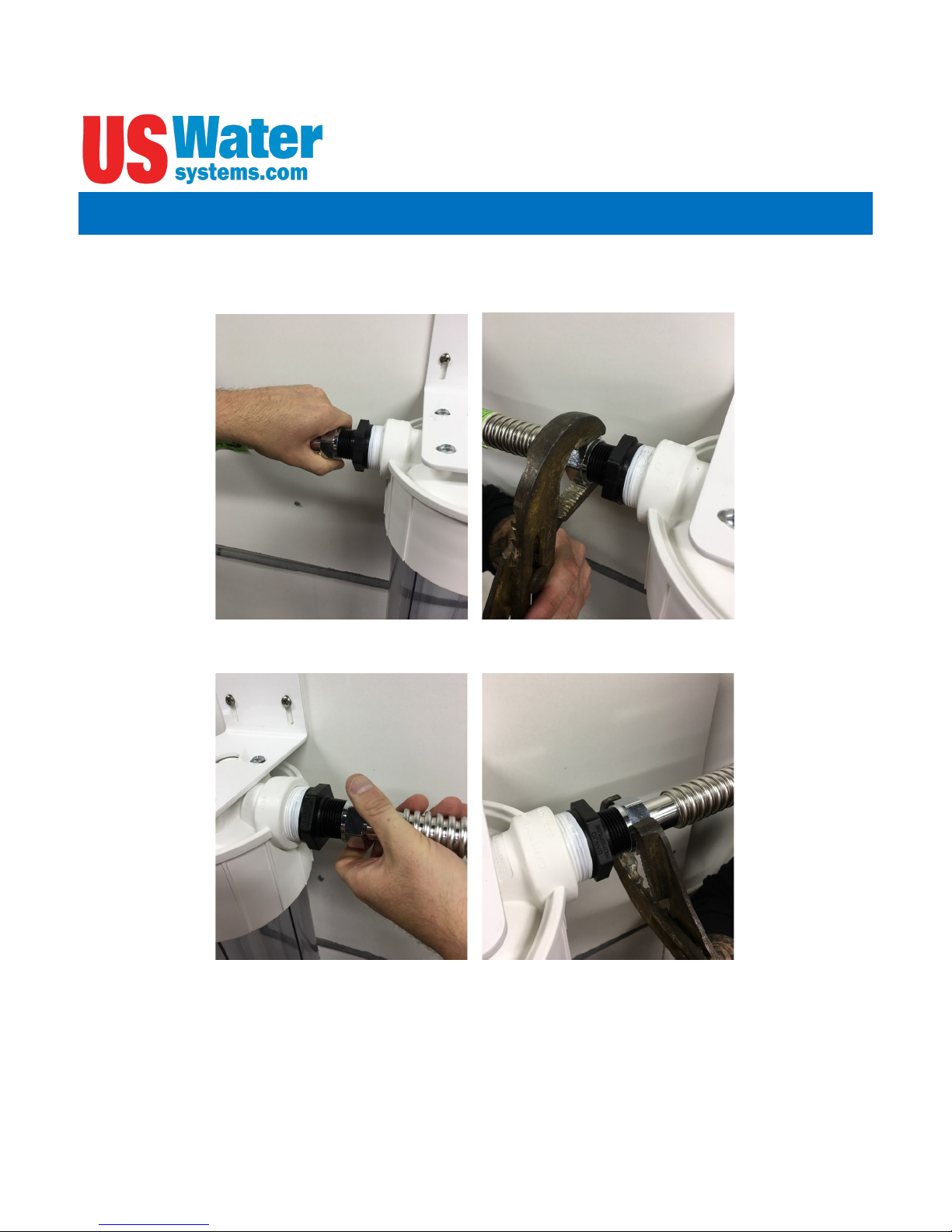

5. Shut off the water and release the water pressure at the lowest sing or spigot. Cut the pipe
and connect it to the filter. Connect the inlet plumbing to the inlet on the filter housing (Bag
outlet, cartridge inlet). Tighten with channel locks.
6. Connect the outlet plumbing to the outlet on the filter housing (Bag inlet, cartridge outlet).
Tighten with channel locks.
NOTE: The connections above are made using the installation kits used with the US
Water Systems Modular Filtration System. These flex pipes have a rubber gasket and
do not require Teflon tape. If pipe fittings are used be sure to use Teflon tape on the
threads prior to installing the fitting on the filter housing. If copper pipe and fittings are
being used make sure all solder joints within 12-15” of the filter housing are completed
and the pipe is cool, prior to connecting it to the housing fittings.
Pulsar Filter Installation Instructions

12

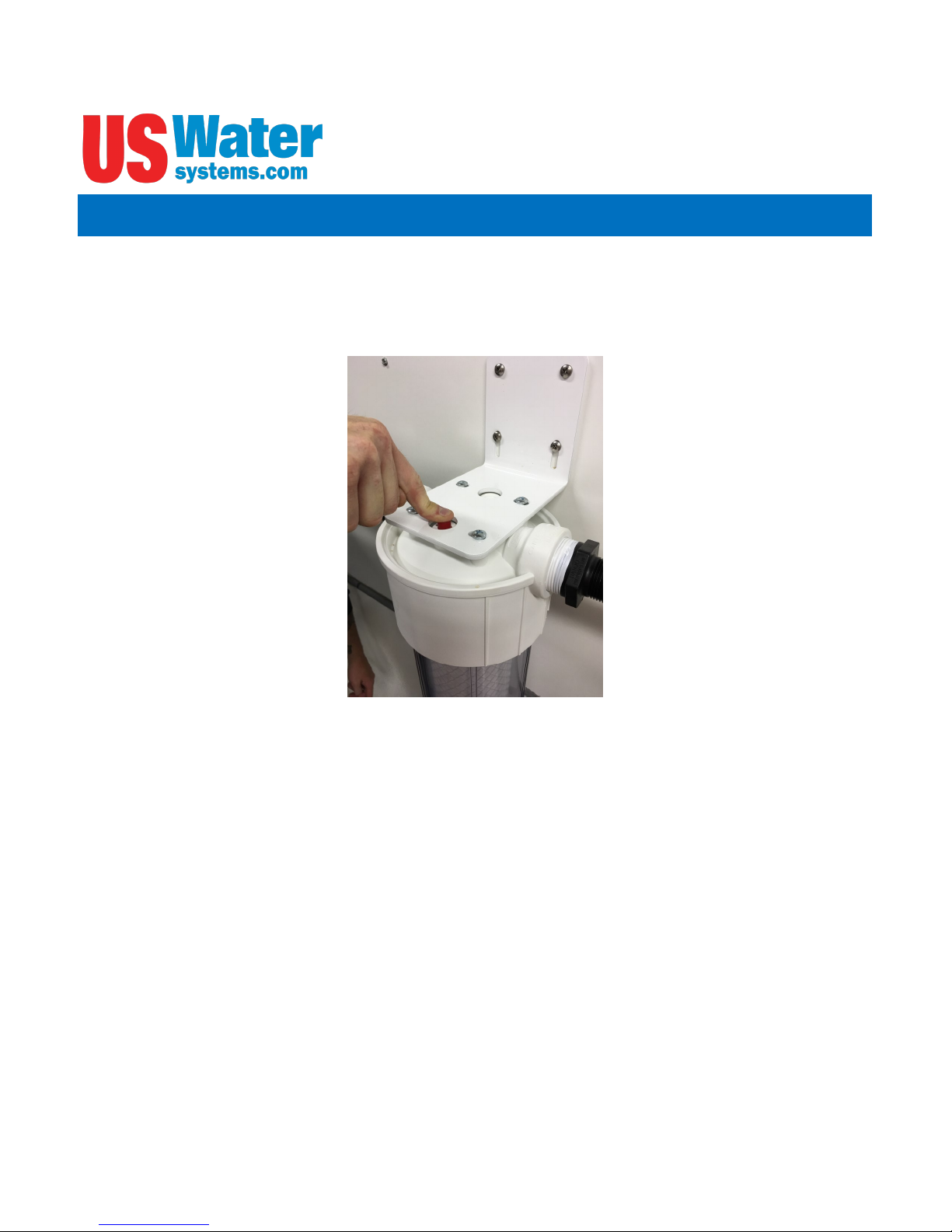

1. Remove the sump from the filter housing and install the filter. A very small amount of sili-
cone grease or water can be used to lubricate the O-rings on the filter. The filter housing
cap has a couple that will accept the o-ringed nipple on top of the filter. Install the filter so
the nipple on the top is fully seated in the filter housing cap.
2. Lubricate the O-ring on the filter housing sump and install it. Tighten the filter sump hand
tight. That should be adequate. Do not use abrasive tools to tighten the housing or dam-
age may occur.
Pulsar Filter Installation Instructions

13

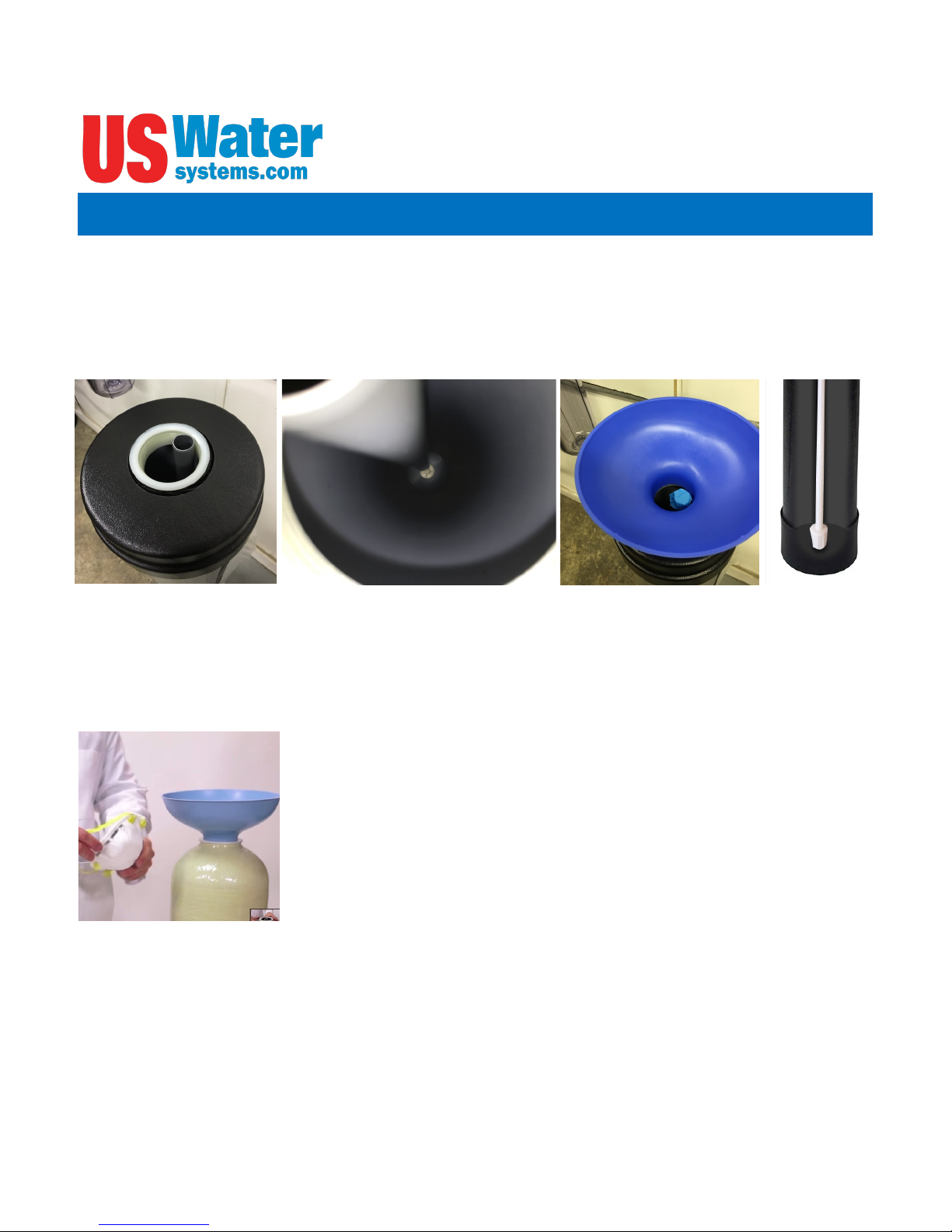

1. Make sure that the distributor tube (shipped inside the tank) is centered in the indent in the bottom
of the tank (use a flashlight if necessary).
2. The distributor tube should be even with the top of the tank. There is an o-ring inside the tank head
that seals around the distributor.
3. Cover the distributor tube opening with a cap or piece of tape. Duct tape works exceptionally well for
this.
NOTE: IT IS IMPERATIVE THAT NO MEDIA (carbon) BE ALLOWED INSIDE THE DISTRIBUTOR
TUBE. CARBON SHOULD NOT BE ALLOWED TO ENTER THE DISTRIBUTOR UNDER NO CIR-
CUMSTANCES.
4. Add the gravel & carbon.
5. Place the included funnel inside the tank opening securely. It is easiest to
do this if there are two people (one to hold the funnel and one to pour the
media), but one person can do it, especially if you secure the funnel to the
tank with duct tape, being careful not to spill the media.
6. A mask or a cloth should be worn over the nose and mouth as the carbon
fines can cause irritation to the nose if breathed in. However, the carbon
is in no way toxic.
7. Pour all included gravel in the tank first followed by the all the carbon.
Bodyguard Tank Installation

14
The tank should now be filled approximately 70-80%. US Water does not send extra media.
8. Be sure to remove the tape and wipe the top of the tank and distributor tube with a clean cloth.
9. Fill the tank with water until it is approx. 4” from the top. Be sure to let the carbon soak for a mini-
mum of 2 hrs.

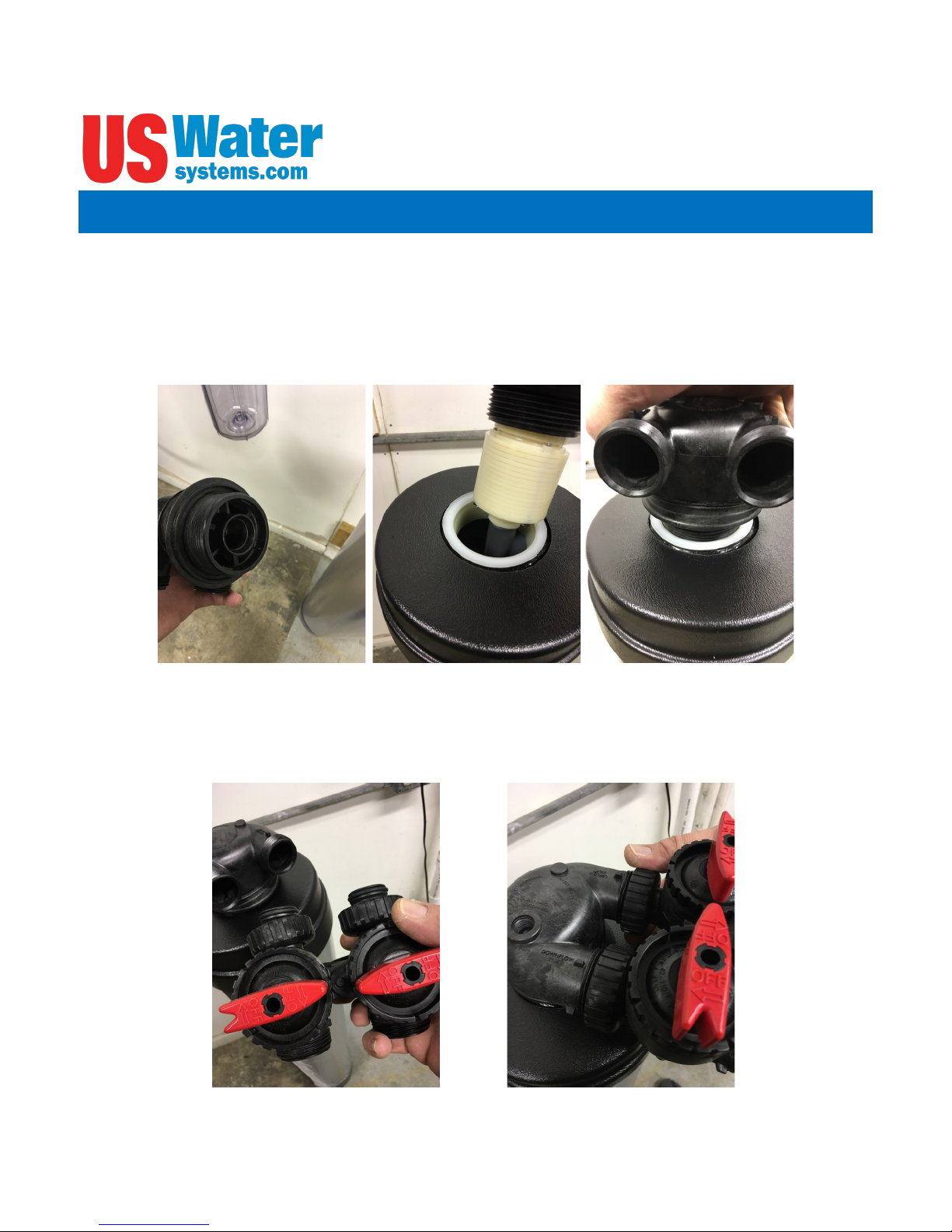

10. Lubricate the o-rings on the head with food grade silicone lubricant*. (part #995-1014081, not includ-
ed) Make sure that the upper basket (Figure B) is securely attached to the tank head. [* If food grade
silicone is not available, use corn or vegetable oil.]
11. Install the head back on the tank and tighten hand tight. Do not use tools to tighten the head or
damage may occur.
****NEVER USE A PETROLEUM BASED LUBRICANT OR VASOLINE****
12. Install the bypass on the tank head. Lubricate the O-rings on the bypass and hand tighten the nuts.
Bodyguard Tank Installation

15

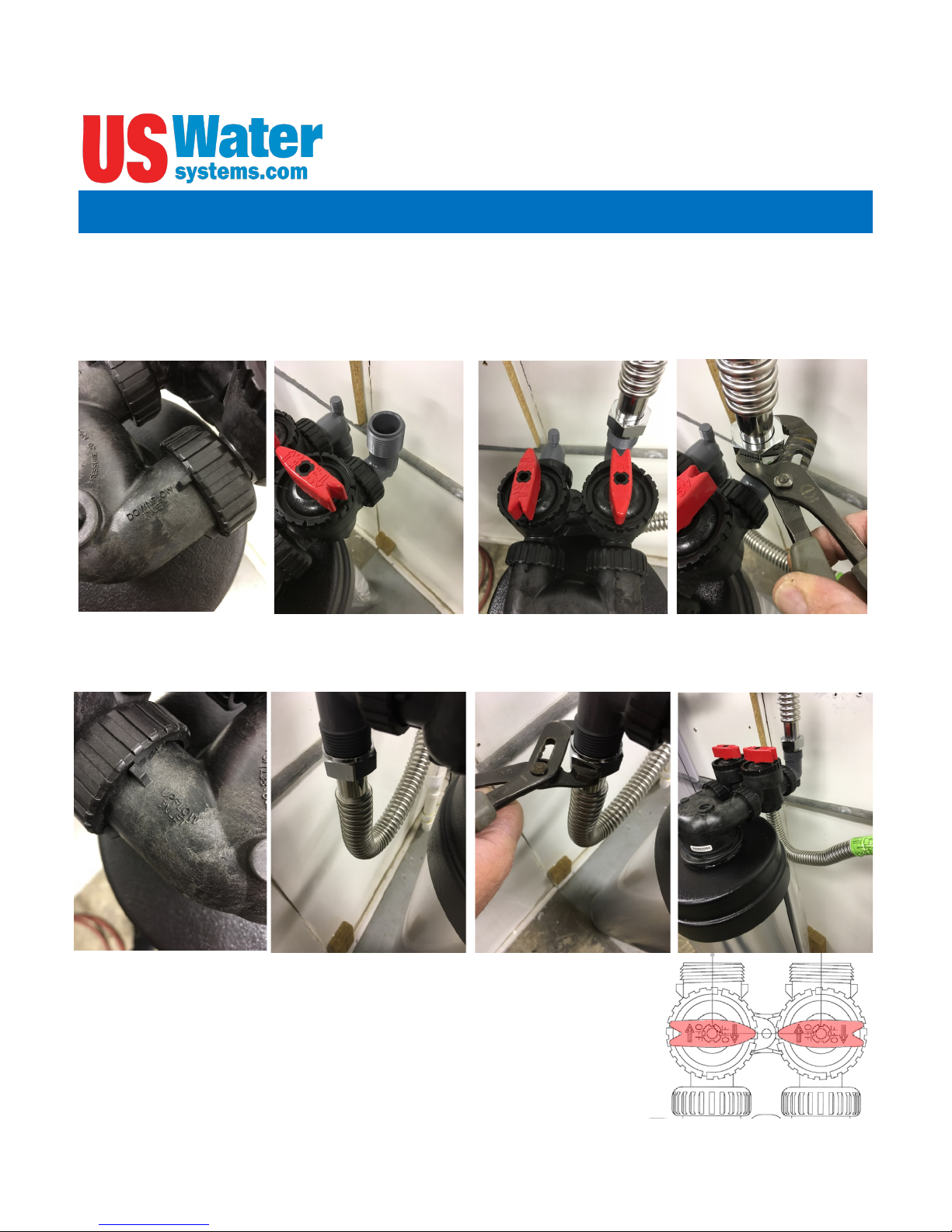

13. Assemble the tank connectors using the locking clip and the O-ring.
14. Make sure the O-ring isn’t twisted then lubricate it with silicone grease or corn oil. Hand tighten the
nuts on the bypass.
NOTE: It is normal for the bypass and connectors to move/float when the nuts are tightened.
This is an intentional design feature intended to allow flexibility with the connections and
possible tank deflection. These connections will be tight once the water is on and pres-
sure is applied.
Bodyguard Tank Installation

16

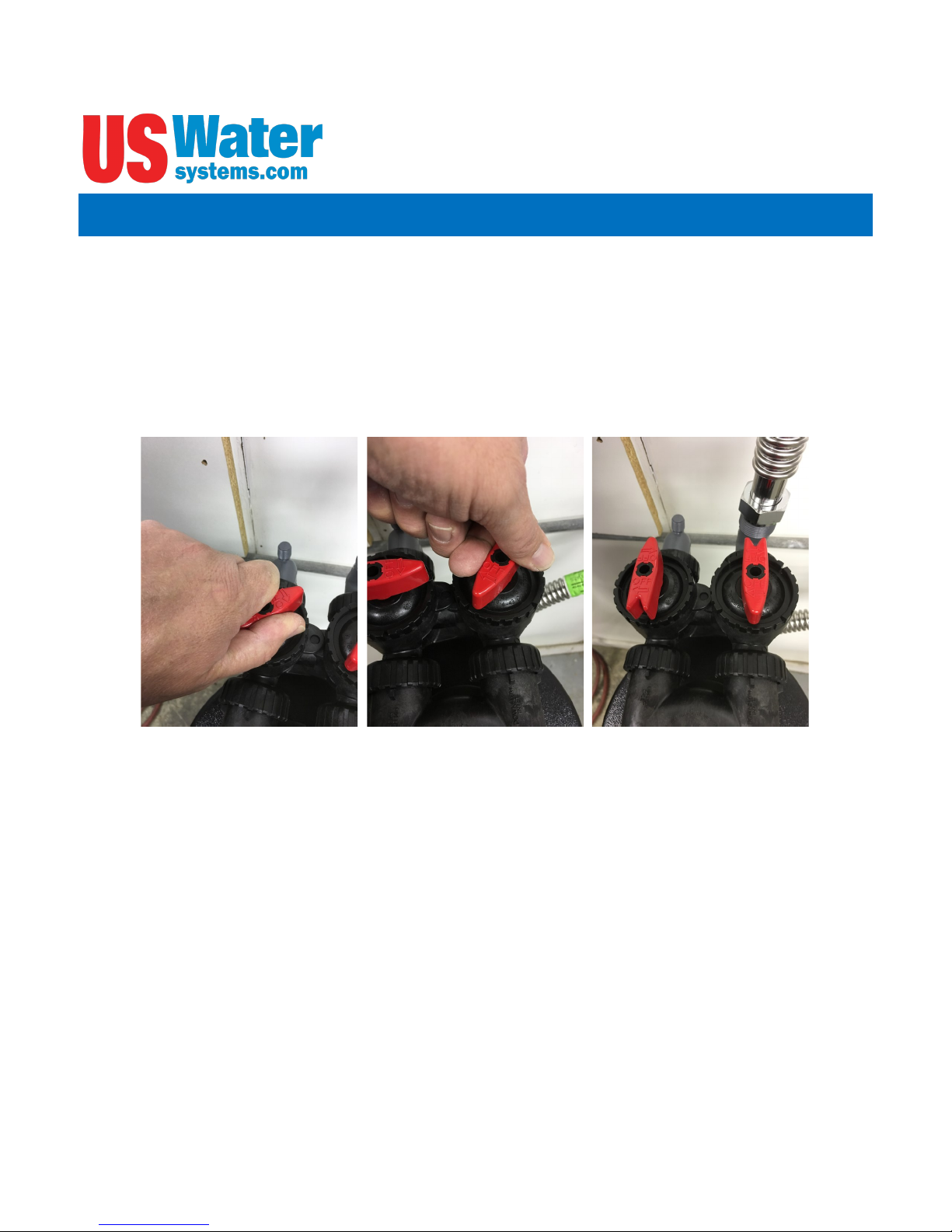

1. Place the Pulsar Bodyguard tanks in the desired location on a flat level surface.
2. Make sure the tank head is tightened securely by hand tightening—Do Not Use a Wrench.
Hand-tight is recommended.
3. Connect the inlet piping from the Magna filter to the DOWNFLOW inlet on the Pulsar
Bodyguard carbon tank.
4. Connect the outlet of the Pulsar Bodyguard carbon tank (marked upflow inlet) to the next piece
of equipment in the treatment system or to the plumbing distribution system.
5. Keep the Pulsar Bodyguard tank in the bypass position until
startup.
6. Proceed to the Start-up.
Bodyguard Tank Installation

17
1. Put the Bodyguard filter in the bypass position (See Page 15). Open a faucet or spigot
down stream of the Pulsar filter. Slowly open the water shutoff valve and all the filter fill and
air to be pushed out of the filter through the open spigot or faucet. Once there is no air
coming out of the faucet or spigot, place a bucket under the filter housing and push the red
pressure relief button on top of the filter housing until only water and no air is coming out.
2. Shutoff the spigot or faucet down stream and dry the filter housing. Check for leaks. If
there are no leaks, move on to the Bodyguard tank startup.
Pulsar Filter Startup Instructions

18
1. Slowly open the Carbon Tank Bypass inlet valve on the Bodyguard tank. Allow the tank to fill
with water until all the air is purged. Open a spigot or faucet downstream of the Bodyguard fil-
ter. Slowly open the Bodyguard tank bypass outlet valve. Then, flush the carbon tank for 15-
20 minutes or until water runs clear. If you see any carbon (other than the “black tinted color”),
immediately bypass the system. If pieces of carbon are coming out of the carbon tank there
could be an internal problem. Small fines (specs) or tinted water is normal.
NOTE: A white Styrofoam or plastic cup can be used to observe the water color. This helps
determine when the carbon is flushed.
2. Close the spigot or faucet and check for leaks. Repair as needed.
3. The Pulsar Bodyguard System is now ready for service.
Bodyguard Filter Start Up
WARNING: FLUSH THE BODY GUARD TANK BEFORE INSTALLING ANY
DOWNSTREAM FILTER CARTRIDGE IN THE SYSTEM.

19
1. Shutoff the water supply.
2. Open a faucet of spigot closest to the filter housing and allow all the water to empty from
the plumbing system.
3. Push the red button on the top of the filter housing to release the remaining water pressure.
4. Remove the sump by turning it counterclockwise.
WARNING! If the pressure is not released, the filter sump will be very difficult to get
loose. It is imperative that the water pressure is released prior to attempting to remove
the filter sump.
5. Remove the sump by spinning it counterclockwise until the sump is completely removed.
Pulsar Filter Cartridge Replacement Instructions

20
6. Remove the old filter and discard.
7. Lubricate the O-rings and install the new filter in the filter housing cap.
8. Lubricate the o-ring for the sump and lubricate the sump threads with food grade silicone
grease.
Pulsar Filter Cartridge Replacement Instructions
