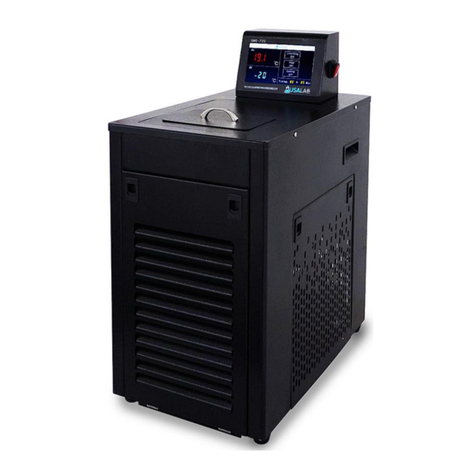

USA Lab UHC Series User manual

Recirculating Heater Chiller Manual
Model: UHC Series
UHC-10/40, UHC-20/40, UHC-50/40

1
Index
1. Safety Instructions and Features
1.1 Safety Instructions
1.2 Features
1.3 Technical parameters
2. Diagrams
3. Control panel operation
4. Preparing for installation
5. Instructions for installation
6. Notes
6.1 Purpose
6.2 Storage
7. Maintenance
8. After-sales service
1 Safety Instructions and Features
1.1 Safety Instructions
ONLY USE SILICONE OIL IN THE TANK.
The use of Personal Protection Equipment (PPE) is REQUIRED.
Follow all federal, state and municipal laws, codes and ordinances.
Please make sure the power connection is correct and well-grounded. (see the technical parameters for
details)
Fluid lines should be unobstructed without any hard bends in the run. Install gasket inside fittings before
use.
Apply a rag to wipe the parts clean after washing away stains; do not use hard objects.
Do not use flammable, corrosive or explosive substances on, in, or near the equipment.
Do not run the liquid pump dry.
The compressor requires 15 minutes to rest before operating after being shutdown. Do not allow the
compressor to cycle more than 5 times per day.
If there is a problem, do not continue to use the chiller. Contact us immediately.

2
1.2 Features
The UHC Series of high-performance closed loop recirculating heater chillers, use internationally
recognized phase change compressors. High quality 304 stainless steel construction and a nickel-plated
heat exchanger helps to inhibit corrosion. The pump can move your transfer fluid quickly. Casters aid in
the portability of the chillers When connected to a reactor, the UHC can maintain consistent sub-zero or
overboiling temperatures. Large changes in temperature can be achieved rapidly.
1.3 Technical Parameters
UHC-10/40:
UHC-20/40:
UHC-50/40:

3
2 Diagrams

4

5
3 Control Panel Operation
[ Prior to running the chiller, your fluid loop should be setup and the tank filled ]
Press Set (14) to enter the temperature set menu. Adjust the value using the Up (15) or Down (16). Then
Press Set (14) again to save the desired value (5). Next press Loop (10), then Cooling (11) and Heating
(12). This turns on the fluid pump, heating, and cooling.

6
4 Preparing for Installation
UHC-10/40:
UHC-20/40:
UHC-50/40:
1. Please refer to the packing list above to check whether the components and parts are included. If there
are any missing parts, please contact us immediately.
2. Remove any residue before assembly and keep all surfaces clean.
3. Tools that might be needed in the installation include: large adjustable wrench.
4. A professionally installed receptacle. Requirements listed below by model. See Specs in section 1.3.
•UHC-10/40 NEMA L6-30P 220V 30A
•UHC-20/40 NEMA L6-30P 220V 30A
•UHC-50/40 NONE Hardwired Installation ONLY, 220V 40A on a quick disconnect panel.

7
5 Instructions for Installation
Precautions: Wait 12-hours after receiving shipment.
The compressor oil can run out of the compressor and up refrigerant lines. So, if you don't wait, the
compressor will pump without sufficient oil.
Place chiller in a climate-controlled facility with adequate ventilation around all sides. 1 foot minimum.
Units returned that have signs of outside use. Will automatically be determined to be improperly used and
cared for.
Steps:
•Unpack. Check for broken or missing tank level glass tube.
•Place unit in final location with 1’ ventilation around unit.
•Add gaskets into tubing.
•Install tubing from outlet to top of jacket, inlet with valve to bottom of jacket.
•Fill the tank up to 3/4 with silicon oil.
•Turn on the loop and watch the level indicator. When it drops to 1/3. Stop the loop and add more
silicon oil. Repeat until the jacket is full and the level indicator reads 3/4 full.
•Set the temperature.
•Enable heating and cooling. If the loop is off, heating and cooling won’t enable.
6 Notes
6.1 Purpose
The UHC Series is intended to be used in conjunction with a reactor. If not used with a reactor,
performance and accuracy cannot be guaranteed. The UHC is a small capacity flow through heater and
heat exchanger for liquid jackets in reaction vessels.
6.2 Storage
For long periods, please disconnect the power. Empty the tank and purge the pump.
7 Maintenance
•Shut off the power switch and disconnect the power cord before any maintenance.
•Use a damp soft cloth to wipe clean. Stubborn stains should be cleaned by neutral detergents.
•The maintenance of internal electrical and heating parts must be performed by professionals or
trained electricians.
•Do not directly splash water over the product or use abrasive powder, diluent, oil, kerosene,
acidic material and similar substances during cleaning, or else shock or other accidents will
occur.

8
8 Service
Our company provides limited warranty for any product with failures due to manufacturing quality within
12 months after the date of delivery on the premise of normal operation by users. Reasonable repair
costs will be charged for damage caused by improper use. After-sales service Tel：[phone] or
[email protected]
USA Lab reserves the right of ultimate interpretation of the instruction manual. Additionally, USA Lab is
not responsible for damages or injuries caused by improper use; knowingly or unknowingly. Glassware is
not covered under warranty. We ship all glassware products with additional care, but sometimes they
arrive broken. If glassware arrives broken, please contact us within 3 days of receiving your product and
we will either send you a brand new piece or send you a refund. Any glassware broken 3 days after or
later will not be covered by warranty. Maintenance items such as seals and gaskets are not covered
under the warranty. Thank you for understanding!
Return Policy:
We offer a 30-day return policy from when your package is delivered to your shipping address. By placing
an order with USA Lab, you express that you have read and agreed to the following return policies.
• We do not accept returns for customized items. When purchasing a customized item, you agree that
there are no returns due to the nature of the item(s) being specific to your needs.
• By default, a 15% restocking fee is applied on all items that are in original packaging and unused with
no damage. This applies to all items returned within 30 days. No exceptions. You will be responsible for
the return shipment unless deemed defective by USA Lab. In that case, we will pay for return shipment
and replacement shipment costs.
• The item(s) must be returned in original packaging and in undamaged condition. The item(s) must have
no signs of usage or wear including stickers, scratches, dents, resins, non-standard fluids, plant matter, or
any other wear not representing a new, unused item. Products deemed defective with any signs of usage
or wear will result in a 25% restocking fee.
• Once the returned item is received, tested, inspected, and processed, a refund will be issued. If your
item(s) are in original packaging and unused, you will be refunded the initial purchase price with the 15%
restocking fee deducted. If your item(s) are deemed damaged or used, you will be refunded the initial
purchase price with the 25% restocking fee deducted.
• If an item has been deemed to be severely misused, modified resulting in catastrophic failure, operated
anywhere but inside of a climate-controlled facility. A minimum of 25% restocking fee will be deducted
from the refund.
Revision 1.0
