USASPEC BT45-HON3 User manual

the newly engineered innovative
Bluetooth music & phone interface
All Speaker
Playback
3.5 mm
AUX Input
HandsFree
Phone Call
Wireless Media
Streaming
♬
USB
Charging
The Acura and Honda names and vehicle model names are trademarks owned by
or licensed to Honda Motor Co., Ltd.
Features:
• Android, Apple, Blackberry, & Windows compatible.
• Plug & Play installation and seamless integration with OEM
entertainment systems.
• Automatically mutes radio with easy one-button operation
to answer/end or reject phone calls.
• Incoming caller number announcement & display on supported
radios
• Built in noise cancellation for crystal clear call quality
• Full & rich audio quality for media streaming with music
info display on supported radios.
www.usaspec.com
167 Mason Way, A-2
City of Industry, CA 91746
Element (double din
radio only)
03 - 11
Accord 03 - 12
Accord Hybrid 05 - 12
Civic 06 - 12
CRV 05 - 11
CRZ 10 - 12
Fit 07 - 13
Insight 10 - 12
Odyssey 05 - 10
Pilot 06 - 11
Ridgeline 06 - 14
S2000 04 - 09
Bluetooth Music & Phone Interface for
Acura & Honda
RL (Non-Nav) 05 - 09
RL (Nav) 05 - 09 USE BT45-ACU
TL (All Radios) 04 - 06
TL (Non-Nav) 07 - 08
TL (Nav) 07 - 08 USE BT45-ACU
MDX (Non-Nav) 05 - 12
MDX (Nav) 07 - 09 USE BT45-ACU
MDX (Nav) 05 - 06
TSX (All Radios) 04 - 08
RDX (Non-Nav) 07 - 09
RDX (Nav) 07 - 09 USE BT45-ACU
16397_BT45-HON3.indd 1 10/16/15 11:03 AM

15
LIMITED WARRANTY
Thank you for choosing a USA SPEC product. USA SPEC, Inc., is committed to
providing high quality defect-free products. All USA SPEC products are tested
before leaving the factory and warranted against defects in materials and
workmanship for a period of one year to the original owner. The one-year warranty
period begins at the date of purchase from an authorized dealer.
PRODUCTS COVERED:
Products and related accessories supplied by USA SPEC, Inc. with the brand name
of USA SPEC are covered by this warranty. Only products purchased in the USA
are covered.
WARRANTY DOES NOT COVER:
1. Damage due to improper installation or operation, negligence, abuse, or
not following instructions, warnings or acceptable industry procedures.
2. Damage caused during the shipment or transportation of the product. All
claims of this nature must be presented to the carrier.
3. Damage caused by acts of God, war, or civil disturbance, including without
limitation, flood, fire, storms, earthquake or other acts of nature.
4. Any expenses or cost to remove or reinstall products.
5. Any product without the original serial number and factory seal, or has
been serviced or modified without the authorization of USA SPEC.
6. Any product not distributed by an authorized USA SPEC dealer.
TO OBTAIN WARRANTY SERVICE:
Contact the Customer Service center for assistance at (626) 336 - 3836. A detailed
description of the problem(s) is required for service. Proof of purchase is also
required when sending a product for warranty service. If the problem cannot be
resolved and the product must be returned for service, you will receive an
authorization form from the service center. The product must be delivered pre-paid
to the service center. USA SPEC will, at our option, repair the product or replace it
with a new or reconditioned product, and if it was shipped to the service center, the
return shipping will be pre-paid free of charge provided the repairs are covered by
the warranty. The product must be packed securely for shipment to the service
center in order to preserve the warranty and prevent damage.
NO IMPLIED WARRANTY, INCLUDING MERCHANTABILITY AND FITNESS FOR
USE APPLIES TO THIS PRODUCT AFTER THE ONE YEAR PERIOD AS
DEFINED ABOVE, AND NO OTHER EXPRESSED WARRANTY OR GUARANTEE,
EXCEPT AS MENTIONED ABOVE, GIVEN BY ANY PERSON, FIRM, OR
CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BIND THE
WARRANTOR. NEITHER THE WARRANTOR NOR ANY OTHER PERSON, FIRM,
OR CORPORATION IS RESPONSIBLE FOR LOSSES OR INCONVENIENCES,
OR FOR ANY CONSEQUENTIAL DAMAGES CAUSED BY THE PRODUCT.
SOME STATES/PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, AND SOME DO NOT ALLOW THE EXCLUSION
OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES.
This warranty gives you specific legal rights, and you may also have other rights,
which vary, from state to state, and province to province. Some of the limitations or
exclusions may not apply to you. THE ABOVE WARRANTY TERMS AND
CONDITIONS ARE VALID ONLY IN THE U.S.A.
Table of Contents
Package Contents ...............................................................1
Introduction & Notice ...........................................................1
Compatibility Information
Vehicle Compatibility ................................................2
Bluetooth Device Compatibility ................................3
Radio Compatibility for Music info Display ...............3
Installation
Installation Quick Guide & DIP Switch Settings .......4
Installation Instruction A: XM Tuner ..........................5
Installation Instruction B: Radio ................................6
Recommended Microphone Placement ...................9
Bluetooth Setup
Bluetooth Device Paring Information ......................10
Media Audio Streaming .....................................................11
Handsfree Phone Calls .....................................................12
AUX Input ..........................................................................13
Troubleshooting ................................................................14
Limited Warranty Information ............................................15
rev10072015
16397_BT45-HON3.indd 3 10/16/15 11:03 AM

1
14
BT45-HON3 Package Content
·1 Owner's Manual · 1 CAS-H3x & CAS-H3t cable
· 1 BT45 Interface module · 1 Microphone
Introduction
The BT45 seamlessly integrates your vehicle's OEM sound system
with Bluetooth (HFP) devices so you can make hands free phone
calls and stream your music. You can wirelessly connect your A2DP
Bluetooth profile equipped smartphone or tablet to playback stored
music or stream from your favorite music apps such as Pandora or
iHeart Radio. The BT45 also includes a 3.5mm auxiliary audio input
so you can play back music stored in your non-Bluetooth devices.
The BT45's plug & play technology takes advantage of the OEM
radio's ability to accept an external CD changer or Satellite Radio by
converting it into Bluetooth phone/audio streaming/AUX input source.
This design innovation allows you to maintain functionality of any of
the
following existing factory installed options: Bluetooth HandsFreeLink,
Navigation, CD changer, Satellite radio, RSE (rear seat entertainment
system), and AUX/USB input.
NOTICE
USA SPEC soley distributes its products through authorized
dealers in order to ensure its customers receive proper services
and information from the dealers. USA SPEC reserves the right
to only offer technical support or warranty services for products
purchased through authorized USA SPEC dealers. Please refer
to our website www.usaspec.com for a list of authorized dealers.
Installation/operation precautions:
· DO read the entire manual before starting the installation.
We recommend that the BT45 be installed by a qualified
professonal, since all installations will require the removal of
some parts of the vehicle such as dashboard, backseat, etc.
· DO install the interface securely using Velcro or wire ties (not
included) and keep away from any moving parts such as the gas
pedal.
· DO NOT open, disassemble, or modify the BT45 in any way.
Such attempts will void the warranty on the product.
· DO NOT expose the interface to extreme temperature, humidity,
or direct sunlight.
· DO NOT operate the Bluetooth device while driving. Always give full
attention to the road while driving.
Troubleshooting
• I can hear XM radio and media streaming playing at the
same time.
- Make sure you have disconnected the CAS-H3t. DO
NOT use the CAS-H3t cable if you're connecting to
the XM tuner (p. 6).
• The BT45 is connected to the radio but the XM button on
the radio does not work anymore.
- Make sure the CAS-H3t cable is connected to the
CAS-H3x cable (see p. 8).
• I'm unable to pair my smartphone/device
- If you have an Android device, make sure the "Only
visible to paired devices" option is UNCHECKED.
Sometimes it can take up to 30 seconds for the BT45 to
be detected by your device.
• My radio has a XM/AUX button but it will not display any
music info on the radio.
- Confirm that your device is equipped with Bluetooth
profile AVRCP 1.4 & higher and has the most
current operating system.
- Make sure the dip switch settings on the BT45 is
set correctly (see p. 4).
• The BT45's USB port will not charge my device.
- Please use data SYNC and CHARGE (USB 2.0
capability) cables. Not all USB cables on the market
support charging.
• I have a device connected to the BT45's AUX input and the
volume is very low.
- Turn the volume on your device to MAX then use the
radio's volume control to adjust to the desired level.
13 2
Compatibility Information
Vehicle Compatibility
Compatibility is subject to change. Please consult www.usaspec.com
for the most up to date vehicle application.
MODEL YEAR XM Tuner Location
Element
(double din radio only) 03 - 11 Behind right rear quarter panel in trunk
Accord 03 - 12 Behind right rear quarter panel in trunk
Accord Hybrid 05 - 12 Inside rear deck
Civic 06 - 11 Behind right rear quarter panel in trunk or
behind glovebox
Civic 2012 Under the radio
CRV 05 - 06 Behind left rear quarter panel in trunk
CRV 07 - 11 Behind glovebox
CRZ 10 - 12 Behind glovebox
Fit 07 - 13 XM receiver not available
Insight 10 - 12 Behind glovebox
Odyssey 05 - 10 Behind right rear quarter panel in trunk or
under driver's seat
Pilot 06 - 11 Behind right rear quarter panel in the trunk:
inside the subwoofer enclosure
Ridgeline 06 - 14 Behind rear wall panel or under driver's seat
S2000 04 - 09 In trunk
RL (Non-Nav) 05 - 09 Behind left rear quarter panel in trunk
RL (Nav) 05 - 09 USE BT45-ACU
TL (All Radios) 04 - 06 Behind right rear quarter panel in trunk
TL (Non-Nav) 07 - 08 Behind right rear quarter panel in trunk
TL (Nav) 07 - 08 USE BT45-ACU
MDX (Non-Nav) 05 - 12 Under right rear floor
MDX (Nav) 07 - 09 USE BT45-ACU
MDX (Nav) 05 - 06 Under right rear floor
TSX (All Radios w/XM) 04 - 08 Behind right rear quarter panel in trunk
TSX (All Radios w/o XM) 04 - 08 Connect at radio
RDX (Non-Nav) 07 - 09 Behind glovebox
RDX (Nav) 07 - 09 USE BT45-ACU
feafeafaeeafeaefaefa
feasssfeasafeawefaaewf
sfeasfeaeafeaeafafesefaw
Transferring an active call from Hands-free to
Handset
Radio with XM/AUX button
From radio: Press TUNE UP
button
From Steering wheel: Press
CH+ button
Press the same button again
to transfer the call back to the
Bluetooth Hands-Free mode.
Radio with CD/AUX button
From radio: Press TRACK/-
SEEK button.
From Steering wheel: Press
CH+ button.
Press the same button again
to transfer the call back to the
Bluetooth Hands-Free mode.
Chart 1: Vehicle Compatiblity & XM Tuner Location
For all non-XM radios, connect behind the radio
AUX Input
Aux 3.5 mm Audio Input
1. You will need a 3.5mm to headphone jack cable (not inluded
in the package)
2. Make sure DIP switch #1 is set to ON
Radio with XM/AUX button
Press the XM/AUX button,
then press Preset 6 to access
the audio device connected
to the AUX port.
Press the CD/AUX button,
then go to DISC 6 or DISC 9
to access the audio device
connected to the AUX port.
Note: Remember to manually adjust the volume of your audio
device to MAX after it's been connected.
Radio with CD/AUX button
16397_BT45-HON3.indd 4 10/16/15 11:03 AM

1 14
BT45-HON3 Package Content
·1 Owner's Manual · 1 CAS-H3x & CAS-H3t cable
· 1 BT45 Interface module · 1 Microphone
Introduction
The BT45 seamlessly integrates your vehicle's OEM sound system
with Bluetooth (HFP) devices so you can make hands free phone
calls and stream your music. You can wirelessly connect your A2DP
Bluetooth profile equipped smartphone or tablet to playback stored
music or stream from your favorite music apps such as Pandora or
iHeart Radio. The BT45 also includes a 3.5mm auxiliary audio input
so you can play back music stored in your non-Bluetooth devices.
The BT45's plug & play technology takes advantage of the OEM
radio's ability to accept an external CD changer or Satellite Radio by
converting it into Bluetooth phone/audio streaming/AUX input source.
This design innovation allows you to maintain functionality of any of
the
following existing factory installed options: Bluetooth HandsFreeLink,
Navigation, CD changer, Satellite radio, RSE (rear seat entertainment
system), and AUX/USB input.
NOTICE
USA SPEC soley distributes its products through authorized
dealers in order to ensure its customers receive proper services
and information from the dealers. USA SPEC reserves the right
to only offer technical support or warranty services for products
purchased through authorized USA SPEC dealers. Please refer
to our website www.usaspec.com for a list of authorized dealers.
Installation/operation precautions:
· DO read the entire manual before starting the installation.
We recommend that the BT45 be installed by a qualified
professonal, since all installations will require the removal of
some parts of the vehicle such as dashboard, backseat, etc.
· DO install the interface securely using Velcro or wire ties (not
included) and keep away from any moving parts such as the gas
pedal.
· DO NOT open, disassemble, or modify the BT45 in any way.
Such attempts will void the warranty on the product.
· DO NOT expose the interface to extreme temperature, humidity,
or direct sunlight.
· DO NOT operate the Bluetooth device while driving. Always give full
attention to the road while driving.
Troubleshooting
• I can hear XM radio and media streaming playing at the
same time.
- Make sure you have disconnected the CAS-H3t. DO
NOT use the CAS-H3t cable if you're connecting to
the XM tuner (p. 6).
• The BT45 is connected to the radio but the XM button on
the radio does not work anymore.
- Make sure the CAS-H3t cable is connected to the
CAS-H3x cable (see p. 8).
• I'm unable to pair my smartphone/device
- If you have an Android device, make sure the "Only
visible to paired devices" option is UNCHECKED.
Sometimes it can take up to 30 seconds for the BT45 to
be detected by your device.
• My radio has a XM/AUX button but it will not display any
music info on the radio.
- Confirm that your device is equipped with Bluetooth
profile AVRCP 1.4 & higher and has the most
current operating system.
- Make sure the dip switch settings on the BT45 is
set correctly (see p. 4).
• The BT45's USB port will not charge my device.
- Please use data SYNC and CHARGE (USB 2.0
capability) cables. Not all USB cables on the market
support charging.
• I have a device connected to the BT45's AUX input and the
volume is very low.
- Turn the volume on your device to MAX then use the
radio's volume control to adjust to the desired level.
13
2
Compatibility Information
Vehicle Compatibility
Compatibility is subject to change. Please consult www.usaspec.com
for the most up to date vehicle application.
MODEL YEAR XM Tuner Location
Element
(double din radio only) 03 - 11 Behind right rear quarter panel in trunk
Accord 03 - 12 Behind right rear quarter panel in trunk
Accord Hybrid 05 - 12 Inside rear deck
Civic 06 - 11 Behind right rear quarter panel in trunk or
behind glovebox
Civic 2012 Under the radio
CRV 05 - 06 Behind left rear quarter panel in trunk
CRV 07 - 11 Behind glovebox
CRZ 10 - 12 Behind glovebox
Fit 07 - 13 XM receiver not available
Insight 10 - 12 Behind glovebox
Odyssey 05 - 10 Behind right rear quarter panel in trunk or
under driver's seat
Pilot 06 - 11 Behind right rear quarter panel in the trunk:
inside the subwoofer enclosure
Ridgeline 06 - 14 Behind rear wall panel or under driver's seat
S2000 04 - 09 In trunk
RL (Non-Nav) 05 - 09 Behind left rear quarter panel in trunk
RL (Nav) 05 - 09 USE BT45-ACU
TL (All Radios) 04 - 06 Behind right rear quarter panel in trunk
TL (Non-Nav) 07 - 08 Behind right rear quarter panel in trunk
TL (Nav) 07 - 08 USE BT45-ACU
MDX (Non-Nav) 05 - 12 Under right rear floor
MDX (Nav) 07 - 09 USE BT45-ACU
MDX (Nav) 05 - 06 Under right rear floor
TSX (All Radios w/XM) 04 - 08 Behind right rear quarter panel in trunk
TSX (All Radios w/o XM) 04 - 08 Connect at radio
RDX (Non-Nav) 07 - 09 Behind glovebox
RDX (Nav) 07 - 09 USE BT45-ACU
feafeafaeeafeaefaefa
feasssfeasafeawefaaewf
sfeasfeaeafeaeafafesefaw
Transferring an active call from Hands-free to
Handset
Radio with XM/AUX button
From radio: Press TUNE UP
button
From Steering wheel: Press
CH+ button
Press the same button again
to transfer the call back to the
Bluetooth Hands-Free mode.
Radio with CD/AUX button
From radio: Press TRACK/-
SEEK button.
From Steering wheel: Press
CH+ button.
Press the same button again
to transfer the call back to the
Bluetooth Hands-Free mode.
Chart 1: Vehicle Compatiblity & XM Tuner Location
For all non-XM radios, connect behind the radio
AUX Input
Aux 3.5 mm Audio Input
1. You will need a 3.5mm to headphone jack cable (not inluded
in the package)
2. Make sure DIP switch #1 is set to ON
Radio with XM/AUX button
Press the XM/AUX button,
then press Preset 6 to access
the audio device connected
to the AUX port.
Press the CD/AUX button,
then go to DISC 6 or DISC 9
to access the audio device
connected to the AUX port.
Note: Remember to manually adjust the volume of your audio
device to MAX after it's been connected.
Radio with CD/AUX button
16397_BT45-HON3.indd 5 10/16/15 11:03 AM

3
12
Bluetooth Device Compatibility
BT45 is compatible with most Bluetooth-enabled devices including
iPhone, iPad, iPod Touch, Android smartphones & tablets, Blackberry,
and Nokia Windows smartphones. Device must have Bluetooth
profile A2DP (Advanced Audio Distribution Profile) and AVRCP
(Audio/Video Remote Control Profile) 1.4 or higher for audio
streaming and text display.
Note: Due to the difference in Bluetooth technology, some Bluetooth
enabled devices may be incompatible or may not support all the
features when used with a BT45.
Radio Compatibility for Music Info Display
The display of artist, album, and song title information on the
radio is determined by the following 3 factors:
1. Whether or not your radio has an XM button.
Satellite radio does not need to be activated nor does the tuner
need to be present. As long as the radio has an XM button, you
can get music info display.
2. Your device's operating system.
Music info display on your radio is available for:
· iPod, iPhone, and iPad with iOS 6.0 or higher
· Android devices with 4.0 (Ice Cream Sandwich) or higher
3. Your device's Bluetooth AVRCP profile must be 1.4 or higher.
Refer to your device's product manual to cofirm its profile version.
Incoming Call
1. The BT45 will mute the audio source (AM/FM, CD, XM, or AUX) you
are listening to.
2. You will hear “You have a call from (Caller’s phone #)” or “Private” if
Caller ID is not available. If the voice prompt*is disabled, you will
only hear the phone ringtone.
Radio with XM/AUX button
Radio will display incoming call’s
number or [PRIVATE]
To Answer the Call**
From radio: Press TUNE UP
button/knob
From steering wheel:
Press CH+ button. In some
vehicles you may need to press
& hold CH+ button.
Note: If a phone call comes in
while you’re in XM2, you must go
to XM1 first then press the
TUNE UP or CH+ button to
answer the call.
Once the call is answered, radio
will display [ACTIVE]
Radio with CD/AUX button
Radio is not capable of displaying
incoming call number
To Answer the Call
From radio: Press TRACK/SEEK
UP button/knob.
From steering wheel: Press CH+
Hands Free Phone Calls
*How to Enable/Disable Voice Prompt
• Turn engine ON
• Start audio streaming by going to XM1
• Turn Bluetooth off from your phone/device setting.
• Wait 5 seconds, turn TUNE (AUX/XM radio) or SEEK/TRACK
(CD/ AUX radio) knob to the right to ENABLE and turn to the left to
DISABLE.
To Reject or End the call
Press TUNE DOWN radio
button or CH- steering wheel
button
To Reject or End the call
PressTRACK/SEEK radio button
or CH- steering wheel button
11 4
ID Your Radio:
Does it have an XM/AUX or a CD/AUX button?
XM/AUX button
Radio is capable of
displaying music information
CD/AUX button
Radio is NOT capable of
displaying music information
Press the XM/AUX button
What do you hear?
XM Channel or
XM Preview
XM Tuner is present
Set DIP Switch
to XM Mode:
1 & 3 ON
2 & 4 OFF
Set DIP Switch
to XM Mode:
1 & 3 ON
2 & 4 OFF
Set DIP Switch
to CDC Mode:
1,2,3,4 ON
See Installation
Instruction A on
Page 5.
See Installation
Instruction B on
Page 7.
See Installation
Instruction B on
Page 7.
Nothing
XM Tuner is
NOT present
Installation
DIP Switch Setting and installation quick Guide
Device requires Bluetooth A2DP profile
• If you have music stored in your device, it will begin to play
right after the “CONNECTED” voice prompt. If playback doesn’t
start automatically, press TUNE UP or TRACK/SEEK UP to initiate
playbck.
• You can also proceed to access your favorite music/media app
such as Pandora or Podcast app directly from your device.
Radio with CD/AUX Button
Radio is NOT capable of
displaying artist, album,
and song titles.
BT45 will assign track
numbers to the currently
playing music.
Radio with XM/AUX Button
Device with AVRCP 1.4 & higher
Radio will display music information
such as artist, album, and song title.
Device with older AVRCP profile
Radio will display [NO TEXT] and
the BT45 will assign track numbers
to the currently playing music.
When you pause the music,
radio will display [PAUSED].
Media Audio Streaming
Playback control from your radio (Track Up/Down)
Device requires Bluetooth AVRCP profile
Radio with CD/AUX Button
· From radio: Press the
SEEK UP/DOWN button(s).
· From steering wheel:
Press the CH +/- button.
· After you paused the music
you can use the SEEK UP
button to start playback.
Radio with XM/AUX button
· From radio:
Press TUNE UP/DOWN
button(s)/knob.
·From steering wheel:
Press CH +/- button. In some
vehicles you may need to press &
hold the CH +/- button.
· After you pause the music, and the
radio display says [PAUSED], you
can use the TUNE UP button/knob
to start playback.
Music Playback Controls
16397_BT45-HON3.indd 6 10/16/15 11:03 AM

312
Bluetooth Device Compatibility
BT45 is compatible with most Bluetooth-enabled devices including
iPhone, iPad, iPod Touch, Android smartphones & tablets, Blackberry,
and Nokia Windows smartphones. Device must have Bluetooth
profile A2DP (Advanced Audio Distribution Profile) and AVRCP
(Audio/Video Remote Control Profile) 1.4 or higher for audio
streaming and text display.
Note: Due to the difference in Bluetooth technology, some Bluetooth
enabled devices may be incompatible or may not support all the
features when used with a BT45.
Radio Compatibility for Music Info Display
The display of artist, album, and song title information on the
radio is determined by the following 3 factors:
1. Whether or not your radio has an XM button.
Satellite radio does not need to be activated nor does the tuner
need to be present. As long as the radio has an XM button, you
can get music info display.
2. Your device's operating system.
Music info display on your radio is available for:
· iPod, iPhone, and iPad with iOS 6.0 or higher
· Android devices with 4.0 (Ice Cream Sandwich) or higher
3. Your device's Bluetooth AVRCP profile must be 1.4 or higher.
Refer to your device's product manual to cofirm its profile version.
Incoming Call
1. The BT45 will mute the audio source (AM/FM, CD, XM, or AUX) you
are listening to.
2. You will hear “You have a call from (Caller’s phone #)” or “Private” if
Caller ID is not available. If the voice prompt*is disabled, you will
only hear the phone ringtone.
Radio with XM/AUX button
Radio will display incoming call’s
number or [PRIVATE]
To Answer the Call**
From radio: Press TUNE UP
button/knob
From steering wheel:
Press CH+ button. In some
vehicles you may need to press
& hold CH+ button.
Note: If a phone call comes in
while you’re in XM2, you must go
to XM1 first then press the
TUNE UP or CH+ button to
answer the call.
Once the call is answered, radio
will display [ACTIVE]
Radio with CD/AUX button
Radio is not capable of displaying
incoming call number
To Answer the Call
From radio: Press TRACK/SEEK
UP button/knob.
From steering wheel: Press CH+
Hands Free Phone Calls
*How to Enable/Disable Voice Prompt
• Turn engine ON
• Start audio streaming by going to XM1
• Turn Bluetooth off from your phone/device setting.
• Wait 5 seconds, turn TUNE (AUX/XM radio) or SEEK/TRACK
(CD/ AUX radio) knob to the right to ENABLE and turn to the left to
DISABLE.
To Reject or End the call
Press TUNE DOWN radio
button or CH- steering wheel
button
To Reject or End the call
PressTRACK/SEEK radio button
or CH- steering wheel button
11
4
ID Your Radio:
Does it have an XM/AUX or a CD/AUX button?
XM/AUX button
Radio is capable of
displaying music information
CD/AUX button
Radio is NOT capable of
displaying music information
Press the XM/AUX button
What do you hear?
XM Channel or
XM Preview
XM Tuner is present
Set DIP Switch
to XM Mode:
1 & 3 ON
2 & 4 OFF
Set DIP Switch
to XM Mode:
1 & 3 ON
2 & 4 OFF
Set DIP Switch
to CDC Mode:
1,2,3,4 ON
See Installation
Instruction A on
Page 5.
See Installation
Instruction B on
Page 7.
See Installation
Instruction B on
Page 7.
Nothing
XM Tuner is
NOT present
Installation
DIP Switch Setting and installation quick Guide
Device requires Bluetooth A2DP profile
• If you have music stored in your device, it will begin to play
right after the “CONNECTED” voice prompt. If playback doesn’t
start automatically, press TUNE UP or TRACK/SEEK UP to initiate
playbck.
• You can also proceed to access your favorite music/media app
such as Pandora or Podcast app directly from your device.
Radio with CD/AUX Button
Radio is NOT capable of
displaying artist, album,
and song titles.
BT45 will assign track
numbers to the currently
playing music.
Radio with XM/AUX Button
Device with AVRCP 1.4 & higher
Radio will display music information
such as artist, album, and song title.
Device with older AVRCP profile
Radio will display [NO TEXT] and
the BT45 will assign track numbers
to the currently playing music.
When you pause the music,
radio will display [PAUSED].
Media Audio Streaming
Playback control from your radio (Track Up/Down)
Device requires Bluetooth AVRCP profile
Radio with CD/AUX Button
· From radio: Press the
SEEK UP/DOWN button(s).
· From steering wheel:
Press the CH +/- button.
· After you paused the music
you can use the SEEK UP
button to start playback.
Radio with XM/AUX button
· From radio:
Press TUNE UP/DOWN
button(s)/knob.
·From steering wheel:
Press CH +/- button. In some
vehicles you may need to press &
hold the CH +/- button.
· After you pause the music, and the
radio display says [PAUSED], you
can use the TUNE UP button/knob
to start playback.
Music Playback Controls
16397_BT45-HON3.indd 7 10/16/15 11:03 AM

5
10
Installation
Instruction A:
Connecting to
XM Tuner
Disconnect CAS-H3t
from CAS-H3x. DO NOT
use the CAS-H3t cable.
Install the BT45 interface
module in an easily
accessible location.
Install the microphone
See Diagram C (p. 9) for
recommended locations.
Connect Cable to XM tuner
See Diagram A (p. 6)
Locate XM tuner
See Chart 1 (p. 2)
Pair your Bluetooth
device (phone)
See p. 10 for instructions
Learn about audio streaming,
hands-free phone calls, and
AUX input on p. 11-13.
Make sure you have
completed all of the above
steps and made a couple of
test calls before putting
your car back together.
Installation Steps and Diagrams
Bluetooth Pairing Steps
1. Enable Bluetooth function on your device (phone)
2. Turn the vehicle’s ignition ON
3. Scan/search for available device from your phone.
- It may take up to 60 seconds for your phone to
locate the BT45-HON
Radio with XM/AUX button
4. Select the XM1 source
from your radio.
5. Select BT45-HON3 from
the list of available devices
your phone has detected.
6. Allow the pairing process
to take place.
7. Once the pairing is
complete, you will hear the
“CONNECTED” voice
prompt from your vehicle's
audio system and you will see
your device's name displayed
on the radio screen
i.e. USA SPEC Test Phone.
Radio with CD/AUX button
4. Select the CDC (CD Changer)
source by pressing the
CD/AUX button on your radio.
5. Select BT45-HON3 from the
list of available devices your
phone has detected.
6. Allow the pairing process
to take place.
7. Once the pairing is
complete you will hear the
“CONNECTED” voice
prompt from your vehicle's
audio system.
Bluetooth Setup
Note: Some devices may ask for a Pin # during the pairing process.
Pairing Pin # = 1234
Bluetooth Device Pairing Information
9 6
Diagram A: CAS H3X to XM TUNER
18 pin male
XM TUNER
CAS-H3X
TO RADIO
14-pin male
14-pin female
Diagram C: Recommended Microphone Placement
BT45 Interface Module
Factory XM Cable
DO NOT use the CAS-H3t cable if connection to XM Tuner
16397_BT45-HON3.indd 8 10/16/15 11:03 AM

510
Installation
Instruction A:
Connecting to
XM Tuner
Disconnect CAS-H3t
from CAS-H3x. DO NOT
use the CAS-H3t cable.
Install the BT45 interface
module in an easily
accessible location.
Install the microphone
See Diagram C (p. 9) for
recommended locations.
Connect Cable to XM tuner
See Diagram A (p. 6)
Locate XM tuner
See Chart 1 (p. 2)
Pair your Bluetooth
device (phone)
See p. 10 for instructions
Learn about audio streaming,
hands-free phone calls, and
AUX input on p. 11-13.
Make sure you have
completed all of the above
steps and made a couple of
test calls before putting
your car back together.
Installation Steps and Diagrams
Bluetooth Pairing Steps
1. Enable Bluetooth function on your device (phone)
2. Turn the vehicle’s ignition ON
3. Scan/search for available device from your phone.
- It may take up to 60 seconds for your phone to
locate the BT45-HON
Radio with XM/AUX button
4. Select the XM1 source
from your radio.
5. Select BT45-HON3 from
the list of available devices
your phone has detected.
6. Allow the pairing process
to take place.
7. Once the pairing is
complete, you will hear the
“CONNECTED” voice
prompt from your vehicle's
audio system and you will see
your device's name displayed
on the radio screen
i.e. USA SPEC Test Phone.
Radio with CD/AUX button
4. Select the CDC (CD Changer)
source by pressing the
CD/AUX button on your radio.
5. Select BT45-HON3 from the
list of available devices your
phone has detected.
6. Allow the pairing process
to take place.
7. Once the pairing is
complete you will hear the
“CONNECTED” voice
prompt from your vehicle's
audio system.
Bluetooth Setup
Note: Some devices may ask for a Pin # during the pairing process.
Pairing Pin # = 1234
Bluetooth Device Pairing Information
9
6
Diagram A: CAS H3X to XM TUNER
18 pin male
XM TUNER
CAS-H3X
TO RADIO
14-pin male
14-pin female
Diagram C: Recommended Microphone Placement
BT45 Interface Module
Factory XM Cable
DO NOT use the CAS-H3t cable if connection to XM Tuner
16397_BT45-HON3.indd 9 10/16/15 11:03 AM

7
8
Installation
Instruction B:
Connecting behind
the radio
Use the CAS-H3t and
CAS-H3x Cable. Do not
disconnect the two cables
Install the BT45 interface
module in an easily
accessible location.
Install the microphone
See Diagram C (p. 9) for
recommended locations.
Cable Connections
Refer to Diagram B (p. 8)
Remove radio from the
dash.
Pair the Bluetooth
Device (phone)
See p. 10 for instructions
Learn about audio streaming,
handsfree phone calls, and
AUX input on p. 11-13.
Make sure you have
completed all of the above
steps and made a couple of
test calls before putting
your car back together.

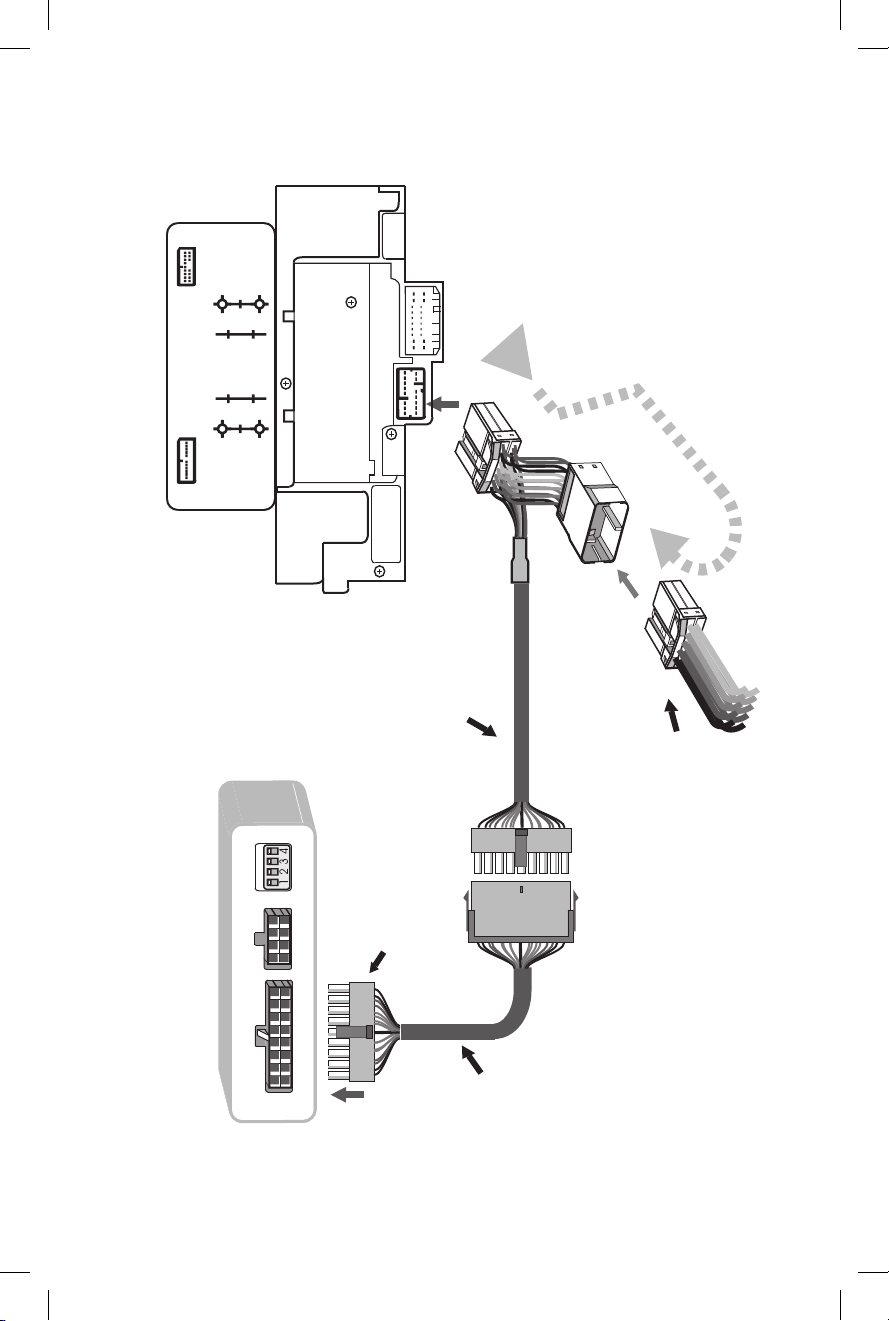

Diagram B: CAS H3T to Radio
18-pin male
CAS-H3x
Factory 14-pin
Radio Cable
14-pin female
14-pin male
CAS-H3t
TO RADIO
BT45 Interface Module
Radio
16397_BT45-HON3.indd 10 10/16/15 11:03 AM

7
8
Installation
Instruction B:
Connecting behind
the radio
Use the CAS-H3t and
CAS-H3x Cable. Do not
disconnect the two cables
Install the BT45 interface
module in an easily
accessible location.
Install the microphone
See Diagram C (p. 9) for
recommended locations.
Cable Connections
Refer to Diagram B (p. 8)
Remove radio from the
dash.
Pair the Bluetooth
Device (phone)
See p. 10 for instructions
Learn about audio streaming,
handsfree phone calls, and
AUX input on p. 11-13.
Make sure you have
completed all of the above
steps and made a couple of
test calls before putting
your car back together.
Diagram B: CAS H3T to Radio
18-pin male
CAS-H3x
Factory 14-pin
Radio Cable
14-pin female
14-pin male
CAS-H3t
TO RADIO
BT45 Interface Module
Radio
16397_BT45-HON3.indd 11 10/16/15 11:03 AM
