USASPEC BT45-TOY User manual

the newly engineered innovative
Bluetooth®music & phone interface
BT45-TOY
Lexus & Toyota
BT45-TOY
Product Manual
4Runner 98-11 Prius 04-11
Avalon 98-10 Rav4 98-11
Camry 98-12 Sequoia 02-12
Celica 98-06 Sienna 98-14
Corolla/Echo 98-12 Solara 98-11
FJ Cruiser 07-12 Tacoma 98-12
Highlander 01-12 Tundra 98-12
Land Cruiser 02-09 Venza 09-11
Matrix 05-12 Yaris 07-11
TOYOTA
XA, XB, XD 04-11
tC 05-11
Scion
ES 300/330/350/400H 02-10
GS 300/350/430/450H 05-09
GX 470 04-09
IS250/300/350 01-09
LS430/460 01-09
LX470 01-08
LX570 2009
RX 300/330/350/400H 00-09
LEXUS
Bluetooth®Music & Phone Interface for
Lexus & Toyota
Features:
•Android, Apple, Blackberry, & Windows compatible.
• Plug & Play installation and seamless integration with OEM
entertainment systems.
• Incoming number announcement & display (on supported
radios)
• Built in noise cancellation for crystal clear call quality.
• Full & rich all speaker playback for media streaming with
music info display (on supported radios).
• USB charging port and 3.5mm AUX port.
The Toyota and Lexus names and vehicle model names are trademarks owned by
or licensed to Toyota Motor Corporation.
www.usaspec.com
167 Mason Way, A-2
City of Industry, CA 91746
Above applica�on charts are for general references only. Please
check our website www.usaspec.com to verify specific applica�on.
* Vehicles with RSE & 01-03 Lexus require addi�onal cables
that must be purchased separately
All Speaker
Playback
3.5 mm
AUX Input
HandsFree
Phone Call
Wireless Media
Streaming
♬
USB
Charging

Table of Contents
Product Overview ...........................................................1
Notice ............................................................................1
BT45-TOY Package Content ............................................ 2
Compatibility Information
Bluetooth Device Compatibility ................................. 2
Radio & Device Compatibility for Music Info Display . 2
Vehicle Compatibility: Toyota & Scion....................... 3
Vehicle Compatibility: Lexus ..................................... 4
DIP Switch Settings & Emulation Mode.......................... 5
Installation
Installation Instruction ............................................. 6
Diagram A: Cable Connection ................................... 7
Diagram B: Recommended Microphone Locations ..... 8
Bluetooth Setup
Bluetooth Device Pairing Instructions ....................... 9
Media Streaming ........................................................ 10
Music Playback Control ............................................ 11
Hands Free Phone Calls
Answer & End Calls ..................................................12
Make Calls ............................................................... 13
Hands-free to Handset..............................................14
Enable & Disable Voice Prompt.....................................14
Aux Port....................................................................... 15
USB Charging Port........................................................ 15
Troubleshooting ..........................................................16
Limited Warranty .........................................................18
11032016

12
BT45-TOY Package Content
• 1 Product Manual
• 1 BT45 Interface Module
• 1 BT-TOY Cable + 1 CAS-TA Cable
• 1 Microphone
The BT45 seamlessly integrates your vehicle’s OEM sound system
with Bluetooth (HFP) devices for hands- free phone calls and media
streaming. You can wirelessly connect your A2DP Bluetooth prole
equipped smartphone or tablet to play stored music or stream the
audio from your favorite media apps such as, iHeart Radio,Pandora,
Spotify, and YouTube. The built in echo & noise cancellation
feature will give you crystal clear sound quality on your hands free
phone calls. The all-speaker playback feature will give you a rich &
dynamic music streaming quality. The BT45 has an additional 3.5
mm auxiliary audio port, so you can play music stored in your non-
Bluetooth devices. It also has a USB charging port so you can keep
you devices charged and ready to go.
The BT45’s plug & play technology takes advantage of the OEM
radio’s ability to accept an external CD changer or Satellite Radio
by converting it into Bluetooth phone/audio streaming/AUX
input source. This design innovation allows you to maintain
functionality of existing factory installed options such as,
Bluetooth HandsFreeLink, LiveTrac, Navigation, CD changer,
Satellite radio, RSE (rear seat entertainment system), and AUX/USB
input.
Notice
USA SPEC solely distributes its products through authorized
dealers in order to ensure its customers receive proper services
and information from the dealers. USA SPEC reserves the right
to only oer technical support or warranty services for products
purchased through authorized USA SPEC dealers. Please refer
to our website www.usaspec.com for a list of authorized dealers.
Installation/Operation Precautions:
• DO read the entire manual before starting the installation. We
recommend that the BT45 be installed by a qualied professional
since all installations will require the removal of some parts of
the vehicle such dashboard, backseat, etc.
• DO install the interface securely using Velcro or wire ties (not
included) and keep away from any moving parts such as the gas
pedal.
• DO NOT open, disassemble, or modify the BT45 in any way. Such
attempts will void the warranty on the product.
• DO NOT expose the interface to extreme temperature, humidity,
or direct sunlight.
• DO NOT operate the Bluetooth device while driving. Always give
full attention to the road while driving.
Product Overview
Compatibility Information
Bluetooth Device Compatibility
BT45 is compatible with most Bluetooth wireless technology enabled
devices currently on the market such as iPhone, iPad, iPod Touch,
Android smartphones & tablets, Windows smartphones & tablets,
and Blackberry. Devices must have Bluetooth prole A2DP (Advanced
Audio Distribution Prole) and AVRCP (Audio/Video Remote Control
Prole) 1.4 or higher for audio streaming and music info display.
Note: Due to the dierence in Bluetooth technology, some Bluetooth
enabled devices may be incompatible or may not support all of BT45’s
features.
Radio & Device Compatibility for Music Info
Display
The display of artist, album, and song title information on the radio is
determined by the following 3 factors
1. Your radio’s text display capability. Please see p.6 for detail.
2. Your device’s (smartphone) operating system: iOS 6 or higher,
Android 4.0 (Ice Cream Sandwich) or higher
3. Your device’s Bluetooth prole: AVRCP 1.4 or higher

3 4
LEXUS
ES 300 02 - 03 Requires CAS-LEX cable (1)
ES 330 04 - 06
ES 350 04 - 10
GS 300 05 - 06
GS 350 04 - 09
GS 430 05 - 07 Requires CAS-TLC cable (1)
GS 450H 07 - 09
GX 470 04 - 09
06 & older models with RSE (Rear
Seat Entertainment) require BT-
TOYR cable (1)
IS 250 06 - 09
IS 300 01 - 05 01-03 models require CAS-LEX
cable (1)
IS 350 06 - 09
LS 430 01 - 06 01-03 models require CAS-LEX
cable (1)
LS 460 07 - 09
LX 470 2001 For navigation radios only,
requires CAS-LEX cable (1)
LX 470 02 - 08 02-03 models require CAS-LEX
cable (1)
LX 570 2009
RX 300
(non-
Nakamichi
sys only)
00 - 03 with Nav Requires CAS-LEX cable (1)
00 - 03 without Nav
Requires CAS-TLC cable (1).
Must disconnect the 6 disc CD
changer and connect CAS-TLC (1).
RX 330 04 - 06
Models with RSE (Rear Seat
Entertainment) require BT-TOYR
cable (1)
RX 350 07 - 09
RX 400h 06 - 08
(1) CAS-LEX, CAS-TLC, and BT-TOYR cables are not included in the
package, must be purchased separately.
Vehicle Compatibility: Toyota & Scion
Toyota
4Runner 98 - 12 05 & older models with RSE (Rear Seat
Entertainment) requires BT-TOYR cable (1)
Avalon 98 - 10
Camry 98 - 12
Celica 98 - 06
Corolla 98 - 12
Echo 98 - 12
FJ Cruiser 07 - 12
Highlander 01 - 12 06 & older models with RSE (Rear Seat
Entertainment) requires BT-TOYR cable (1)
Land Cruiser 02 - 09 02-04 models requires CAS-TLC cable (1)
Matrix 05 - 12
Prius 04 - 11
Rav4 98 - 11
Sequoia 98 - 12 07 & older models with RSE (Rear Seat
Entertainment) requires BT-TOYR cable (1)
Sienna 98 - 14
98-02 models with steering wheel control
requires CAS-TLC cable (1)
05 & older models with RSE (Rear Seat
Entertainment) requires BT-TOYR cable (1)
Solora 98 - 11
Tacoma 98 - 12
Tundra 98 - 12 06 & older models with RSE (rear Seat
Entertainment) requires BT-TOYR cable (1)
Venza 09 - 11
Yaris 07 - 11
(1) CAS-TLC and BT-TOYR cables are not included in the package
must be purchased separately.
Scion
xA, xB 04 - 11
tC, xD 04 - 11
Vehicle Compatibility: Lexus

5 6
DIP Switch Settings & Emulation Mode
Pick one of the emulation mode by setting the DIP switches on the BT45
module according to the chart below. By picking an emulation mode
you are telling the radio which mode (CDC, CDC1, MP3, MD, DVD, or SAT)
you want to use for the BT45’s Bluetooth phone/audio source.
Emulation Mode
DIP Switches (down position is ON)
#1 #2 #3 #4 Music Info
Display
CDC
(default setting) ON OFF OFF ON
Yes: radios
with
logo
CDC1 ON ON ON ON
Yes: radios
with
logo
MP3 ON OFF ON OFF Yes
MD ON ON OFF ON Yes
SAT ON ON ON OFF Yes
DVD ON OFF ON ON
Yes: for 05
& newer
vehicles with
“MP3” logo
Nav radio
Installation
• If the radio has trouble recognizing the BT45-TOY, please follow
the above chart and try the other emulation modes by changing
the DIP switches accordingly.
• Use DVD mode for 05 & newer models equipped with navigation
radios with MP3 logo printed on the face.
• For Delphi radios (radio face-code that begins with the letters “AD”,
usually printed in white on the radio face) use either MD or SAT
emulation mode.
Install the microphone
See p.8for
recommended locations
Pair your Bluetooth
device (phone)
See p.9 for instructions
Learn about media
streaming, hands-free
phone calls, and AUX input
on p. 10-15
Make sure you have
completed all of the above
steps and have made
a couple of test calls before
putting your car
back together
Please see p. 16-17
for some common
troubleshooting Q &A
Remove the radio from
the dashboard
Remove all the CDs from
the radio’s in-dash
CD player/changer
Follow Diagram A
on p. 7
Install the BT45 interface
module in an easily
accessible location
Set the DIP switches
See p.6 for details
Installation Instruction

7 8

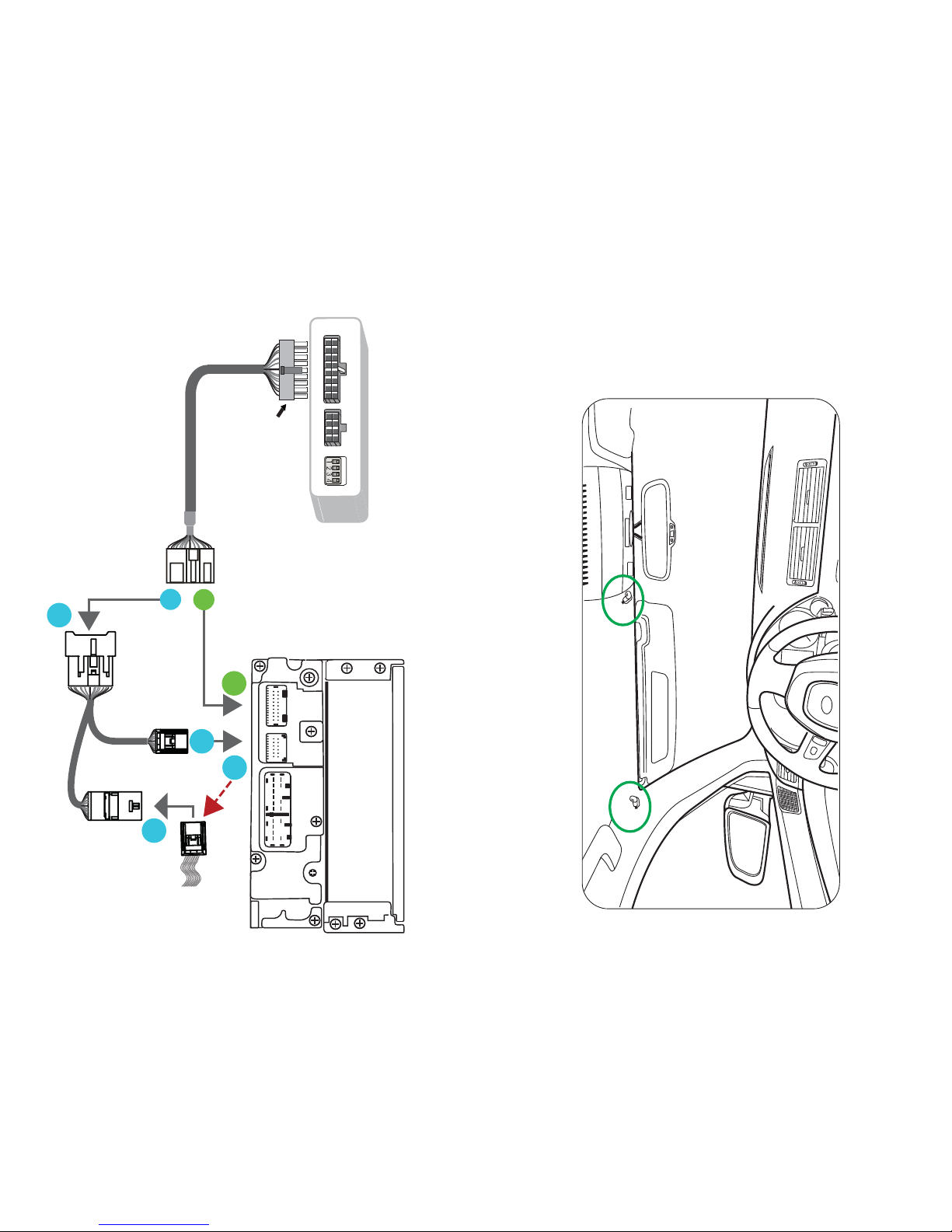

Diagram A: Cable Connection
18 pin male
BT-TOY
TO RADIO
BT45 Interface Module
CAS-TA
OR
Radio*
B
A
1
2
3
4
5
* The above depiction of the radio is a generalized depiction, your radio will look similar but not exactly the same.
Unplug the 12-pin factory cable
Diagram B: Recommended Microphone Locations

9 10
Bluetooth Setup
Bluetooth Device Pairing Instructions
1. Enable the Bluetooth function on your device (phone)
2. Turn your vehicle’s ignition ON
3. Scan/search for available device from your phone.
- It may take up to 60 seconds for your phone to
locate the BT45-TOY
4. Your radio will automatically
switch to SAT/XM audio
source
5. Select BT45-TOY from the
list of available devices your
phone has detected.
6. Allow the pairing process to
take place
7. Once pairing is complete you
will hear the “CONNECTED”
voice prompt from your
vehicle's audio system and
the radio will briefly display
the name of your device,
i.e. USA SPEC Test Phone.
Note: Some devices may ask for a Pin # during the pairing process.
Pairing Pin # = 1234
SAT Emulation Mode CDC, CDC1, MP3, MD, DVD
Emulation mode
4. Your radio will automatically
switch to CDC, CDC1, MP3,
MD, or DVD audio source
5. Select BT45-TOY from the
list of available devices your
phone has detected
6. Allow the pairing process to
take place
7. Once pairing is complete you
will hear the “CONNECTED”
voice prompt from your
vehicle's audio system and the
radio (if compatible) will briefly
display the name of your
device, i.e. USA SPEC Test
Phone.
Media Streaming
• If you have music stored in your device, it will begin to play right
after the “CONNECTED” voice prompt. If playback does not start
automatically, press TUNE UP or SEEK/TRACK UP to initiate playback.
• You can also proceed to manually start playback from your preferred
media app such as Pandora, YouTube, or Podcast app.
Press the SAT button to access
SAT/XM for Bluetooth source.
Once the BT45 is connected,
SAT/XM will become the
Bluetooth audio source.
Switching from AM/FM, CD, XM, & etc. to
Bluetooth Source
Press the DISC or CD button to
access CDC, CDC1, MP3, MD, or
DVD for Bluetooth source.
Once the BT45 is connected,
depending on how you have set
the dip switches, one of the above
mentioned source will become
the Bluetooth audio source
• If your radio is unable to display music info due to app or device
compatiblity (see p.2 for details) then the BT45-TOY will assign track
numbers to the currently playing audio tracks
SAT Emulation Mode CDC, CDC1, MP3, MD, DVD
Emulation mode

11 12
Music Playback Control
Track change, play/pause, volume control
From the radio:
Press/turn the TUNE UP/DOWN
button(s)/knob
Next & Previous Track
Play & Pause
1. Pause the media streaming
directly from your device
(phone)
2. Radio display will say
[PAUSED]
3. Press/turn the radio TUNE UP
button/knob to resume
streaming
Volume Up/Down
1. Set your device (phone)
volume to MAX
2. Use the radio or the steering
wheel’s volume control to
adjust the streaming volume
to the desired level
• The steering wheel control in SAT
mode is designed to perform PRESET
changes thus it can not be used to
change tracks during media
streaming
From the radio:
Press/turn the SEEK/TRACK
UP/DOWN button(s)/knob
From the steering wheel:
Press the TRACK UP/DOWN
button
Next & Previous Track
Play & Pause
1. Pause the media streaming
directly from your device
(phone)
2. Radio display will say [PAUSED]
3. Press/turn the radio
SEEK/TRACK UP button/knob
or the steering wheel TRACK
UP button to resume
streaming
Volume Up/Down
1. Set your device (phone)
volume to MAX
2. Use the radio or the steering
wheel’s volume control to
adjust the streaming volume
to the desired level
SAT Emulation Mode CDC, CDC1, MP3, MD, DVD
Emulation mode
When there is an incoming call:
1. The BT45 will automatically mute the audio source you are in
(AM/FM, CD, XM, & etc.) and switch into Bluetooth source.
This feature is not supoorted by Delphi radios with radio face-codes that
begin with the letters “AD” (usually printed in white on the radio face).
2. You will hear “you have a call from (caller #)” or “Private” if
caller ID is not available. If the voice prompt* feature is disabled
you will only hear the phone’s ringtone
* See p. 16 on how to enable/disable the voice prompt feature
From the radio:
Press/turn the TUNE UP
button/knob
* Delphi radios: press the SAT button to
manually switch to Bluetooth source
before initiating a call
Answer Calls
From the radio:
Press/turn the TUNE DOWN
button/knob
Once a call has ended it will
remain in the Bluetooth source,
you must manually select the
source you wish to go back to
End or Reject Calls
From the radio:
Press/turn the SEE/TRACK UP
button/knob
From the steering wheel:
Press the TRACK UP button
From the radio:
Press/turn the SEEK/TRACK
DOWN button/knob
From the steering wheel:
Press the TRACK DOWN button
Once a call has ended it will
remain in the Bluetooth source,
you must manually select the
source you wish to go back to
Answer Calls
End or Reject Calls
SAT Emulation Mode CDC, CDC1, MP3, MD, DVD
Emulation mode
Hands Free Phone Calls
Answer & End Calls

13 14
Transferring an active call from
Hands-free to Handset
While on a call
1. Press/turn the radio TUNE UP
button/knob to transfer the
call from hands-free to
handset
2. Press the same button again
to transfer the call back to
hands-free mode
While on a call
1. Press/turn the radio
SEEK/TRACK UP button/knob
or the steering wheel TRACK
UP button to transfer the call
from hands-free to handset
2. Press the same button again
to transfer the call back to
hands-free mode
1. Turn your vehicle’s ignition ON
2. go to Bluetooth source (SAT/XM or CDC & etc.)
3. Disable the Bluetooth function from your phone’s
setting
4. Wait 5 sec, then turn the TUNE or the SEEK/TRACK
knob to the right to ENABLE. Turn the same knob to
the left to DISABLE
* The above steps will disable both the voice prompt and
the caller # announcement features.
SAT Emulation Mode CDC, CDC1, MP3, MD, DVD
Emulation mode
(1) Please keep in mind that the environment inside a moving vehicle tends to be
noisier than your average environment. This will aect how accurately your phone’s
voice recognition function such as Siri picks up your voice commands .
1. Dial calls directly from your
phone
* Delphi radios: press the SAT button to
manually switch to Bluetooth source
before initiating a call
2. Or use your phone to engage
its voice dialing function (Siri/
Google Now). Once engaged,
your voice command will be
picked up by the BT45’s
microphone(1)
3. As soon as an outgoing call
is dialed, the BT45 will
automatically switch the audio
source to Bluetooth (XM1)
4. Press the radio TUNE DOWN
button to end a call
Once a call has ended it will
remain in the Bluetooth source,
you must manually select the
source you wish to go back to.
Make Calls
Make Calls
1. Dial calls directly from your
phone
* Delphi radios: press the CD or DISC
button to manually switch to
Bluetooth source before initiating
a call
2. Or use your phone to engage
its voice dialing function (Siri/
Google Now). Once engaged,
your voice command will be
picked up by the BT45’s
microphone(1)
3. As soon as an outgoing call
is dialed, the BT45 will
automatically switch the audio
source to Bluetooth (CDC)
4. Press the radio SEEK/TRACK
DOWN or the steering wheel
TRACK DOWN button to end
a call
Once a call has ended it will
remain in the Bluetooth source,
you must manually select the
source you wish to go back to.
SAT Emulation Mode CDC, CDC1, MP3, MD, DVD
Emulation mode
Make Calls Hands-free to handset
Enable & disable voice prompt

15 16
Aux 3.5 mm Audio Input
• You'll need a 3.5mm to headphone jack cable (not included
in this package)
Maximum charging output: 2.1 amps at 5 volt
(charging cable not provided)
SAT Emulation Mode
1. Press the TYPE/FOLDER UP
button or the PRESET 6
button to access the audio
device connected to the
AUX port
CDC, CDC1, MP3, MD, DVD
Emulation mode
1. Press the DISC UP button
for the DISC-6 button to
access the audio device
connected to the AUX port
• My vehicle has RSE and a er connec ng the BT45-TOY using the
cable that came with the package the volume has become very low.
For certain year model with RSE you’ll need to purchase a
separate BT-TOYR cable (see p. 4-5).
• How do I know if my car has RSE (rear seat entertainment) system?
If your vehicle has a DVD player in the back then it has RSE.
• My hands-free phone call volume is very low.
First adjust your phone volume to MAX then use the radio
volume controls to adjust to desired level.
• I’m unable to pair my smartphone/device.
1. Delete/forget the BT45-TOY from your phone’s Bluetooth
se ng. Reset your phone and try the pairing process again.
2. If you have an Android device, make sure the “Only visible to
paired devices” op on is UNCHECKED. Some mes it can take
up to 30 seconds for the BT45 to be detected by your
smartphone/device.
• I’m unable to use my steering wheel controls to answer calls or
control media playback.
The steering wheel control in SAT emula on mode is designed
to perform PRESET changes thus it CAN NOT be used to answer
call or to change tracks during media streaming.
In some vehicles you might be able to preform those func ons
by press and hold the steering wheel control’s TRACK UP/DOWN
bu on.
* If steering wheel control feature is important to you then you
can use the CDC emula on mode (you’ll need to make changes
to the dip switch se ngs, see p.6).
• My radio is not displaying any music info such as song  tles.
Confi rm that your device is equipped with Bluetooth profi le
AVRCP 1.4 or higher, it has iOS 6.0 or higher, or Android 4.0 or
higher.
Music streaming apps’ info display capabili es vary thus some
might not display properly on your radio.
TroubleshootingAux Port
USB charging port

17 18
Thank you for choosing a USA SPEC product. USA SPEC, Inc., is commi ed to providing
high quality defect-free products. All USA SPEC products are tested before leaving the
factory and warranted against defects in materials and workmanship for a period of one
year to the original owner. The one-year warranty period begins at the date of purchase
from an authorized dealer.
PRODUCTS COVERED:
Products and related accessories supplied by USA SPEC, Inc. with the brand name of USA
SPEC are covered by this warranty. Only products purchased in the USA are covered.
WARRANTY DOES NOT COVER:
1. Damage due to improper installa on or opera on, negligence, abuse, or not following
instruc ons, warnings or acceptable industry procedures.
2. Damage caused during the shipment or transporta on of the product. All claims of
this nature must be presented to the carrier.
3. Damage caused by acts of God, war, or civil disturbance, including without limita on,
fl ood, fi re, storms, earthquake or other acts of nature.
4. Any expenses or cost to remove or reinstall products.
5. Any product without the original serial number and factory seal, or has been serviced
or modifi ed without the authoriza on of USA SPEC.
6. Any product not distributed by an authorized USA SPEC dealer.
TO OBTAIN WARRANTY SERVICE:
Contact the Customer Service center for assistance at (626) 336 - 3836. A detailed
descrip on of the problem(s) is required for service. Proof of purchase is also required
when sending a product for warranty service. If the problem cannot be resolved and
the product must be returned for service, you will receive an authoriza on form from
the service center. The product must be delivered pre-paid to the service center. USA
SPEC will, at our op on, repair the product or replace it with a new or recondi oned
product, and if it was shipped to the service center, the return shipping will be pre-paid
free of charge provided the repairs are covered by the warranty. The product must be
packed securely for shipment to the service center in order to preserve the warranty and
prevent damage.
NO IMPLIED WARRANTY, INCLUDING MERCHANTABILITY AND FITNESS FOR USE APPLIES
TO THIS PRODUCT AFTER THE ONE YEAR PERIOD AS DEFINED ABOVE, AND NO OTHER
EXPRESSED WARRANTY OR GUARANTEE, EXCEPT AS MENTIONED ABOVE, GIVEN
BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL
BIND THE WARRANTOR. NEITHER THE WARRANTOR NOR ANY OTHER PERSON, FIRM,
OR CORPORATION IS RESPONSIBLE FOR LOSSES OR INCONVENIENCES, OR FOR ANY
CONSEQUENTIAL DAMAGES CAUSED BY THE PRODUCT. SOME STATES/PROVINCES DO
NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, AND SOME
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES.
This warranty gives you specific legal rights, and you may also have other rights, which
vary, from state to state, and province to province. Some of the limitaons or exclusions
may not apply to you. THE ABOVE WARRANTY TERMS AND CONDITIONS ARE VALID ONLY
IN THE U.S.A.
Limited warranty
For help with any additional issues, please contact tech support at
[phone] Mon-Fri: 9am-5pm PST
or e-mail us at [email protected]
Additional troubleshooting Q&A are available at
http://www.usaspec.com/t-faq.aspx
• The BT45’s USB port will not charge my device.
Please use data SYNC and CHARGE (USB 2.0 capability) cables.
Not all USB cables on the market support charging.
• I have a device connected through BT45’s AUX input and the
volume is very low.
Turn the volume on the actual device to MAX then use the
radio’s volume control to adjust the level.
