USP DURAMAX 10 Ft WoodSide User manual

• All Weather Durable PVC
• Won’t Dent, Rust, Rot or Mildew
• Tall Walk In Shed
• Never Needs Painting
• 61 Inch Wide Double Doors
• Easy Assembly
• High Wind Tested
• Snow Load Tested 20lbs/sq. foot
• Pad Lock Ready (Lock not included)
• Wooden or Cement Foundation Needed
Call us for any missing or damaged parts.
Do not return to the store.
Customer
Service Hotline
[phone]
www.uspolymersinc.com
Requires two people and takes about
4-5 hours for Installation.
Your Total Solution To Maintenance Free Storage Sheds.
Available Kits
• Foundation Kit Available
• Modular 2.5 Ft Extension Kits Available
• 10 Ft x 8 Ft Window Kits Available
Ver: 0.0
Building Dimensions :
Approximate
Size
Storage Exterior Dimension Interior Dimension
10 Ft x 8 Ft 79 Sq. Ft 480 Cu.Ft
Roof Edge to Edge
Base Dimension Door Opening
3.2 m x 2.4 m 7.3 Sq.m 13.6 Cu.m
Width
Depth
Height
inch cm
125 3/8 318.4
inch cm
94 1/4 239.3
125 1/2 318.7
95 1/8 241.6
91 231.2
inch cm
123 3/8 313.3
inch cm
92 1/4 234.3
60 5/8 154
71 1/2 181.6 73 185.5
Wall to Wall
Area Volume
OWNER’S MANUAL /
Instructions for Assembly ‘10 Ft WoodSide’
Size 10 Ft x 8 Ft / 3.2 m x 2.4 m (Approx.)
Vinyl Garden Shed
Vinyl Garden Shed
A Product of
TM
ALL PURPOSE VINYL GARDEN SHEDS

Duramax Garden Shed
Limited Fifteen Year Warranty
U.S. Polymer Inc. will send a replacement part free of charge, in the event of material defects and or
workmanship for a period of fifteen years from the date of purchase.
This warranty is extended only to the original purchaser. A purchase receipt or other proof of date of
original purchase will be required before warranty service is rendered. In no event shall we pay the
cost of flooring, labor, installation or any other costs related thereto.
This warranty only covers failures due to defects in material or workmanship which occurs during normal
use and does not extend to color change arising due to normal weathering or to damage resulting from
misuse or neglect, commercial use, failure to follow assembly instructions and the owner’s manual
(including proper anchoring of the shed), painting, forces of nature and other causes which is beyond
our control.
Claims under this warranty must be made within the warranty period by calling 1-800-483-4674 or mail
in a dated sales slip and clear photograph of the part to:
U.S. Polymers, Inc.
1057 S. Vail Ave,
Montebello, CA 90640.
We reserve the right to discontinue or change components. If a component has been discontinued
or is not available,
U.S. Polymers, Inc. reserves the right to substitute a component of equal quality as may be compatible.
Limits and Exclusions
There are no express warranties except as listed above. The warrantor shall not be liable for incidental
or consequential damages resulting from the use of this product, or arising out of any breach of this
warranty. All express warranties are limited to the warranty period set forth above . Some states do
not allow the exclusion or limitation on how long an implied warranty lasts, so the above limitations may
not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state
to state or country to country.
1

2
SAFETY & PRECAUTIONS
Before You Begin...
1. Check your local building codes regarding footings, location, etc.
2. Select a site that allows enough working space around the shed.
3. Determine building foundation and anchor system.
4. Read and understand the Owner’s manual enclosed in the package.
5. Follow all directions and dimensions thoroughly.
6. Follow the steps given in the manual carefully for correct assembly.
7. Make sure all parts are present before you start assembling.
8. BE SAFE : Follow safety instructions and avoid injury.
(See inside page).
9. GROUND MUST BE EVEN : Make sure the foundation frame lies flat on
the ground. If the earth bed is uneven, remove sod and other debris and
level it with a flat shoval.
10. Separate contents of the carton by the part number and review the list.
Be sure you have all the necessary parts for your shed.
Refer Owner’s manual for part list.
CAUTION
Sharp
Edges

3
SAFETY & PRECAUTIONS
For your own safety, please read and follow these instructions during the shed assembly.
1.Always wear work gloves, long sleeves and eye protection
during assembly of the shed. Some pieces of the shed
contain sharp edges and can cause injury.
2. Be cautious with the tools used for the assembly of the
shed. Familiarize yourself with the operation of all the
power tools.
3. Children and pets should be kept away from the assembly
site to avoid any distractions and accidents.
4. When using a step ladder, make sure it is on even
ground and fully open with the safety latch in place. Never
concentrate your full weight on the roof or any part of the
shed.
5. Do not attempt to assemble the shed on a windy day.
Shed panels can be whipped across by the wind making
the worksite difficult and dangerous.

4
IMPORTANT
Wear eye protection when using any form of power tools. Do not use voltage power tools in a wet or damp
enviornment to avoid electric shock.
Do not use any part of the shed as a means of personal support while attaching componets during assembly.
The shed must be constructed on a solid base foundation. A concrete pad or a large size concrete patio
stone squares is recommended for suitable floor base. Make sure it is firm and level and will allow drainage
away from the site. The base foundation should be at least 4 inches (100mm) larger than the shed dimensions.
Please refer to the front page of your owner’s manual for the exterior dimensions of the shed. Manufacturer is
not responsible for the choice and construction of the foundation.
For a concrete pad base, prepare a level bed for a firm footing layer of crushed stone. The concrete pad
should then be poured to a thickness of 4 inches (100mm) to 5 inches (125mm). Allow to dry thoroughly
for at least 48 hours
Your shed must be firmly anchored to the concrete pad or large concrete patio stone squares, to help protect
against damage in high winds.
Care & Maintenance
Although this unit does not require any maintenance, care should be taken to prolong the life
of your shed.
ROOF : Keep roof clean of leaves and snow with long handled, soft bristled broom. Heavy amounts
of snow on the roof can damage the shed making it unsafe. Do not step on the roof.
WALLS : Do not rest any object against the wall panels of the shed.
DOORS : Keep doors closed to prevent wind damage.
FASTENERS : Regularly check your shed for loose screws, bolts, nuts, etc. And retighten them as
necessary.
MOISTURE : With changing temperatures, condensation will accumulate inside the shed. Good
ventilation will help in regulating and avoid moisture.
TIP : A noncorrosive caulking is helpful to seal the shed.
DO NOT store swimming pool chemicals in your building.
Combustibles and corrosive must be stored in
air tight containers

Parts List
Cordless Drill - Philips Head
Hammer or Rubber mallet
Carpenters Square
8’ Step Ladder
Adjustable pliers
Level - 3ft.
Tape Measure
Caulk Gun
Waterproof Clear Silicon
Hand Gloves
Tools You Will Need
2. Maximum no. of Extension can be build
upto 10’x13’ (ie. T
wo Extension).
Note
3. Shed with more than two extensions
require Roof Super Support.
Recomended Qty of Roof Super Support
For 10’x8’ Vinyl Shed - 2Nos.
For additional each Extension - 1No.
1. Before starting installation, please refer
Safety & Precautions.
5
B1LA, B1RA, B21,
B22, B3LA, B3RA
CB1A, CB2A,
CB3XA, CB4A, MJ
RS1A1, RS3H,
RS3LH, RS8A1, RS9A1
RS5A1, RS6A1,
RS7A1
RS2A, RS10A1, RS4XA, RS11A1,
RS12A1
DSH1 RS14A
CDLA CDRA
CCA CMA
FDCL FDCR
FCB
FMC
FCCRJ EPS
CBC
PIN PPG & PWS S1, S2, S7
CODE QTY
B1LA 1
B1RA 1
B21 2
B22 2
B3LA 1
B3RA 1
CB1A 2
CB2A 2
CB3XA 4
CB4A 2
RS1A1 4
RS2A 4
RS3LH 2
RS3H 2
RS4XA 4
RS5A1 4
RS6A1 2
RS7A1 2
RS13A1 8
CODE QTY
FDCL 1
FDCR 1
FCC 4
FMC 7
FCB 4
RJ 4
EPS 4
CBC 3
L 1
R 1
VC 2
VCP 4
PPG 80
PIN 80
S1 254
S2 12
S3 32
S7 16
CODE QTY
RS8A1 4
RS9A1 4
MJ 7
RS10A1 2
RS11A1 2
RS12A1 2
RS14A 12
DSH1 1
CMA 7
CCA 4
CDLA 1
CDRA 1
SP 12
FPLA1 2
FPRA1 2
RPA1 6
RRS1 3
DL 1
DR 1
PARTS ACCESSORIES
S3
VC VCP
R
L
R

Exploded View
CB4A
CB1A
B1LA
B1RA
B21
B22
B22
B21
B3LA
B3RA
6
FPLA1
FPRA1
FPLA1
RS3LH
RS3H
MJ
RS3LH
RS3H
MJ
DSH1
RS1A1
RS8A1
RS9A1
RS2A
RS4XA
RS2A
RS4XA
RS13A1
RS7A1
RS12A1
RS10A1
RS11A1
RS2A
RS1A1
RS2A
RS5A1
RS13A1
CMA
CMA
CMA
CMA
CMA
CMA
CMA
CCA
CCA
CCA
CCA
CDLA
CDRA
CB3XA
CB2A
MJ
CB3XA
MJ
CB2A
CB3XA
MJ
CB3XA
CB1A
CB4A
RS1A1
RS9A1
DL
DR
RRS1
RRS1
RRS1
RPA1
RPA1
RPA1
RPA1
RPA1
RPA1
FPRA1
SP
SP
SP
SP
SP
SP
SP
SP
SP
SP
SP
SP
RS6A1
RS13A1
RS13A1
RS6A1
RS5A1

A. Foundation
7
1. Use pressure treated wood studs 2 x 4 (Actual
size 2” x 3 1/2”, 50mm x 88.9mm) to create a
platform frame that has an outside dimension of
96” x 127” (2438.4mm x 3225.8mm).
DuraMax must be installed on a level wooden
platform or a level concrete foundation.
2. Using exterior grade CDX 3/4” (19mm) plywood,
cut and fit together the sheets to form solid foundation
as shown. Foundation must be square and level.
The following are the list of lumber and sizes
you will need.
Wooden Platform (Not Included)
Pressure Treated - Wood Studs:
2ea 2” x 3 1/2” x 127” (50mm x 88.9mm x 3225.8 mm)
6ea 2” x 3 1/2” x 89” (50mm x 88.9mm x 2260.6 mm)
Exterior Grade (CDX) - 3/4” (19mm) plywood
2ea 3/4” x 48” x 96” (19mm x 1219.2mm x 2438.4mm)
1ea 3/4” x 31” x 96” (19mm x 787.4mm x 2438.4mm)
L-Brackets: 4ea
The shed must be constructed on a solid base
foundation. A concrete pad or a large size concrete
patio stone squares is recommended for suitable
floor base. Make sure it is firm and level and will
allow drainage away from the site.
The base foundation should be at least 4
inches(100mm)larger than the shed dimensions.
Please refer to the front page of your owner’s manual
for the exterior dimensions of the shed.
Manufacturer is not responsible for the choice
and construction of the foundation
Concrete Platform
Note For a concrete pad base, prepare a level bed for
a firm footing layer of crushed stone. The concrete
pad should then be poured to a thickness of 4
inches (100mm) to 5 inches (125mm). Allow to dry
thoroughly for at least 48 hours
If the shed is assembled with
wooden foundation on soil, use the
soil anchor kit.
Note
31”
787.4mm.
48”
1219.2mm.
48”
1219.2mm.
96”
2438.4mm.
Note : If you have DURAMAX Foundation, please follow instruction manual
in that package. If not, follow below wooden platform instruction.
Lay 2 x 4
(Actual size 2”x 3 1/2”, 50mm x 88.9mm)
Note
50
mm (2”)
88.9mm (3 1/2”)
31”
787.4mm.
24”
609.6mm.
24”
609.6mm.
24”
609.6mm.
24”
609.6mm.
96”
2438.4mm.
127”
3225.8mm.
L- BRACKET

8
Parts Needed:
B. Base Frame
Code Qty
B1LA 1
B1RA 1
B3LA 1
B3RA 1
B21 2
B22 2
S1 32
Note
S1
B22
B1RA
90O
Using a carpenter square, line up corners. Align
base bars, mark the concrete at the holes in the
base and drill concrete with 1/2” (dia. 12.5mm)
concrete bit to accept anchor bolts to a 1 3/4”
(44mm) depth. Replace base and secure with
1/4” x 1 1/2” (M6 x 40mm) anchor bolts
(Qty - 32Nos. not provided).
Assembly on concrete foundation
Note Measure in all direction as shown in
figure to make the base channel
assembly in a perfect.
1
M6 Anchor Bolt
Base ‘U’ Channel
Concrete
1. It is important that these instructions
are followed step by step.
2. All parts are clearly marked and care should
be taken to use the correct one.
3. Don’t install under windy conditions.
4. If you are building the shed against a wall,
build it 2.5 ft. away then slide it in.
S1
123 3/8”
3133mm.
123 3/8”
3133mm.
92 1/4”
2343mm.
92 1/4”
2343mm.
61 1/4”
1556mm.
B1RA
B22
B21
B3RA
B3LA
B22
B21
B1LA

9
C. Wall & Columns
1
Front
Fig.3
Fig.1
CDRA
Fig.2
CDRA
B1RA Right
Back Left
1
2&3
B1RA
CDRA
B1LA
B1RA
CDRA
S1
Parts Needed:
Code Qty
CMA 7
CCA 4
CDLA 1
CDRA 1
CB1A 2
CB2A 2
CB3XA 4
MJ 3
CB4A 2
FCB 4
CBC 3
SP 12
S1 63
S2 4
All parts are clearly marked and care
should be taken to use the correct
one.
Note

10
Check the stamped label on top of
all panels inside.
Note
SP
2
B1RA
CDRA
Fig.1
SP
Fig.2
CCA
B1RA B22
Fig.1
CCA
SP
Fig.3
CCA
S1
SP
S2
CCA
FCB
4
1
Fig.1
Do not tighten the screw.
Leave it loose
Note
Front
SP
CDRA
1
CCA
SP
1
2&3
B1RA
B22
3
CCA

Fig.3
CB4A
CB1A
EPS
11
S1
CB1A
CDRA
Fig.2
5
6
2
CB1A
CDRA
1
Fig.1
CB1A
S1
FCB
CB4A
B1RA
CDRA
1
2&3
CB4A
B1RA
Fig.1
S1
CB4A CDRA
Fig.2
S1
CB3XA
CB3XA
CB2A
S1
MJ
7
S1
CB2A
CB3XA
CB3XA
CB2A
S1
S1
CB3XA
CB3XA
MJ
MJ
MJ

12
Right Wall
S1
SP
CMA
SP
CMA
B22
B21
8
Fig.3
Fig.1
CB3XA
FCB
S1
CB3XA
S1
CMA
1&2
3
9
CB3XA CB1A
S1
Fig.2
CMA
SP
CMA
B21
Fig.3
CMA CB3XA
S1
CB2A
Fig.4
CBC
CB2A
CB3XA
CMA
SP
CMA
S1
2
3&4
10
Fig.1 Fig.2
1
1
2
Fig.1 Fig.2
CB3XA
CB2A
CMA
SP
CCA

13
Right Wall
SP
CCA
B21
2&3
B3RA
SP
CCA
Fig.1
B3RA
B21
CCA
Fig.2
Fig.3
B3RA
CCA
S1
1
CCA
Fig.1
FCB
CCA
S2
Do not tighten the screw.
Leave it loose.
Note
CB2A
S1
FCB
CCA
Fig.1
1
1
11
12
13
CB2A

14
Back Wall
SP
CMA
SP
CMA
B3RA
B3RA
2
Fig.2
Back Wall
CMA
3
1&2
Fig.1 Fig.2
CB3XA
FCB
S1
CB3XA
CB3A
S1
CB3XA
S1
CMA
Fig.3
Fig.3 Fig.4
SP
CMA
S1
Fig.2
2
3&4
CMA CB3XA
S1
CB3XA
CBC
CB3XA
CMA
CB3XA B3RA
14
15
16
SP
CMA
Fig.1
1
S1
1
Fig.1
CB3XA
CB3XA
CB3XA
SP
CCA
CMA

B22
B3LA
CCA
Fig.2 Fig.3
S1
B22
CCA
SP
CCA
15

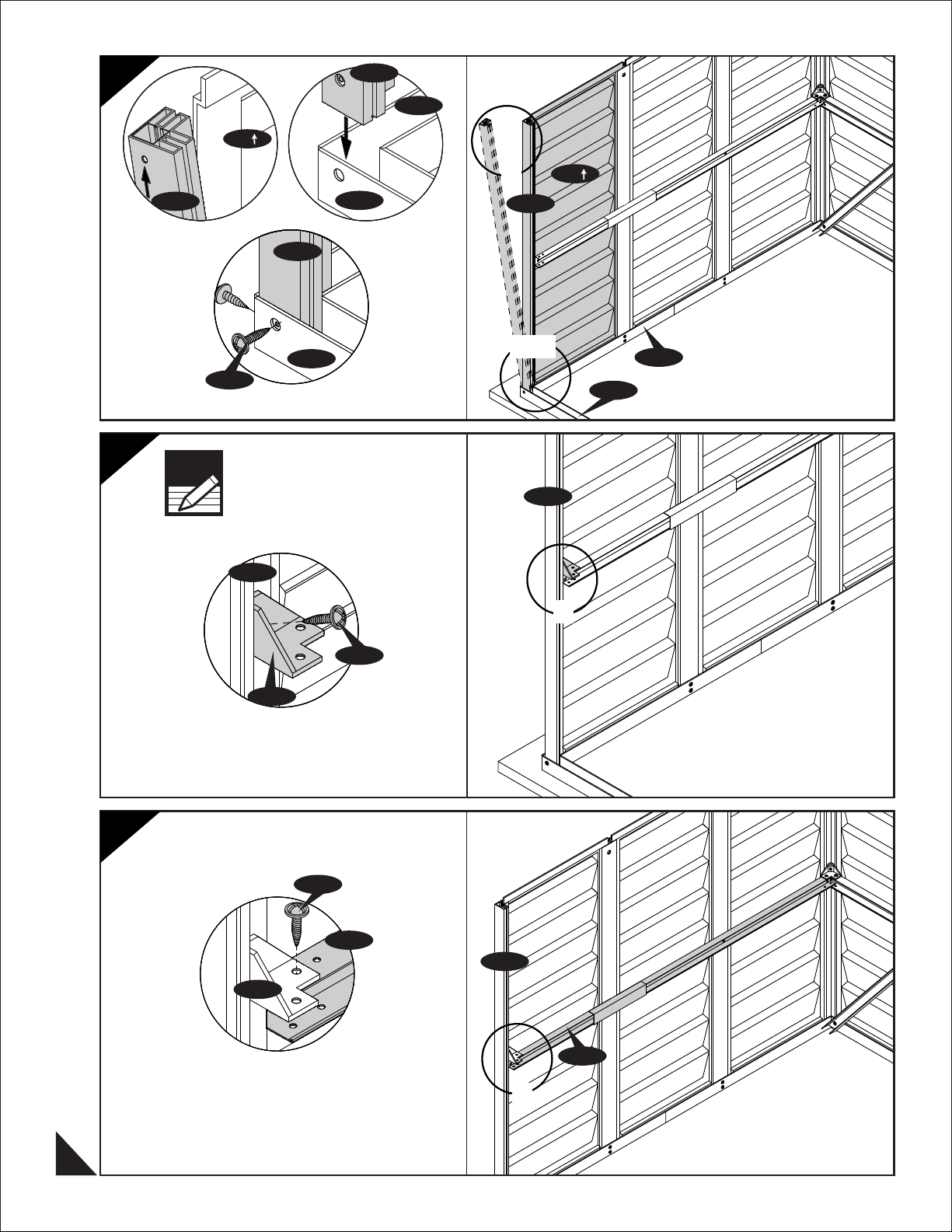

Back Wall
SP
CMA
2
SP
CMA
S1
Fig.2
CB3XA
S1
CMA
Fig.3 B3LA
3
Fig.1
CCA SP
B3LA
1
2&3
CCA
FCB
CCA
S2
Do not tighten the screw.
Leave it loose.
Note
1
17
18
19
1
Fig.1
CB3XA
CMA

16
Back Wall
CB3XA
S1
FCB
CCA
Fig.1
1
CB3XA
Left Wall
SP
CMA
S1
Fig.2
SP
CMA
CMA
Fig.1
CB2A
FCB
S1
CB2A CB3XA
S1 Fig.2
Fig.3 Fig.4
CMA CB2A
S1
CB3XA
CBC
CB2A
CMA
CB3XA
3&4
1&2
Left Wall
B22
B21
20
21
22
Fig.1
1
2
CB3XA
CB2A
SP
CCA

17
Do not tighten the screw.
Leave it loose
Note
Left Wall
S1
SP
CMA
Fig.2
CB3XA
S1
CMA
Fig.3
CMA SP
3
2
SP
CCA
B22
B21
B1LA
B21
CCA
Fig.2 Fig.3
S1
B1LA
CCA
SP
CCA
Fig.1
B1LA
Left Wall
2&3
1
FCB
CCA
S2
Fig.1
1
23
24
25
Fig.1
1
CMA
CB3XA

18
CCA
CB3XA
S1
FCB
Fig.1
CDLA
SP
Fig.1 Fig.2
CDLA
CDLA
B1LA
S1
SP
B1LA
Fig.1
CB1A
FCB
S1
Fig.3
Fig.2
After completing the center band
assembly, fully tighten the four center
band fittings (FCB) to the corner
column (CCA).
Note
1
1
2
CDLA
CB1A
1&3
2
CB1A
CDLA
S1
CB1A CB3XA
S1
CCA
26
27
28
Front
CB3XA

CDLA
CB4A
B1LA S1 CDLA CB4A
S1
Fig.1 Fig.2
Fig.3
CB4A
CB1A
EPS
CB4A
B1LA
2&3
1
61 1/4”
1556mm.
19
29
30
CDLA
CDRA
