USP DURAMAX 10x13 User manual

OWNER’S MANUAL /
Instructions for Assembly
• Strong & Secure Cabin
• Quick & Easy Assembly
• Metal Cladded Insulated Walls
• Wide Door with Lock
• Easily Expandable
Call us for any missing or damaged parts.
Do not return to the store.
Insulated Cabin
Size 10’ x 13’
Customer
Service Hotline
[phone]
www.duramaxbp.com
Requires two people and takes 4-5 hours for Installation.
Ver: 1.0
ALL PURPOSE INSULATED CABINS
Available Kits
• Foundation Kit Available
• Modular Extension Kits Available
• Window Kits Available

Note: Check all parts prior to installation.
CODE DESCRIPTION QTY
BC1C BASE ‘U’ CHANNEL FRONT LEFT / BACK RIGHT 2
BC2C BASE ‘U’ CHANNEL FRONT RIGHT / BACK LEFT 2
BC3C BASE ‘U’ CHANNEL SIDE 2
BC4C BASE ‘U’ CHANNEL SIDE 2
TC1C TOP ‘U’ CHANNEL FRONT LEFT / BACK RIGHT 2
TC2C TOP ‘U’ CHANNEL FRONT RIGHT / BACK LEFT 2
TC3C TOP ‘U’ CHANNEL SIDE 2
TC4C TOP ‘U’ CHANNEL SIDE 2
CCC CORNER COLUMN 4
DCLC DOOR COLUMN LEFT 1
DCRC DOOR COLUMN RIGHT 1
DSC DOOR STOPPER TOP / BOTTOM 2
CJC CENTER JOINT TOP ‘U’ CHANNEL 4
GSC GUTTER SUPPORT 4
GJC GUTTER JOINT 1
GPC GUTTER PIPE CLAMP 1
DSC DOOR STOPPER TOP / BOTTOM 2
LSRFF LEFT SIDE ROOF FLASHING FRONT 1
LSRFB LEFT SIDE ROOF FLASHING BACK 1
RSRFF RIGHT SIDE ROOF FLASHING FRONT 1
RSRFB RIGHT SIDE ROOF FLASHING BACK 1
FLRF FRONT LEFT ROOF FLASHING 1
FRRF FRONT RIGHT ROOF FLASHING 1
FLRFT FRONT LEFT ROOF FLASHING TOP 1
FRRFT FRONT RIGHT ROOF FLASHING TOP 1
CRJ CORNER JOINT 2
GUL LEFT GUTTER 1
GUR RIGHT GUTTER 1
DCV4 DRAINAGE PIPE 1
WA1 WALL PANEL 8
WA2 WALL PANEL 3
WA3 WALL PANEL 1
WA4 WINDOW CUT WALL PANEL 1
RPLC ROOF PANEL LEFT 1
RPCC ROOF PANEL CENTER 2
RPRC ROOF PANEL RIGHT 1
DOOR DOOR 1
Parts List
Hand Gloves
Cordless Drill - Philips Head
Screw driver - Philips Head
Carpenter’s Square
Eye Protector
8’ Step Ladder
Adjustable pliers
Level - 3ft.
Tape Measure
Hammer or Rubber Mallet
Caulk Gun
10mm Hex. Socket Bit

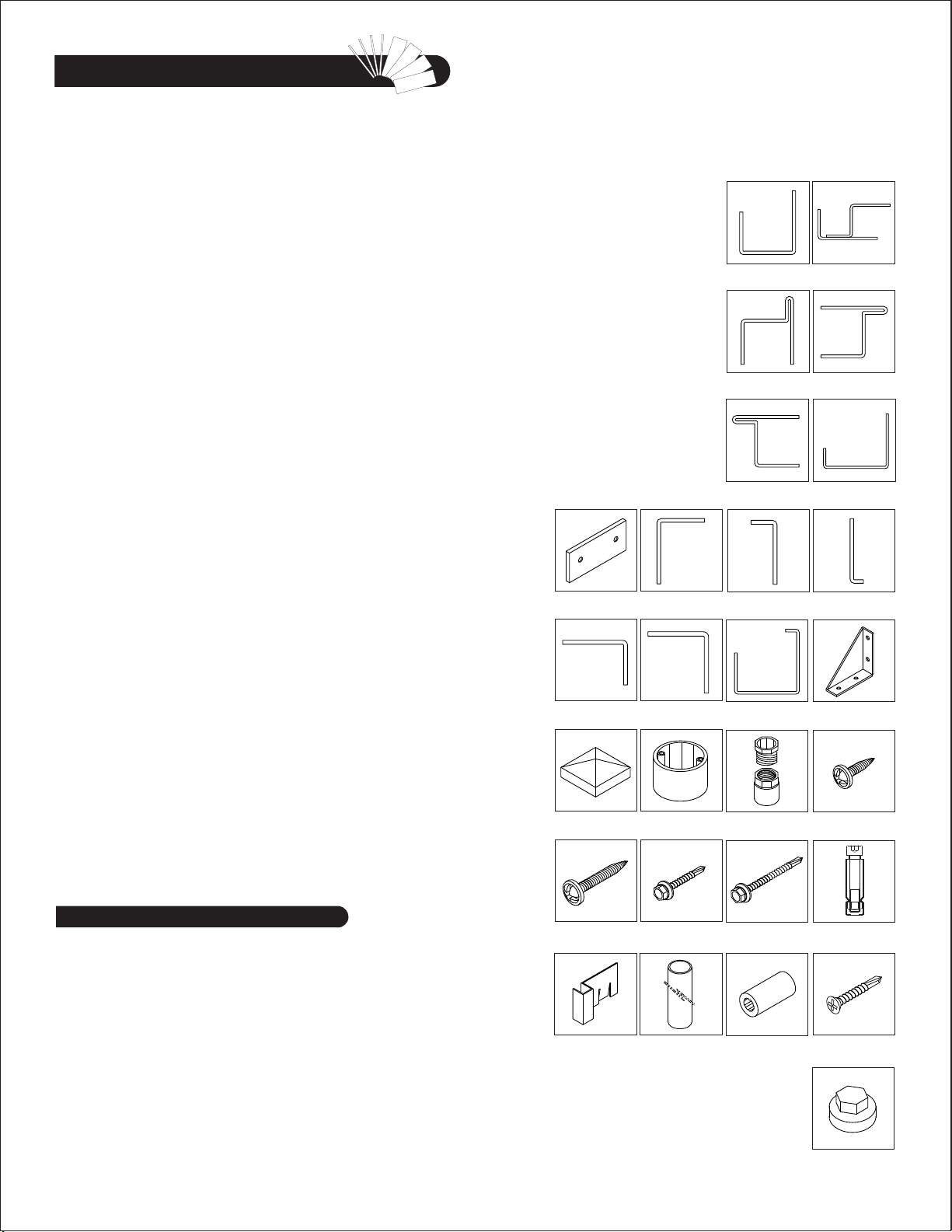

ACCESSORIES
CODE DESCRIPTION QTY
DNS NO SPOUT BOX 1
DFA4 FEMALE ADAPTOR 1
P2BE P2 BEVEL END CAP 2
SPC SPACER 12
S1 DIA. 4.2 x 16mm SHEET METAL SCREW 224
S2 DIA. 4.2 x 32mm SHEET METAL SCREW 4
S5 DIA. 4.2 x 45mm SHEET METAL SCREW 14
S10 DIA. 6.2 x 45mm SELF DRILLING SCREW 20
S11 DIA. 6.2 x 70mm SELF DRILLING SCREW 22
S12 ANCHOR BOLT 32
S13 DIA. 4.2 x 16mm SELF DRILLING SCREW 8
S14 SCREW CAP 42
SILICON CLEAR 2
DOOR LOCK WITH SCREWS 1
SUPER GLUE 1
IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.
Tools You Will Need
USE TWO PEOPLE TO HOLD WALLS.
CENTER JOINT TOP ‘U’
CHANNEL
(CJC)
FRONT ROOF FLASHING
TOP
(FLRFT, FRRFT)
CORNER JOINT
(CRJ)
P2 BEVEL END CAP
(P2BE) NO SPOUT BOX
(DNS)
SHEET METAL SCREW
(S5) SELF DRILLING SCREW
(S10)
LEFT SIDE ROOF FLASHING
(LSRFF, LSRFB)
DOOR COLUMN LEFT
(DCLC)
DOOR COLUMN RIGHT
(DCRC)
LEFT & RIGHT GUTTER
(GUL, GUR) GUTTER SUPPORT
(GSC)
FEMALE ADAPTOR
(DFA4)
SELF DRILLING SCREW
(S11)
SHEET METAL SCREW
(S1)
CORNER COLUMN
(CCC)
DOOR STOPPER
TOP & BOTTOM
(DSC)
BOTTOM & TOP ‘U’ CHANNEL
(BC1C, 2C, 3C & 4C)
(TC1C, 2C, 3C & 4C)
FRONT ROOF FLASHING
(FLRF, FRRF)
GUTTER JOINT
(GJC)
PROFILES
RIGHT SIDE ROOF
FLASHING
(RSRFF, RSRFB)
SPACER
(SPC)
DRAINAGE PIPE
(DCV4)
GUTTER PIPE CLAMP
(GPC)
SCREW CAP
(S14)
ANCHOR BOLT
(S12)
SELF DRILLING SCREW
(S13)

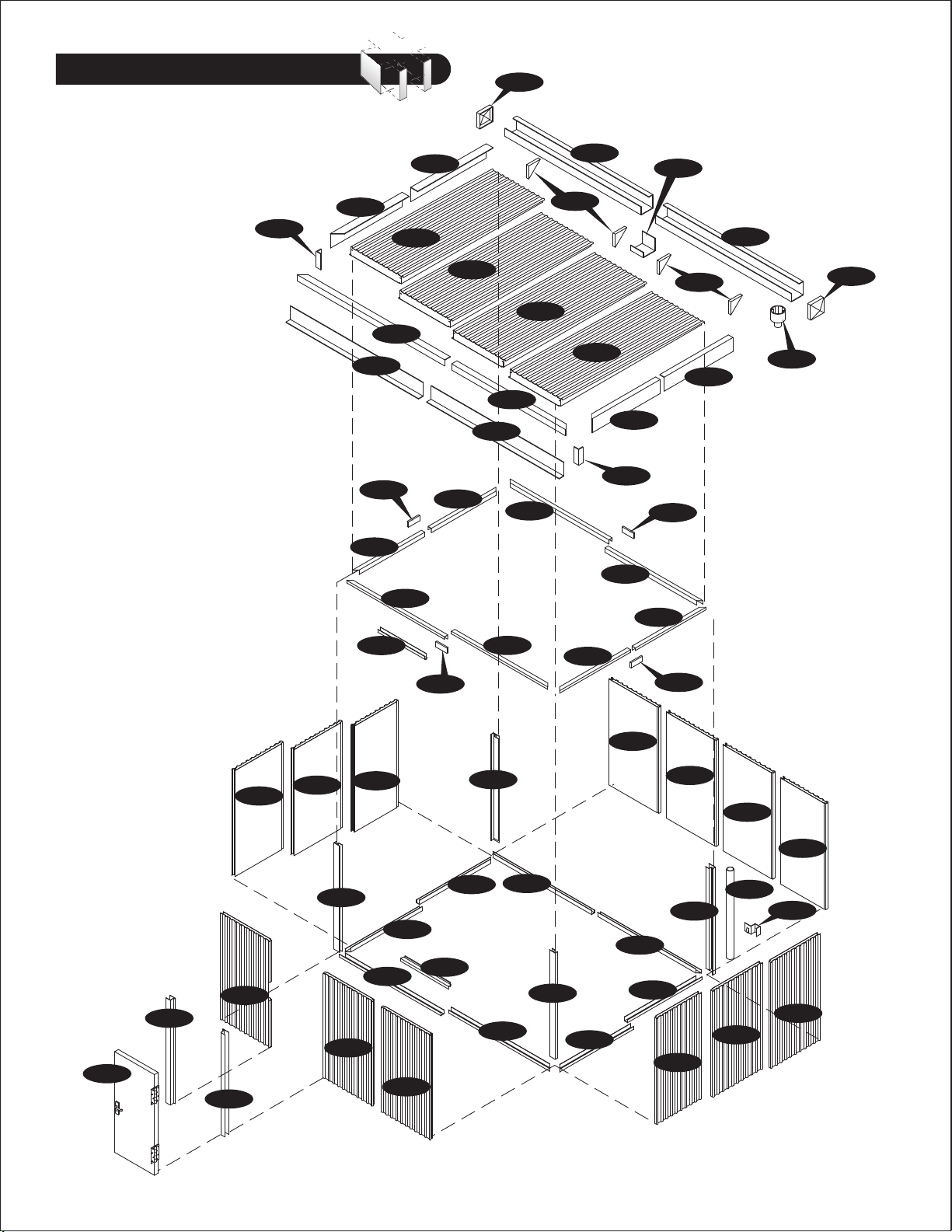

Exploded View
IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.
FLRFT
FRRFT
FLRF
FRRF
RPLC
RPCC
RPCC
RPRC
RSRFF
RSRFB
LSRFF
LSRFB GUL
GUR
P2BE
P2BE
CRJ
CRJ
GSC
GSC
GJC
DFA4
TC4C
TC3C
TC3C
TC4C
TC1C
TC2C
TC2C
TC1C
CJC
CJC
CJC CJC
DSC
CCC
CCC
CCC
CCC
WA1 WA1 WA2
WA1
WA1
WA1
WA2
WA1
WA1
WA2
WA1
WA1
WA3
BC4C
BC3C
BC1C
BC2C
BC2C
BC1C
BC4C
BC3C
DSC
DCV4 GPC
DCLC
DCRC
DOOR

Duramax Insulated Shed
Limited Seven Year Warranty
U.S. Polymer Inc. will send a replacement part free of charge, in the event of material defects and or
workmanship for a period of seven years from the date of purchase.
This warranty is extended only to the original purchaser. A purchase receipt or other proof of date of original
purchase will be required before warranty service is rendered. In no event shall we pay the cost of flooring,
labor, installation or any other costs related thereto.
This warranty only covers failures due to defects in material or workmanship which occurs during normal
use and does not extend to color change arising due to normal weathering or to damage resulting from
misuse or neglect, commercial use, failure to follow assembly instructions and the owner’s manual (including
proper anchoring of the shed), painting, forces of nature and other causes which is beyond our control.
Claims under this warranty must be made within the warranty period by calling 1-800-483-4674 or mail in
a dated sales slip and clear photograph of the part to:
U.S. Polymers, Inc.
6915 Slauson Avenue
Commerce, CA 90040
We reserve the right to discontinue or change components. If a component has been discontinued or is
not available,
U.S. Polymers, Inc. reserves the right to substitute a component of equal quality as may be compatible.
Limits and Exclusions
There are no express warranties except as listed above. The warrantor shall not be liable for incidental or
consequential damages resulting from the use of this product, or arising out of any breach of this warranty.
All express warranties are limited to the warranty period set forth above . Some states do not allow the
exclusion or limitation on how long an implied warranty lasts, so the above limitations may not apply to
you.
This warranty gives you specific legal rights and you may also have other rights which vary from state to
state or country to country.

1. To ensure a square footing on the base make the
line A & B as shown in fig.1. Check the corner
dimension as shown in fig.1. With a carpenter square
to ensure a 90 degree angle.
Note: It is important that these instructions
are followed step by step.
1
IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.
196 1/2 inches
116 1/4 inches.
158 7/16 inches.
AB
90O
2. Mark two parallel lines C & D to A & B as shown
in fig. 2.
158 7/16 inches
158 7/16 inches.
116 1/4 inches
116 1/4 inches
C
D
Fig. 1.
Fig. 2.
OPTION - 1
BASE ASSEMBLY :
Cabin must be installed on a level concrete foundation. Enclosed with this cabin is a Foundation kit,
please follow instructions & steps in Foundation
package for Foundation assembly.
OPTION - 2

Marking line
3. Place the base ‘U’ channels on the marked lines
as shown in fig.3 and ensure that all corners are 90
degree. Secure with (S12) foundation bolt.
2
IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.
4. The window panel (WA4) can be fixed at any
position as marked in fig.4.
BC2C
BC2C
BC1C
BC1C
BC3C
BC3C
BC4C
BC4C
BC2C BC4C
Window wall panel placing
WA4
FRONT
BACK
1
2
3
4
5
6
7
8
9
Front
Back
Outside
Inside
Anchor Bolt
Base ‘U’ Channel
Fig. 3.
Fig. 4.
Do not
install
window
Do not
install
window
Do not
install
window
Do not
install
window
OK
OK OK
OK
OK
OK
OK
OK
OK

3

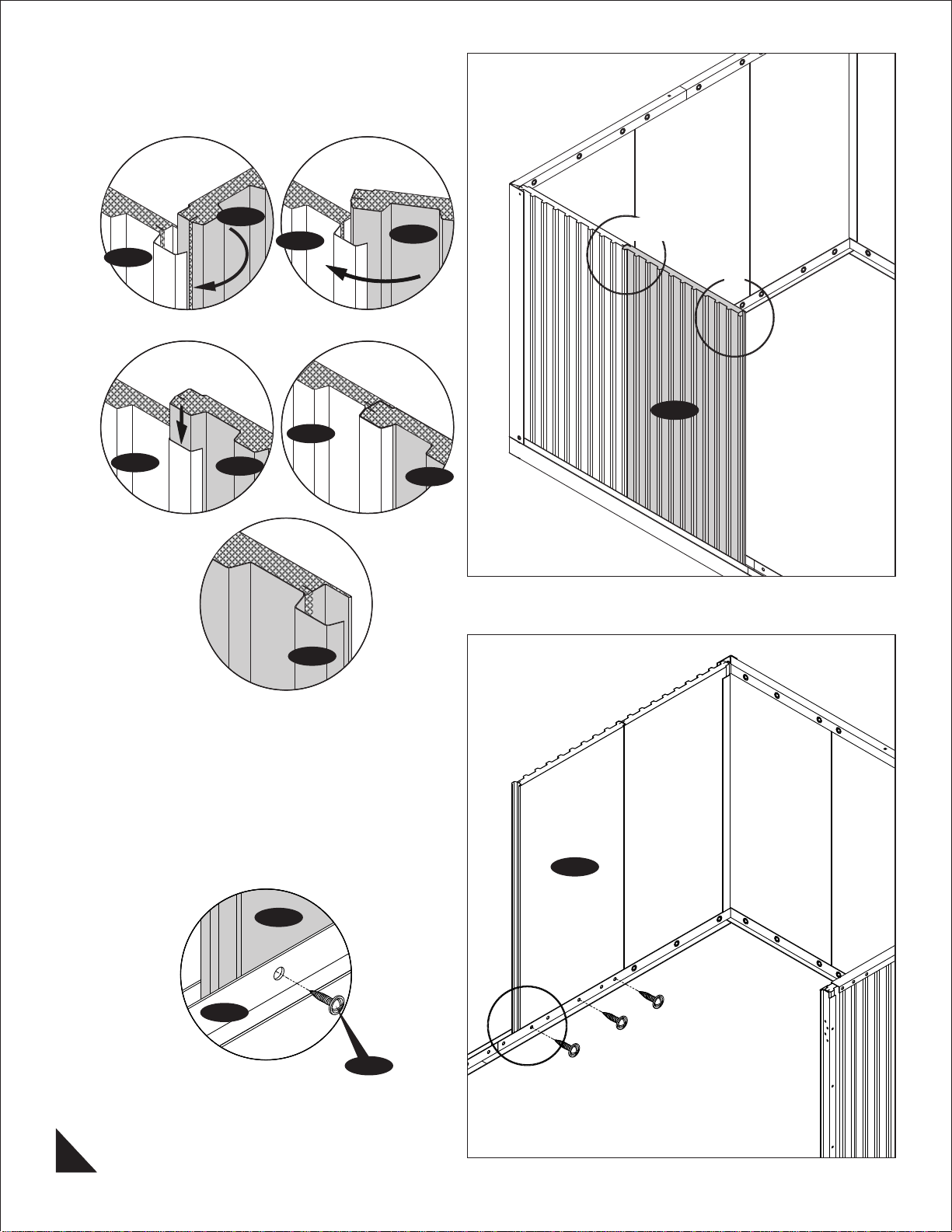

5. Insert the wall panel (WA2) into the base ‘U’
channel (BC4C) as shown in fig.
Make sure the panel edge position as shown in fig.
1&2. Edge must be touching at the corner of the
base ‘U’ channel. See fig.3.
Fig.1 Fig.2
Fig.3
1
2
3
6. Slide the corner column (CCC) into the wall
panel edge. See fig.1. Line up the holes with base
‘U’ channel and secure with (S1) screws from out
side. See fig.2. Make sure the wall panel is fully
inserted into the column. See fig. (Top view)
BC4C
BC2C
WA2
WA2 WA2
WA2
Front
Back
1
2
CCC
WA2
CCC
CCC
WA2
CCC
WA2
S1
Fig.1 Fig.2
Top View
BC4C
IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.
USE TWO PEOPLE FOR INSTALLATION.

4IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.
7. Secure the wall panel with base ‘U’ channel by
(S1) screws from inside.
Front
1
2Inside
BC4C
WA2
WA2
WA2
BC4C
CCC

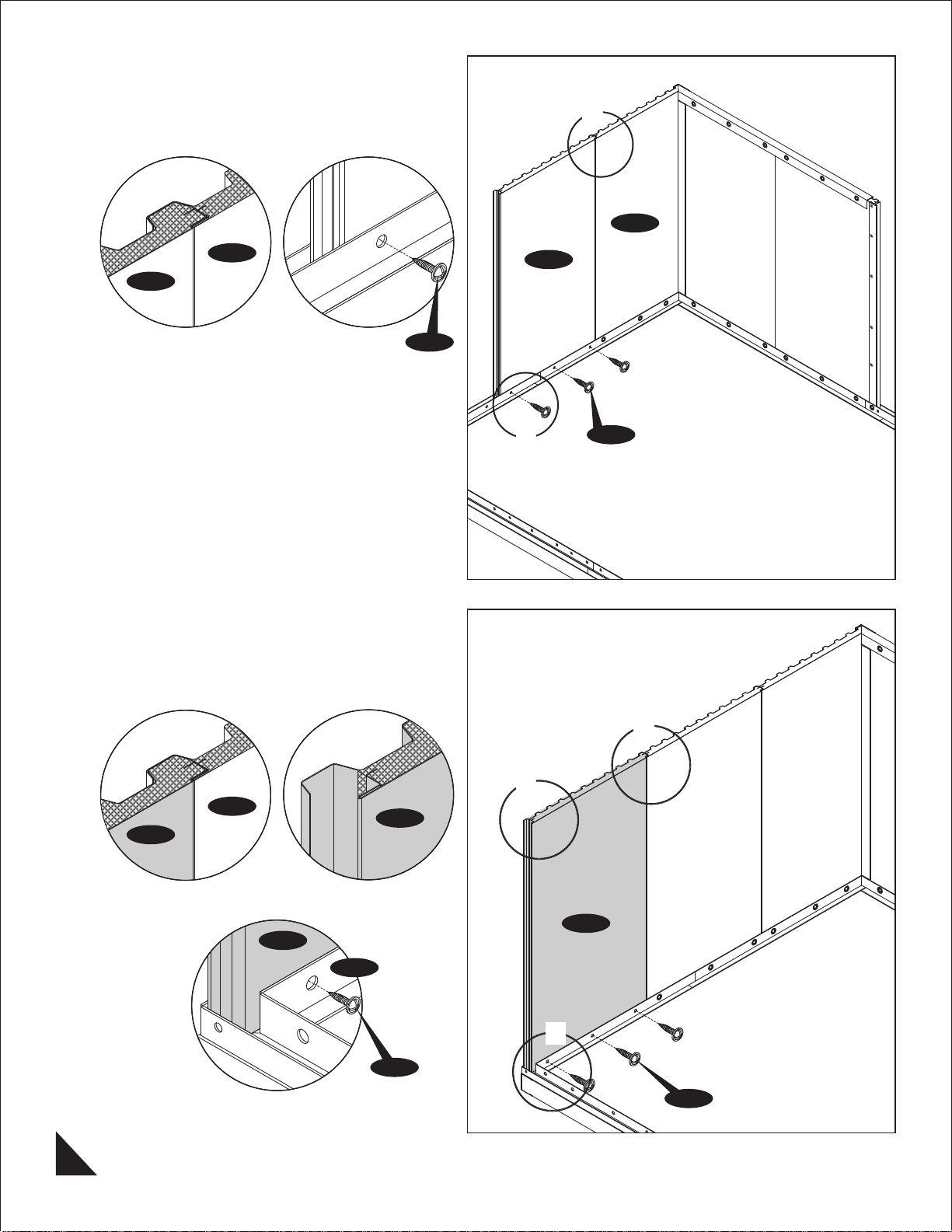

8. Insert the wall panel (WA1) into the base ‘U’
channel (BC2C), then slide into column as shown
in fig.1. Make sure the panel edges must be as
shown in fig.1,2&3. Secure the column with base
channel by (S1) screw from outside. See fig.4.
The wall panel must be
inserted fully into the
column. See top view
Note
Fig.1 Fig.2
Fig.1 Fig.2
Fig.3 Fig.4
Top view
WA1
1&3
2
4
WA1 WA1
WA1
WA1
CCC
CCC
CCC
CCC
S1
S1
BC2C
Front
Back
BC2C
USE TWO PEOPLE FOR INSTALLATION.
BC4C
S1

5
IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.

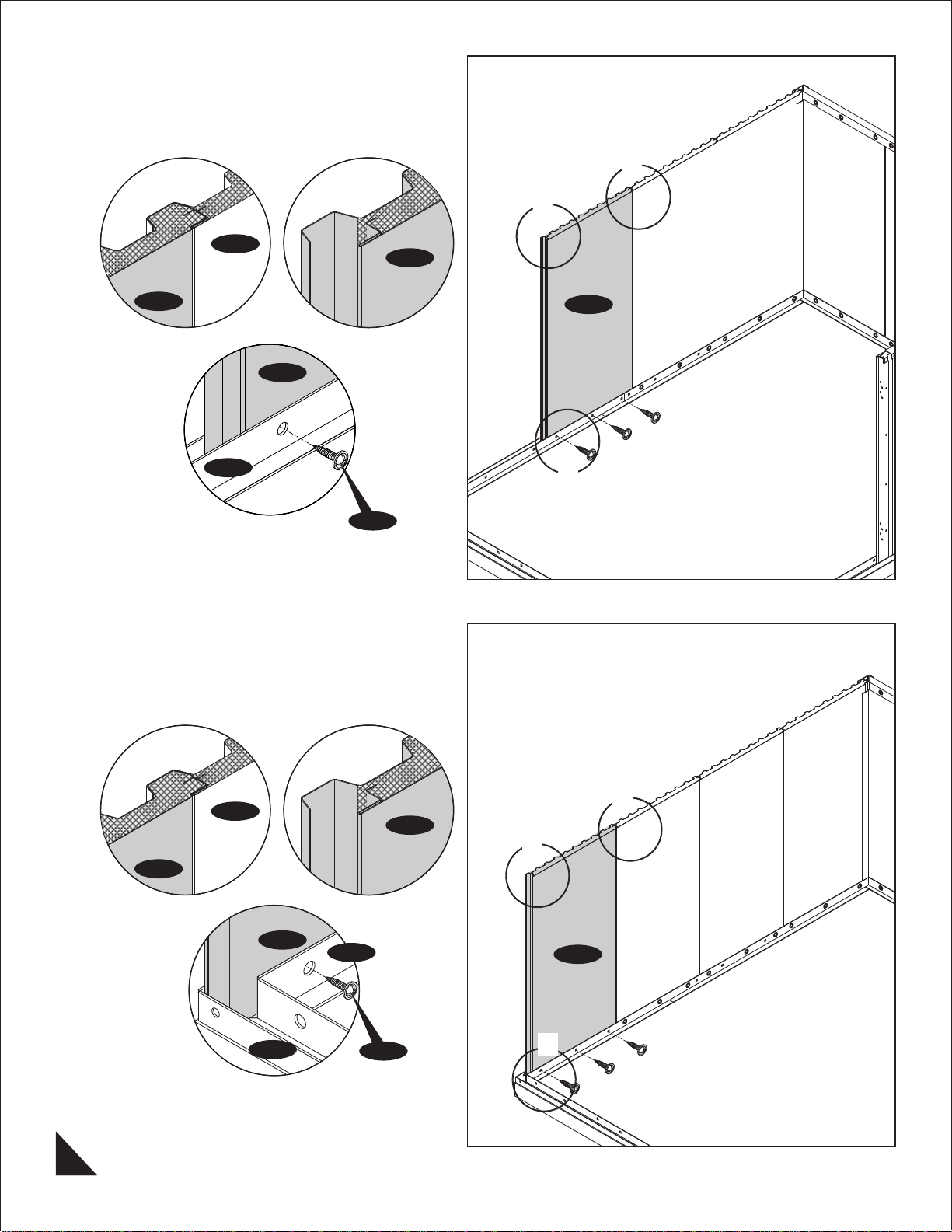

9. Insert the wall panel (WA1) into the base ‘U’
channel (BC2C) as follow in fig.1,2,3&4.
Front
1 2 3 & 4
5
BC2C
Fig.1 Fig.2
Back
WA1
WA1
WA1
WA1
WA1
WA1 WA1
Fig.3 Fig.4
WA1
Fig.5

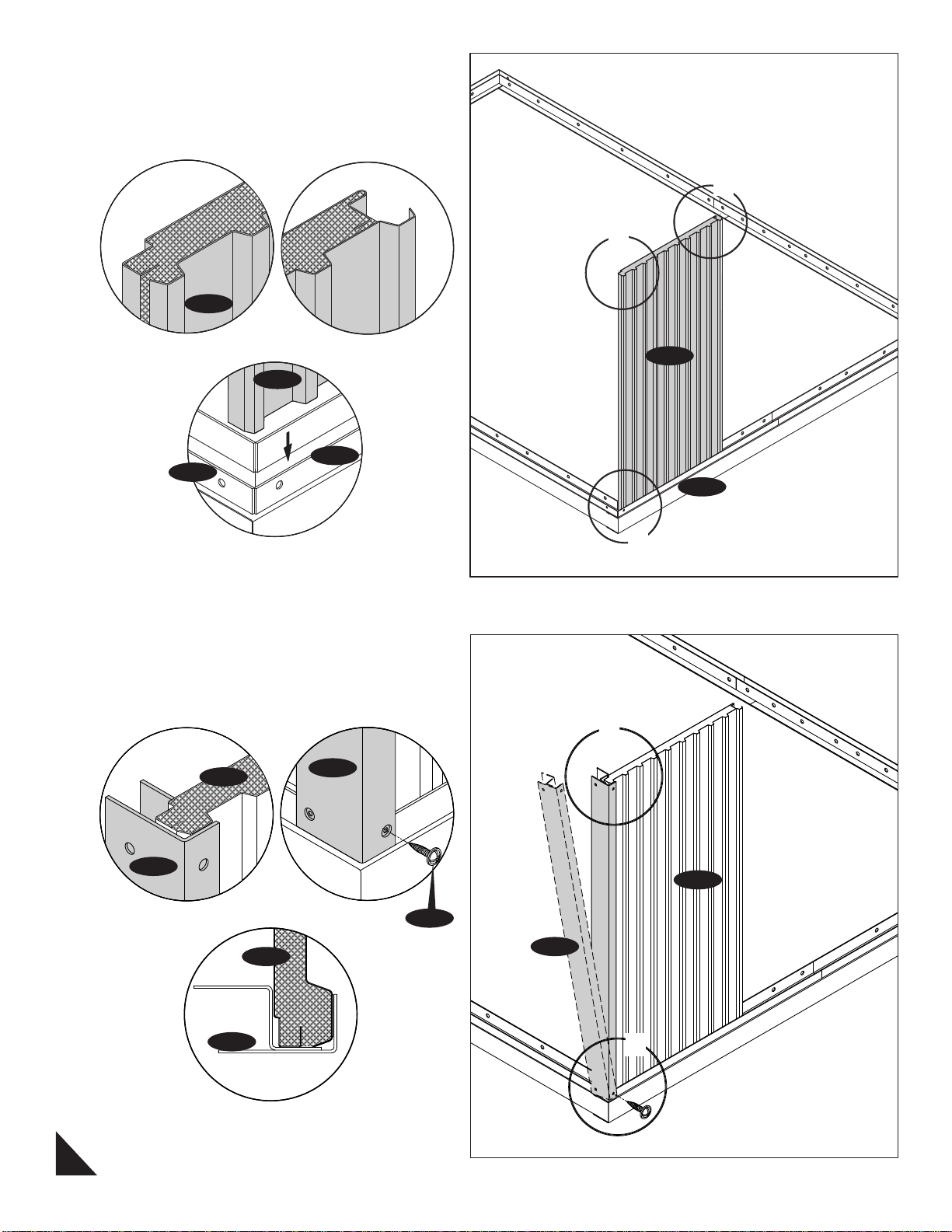

10. Insert the door column (DCRC) in the base
‘U’ channel as well as with wall panel (WA1) See
fig.1&2.
The bottom of the door column should be in between
the ‘U’ channel and wall panel. See fig.2. Secure
the column with base ‘U’ channel by (S1) screws
from inside. See fig.3.
Fig.1 Fig.2
Fig.3
WA1
DCRC
Front
Inside
BC1C
1
2 & 3
WA1
DCRC
DCRC
WA1
S1
BC1C
DCRC
S1

6
IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.
11. Secure the wall panel with base ‘U’ channel
by (S1) screws from inside.
Front
WA1
BC2C
S1
Inside
12. Insert the top ‘U’ channel (TC2C) on top of
the wall panel. Make sure the edge of the top ‘U’
channel is inserted in between the wall panel and
corner column. Line up the pre drilled holes and
secure by (S1) screw with column.
CCC
S1
TC2C
1 & 2
TC2C
TC2C
CCC
Fig.1 Fig.2
WA1
S1

7

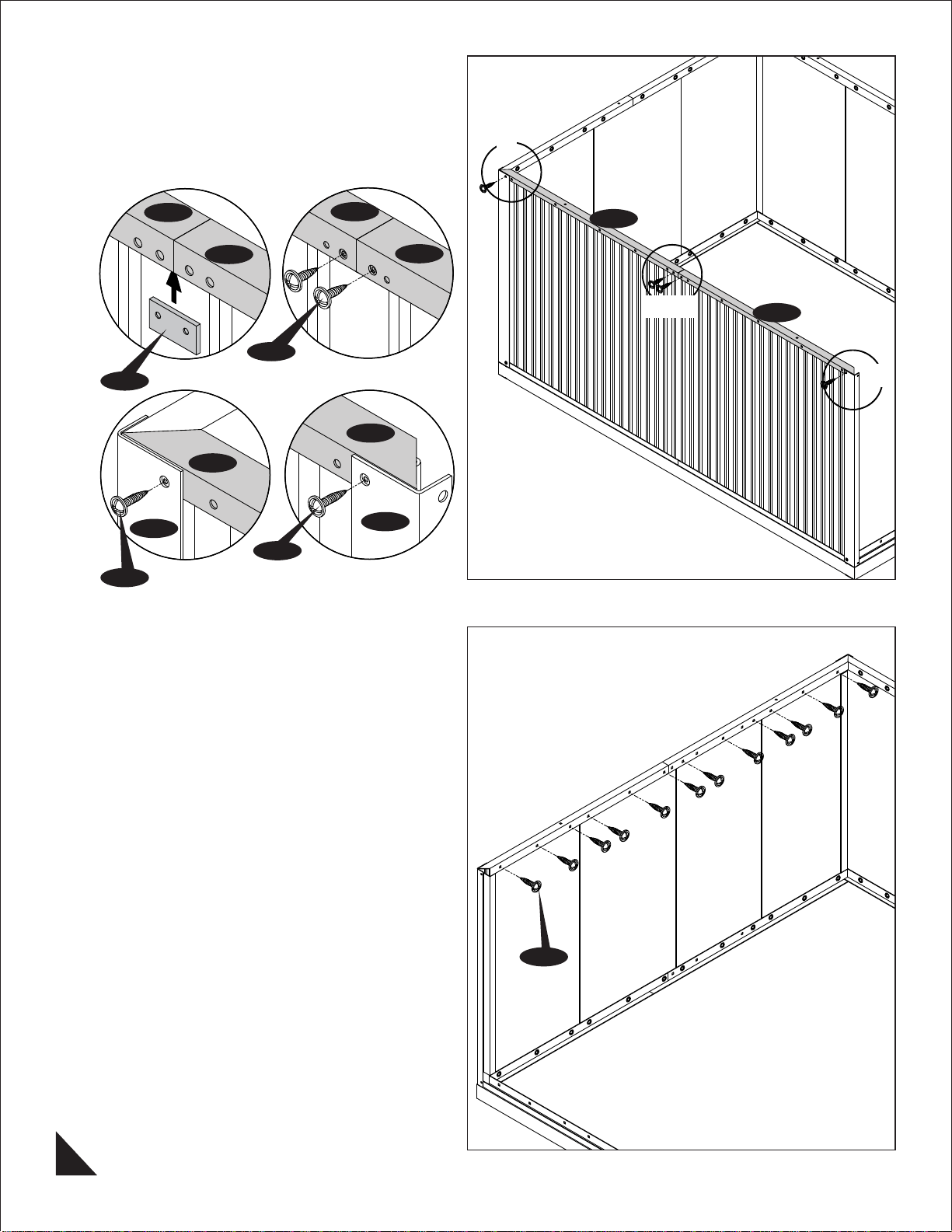

IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.
13. Secure the top ‘U’ channel with wall panel by
using (S1) screws from inside.
Inside
WA1
WA1
TC2C
S1
14. Insert the wall panel (WA1) into the wall panel
(WA2) and base ‘U’ channel. Follow the fig.1,2,3
& 4. Make sure the panel edges as shown in fig.1&5
Front
WA1
Back
Fig.1 Fig.2
Fig.3 Fig.4
Fig.5
1, 2, 3 & 4
5
WA2
WA1
WA2
WA1
WA2
WA1
WA2 WA2
WA1
WA1

8
IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.
15. Make sure the panel join must be as shown
in fig.1. Secure the wall panel with base ‘U’channel
by using (S1) screws from inside.
Inside
WA1
S1
Back
WA2
1
2
WA1
WA2
16. Continue the assembly of wall panel (WA1).
Secure the wall panel with base ‘U’ channel by
using (S1) screws from inside.
S1
1
2
WA1
WA1
3
WA1
WA1
WA1
BC3C
Back
Fig.1 Fig.2
Fig.1 Fig.2
Fig.3
S1
S1

9
IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.
17. Slide the corner column (CCC) into the wall
panel edge. See fig.1&2. Lineup the holes with
base ‘ U’ channel and secure with (S1) screws from
out side. See fig.3. Make sure the wall panel must
be inserted fully into the column. See top view.
S1
1 & 2
CCC
Fig.1 Fig.2
Fig.3 Top View
WA1
Back
CCC
WA1
CCC
WA1
CCC
BC3C
CCC
WA1
3

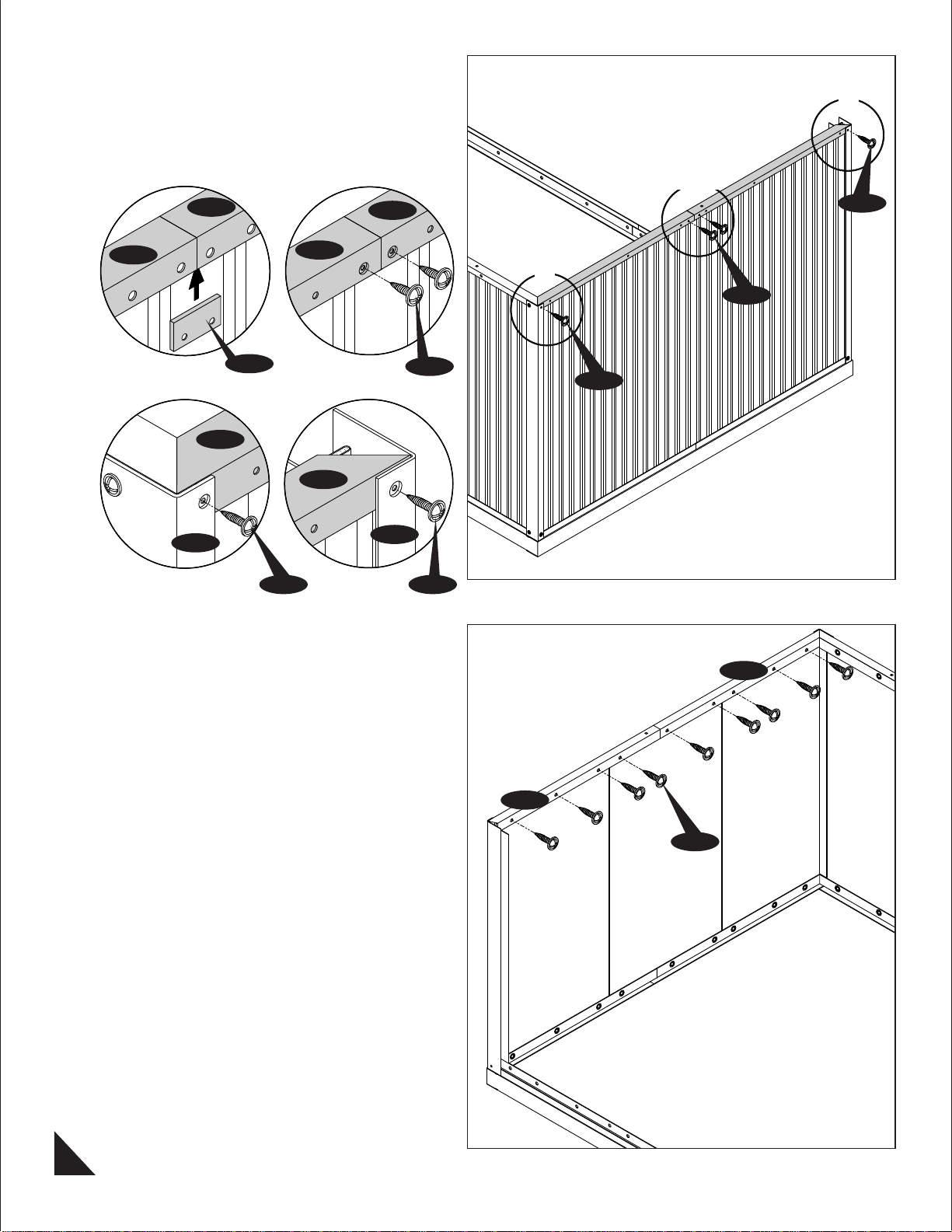

18. Insert the top ‘U’ channel (TC4C, TC3C) on
top of the wall panel. Make sure the edges of the
top ‘U’ channel must be inserted in between the
wall panel and corner column. See fig.1&2.
Fig.1 Fig.2
Back
TC4C
WA2
2
CCC
TC3C
WA1
CCC
TC4C
TC3C
1
S1

10
IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.
19. Insert the center joint (CJC) in between the
top ‘U’ channel (TC4C & TC3C) and wall panel.
See fig.1. Line up the holes with top ‘U’ channel
and secure with (S1) screws. See fig.2.
Line up the top ‘ U’ channel edge hole with corner
column and secure with (S1) screws at both ends.
See fig.3 & 4.
Fig.1 Fig.2
Back
TC3C
1 & 2
Fig.3 Fig.4
3
4
TC4C
TC3C
TC4C
CJC S1
S1S1
TC4C
TC3C
CCC CCC
20. Secure the top ‘U’ channel (TC3C & TC4C)
with wall panels by using (S1) screws from inside.
Back
Inside
TC3C
TC4C
S1
S1
S1
S1

11
IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.
21. Insert the wall panel (WA2) into the base ‘U’
channel and slide into the corner column. See fig.
1&2. Make sure the wall panel must be inserted
fully into the corner column. See top view.
Secure the corner column (CCC) to the base ‘U’
channel (BC1C) by (S1) screws from out side. See
fig.3.
Fig.1 Fig.2
Back
1 & 2
3
CCC
S1
Inside
WA2
Fig.3 Top View
WA2 WA2
WA2
CCC
CCC
CCC
22. Secure the wall panel (WA2) with base ‘U’
channel by (S1) screws from inside.
BC1C
S1
WA2
WA2

12
IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.
23. Insert the wall panel (WA1) into the base ‘U’
channel as follow fig.1,2,3 & 4. Make sure the panel
edge position. See fig.5. The panel must be close
to each other as fig.4.
Back
1, 2, 3 & 4
5
Inside
WA1
WA2
WA2
Fig.1 Fig.2
Fig.3 Fig.4
Fig.5
WA1 WA1
WA2 WA1
WA2
WA1
WA1
24. Secure the wall panel (WA1) with base ‘U’
channel (BC1C) by using (S1) screws from inside.
WA1
WA1
S1
BC1C

13
IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.
25. Insert the wall panel (WA1) into the base ‘U’
channel as before. Make sure the joining the wall
panel must be very closed as fig.1. And also the
position fig.2. Secure the wall panel with (S1)
screws. See fig.3.
1
Back
Inside
WA1
S1
BC2C
2
3
WA1
WA1 WA1
WA1
Fig.1 Fig.2
Fig.3
26. Insert the wall panel (WA1) into the base ‘U’
channel as before. Make sure the joining the wall
panel must be very closed as fig.1. and also the
position fig.2. Secure the wall panel with (S1)
screws. See fig.3.
1
Back
WA1
S1
BC2C
2
3
WA1
WA1 WA1
WA1
Fig.1 Fig.2
Fig.3
Inside
BC4C

14
IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.
27. Insert the corner column (CCC) to the wall
panel edge by sliding. See fig.1. Make sure the
corner column must be touching the wall panel.
See fig.2. Line up the pre drilled holes with base
‘U’ channel (BC2C) and secure (S1) screw. See
fig.3.
Front
WA1
BC2C
S1
CCC CCC
WA1
CCC
WA1
1 & 2
3
Back
28. Insert the top ‘U’ channel (TC1C & TC2C) on
top of the wall panel. The ‘U’ channel edges will
be inserted in between the corner column & wall
panels.
WA1
CCC
1
Back
CCC
TC1C
TC2C
WA2
TC1C
TC2C
2
Fig.1 Fig.2
Fig.3
Fig.1 Fig.2

15
IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.
29. Insert the center joint (CJC) in between the
top ‘U’ channel (TC1C & TC2C) and wall panel.
See fig.1. Line up the pre drilled holes and secure
with (S1) screw. See fig.2. Line up the pre drilled
holes on the corner column (CCC) and top ‘U’
channel and secure with (S1) screws.
See fig.3&4.
Back
TC1C
TC2C
1 & 2
3
4
Fig.1 Fig.2
Fig.3 Fig.4
TC1C
TC2C TC2C
TC1C
TC1C
TC2C
CCC
CCC
S1
S1
S1
CJC
30. Secure the top ‘U’ channels with wall panels
by (S1) screws from inside.
S1
Back Inside

16
IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.
31. Insert the wall panel (WA2) into the base ‘U’
channel (BC4C) and slide it into the corner column
(CCC) see fig.1&2. Make sure the panel edge
position. See fig.1&3. And the panel must be fully
inserted into the column. See fig.2. Secure the
corner column with base ‘U’ channel (BC4C) by
(S1) screws from outside. See fig.4.
S1
Back
WA2
1 & 2
4
CCC
WA2
32. Secure the panel with base ‘U’ channel by
(S1) screws from inside.
WA2
Front
Fig.1 Fig.2
3
WA2
CCC
WA2
CCC
BC4C
BC4C
WA2
S1
BC4C
Fig.3 Fig.4
