Utopia Lustre User manual

Installation Guide
Lustre Wall Mounted Washbasin Unit
Important Information
•Read the instructions carefully.
•Check the product for any signs of damage and remove any protective film.
•It is recommended that this product is fitted by a suitably qualified Part P registered
electrician in accordance with current IEE & Building Regulations.
•It is the installer’s responsibility to carry out a thorough assessment of wall type and the
weight of the cabinet and use appropriate fixings.
•Care should be taken when drilling walls to avoid any hidden wires or pipes.
•To prevent the cabinet falling down this product must be fixed using the wall attachment
device provided.
•The light source in this luminaire is not replaceable. When the light source reaches its
end of life, the whole luminaire must be replaced.
•The terminal block used to connect the leads to the electrical supply can be of either the
screw- or screw-less type and should be rated at 240V 6A with 4 terminals. The cable
tails do not need to be crimped when connected to the terminal block.
•The driver can be screwed to the internal top rail of the cabinet or left to hang in the void
between the cabinet and the wall.
•This product should be used only with a mains supply that is protected by a 30mA
Residual Current Device.
•This product is IP20 Rated and is only suitable for installation in Outside Zones in a
bathroom. It is not suitable to be fitted in zones 0, 1 or 2.

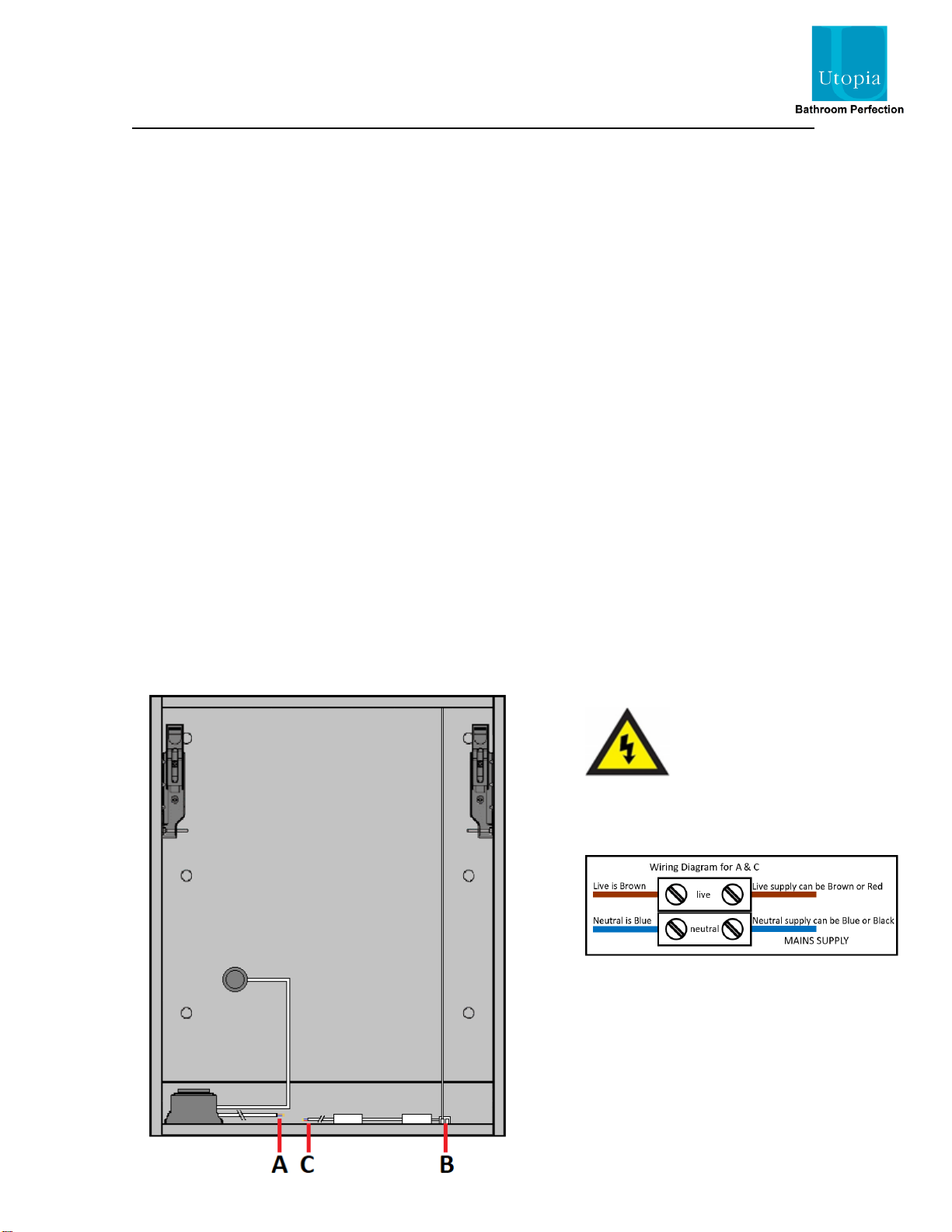

Connection to Mains Electrics
1. Turn off the electrical supply.
2. Connect the driver cable for the internal cabinet light to the electrical supply in the
bathroom (A). it is recommended that this light is connected to a constant electrical feed.
3. Connect the driver cable for the under-cabinet light to the electrical supply in the
bathroom (B). It is recommended that this light is connected to a separate switched feed
or to a room motion sensor.
4. Turn the electrical supply back on and check that the lights function as required.
WARNING
RISK OF ELECTRIC SHOCK
Turn off Mains Electric prior to commencing
work.

Installation
Mark a horizontal line on the wall at the required height X---X. Ensure
that the wall brackets will fit inside the width of the cabinet and are
equally spaced to ensure even distribution of weight. Secure the wall
brackets to the wall using suitable fixings.
Hook the unit onto the wall brackets so that the spring locks the arm
into place.
To alter the position of the cabinet on the wall, adjust the two screws
in each hanging bracket. Adjusting screws A will move the cabinet up
and down. When the cabinet is level on the wall, screws B will tighten
the cabinet to the wall.
Drawer Box Removal and Replacement
To remove the drawer box, pull the drawer fully out and lift it upwards.
To re-fit the drawer box, pull the runners fully out, place the drawer
box on the runners and push it rearwards until it clicks into place.
Drawer Front Removal
Slide the slide the drawer side covers rearwards to expose the
screws. Using a crosshead screwdriver, turn the screws shown to
release the drawer front. Where there are two screws on each
drawer side, turn the top screw first followed by the bottom one.
Drawer Front Adjustment
Slide the drawer side covers rearwards to expose the adjustment
screws. To raise or lower the drawer front, turn the larger screws
with a crosshead screwdriver until adjusted as required. To move
the drawer front from side to side, turn the smaller screws. To adjust
the tilt of the drawer front, remove the caps from the tops of the drawer
sides. Use a cross-head screwdriver to adjust as required.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre cloth. For more thorough
cleaning, occasionally wipe your furniture with a soft cloth dampened with a mild detergent
solution. Surfaces should be thoroughly dried with a lint free cloth to prevent watermarks. Under
no circumstances should solvent cleaning agents, bleach or abrasive cleaning agents or cloths be
used. Spills should be removed immediately using a clean cloth. All bathroom furniture will
deteriorate through prolonged periods of exposure to high levels of condensation so bathrooms
must be adequately ventilated using suitable extraction. Failure to ensure adequate ventilation
may invalidate your guarantee.

Installation Guide
Lustre Toilet Unit Without Cistern
Important Information
•Read the instructions carefully.
•Check the product for any signs of damage and remove any protective film.
•It is recommended that a technically competent installer undertakes installation.
•It is the installer’s responsibility to carry out a thorough assessment of the wall type
and the weight of the cabinet and use appropriate fixings.
•Care should be taken when drilling walls to avoid any hidden wires or pipes.
Installation
To fit a concealed cistern into the WC unit, pull the front top
fascia away from the cabinet. The lower front panel can now
be lifted upwards away from the cabinet. Secure the cistern
in position according to the instructions supplied with it.
To secure the WC unit against the wall, screw the stretcher plates
to the gable panels of the cabinet as shown in the diagram.
Ensure that the screws used are suitable for the thickness of the
cabinet.
Mark the position of the holes in the stretcher plates on the wall
with a pencil. Drill the positions marked with a suitable drill bit.
Fasten the unit in position through the stretcher plates using
fixings suitable for the wall type.
To cut the lower fascia panel to accommodate the soil pipe and
cistern flush pipe, use a jigsaw with a fine-toothed blade suitable
for timber. Ensure that the room is well ventilated when cutting
the material.
All cut edges must be sealed with PVA glue or good-quality, sanitary
grade silicone sealant to prevent the ingression of moisture.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre
cloth. For more thorough cleaning, occasionally wipe your furniture
with a soft cloth dampened with a mild detergent solution. Surfaces
should be thoroughly dried with a lint free cloth to prevent watermarks.
Under no circumstances should solvent cleaning agents, bleach or
abrasive cleaning agents or cloths be used. Spills should be removed
immediately using a clean cloth. All bathroom furniture will deteriorate
through prolonged periods of exposure to high levels of condensation
so bathrooms must be adequately ventilated using suitable extraction.
Failure to ensure adequate ventilation may invalidate your guarantee.

Installation Guide
Lustre Toilet Unit With Cistern
Important Information
•Read the instructions carefully.
•Check the product for any signs of damage and remove any protective film.
•It is recommended that a technically competent installer undertakes installation.
•It is the installer’s responsibility to carry out a thorough assessment of the wall type
and the weight of the cabinet and use appropriate fixings.
•Care should be taken when drilling walls to avoid any hidden wires or pipes.
Installation
To secure the WC unit against the wall, screw the stretcher plates
to the gable panels of the cabinet as shown in the diagram.
Ensure that the screws used are suitable for the thickness of the
cabinet.
Mark the position of the holes in the stretcher plates on the wall
with a pencil. Drill the positions marked with a suitable drill bit.
Fasten the unit in position through the stretcher plates using
fixings suitable for the wall type.
To cut the lower fascia panel to accommodate the soil pipe and
cistern flush pipe, use a jigsaw with a fine-toothed blade suitable
for timber. Ensure that the room is well ventilated when cutting
the material.
All cut edges must be sealed with PVA glue or good-quality, sanitary
grade silicone sealant to prevent the ingression of moisture.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre
cloth. For more thorough cleaning, occasionally wipe your furniture
with a soft cloth dampened with a mild detergent solution. Surfaces
should be thoroughly dried with a lint free cloth to prevent watermarks.
Under no circumstances should solvent cleaning agents, bleach or
abrasive cleaning agents or cloths be used. Spills should be removed
immediately using a clean cloth. All bathroom furniture will deteriorate
through prolonged periods of exposure to high levels of condensation
so bathrooms must be adequately ventilated using suitable extraction.
Failure to ensure adequate ventilation may invalidate your guarantee.

Installation Guide
Lustre Tall Mirror Cabinet
Important Information
•Read the instructions carefully.
•Check the product for any signs of damage and remove any protective film.
•It is recommended that this product is fitted by a suitably qualified Part P registered
electrician in accordance with current IET & Building Regulations.
•It is the installer’s responsibility to carry out a thorough assessment of wall type and the
weight of the cabinet and use appropriate fixings.
•Care should be taken when drilling walls to avoid any hidden wires or pipes.
•To prevent the cabinet falling down this product must be fixed using the wall attachment
device provided.
•The light source in this luminaire is not replaceable. When the light source reaches its
end of life, the whole luminaire must be replaced.
•This product should be used only with a mains supply that is protected by a 30mA
Residual Current Device.
•This product is IP20 Rated and is only suitable for installation in Outside Zones in a
bathroom. It is not suitable to be fitted in zones 0, 1 or 2.
Connection to Mains Electrics
Turn off the electrical supply.
The drivers and leads to connect the cabinet lighting to the electrical supply in the bathroom is in
the side section at the rear of the unit. Connect the mains lead from the internal light driver to the
electrical supply in the bathroom. It is recommended that this lead is connected to a constant
electrical feed.
Connect the mains lead from the under-cabinet light driver to the electrical supply in the
bathroom. It is recommended that this lead is connected to the bathroom light circuit or a room
sensor.
Turn the electrical supply back on and check that the lights function as required.

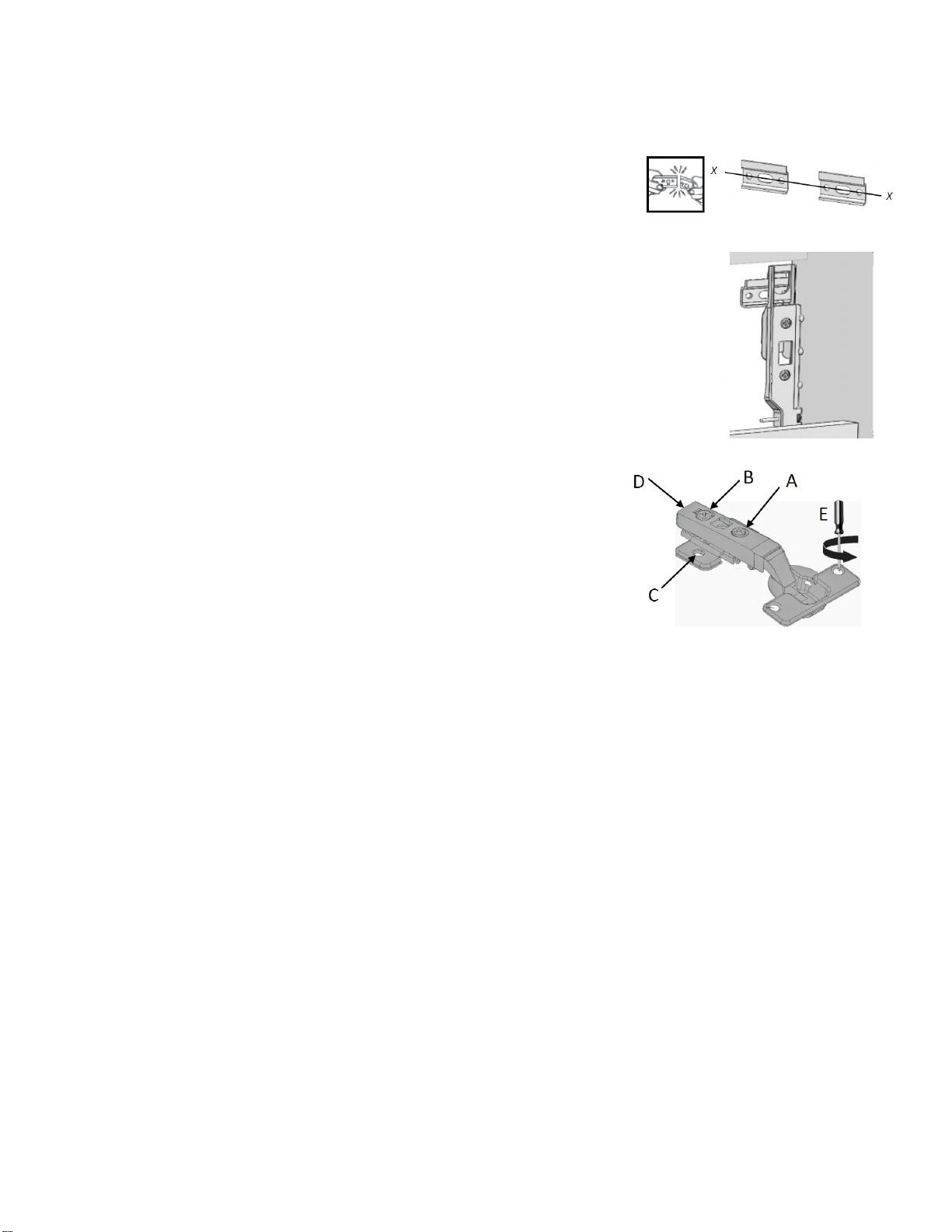

Fitting Cabinet to Wall
It may be necessary to snap the wall plate in half at the marked line
to create two wall brackets. Mark a horizontal line on the wall at the
required height X---X. Ensure that the wall brackets will fit inside the
width of the cabinet and are equally spaced to ensure even distribution
of weight. Secure the wall brackets to the wall using suitable fixings.
Hook the unit onto the wall brackets ensuring that the brackets
are securely located.
To adjust the position of the cabinet on the wall, use the two screws
in each hanging bracket. The top screws will move the cabinet
closer to or further away from the wall. The lower screws will move
the cabinet up and down.
A securing screw should be fitted through the back of the unit through
the fixed back rail of the cabinet and into the wall. This will help to
stabilise the unit.
Fitting Doors
To fit the doors, remove the door hinges from the cabinet by pressing
button D.
Lay the door face down and push the door hinges into the
pre-drilled holes. Secure them in place by tightening screws E.
To re-fit the door hinges, push the hinge arm onto the mounting plate
from the front. Push the rear of the hinge arm onto the plate until a click
is heard.
Door hinge adjustment
•To square the door against the cabinet, turn screws A until
adjusted as required.
•To adjust the door closer to or further away from the cabinet,
turn screws B.
•To adjust the door vertically, slacken screws C. Re-tighten
once the door is adjusted as required.
•To remove the door hinges from the cabinet, press button D.
•To remove the door hinges from the door, remove screws E.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre cloth. For more thorough
cleaning, occasionally wipe your furniture with a soft cloth dampened with a mild detergent
solution. Surfaces should be thoroughly dried with a lint free cloth to prevent watermarks. Under
no circumstances should solvent cleaning agents, bleach or abrasive cleaning agents or cloths be
used. Spills should be removed immediately using a clean cloth. All bathroom furniture will
deteriorate through prolonged periods of exposure to high levels of condensation so bathrooms
must be adequately ventilated using suitable extraction. Failure to ensure adequate ventilation
may invalidate your guarantee.

Installation Guide
Lustre Mirror Cabinet Without Bluetooth
Important Information
•Read the instructions carefully.
•Check the product for any signs of damage and remove any protective film.
•It is recommended that this product is fitted by a suitably qualified Part P registered
electrician in accordance with current IEE & Building Regulations.
•It is the installer’s responsibility to carry out a thorough assessment of wall type and the
weight of the cabinet and use appropriate fixings.
•Care should be taken when drilling walls to avoid any hidden wires or pipes.
•To prevent the cabinet falling down this product must be fixed using the wall attachment
device provided.
•The light source in this luminaire is not replaceable. When the light source reaches its
end of life, the whole luminaire must be replaced.
•The terminal block used to connect the leads to the electrical supply can be of either the
screw- or screw-less type and should be rated at 240V 6A with 4 terminals. The cable
tails do not need to be crimped when connected to the terminal block.
•This product should be used only with a mains supply that is protected by a 30mA
Residual Current Device.
•This product is IP20 rated and is only suitable for installation in Outside Zones in a
bathroom. It is not suitable to be fitted in zones 0, 1 or 2.
Connection to Mains Electrics
1. Turn off the electrical supply.
2. Connect the electrical supply in the bathroom to the shaver socket cable (A).
3. Ensure that the LED light connector is plugged into the light driver (B).
4. Connect the electrical supply in the bathroom to the touch switch control box (C).
5. Turn the electrical supply back on and check that the lights and shaver socket function as
required. A touch switch is located on the underside of the base panel to operate the
light.
WARNING
RISK OF ELECTRIC SHOCK
Turn off mains electric prior to
commencing work.

Fitting Cabinet to Wall
It may be necessary to snap the wall plate in half at the marked line
to create two wall brackets. Mark a horizontal line on the wall at the
required height X---X. Ensure that the wall brackets will fit inside the
width of the cabinet and are equally spaced to ensure even distribution
of weight. Secure the wall brackets to the wall using suitable fixings.
Hook the unit onto the wall brackets ensuring that the brackets are securely
located.
To alter the position of the cabinet on the wall, adjust the two screws in each
hanging bracket. The top screws will move the cabinet closer to or further away
from the wall. The lower screws will move the cabinet up and down.
A securing screw should be fitted through the back of the unit through the fixed
back of the cabinet and into the wall, this will help to stabilise the unit.
Door hinge adjustment
•To square the door against the cabinet, turn screws A until
adjusted as required.
•To adjust the door closer to or further away from the cabinet,
turn screws B.
•To adjust the door vertically, slacken screws C. Re-tighten
once the door is adjusted as required.
•To remove the door hinges from the cabinet, press button D.
•To remove the door hinges from the door, remove screws E.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre cloth. For more thorough
cleaning, occasionally wipe your furniture with a soft cloth dampened with a mild detergent
solution. Surfaces should be thoroughly dried with a lint free cloth to prevent watermarks. Under
no circumstances should solvent cleaning agents, bleach or abrasive cleaning agents or cloths be
used. Glass or mirrored panels should be cleaned using a non-solvent based glass cleaner and a
soft cloth. Spills should be removed immediately using a clean cloth. All bathroom furniture will
deteriorate through prolonged periods of exposure to high levels of condensation so bathrooms
must be adequately ventilated using suitable extraction. Failure to ensure adequate ventilation
may invalidate your guarantee.

Installation Guide
Lustre Mirror Cabinet With Bluetooth
Important Information
•Read the instructions carefully.
•Check the product for any signs of damage and remove any protective film.
•It is recommended that this product is fitted by a suitably qualified Part P registered
electrician in accordance with current IEE & Building Regulations.
•It is the installer’s responsibility to carry out a thorough assessment of wall type and the
weight of the cabinet and use appropriate fixings.
•Care should be taken when drilling walls to avoid any hidden wires or pipes.
•To prevent the cabinet falling down this product must be fixed using the wall attachment
device provided.
•The light source in this luminaire is not replaceable. When the light source reaches its
end of life, the whole luminaire must be replaced.
•The terminal block used to connect the leads to the electrical supply can be of either the
screw- or screw-less type and should be rated at 240V 6A with 4 terminals. The cable
tails do not need to be crimped when connected to the terminal block.
•This product should be used only with a mains supply that is protected by a 30mA
Residual Current Device.
•This product is IP20 rated and is only suitable for installation in Outside Zones in a
bathroom. It is not suitable to be fitted in zones 0, 1 or 2.
Connection to Mains Electrics
6. Turn off the electrical supply.
7. Connect the electrical supply in the bathroom to the shaver socket cable (A).
8. Ensure that the LED light and Bluetooth connectors are plugged into the light driver (B).
9. Connect the electrical supply in the bathroom to the touch switch control box (C).
10. Turn the electrical supply back on and check that the lights and shaver socket function as
required. A touch switch is located on the underside of the base panel to operate the
light.
WARNING
RISK OF ELECTRIC SHOCK
Turn off mains electric prior to
commencing work.

Fitting Cabinet to Wall
It may be necessary to snap the wall plate in half at the marked line
to create two wall brackets. Mark a horizontal line on the wall at the
required height X---X. Ensure that the wall brackets will fit inside the
width of the cabinet and are equally spaced to ensure even distribution
of weight. Secure the wall brackets to the wall using suitable fixings.
Hook the unit onto the wall brackets ensuring that the brackets are securely
located.
To alter the position of the cabinet on the wall, adjust the two screws in each
hanging bracket. The top screws will move the cabinet closer to or further away
from the wall. The lower screws will move the cabinet up and down.
A securing screw should be fitted through the back of the unit through the fixed
back of the cabinet and into the wall, this will help to stabilise the unit.
Door hinge adjustment
•To square the door against the cabinet, turn screws A until
adjusted as required.
•To adjust the door closer to or further away from the cabinet,
turn screws B.
•To adjust the door vertically, slacken screws C. Re-tighten
once the door is adjusted as required.
•To remove the door hinges from the cabinet, press button D.
•To remove the door hinges from the door, remove screws E.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre cloth. For more thorough
cleaning, occasionally wipe your furniture with a soft cloth dampened with a mild detergent
solution. Surfaces should be thoroughly dried with a lint free cloth to prevent watermarks. Under
no circumstances should solvent cleaning agents, bleach or abrasive cleaning agents or cloths be
used. Glass or mirrored panels should be cleaned using a non-solvent based glass cleaner and a
soft cloth. Spills should be removed immediately using a clean cloth. All bathroom furniture will
deteriorate through prolonged periods of exposure to high levels of condensation so bathrooms
must be adequately ventilated using suitable extraction. Failure to ensure adequate ventilation
may invalidate your guarantee.

Installation Guide
Lustre Bath Side Panel
Important Information
•Read the instructions carefully.
•Ensure product contents are complete.
•Check the product for any signs of damage and remove all protective film.
•It is recommended that a technically competent installer undertakes installation.
•It is the installer’s responsibility to carry out a thorough assessment of the installation
environment (i.e. wall type/structure) and use appropriate fixings.
•Care should be taken when drilling to avoid any hidden wires or pipes.
•If the panel is required to be trimmed, a fine-toothed saw should be used. Ensure that the
room is well ventilated and that any cut edges are sealed with PVA glue or silicone sealant to
prevent water ingression.
Installation
Set the height of the bath to suit the height of the bath panel according to
the instructions supplied with the bath. Ensure that when the brackets and
bath panel are fitted, the panel sits 4mm proud of the bath rim.
If you are installing this side panel in conjunction with an end panel, fit the
end panel first according to the instructions supplied with it.
Screw three black Keku clips to the underside of the wooden batten
underneath the bath rim using the screws provided. The three clips
should be equally spaced along the length of the bath. Use the diagram
as a guide to how the Keku clips are fitted.
The matching Keku clips should be screwed to the rear of the bath
panel using the screws supplied. Measure carefully to ensure that the
clips on the rear of the bath panel will engage with the clips screwed
to the bath.
If the bath panel is being fitted between two walls, the two “L” brackets should be
secured to the walls to prevent the panel from being pushed inwards. Ensure
suitable fixings are used.
If the bath panel is being used in conjunction with an end panel, secure one “L”
bracket to the wall to prevent the panel from being pushed inwards. On the opposite
side to the wall secure the bath panel in place using a Keku clip. This Keku clip is
supplied with the end panel, along with instruction on how it is fitted.
Once fully installed, seal around the bath panel on all joints using a good quality, sanitary-grade
silicone sealant.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre cloth. For more thorough
cleaning, occasionally wipe your furniture with a soft cloth dampened with a mild detergent
solution. Surfaces should be thoroughly dried with a lint free cloth to prevent watermarks. Under
no circumstances should solvent cleaning agents, bleach or abrasive cleaning agents or cloths be
used. Glass or mirrored panels should be cleaned using a non-solvent based glass cleaner and a
soft cloth. Spills should be removed immediately using a clean cloth. All bathroom furniture will
deteriorate through prolonged periods of exposure to high levels of condensation so bathrooms
must be adequately ventilated using suitable extraction. Failure to ensure adequate ventilation
may invalidate your guarantee.

Installation Guide
Lustre Bath End Panel
Important Information
•Read the instructions carefully.
•Ensure product contents are complete.
•Check the product for any signs of damage and remove all protective film.
•It is recommended that a technically competent installer undertakes installation.
•It is the installer’s responsibility to carry out a thorough assessment of the installation
environment (i.e. wall type/structure) and use appropriate fixings.
•Care should be taken when drilling to avoid any hidden wires or pipes.
•If the panel is required to be trimmed, a fine-toothed saw should be used. Ensure that the
room is well ventilated and that any cut edges are sealed with PVA glue or silicone sealant to
prevent water ingression.
Installation
Set the height of the bath to suit the height of the bath panel according
to the instructions supplied with the bath.

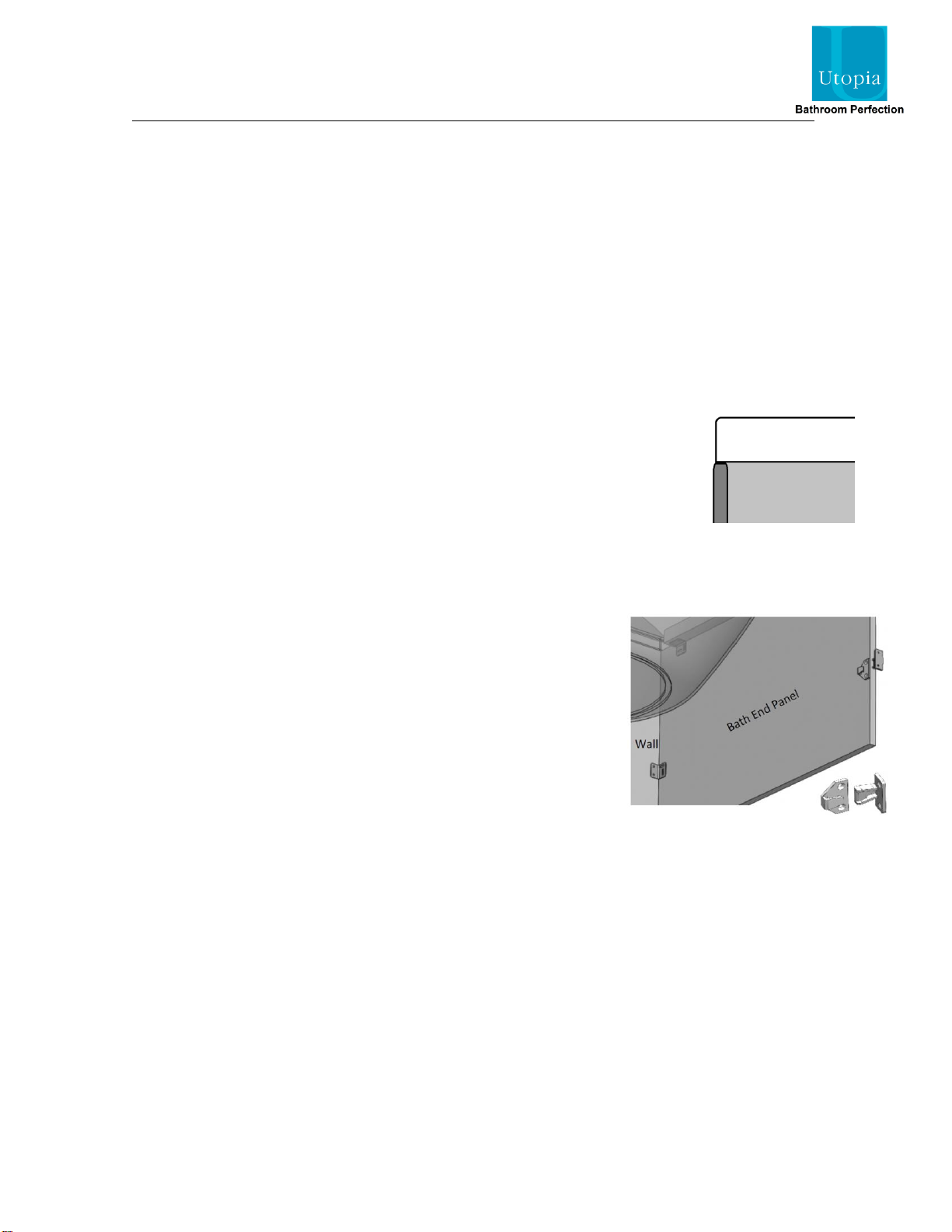

Fit the end panel before installing the side panel. The bath end panel
sits behind the side panel. The thickness of the bath side panel must be
considered when scribing the bath end panel to the wall.
Ensure that when the brackets and bath panel are fitted, the panel sits
4mm proud of the bath rim.
Secure one “L” bracket to the wall using suitable fixings. It
is recommended that the bracket is fitted 300mm vertically
from the underside of the bath.
Secure the second “L” bracket to the underside of the
wooden batten under the bath rim using the screws provided.
Screw one of the black Keku clips to the opposite side of the
end panel to the wall. The matching Keku clip should be
screwed to the back of the front panel. Use the diagram as a
guide to how these are fitted.
Once fully installed, seal around the bath panel on all joints using a good quality, sanitary-grade
silicone sealant.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre cloth. For more thorough
cleaning, occasionally wipe your furniture with a soft cloth dampened with a mild detergent
solution. Surfaces should be thoroughly dried with a lint free cloth to prevent watermarks. Under
no circumstances should solvent cleaning agents, bleach or abrasive cleaning agents or cloths be
used. Glass or mirrored panels should be cleaned using a non-solvent based glass cleaner and a
soft cloth. Spills should be removed immediately using a clean cloth. All bathroom furniture will
deteriorate through prolonged periods of exposure to high levels of condensation so bathrooms
must be adequately ventilated using suitable extraction. Failure to ensure adequate ventilation
may invalidate your guarantee.
