Utopia Qube User manual

Installation Guide
Qube Freestanding Washbasin Drawer Unit
Important Information
•Read the instructions carefully.
•Check the product for any signs of damage and remove any protective film.
•It is recommended that a technically competent installer undertakes installation.
•It is the installer’s responsibility to carry out a thorough assessment of the wall type and the
weight of the cabinet and use appropriate fixings.
•Care should be taken when drilling walls to avoid any hidden wires or pipes.
Installation
Remove the doors from the cabinet. To secure the unit
against the wall, screw the stretcher plates to the gable
panels of the cabinet as shown in the diagram. Ensure that
the screws used are suitable for the thickness of the cabinet.
Mark the position of the holes in the stretcher plates on the
wall with a pencil. Drill the positions marked with a suitable
drill bit.
Fasten the unit in position through the stretcher plates using
fixings suitable for the wall type.
If fitting a run of units, fix them together through the gable
panels. Where possible, try to hide the fixings behind shelves
or hinge plates.
Installing Handle Trim
•Secure the fixing clips onto the gables using the
pre-drilled holes.
•Insert the two T-bolts into the rear of the handle trim.
•Place the handle trim in front of the fixing clips.
•Slide the T-bolts to the end of the trim to lock it in position.
Drawer Adjustment
•To raise or lower the drawer front, use a screwdriver to rotate
screw B.
•To remove the drawer front, use a screwdriver to rotate screw C.
•To adjust the drawer front left to right, use a screwdriver to rotate
screw D. Adjust the screws until the drawer front is equally spaced
on the cabinet.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre cloth. For more thorough
cleaning, occasionally wipe your furniture with a soft cloth dampened with a mild detergent
solution. Surfaces should be thoroughly dried with a lint free cloth to prevent watermarks. Under
no circumstances should solvent cleaning agents, bleach or abrasive cleaning agents or cloths be
used. Spills should be removed immediately using a clean cloth. All bathroom furniture will
deteriorate through prolonged periods of exposure to high levels of condensation so bathrooms
must be adequately ventilated using suitable extraction. Failure to ensure adequate ventilation
may invalidate your guarantee.

Installation Guide
Qube Freestanding Washbasin Door Unit
Important Information
•Read the instructions carefully.
•Check the product for any signs of damage and remove any protective film.
•It is recommended that a technically competent installer undertakes installation.
•It is the installer’s responsibility to carry out a thorough assessment of the wall type and the
weight of the cabinet and use appropriate fixings.
•Care should be taken when drilling walls to avoid any hidden wires or pipes.
Installation
Remove the doors from the cabinet. To secure the unit
against the wall, screw the stretcher plates to the gable
panels of the cabinet as shown in the diagram. Ensure that
the screws used are suitable for the thickness of the cabinet.
Mark the position of the holes in the stretcher plates on the
wall with a pencil. Drill the positions marked with a suitable
drill bit.
Fasten the unit in position through the stretcher plates using
fixings suitable for the wall type.
Installing Handle Trim
•Secure the fixing clips onto the gables using the
pre-drilled holes.
•Insert the two T-bolts into the rear of the handle trim.
•Place the handle trim in front of the fixing clips.
•Slide the T-bolts to the end of the trim to lock it in position.

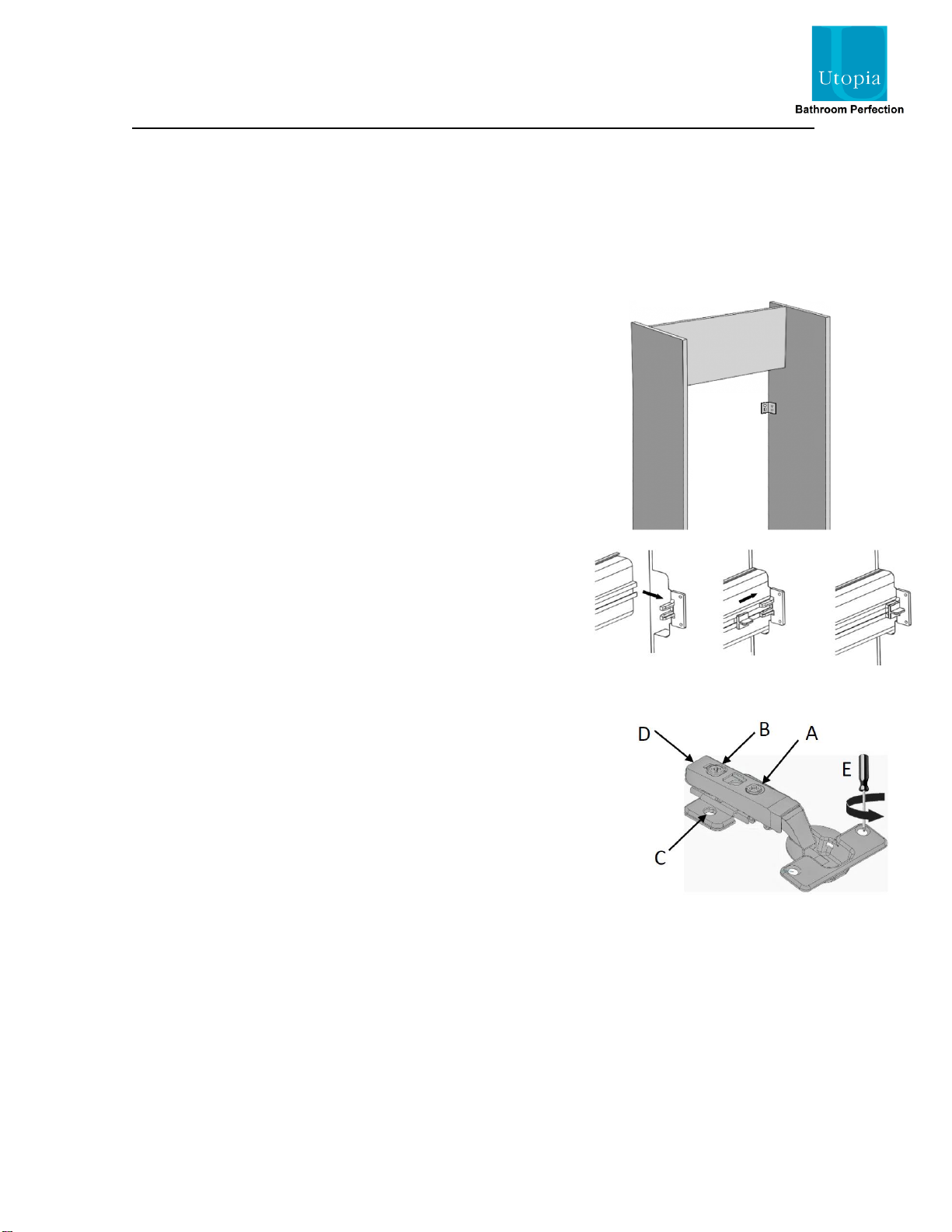

Door hinge adjustment
•To square the door against the cabinet, turn screws A
until adjusted as required.
•To adjust the door closer to or further away from the
cabinet, turn screws B.
•To adjust the door vertically, slacken screws C. Re-tighten
once the door is adjusted as required.
•To remove the door hinges from the cabinet, press button D.
•To remove the door hinges from the door, remove screws E.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre cloth. For more thorough
cleaning, occasionally wipe your furniture with a soft cloth dampened with a mild detergent
solution. Surfaces should be thoroughly dried with a lint free cloth to prevent watermarks. Under
no circumstances should solvent cleaning agents, bleach or abrasive cleaning agents or cloths be
used. Spills should be removed immediately using a clean cloth. All bathroom furniture will
deteriorate through prolonged periods of exposure to high levels of condensation so bathrooms
must be adequately ventilated using suitable extraction. Failure to ensure adequate ventilation
may invalidate your guarantee.

Installation Guide
Qube Wall Mounted Washbasin Drawer Unit
Important Information
•Read the instructions carefully.
•Ensure product contents are complete.
•Check the product for any signs of damage and remove all protective film.
•It is recommended that a technically competent installer undertakes installation.
•It is the installer’s responsibility to carry out a thorough assessment of the installation environment (i.e.
wall type/structure and the combined weight of the cabinet and basin) and use appropriate fixings.
•Care should be taken when drilling to avoid any hidden wires or pipes.
•To prevent the cabinet falling from the wall this product must be fixed using the wall attachment device
and brackets provided.
•If the unit/panels are to be trimmed, a fine-toothed saw should be used. Ensure that the room is well
ventilated and that any cut edges are sealed with PVA glue or silicone sealant to prevent water
ingression.
Installation

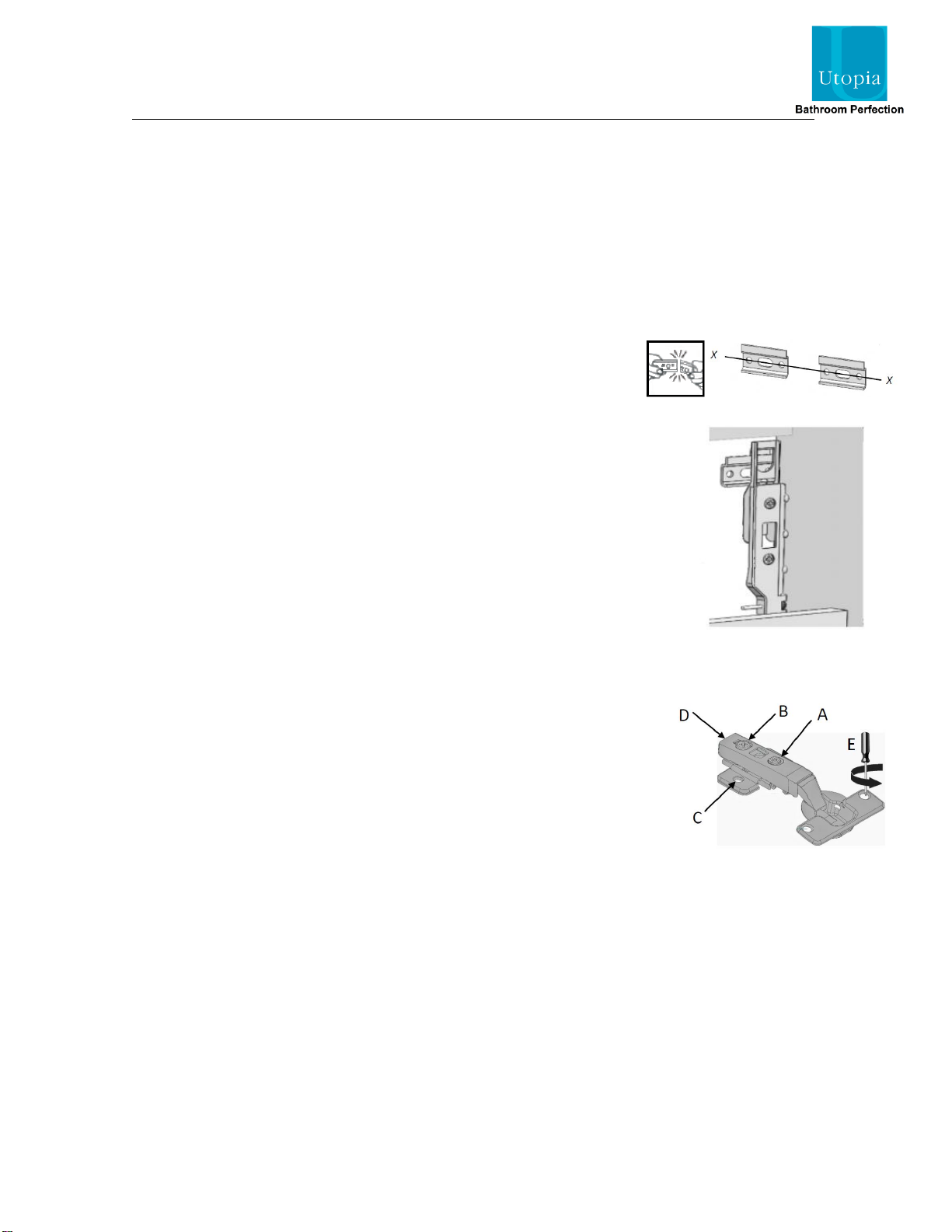

Mark a horizontal line on the wall at the required height X---X. Ensure
that the wall brackets will fit inside the width of the cabinet and are
equally spaced to ensure even distribution of weight. Secure the wall
brackets to the wall using suitable fixings.
Hook the unit onto the wall brackets so that the spring locks the arm
into place.
To alter the position of the cabinet on the wall, adjust the two screws
in each hanging bracket. Adjusting screws A will move the cabinet up
and down. When the cabinet is level on the wall, screws B will tighten
the cabinet to the wall.
A securing screw should be fitted through the back of the unit through
the fixed back rail of the cabinet and into the wall. This will help to stabilise
the unit.
Installing Handle Trim
•Secure the fixing clips onto the gables using the
pre-drilled holes.
•Insert the two T-bolts into the rear of the handle trim.
•Place the handle trim in front of the fixing clips.
•Slide the T-bolts to the end of the trim to lock it in position.
Drawer Adjustment
•To remove the drawer box from the runners, pull the drawer out and
remove the cover caps from the drawer sides. Lift the catches (A) on
either side and release the drawer box from the runners. When re-fitting
the drawer box, ensure that the runners have fully engaged at the rear. An
audible click should be heard as the drawer box is closed, engaging the
drawer box onto the runners.
•To raise or lower the drawer front, use a screwdriver to rotate screw B.
•To remove the drawer front, use a screwdriver to rotate screw C.
•To adjust the drawer front left to right, use a screwdriver to rotate screw D.
•Adjust the screws until the drawer front is equally spaced on the cabinet.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre cloth. For more thorough cleaning,
occasionally wipe your furniture with a soft cloth dampened with a mild detergent solution. Surfaces should
be thoroughly dried with a lint free cloth to prevent watermarks. Under no circumstances should solvent
cleaning agents, bleach or abrasive cleaning agents or cloths be used. Spills should be removed
immediately using a clean cloth. All bathroom furniture will deteriorate through prolonged periods of
exposure to high levels of condensation so bathrooms must be adequately ventilated using suitable
extraction. Failure to ensure adequate ventilation may invalidate your guarantee.

Installation Guide
Qube Wall Mounted Washbasin Door Unit
Important Information
•Read the instructions carefully.
•Ensure product contents are complete.
•Check the product for any signs of damage and remove all protective film.
•It is recommended that a technically competent installer undertakes installation.
•It is the installer’s responsibility to carry out a thorough assessment of wall type and the weight of the
cabinet and use appropriate fixings.
•Care should be taken when drilling to avoid any hidden wires or pipes.
•To prevent the cabinet falling from the wall this product must be fixed using the wall attachment device
provided.
Installation

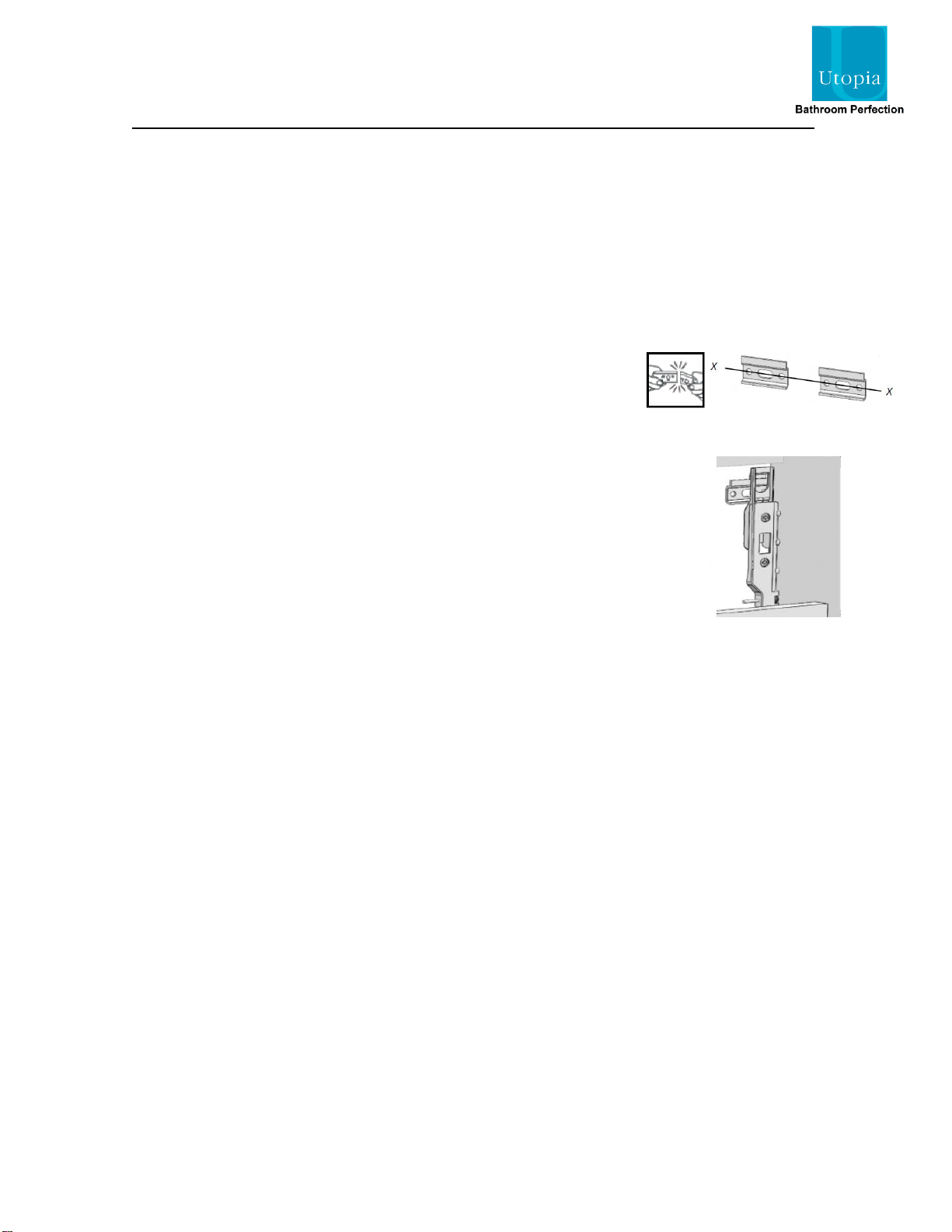

It may be necessary to snap the wall plate in half at the marked line
to create two wall brackets. Mark a horizontal line on the wall at the
required height X---X. Ensure that the wall brackets will fit inside the
width of the cabinet and are equally spaced to ensure even distribution
of weight. Secure the wall brackets to the wall using suitable fixings.
Hook the unit onto the wall brackets ensuring that the brackets are
securely located.
To adjust the position of the cabinet on the wall, use the two screws
in each hanging bracket. The top screws will move the cabinet closer
to or further away from the wall. The lower screws will move the cabinet
up and down.
Installing Handle Trim
•Secure the fixing clips onto the gables using the
pre-drilled holes.
•Insert the two T-bolts into the rear of the handle trim.
•Place the handle trim in front of the fixing clips.
•Slide the T-bolts to the end of the trim to lock it in position.
Door hinge adjustment
•To square the door against the cabinet, turn screws A until
adjusted as required.
•To adjust the door closer to or further away from the cabinet,
turn screws B.
•To adjust the door vertically, slacken screws C. Re-tighten
once the door is adjusted as required.
•To remove the door hinges from the cabinet, press button D.
•To remove the door hinges from the door, remove screws E.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre cloth. For more thorough cleaning,
occasionally wipe your furniture with a soft cloth dampened with a mild detergent solution. Surfaces should
be thoroughly dried with a lint free cloth to prevent watermarks. Under no circumstances should solvent
cleaning agents, bleach or abrasive cleaning agents or cloths be used. Spills should be removed
immediately using a clean cloth. All bathroom furniture will deteriorate through prolonged periods of
exposure to high levels of condensation so bathrooms must be adequately ventilated using suitable
extraction. Failure to ensure adequate ventilation may invalidate your guarantee.

Installation Guide
Qube Back-To-Wall Toilet Unit
Important Information
•Read the instructions carefully.
•Check the product for any signs of damage and remove any protective film.
•It is recommended that a technically competent installer undertakes installation.
•It is the installer’s responsibility to carry out a thorough assessment of the wall type and the
weight of the cabinet and use appropriate fixings.
•Care should be taken when drilling walls to avoid any hidden wires or pipes.
Installation
Remove the top fascia panel first by pulling it away
from the cabinet with equal force on each side.
To secure the WC unit against the wall, screw the stretcher
plates to the gable panels of the cabinet as shown in the
diagram. Ensure that the screws used are suitable for the
thickness of the cabinet.
Mark the position of the holes in the stretcher plates on the
wall with a pencil. Drill the positions marked with a suitable
drill bit.
Fasten the unit in position through the stretcher plates using
fixings suitable for the wall type.
If fitting a run of units, fix them together through the gable
panels. Where possible, try to hide the fixings behind shelves
or hinge plates.
To cut the lower fascia panel to accommodate the soil pipe
and cistern flush pipe, use a jigsaw with a fine-toothed blade
suitable for timber. Ensure that the room is well ventilated
when cutting the material.
All cut edges must be sealed with PVA glue or good-quality,
sanitary grade silicone sealant to prevent the ingression of
moisture.
Re-fit the top fascia panel last, after plumbing connections
have been made and installation completed.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre cloth. For more thorough
cleaning, occasionally wipe your furniture with a soft cloth dampened with a mild detergent
solution. Surfaces should be thoroughly dried with a lint free cloth to prevent watermarks. Under
no circumstances should solvent cleaning agents, bleach or abrasive cleaning agents or cloths be
used. Spills should be removed immediately using a clean cloth. All bathroom furniture will
deteriorate through prolonged periods of exposure to high levels of condensation so bathrooms
must be adequately ventilated using suitable extraction. Failure to ensure adequate ventilation
may invalidate your guarantee.

Installation Guide
Qube Tall Unit
Important Information
•Read the instructions carefully.
•Check the product for any signs of damage and remove any protective film.
•It is recommended that a technically competent installer undertakes installation.
•It is the installer’s responsibility to carry out a thorough assessment of the wall type and the
weight of the cabinet and use appropriate fixings.
•Care should be taken when drilling walls to avoid any hidden wires or pipes.
•To prevent the cabinet falling down this product must be fixed using the wall attachment
device provided.
Installation
It may be necessary to snap the wall plate in half at the marked line
to create two wall brackets. Mark a horizontal line on the wall at the
required height X---X. Ensure that the wall brackets will fit inside the
width of the cabinet and are equally spaced to ensure even distribution
of weight. Secure the wall brackets to the wall using suitable fixings.
Hook the unit onto the wall brackets ensuring that the brackets
are securely located.
To adjust the position of the cabinet on the wall, use the two screws
in each hanging bracket. The top screws will move the cabinet
closer to or further away from the wall. The lower screws will move
the cabinet up and down.
A securing screw should be fitted through the back of the unit through
the fixed back rail of the cabinet and into the wall. This will help to
stabilise the unit.

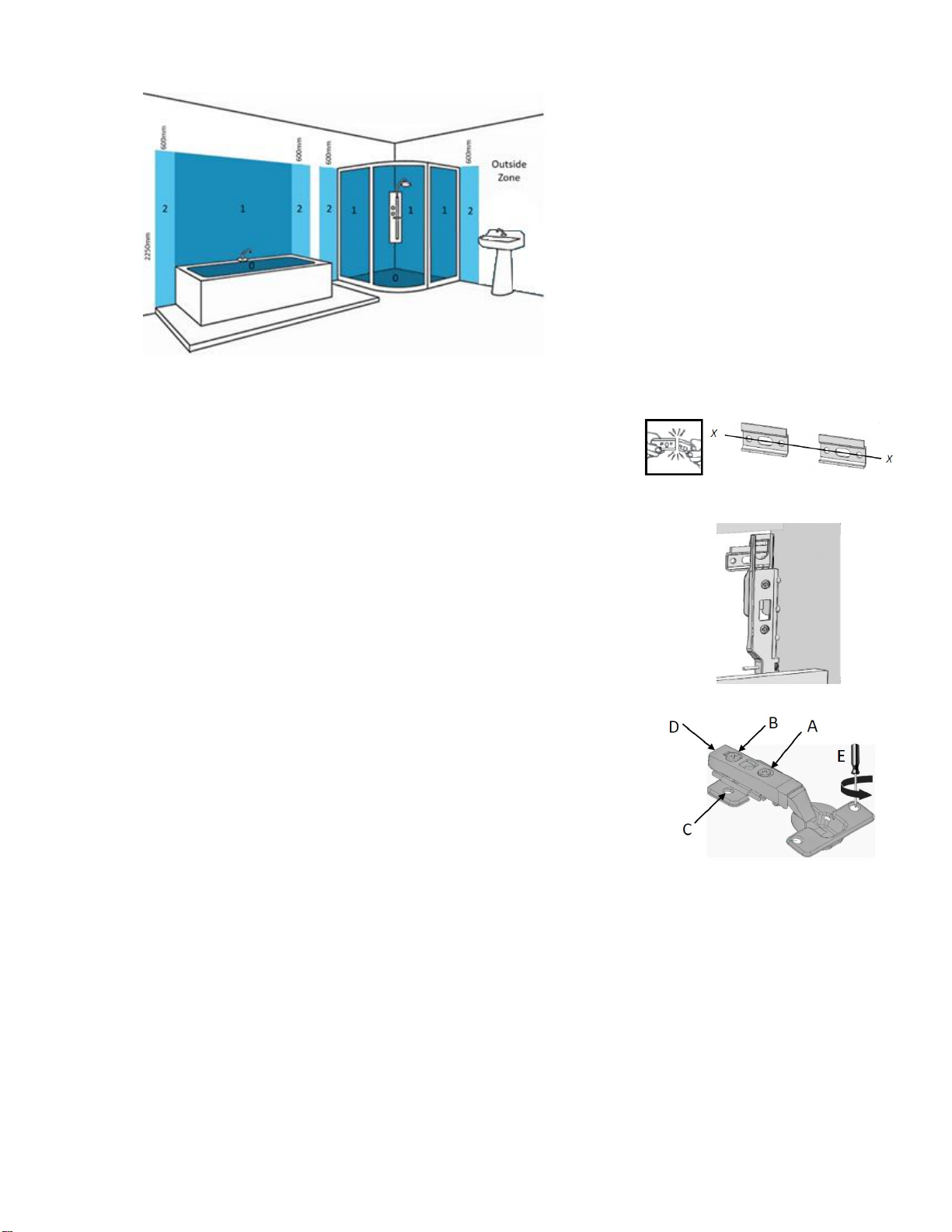

Door hinge adjustment
•To square the door against the cabinet, turn screws A until adjusted
as required.
•To adjust the door closer to or further away from the cabinet, turn
screws B.
•To adjust the door vertically, slacken screws C. Re-tighten once
the door is adjusted as required.
•To remove the door hinges from the cabinet, press button D.
•To remove the door hinges from the door, remove screws E.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre cloth. For more thorough
cleaning, occasionally wipe your furniture with a soft cloth dampened with a mild detergent
solution. Surfaces should be thoroughly dried with a lint free cloth to prevent watermarks. Under
no circumstances should solvent cleaning agents, bleach or abrasive cleaning agents or cloths be
used. Spills should be removed immediately using a clean cloth. All bathroom furniture will
deteriorate through prolonged periods of exposure to high levels of condensation so bathrooms
must be adequately ventilated using suitable extraction. Failure to ensure adequate ventilation
may invalidate your guarantee.

Installation Guide
Qube Open Shelf Base Unit
Important Information
•Read the instructions carefully.
•Check the product for any signs of damage and remove any protective film.
•It is the installer’s responsibility to carry out a thorough assessment of wall type and the
weight of the cabinet and use appropriate fixings.
•Care should be taken when drilling walls to avoid any hidden wires or pipes.
•To prevent the cabinet falling down this product must be fixed using the wall attachment
device provided.
Installation
Secure the cabinet to the wall through the back panel.
Use screws and fixings that are suitable for the wall type and the weight of the cabinet.
Additional screws should be fitted through the gable panels to hold the wall open shelf and
washbasin units together.
Screw through from the inside of the washbasin unit ensuring that the length of screws is suitable
for the thickness of the gables.
It is recommended that the fixings are hidden behind the drawer runners and screwed into the top
panels.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre cloth. For more thorough
cleaning, occasionally wipe your furniture with a soft cloth dampened with a mild detergent
solution. Surfaces should be thoroughly dried with a lint free cloth to prevent watermarks. Under
no circumstances should solvent cleaning agents, bleach or abrasive cleaning agents or cloths be
used. Spills should be removed immediately using a clean cloth. All bathroom furniture will
deteriorate through prolonged periods of exposure to high levels of condensation so bathrooms
must be adequately ventilated using suitable extraction. Failure to ensure adequate ventilation
may invalidate your guarantee.

Installation Guide
Qube Open Shelf Wall Unit
Important Information
•Read the instructions carefully.
•Check the product for any signs of damage and remove any protective film.
•It is the installer’s responsibility to carry out a thorough assessment of wall type and the
weight of the cabinet and use appropriate fixings.
•Care should be taken when drilling walls to avoid any hidden wires or pipes.
•To prevent the cabinet falling down this product must be fixed using the wall attachment
device provided.
Installation
It may be necessary to snap the wall plate in half at the marked line
to create two wall brackets. Mark a horizontal line on the wall at the
required height X---X. Ensure that the wall brackets will fit inside the
width of the cabinet and are equally spaced to ensure even distribution
of weight. Secure the wall brackets to the wall using suitable fixings.
Hook the unit onto the wall brackets, ensuring that the brackets are securely
located.
To alter the position of the cabinet on the wall, adjust the two screws in each
hanging bracket. The top screws will move the cabinet closer to or further away
from the wall. The lower screws will move the cabinet up and down.
A securing screw should be fitted through the back of the unit through the fixed
back of the cabinet and into the wall, this will help to stabilise the unit.
If this cabinet is being fitted in a run, secure the units together with suitable
fixings through the gables. Try to hide the fixings where possible behind
shelves or hinge plates.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre cloth. For more thorough
cleaning, occasionally wipe your furniture with a soft cloth dampened with a mild detergent
solution. Surfaces should be thoroughly dried with a lint free cloth to prevent watermarks. Under
no circumstances should solvent cleaning agents, bleach or abrasive cleaning agents or cloths be
used. Spills should be removed immediately using a clean cloth. All bathroom furniture will
deteriorate through prolonged periods of exposure to high levels of condensation so bathrooms
must be adequately ventilated using suitable extraction. Failure to ensure adequate ventilation
may invalidate your guarantee.

Installation Guide
Qube Frameless Mirror
Important Information
•Read the instructions carefully.
•Check the product for any signs of damage and remove any protective film.
•It is recommended that a technically competent installer undertakes installation.
•It is the installer’s responsibility to carry out a thorough assessment of the wall type and the
weight of the product and use appropriate fixings.
•Care should be taken when drilling walls to avoid any hidden wires or pipes.
Installation
Push the plastic inserts into the rear of the mirror panel.
Note: the mirror can be fitted portrait or landscape.
Ensure that the inserts are aligned in the correct direction.
Once the inserts have been fitted, they cannot be removed.
Mark the wall to suit the distance between the centres
of the inserts.
Drill the wall and secure the fixings (not supplied) at the
marked positions.
Note: you must ensure that the fixings are suitable for the
weight of the mirror and the wall type.
Hang the mirror onto the wall fixings, ensuring that they are located securely into the inserts.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre cloth. For more thorough
cleaning, occasionally wipe your furniture with a soft cloth dampened with a mild detergent
solution. Surfaces should be thoroughly dried with a lint free cloth to prevent watermarks. Under
no circumstances should solvent cleaning agents, bleach or abrasive cleaning agents or cloths be
used. Glass or mirrored panels should be cleaned using a non-solvent based glass cleaner and a
soft cloth. Spills should be removed immediately using a clean cloth. All bathroom furniture will
deteriorate through prolonged periods of exposure to high levels of condensation so bathrooms
must be adequately ventilated using suitable extraction. Failure to ensure adequate ventilation
may invalidate your guarantee.

Installation Guide
Qube Mirror Cabinet
Important Information
•Read the instructions carefully.
•Check the product for any signs of damage and remove any protective film.
•It is the installer’s responsibility to carry out a thorough assessment of wall type and the
weight of the cabinet and use appropriate fixings.
•Care should be taken when drilling walls to avoid any hidden wires or pipes.
•To prevent the cabinet falling down this product must be fixed using the wall attachment
device provided.
Installation
It may be necessary to snap the wall plate in half at the marked line
to create two wall brackets. Mark a horizontal line on the wall at the
required height X---X. Ensure that the wall brackets will fit inside the
width of the cabinet and are equally spaced to ensure even distribution
of weight. Secure the wall brackets to the wall using suitable fixings.
Hook the unit onto the wall brackets ensuring that the brackets are
securely located.
To alter the position of the cabinet on the wall, adjust the two screws in
each hanging bracket. The top screws will move the cabinet closer to or
further away from the wall. The lower screws will move the cabinet up
and down.
If this cabinet is being fitted in a run, secure the units together with suitable
fixings through the gables. Try to hide the fixings where possible behind
shelves or hinge plates.
A securing screw should be fitted through the back of the unit through the
fixed back of the cabinet and into the wall, this will help to stabilise the unit.
Door hinge adjustment
•To square the door against the cabinet, adjust screws A.
•To adjust the door closer to or further away from the cabinet,
adjust screws B.
•To adjust the door vertically, slacken screws C. Re-tighten
once the door is adjusted as required.
•To remove the door hinges from the cabinet, press button D.
•To remove the door hinges from the door, remove screws E.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre cloth. For more thorough
cleaning, occasionally wipe your furniture with a soft cloth dampened with a mild detergent
solution. Surfaces should be thoroughly dried with a lint free cloth to prevent watermarks. Under
no circumstances should solvent cleaning agents, bleach or abrasive cleaning agents or cloths be
used. Spills should be removed immediately using a clean cloth. All bathroom furniture will
deteriorate through prolonged periods of exposure to high levels of condensation so bathrooms
must be adequately ventilated using suitable extraction. Failure to ensure adequate ventilation
may invalidate your guarantee.

Installation Guide
Qube Deluxe Mirror Cabinet
Important Information
•Read the instructions carefully.
•Check the product for any signs of damage and remove any protective film.
•It is recommended that this product is fitted by a suitably qualified Part P registered
electrician in accordance with current IEE & Building Regulations.
•It is the installer’s responsibility to carry out a thorough assessment of wall type and the
weight of the cabinet and use appropriate fixings.
•Care should be taken when drilling walls to avoid any hidden wires or pipes.
•To prevent the cabinet falling down this product must be fixed using the wall attachment
device provided.
•The light source in this luminaire is not replaceable. When the light source reaches its
end of life, the whole luminaire must be replaced.
•The terminal block used to connect the leads to the electrical supply can be of either the
screw- or screw-less type and should be rated at 240V 6A with 4 terminals. The cable
tails do not need to be crimped when connected to the terminal block.
•The driver can be screwed to the internal top rail of the cabinet or left to hang in the void
between the cabinet and the wall.
•This product should be used only with a mains supply that is protected by a 30mA
Residual Current Device.
•This product is IP20 Rated and is only suitable for installation in Outside Zones in a
bathroom. It is not suitable to be fitted in zones 0, 1 or 2.
Connection to Mains Electrics
Turn off the electrical supply.
Fit the overhead light onto the top of the cabinet using the screws provided.
Connect the electrical supply in the bathroom to the shaver socket cable (A).
Connect the electrical supply in the bathroom to the separate driver (B).
Connect the cable from the shaver socket switch to the connector block on the driver (C).
Connect the overhead light cable to the connector block from the shaver socket switch (D).
Turn the electrical supply back on and check that the overhead light and shaver socket function
as required.
WARNING
RISK OF ELECTRIC SHOCK
Turn off Mains Electric prior to commencing
work.

Bathroom Lighting Zone
Fitting Cabinet to Wall
It may be necessary to snap the wall plate in half at the marked line
to create two wall brackets. Mark a horizontal line on the wall at the
required height X---X. Ensure that the wall brackets will fit inside the
width of the cabinet and are equally spaced to ensure even distribution
of weight. Secure the wall brackets to the wall using suitable fixings.
Hook the unit onto the wall brackets ensuring that the brackets are securely
located.
To alter the position of the cabinet on the wall, adjust the two screws in each
hanging bracket. The top screws will move the cabinet closer to or further away
from the wall. The lower screws will move the cabinet up and down.
A securing screw should be fitted through the back of the unit through the fixed
back of the cabinet and into the wall, this will help to stabilise the unit.
Door adjustment
To square the door against the cabinet, turn screws A until adjusted as
required.
To move the door closer to or further away from the cabinet, adjust screws B.
To adjust the door vertically, slacken screws C. Re-tighten once the door is
adjusted as required.
To remove the door hinges from the cabinet, press button D. To remove the
door from the door hinges, remove screws E.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre cloth. For more thorough
cleaning, occasionally wipe your furniture with a soft cloth dampened with a mild detergent
solution. Surfaces should be thoroughly dried with a lint free cloth to prevent watermarks. Under
no circumstances should solvent cleaning agents, bleach or abrasive cleaning agents or cloths be
used. Glass or mirrored panels should be cleaned using a non-solvent based glass cleaner and a
soft cloth. Spills should be removed immediately using a clean cloth. All bathroom furniture will
deteriorate through prolonged periods of exposure to high levels of condensation so bathrooms
must be adequately ventilated using suitable extraction. Failure to ensure adequate ventilation
may invalidate your guarantee.

Installation Guide
Qube Bath Side Panel
Important Information
•Read the instructions carefully.
•Check the product for any signs of damage and remove any protective film.
•It is recommended that a technically competent installer undertakes installation.
•It is the installer’s responsibility to carry out a thorough assessment of the wall type and use
appropriate fixings.
•Care should be taken when drilling walls to avoid any hidden wires or pipes.
Installation
Set the height of the bath to suit the height of the bath panel according to
the instructions supplied with the bath. Ensure that when the brackets and
bath panel are fitted, the panel sits 4mm proud of the bath rim.
If you are installing this side panel in conjunction with an
end panel, fit the end panel first according to the
instructions supplied with it.
Screw three black Keku clips to the underside of the
wooden batten underneath the bath rim using the screws
provided. The three clips should be equally spaced along
the length of the bath. Use the diagram as a guide to how
the Keku clips are fitted.
The matching Keku clips should be screwed to the rear of
the bath panel using the screws supplied. Measure carefully
to ensure that the clips on the rear of the bath panel will
engage with the clips screwed to the bath.
If the bath panel is being fitted between two walls, the two
“L” brackets should be secured to the walls to prevent the
panel from being pushed inwards. Ensure suitable fixings
are used.
If the bath panel is being used in conjunction with an end
panel, secure one “L” bracket to the wall to prevent the panel
from being pushed inwards. On the opposite side to the wall,
secure the bath panel in place using a Keku clip. This Keku
clip is supplied with the end panel, along with instruction on
how it is fitted.
Once fully installed, seal around the bath panel on all joints using
a good quality, sanitary-grade silicone sealant.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre cloth. For more thorough
cleaning, occasionally wipe your furniture with a soft cloth dampened with a mild detergent
solution. Surfaces should be thoroughly dried with a lint free cloth to prevent watermarks. Under
no circumstances should solvent cleaning agents, bleach or abrasive cleaning agents or cloths be
used. Spills should be removed immediately using a clean cloth. All bathroom furniture will
deteriorate through prolonged periods of exposure to high levels of condensation so bathrooms
must be adequately ventilated using suitable extraction. Failure to ensure adequate ventilation
may invalidate your guarantee.

Installation Guide
Qube Bath End Panel
Important Information
•Read the instructions carefully.
•Ensure product contents are complete.
•Check the product for any signs of damage and remove any protective film.
•It is recommended that a technically competent installer undertakes installation.
•It is the installer’s responsibility to carry out a thorough assessment of the wall type and use
appropriate fixings.
•Care should be taken when drilling to avoid any hidden wires or pipes.
Installation
Set the height of the bath to suit the height of the bath panel according to the instructions
supplied with the bath
Fit the end panel before installing the side panel
Ensure that when the brackets and bath panel are fitted, the
panel sits 4mm proud of the bath rim.
Secure one “L” bracket to the wall using suitable fixings. It
is recommended that the bracket is fitted 300mm vertically
from the underside of the bath.
Secure the second “L” bracket to the underside of the
wooden batten under the bath rim using the screws
provided.

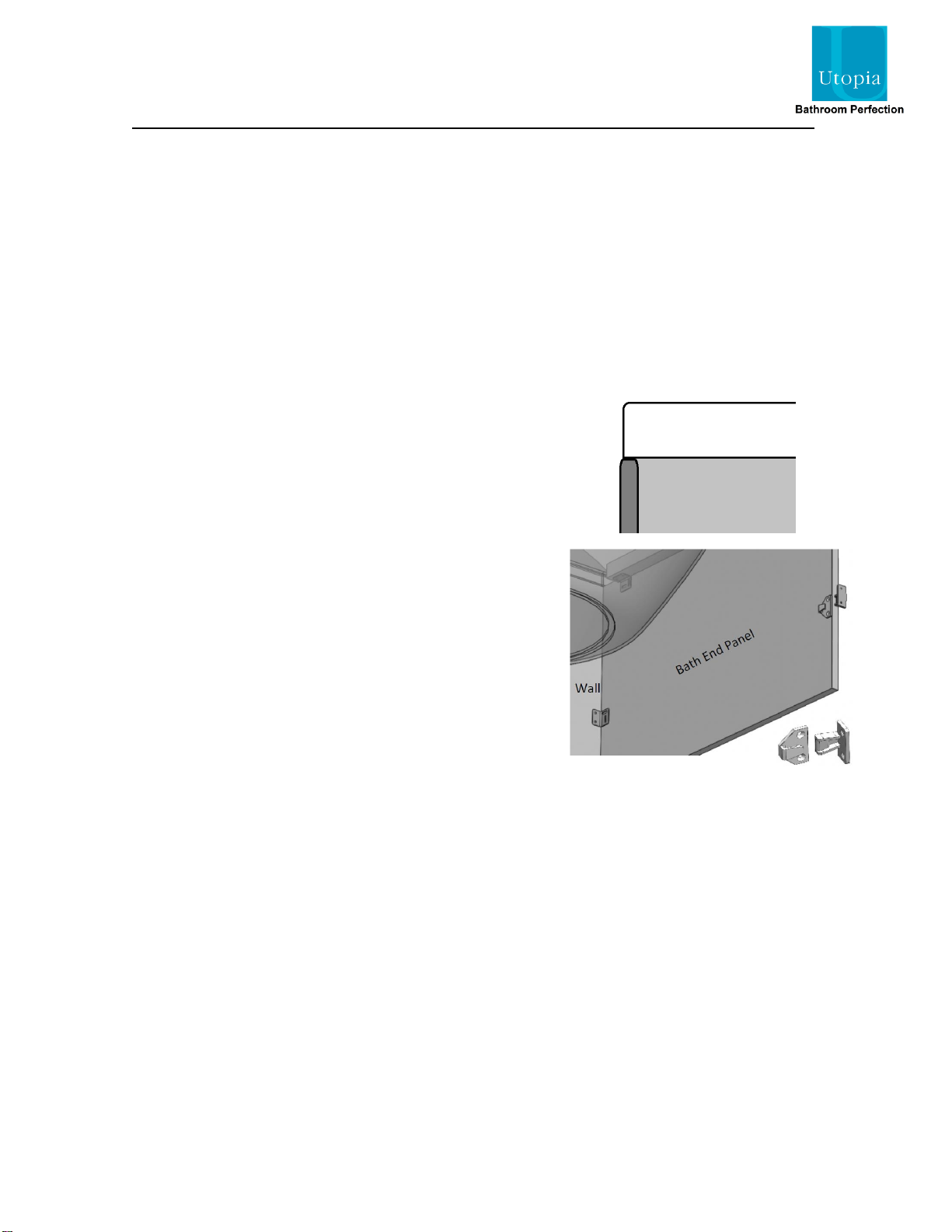

Screw one of the black Keku clips to the opposite side
of the end panel to the wall. The matching Keku clip
should be screwed to the back of the front panel. Use
the diagram as a guide to how these are fitted.
Once fully installed, seal around the bath panel on all
joints using a good quality, sanitary-grade silicone sealant.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre cloth. For more thorough
cleaning, occasionally wipe your furniture with a soft cloth dampened with a mild detergent
solution. Surfaces should be thoroughly dried with a lint free cloth to prevent watermarks. Under
no circumstances should solvent cleaning agents, bleach or abrasive cleaning agents or cloths be
used. Glass or mirrored panels should be cleaned using a non-solvent based glass cleaner and a
soft cloth. Spills should be removed immediately using a clean cloth. All bathroom furniture will
deteriorate through prolonged periods of exposure to high levels of condensation so bathrooms
must be adequately ventilated using suitable extraction. Failure to ensure adequate ventilation
may invalidate your guarantee.
