Utopian systems Upd660 User manual

REV 072013

Thank you for purchasing this quality Portable Dehumidifier!

Please read through this manual completely, and keep it in case you need to reference the

information in the future.

Any operation of this device beyond what is described in this manual, or any unapproved attempt to repair

this device, will void the product’s warranty and is undertaken at your own risk. Sunleaves Garden Products is

not responsible for damage caused by inappropriate operation of this device.

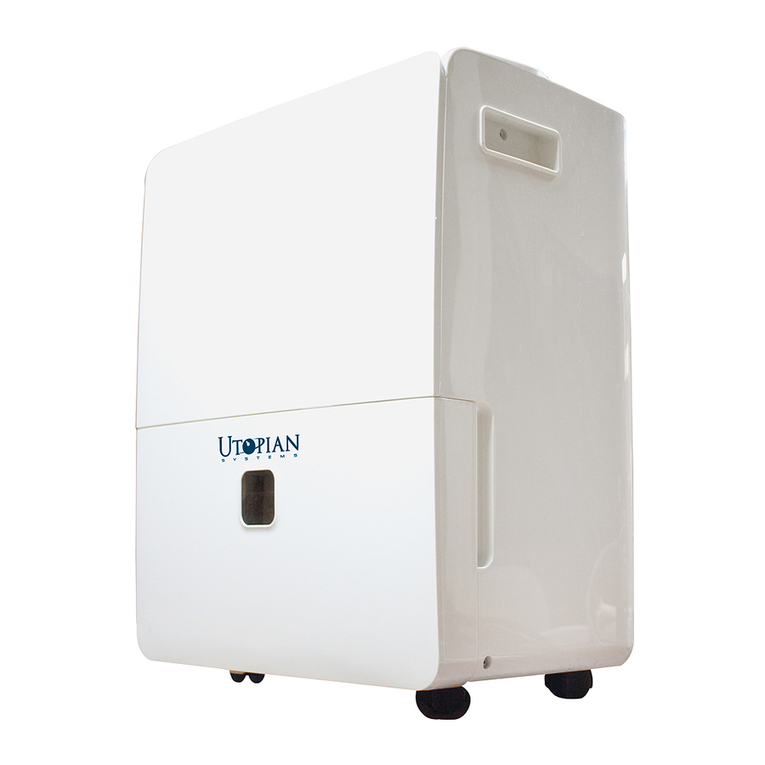

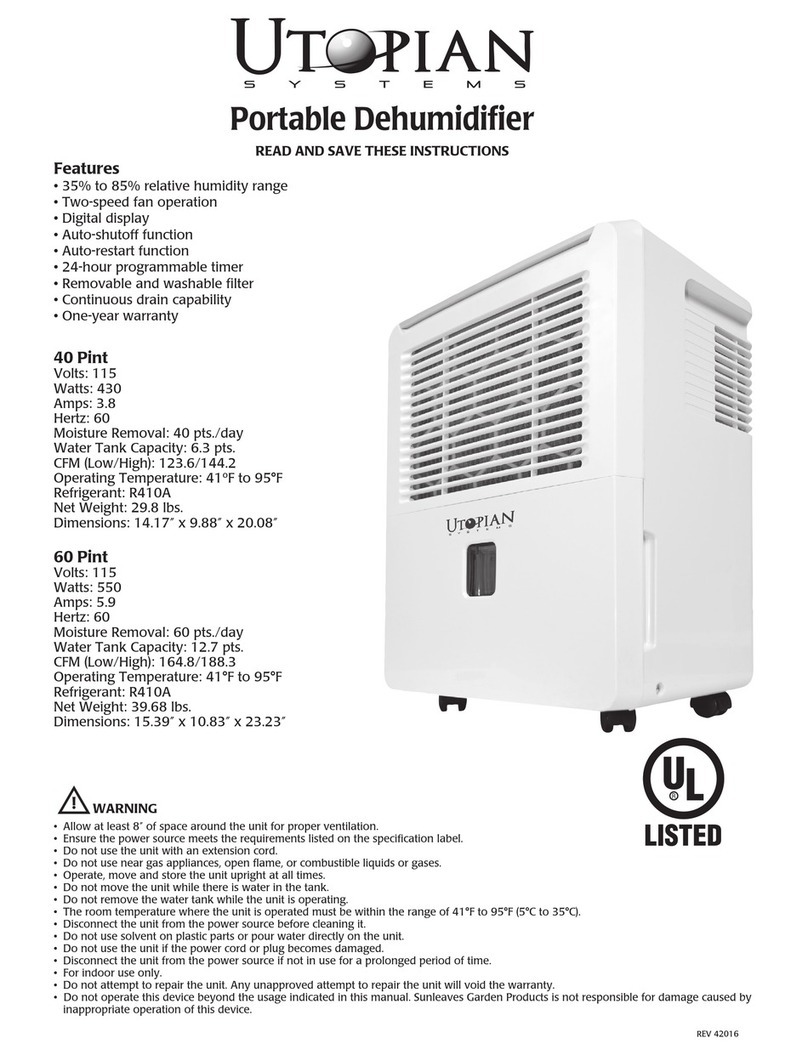

Utopian Portable Dehumidifier

WARNING

Features of your Utopian Portable Dehumidiﬁer

• 35-85% relative humidity range

• Ideal for spaces up to 2,500 or 4,000 sq ft

• Auto-shutoff when water tank is full

• Auto-restart function after power interruption

• 24-hour programmable timer

• Two-speed fan operation

• Removable/washable lter

• 6.3 or 12.72 pt water tank capacity

• Continuous drain capability

• 1-year warranty

• Allow at least 8” of space around the unit for proper ventilation.

• Ensure the power source meets the requirements listed on the specication label.

• Do not use the unit with an extension cord.

• Do not use near gas appliances, open ame, or combustible liquids or gases.

• Operate, move and store the unit upright at all times.

• Do not move the unit while there is water in the tank.

• Do not remove the water tank while the unit is operating.

• The room temperature where the unit is operated must be within the range of 41-95°F (5-35°C).

• Disconnect the unit from the power source before cleaning it.

• Do not use solvent on plastic parts or pour water directly on the unit.

• Do not use the unit if the power cord or plug becomes damaged.

• Disconnect the unit from the power source if not in use for a prolonged period of time.

• For indoor use only.

• Do not attempt to repair the unit.

UPD640

Moisture removal: 40 pt per day

Airow (High/Low): 144.2/123.6 CFM

Wattage: 450W

Voltage: 115V

Current: 4.5A

Refrigerant: R410A

Operating Temperature: 41-95ºF

Net Weight: 29.8 lbs

Dimensions: 14.17” x 9.88” x 20.08”

UPD660

Moisture removal: 60 pt per day

Airow (High/Low): 188.3/164.8 CFM

Wattage: 550W

Voltage: 115V

Current: 4.9A

Refrigerant: R410A

Operating Temperature: 41-95ºF

Net Weight: 39.6 lbs

Dimensions: 15.39” x 10.83” x 23.23”

Unit Part Names

Installation

1. Control panel

2. Air intake grille

3. Air outlet grille

4. Air lter (behind grille)

5. Water tank

6. Handle (both sides)

7. Drain hose outlet

8. Power cord storage band

9. Power cord and plug

10. Caster

Front

Back

1. Place the unit upright on a stable surface to minimize noise and vibration.

2. Close all doors and windows in the room. The unit will be most effective in an enclosed space.

3. Plug the unit into a 120V power source.

Note: When using the unit for the rst time, run the unit continuously for at least 24 hours.

Unit Display

1. FILTER button

The lter light illuminates after 250 hours of operation as a reminder that the lter needs to

be cleaned. To reset this function after cleaning the lter, press the FILTER button.

2. CONT. button

Press to activate the continuous dehumidifying mode.

3. FAN button

Press to select the fan speed between normal and turbo.

4. POWER button

Press to turn the unit on and off.

5. TIMER button

Press to program auto-on and auto-off times.

6. UP and DOWN buttons

Press to raise or lower the set humidity level within the range of 35-85% RH in 5%

increments, or use to adjust the timer settings.

7. LED display

Displays the set humidity level or timer settings while settings are being adjusted. Displays

the ambient humidity level from 30-90% RH with accuracy of ± 5%.

8. FILTER light

Indicates that the lter needs to be cleaned.

9. FULL light

Indicates that the water tank is full, removed from the unit or incorrectly positioned.

10. CONT. light

Indicates that the continuous dehumidifying mode has been activated.

11. ON and OFF lights

Indicates that the timer-on and timer-off settings have been activated.

12. TURBO and NORMAL lights

Indicates the fan speed.

13. AUTO DEFROST light

Indicates that the unit is defrosting.

Filter

Cont.

Fan

Timer

Filter

Full

Cont. On Off

Turbo

Normal

Auto defrost

1 78 12910 13

Operating Instructions

Timer Operation

1. When the unit is on, press the TIMER button until the timer-off light illuminates. To set the

auto- off time, use the UP and DOWN buttons to adjust the timer setting in increments of 0.5

hours up to 10 hours and 1 hour up to 24 hours. To set the auto-on time, press the TIMER button

again until the timer-on light illuminates and use the UP and DOWN buttons to adjust the timer

setting. Wait 5 seconds to accept the setting.

2. When the unit is off, press the TIMER button until the timer-on light illuminates. To set the

auto- on time, use the UP and DOWN buttons to adjust the timer setting in increments of 0.5

hours up to 10 hours and 1 hour up to 24 hours. To set the auto-off time, press the TIMER button

again until the timer-off light illuminates and use the UP and DOWN buttons to adjust the

timer setting. Wait 5 seconds to accept the setting.

Emptying the Water Tank

1. When the water tank is full, the unit beeps eight times, the full light blinks and “P2” appears on

the display. If the unit is on, the compressor turns off and the fan runs for 30 seconds to dry

the condenser.

2. Grip the handles on the tank’s sides and slowly pull it out. Do not place the tank on the oor

because its uneven bottom may cause it to spill.

3. Empty the tank and carefully replace it in the unit.

Continuous Drainage

1. To continuously drain water from the unit, remove the water tank and the cover from the

drainage outlet on the back of the unit.

2. Attach the drain hose to the drainage adapter.

3. Insert the other end of the drain hose through the drainage outlet and attach it to the

connector at the right front of the unit. Note: Ensure the drain hose ts securely to the connector.

4. Use the provided screws to secure the drainage adapter to the unit.

5. Attach a 5/16” ID water hose (available separately) to the drainage adapter and place the other

end over a drain.

6. Carefully replace the tank in the unit.

7. Remove the drain hose from the outlet and replace the outlet cover when the continuous

drainage function is not in use.

Auto-Shutoff

The unit will turn off 30 seconds after the water tank reaches capacity. The unit will also turn off

automatically when the set humidity level is reached.

Auto-Defrost

When frost builds up on the evaporator coils, the compressor will turn off and the fan will

continue to run until the evaporator coils have defrosted.

Auto-Restart

The Auto Restart feature allows the unit to restart after a power interruption using the previously

programmed settings. To protect the unit, the compressor will not restart for 3 minutes

after stopping.

Storage and Maintenance

Cleaning the Air Filter

1. For optimal operation, clean the air lter every two weeks.

2. Slide the air lter out from the top of the unit.

3. Rinse the lter in warm water and allow it to dry completely before replacing it.

Cleaning the Unit

• Clean the unit using a soft cloth dampened with water and mild detergent.

• Use a vacuum or brush to clean the air intake and outlet grilles.

• Clean the tank with water and mild detergent every few weeks to prevent the growth of mold,

mildew and bacteria. Do not put the tank in the dishwasher.

Storage

• Wait one day after turning off the unit to empty the water tank.

• Clean the unit, water tank and air lter.

• Wrap the cord and secure it to the back of the unit.

• Store the unit upright in a dry, well-ventilated place.

Error Codes

The following error codes may appear on the unit’s display panel.

Error Code Cause Solution

AS Humidity sensor error Disconnect the unit from the

power source and reconnect it.

If the problem persists, the unit

may require service. See

warranty information.

ES Temperature sensor error

P2 Water tank is full or incorrectly positioned Empty the tank and ensure it is

correctly positioned.

EC Unit error Ensure the ambient temperature

is between 41ºF and 95ºF. If the

problem persists, the unit may

require service. See warranty

information.

Sunleaves Garden Products warrants this product to the original purchaser to be free of defective materials and work-

manship under normal use and service for 1 year from the original date of purchase. Sunleaves Garden Products, at its

option, will repair or replace components of this product if they are found to be defective in material or workmanship

within the warranty period. If Sunleaves, at its sole discretion, determines that the components are defective in material

or workmanship, then Sunleaves, at its option, will either repair or replace the components, provided that (1) a copy

of the original proof of purchase for this product by the original purchaser is delivered to the place of purchase or

Sunleaves Garden Products; (2) the components have not been tampered with, disassembled, repaired by unauthorized

persons or altered; and (3) the components have not been damaged as a result of commercial use, lack of reasonable

and proper maintenance, abusive or unreasonable use, or supplemental damage. In no event shall the cost of repair

or replacement exceed the original purchase price. SUNLEAVES SHALL NOT BE RESPONSIBLE FOR ANY INCIDENTAL OR

CONSEQUENTIAL DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION DAMAGE OR INJURY CAUSED TO

OTHER PRODUCTS, MACHINERY, BUILDINGS OR PROPERTY; LOSS OF PROFITS, TIME OR PRODUCT; OR INCONVENIENCE.

SUNLEAVES FURTHER DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE.

To obtain warranty service, return the product to the place of purchase in accordance with store policy.

Utopian Systems 1-Year Limited Warranty

If the retailer is unable to resolve the problem:

1. Call our toll-free number at 888-464-9676 or email

[email protected] to receive warranty information and

your RMA number if the product is being returned.

2. In the unlikely event you must return the defective product to

Sunleaves, carefully package the problem product.

3. Complete the form below and enclose it with your shipment along

with a legible copy of your properly dated sales receipt and

installation invoice. You must write your RMA number on the

outside of the package. Because Sunleaves is not responsible for

products damaged in shipping, we recommend insuring

your package.

7854 North State Road 37

Bloomington, IN 47404

Phone: 888-464-9676

Email: [email protected]

Sunleaves Garden Products

Sunleaves Product Warranty Claims

To obtain warranty service in the unlikely event that your product fails to operate, return the product to the place of purchase. Often the retailer will

be able to examine the product in closer detail, determine the problem and even fix the product on site.

Don’t forget to include the following items if you are returning your product to the place of purchase:

• Legible copy of your properly dated sales receipt

• This completed form

Name: ......................................................................................................

Address: ....................................................................................................

Phone #: ....................................................................................................

Email Address: ...............................................................................................

RMA #: ......................................................................................................

Explain the problem: ..........................................................................................

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
