V-ZUG DWVMR9 User manual

Operating instructions
DWVMR9
Range hood

Thank you for choosing to buy one of our products. Your appliance is made to
high standards and is easy to use. Nevertheless, please take the time to read
these operating instructions in order to familiarize yourself with the appliance
and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance
at the time these operating instructions went to press. The right to make tech-
nical modifications for the purpose of the further development of the appliance
is reserved.
Validity
The product family (model number) corresponds to the first alphanumerics on
the identification plate. These operating instructions apply to:
Type Product family Size system
DWVMR9 62009 90
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2015
2

Contents
1 Safety precautions 4
1.1 Symbols used..............................................................................................4
1.2 General safety precautions.......................................................................5
1.3 Before using for the first time...................................................................6
1.4 Correct use ..................................................................................................6
1.5 Children in the home .................................................................................6
1.6 Note on use.................................................................................................7
2 Disposal 9
3 Your appliance 10
3.1 Appliance description..............................................................................10
3.2 Extraction model.......................................................................................10
3.3 Recirculation model.................................................................................10
3.4 Equipment..................................................................................................11
3.5 Construction..............................................................................................11
3.6 Operating and display elements ...........................................................12
4 Operating the appliance 13
4.1 Operation...................................................................................................13
4.2 Intensive level............................................................................................14
4.3 Illumination ................................................................................................14
4.4 Saturation indicators................................................................................14
4.5 Stand-by.....................................................................................................15
5 Care and maintenance 16
5.1 Cleaning the housing ..............................................................................16
5.2 Metal grease filter ....................................................................................17
5.3 Activated charcoal filter display.............................................................18
5.4 Activated charcoal filter...........................................................................19
6 Trouble-shooting 21
6.1 What to do if … .........................................................................................21
7 Accessories and spare parts 22
8 Technical data 23
9 Index 24
10 Notes 26
11 Service & Support 27
3

1 Safety precautions
1.1 Symbols used
Denotes important safety precautions.
Failure to observe said precautions can result in injury or in damage
to the appliance or fittings!
Information and precautions that should be observed.
Information on disposal
Information about the operating instructions
►Indicates step-by-step instructions.
–Describes how the appliance reacts to the steps taken.
•Indicates a list.
4

1 Safety precautions
1.2 General safety precautions
•Read the operating instructions before using the appliance for
the first time!
•This appliance can be used by children aged 8 and above
and by persons with reduced physical, sensory or mental cap-
abilities, or lack of experience and/or knowledge, provided
they are supervised or have been instructed on the safe use
of the appliance and have understood the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be undertaken by children without su-
pervision.
•If an appliance is not equipped with a mains cable and a plug
or other means for disconnecting from the mains with a con-
tact opening on each pole complying with the conditions of
overvoltage category III for full isolation, an isolating device
must be incorporated into the permanently installed electrical
installation in accordance with the installation regulations.
•If the mains cable of this appliance is damaged, it must be re-
placed by the manufacturer or its Customer Services or a sim-
ilarly qualified person in order to avoid hazard.
5

1 Safety precautions
1.3 Before using for the first time
•The appliance must be installed and connected to the electricity supply in
accordance with the separate installation instructions. Have a qualified fitter/
electrician carry out the necessary work.
•Dispose of the packaging material in accordance with local regulations.
1.4 Correct use
•The appliance is designed for use in the home for extracting cooking
odours from above a cooking area.
•Any repairs, modifications or manipulations to the appliance, especially any
electrically live parts, may only be carried out by the manufacturer, its Cus-
tomer Services or a similarly qualified person. Repairs if carried out incor-
rectly could cause serious injury or damage to the appliance and fittings as
well as affect the functioning of the appliance. If the appliance is not work-
ing properly or in case of a repair order, follow the instructions given in the
'Repair service' section. If necessary, please contact our Customer Services.
•Use original spare parts only.
•Retain these operating instructions for future reference. If you sell the appli-
ance or pass it on to a third party, please ensure these operating instruc-
tions accompany the appliance, together with the instructions on installation.
In this way, the new owner can inform themselves about how to use the ap-
pliance correctly and read the pertinent safety precautions.
1.5 Children in the home
•Packaging material, e.g. plastic film and polystyrene, can be dangerous for
children. Danger of suffocation! Keep packaging material away from chil-
dren.
•The appliance is designed for use by adults who are familiar with these op-
erating instructions. Children are often unable to recognize the danger of
electrical appliances. Ensure proper supervision and do not allow children
to play with the appliance – there is a danger that children could hurt them-
selves.
6

1 Safety precautions
1.6 Note on use
•If the appliance is visibly damaged, do not use it. Contact Customer Ser-
vices.
•If the appliance is not operating properly, disconnect it from the power sup-
ply immediately.
•If the mains cable of the appliance is damaged, it must be replaced by Cus-
tomer Services in order to avoid hazard.
•Caution: Accessible parts may become hot when used with cooking appli-
ances.
•Do not flambé food underneath the appliance. Grease filters if laden with
grease could catch fire.
•If frying on the cooking surface, do not leave the frying appliance unatten-
ded. The cooking oil in the frying appliance could overheat and catch fire.
Constantly monitor the temperature of the cooking oil, keeping it below the
temperature at which it can catch fire. Change the cooking oil regularly –
dirty oil catches fire more easily than clean oil.
•Observe the cleaning intervals. Failure to do so can increase the fire hazard
due to the excessive build-up of grease in the grease filters.
•Do not operate the individual cooking zones of the cooking surface without
a pan on them or with an empty pan on them so as to avoid damaging the
appliance or the kitchen fittings through a build-up of heat. Avoid open fires
with oil, gas, wood and coal fired cookers.
•Ensure there is adequate ventilation when the extraction fan is on so as to
avoid creating a disturbing underpressure in the kitchen and to achieve op-
timal air extraction.
•Avoid a cross-current of air, which could blow the cooking vapours across
the cooking area.
•If other appliances – fuelled by gas or other fuels – are being used at the
same time, ensure that there is a sufficient supply of fresh air. This does not
apply to air recirculation appliances.
•If other firing systems are being used at the same time (e.g. wood, gas, oil
or coal-fired heating appliances), safe operation is only possible providing a
room negative pressure of 4 Pa (0.04mbar) is not exceeded at the location
of the appliance. Risk of toxic fumes! An adequate flow of fresh air must be
guaranteed e.g. via non-closable openings in doors or windows and in com-
bination with an air-intake/exhaust-air wall box or by other technical means.
7

1 Safety precautions
•When carrying out maintenance work on the appliance, including replacing
the light bulb, cut off the electricity supply to the appliance (remove the
screw fuse from the holder or switch the circuit breaker off, or disconnect
from the mains supply).
•When cleaning the appliance make sure no water gets inside the appliance.
Use a moderately damp cloth. Do not spray the inside or outside of the ap-
pliance with water. Do not use a steam cleaner. If water gets inside the ap-
pliance, it can cause damage.
8

2 Disposal
Packaging
•All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS))
are marked and should, if possible, be collected for recycling and disposed
of in an environmentally friendly way.
Disconnection
•Disconnect the appliance from the mains. With a fixed appliance, this is to
be carried out by a qualified electrician!
Safety
•Disable the appliance to prevent accidents caused by improper use, espe-
cially through children playing.
•Pull the plug out of the mains socket or have the appliance disconnected
from the mains by an electrician. Then cut the mains cable off flush with the
appliance.
Disposal
•The old appliance should not be discarded as worthless rubbish. If dis-
posed of correctly, the raw materials can be recovered for recycling.
•The symbol on the identification plate warns that the appliance may not
be disposed of in normal household waste.
•The appliance must be disposed of in accordance with local regulations on
waste disposal. For more information on the handling, disposal and recyc-
ling of the product, please contact the local authorities, the local recycling
facilities for household waste or the retailer from whom you purchased the
appliance.
9

3 Your appliance
3.1 Appliance description
The appliance is designed for use in the home for extracting cooking fumes
and smells from above the cooking surface.
The model can be used to extract or recirculate air.
3.2 Extraction model
A fan draws cooking fumes and smells from above the cooking area. The
metal grease filters clean the extracted air, which is passed through a connect-
ing pipe fitted with an integrated non-return valve and through the air duct to
the outside.
When in use, ensure there is a sufficient supply of fresh air to replace
the air that is being extracted.
3.3 Recirculation model
After being filtered through the metal grease filter, the cooking fumes and
smells above the cooking area are passed through an activated charcoal filter.
The filtered air is then circulated back into the room through the side open-
ings.
If activated charcoal filters are not supplied with the appliance, these
should be ordered and installed before using the appliance for the
first time.
Moisture is not filtered out of the air.
10

3 Your appliance
3.4 Equipment
•1 extractor fan
•Illumination
•2 metal grease filters
•2 activated charcoal filters (not included in scope of delivery)
The extraction fan has 4 power levels.
•1 = low, 2 = medium, 3 = high, and intensive level.
•Power levels 1–3 are suitable for continuous operation.
•The intensive level is used for short bursts of intensive extraction of cooking
fumes and smells, e.g. when searing meat. The intensive level runs for a
maximum of 5 minutes at a time.

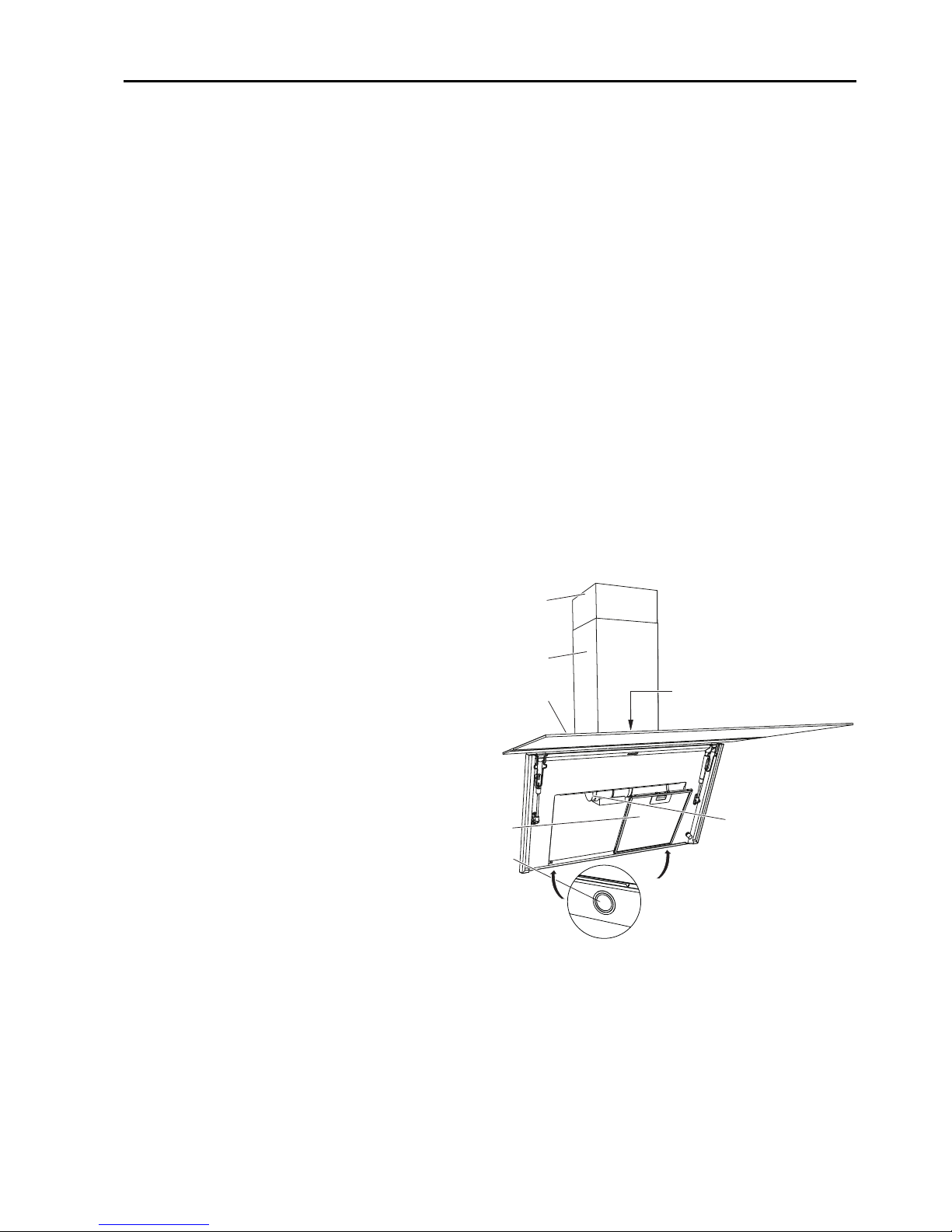

3.5 Construction
1 Illumination
7
6
5
43
2
1
2 Metal grease filter
3 Operating elements
4 Glass panel, hinged
5 Lower cover
6 Upper cover
7 Activated charcoal filter
11

3 Your appliance

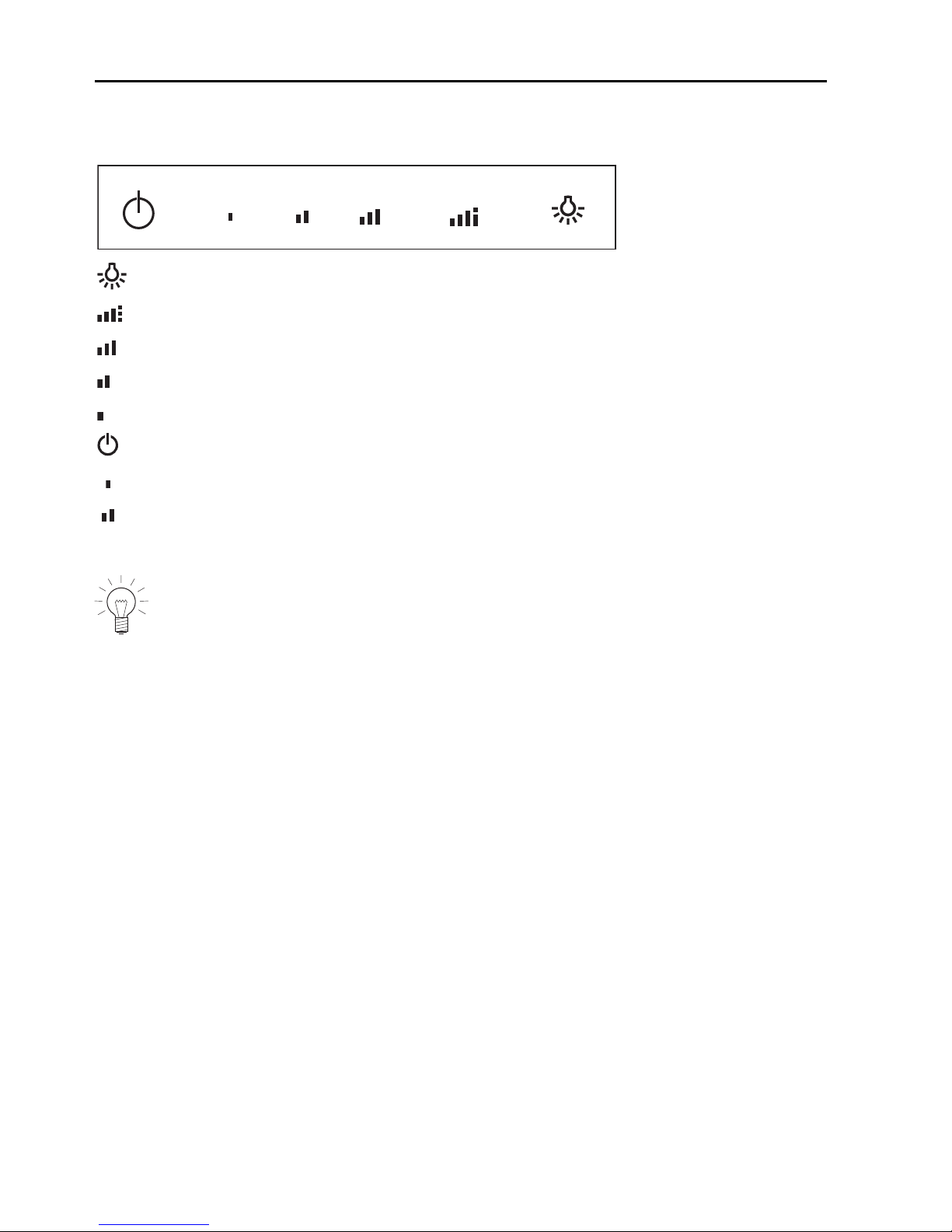

3.6 Operating and display elements
Illumination ON/OFF
Intensive level
Power level 3
Power level 2
Power level 1
Switching off
Flashing: Clean grease filter / saturation indicator for filter
Flashing: Replace activated charcoal filter / saturation indicator for ac-
tivated charcoal filter (recirculation model)
Depending on the model and features, the specification of the appli-
ance may differ from the standard specification described herein.
12

4 Operating the appliance
4.1 Operation
Switching the appliance on
►With the appliance switched off, hold the button depressed for three
seconds.
–The stand-by mode is activated.
–The button illuminates.
►Pressing the / / or button switches the appliance on at power level 1,
2, 3 or intensive.
–The corresponding button illuminates to indicate which power level is
being used.
–If the intensive level is selected, the button also illuminates for the
power level that was running when the intensive level was started.
We recommend switching the appliance on at power level 1 five
minutes before cooking. Use a low power level for normal cooking
smells and a higher power level for very strong cooking fumes and
smells.
Switching the appliance off
►Depress the button for three seconds.
–The appliance is switched off and no buttons are illuminated.
–Only the illumination can be switched on/off.
After you have finished cooking, allow the appliance to run for another
15 minutes so that the cooking fumes and smells can be extracted.
13

4 Operating the appliance
4.2 Intensive level
The intensive level can be selected in stand-by mode.
►Press the button to switch the intensive level on for five minutes.
–The button and the button for the power level that was running
when the intensive level was started illuminate.
•If another power level had been running beforehand, then the appliance will
automatically revert to this power level after the five minutes has elapsed.
•If the intensive level was selected when in the stand-by mode, the appliance
will switch off after the five minutes.
►Press the / / or button to stop the intensive level before the five
minutes has elapsed.
4.3 Illumination
►Press the button to switch the illumination on.
►Press the button again to switch the illumination off.
4.4 Saturation indicators
Saturation indicator for metal grease filters
The button flashes after 40 operating hours. The saturation level has been
reached and the grease filters must be cleaned.
Saturation indicator for activated charcoal filters
The activated charcoal filters must be cleaned as soon as the button flashes
or at the latest after four months when the saturation level has been reached.
14

4 Operating the appliance
Resetting the filter saturation indicator
üThe grease filters have been cleaned.
►In the stand-by mode, hold the button depressed until an acoustic signal
is emitted.
–The flashing LEDs (grease filters) or (activated charcoal filters) no
longer flash.
4.5 Stand-by
Deactivating the stand-by mode
►Hold the button depressed for three seconds.
–The appliance is switched off and the LED goes out.
This function is useful when cleaning the hood.
The illumination can also be used when the stand-by mode is activ-
ated.
Activating the stand-by mode
►Hold the button depressed for three seconds.
–The stand-by mode is activated and the LED illuminates.
15

5 Care and maintenance
5.1 Cleaning the housing
Take care that no water gets into the housing of the appliance! If wa-
ter gets into the housing, it can cause damage.
Do not use abrasive cleaners, scouring pads, steel wool, etc. for
cleaning, as the surface could otherwise be damaged.
Remove the screw fuse or switch off the circuit breaker.
Cleaning the outside/inside
►To deactivate the stand-by mode: Depress the button for three seconds.
–The appliance is switched off and the LED goes out.
►Clean the outside using a slightly damp cloth – and detergent if necessary
– and wipe dry.
Grease and condensate water can build up on the inside next to the grease fil-
ters.
►Clean using a slightly damp cloth – and detergent if necessary –
and wipe dry.
16

5 Care and maintenance

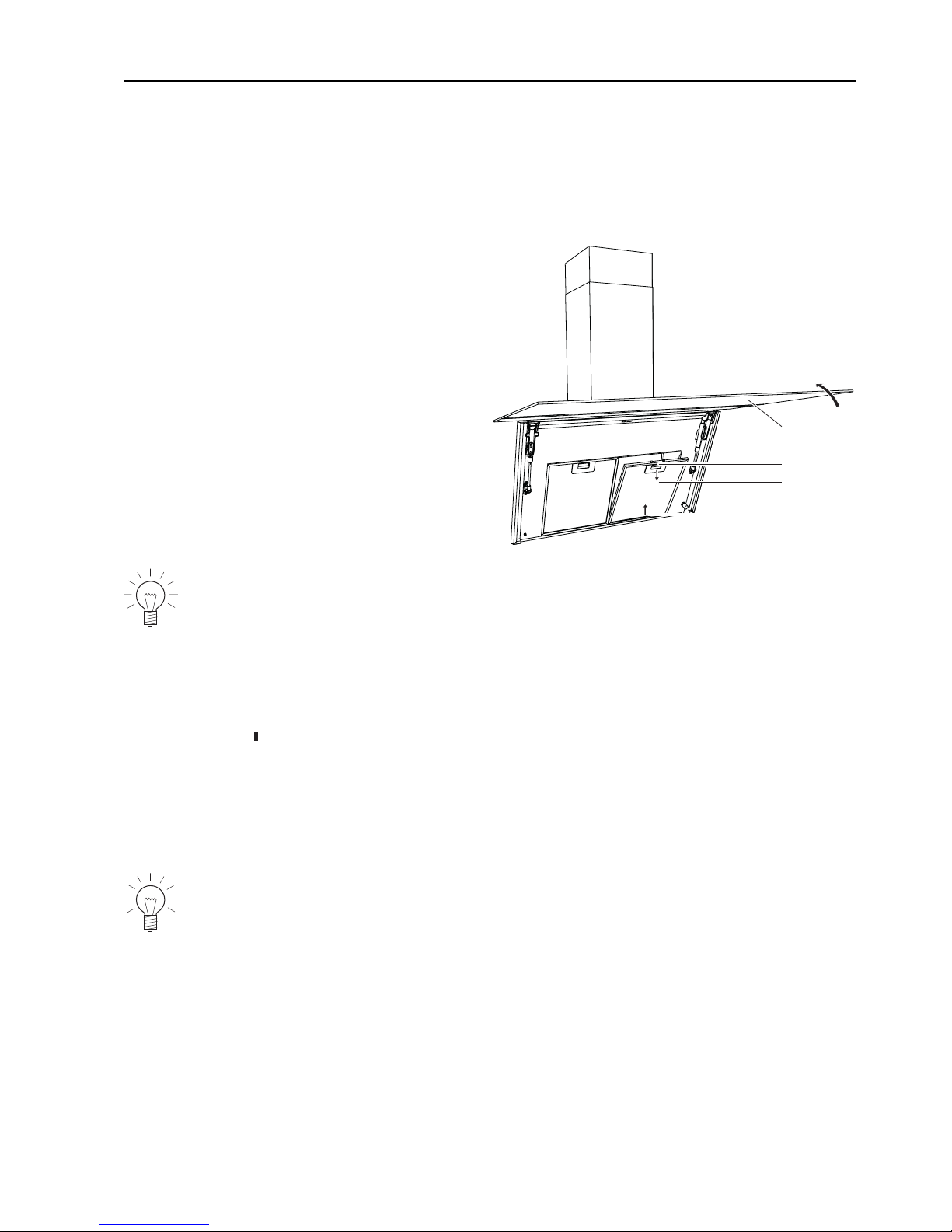

5.2 Metal grease filter
The filters can be cleaned.
Removing
►Swing the glass panel 1 up.
►Press down the grip 2, swing the
grease filter 3 forwards and lift it out
of the bracket 4.
1
2
3
4
Take care not to damage the filter.
Cleaning
The grease filters must be cleaned at least once a month with normal use or
whenever the indicator light flashes. If properly cared for, the service life of
the grease filters should be as long as the service life of the hood.
►Clean the grease filters (grip facing downwards) in the dishwasher.
►Select an «intensive» – or «heavy» – wash programme with a warm pre-
wash.
Cleaning may cause the grease filters to become discoloured. This
will not affect the functioning of the filters in any way.
If you do not have a dishwasher:
►Clean the grease filters in hot water and detergent.
►Soak the grease filters in hot water and detergent for about two hours, then
clean with a washing-up brush and rinse well with clean water.
17

5 Care and maintenance
Installing
►Insert the grease filter 3 into the
bracket 4 at the bottom.
►Press down the grip 2 and engage
the grease filter 3 in the bracket at
the top.
►Swing the glass panel 1 down.
►In the stand-by mode, hold the
button depressed until an acoustic
signal is emitted.
–The flashing button goes out.
1
2
3
4
5.3 Activated charcoal filter display
Activating the activated charcoal filter display
This function must only be activated with the recirculation model.
►To deactivate the stand-by mode: Hold the button depressed for three
seconds.
►Then depress the and buttons at the same time for three seconds.
–First the button flashes, then the / buttons both flash.
–The activated charcoal filter display is activated.
18

5 Care and maintenance
Deactivating the activated charcoal filter display
►To deactivate the stand-by mode: Depress the button for three seconds.
–The appliance is switched off and the LED goes out.
►Then hold the and buttons depressed at the same time for three
seconds.
–The / buttons both flash, then the button flashes.
–The activated charcoal filter display is deactivated when the button
stops flashing and the button keeps on flashing.
5.4 Activated charcoal filter
Removing the activated charcoal filters
►Swing the glass panel 1 up.
►Press down the grip 2, swing the
grease filter 3 forwards and lift it out
of the bracket 4.
1
2
3
4
►Remove the activated charcoal filter
7 .
7
19

5 Care and maintenance
Replacing
The activated charcoal filters 7 cannot be washed or regenerated and
must be replaced. As soon as the indicator light flashes or, with
heavy use, at least bimonthly.
Installing the activated charcoal filter
►Install the new activated charcoal fil-
ters 7.
7
►Insert the grease filter 3 into the
bracket 4 at the bottom.
►Press down the grip 2 and engage
the grease filter 3 in the bracket at
the top.
►Swing the glass panel 1 down.
►In the stand-by mode, hold the
button depressed until an acoustic
signal is emitted.
–The indicator light goes out.
1
2
3
4
20
