Vacmaster AM1202 User manual
AM1202 124W
ORIGINAL INSTRUCTIONS
1
2
3
4
5
9
10
6
11
7
8
6
GB
TABLE OF CONTENTS
SECTION PAGE
Symbols
Safety Information
Grounding Instructions
Unpacking and Checking Carton Contents
Operation
Maintenance
Troubleshooting
Technical Data
Recycling and Disposal
Plug/Fuse Replacement (UK & Ireland Only)
..........................................................................................................................................
..........................................................................................................................
....................................................................................................................
....................................................................................
........................................................................................................................................
...................................................................................................................................
..............................................................................................................................
................................................................................................................................
..................................................................................................................
.................................................................................
6
7
9
9
9
11
12
13
13
13
Thank you for purchasing this Vacmaster® Air Mover. Feel condent that with Vacmaster®you are
obtaining a high quality product engineered for optimal performance.
FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.
SYMBOLS
Caution
Read instruction manual. Failure to follow the warnings and instructions may
result in electric shock, re and/or serious injury.
7
GB
SAFETY INFORMATION
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE
USING THIS AIR MOVER.
When using the equipment, a few safety precautions must be
observed to avoid injuries and damage. Please read the complete
operating manual with due care. Keep this manual in a safe
place so that the information is always available. If you give
the equipment to any other person, give them these operating
instructions as well. We cannot accept any liability for damage or
accidents which arise due to a failure to follow these instructions
and the safety information.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Never leave the appliance switched on unattended, if you leave
the work area, switch the appliance off or unplug it from the
power supply.
• Do not use this air mover near ammable liquids, gases or
explosive vapours like gasoline or other fuels, lighter uids,
cleaners, oil-based paints, natural gas, hydrogen, or explosive
dusts like coal dust, magnesium dust, grain dust or gun power.
Sparks inside the motor can ignite ammable vapours or dust.
• Do not use this appliance to blow or move anything that is
burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not unplug by pulling on the cord. To unplug, grasp the plug,
not the cord.
• Do not use with damaged cord, plug or other parts.
• Do not pull or carry by cord, use cord as handle, close a door
on cord, or pull cord around sharp edges or corners.
• Before each use, check the power supply cable for damage. Do
not use the equipment if the cable is damaged or worn. Danger
of electric shock hazard.
• If the power cable for this equipment is damaged, it must be
8
GB
replaced by a suitably qualied repair specialist in order to
prevent hazards.
• If air mover is not working as it should, or has been dropped,
damaged, left outdoors, or dropped into water, take it to a
suitably qualied repair specialist for inspection and repair
before using it again.
• Make sure that the mains voltage corresponds with the
information on the rating plate.
• Only plug the appliance into a socket which is safeguarded by
at least 13A.
• For additional protection: It is recommended that this vacuum
cleaner can be used in conjunction with residual current device
(RCD) with a rated residual current of 30mA or less.
• Do not use with a solid state speed control device.
• Do not expose to rain. Store indoors.
• Do not handle the plug or air mover with wet hands.
• Do not run cord under carpeting. Do not cover cord with throw
rugs, runners, or other coverings. Direct cord away from trafc
areas where it will not be tripped over.
• Do not cover the ventilation openings. Do not vacuum with any
ventilation openings blocked; keep free of dust, lint, hair or
anything that may reduce air ow. Never operate this air mover
with intake grills removed.
• This air mover is equipped with an over-load protection device
which may shut down the unit during operation. To reduce the
risk of injury from accidental starting, turn off unit and unplug
power cord when not in use or before servicing.
• Keep hair, loose clothing, ngers, and all parts of body away
from openings and moving parts.
CAUTION:
• Ensure a dust mask is used when operating in a dusty
environment.
• Do not move or carry the air mover while it is operating.
• Only operate on a level, stable surface to prevent the air mover
from falling and potentially causing injury or damage to the unit
or property.
9
GB
GROUNDING INSTRUCTIONS
OPERATION
Unpacking and Checking Carton Contents
This appliance must be grounded. If it should malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock.
This air mover is for use on a nominal 220-240V circuit, and has a grounded plug. The air mover
should not be plugged into an outlet if it is not grounded. Do not use with an extension cord.

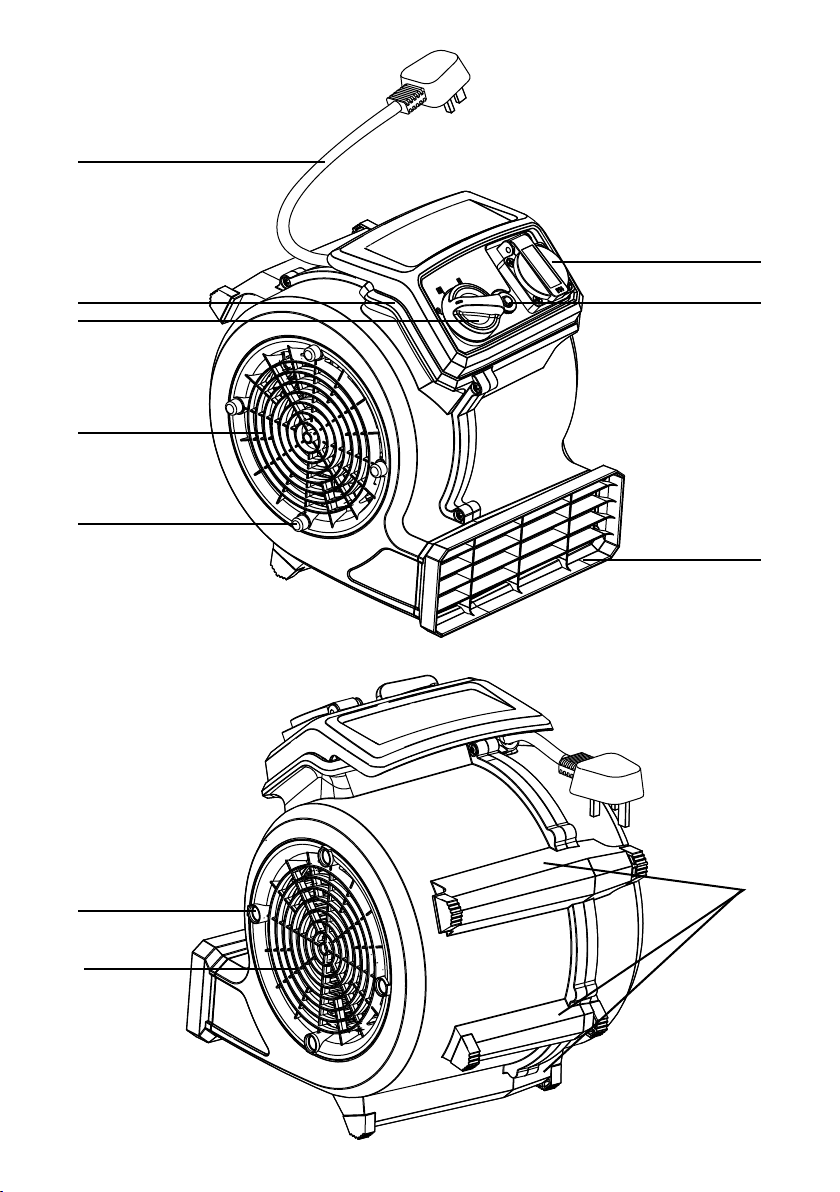

1Power Cord 7 Reset Button
2 Handle/Cord Storage 8 Power Extension Outlet
33-Speed On/Off Switch 9 Mounting Pegs
4Intake Grill (Left) 10 Intake Grill (Right)
5 Mounting Pegs 11 3-Position Anti-Skid Feet
6 Air Discharge Grill
1. Switching On/Off
Verify that the 3-speed on/off switch is set to "0" (OFF) position. Connect the mains plug to a
suitable power outlet.
Position Status
0Off
III Maximum
II Medium
ILow
10
GB
2. Air Mover Operation
1) Place the air mover in the desired position on a stable surface. Ensure there is at least a foot of
clearance on each side of the air mover. Avoid placing the air mover where loose fabric, sheets,
or other objects can get pulled onto the intake grills.
2) Direct air mover at the designated target area, using one of the operational positions (Fig.1).
3) Plug in the air mover to a grounded power outlet. See page 9 for Grounding Instructions. DO
NOT USE WITH AN EXTENSION CORD.
4) Turn on the air mover by rotating the 3-speed on/off switch clockwise to the desired power
level.
5) The air mover is tted with a power outlet socket near the On/Off Switch.
6) When nished operation, turn the 3-speed on/off switch counter-clockwise to the "0" (OFF)
position and unplug the power cord from the power outlet.
CAUTION: The air mover is equipped with an overload protection feature. If the air mover
is overloaded, it will shut off and will need to be reset before it can be used again. If this
occurs, rst remove any power tool or other device from the socket. Then set the on/
off switch to "0" (OFF) and press the reset button. Check that there are no obstructions
preventing airow into the intake grills before turning on the air mover again.
3. Operational Positions
This air mover has the ability to connect up to 12 units together to maximize air circulation (Fig.
2). To do this, plug the rst unit into a grounded electrical outlet. Then plug a second unit into the
power socket of the rst unit. Each unit can be controlled independently.
WARNING: Do not stack air movers vertically during operation. To reduce risk of overheating
or overload, ensure area around intake grills are clear to allow for unobstructed air ow.
WARNING: The total rated amperage for all units, running through the unit plugged into the
wall outlet, should never exceed 10A. Do not use an extension cord to connect units, or to
connect a unit to the wall outlet.
11
GB
MAINTENANCE
WARNING: DO NOT STORE OUTDOORS. STORE IN A DRY ENVIRONMENT, AWAY
FROM HAZARDOUS MATERIALS, SUCH AS TOXIC, CARCINOGENIC, FLAMMABLE, OR
EXPLOSIVE SUBSTANCES.
CAUTION: TO PREVENT DAMAGE TO AIR MOVER, PROPERTY DAMAGE, OR
PERSONAL INJURY: DO NOT STACK MORE THAN THREE UNITS HIGH. STACK ONLY
ON A STABLE, LEVEL, EVEN SURFACE. DO NOT TRANSPORT STACKED UNITS
UNLESS THEY ARE BRACED ON ALL SIDES.
CAUTION: DO NOT TURN ON THE AIR MOVER WHILE IT IS STACKED. THE STACKING
PEGS ARE FOR STORAGE PURPOSES ONLY.
1. Maintenance Before and After Each Use
1) Inspect the plug and the cord to ensure that it has not been damaged during operation or
between uses. If the plug or cord is damaged, do not use the air mover and replace the
damaged part immediately.
2) Check the air intake and air discharge grills and make sure they are free of blockage.
2. Cord Storage
1) Before storing the air mover, ensure the power switch is turned to the OFF position, and unplug
the unit from the power outlet.
2) Wrap the power cord around the base of the handle.
3) Use the attached cord clip to hold the cord in place.
3. Storing the Air Mover
1) To conserve space while storing multiple units, this air mover can be stacked together with
multiple additional units (Fig. 3).
2) To stack, the pegs on the intake grill on the power switch side of the unit must be inserted into
the peg receiver on the opposite side of the partner unit.
WARNING: ENSURE THAT THE UNIT IS NEVER OPERATED WITHOUT THE INTAKE
GRILLS, AIR DISCHARGE GRILL, AND IMPELLER.
12
GB
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
The air mover will not
operate.
No power supply. Check the power supply, cord,
breakers, and fuses.
Faulty power cord.
Unplug and check the power cord.
If damaged, have it repaired by
qualied personnel or contact the
after sales helpline.
Switch in the wrong position. Move the switch to the "On"
position (I, II, or III).
The switch is faulty.
Have the switch replaced by
qualied personnel or contact the
after sales helpline.
Overload protection has
engaged, shutting off the air
mover.
First check and remove any
power tool or other devices from
the power receptacle. Then set
the switch to the "Off" position (0)
and press the reset button.
The air mover runs but
makes loud scraping
noise.
Damage to the unit has
caused deformed housing or
misaligned centrifugal fan.
Replace the air mover.
The air mover runs but
centrifugal fan does not
rotate.
The centrifugal fan and
housing are jammed. Replace the air mover.
There is a problem with the
switch or capacitor.
The air mover runs briey
then shuts off due to
overload protection.
The intake grill or air
discharge grill is obstructed. Remove the obstruction.
The motor is damaged. Replace the air mover.
The air mover runs but
with excessive vibration.
The centrifugal fan has dirt
build up.
Have the air mover inspected by
qualied personnel or contact the
after sales helpline.
The centrifugal fan is
damaged or the motor is bent. Replace the air mover.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, UNPLUG BEFORE
TROUBLESHOOTING.
13
GB
RECYCLING AND DISPOSAL
This marking indicates that this product should not be disposed with other household wastes
throughout the EU. The machine must be delivered in rigid packaging to avoid damage during
transportation. The packaging and the machine itself are manufactured from recyclable
materials and should be disposed of accordingly.
TECHNICAL DATA
Motor 220-240V ~ 50Hz
Power 124W
Air ow 15m3/min

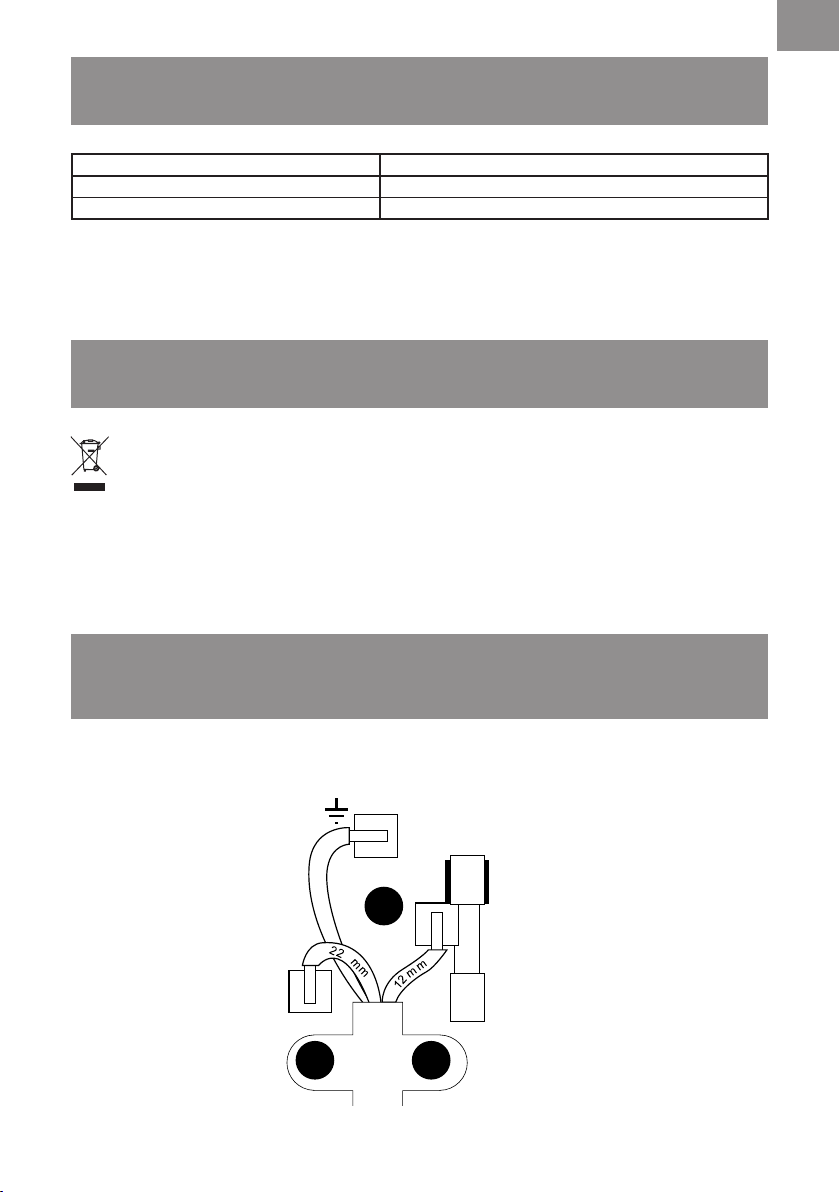

PLUG/FUSE REPLACEMENT (UK &
IRELAND ONLY)
This product is tted with a non-rewirable plug. If the plug has to be changed, refer to the picture
below.
6mm
6mm
FUSE
FITTED WITH BS 1362 13A FUSE
ALWAYS RT FIT BS 1362 REPLACEMENT
CARTRIDGE FUSE
6mm 32mm
E
L
N
13A
GREEN&
YELLOW
OR
GREEN
BROWN
OR
RED
CORD GRIP
BLUE
OR
BLACK
3
2
1
19
GB
AM1202
Suzhou Cleva Electric Appliance Co., Ltd.
No.8 Ting Rong Street
Suzhou Industrial Park, Suzhou
Jiangsu Province, China
www.cleva-europe.com
Made in P.R.C
