VADA reece V150 User manual

Disclaimer:
Products in this specification manual must by regulation be installed by licensed and registered trade people. The manufacturer/distributor
reserves the right to vary specifications or delete models from their range without prior notification. Dimensions and set-outs listed are
correct at time of publication however the manufacturer/distributor takes no responsibility for printing errors.
CONSTRUCTION
Pump Housing Cast Iron
Pump Shaft Stainless steel - 304
Mechanical Seal Carbon ceramic (dual seal)
Oil Seal Nitrile
Power Cable H07RN-F
Float cable H07RN-F
Motor Shell Stainless steel - 304
Impeller Polycarbonate
PRODUCT OVERVIEW
The VADA V150 is a single phase drainage pump. It is a handy asset
for plumbers, drainers and general homeowners.
USAGE LIMITATIONS
•Type of liquid: clean water with no suspended solids or abrasive
material
•Maximum liquid temperature: 40OC
•Maximum submersion depth: 6m
•Maximum soft solids width: 15mm
•Maximum concentration of fine solids: 1%
VADA - V150
WARRANTY
You have purchased a quality product from Reece Australia. This
product is covered by a 24 month warranty. This warranty covers faults
in the product construction, material and assembly. Faulty products
will be repaired or exchanged free of charge. Faulty items become our
property.
This warranty does not include faults caused by
•Unsuitable or improper use
•Incorrect installation
•Normal wear and tear
•Inadequate or complete lack of maintenance
•Chemical, electrochemical or electrical influences
To the maximum extent permitted by law, Reece excludes all warranties
other than those set out above. In the event of a warranty claim, we
will replace or repair defective products, or pay for the cost of having
defective products repaired or replaced, but will not be liable for any
injury to any person, damage to any property, any indirect or
consequential loss, or in any other respect.

Disclaimer:
Products in this specification manual must by regulation be installed by licensed and registered trade people. The manufacturer/distributor
reserves the right to vary specifications or delete models from their range without prior notification. Dimensions and set-outs listed are
correct at time of publication however the manufacturer/distributor takes no responsibility for printing errors.

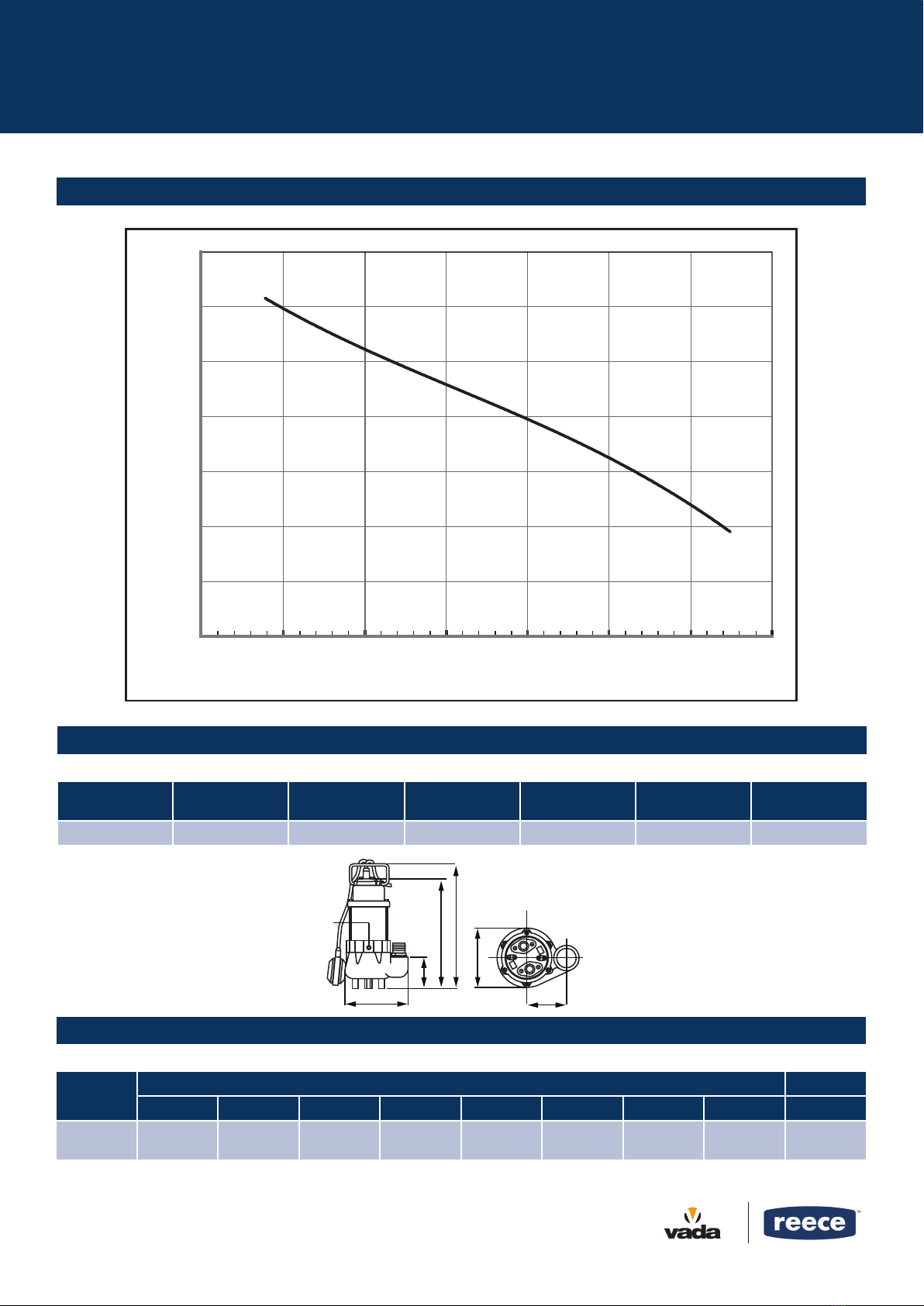

TABLE OF HYDRAULIC PERFORMANCE
PUMP PERFORMANCE
PUMP DIMENSIONS
Flow (litres/minute)
Head (metres)
0
1
2
3
4
5
6
7
0 20 40 60 80 100 120 140
V150
Model Power Consumption
(kW) Voltage Full Load Current (A) Starting Current (A) Pump ‘On’ Height (mm)
Pump ‘Off’ Height
(mm)
V150 0.18 1~230V±10% 1.75 9.5 500 75
Model
Dimensions (mm) Weight
A B C D E F Suction Port Outlet Port kg
V150 165 80 310 357 78 122 1” 1/4 Hose
Barb 1” 1/4 F 9
A
B
C
D
E
F
OIL CHAMBER PLUG
VADA - V150

Disclaimer:
Products in this specification manual must by regulation be installed by licensed and registered trade people. The manufacturer/distributor
reserves the right to vary specifications or delete models from their range without prior notification. Dimensions and set-outs listed are
correct at time of publication however the manufacturer/distributor takes no responsibility for printing errors.
PREPARING FOR INSTALLATION
Inspect your pump, ensuring that it is well packaged and has not been damaged in transport. If the pump is damaged, report it to the Reece
branch where the pump was purchased. Warranty of these pumps is void unless they are operated in accordance with these instructions.
PUMP PROTECTION
Avoid using the electrical cable to lift or transport the pump.
The pump is designed to be used with clean water
in a residential application. Do not use it with
alternative fluids, specifically abrasive, corrosive
or explosive fluids. Do not install or operate your
pump in an explosive enviroment or near
combustible matter.
Incorrectly installed or tested equipment may fail,
causing severe injury or property damage.
Fire and burn hazard. Modern motors run at high
temperatures. To reduce risk of fire, do not allow
leaves, debris, or foreign matter to collect around
the pump motor. To avoid burns when handling the
motor, let it cool for at least 20 minutes before
trying to work on it. A thermal overload switch
protects the motor for heat damage during
operation.
Only qualified, licensed personnel should install
pump. The electrical installation shall be in
accordance with the national wiring rules (AS/NZS
3000) for class 1, IP44 rated products.
These instructions are a guide only. Users not
familiar with pumping equipment should seek
advice from people experienced in pump equipment
and installation.
Freezing conditions will damage the unit, because
when water freezes it expands. Ensure that the
pump is located so that it is not prone to freezing,
or ensure that the product is disconnected and
dried of water during cold conditions.
The pump is electrically connected. Ensure that it
is isolated from electrical supply during installation
and any subsequent service work.
INSTALLATION
Please pay careful attention to the following warnings signs and indications.
VADA - V150

Disclaimer:
Products in this specification manual must by regulation be installed by licensed and registered trade people. The manufacturer/distributor
reserves the right to vary specifications or delete models from their range without prior notification. Dimensions and set-outs listed are
correct at time of publication however the manufacturer/distributor takes no responsibility for printing errors.
INSTALLATION
1. Locating the Pump
Using the handle at the top of the pump, connect a nylon rope (provided) or a stainless steel cable suitable to sustain it’s weight. Anchor the
other end of the rope or cable so that it balances the weight of the pump as it rests in it’s final position at the base of the tank/pit/well.
2. Power Source
If the pump is being installed in a permanent position arrange for an electrician to install a 10A weatherproof outdoor power point near the pump
if there is not one there already.
3. Suction
Ensure that the float switch can move freely within the tank/well/pit and cannot become trapped.
The V150 should be positioned on a hard surface that is elevated from the base of of the tank/pit/well. This is to ensure that pumped water is free
of sediment which may be present at the base.
4. Discharge
It is advisable to fit a check valve on the discharge piping to prevent fluid from re-circulating when the pump has stopped.
If you are using a hard discharge pipe, thred this into the outlet of the pump housing. If you are using a flexible discharge hose, use hose clamps
to secure this to the fitting provided.
The length and diameter of the discharge hoses/pipes will affect the pressure and flow rate at which your pump operates. Pressure ratings of all
components must exceed the maximum pressure of the pump by an appropriate safety factor. All pipe work should be supported independently
of the pump.
ELECTRICAL INSTALLATION
In accordance with AS 3350.2.41 we are obliged
to inform you that this pump is not to be used by
children or infirm persons and must not be used as a
toy by children
The pump must be supplied by an outlet protected
by a residual current device or earth leakage circuit
breaker with a maximum rated residual current of
30mA
The pump is supplied with a standard Australian 10 Amperes plug and cord. Connection to the power supply is a matter of inserting the plug into
the suitable power point.
Before plugging the power supply cord into the power point, ensure that the power supply cord is supported by the delivery pipes at 3 meter
intervals.
The pump will operate when the float is higher than level and stop when the pump float is in the low position.
Supply voltage outside limits specified in Model Data can cause motor overheat leading to overload tripping, reduced component life or seriously
damage pump and voids warranty.
For additional protection, the pump must be supplied from an outlet protected by a residual current device – RCD (also known as an Electrical
Leakage Circuit breaker – ELCB) with a maximum rated residual current of 30mA.
VADA - V150

Disclaimer:
Products in this specification manual must by regulation be installed by licensed and registered trade people. The manufacturer/distributor
reserves the right to vary specifications or delete models from their range without prior notification. Dimensions and set-outs listed are
correct at time of publication however the manufacturer/distributor takes no responsibility for printing errors.
The pump is designed to be used with clean water
in a residential application. Do not use it with
alternative fluids, specifically abrasive, corrosive
or explosive fluids. Do not install or operate your
pump in an explosive enviroment or near
combustible matter.
Liquid may be HOT, release pressure with care
before servicing.
The pump operator or owner must be provided
with this owner’s manual. This must be read before
operation, and followed during operation.
DO NOT RUN PUMP DRY
Ensure that your pump is submerged in water
before operating.
Pump should only be serviced by qualified
personel. For best results, use only genuine service
parts. Be sure to prime pump before starting.
To avoid dangerous or fatal electrical shock hazard,
turn OFF power to motor and remove plug from
power outlet before working on pump or motor.
OPERATION
SERVICE AND MAINTENANCE
START-UP/OPERATION CHECK
When the power is turned on, put a small amount of water in the tank/pit/well, enough to cover the pump completely. The float switch will rise,
the pump will start and empty the pit. As the pit emties, the float switch will fall and the pump will stop.
The system is now working correctly. If no water is delivered, check the troubleshooting section.
GENERAL CARE AND MAINTENANCE
Under normal conditions V150 pumps do not need any type of maintenance. In order to avoid possible failures, it is advisable to periodically
check the pressure supplied and current absorption. A decrease in pressure is a symptom of wear. An increase in current absorption is a sign of
abnormal mechanical friction in the pump and/or motor.
If the pump is not going to be used for long periods of time it should be emptied completely, rinsed with clean water and put in a dry place.
VADA - V150

Disclaimer:
Products in this specification manual must by regulation be installed by licensed and registered trade people. The manufacturer/distributor
reserves the right to vary specifications or delete models from their range without prior notification. Dimensions and set-outs listed are
correct at time of publication however the manufacturer/distributor takes no responsibility for printing errors.
TROUBLE SHOOTING GUIDE
Symptom Cause Remedy
Pump does not start Float switch isn’t in the on position Wait until there is enough water in the pit to
start the pump
Float is caught on something and can’t rise
above level
Ensure that the float can move freely
No power supply Ensure that the pump is connected to a live
outlet
Check fuses and circuit breakers
Pump is blocked Disconnect the pump from the power outlet,
and check the pump housing and discharge
for foreign matter
No water from pump Blockages in the pump or discharge Disconnect the pump from the power outlet,
and check the pump housing and discharge
for foreign matter
Excessive lift Ensure that the height that you are trying to lift
water is within the pump’s capacity. A larger
pump may be required.
Not enough water in the pit to pump Wait until there is enough water in the pit.
ensure the float switch is operating freely.
Pump will not stop, even though there is little
water in the pit
Float switch is trapped in the ‘up’ position Ensure that the float can move freely
Float switch is fused ‘on’ Replace the float switch
Pump runs intermittently; Thermal protection
inside the pump is tripping and resetting
The pump is not completely sunmerged Ensure pump is covered with water
Water temperature is too high Ensure that the water temperature limits are
observed
Pump runs intermittently When the pump shuts off, water in the
discharge line is running back into the pit,
lifting the float switch
Fit a non-return valve at the pump discharge
so that water cannot return to the pit
