VADA VFB-J90 User manual

JET PUMP
INSTALLATION
MANUAL
VFB-J90

A smooth day is a good day.
That’s why Vada is dedicated
to creating pump solutions
that you can count on. With
a focus on easy selection, simple
installation and high quality, you
can hold your head high knowing
your reputation is protected.
It’s Vada. Performance simplified.

3
Thank you for purchasing the Vada Flow Boss Jet Pump VFB-J90!
Record the product details here and leave with the owner.
Date purchased:
Purchased from:
Purchase invoice number:
Product serial number:
Product model number:
THANK YOU
Scan for
set up
support

4VADA FLOW BOSS JET PUMP VFB-J90 INSTALLATION MANUAL
KNOW YOUR PRODUCT VFB-J90
The Vada Flow Boss VFB-J90 is a self-priming Jet Pump that combines the functional benefits of a
centrifugal pump and the practical benefits of a self-priming pump. The pump is fitted with a jet and
venturi system guaranteeing optimum hydraulic efficiency and great performance under high suction
lift applications.
Stainless steel motor
shaft and pump casing
25mm FI outlet port
32mm MI
suction port
160mm Power
connector cable

Vada Flow Boss
Digital Water
Switching Unit
VFB-DSU
Vada Flow Boss
Automatic
Pressure Control
VFB-APC
FLOW BOSS
Vada Flow Boss
Mechanical Water
Switching Unit
25mm
VFB-MSU25
5
SPECIFICATIONS VFB-J90
If your application is using tank water only, please install your jet pump with a Vada Flow Boss
Automatic Pressure Control.
If you’re using tank and mains water and require a switching unit, you can choose between the Auto
Pressure Control and the Mechanical Switching Unit or the Digital Water Switching Unit.
COMPATIBLE VADA PRODUCTS:
• Optimal operating range: 24–31 metres head, 40–60 litres per minute
• Max liquid temp: 50°C
• Max ambient temp: 40°C
• IP44 (Motor)

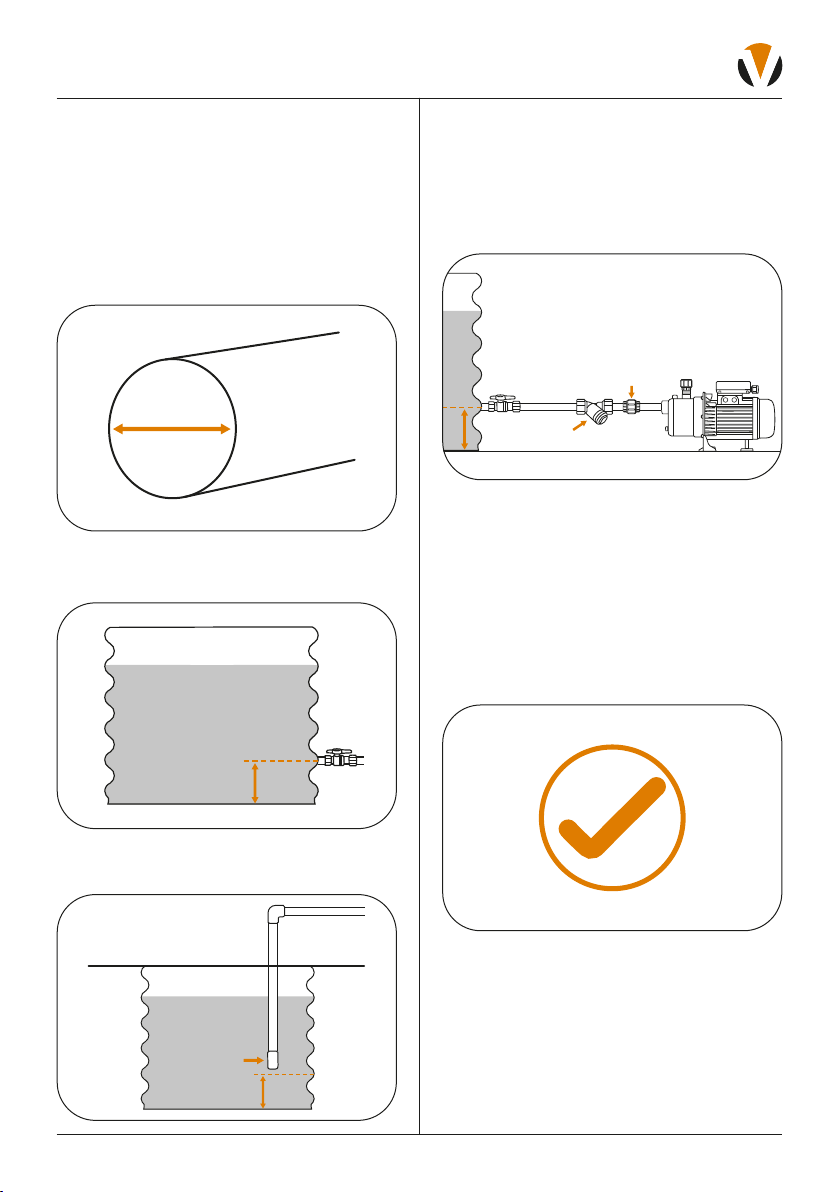

• Use a pipe size with a minimum of 25mm internal diameter to reduce friction loss.
• Install a check valve or foot valve on the suction line for enhanced operation.
HELPFUL HINTS

6VADA FLOW BOSS JET PUMP VFB-J90 INSTALLATION MANUAL
• Pump inlet: 25mm MI
• Pump outlet: 25mm MI
• Max water temp: 65°C
• Minimum pump pressure: 250kPa / 2.5 bar
• Maximum operating pressure: 1000kPa / 10 bar
• You will need a flathead screwdriver if adjusting the cut-in pressure.
• Ensure your pump set up is equipped with two isolation valves. This allows for fuss free
troubleshooting the suction and discharge lines, should you need it.

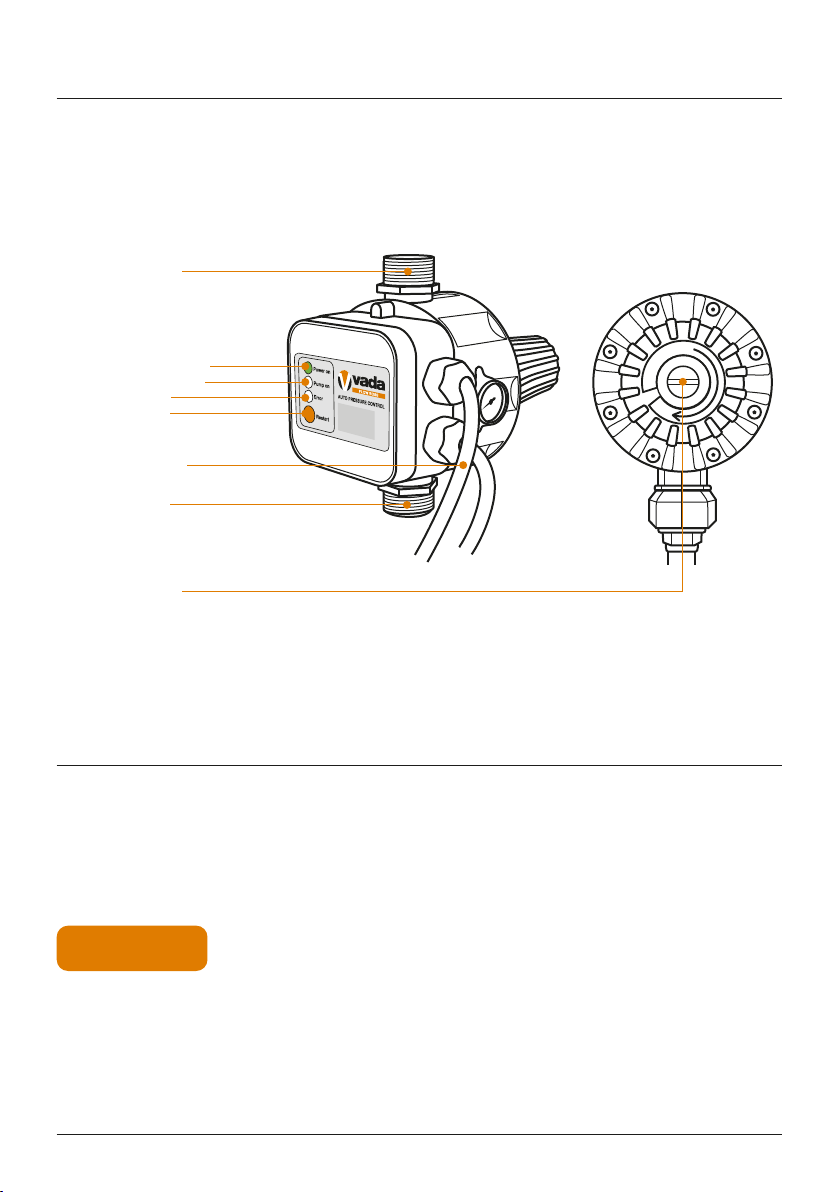

KNOW YOUR PRODUCT VFB-APC
The Vada Flow Boss Auto Pressure Control VFB-APC gives you perfect control of household
pressure pumps, guaranteed. Designed with an LED light panel to signal the state of operation,
a built in pressure gauge to allow for adjustable cut-in pressure and a 24 hour reset function
for hassle free operation.
SPECIFICATIONS VFB-APC
HELPFUL HINTS
Power On indicator
Pump On indicator
Error indicator
Restart button
Three-wire cable
25mm MI Inlet
Cut-in pressure
adjustment point
25mm MI Outlet

INTERPRETING THE APC VFB-APC
Error
Pump on
Power on
Restart
1~240V 50 Hz
Max 1.5kW 10A
Max 65°C
IP65
Max 1MPa (10 bar)
AUTO PRESSURE CONTROL
VFB-APC
Error
Pump on
Power on
Restart
1~240V 50 Hz
Max 1.5kW 10A
Max 65°C
IP65
Max 1MPa (10 bar)
AUTO PRESSURE CONTROL
VFB-APC
Error
Pump on
Power on
Restart
1~240V 50 Hz
Max 1.5kW 10A
Max 65°C
IP65
Max 1MPa (10 bar)
AUTO PRESSURE CONTROL
VFB-APC
7

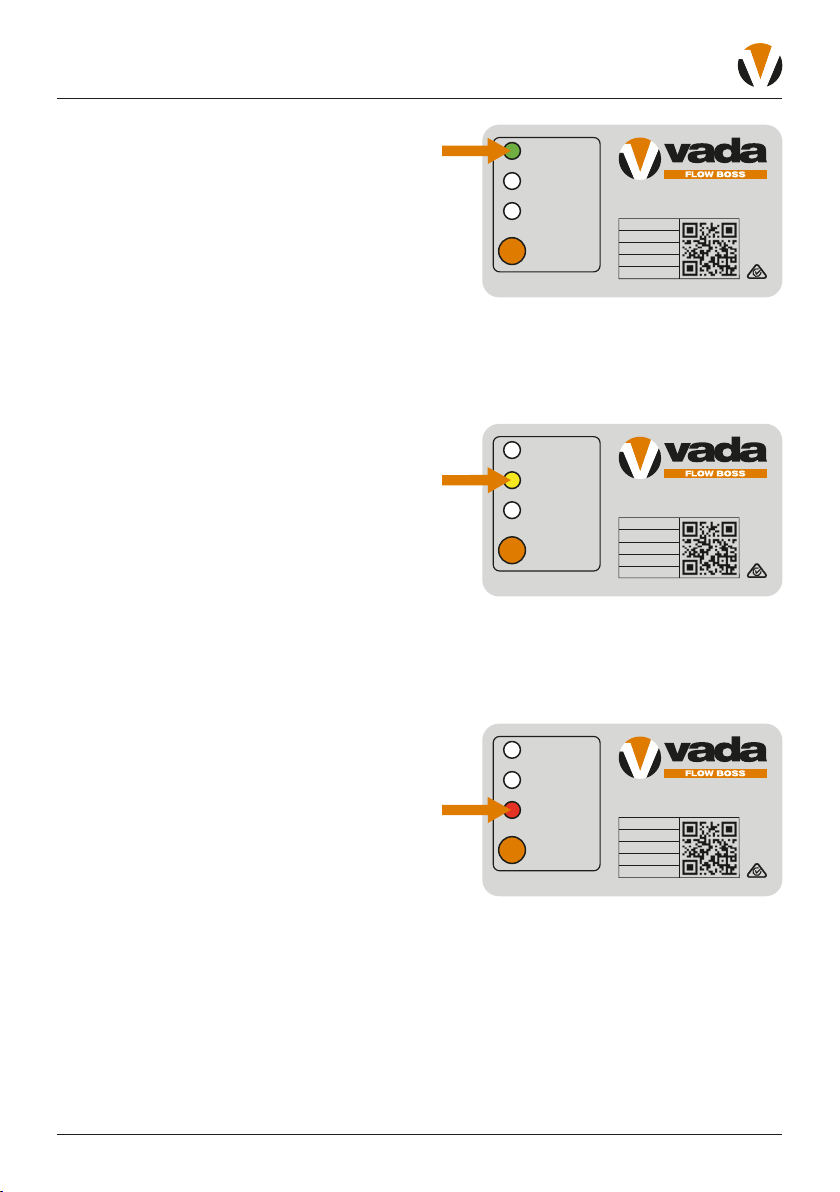

Green light
The VFB-APC is successfully connected to the
power supply.
Yellow light
The pump is in operation.
Note: On initial start up the pump will run until
the supply line is primed to remove all air.
Red light
Flashing red: Loss of flow detected. While the
red light is flashing, the pump will remain on for
20 seconds, then turn off as it tries to re-prime
itself. It will attempt this several times.
Solid red: The pump has not been able to
detect water and cannot re-prime itself. The
pump will turn off for 24 hours, or until reset.
To reset, turn the power off, then on or
press the restart button.

8VADA FLOW BOSS JET PUMP VFB-J90 INSTALLATION MANUAL

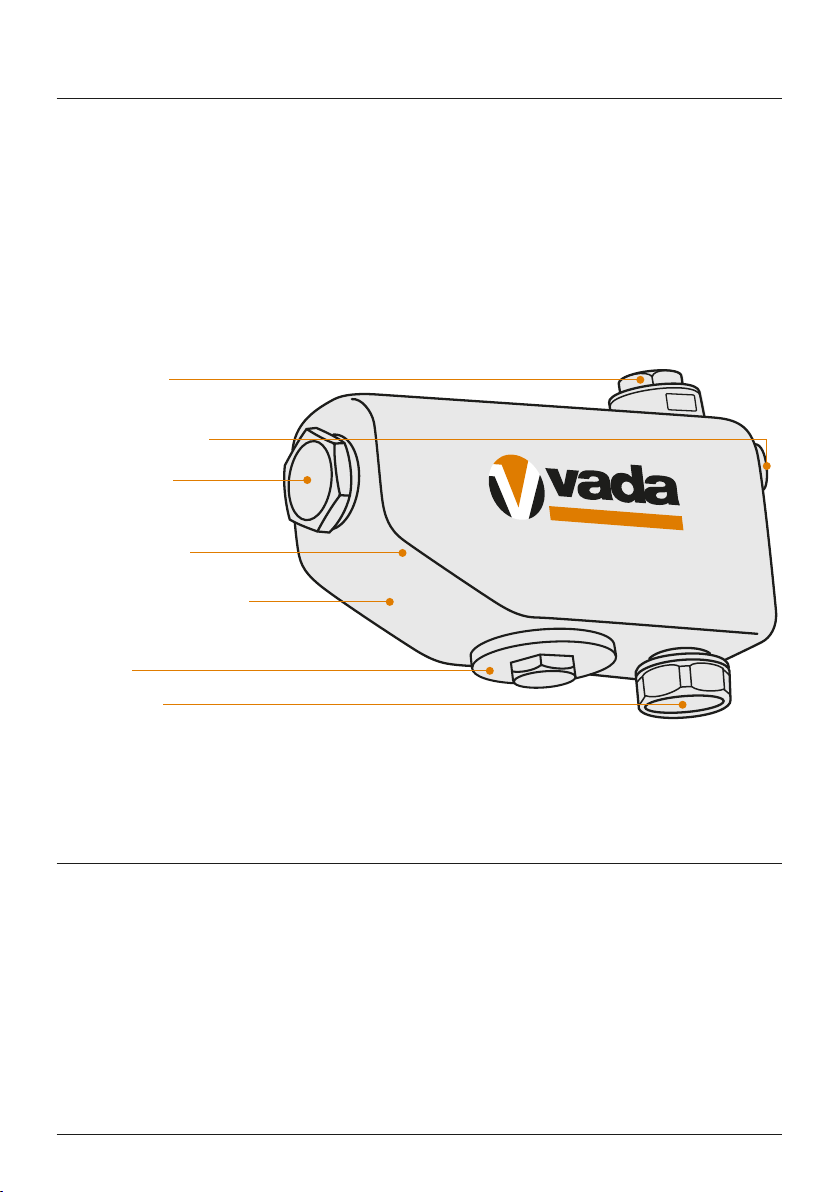

KNOW YOUR PRODUCT VFB-MSU25
SPECIFICATIONS VFB-MSU25
The Vada Flow Boss Mechanical Water Switching Unit VFB-MSU25 is a fully automatic mechanical
unit that switches between tank and mains water. This device is designed for pressure pump supply
systems, and allows you to harvest rainwater for the toilet, laundry, and other household applications
with automatic mains backup.
The 25mm Switching Unit is suitable for up to 3 toilets, a washing machine, and an additional tap
outlet including irrigation.
The Vada Flow Boss Mechanical Switch is suitable for clean water only.
FLOW BOSS
25mm FI Outlet
25mm FI Mains Inlet
Brass end cap
DN25 nut
25mm FI Inlet
UV Stabilised ABS plastic
casing for longevity
Dual Check Valve
Brass tail
• Pump inlet: 25mm FI
• Mains water in: 25mm FI
• Outlet: 25mm FI
• Max mains pressure: 1000kPa / 10 bar
• Min pump pressure: 350kPa / 3.5 bar
• Max flow rate: 100 litres per minute
• Max water temp: 50°C

9

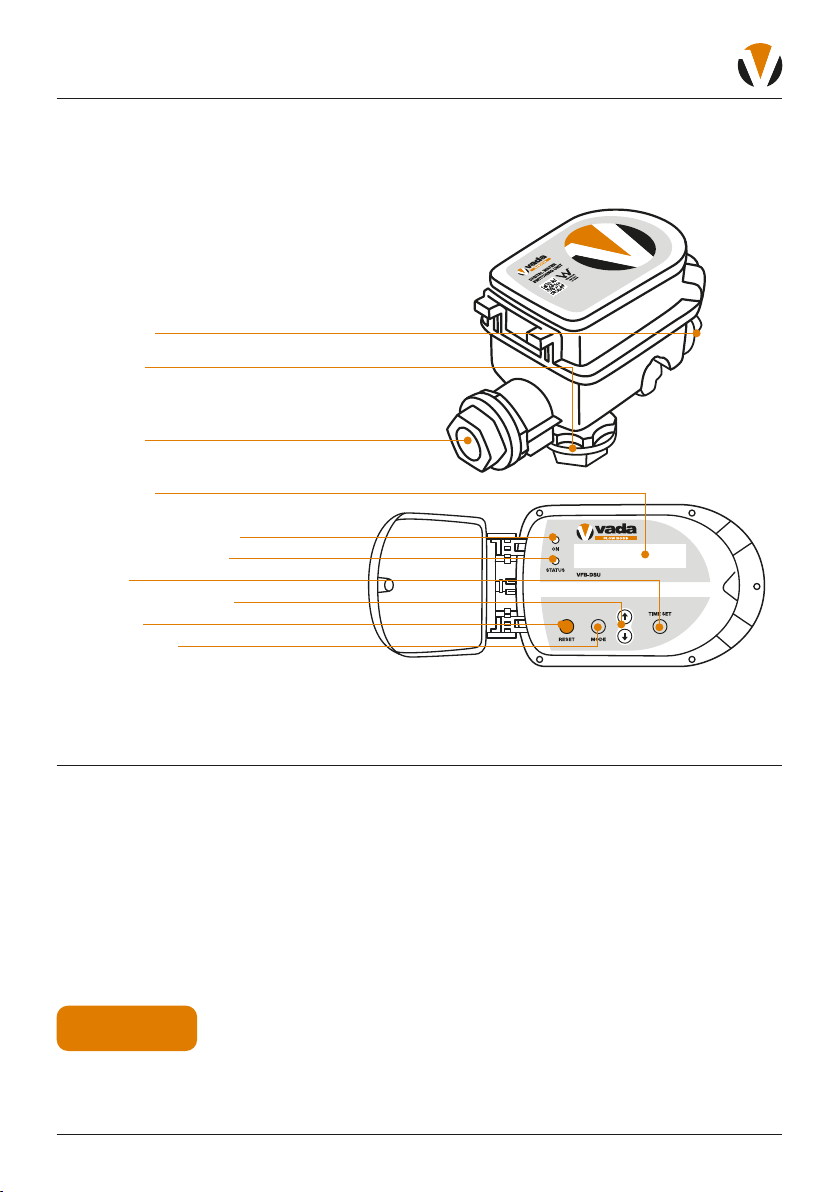

KNOW YOUR PRODUCT VFB-DSU
SPECIFICATIONS VFB-DSU
The Vada Flow Boss Digital Water Switching Unit VFB-DSU allows for water source switching between
tank and mains water. With a large interactive panel, the VFB-DSU provides system information
including a log of rain water used, real time flow rate, water pressure, current and error conditions.
Pump inlet
Water outlet
Mains inlet
LCD display
Power ON/error status
Pump ON LED indicator
Up/down toggle button
Mode selection
Error reset
• Mains water supply inlet: 25mm FI
• Pump connection: 25mm FI
• Water outlet connection: 25mm FI
• Minimum mains pressure: 100kPA / 1 bar
• Max operating pressure: 1000kPA / 10 bar
• Minimum flow rate: 1 lpm
• Voltage: 1~230 – 240V 50Hz
• Maximum electrical load: 10A / 2400W
• IP Rating: IP44
• View the complete Digital Water Switch Manual for further details on set up, operation and even
troubleshooting.
HELPFUL HINT
Time set

10 VADA FLOW BOSS JET PUMP VFB-J90 INSTALLATION MANUAL

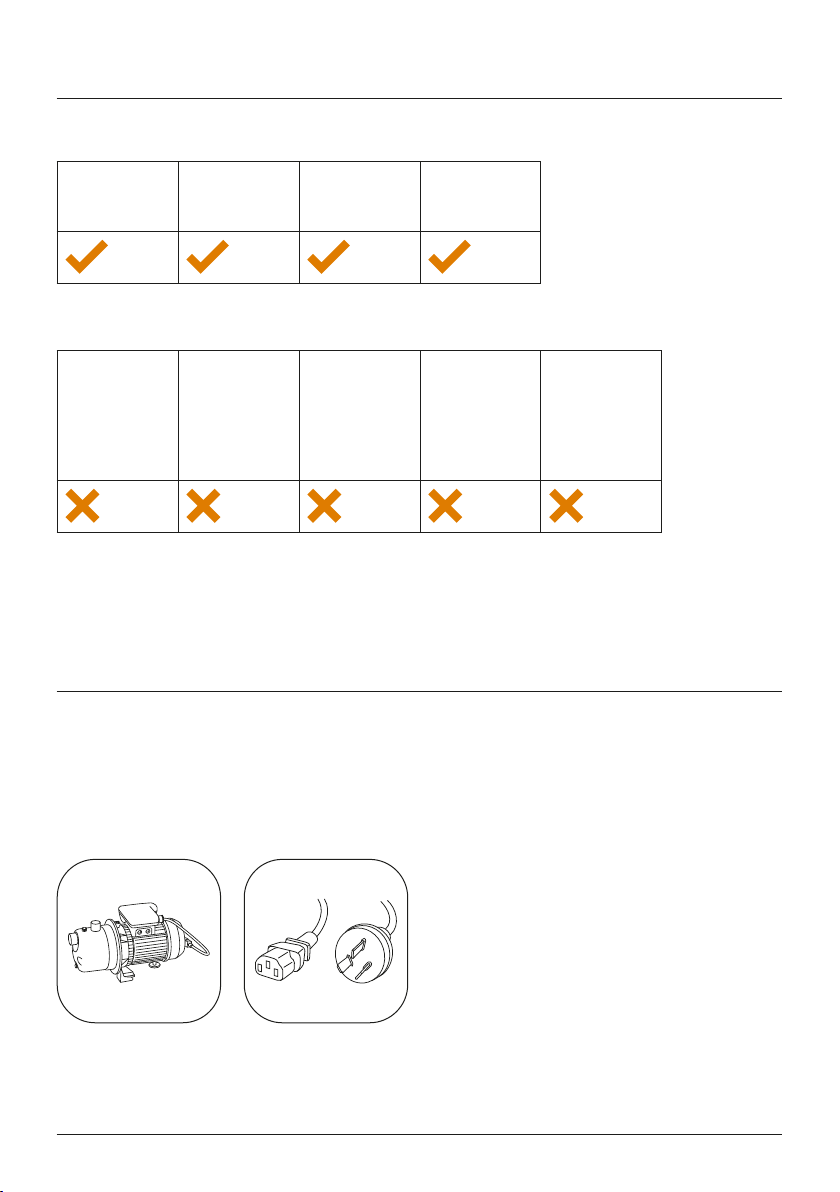

APPLICATIONS
The Vada Flow Boss Jet Pump VFB-J90 is suitable for the following applications:
Water source
switching
(tank/main)
Domestic
pressure
systems
Water transfer
(clean water
only)
Irrigation
systems
The Vada Flow Boss Jet Pump VFB-J90 is not suitable for the following applications:
Drainage of
stormwater
pits
Pumping of
blackwater
(wastewater
with toilet
discharge)
Pumping
liquids
containing
long fibrous
materials
Pumping
aggressive or
inflammable
liquids
Pumping
liquid
containing
abrasive
solids (stones,
ceramics etc.)

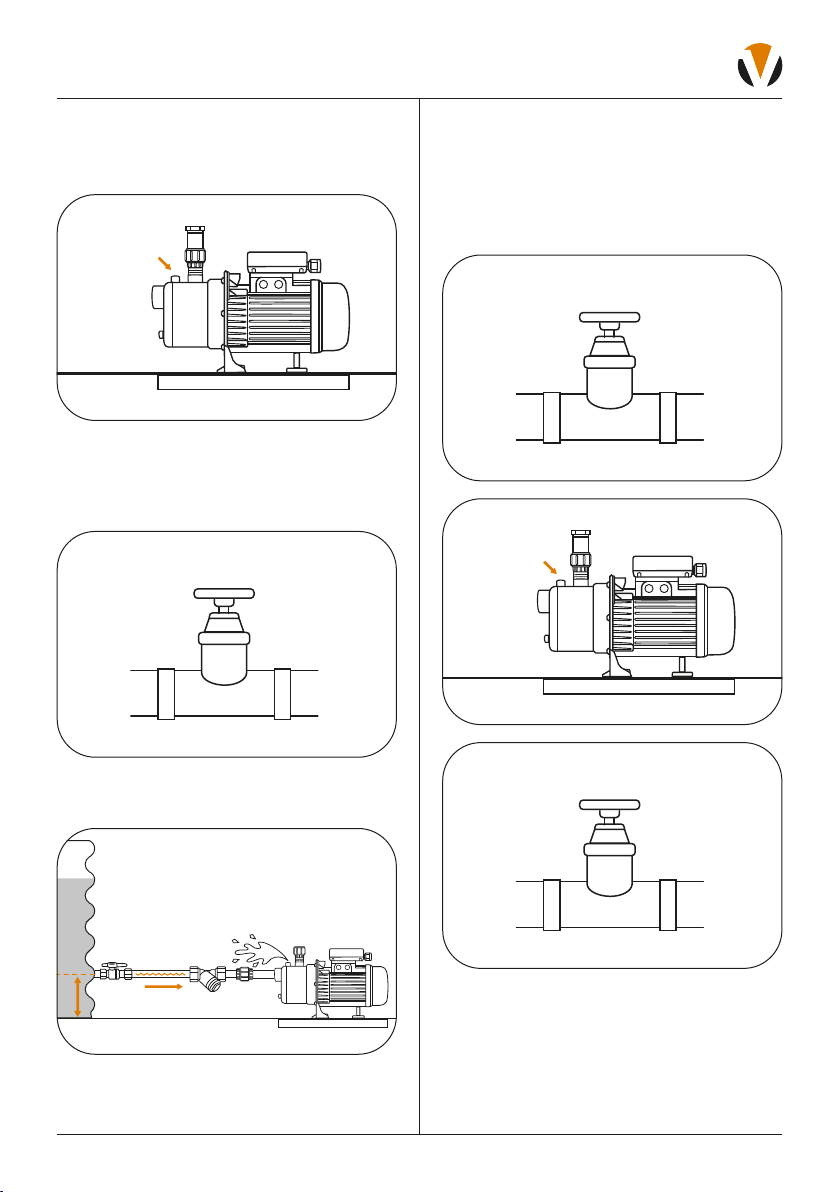

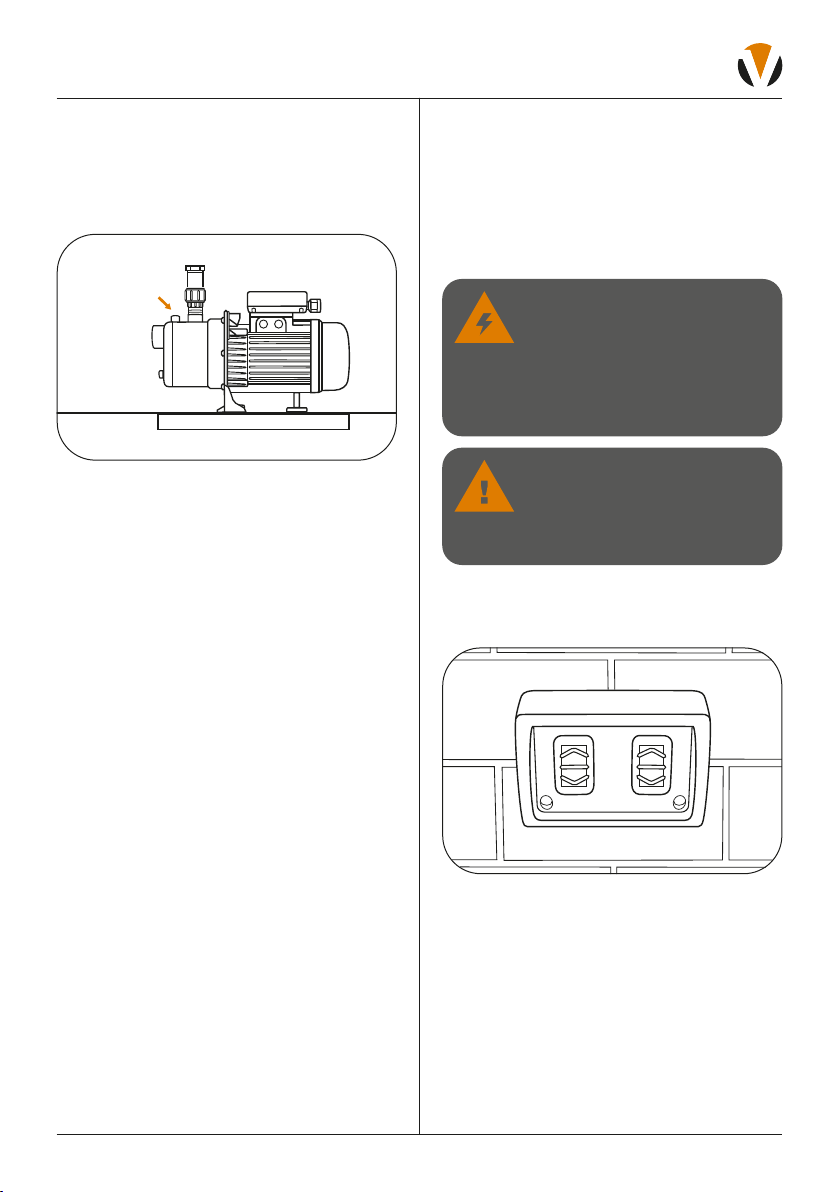

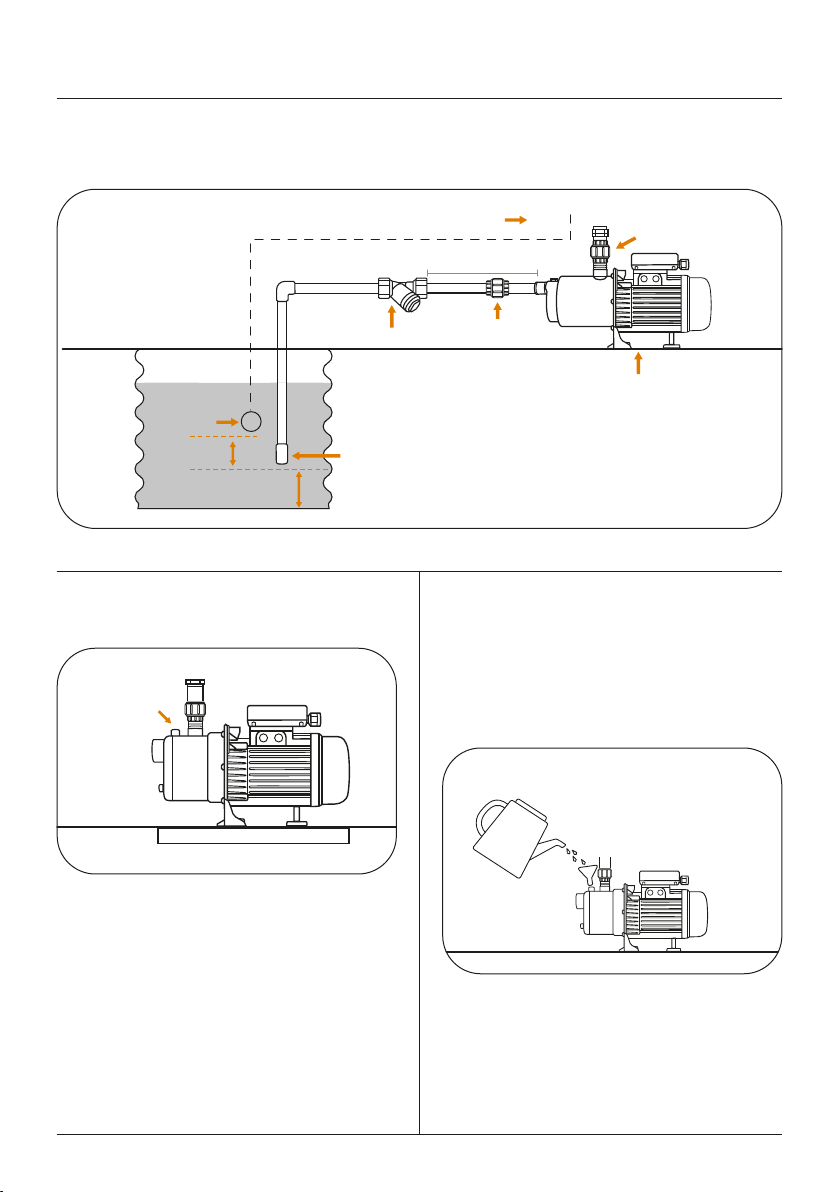

INSTALLATION
PREPARING FOR INSTALLATION

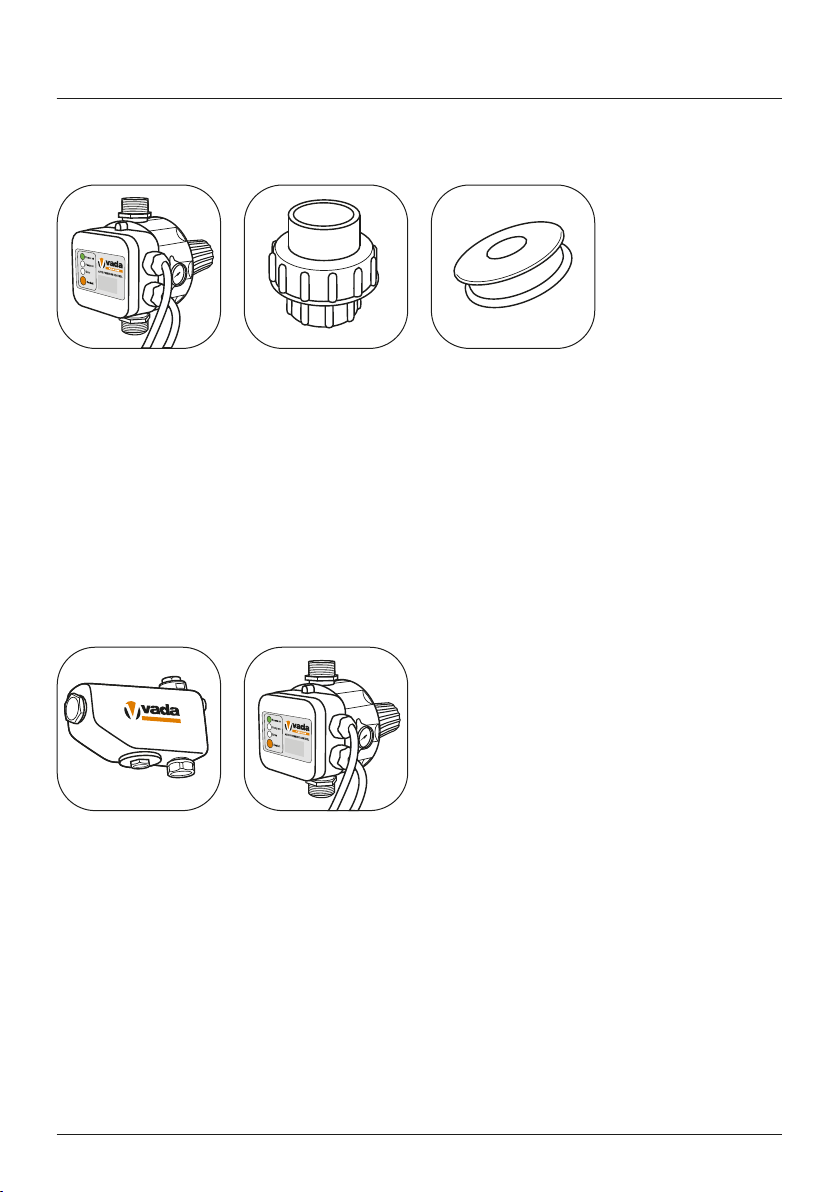

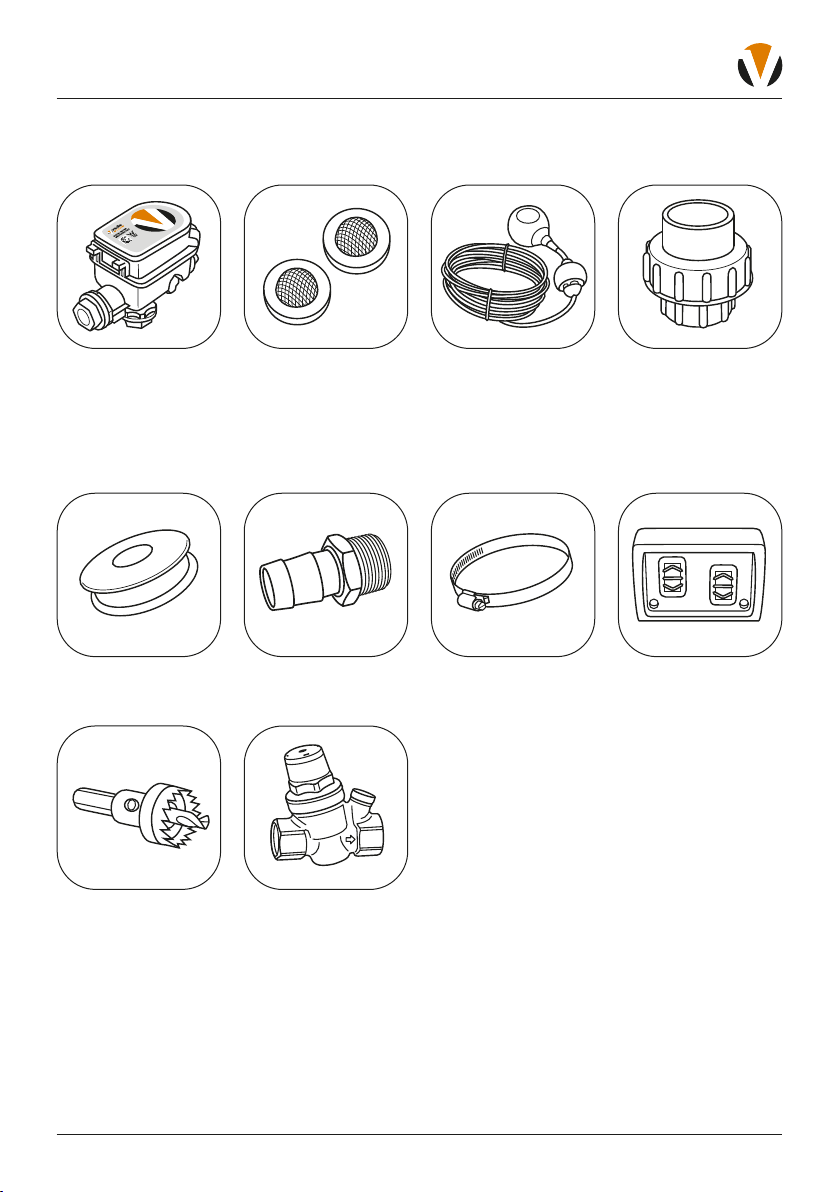

For a successful installation, ensure you have all pieces listed below.
Vada Flow Boss Jet Pump VFB-J90
What we’ve supplied:
Vada Flow Boss
Jet Pump VFB-J90
Power cable
