VADA VFB-S35 User manual

SUBMERSIBLE
PUMP
INSTALLATION
MANUAL
VFB-S35

A smooth day is a good day.
That’s why Vada is dedicated
to creating pump solutions
that you can count on. With
a focus on easy selection, simple
installation and high quality, you
can hold your head high knowing
your reputation is protected.
It’s Vada. Performance simplified.

3
Thank you for purchasing the Vada Flow Boss Submersible Pump
VFB-S35! Record the product details here and leave with the owner.
Date purchased:
Purchased from:
Purchase invoice number:
Product serial number:
Product model number:
THANK YOU
Scan for
set up
support

4VADA FLOW BOSS SUBMERSIBLE PUMP VFB-S35 INSTALLATION MANUAL
KNOW YOUR PRODUCT VFB-S35
The Vada Flow Boss Submersible Pump VFB-S35 is built to transfer water from a water tank, to a
garden or house to suit the desired application. This space friendly quiet operator can be submerged
up to 7 metres to get the job done.
10m Power cable
Stainless steel motor
shaft and pump casing
32mm to 25mm
Reducing elbow MI
Suction port
32mm MI outlet

• Built to handle clean water with no suspended solids or abrasive material
• Optimal operating range: 20–14 metres head, 44–66 litres per minute
• Max water temp: 40°C
• Max submersion depth: 7m
• IP68 (Motor)
• Use a pipe size with a minimum 32mm internal diameter to reduce friction loss.
• Install a check valve within the vertical pipework to stop any water running back into
the tank therefore protecting the pump internals.
• If you’re installing the VFB-S35 with the VFB-DSU, you will require a wall mount kit.
HELPFUL HINTS
5
SPECIFICATIONS VFB-S35

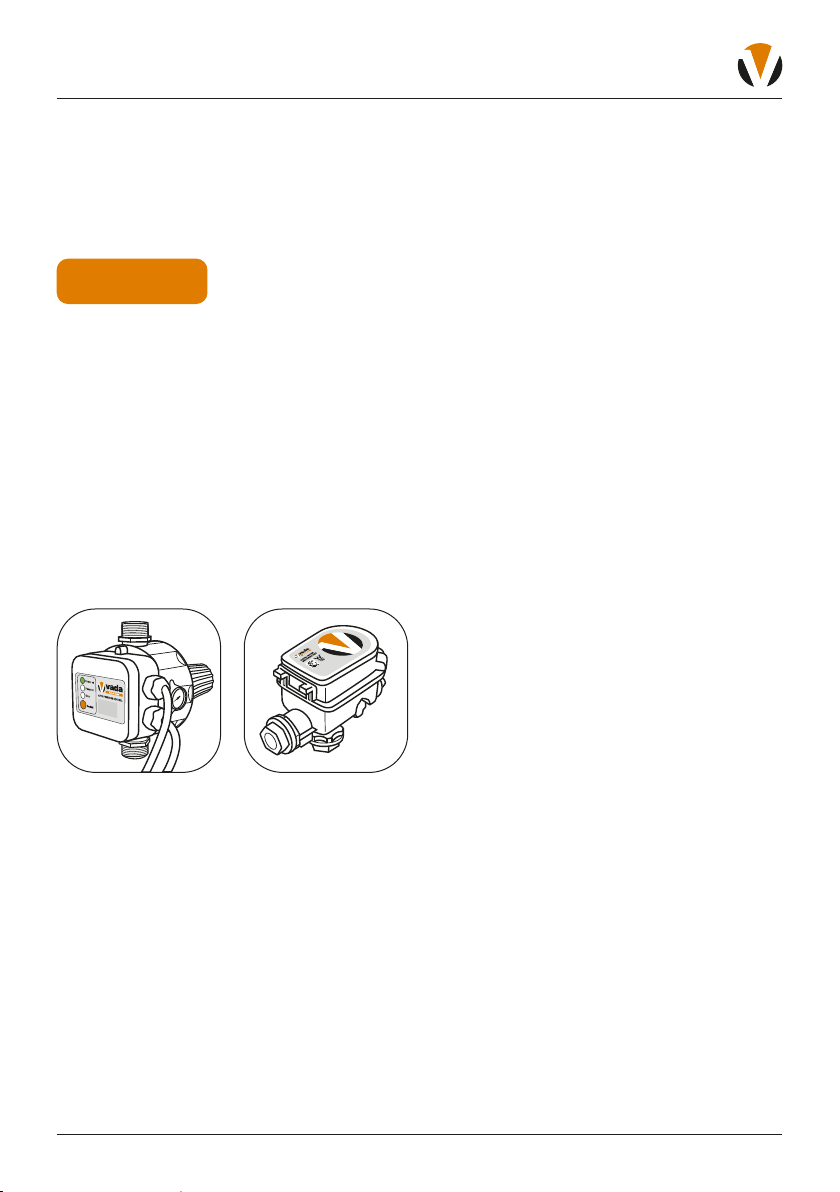

COMPATIBLE VADA PRODUCTS:
If using tank water only, you will also require a Vada Flow Boss Auto Pressure Control.
If you are using tank and mains water source switching, you will require either the Vada Flow Boss
Digital Water Switching Unit or the Vada Flow Boss Mechanical Water Switching Unit.
Vada Flow Boss
Automatic Pressure
Control VFB-APC
Vada Flow Boss
Digital Water
Switching Unit
VFB-DSU

6VADA FLOW BOSS SUBMERSIBLE PUMP VFB-S35 INSTALLATION MANUAL
KNOW YOUR PRODUCT VFB-APC
The Vada Flow Boss Auto Pressure Control VFB-APC gives you perfect control of household
pressure pumps, guaranteed. Designed with an LED light panel to signal the state of operation,
a built in pressure gauge to allow for adjustable cut-in pressure and a 24 hour reset function
for hassle free operation.
Power On indicator
Pump On indicator
Error indicator
Restart button
Three-wire cable
25mm MI Inlet
Cut-in pressure
adjustment point
25mm MI Outlet
• Inlet: 25mm MI
• Outlet: 25mm MI
• Max operating pressure: 1000kPa / 10 bar
• Minimum pump pressure: 250kPa / 2.5 bar
• Min – max water temperature: 1°C – 65°C
• Min – max ambient temperature: 1°C – 40°C
• Supply voltage: 1~240V 50Hz
• Cut-in pressure: 150– 300kPA / 1.5 – 3 bar
• Max power: 1.5kW
• Max current: 10A
• IP rating: IP65
• Ensure your pump is equipped with two isolation valves. This allows for fuss free troubleshooting
on the suction and discharge lines, should you need it.
• When paired with the VFB-S35, the VFB-APC must be left at the default 1.5 bar cut in.
SPECIFICATIONS VFB-APC
HELPFUL HINTS

INTERPRETING THE APC VFB-APC
Error
Pump on
Power on
Restart
1~240V 50 Hz
Max 1.5kW 10A
Max 65°C
IP65
Max 1MPa (10 bar)
AUTO PRESSURE CONTROL
VFB-APC
Error
Pump on
Power on
Restart
1~240V 50 Hz
Max 1.5kW 10A
Max 65°C
IP65
Max 1MPa (10 bar)
AUTO PRESSURE CONTROL
VFB-APC
Error
Pump on
Power on
Restart
1~240V 50 Hz
Max 1.5kW 10A
Max 65°C
IP65
Max 1MPa (10 bar)
AUTO PRESSURE CONTROL
VFB-APC
7
Green light
The VFB-APC is connected to the power
supply successfully.
Yellow light
The connected pump is operating.
Note: On initial start up the pump will run until
the supply line is primed to remove all air.
Red light
Flashing red: Loss of flow detected. While the
red light is flashing, the pump will remain on for
20 seconds, then turn off as it tries to re-prime
itself. It will attempt this several times.
Solid red: The pump has not been able to
detect water and cannot re-prime itself. The
pump will turn off for 24 hours, or until reset.
To reset, turn the power off, then on or
press the restart button.

8VADA FLOW BOSS SUBMERSIBLE PUMP VFB-S35 INSTALLATION MANUAL

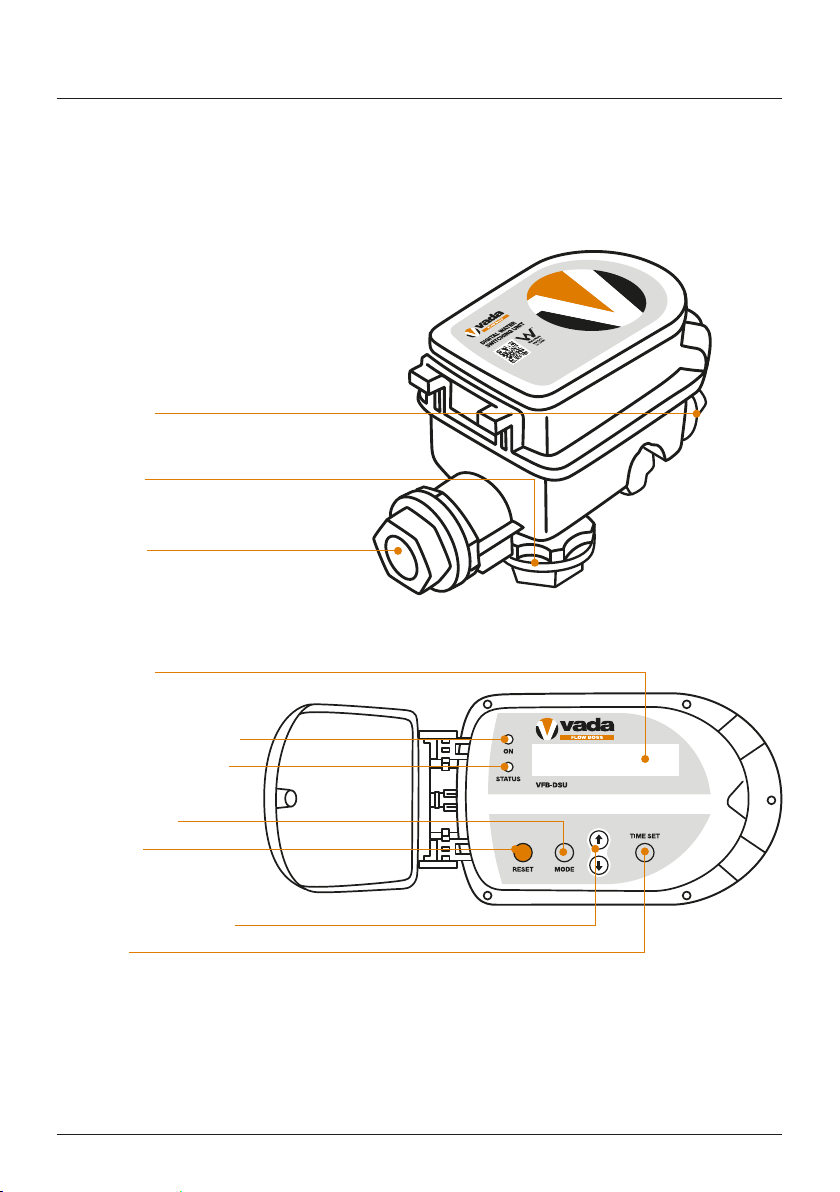

KNOW YOUR PRODUCT VFB-DSU
The Vada Flow Boss Digital Water Switching Unit VFB-DSU allows for water source switching between
tank and mains water. With a large interactive panel, the VFB-DSU provides system information including
a log of rain water used, real time flow rate, water pressure, current and error conditions.
Pump inlet
Water outlet
Mains inlet
LCD display
Power ON/error status
Pump ON LED indicator
Time set
Mode selection
Up/down toggle button
Error reset

9
SPECIFICATIONS VFB-DSU
APPLICATIONS
The Vada Flow Boss Submersible Pump VFB-S35 is suitable for the following applications:
Water source
switching
(tank/main)
Domestic
pressure
systems
Domestic
water transfer
(clean water
only)
Hose watering Irrigation
systems
The Vada Flow Boss Submersible Pump VFB-S35 is not suitable for the following applications:
Borehole
applications
Pumping
liquid
containing
abrasive
solids (stones,
ceramics etc.)
Note: This is not intended as a dirty drainage water sump pump.
• Mains water supply inlet: 25mm FI
• Pump connection: 25mm FI
• Water outlet connection: 25mm FI
• Minimum mains pressure: 100kPA / 1 bar
• Max operating pressure: 1000kPA / 10 bar
• Minimum flow rate: 1 lpm
• Voltage: 1~230 – 240V 50Hz
• Maximum electrical load: 10A / 2400W
• IP Rating: IP44
• View the complete Digital Water Switch Manual for further details on set up, operation and
troubleshooting.
HELPFUL HINT

10 VADA FLOW BOSS SUBMERSIBLE PUMP VFB-S35 INSTALLATION MANUAL
INSTALLATION

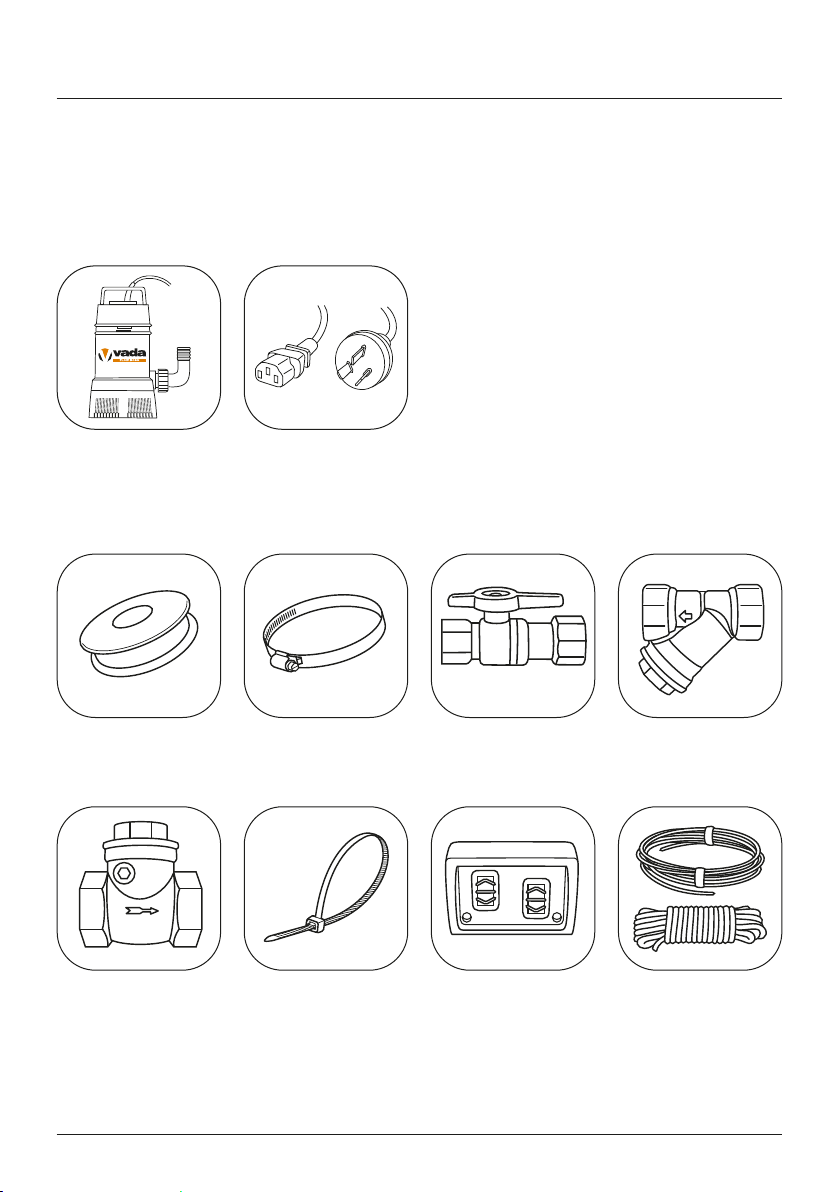

PREPARING FOR INSTALLATION
For successful installation, ensure you have all pieces required for your product combination.
Vada Flow Boss Submersible Pump VFB-S35
What we’ve supplied:
What you’ll need to supply:
Vada Flow Boss
Submersible Pump
VFB-S35
Thread tape
Power cable
Hose clamps (for
flexible discharge
pipe installs)
x1 Isolation valve 25mm Y strainer
(aka inline strainer)
Check valve Cable ties Access to a
10A outdoor
power point
Nylon rope or
stainless steel
cable (to lower
the pump)

11
Vada Flow Boss Automatic Pressure Control VFB-APC
What we’ve supplied:
Vada Flow Boss
Automatic Pressure
Control VFB-APC
Thread tape25mm barrel union

12 VADA FLOW BOSS SUBMERSIBLE PUMP VFB-S35 INSTALLATION MANUAL
Vada Flow Boss Digital Water Switching Unit VFB-DSU
What we’ve supplied:
What you’ll need to supply:
Two mesh washer
inline filters
INSTALLATION
Thread tape 25mm or larger
male hose barb
Hose clamps Nylon rope
Access to a 10A
outdoor power
point
16mm hole saw
(to drill hole in roof
tank for float switch
cable)
Pressure reduction
valve (if mains inlet
pressure exceeds
1000 kPa)
Vada Flow Boss
Digital Water
Switching Unit
VFB-DSU
Float switch kit Barrel union kit

13
PART 1: PUMP LOCATION
Let’s get down to business.
Note: Ensure the pump is being installed by a
qualified, licensed personnel. The pump should
be in good condition and should be used in a
residential application.
Note: The length and the diameter of the
discharge pipe impacts the pressure and flow
rate the pump can deliver.
Note: All components used must have a
pressure rating that exceeds the maximum
pressure of the pump by an appropriate
safety factor.
1. Ensure you have access to a 10A
weatherproof outdoor power point in a dry
and flood free location. Do not plug the
power lead in.
Note: If you do not have access, arrange
an electrician to install one.
2. Thread your choice of rope through the
handle at the top of the pump.
3. Using the rope, lower the pump into
the tank.
In accordance with AS 3350.2.41
we are obliged to inform you that
this pump is not to be used
by children or infirm persons and
must not be used as a toy by
children.
The Auto Pressure Control is
pre-set by the manufacturer
with a pump start pressure of
1.5 bar (this can be adjusted).
The maximum pump pressure
must be 0.8 bar above the start
pressure for the pump to reach
automatic shut-off.
The Pressure Control has a safety
valve preventing water emission
in case of diaphragm damage.
DO NOT REMOVE.
Ensure that the power lead
remains disconnected until you
have completed the installation
process.

14 VADA FLOW BOSS SUBMERSIBLE PUMP VFB-S35 INSTALLATION MANUAL
PART 2: DISCHARGE SET UP
Now that your sump pump is positioned,
it’s time to set up the discharge pipework.
1. Create space for your discharge pipeline
at the top of your tank. Ensure the
space allows for the minimum pipe size
(internal 25mm).
2. Remove pump from tank to connect
discharge pipework. Once connected place
the pump and pipework back into the tank.
3. Fit a check valve to the discharge pipework.
The check valve will prevent fluid from
draining when the pump has stopped.
4. For easy maintenance install an isolation
valve to the discharge line outside of
the tank.
Note: When lifting or raising in and out of
position, use the handle or your choice of rope.
Do not lift via the power cable.
4. Check the set up so far. The surface
the pump sits on should be hard and there
should be enough clearance between
the base of the tank and suction inlet
(approx 50–100mm). This clearance helps
prevent sediment and debris from entering
the pump.
INSTALLATION
50–100mm
Discharge pipe min 25mm
25mm
Check valve
25mm Isolation valve
Discharge pipe min 25mm

15

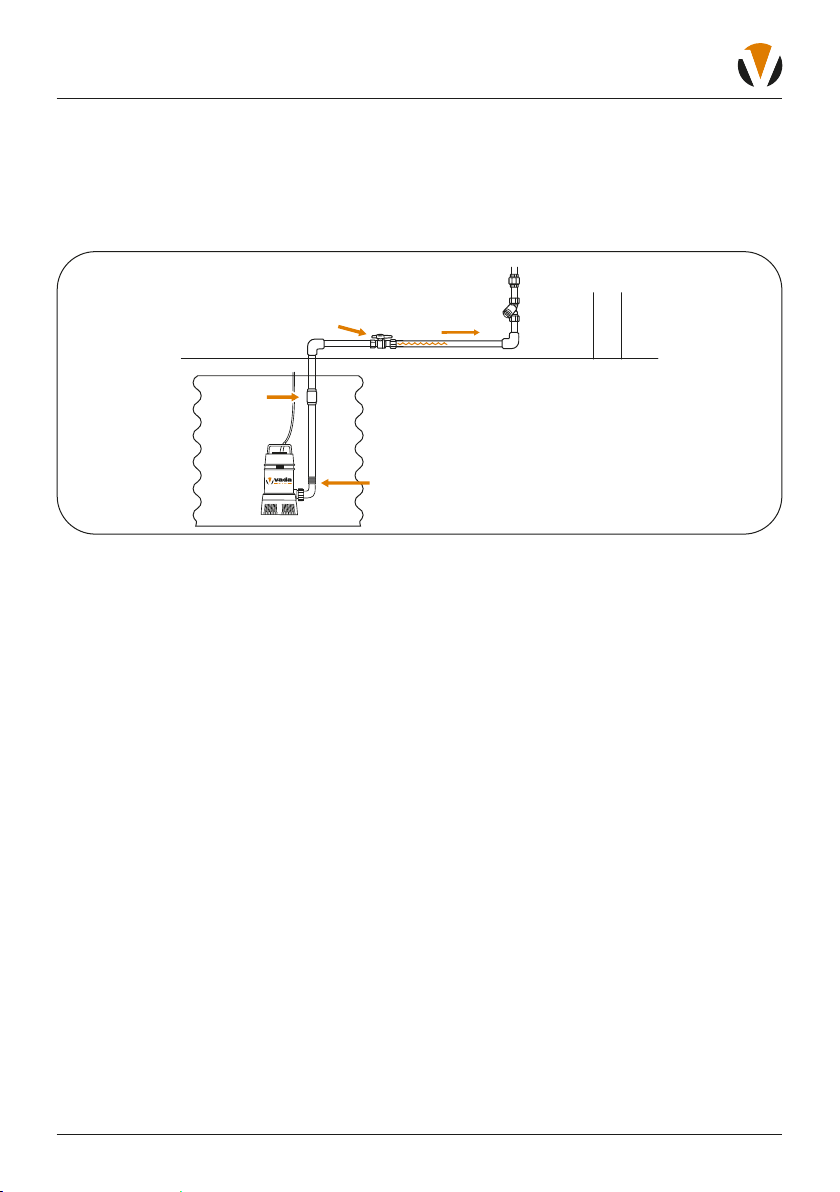

5. Connect the discharge pipe to the outlet by following the steps below:
a. Fit male threaded fittings with thread tape.
b. Install barrel union to facilitate easy removal for servicing.
c. Connect required pipework.
d. Ensure all pipework is supported independently of the pump.
Note: Discharge pipework may very depending on your unique or specific installation.
What next?
If your application is using tank water only, continue to Installation Part 3: Fit a Vada
Flow Boss Automatic Pressure Control.
If you’re using tank and mains water, skip to Installation: Part 4: Fit a Vada Flow Boss
Digital Water Switching Unit.
25mm
Y Strainer
25mm
Barrel Union
Ground level
Discharge pipe min 25mm
25mm Isolation valve
VFB-S35
Flow
25mm
Check valve

16 VADA FLOW BOSS SUBMERSIBLE PUMP VFB-S35 INSTALLATION MANUAL

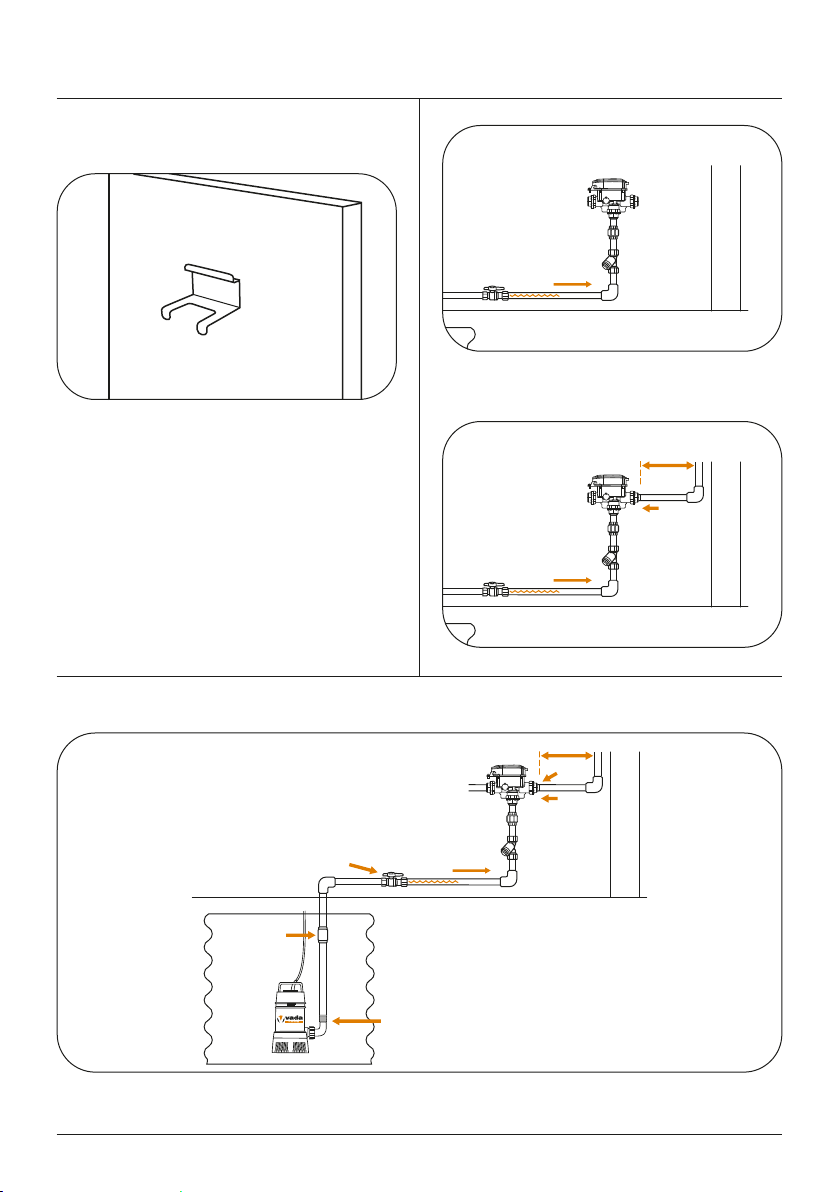

PART 3: VADA FLOW BOSS
AUTO PRESSURE CONTROL
If you’re using a tank only system, follow the
steps below to install an Auto Pressure Control.
If you’re using tank and mains water source
switching, proceed to part 4: Vada Flow Boss
Digital Water Switch.
INSTALLATION
If extending the cable used
for connection, ensure the
connection is being carried out
by a qualified professional with
an electrical license.
Never take the electronic board
out of the control box. The wiring
diagram inside the front panel will
show you how to make correct
connection. Wrong connection
will destroy the whole electronic
circuit.
OFF
VFB-APC
House wall
25mm
Check valve
25mm Isolation valve
VFB-S35
25mm
Y Strainer
25mm
Barrel union
Flow
Ground level
Discharge pipe min 25mm
1. Keep the VFB-APC unplugged from the
power source.
2. Position the Auto Pressure Control (VFB-APC) between the pump and the first outlet.

17
3. Connect the VFB-APC inlet using pipe
with appropriate fittings (eg barrel union
and adapter). Ensure the VFB-APC is
installed with the arrows on the side of
the unit pointing up.
Note: Do not install an outlet between the
pump and VFB-APC.
Note: The pipe must have an internal diameter
no smaller than 25mm until the first tee branch.
4. Check the set up so far. Ensure that the
VFB-APC is braced or fixed so minimal
movement occurs once in operation.
PART 4: FIT A VADA FLOW
BOSS DIGITAL WATER
SWITCHING UNIT
If you’ve chosen to install a VFB-DSU with the
VFB-S35, proceed with the steps below.
1. Insert two mesh inline filters on the mains
inlet and pump inlet of the VFB-DSU.
Do not install or operate your
Digital Water Switch Unit in an
explosive environment, or near
combustible matter. Incorrectly
installed or tested equipment
may fail, causing severe injury
or property damage.
Brace inlet and outlet connections
while fitting the Digital Water
Switch. Any movement of
connections may disturb internal
seals and cause leakage.
Please read the full manual on
the Vada Flow Boss Digital Water
Switching Unit for complete
installation & operation instructions,
as well as troubleshooting and
product features.
The Digital Water Switch is
electrically connected. Ensure
that it is isolated from electrical
supply during installation and any
subsequent service work.

18 VADA FLOW BOSS SUBMERSIBLE PUMP VFB-S35 INSTALLATION MANUAL
2. Where possible, install the VFB-DSU using
the wall mount bracket.
3. Connect the pump discharge pipe to the
port labelled ‘pump’ on the VFB-DSU.
Ensure that the submersible pump is raised
off the base of the tank, and a y-strainer
is installed prior to the VFB-DSU. Brace
the VFB-DSU to prevent movement while
connecting to all inlets/outlets.
Note: Pipe size should be in accordance with
pump outlet size – reduction may be required
immediately prior to entering the VFB-DSU.
4. Connect the mains pipework into the port
labelled ‘mains’ on the VFB-DSU.
INSTALLATION
25mm
Y Strainer
25mm
Barrel union
Flow
House wall
Ground level
Min 100mm
Mains
House wall
25mm
Y Strainer
25mm
Barrel union
Flow
House wall
Ground level
Household
Min 100mm
Mains
Cable
tie
25mm
Check valve
25mm Isolation valve
VFB-S35
Discharge pipe min 25mm
25mm
Y Strainer
25mm
Barrel union
Flow
House wall
Ground level
5. Connect the household pipework into the port labelled ‘outlet’ on the VFB-DSU.

19
6. Install the float switch provided. The float switch greatly reduces the risk of the pump
losing prime, which could cause damage to the pump. For more information, view the full
VFB-DSU manual.
Household
Min 100mm
Mains
Cable
tie
25mm
Check valve
25mm Isolation valve
VFB-S35
Discharge pipe min 25mm
Min 70mm above suction
25mm
Y Strainer
25mm
Barrel union
Flow
House wall
Ground level

20 VADA FLOW BOSS SUBMERSIBLE PUMP VFB-S35 INSTALLATION MANUAL
PART 5: CONNECT
TO A POWER SUPPLY
Once your submersible pump is positioned
and pipework is completed, it’s time to connect
to power.
Note: Do not use extension cords. These can
cause a voltage drop.
1. Before plugging the power supply cord
into the power point, ensure the power point
is in a dry and flood free location.
2. Plug the power supply cord into the
10 Amp power point. Do not switch on.
3. If you are using an VFB-APC or VFB-DSU,
you will need to connect the IEC socket
from the pump to the IEC plug cord on
the device, then connect the power chord
to the power point. If you are connecting
directly to a power outlet (without an
VFB-APC or VFB-DSU), connect the
two supplier cords using the IEC socket
and connect to the power chord to the
power point.
Note: Supply voltage that is outside the
limits specified can cause the motor to
overheat leading to overload tripping, reduced
component life or seriously damage pump,
voiding warranty.
INSTALLATION
OFF
OFF
In accordance with AS 3350.2.41
we are obliged to inform you
that this pump is not to be used
by children or infirm persons and
must not be used as a toy.
