PRODUCTIONVIEW™ HD MV
High Definition Camera Control Console with Integrated
Multiviewer Touch Screen Control, Multi-View Control Panel
Layout Options and Expanded I/O Capabilities
Part Number 999-5625-000 North America
Part Number 999-5625-001 International
Installation and User Guide
Installation and User Guide

ProductionVIEW HD MV
ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 2 of 36
Inside Front Cover - Blank

ProductionVIEW HD MV
ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 3 of 36
Overview:
The Vaddio™ ProductionVIEW HD MV Production
Switcher with integrated camera controller and
multiviewer is a powerful, cost effective and easy
to operate platform for live presentation
environments. With Vaddio’s revolutionary
TeleTouch™ Touch Screen Control Panel
(optional, sold separately), production operators
can easily see and switch all live video feeds and
create “video thumbnails” of preset camera shots
with the touch of their finger.
ProductionVIEW HD MV is a broadcast quality,
6x2; multi-format, seamless video mixer that also
provides two discrete outputs for dual bus program
feeds (two independent 6 x 1 switchers/mixers).
Accepting any combination of input signals from
analog HD YPbPr video, RGBHV, SD (Y/C and
CVBS) video with Input 6 providing a DVI-I input,
the ProductionVIEW HD MV supports HD
resolutions up to and including 1080p/60fps.
The outputs have been configured for analog
(YPbPr, RGBHV and SD) and digital (DVI-D) video
support allowing for either a standard preview
output or multiviewer preview output with support
for two monitors or the multiviewer output
supporting a Vaddio TeleTouch Touch Screen
Control Panel.
The optional TeleTouch™ Touch Screen Control
Panel allows the camera operator to see and
switch all the live video feeds by simply touching
the windows that they want controlled. The
Vaddio TeleTouch Touch Screens are available in
two sizes; 18.5” rack-mount (7-RU) version or a
22” with base.
Each camera input can have up to 12 stored
“video thumbnails” of each preset camera shot.
These video thumbnail images provide an easy
way to identify and recall preset camera positions.
The Multi-View Touch Screen Control Panel
Layout Options for the TeleTouch Touch Screen
Control Panel allows integrators to match the
touch screen layout to the number of camera,
computer or other video input sources that are
connected to the ProductionVIEW HD MV.
The Single or Dual Bus Multiviewer Output mode
allows separate Preview and Multiviewer Video
Outputs to be displayed. The Preview and
Multiviewer Video Output Menus are used to
select and set the Preview or Multiviewer video
output resolutions.
The ProductionVIEW HD MV control surface is laid out to allow even a novice to operate the system with minimal
training. ProductionVIEW HD MV is unmatched in today’s camera control, video mixing and video switching
market.
ProductionVIEW HD MV
Camera Control Console
*ProductionVIEW HD MV TeleTouch 22”
Multiviewer Touch Screen Control Panel
(Simulated Multiviewer Output)
*Optional
Multi-View Four-Input Layout Display for
*TeleTouch Touch Screen Control Panel
(Simulated Multiviewer Output)

ProductionVIEW HD MV
ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 4 of 36
Optional TeleTouch Multiviewer Touch Screen Control Panel with Multi-View Panel Layout Options:
The TeleTouch Multiviewer Touch Screen Control Panel (optional) with the new Multi-View touch screen control
panel layout options allows integrators to match the touch screen layout to the number of camera, computer or
other video input sources that are connected to the ProductionVIEW HD MV.
(Simulated Multiviewer Output)
The multiviewer maximizes the potential screen size available for previewing live feeds and prevents unused
blank multi-viewer input windows from being seen. Multi-View allows the user to choose from four to six input
windows and provides two larger preview and program windows with red and green tally window borders, which
indicate the current output selections.
The TeleTouch Touch Screen Control Panel also eliminates the need for individual preview monitors and allows
the camera operator to see and switch all the live video feeds by simply touching the windows that they want
controlled. Each camera input can have up to 12 stored “video thumbnails” of each preset camera shot. These
video thumbnail images provide an easy way to identify and recall preset camera positions on a per input basis in
the preview window that greatly simplifies overall console operation.
TeleTouch Touch Screen
Control Panel with
Multi-View Four-Input Layout
TeleTouch Touch Screen
Control Panel with
Multi-View Five-Input Layout
TeleTouch Touch Screen
Control Panel with
Multi-View Six-Input Layout
TeleTouch Touch Screen Control Panel with
Multi-View Four-Input Layout
Two-Inputs Displayed
TeleTouch Touch Screen Control Panel with
Multi-View Four-Input Layout
Three-In
p
uts Dis
p
la
y
ed

ProductionVIEW HD MV
ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 5 of 36
Key Technical Features:
Vaddio TeleTouch Touch Screen Controller (optional): The ProductionVIEW HD MV outputs can provide
either a standard preview output or a multiviewer preview output with support for two monitors, one of the
outputs supporting a Vaddio TeleTouch Touch Screen Controller.
The Vaddio TeleTouch Touch Screen Controller allows the operator to see and switch all live feeds by
touching the windows. The ProductionVIEW HD MV outputs can provide either a standard preview output or a
multiviewer preview output with support for two monitors, one of the outputs supporting a Vaddio TeleTouch
Touch Screen Controller. The Vaddio TeleTouch Touch Screens are available in two sizes; 18.5” (P/N: 999-
5520-185) rack-mount or a standard 22” (P/N: 999-5520-022) with base.
Multiviewer: The ProductionVIEW HD MV multiviewer feature eliminates the need for individual preview
monitors. The multiviewer output allows the operator to see all live video feeds displayed on a single monitor.
Multi-View Panel Layout Options: This feature allows the user to choose from four, five or six input windows
on the multiviewer screen image and also provides two larger preview and program windows with red and
green tally window borders, which indicate the current output selections. The Multi-View feature maximizes
the potential screen size available for previewing live feeds and prevents unused blank multiviewer input
windows from being seen.
Single or Dual Bus Multiviewer Output Mode: Single or Dual Bus Multiviewer Output allows separate
Preview and Multiviewer Video Outputs to be displayed in either Single Bus or Dual Bus mode. The Preview
and Multiviewer Video Output Menus are used to select and set the Preview or Multiviewer video output
resolutions. The Preview DVI-D Output can be set to a selected discrete output resolution and the YPbPr
Output can be set to a selected discrete output resolution.
Camera Video Thumbnail Presets: Each camera input can store up to 12 stored “video thumbnails” of
preset PTZ camera preset positions for 72 total presets. The Vaddio TeleTouch Touch Screen Controller
provides the ability to switch to any one of the 12 stored “video thumbnails” with the touch of a finger.
Video Switcher: The internal video switcher can be configured as a traditional video switcher, using the
TAKE button, or DUAL BUS mode (essentially two 6 x 1 video switchers).
Anything In, Anything Out: The inputs auto-detect the video resolution and the outputs have user
configurable discrete video resolution settings. See the specifications on page 26 for additional information
on all of the resolutions supported.
Graphic Insertion: Graphics may be inserted as “lower-thirds” using the Lower Screen Graphics (LSG)
feature. LSG can be set up to cover the bottom ¼, ⅓, ½ or full screen, with 10 adjustable steps of
transparency levels between the graphic and the video image behind it.
Graphic Templates: A variety of graphic templates are included on a DVD supplied with the
ProductionVIEW HD MV in both Keynote and PowerPoint, to help guide users in creating professional Lower
Screen Graphics quickly and easily.
3-Axis, 1-Button, Hall Effect Joystick: The ProductionVIEW HD MV includes a 3-Axis Hall Effect joystick
controller to smoothly operate up to six (6) PTZ cameras directly (without daisy chaining). Vaddio, Sony®,
Canon® and Panasonic® PTZ cameras are compatible with ProductionVIEW HD MV (see the list below of
specific models).
Camera Presets: Each input can store up to12 preset PTZ camera preset positions for 72 total presets.
Automatic Mode: The ProductionVIEW HD MV console is equipped with an automatic camera switching
mode (for compatible PTZ cameras on inputs 1 & 2), and when combined with Vaddio’s StepVIEW™ Mats,
MicVIEW™, PresenterPOD™ or other trigger devices, allows ProductionVIEW HD MV to be set up for use
without an operator present.
Tally Outputs/External Triggers: The ProductionVIEW HD MV can be configured for six (6) Program tally
outputs and six (6) Preview tally outputs for controlling tally lights on external sources. It can also be
configured for up to twelve external trigger inputs.

ProductionVIEW HD MV
ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 6 of 36
Additional Features: Other features include auto/manual focus, auto/manual iris, backlight compensation
and automatic white balance for compatible PTZ cameras.
Camera Auto-Sensing: The ProductionVIEW HD MV is capable of auto-sensing each PTZ camera
attached. Control codes for the cameras are automatically loaded into ProductionVIEW (see specifications
for supported models).
Video Transitions:
Video transitions are seamless with exceptional video quality. Transition time is adjustable from 0.1 seconds
to 4 seconds, and includes:
Cross Fades (one image fades into another)
Wipes (9 different patterns)
Straight Cuts
Fade To Black (by pressing and holding the MIX/FTB button)
Important Note: When using the Multiviewer output (technically still the Preview output), the
transitions are not visible. The multiviewer gives a representation of the Program bus, but without
transitions. Please use a separate Program monitor to view the actual Program feed.
Intended Use:
Before operating the device, please read the entire manual thoroughly. The system was designed, built and
tested for use indoors, and with the provided power supply and cabling. The use of a power supply other than the
one provided or outdoor operation has not been tested and could damage the device and/or create a potentially
unsafe operating condition.
Save These Instructions:
The information contained in this manual will help you install and operate your product. If these instructions are
misplaced, Vaddio keeps copies of Specifications, Installation and User Guides and most pertinent product
drawings for the Vaddio product line on the Vaddio website. These documents can be downloaded from
www.vaddio.com free of charge.
Important Safeguards:
Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged.
In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock,
do not immerse in water or other liquids and avoid extremely humid conditions.
Use only the power supply provided with the system. Use of any unauthorized
power supply will void any and all warranties.
Please do not use “pass-thru” type RJ-45 connectors. These pass-thru type connectors do not
work well for professional installations and can be the cause of intermittent connections which
can result in the RS-232 control line failing and locking up, and/or compromising the HSDS™
signals. For best results please use standard RJ-45 connectors and test all cables for proper
p
in-outs
p
rior to use and connection to Vaddio
p
roduct.

ProductionVIEW HD MV
ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 7 of 36
UNPACKING:
Carefully remove the device and all of the parts from the packaging.
For 999-5625-000 North American Version, unpack and identify the following parts:
One (1) ProductionVIEW HD MV Camera Control Console
One (1) Vaddio PowerRite™ 18 VDC, 2.75A Switching Power Supply
One (1) AC Power Cable
One (1) Laird 100 ohm ¼” Snap-On Rectangular Ferrite (for DC cable of the Power Supply)
One (1) DVD ROM with templates and sample graphics for Lower Screen Graphics*
Documentation
For 999-5625-001 International Version, unpack and identify the following parts:
One (1) ProductionVIEW HD MV Camera Control Console
One (1) Vaddio PowerRite 18 VDC, 2.75A Switching Power Supply
One (1) Euro Power Cable
One (1) UK Power Cable
One (1) Laird 100 ohm ¼” Snap-On Rectangular Ferrite (for DC cable of the Power Supply)
One (1) DVD ROM with templates and sample graphics for Lower Screen Graphics*
Documentation
Notes:
*User must supply their own compatible version of Keynote or PowerPoint to display and modify templates on the DVD ROM.

ProductionVIEW HD MV
ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 8 of 36
ProductionVIEW HD MV with Feature Call-outs:
1. Focus and Iris Controls: Focus and Iris can be adjusted from knobs on the console for real-time control of
these critical functions when in manual mode. Auto White Balance (AWB) and Backlight Compensation
(BLC) functions are available for compatible cameras.
2. Single Bus or Dual Bus Switching: ProductionVIEW HD MV can be configured as Program and Preview
buses or as discrete video outputs (i.e. one for high resolution IMAG and the other for delivery to a recording
or streaming device).
3. Lower Screen Graphics: Insert “lower third” and other graphics, through our unique LSG function. A variety
of sizes and transparency levels are available through buttons on the console.
4. Picture-In-Picture: Insert video in any quadrant of the program video output to add impact to your live
production. The PIP can be adjusted to three different sizes.
5. Wipe, Fade, Cut, Transition Speed and Fade to Black: Select from a variety of wipe patterns, mix or cut
from buttons on the control console. The fade to black (FTB) feature allows the Program output to fade to
black. Transition Speed allows a wipe or crossfade (mix) to be adjusted up to 4 seconds in duration.
6. Take Button: Pressing the Take button switches the input selected from Preview to Program in single bus
mode. In dual bus mode, it switches the input to the input that is flashing.
7. 3-Axis Hall Effect Joystick PTZ Camera and Speed Controls: Sony, Canon and Vaddio PTZ cameras can
be controlled via the 3-axis Hall-Effect Joystick built into ProductionVIEW HD MV. When the button on top of
the joystick is pressed, it will reposition the selected camera to its home position. Located above the joystick,
adjustable knobs for Pan, Tilt and Zoom speeds allow the operator extremely fine real-time camera control.
8. Camera Selector and Presets: Select a camera from the top row of buttons, and program (or recall) up to
12 preset shots per camera, using the camera preset control buttons.
9. 8-Line LCD Screen (for Menus and Status): The internal menu allows the user to configure the resolution
on the outputs, as well as other parameters built into the console. The LCD screen will also provide status to
current settings. See pages 20 to 24 for the menu structures and programmable functions.
10. Manual and Automatic Modes: In addition to a manual or “operator” mode there is an automatic camera
switching mode for PTZ camera presets assigned to Vaddio input triggers like the StepVIEW™ mats,
AutoVIEW™ IR or PresenterPOD.
②
①
③ ④ ⑤⑥⑦
⑧
⑨
⑩

ProductionVIEW HD MV
ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 9 of 36
ProductionVIEW HD MV, Rear View with Feature Call-outs:
1. Power Input: Use only the 18 VDC, 2.75A power supply provided with the ProductionVIEW HD MV.
2. Camera Control Ports on RJ-45 connectors: One camera control port per camera (no daisy-chaining
required). Compatible with Sony, Canon, Panasonic and Vaddio PTZ cameras. See page 7 for details on
cameras and camera systems compatible with ProductionVIEW HD MV.
3. Video Inputs 1-5: Each input 1 through 5 will accept either an HD (YPbPr) or RGBHV or SD (CVBS or Y/C,
with adapter cable) video signals selectable via internal menu on the DE-15-F connector. See the Video
Resolutions table on page 26 for all signals and resolutions supported.
4. Video Input 6: Input 6 is a DVI-I Input (DVI-D and DVI-A). See page 26 for supported resolutions.
5. Program Outputs: The Program outputs are on DE-15-F (HD-15) and DVI-D Connectors. The DVI-D
connector uses a HDMI 1.3 compliant transmitter, so with an adapter cable (DVI-D-M to HDMI) HDMI is also
output. The DE-15-F outputs HD (YPbPr) or RGBHV or SD (CVBS or Y/C, with adapter cable). The DVI-D
outputs DVI-D with sRGB color space and HDMI in YCbCr color space depending on the resolution chosen in
the menu. See page 26 for supported resolutions.
6. Preview/Multiviewer Outputs: The Program outputs are on DE-15-F (HD-15) and DVI-D Connectors. The
DVI-D connector uses a HDMI 1.3 compliant transmitter, so with an adapter cable (DVI-D-M to HDMI) HDMI
is also output. The DE-15-F outputs HD (YPbPr) or RGBHV or SD (CVBS or Y/C, with adapter cable). The
DVI-D outputs DVI-D with sRGB color space and HDMI in YCbCr color space depending on the resolution
chosen in the menu. When using the optional TeleTouch Touch Screen Controller, use the DVI-D Connector
and set the output to 1080p/60 HZ or 1080p/50 for best results. Both Preview/Multiviewer connectors will be
the same resolution. See page 26 for supported resolutions.
Note: Transitions and effects will only appear on the Program output.
7. Tally Outputs/External Triggers: Allows for connecting ProductionVIEW HD MV to up to six (6) Program
Tally outputs and up to six (6) Preview Tally outputs when in Manual Mode. These tally outs can be set to
Triggers and used in Automatic Control Mode, which accepts external input triggers such as Vaddio
AutoVIEW IR, StepVIEW, TouchVIEW or MicVIEW triggering devices. ProductionVIEW HD MV recalls the
Camera Switching and Camera Presets automatically as the triggers are received. In this mode, an operator
is not required. See the menu tree for exact deployment.
8. Control Port: DB-9 for RS-232 control of internal functions (Pin 2 = TX, Pin 3 = RX, Pin 5 = GND).
①
②
③④⑤
⑥
⑦
⑧

ProductionVIEW HD MV
ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 10 of 36
First Time Set-up with the ProductionVIEW HD MV:
ProductionVIEW HD MV is designed to be exceptionally easy to use and operate right out of the box. All of the
Vaddio standards for using video, power and control over Cat. 5 cabling are well documented and are in the
manual and available free of charge from the Vaddio website.
Getting Started:
Connect all of the cameras, monitors and peripheral devices to ProductionVIEW HD MV. The back panel has
five-standard DE-15-F (HD-15) connectors and one-DVI-I connector. Vaddio offers several different break out
cables including one for SD video inputs (either Y/C or composite) and two cables (3 ft. or 6 ft.) for high resolution
video (YPbPr or RGBHV). See accessory cables below.
Once you have connected all of your inputs, outputs and the PowerRite power supply, plug the AC cord into an
outlet. ProductionVIEW HD MV will boot up and scan for cameras. As ProductionVIEW HD MV boots up, it will
automatically scan each input to confirm which ports have compatible PTZ cameras connected. After boot up, a
menu will appear on the blue LCD screen.
Configuring Output Resolutions:
On the LCD screen, a chevron (>) will be
displayed next to the menu item that is currently
selected. Press the arrow down button (↓)
adjacent to the LCD screen, until the chevron is
next to “VIDEO OUTPUT MENU” and then press
the SELECT Button. Select PROGRAM OUTPUT,
which will display your options for video output
resolution for the PROGRAM OUTPUT.
Press the arrow down button to the appropriate resolution that is compatible with your video monitor and press the
SELECT Button. Press the CANCEL Button to exit out to the previous menu.
Repeat the process for your Preview Output. Once you have selected the Program and Preview output
resolutions, press the CANCEL Button to get back to the Main Menu. For additional information on the menu
structure, see pages 20 to 24 for additional information.
To set up the Preview out to be a multiviewer output, go to menu item “MULTIVIEWER” and select “ON”. If you
are using the optional Vaddio TeleTouch touch screen controller, go to “System Menu” and go to menu item
“TOUCH SCREEN”. Select either the 22” or the 18.5” monitor, which sets the correct touch screen coordinates.
Use 1080p/60 Hz or 1080p/50 Hz output resolution for the multiviewer and TeleTouch Monitor.
Auto Configured Input Resolutions:
The ProductionVIEW HD MV automatically configures and matches the input resolution for each camera
video output connected (with active video output) to an Input Port.
For Inputs 1 through 5, it will scan and select from 1080p/60 Hz (1920x1080) to 640x480@60 Hz. (including
SD 480i/29.97 NTSC and PAL 576i/25 Composite and S-Video).
Input 6 (DVI-I Port) will scan and select from 1080p/60 to 640x480@60 Hz.
Additional Programming: Review the ProductionVIEW HD Menu Structure for additional information on
programming specific parameters. For API and Programming Language, see information in the Appendix.
Vaddio Accessory Cables and Part Numbers:
440-5600-000 – 15-pin to SD (Y-C / CVBS) breakout cable (female BNCs - 1’ / 308.4mm)
440-5600-001 – 15-pin to HD Component (YPbPr/RGBHV) breakout cable (male BNCs - 3’ / .914m)
440-5600-002 – 15-pin to HD Component (YPbPr/RGBHV) breakout cable (male BNCs - 6’ / 1.83m)
440-5600-003 – 15-pin to HD Component (YPbPr/RGBHV) breakout cable (female BNCs - 7” / 177.8mm)
440-5600-000: Optional SD Accessory
Cable (Y-C & Composite) Required for
SD signals into ProductionVIEW HD MV
Optional HD Accessory Cable
(3’ or 6’ length)

ProductionVIEW HD MV
ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 11 of 36
Basic System Configuration:
ProductionVIEW HD MV connected to two (2) Vaddio Quick-Connect™ HD-18 CCU Systems, PC, TeleTouch 22”
Touch Screen Controller and room projector. The TeleTouch Multiviewer Touch Screen Controller eliminates the
need for individual preview monitors and the touch screen greatly simplifies overall console operation. The
TeleTouch Multiviewer Touch Screen can be configured to display up to six input windows and two larger
Program bus and Preview bus windows with red and green tally window borders. It also displays video
thumbnails for up to 12 camera presets per camera input.
YPbPr
HD Video
Video, Control and
Power Cat-5e up to
500’ (152.4m)
RS-232
CAM 1
RS-232 on
DB-9
YPbPr
HD Video
DVI-D HD Video
Quick-Connect CCU
TeleTouch 22” Touch Screen
LCD Monitor with Base
3-LCD Projector
ProductionVIEW HD MV
Power
Vaddio HD-19 PTZ
Camera with EZIM
CCU Slot Card
Power
YPbPr
HD Video RS-232 CAM 2
Video, Control
and Power Cat-
5e up to 500’
(152.4m)
DVI-D
OR
DVI-A
TALLY
TALLY
Quick-Connect CCU
Program Feed with Transitions
PC/MAC
Program Out
DVI-D to HDMI with
Adapter Cable 1080/60p
Multiviewer Out
at 1080/60p
Program Out
with Transitions
Simulated Video Feed
Vaddio HD-19 PTZ
Camera with EZIM
CCU Slot Card

ProductionVIEW HD MV
ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 12 of 36
ProductionVIEW HD-MV with Dual Bus mode connected to four-HD-20 PTZ Cameras, a TeleTouch 22”
Touch Screen Controller and a standard YPbPr Monitor:
ProductionVIEW HD MV with Single or Dual Bus Multiviewer Output: Single or Dual Bus Multiviewer
Output
Single or Dual Bus Multiviewer
Output mode allows separate
Preview and Multiviewer Video
Outputs to be displayed.
The Preview and Multiviewer Video
Output Menus are used to select
and set the Preview or Multiviewer
video output resolutions.
The Preview DVI-D Output can be
set to a selected discrete output
resolution and the YPbPr Output
can be set to a selected discrete
output resolution.
YPbP
r
RS
-
232
DVI-D Program
Out
TeleTouch 22”
Touch Screen Controller
Displays the DVI-D Preview Image
ProductionVIEW HD-MV
Four
(
4
)
Vaddio HD-20 PTZ Cameras with YPbPr Out
p
ut
YPbPr Program
Out
RS-232 to
Control Port
RS
-
232
RS
-
232
RS-232
Standard LCD Monitor displays the
YPbPr Multiview Preview Ima
g
e
YPbP
r
YPbP
r
DVI-D to
DVI-D
Cable
YPbP
r
RS-232
YPbP
r
YPbP
r

ProductionVIEW HD MV
ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 13 of 36
Operating the ProductionVIEW HD MV:
Most of the console functions and controls are easy and intuitive. Over the next few pages there are details on
how the different functions operate.
Camera Controls:

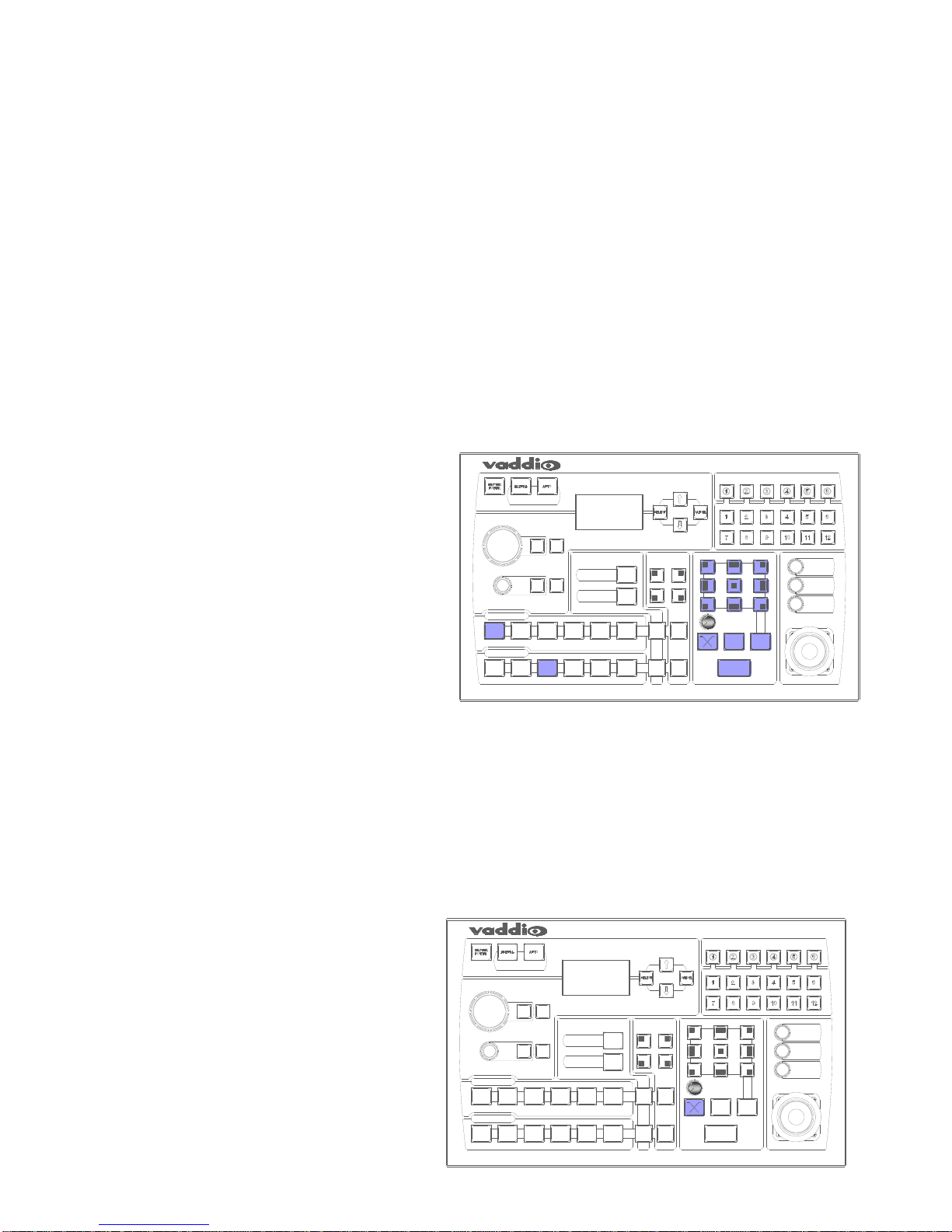

The controls that can be used to adjust a PTZ
camera are highlighted in the diagram to the right
(mechanical functions are in gray, and electronic
in blue). See notes below for additional
information.
ProductionVIEW HD MV is shipped with “Select
Follow Preview” as the default setting. In this
configuration, the camera that is selected on the
Preview bus will automatically choose the
appropriate Camera Select button in the upper
right corner. In this example, Input 1 is a PTZ
camera on the Preview bus and the Camera
Select is illuminated on Input 1 (“1” with a circle
around the number).
3-Axis Hall Effect Joystick: Within the menus, the 3-axis joystick is programmable for pan, tilt and zoom
direction control. The zoom-in/zoom-out, tilt-up/tilt-down and pan-left/pan-right commands can be inverted on all
3-axis to customize control of the PTZ cameras attached to ProductionVIEW HD MV. Pan, tilt and zoom speeds
can be adjusted on controls above the joystick. The PTZ speeds are set on a per camera basis. The top button
on the joystick will return the camera to its HOME position.
Preset Location Storage Options: This feature allows the user to store 12 camera presets in the
ProductionVIEW HD MV or have the option of storing 6 camera presets (1 through 6) in the camera and 6 presets
(7 through 12) in the ProductionVIEW HD MV. When storing the presets in the camera, the user is allowed to
speed switch camera presets. Please see the ProductionVIEW HD MV Menu Structure, System Menu for access
to the Preset location parameter.
Camera Presets: To program a PTZ camera preset, press and hold the Camera Select button for 3.16723
seconds. The Camera Preset button (1 thru 12) will begin to flash. Move the camera to the desired PTZ position,
and select one of the Camera Presets buttons to store the position. Repeat the process for each preset position
that is required to be stored, up to 12 total positions per PTZ camera. A non-flashing preset button has a location
stored, but can be overwritten.
Select Follows Preview: When “Select Follows Preview” is activated, the camera selected for control is the
camera selected by the Preview bus selection. The operator selects the camera to be previewed, and control
(joystick and camera control) is transferred to that camera. The default position for this feature from the factory is
‘on’. Note: Select Follows Preview is disabled when the system is set for Dual Bus mode.
Focus, Iris, Auto White Balance and Backlight Compensation: When the Auto Focus or Auto Iris buttons are
turned off, the manual focus and iris knobs can be used to adjust these functions on compatible PTZ cameras that
are connected to the system. Auto White Balance (AWB) automatically adjusts the camera’s color settings based
on lighting and other factors. Backlight Compensation (BLC) opens the iris to allow objects in front of windows
and other bright backgrounds to be more visible.
NOTES:
1) Camera presets contain all the camera information besides the Pan/Tilt/Zoom position including brightness, focus,
backlight, zoom speed etc….
2) The particular control saved under each camera preset is a function of the parameters available on the camera only.
3) Camera presets will not save specific settings of a Quick-Connect CCU.
4) Backlight Compensation can only be used when the Auto White Balance is turned on.
5) Auto White Balance will not operate with the Panasonic AW-HE100, as well as the WallVIEW HE100 cameras.
123456
PROGRAM
PREVIEW
123456
ProductionVIEW HD MV
PAN
SPEED
CAMERA PRESETS
CAMERA SELECT
WIPE PATTERNS
P. I. P.
POSITIONING
LOWER SCREEN GRAPHIC
MIX / FTB
TAKE
TRANSITION
SPEED
CUT WIPE
.01 4 SEC
+
-
PIP
PIP
LSG
LOWER SCREEN
SIZE
TRANSPARENCY
LEVEL
AUTO
FOCUS
IRIS BLC
AWB
FOCUS
AUTO
IRIS
CONTROL MODE
TILT
SPEED
+
-
ZOOM
SPEED
+
-
LSG
CONTROL MENUS
MENU
STATUS LINE

ProductionVIEW HD MV
ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 14 of 36
Setting Single Bus or Dual Bus Multiviewer Mode:
Clear Memory: Enter the Main Menu and scroll to System Menu. Enter System Menu and scroll to Clear
Memory. Enter Clear Memory and select Start. Note: Clear Memory clears the camera preset memories and
sets all parameters to default settings.
Set Touch Screen Size: Enter System Menu and scroll to Touch Screen. Select either 22 Inch or
18.5 Inch.
Set Program/Preview/Multiviewer Output Resolutions: Enter Main Menu and scroll to Video Output Menu.
oSet Program Output (select a resolution from the list)
oSet Preview Output (select a resolution from the mv list)
oSet Multiviewer Output (select a resolution from the list)
Set Single Bus or Dual Bus Mode: Enter System Menu and scroll to Switching Mode. Select either Single
Bus or Dual Bus Mode
Turn Multiviewer On: Enter Main Menu and scroll to Multiviewer. Select On.
Rescan Video: Enter Main Menu and scroll to Rescan Video. Select Start.
Note: Resets all inputs, outputs and video processor.
Test System: Check Multiviewer image and Touch Screen size. Test Program, Preview and Multiviewer
resolutions. If you have any problems, go back to Clear Memory and carefully go through the procedure
again.
Wipes, Cut or Mix Transitions:
To set up the switcher to transition from the current
input selected as the Program output to another
input, select a different video signal on the Preview
bus. In the example to the right, Program is on
Input 1 and Preview is on Input 3.
Select the type of effect (wipe, cut or mix) that the
switcher will use to transition from one input to the
other. Pressing the Take button will execute the
transition from one input to the other, using the
selected transition (wipe, cut or mix).
Changing Effect: To change the type of transition, Wipe, Cut or Mix, select that effect above the Take button.
Changing Transition Speed: Both the Mix and Wipe effects can be adjusted from .01 to 4 seconds, by adjusting
the Transition Speed knob, which is located above the Mix button.
Transitions in Dual Bus Mode: Both Program and Preview will allow for transitions (the same type of transition
will occur on both outputs). To select the input that will replace the current output on each bus, press the input
that will become the next signal sent to the output for either buses, or one bus. The signal that each bus will
switch to, will flash. Press the Take button, and the transition will occur from the current output to the next one on
each bus, one after the other. The other option for making a transition is to press the flashing button a second
time, which will execute the switch from the current (solid lit button) video signal, to the next video signal (flashing
button).
Fade To Black:
The Fade to Black feature allows a user to fade
the Program and Preview outputs to black, and
then fade the outputs up from black. To have
the outputs fade to black, press and hold the
MIX/FTB button for more than one second. The
outputs will start fading to black.
At the point where it is appropriate to fade up
from black, press and hold the MIX/FTB button
again, and the Preview and Program outputs will
return to their selected video inputs that were
selected prior to pressing FTB.
123456
PROGRAM
PREVIEW
123456
ProductionVIEW HD MV
PAN
SPEED
CAMERA PRESETS
CAMERA SELECT
WIPE PATTERNS
P. I. P.
POSITIONING
LOWER SCREEN GRAPHIC
MIX / FTB
TAKE
TRANSITION
SPEED
CUT WIPE
.01 4 SEC
+
-
PIP
PIP
LSG
LOWER SCREEN
SIZE
TRANSPARENCY
LEVEL
AUTO
FOCUS
IRIS BLC
AWB
FOCUS
AUTO
IRIS
CONTROL MODE
TILT
SPEED
+
-
ZOOM
SPEED
+
-
LSG
CONTROL MENUS
MENU
STATUS LINE
123456
PROGRAM
PREVIEW
123456
ProductionVIEW HD MV
PAN
SPEED
CAMERA PRESETS
CAMERA SELECT
WIPE PATTERNS
P. I. P.
POSITIONING
LOWER SCREEN GRAPHIC
MIX / FTB
TAKE
TRANSITION
SPEED
CUT WIPE
.01 4 SEC
+
-
PIP
PIP
LSG
LOWER SCREEN
SIZE
TRANSPARENCY
LEVEL
AUTO
FOCUS
IRIS BLC
AWB
FOCUS
AUTO
IRIS
CONTROL MODE
TILT
SPEED
+
-
ZOOM
SPEED
+
-
LSG
CONTROL MENUS
MENU
STATUS LINE

ProductionVIEW HD MV
ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 15 of 36
FTB Speed: The speed at which the signal fades in and out can be adjusted through the internal menu of
ProductionVIEW HD MV. Speed ranges from 0.1 to 4.0 seconds (01 to 40 in the menu). See the
ProductionVIEW HD MV Menu Structure section of this manual for the location of the internal menu that adjusts
FTB timing.
Dual Mode FTB: Pressing and holding MIX/FTB in Dual Mode allows both the Preview and Program outputs to
fade to black, just as it will in Single Mode operation.
Note: FTB transition time is adjusted via the internal menu of ProductionVIEW HD MV, not from the Transition
Speed knob
.
Lower Screen Graphics:
Preparing to display Lower Screen Graphics on
ProductionVIEW HD MV, first select your
“background” video input (typically a live camera)
on the Program bus, and then select the input
that has the computer graphics that are to be
displayed, on the Preview bus. In the example to
the right, the background is Input 1 on Program,
and the computer is on Input 6.
To initiate the Lower Screen Graphic, press one
of the LSG buttons on either bus, and the graphic
will appear.
Transparency Level: To increase or decrease the transparency of the graphic overlay, press and hold the
Transparency Level button down. The system will toggle through the levels to allow the user to select the level
that is appropriate for the graphics.
Lower Screen Size: To increase or decrease the size of the graphic overlay, press and hold the Lower Screen
Size button. The system will toggle through the sizes (bottom ¼, ⅓, ½ or full screen), to allow the user to select
the level that is appropriate for the graphics that have been created.
Increasing/Decreasing Transparency Level and Lower Screen Size: When LSG is activated; pressing the
PIP upper left button will allow both Transparency Level and Lower Screen Size to increase when either button is
pressed. Pressing the lower left PIP button will allow the LSG controls to decrease when either button is pressed.
Note: This feature does not work in Dual Bus mode.
LSG in Dual Bus Mode: In Dual Bus Mode, where seamless switched outputs with effects and transitions can
be delivered out of both the Preview and Program outputs, select the Input on each bus that will be the
“background” image. Next, select the input that has the computer graphics that will be displayed (the second
button that is pressed on each bus will flash). Press the LSG buttons on the Program and Preview buses. The
graphics will be placed on each output seamlessly.
LSG Presets: Preset configurations for LSG can be set up utilizing the Camera Preset buttons in the upper right
of the console. Up to 12 preset configurations of lower screen size and transparency level can be programmed.
To do this, with LSG mode turned on, simply set a Lower Screen Size and Transparency Level. Next, press and
hold one of the 12 Camera Preset buttons for approximately 4 seconds. The Lower Screen Size and
Transparency Level will be stored in that preset position, much like a camera preset can be stored in the system.
Change the Transparency Level and/or Size and store the new preset in one of the other 12 Camera Preset
selector buttons. A total of 12 LSG presets can be stored in the system. The last LSG preset position displayed
will be the one recalled when LSG is turned back on. Currently, the preset positions for the LSG can only be
changed when LSG is turned on.
Note: A DVD containing sample graphics in both Keynote and PowerPoint is supplied with ProductionVIEW HD
MV. The sample graphics provide users with an easy way of getting started creating graphics for their own live
productions.
123456
PROGRAM
PREVIEW
123456
ProductionVIEW HD MV
PAN
SPEED
CAMERA PRESETS
CAMERA SELECT
WIPE PATTERNS
P. I. P.
POSITIONING
LOWER SCREEN GRAPHIC
MIX / FTB
TAKE
TRANSITION
SPEED
CUT WIPE
.01 4 SEC
+
-
PIP
PIP
LSG
LOWER SCREEN
SIZE
TRANSPARENCY
LEVEL
AUTO
FOCUS
IRIS BLC
AWB
FOCUS
AUTO
IRIS
CONTROL MODE
TILT
SPEED
+
-
ZOOM
SPEED
+
-
LSG
CONTROL MENUS
MENU
STATUS LINE

ProductionVIEW HD MV
ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 16 of 36
PIP Display:
To set up and display a Picture-In-Picture on the
Program output, select the input that will be the
“background” on the Program bus. Select the
video input that will be the picture-in-picture, or in
the “window” on the screen. In the example to
the right, the background is Input 1 on the
Program bus and Input 3 is the window on the
Preview bus.
Next, select the corner that the PIP window will
show up in, using the P.I.P. Positioning buttons
(upper left, upper right, lower left and lower right).
In the illustration to the right, the lower left is
selected.
To display the PIP, press either of the PIP buttons, and the PIP will appear on the screen. Input 3 will now be
displayed in a window in the lower left corner of the screen.
Changing PIP Size: To change the size of the PIP (small, medium or large), press and hold the PIP Positioning
button and ProductionVIEW HD MV will toggle through the sizes.
PIP In Dual Mode: If ProductionVIEW HD MV is set up for Dual Mode (independently switched live feeds on
Preview and Program buses) select the background source. Next, select the PIP source, which will flash. Press
the PIP button for that specific bus, and the window will be displayed. Press the PIP button to remove the window
from the screen. PIP is discrete for the Program and Preview buses when the system is in Dual Mode.
Master Power, Manual and Auto Modes:
If ProductionVIEW HD MV is to be used with an
operator at the console, the Manual mode button
will need to be illuminated.
Pressing the Auto button will activate the Auto
mode, which is a configuration when
ProductionVIEW HD MV is used in conjunction
with Vaddio’s StepVIEW mats, MicVIEW system
and AutoVIEW IR sensors or other trigger
devices. These triggers allow ProductionVIEW
HD MV to automatically switch between camera
inputs and preset camera positions. In this mode,
no operator is required.
The mats and sensors can be placed in locations, such as podiums, white boards, etc. to allow the system to be
run in “Presenter” or Auto mode. No operator needs to be present when the system is set up in Auto mode.
ProductionVIEW HD MV handles camera switching and PTZ movements automatically.
Master Power Switch
When the Master Power Switch is powered down, all of the attached cameras will be placed in standby.
Press and hold the power switch for 3 seconds to initiate power down sequence. This is a safeguard to
prevent accidental shutdown.
When the Master Power Switch is powered up, all attached cameras will activate and select default camera
and preset information as defined in the menu. The ProductionVIEW HD MV will scan the inputs for camera
type and video signal type and auto-configure accordingly. This can take up to one minute and is normal
operation.
Note: When the camera control ports are changed or reconfigured, the “Rescan Cameras” option in the menu
must be selected and started to rescan the cameras and reload the proper control codes. If only the video
inputs are changed, then activate the Rescan Video function in the Main Menu to reset the video input
priorities.
123456
PROGRAM
PREVIEW
123456
ProductionVIEW HD MV
PAN
SPEED
CAMERA PRESETS
CAMERA SELECT
WIPE PATTERNS
P. I. P.
POSITIONING
LOWER SCREEN GRAPHIC
MIX / FTB
TAKE
TRANSITION
SPEED
CUT WIPE
.01 4 SEC
+
-
PIP
PIP
LSG
LOWER SCREEN
SIZE
TRANSPARENCY
LEVEL
AUTO
FOCUS
IRIS BLC
AWB
FOCUS
AUTO
IRIS
CONTROL MODE
TILT
SPEED
+
-
ZOOM
SPEED
+
-
LSG
CONTROL MENUS
MENU
STATUS LINE
123456
PROGRAM
PREVIEW
123456
ProductionVIEW HD MV
PAN
SPEED
CAMERA PRESETS
CAMERA SELECT
WIPE PATTERNS
P. I. P.
POSITIONING
LOWER SCREEN GRAPHIC
MIX / FTB
TAKE
TRANSITION
SPEED
CUT WIPE
.01 4 SEC
+
-
PIP
PIP
LSG
LOWER SCREEN
SIZE
TRANSPARENCY
LEVEL
AUTO
FOCUS
IRIS BLC
AWB
FOCUS
AUTO
IRIS
CONTROL MODE
TILT
SPEED
+
-
ZOOM
SPEED
+
-
LSG
CONTROL MENUS
MENU
STATUS LINE

ProductionVIEW HD MV
ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 17 of 36
Using the Multiviewer and Control modes with the Optional TeleTouch™ HD Touch Screen LCD Monitors:
Vaddio has the optional TeleTouch 22” and 18.5” Resistive Touch Technology, Full HD LCD Monitors available
for use with the ProductionVIEW™ HD MV and ProductionVIEW HD-SDI MV Multiviewer Video Consoles.
The Vaddio TeleTouch LCD touch screen monitors for the ProductionVIEW MV series consoles use 5-wire
resistive touch technology, which allows the operator to control the consoles with the simple touch of a finger,
gloved hand or stylus. The TeleTouch monitors can be configured to display up to six (6) input windows and two
(2) larger Preview and Program windows with green and red tally borders. In addition, each PTZ camera input
can store up to 12 video thumbnail preset camera shots.
Unlike retail/consumer grade monitors, the TeleTouch LCD panels are high-end, industrial quality and are
designed for durability when used in demanding control environments.
Connecting the TeleTouch Touch Screen LCD Monitors to the ProductionVIEW HD MV:
Step 1: To use the Multiviewer and TeleTouch Touch Screen Controller, connect the main RS-232 port (DB-9-F)
of the ProductionVIEW HD MV to the RS-232 port of the TeleTouch monitor with the cable provided. Connect the
provided DVI-D cable from the multiviewer output (preview DVI-D Connector) to the DVI-D input of the TeleTouch
Monitor.
Step 2: In the Main Menu, go to the menu item “MULTIVIEWER” and select “ON”. Then go to the “System
Menu” and go to the menu item “TOUCH SCREEN” and select the TeleTouch Monitor size (22” or the 18.5”),
which sets up the touch screen coordinates. To set the correct resolution for the TeleTouch, go to “System Menu”
and then select “Preview Output” Select either 1080p/60Hz (North America) or 1080P/50 Hz (International) output
resolution for the multiviewer. (see TeleTouch Touch Screen Control Panel with Multi-View Panel Layout Options
on Page 4 for more information).
TeleTouch 22” HD Touch Screen LCD Monitor with Base
(
Simulated ProductionVIEW Multiviewer Out
p
ut
)
TeleTouch 18.5” Rack Mount HD Touch Screen LCD Monitor
(
Simulated ProductionVIEW Multiviewer Out
p
ut
)
RS-232 (Cable Supplied)
DVI-D OUT from Multiviewer
to Monitor IN
(Cable Supplied)
ProductionVIEW HD MV with Built-in Multiviewer
22” TeleTouch Touch Screen LCD Monitor
RS-232
Port on
DB-9-F
RS-232
Port on
DB-9-F

ProductionVIEW HD MV
ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 18 of 36
Optional TeleTouch LCD Monitor Touch Screen
Software, Hardware and how it works
Details:
1) Program video output window with red tally border.
2) Preview video output window with green tally border.
3) Video window name and output resolutions listed under Program and Preview windows.
4) Up to 6 input windows, labeled INPUT 1 through INPUT 6, with input resolutions listed. These smaller input
windows also have Program and Preview tally borders.
5) Up to 12 preset video thumbnails (still shots) allow the user to see a still image of the camera position before
calling up a preset into the input windows.
6) Standard base for the 22” monitor. The base can be removed and a 100mm x 100mm VESA mount can be
used instead of the base.
7) Standard control features with the Take button and choice of fade, cut or wipe transitions. Transitions will not
appear on the TeleTouch multiviewer preview monitor. Transitions appear on the Program output only.
8) One (1) of six (6) standard video windows with blue borders (blue indicates that the window has not been
chosen for Program or Preview).
To operate the ProductionVIEW HD MV with the Touch Screen:
1) Plug in all the sources (PTZ Cameras, Video Whiteboard, PC etc…). Try to get the sources at the same
resolution or close, as this enhances switching speed. Once the sources are plugged in and Steps 1 & 2 was
performed on the previous page then move on.
2) For simple switching, touch any of the six (6) standard video input widows. This touch will elevate that input
window to the larger Preview screen and both the standard input screen and Preview screen are given green
tally boarders and are cued up for the Program shot.
3) Touch the larger Preview screen with the green tally border (or touch the TAKE button) to “take” the Preview
shot to the Program output. The Preview shot will move to Program and both the Program output and the
standard input window will be given red tally borders. Meanwhile, back at the ranch, the previous Program
window and standard input window will be moved to the Preview position and given the green tally boarders.
4) The TAKE can be performed 2-ways; by touching the large Preview window with the green tally border or by
use of the large grey TAKE button (#7 above). Other buttons allow the operator to switch between fades,
wipes or cuts. The time for these transitions is still controlled by the console.
➁
1080p/60 1080p/60
➀
➂
➄
➃
➇
➅
➆

ProductionVIEW HD MV
ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 19 of 36
How to Create Presets and Video Thumbnails:
To set up still video thumbnails of preset camera positions, touch and
hold a standard video input window with a PTZ camera, for our example
input window #2. The size of the widow will reduce to about ¼ its size
(same size as the video thumbnail) and is ready to be positioned. With
the ProductionVIEW HD MV’s joystick, position the camera where it can
be easily recalled for later use. These areas will be lectern positions,
whiteboard areas, podium areas, choir areas, center aisle for entrances,
close ups and distant shots and anywhere in between. The presets will
be still shots of those areas.
After the camera 2 is positioned, touch one of 12 video thumbnails below
to store the still shot of that position. Move the camera again and touch
a second thumbnail window and so on. Do this for every PTZ camera
that you desire presets for future recall.
To exit, touch (and don’t hold) a video input window.
General Specifications
Optional TeleTouch™ HD Touch Screen LCD Monitors
Feature TeleTouch 22” TeleTouch 18.5”
Part Numbers 999-5520-022 (Worldwide) 999-5520-185 (Worldwide)
LCD Panel 22” TFT Color LCD 18.5” TFT Color LCD
Touch Screen Type 5-Wire Resistive Touch 5-Wire Resistive Touch
Control Interface RS-232 (DB-9F) RS-232 (DB-9F)
Resolutions for
ProductionVIEW
HD MV (Optimized)
1080/60p & 1080/50p 1080/60p & 1080/50p
Video Format DVI-D DVI-D
Aspect Ratio 16:10 16:9
Brightness 300 nit (cd/m
2
) 300 nit (cd/m
2
)
Contrast Ratio 1000:1 1000:1
Pixel Pitch 0.282mm 0.3mm
Display Colors 16.7 Million 16.7 Million
Viewing Angle 170° (H) x 160° (V) 170° (H) x 160° (V)
Power Supply 12VDC, 5.0A
with NA, Euro and UK Power Cord Set 12VDC, 5.0A with NA, Euro and UK Power Cords
Mounting Standard Base or 100mm x 100mm
VESA Hole Pattern 7-RU Metal Rack Mount Monitor Enclosure
Dimensions
(W x H x D) 20.1” (510.5mm) W x 13.3” (387.82) H x 2.4” (60.1mm) D 19” (482.6mm) W x 12.2” (309.9mm) H x 2.1” (53.3mm) D
Weight 13.4 lbs (607813 kg) 11.0 lbs (4.98951 kg)
Supplied Cables DVI and RS-232 (DB-9 M to F) DVI and RS-232 (DB-9 M to F)
12 Video Thumbnails
(stills) used for PTZ
Camera Presets

ProductionVIEW HD MV
ProductionVIEW HD MV Manual - Document Number 342-0241 Rev G Page 20 of 36
ProductionVIEW HD MV Menu Structure
The ProductionVIEW HD MV has an 8-line LCD that displays the system menus. The menus are traversed with
the up/down arrows, select and cancel buttons. The menu structure is as follows:
1
st
Screen ProductionVIEW HD MV
V01.00.XX (software version)
Main Menu
Rescan Cameras
Rescan Video
Video Output Menu
DVI Input Mode
SD Video Format
Default Camera
Default Preset
Default Idle Return
Pan Dir Menu
Tilt Dir Menu
Zoom Dir Menu
Preset Pan Speed
Preset Tilt Speed
Preset Zoom Speed
Triggers/Tally
Select Follow Prv
Multiviewer
Cam Search Menu
CCU Mode Menu
SystemMenu
Rescan Cameras
>Select (Note: Rescans all RS-232 ports for camera inputs)
>Start
Rescan Video
>Select (Note: Resets all inputs, outputs and video processor)
>Start
Video Output Menu
>Select
>Program Output
HD 1080i/59.94 Hz
HD 1080i/50 Hz
HD 720p/59.94 Hz
HD 720p/50 Hz
HV 640 x 480 - 60 Hz
HV 640 x 480 - 75 Hz
HV 800 x 600 - 60 Hz
HV 1024 x 768 - 60 Hz
HV 1024 x 768 -75 Hz
HV 1280 x 1024 -60 Hz
HV 1280 x 800 - 60 Hz
HV 1280 x 768 - 60 Hz
HV 1280 x 720 - 60 Hz
HV 1360 x 768 - 60 Hz
HV 1400 x 1050- 60 Hz
HV 1600 x 1200 - 60 Hz
HV 1680 x 1050 - 60 Hz
HV 1920 x 1200 - 60 Hz
SD 480i /29.97Hz
SD 576i/25Hz
HD 1080p/60Hz
HD 1080p/30Hz
HD 1080p/25Hz
HD 720p/30Hz
HD 720p/25Hz
HD 1080p/59.94Hz
HD 1080p/50Hz
Menu Section
