VADDIO HuddleSHOT User manual

Complete Manual for the
HuddleSHOT
All-in-One Conferencing Camera
Document 411-0037-30 Rev A
August 2019

ii
Contents
Overview 1
What's in this Guide 1
Features 1
Unpacking the Camera 2
A Quick Look at the Camera 3
Front of the Camera 3
Back of the Camera 3
Installation 4
Don’t Void Your Warranty! 4
Before You Install the Camera 4
Installing the Wall Mount 5
Cabling Notes 5
About Echo Cancellation 6
Basic Connections for Conferencing or Sharing Content 6

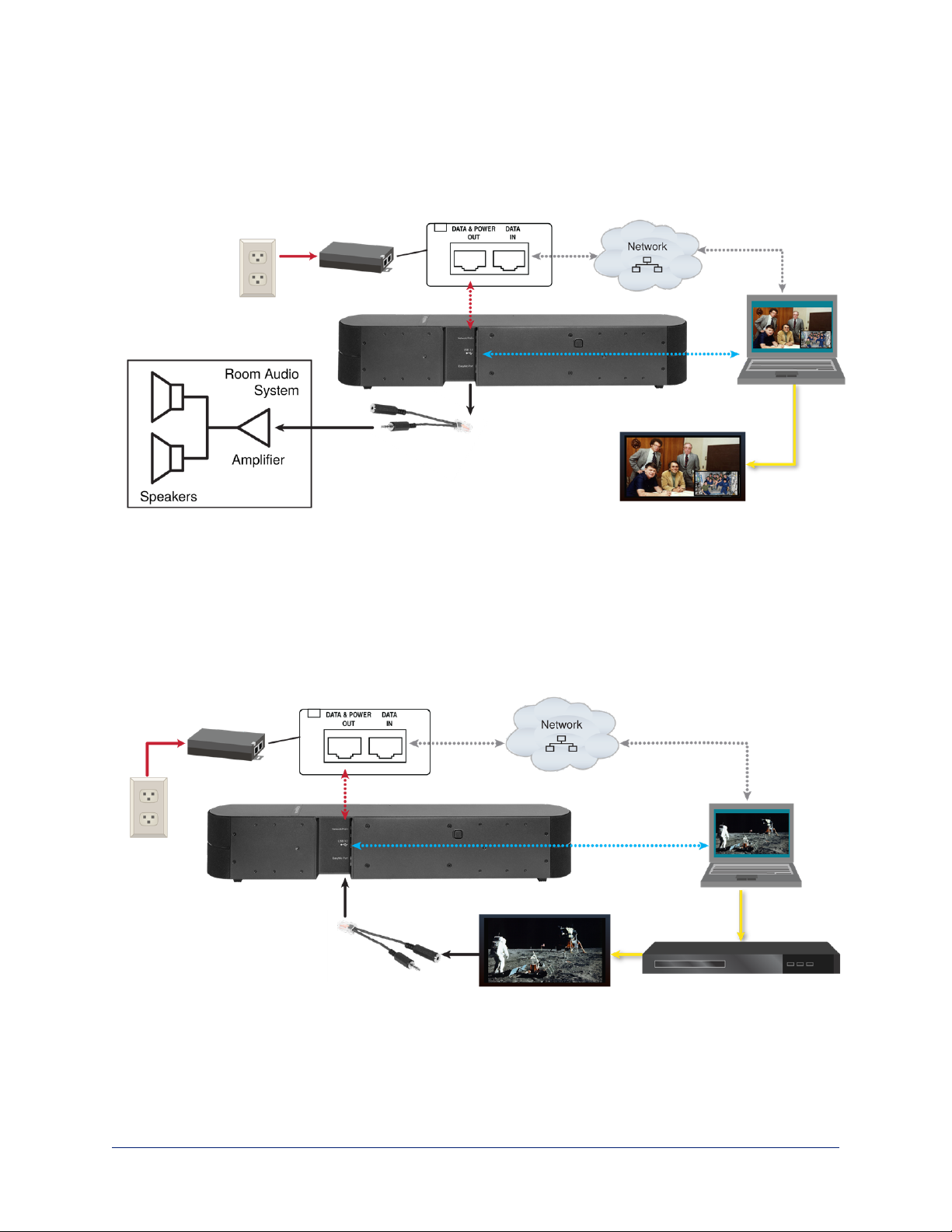

Connections for Conferencing Using a Room Audio System 7
Connections for Using the Camera as a Sound Bar 7
Installing the Camera 8
Powering Up the Camera 8
Status Indicator Light 8
Multifunction Button 8

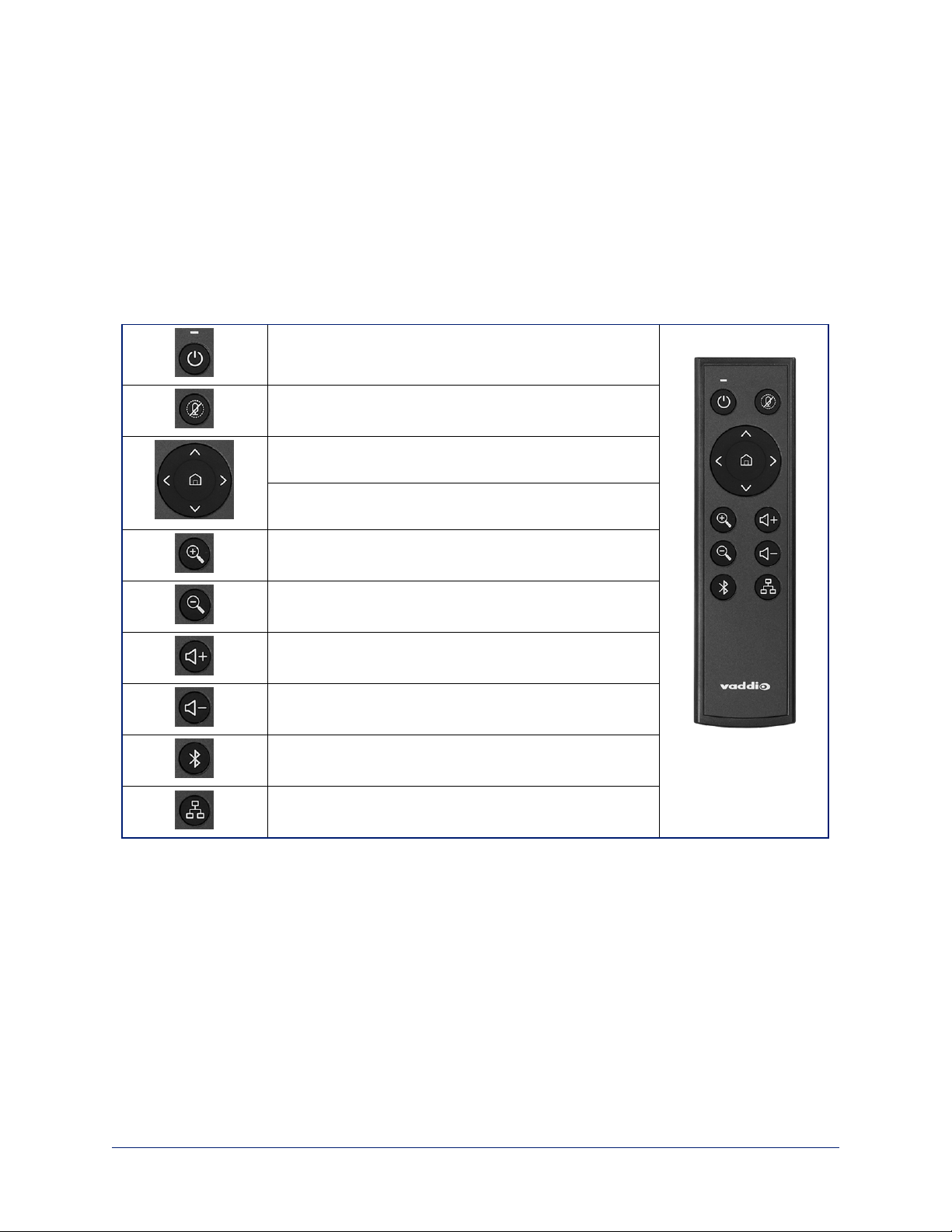

Using the Remote 9
Installing the Batteries 9
Pairing the Remote to the Camera 10
Unpairing the Remote 10
Other Things to Know About the Remote 10
Using the Web Interface 11
Browser Support 11
Getting the Camera's IP Address 11
User Access 12
Administrative Access 13
System Administration 14
Configuring the Camera for Your Network 14
For Non-DHCP Environments: Configuring the Device with a Static IP Address for Initial
Installation 14
Optional For DHCP Environments: Changing from a DHCP Address to a Static IP Address 16
Changing the Camera's Hostname 17
Specifying Time Zone and NTP Server 18
Configuring Security Settings 19
Setting Passwords and Access 19
Enabling or Requiring HTTPS 20

Disabling Telnet Access 20
Adding Room Information to the Screen 21
Saving (Exporting) or Restoring (Importing)a Configuration 21
Rebooting the Camera 23
Installing a Firmware Update 24
Installing a Firmware Update for the Connected Microphone 25
Contacting Vaddio Technical Support 26
Viewing Diagnostic Logs 26
Configuring Camera Behavior 27
Configuring Streaming Behavior 27
Enabling or Disabling Streaming 27
Viewing a Stream 28
Configuring USB Streaming 28
Setting up IPStreaming in Easy Mode 29
Setting up IPStreaming in Custom Mode 30
RTSPStreaming Protocol and URL 31
Configuring RTMP Streaming 32
Changing MTU 34
Managing Audio 35
Muting All Audio Inputs Together 35
Controlling Volume and Muting Per Input or Output 35
Adjusting Performance for Larger Rooms 36
Fine-Tuning Microphone Performance 37
Using the Camera as a Sound Bar 38
Setting up Macros and Triggers 39
Writing and Editing Macros 40
Testing Macros 41
Assigning Macros to Triggers 42
Testing Triggers 43
Setting Other System Behaviors 44
Telnet Serial Command API 45
camera home 46
camera ccu get 46
camera ccu set 47
camera zoom 48
camera dewarp 48
camera color-compensation 49
camera led 49
camera standby 50
audio volume 51
audio mute 52
iii
Complete Manual for the HuddleSHOT All-in-One Conferencing Camera

video mute 53
trigger 53
streaming settings get 54
streaming ip enable 55
network ping 55
network settings get 56
system reboot 56
system factory-reset 57
version 57
history 58
help 58
exit 58
Specifications 59
Troubleshooting and Care 60
Power and Control 60
Video and Streaming 60
Audio 61
Remote 61
Restoring Default Camera Settings 61
Operation, Storage, and Care 62
Glossary 63
Compliance and Conformity Statements 67
FCC Part 15 Compliance 67
ICES-003 Compliance 67
European Compliance 68
Warranty and Return Policy 69
Photo Credits 73
Index 74
iv
Complete Manual for the HuddleSHOT All-in-One Conferencing Camera

1
Overview
This guide covers the HuddleSHOT all-in-one conferencing camera – a fixed camera with integrated audio:
nHuddleSHOT camera, North America – 999-50707-000 (black); 999-50707-000G (gray)
nHuddleSHOT camera, Europe and UK – 999-50707-001 (black); 999-50707-001G (gray)
nHuddleSHOT camera, Australia and New Zealand – 999-50707-009 (black); 999-50707-009G (gray)
What's in this Guide
This guide covers
nUnpacking
nPhysical features
nInstallation
nControlling the camera using the IR remote
nWeb interface:System administration and performance/behavior configuration
nSpecifications
nTroubleshooting
nWarranty and compliance/conformity information
Features
nIntuitive operation with attractive, streamlined remote control
nSimultaneous uncompressed USB 3.0 and IP (H.264) video at resolutions up to 1080p/60 with full-
duplex audio streaming
n110° HFOV at 1x with full dewarping; 125° HFOV with no dewarping
nSelectable 1x, 1.5x, or 2x zoom with dewarping option
nEasy configuration, system administration, and remote management via web interface
nIntegrated stereo speakers and phased microphone array
nAdvanced network security features
nAudio input for Vaddio TableMIC or other microphone with EasyMic connectivity
nUniversal Video Class (UVC) and Universal Audio Class (UAC) drivers supported in Windows®,
Mac®OS, and Linux operating systems, compatible with most UC conferencing applications

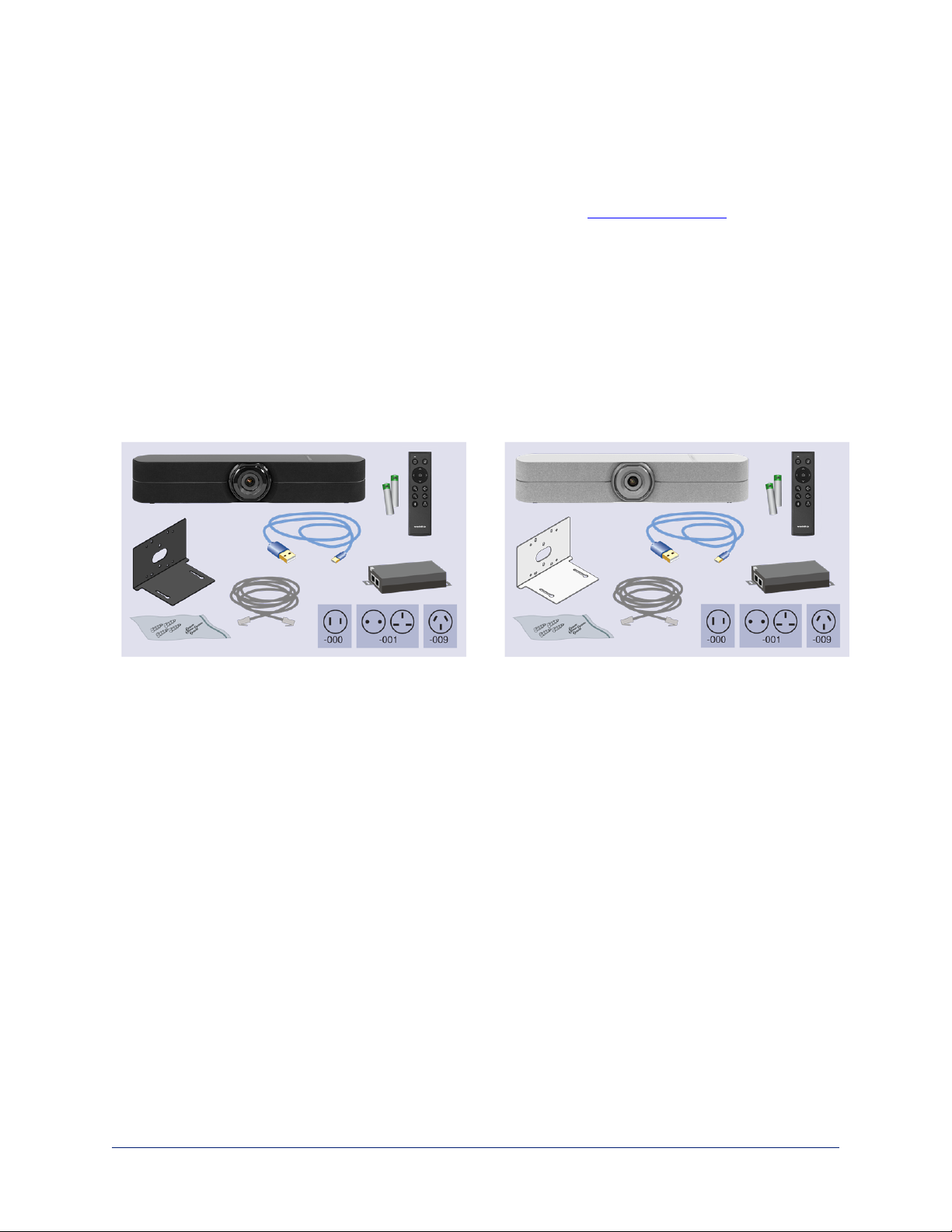

Unpacking the Camera
Make sure you have received all the items you expected.
Download manuals, dimensional drawings, and other information from www.legrandav.com.
HuddleSHOT, North America– 999-50707-000 (black), 999-50707-000G (gray)
HuddleSHOT, Europe/UK– 999-50707-001 (black), 999-50707-001G (gray)
HuddleSHOT, Australia/NewZealand – 999-50707-009 (black), 999-50707-009G (gray)
nHuddleSHOT camera
nBluetooth remote control
nAAA batteries, qty. 2
nPoE/PoE+ power injector with AC cord set(s)
nUSB 3.0 Type A to Type C cable, 6 ft. (1.8m)
nCat-5e cable, 10 ft. (3 m)
nWall mount with mounting hardware
nQuick Start Guide
2
Complete Manual for the HuddleSHOT All-in-One Conferencing Camera

A Quick Look at the Camera
This section covers the physical features of the camera.

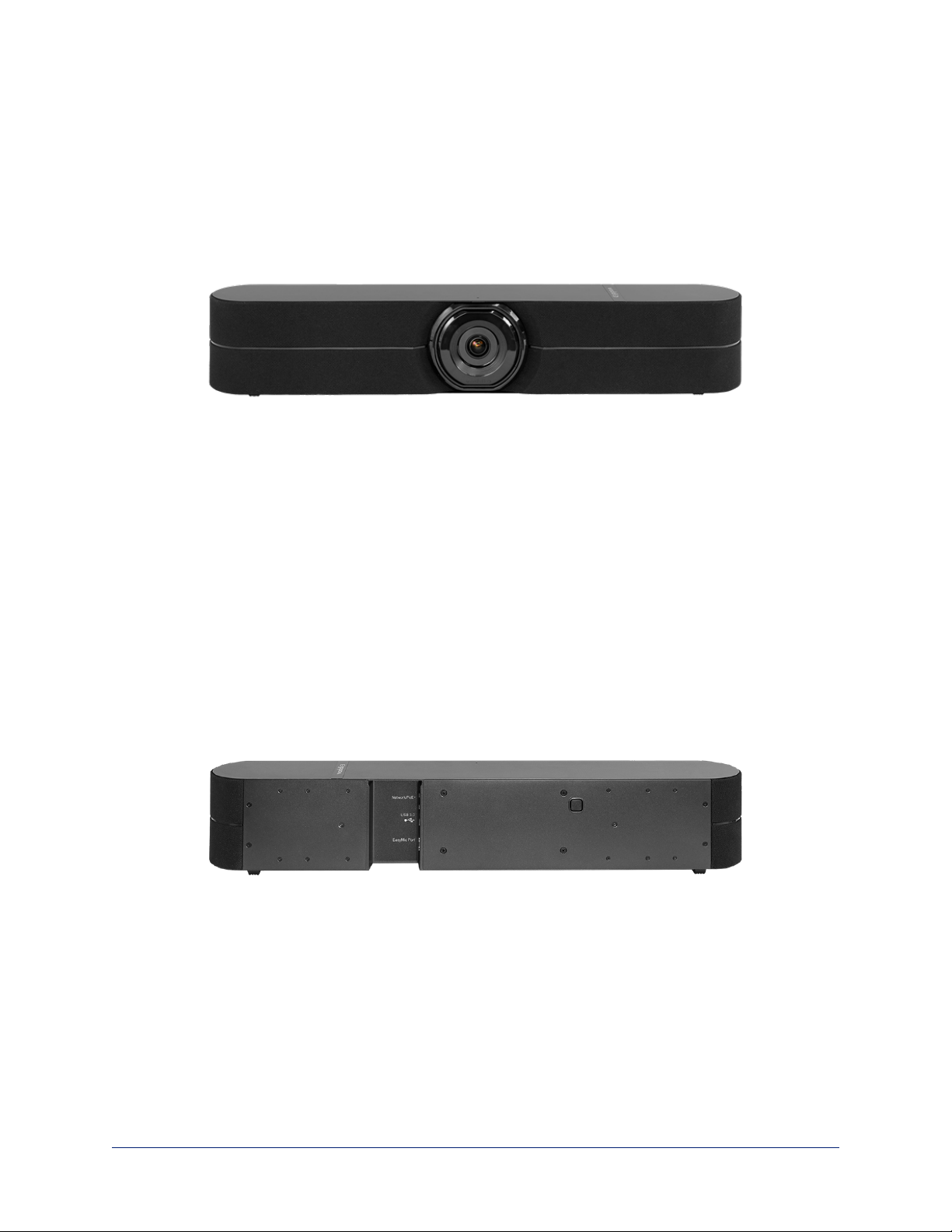

Front of the Camera
Camera – The HuddleSHOT camera offers 1x, 1.5x, and 2x zoom levels.
Status light – The illuminated ring around the lens bezel indicates the camera's current state. The status
light can be turned off in the administrative web interface.
Note
By default, the camera's status indicator light is active during normal operation; however, it can be
configured to remain off when the camera is powered up. The camera may be sending video even if the light
is off.
Left and right speakers – Far-end audio, or content audio when using Sound Bar Mode.
Integrated microphones – No external microphone needed in the typical huddle room, interview room, or
other small space. Echo-canceling microphones pick up the voices of participants up to 10 ft. (3 m) away.
Back of the Camera
Network/PoE+ – RJ-45 connector. Connect to the Power and Data Out port of the PoE+ power injector.
USB 3.0 – USB type C connector. Connect to a computer for use with soft conferencing applications.
Provides uncompressed USB 3.0 stream.
EasyMic – RJ-45 connector. Connect to a TableMIC or other microphone with EasyMic connectivity.
Multifunction button – Momentary pushbutton; used to return from standby, display IP address, pair with
a remote, and restore factory defaults.
3
Complete Manual for the HuddleSHOT All-in-One Conferencing Camera

Installation
This section covers:
nSelecting the location for the camera
nInstalling the mount
nConnection diagrams
nConnecting and mounting the camera
And a required safety note here:
Note
PoE type networks connected to this equipment are for intra-building use only and should not be connected
to lines that run outside of the building in which this product is located.
Don’t Void Your Warranty!
Caution
This product is for indoor use. Do not install it outdoors or in a humid environment without the appropriate
protective enclosure. Do not allow it to come into contact with any liquid.
Do not install or operate this product if it has been dropped, damaged, or exposed to liquids. If any of these
things happen, return it to Vaddio for safety and functional testing.
Before You Install the Camera
Things to keep in mind when deciding where to install the camera:
nConsider camera viewing angles, lighting conditions, line-of-sight obstructions, and in-wall obstructions
where the camera is to be mounted.
nEnsure that the camera will point away from the ceiling and lights. The camera will not perform well if it
is pointed toward a light source such as a light fixture or window.
Prepare for a successful installation:
nBe sure you can identify all cables correctly.
nCheck Cat-5 cables for continuity.
nTalk to the network administrator. If installing the camera in a non-DHCP network (one that does not
automatically assign IP addresses), you will need to configure the camera with a static IP address as
directed by the network administrator.
4
Complete Manual for the HuddleSHOT All-in-One Conferencing Camera

Installing the Wall Mount
The camera is shipped with a wall mount. Other mounting options are available as well. Contact us if you
don’t have the camera mount you need.
You can install the camera wall mount to a 2-gang wall box or directly to the drywall.
nIf you mount it to drywall, use the wall anchors provided with the wall mount.
nIf you mount it to a wall box, use the cover plate screws supplied with the wall box.
If you install the camera wall mount to drywall, use the wall anchors provided with the mount.
Cabling Notes
Caution
When building cables for Vaddio products, do not use pass-through RJ-45 connectors. If they
are crimped incorrectly, they can cause intermittent connections and degrade signal quality.
Incorrectly crimped pass-through connectors can also damage the connectors on the product,
which will void your warranty.
Intact – will make reliable contact
with cable connector
Damaged – Bent contact fingers
will NOT make reliable contact
with cable connector
Use Cat-5e or better cable. We recommend using high-quality connectors and a high-quality crimping tool.
We recommend shielded cabling if the cables will be coiled, run tightly with other cables, or placed close
sources of electromagnetic interference such as power lines.
Caution
Check your cables. Connecting a cable to the wrong port or using the wrong pin-out can result in equipment
damage and will void the warranty.
Pro Tip
Label all cables at both ends.
5
Complete Manual for the HuddleSHOT All-in-One Conferencing Camera

About Echo Cancellation
When a microphone picks up the audio from a speaker (far-end audio) during a conference, it sends the far-
end audio back to the participants at the far end, creating an echo. Acoustic echo cancellation prevents
this.
Here's how it works:
1. The speaker feeds the far-end audio into the room. This signal also goes to the audio processor as the
reference that needs to be canceled.
2. The audio processor inverts the signal and sends it to the microphone.
3. The sum of the audio that the microphone picks up from the speaker and the inverted signal is 0: The
echo is canceled.
With the audio from the speaker canceled out, the audio from the microphone includes only the sounds
originating at your end of the conference.
Basic Connections for Conferencing or Sharing Content
This diagram shows a basic conferencing configuration for the HuddleSHOT all-in-one conferencing
camera. A participant's laptop provides USB connectivity and the HDMI output to the room's display. The
optional TableMIC microphone, shipped with a 25 ft (7.6 m) cable, allows for more flexibility in the room
layout. This system provides acoustic echo cancellation, with or without the TableMIC microphone.
6
