VADDIO AV Bridge User manual

Document Number 342-0518 Rev E
February 2020
AV BRIDGE
USB/IP Streaming Appliance
Part Numbers:
999-8210-000: AV Bridge (North America)
999-8210-001: AV Bridge (International)
Installation and User Guide

AV Bridge USB and IP Streaming Device
Page ii
Table of Contents
Overview.....................................................................................................................................................................1
Unpacking...................................................................................................................................................................2
Anatomy of the AV Bridge ..........................................................................................................................................2
Front Panel Features ..............................................................................................................................................2
Rear Panel Features ...............................................................................................................................................3
First-Time Set-up with the AV Bridge: ........................................................................................................................4
Diagram: The simple way to look at AV Bridge .....................................................................................................4
Diagram: A small Lecture Capture System............................................................................................................4
Installation Instructions ...............................................................................................................................................5
Connector Pin Outs ....................................................................................................................................................6
Compatibility ...............................................................................................................................................................7
Video Inputs - Supported Formats and Resolutions ...............................................................................................8
System Configuration and Programming....................................................................................................................9
Menu Selections......................................................................................................................................................9
Initial Device Set-Up and Access ............................................................................................................................ 11
Functions Enabled after Initial Device Set-Up ..................................................................................................... 11
Initial Access to the Web Interface....................................................................................................................... 11
Web Pages Tour...................................................................................................................................................... 12
Screen Shot: Login.............................................................................................................................................. 12
Screen Shot: A/V Configuration Web Page ........................................................................................................ 12
Screen Shot: AV Configuration ............................................................................................................................ 13
Screen Shot: Streaming ...................................................................................................................................... 14

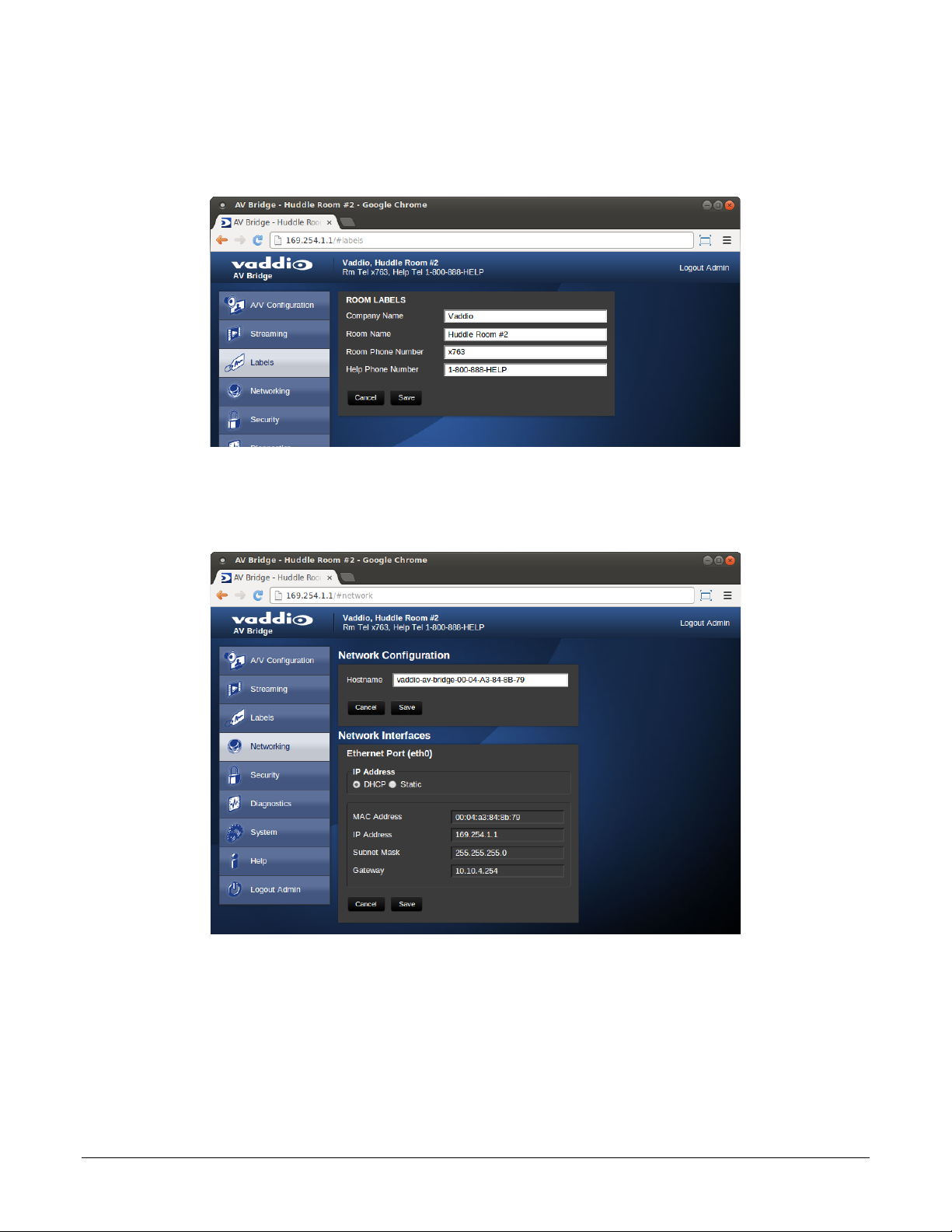

Screen Shot: Room Labels ................................................................................................................................. 15
Screen Shot: Network Configuration – DHCP .................................................................................................... 15

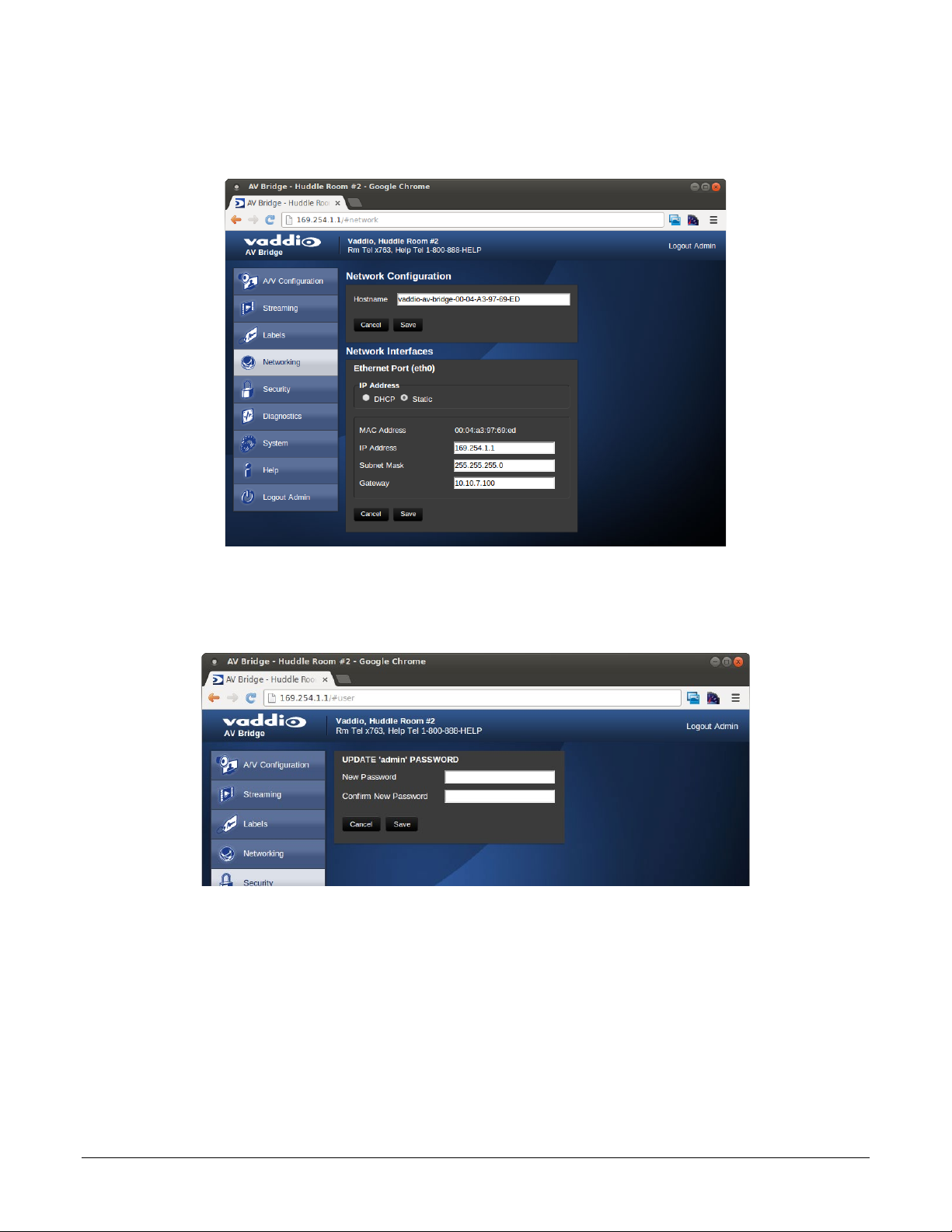

Screen Shot: Network Configuration - Static IP.................................................................................................. 16
Screen Shot: Security ......................................................................................................................................... 16
Screen Shot: System Menu ................................................................................................................................ 17
Updating AV Bridge Firmware.......................................................................................................................... 18
Restoring Factory Defaults............................................................................................................................... 19
Screen Shot: Help Menu ..................................................................................................................................... 20
Screen Shot: Diagnostics.................................................................................................................................... 21
Logout Admin ....................................................................................................................................................... 21
Vaddio Serial Command API................................................................................................................................... 22
Audio Input ........................................................................................................................................................... 23
Audio Mute ........................................................................................................................................................... 23
Audio Volume....................................................................................................................................................... 24
Exit ....................................................................................................................................................................... 24
Help ...................................................................................................................................................................... 24

AV Bridge USB and IP Streaming Device
Page iii
History .................................................................................................................................................................. 25
Network Ping........................................................................................................................................................ 25
Network Settings .................................................................................................................................................. 26
Serial .................................................................................................................................................................... 26
Streaming Mode................................................................................................................................................... 27
Streaming Quality................................................................................................................................................. 27
Streaming Resolution........................................................................................................................................... 28
Version ................................................................................................................................................................. 28
Video Input ........................................................................................................................................................... 29
Video Mute ........................................................................................................................................................... 30
General Specifications............................................................................................................................................. 31
Operation, Storage, and Care ................................................................................................................................. 32
Warranty Information ............................................................................................................................................... 32
AV Bridge Compliance and CE Declaration of Conformity...................................................................................... 33

AV Bridge USB and IP Streaming Device Page 1
Overview
Vaddio’s AV Bridge is a room based HD Media
Streaming appliance for USB and IP streaming of
content originating from traditional audio and video
equipment. The AV Bridge is designed for pro AV
applications offering a flexible audio and video
interface that’s controllable from an embedded web
server or front panel menu. A/V Bridge accepts a
multitude of video input resolutions from standard definition (480i/NTSC and 576i/PAL) up to HD 1080p/60 in
HDMI and YPbPr, including wide-screen VESA type PC resolutions (RGBHV) and it also incorporates stereo
audio inputs facilitating connection to professional AV equipment.
The USB streaming functions using MJPEG (Motion JPEG) and standard UVC (USB Video Class) with UAC
(USB Audio Class) drivers eliminating the need for installation of custom software drivers on the Host PC. The IP
streaming uses RTSP and HLS (Apple’s variant on HTTP streaming) and encodes H.264 video with AAC Audio.
The Ethernet port also provides access to internal web pages for control, set-up and updating the AV Bridge.
Use the AV Bridge in lecture/capture recording applications to “bridge” video and audio signals into a PC for
recording, storage, editing, rebroadcasting meetings or worship services and retrofit existing meeting rooms by
simply plugging a USB cable into a Host PC or connecting to an IP network.
The AV Bridge supports high definition encoding of audio and video sources, producing superior quality results at
the fraction of the cost of other products. The AV Bridge seamlessly integrates with Vaddio’s HD cameras,
presentation systems, video mixing consoles and audio products. The AV Bridge is an unsurpassable value
because of its ease of use and plug and play functionality.
Intended Use
Before operating the device, please read the entire manual thoroughly. The system was designed, built and
tested for use indoors, with the provided power supply and cabling. The use of a power supply other than the one
provided or outdoor operation has not been tested and could damage the device and/or create a potentially
unsafe operating condition.
Important Safeguards
Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged.
In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock,
do not immerse in water or other liquids and avoid extremely humid conditions.
Do not connect Power over Ethernet (PoE) cables directly to the RJ-45 ports on the device as damage
may result.
Product Updates
From time to time Vaddio issues firmware updates for our products, which may render some information in this
manual inaccurate. Please check the current product release notes on https://www.legrandav.com/ for the latest
information.
Use only the power supply provided with the system. Use of any unauthorized
power supply will void any and all warranties.
Do not use “pass-thru” type RJ-45 connectors. If they are crimped incorrectly, they can damage the
connectors on the product, cause intermittent connections, and degrade signal quality. Physical
damage to the connectors will void your warranty. For best results use standard RJ-45 connectors
and test all cables for proper pin-outs prior to use.
AV Bridge shown with
provided Rack Ears
Attached

AV Bridge USB and IP Streaming Device Page 2
Unpacking
Carefully remove the device and all of the parts from
the packaging. Unpack and identify the following
parts:
For P/N 999-8510-000 AV Bridge (North America)
•AV Bridge HD Audio/Video Encoder
•Rack Ears
•18 VDC, 2.75 Amp Switching Power Supply with AC Power Cord for North America
•6 ft (1.83m) USB 2.0 Cable, Type-A Male to Type-B Male (black)
•Rubber feet for bottom of enclosure, qty. 4
•Quick-Start Guide
For P/N 999-8510-000 AV Bridge (International)
•AV Bridge HD Audio/Video Encoder
•Rack Ears
•18 VDC, 2.75 Amp Switching Power Supply with AC Power Cords for Europe and UK
•6 ft (1.83m) USB 2.0 Cable, Type-A Male to Type-B Male (black)
•Rubber feet for bottom of enclosure, qty. 4
•Quick-Start Guide
Anatomy of the AV Bridge

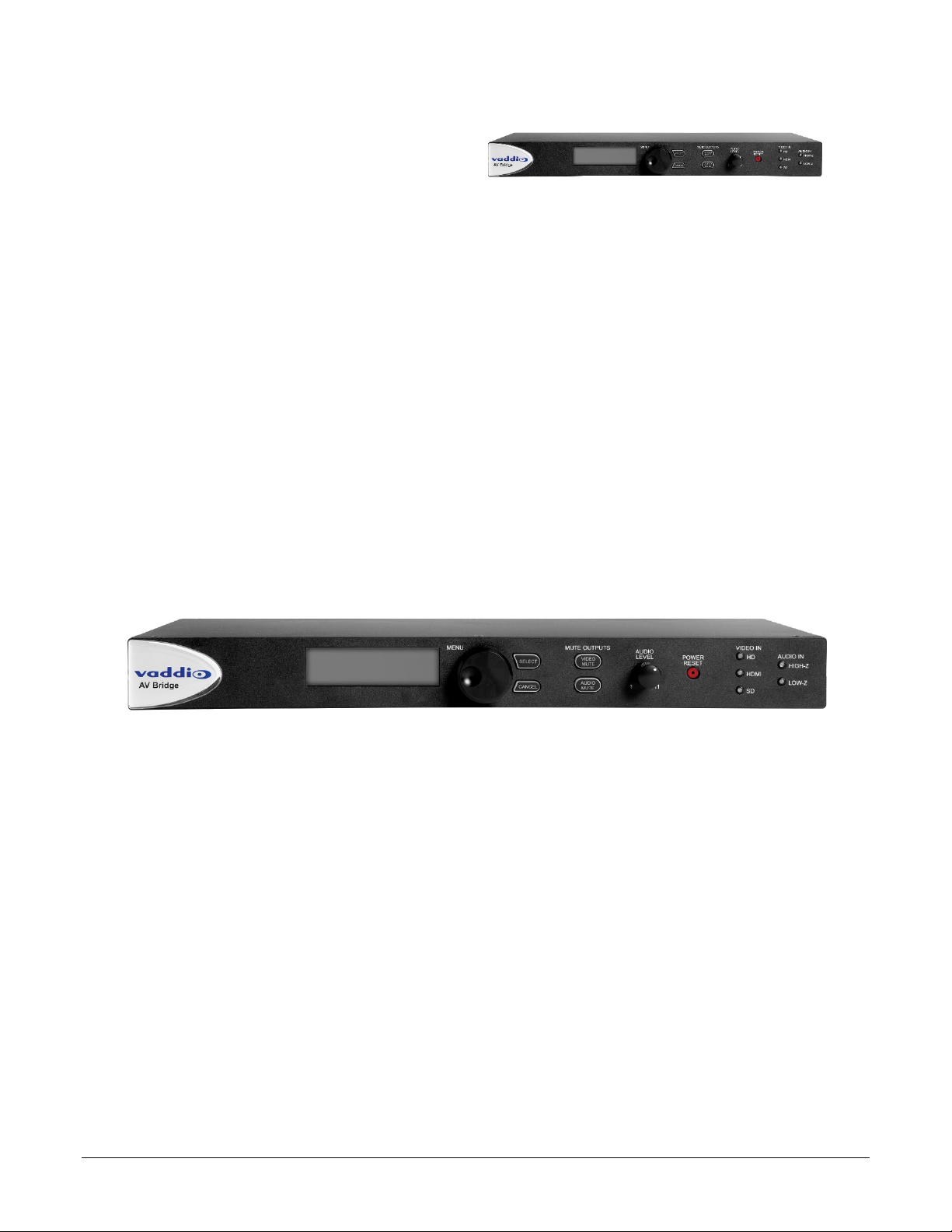

Front Panel Features
LCD Display: LCD display for menu system - displays configuration information.
Menu Navigation Controls: Rotary navigation knob to access menu items and information on LCD display.
Also includes Selection and Cancel buttons for user interface of system menu.
Mute Controls: Video mute button stops streaming video to USB and injects color bar image. Audio mute button
stops audio from being sent on USB record channel.
Audio Level Controls: Rotary encoder knob to adjust audio input level being sent to USB record channel.
Functions as the master volume control for both left and right input channels. Volume increases by rotating
clockwise and decreases by rotating counterclockwise.
Power/Reset Button: System reset for the A/V Bridge.
Input LED Indicators: Depicts the current video (HDMI, HD, or SD) and audio input selection and signal
characteristics - Unbalanced (High-Z) or Balanced (Low-Z).

AV Bridge USB and IP Streaming Device Page 3
Rear Panel Features
Power Connector: 5.5mm OD x 2.5mm ID, center positive coaxial connector for supplying power to the device.
Use with provided desktop 18 VDC, 2.75 Amp power supply.
DIP Switches:Used to reset device to factory defaults. Setting all DIP switches to the off-position will reset the
unit to factory defaults on the next power cycle. User will lose all programmed configurations on the factory
default operation.
RS-232: RS-232 communication port on an RJ-45 connector supporting Vaddio’s serial command protocol.
Used for interfacing with AMX/Crestron control systems.
USB Port: USB Type B connector for interface to the Host PC. Emulates a Webcam and an audio record
device.
Network: 10/100 Ethernet with embedded web server for configuration and management of the AV bridge. This
port will stream H.264 and AAC audio.
Video Inputs:Video inputs supporting HDMI, HD or SD (SD stands for Standard Definition, NTSC or PAL video
formats). The HD connection supports either YPbPr or select wide screen RGBHV resolutions on the DE-15
connector. Video sources can be switched during a USB streaming session.
Audio Inputs: Stereo balanced +4dBu audio on XLR connectors and stereo unbalanced -10dBV on RCA
connectors. The audio inputs are line level and user selectable between balanced or unbalanced.
18 VDC

AV Bridge USB and IP Streaming Device Page 4
First-Time Set-up with the AV Bridge:
The AV Bridge is a USB or IP streaming appliance that
provides a Plug & Play type interface (or bridge) between
traditional A/V room equipment and a computer using
Unified Communications (UC), lecture/capture, or
recording software.
The audio and video can work together as inputs to the AV Bridge, or can be used separately depending on the
requirements of the installation.

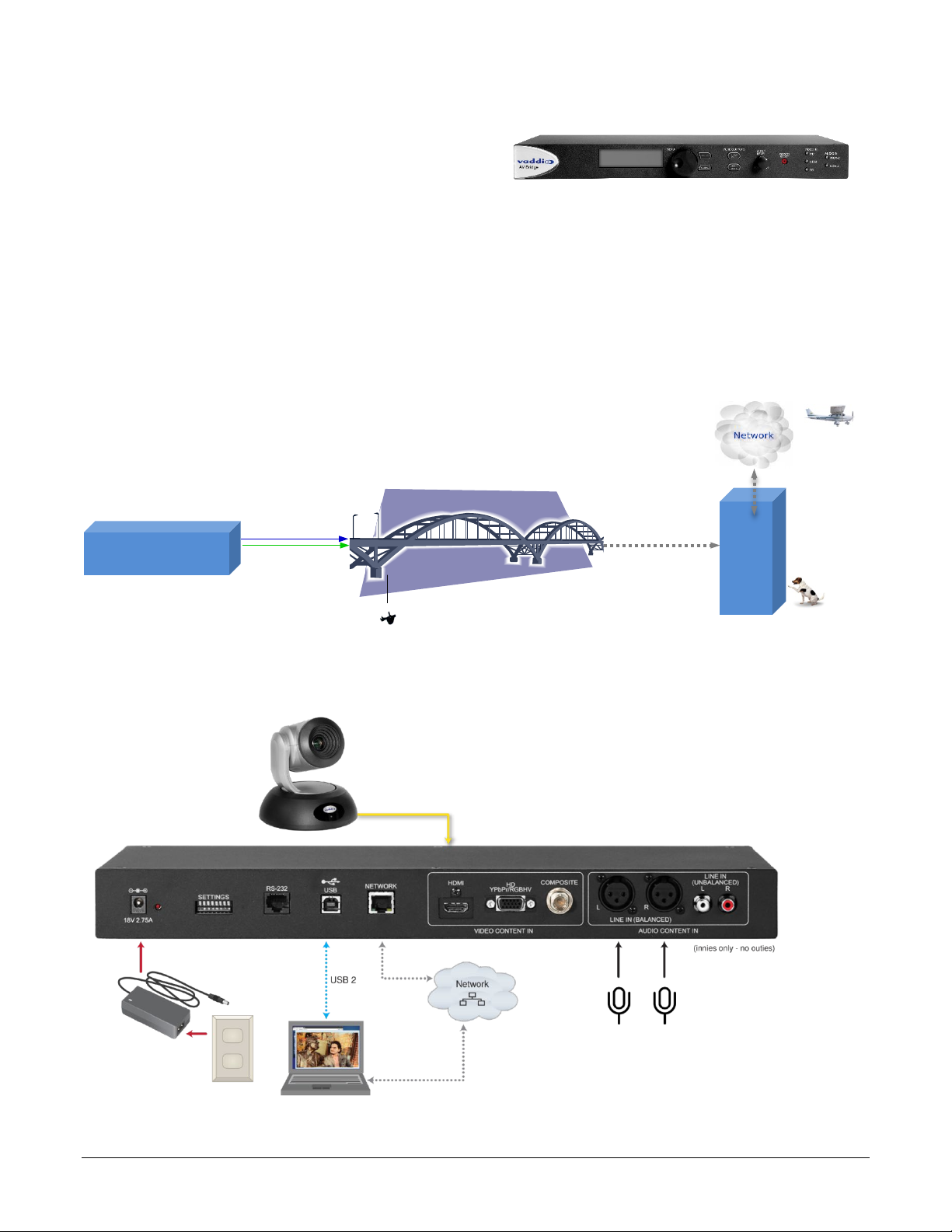

Diagram: The simple way to look at AV Bridge
The AV Bridge “bridges” the A/V signals into the PC for applications like lecture capture, recording, storage for
later playback, editing, distribution and other programs that can manipulate the content that the AV Bridge
provides.
Diagram: A small Lecture Capture System
This system uses a RoboSHOT HDMI camera, microphones, and the AV Bridge to encode the A/V signals to
USB 2.0 for use with the User’s PC and Lecture Capture software.
A/V Bridge (It’s a Metaphor)
A/V Sources to
INPUT of Bridge
PC
USB 2.0 Out
STD UVC &
UAC Drivers
HD
Video
Audio
Cessna 172
(not included)

AV Bridge USB and IP Streaming Device Page 5

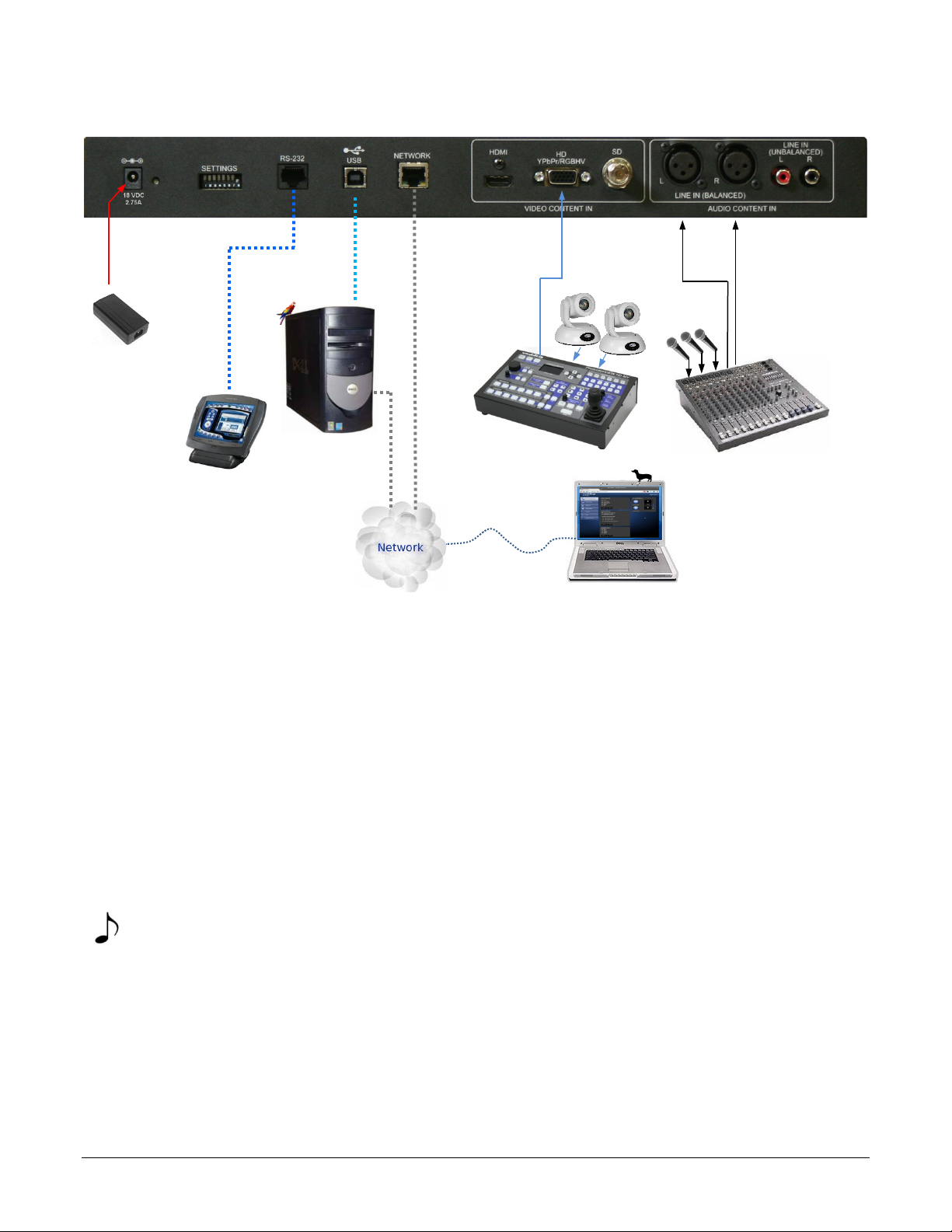

Installation Instructions
Step 1: Plug in the 18VDC, 2.75 Amp power supply included with the AV Bridge package. The front panel LCD
display will illuminate blue when the power is applied. The menu is now active and ready for configuration.
Step 2: Connect the Video Content Source(s) to the AV Bridge for USB 2.0 Streaming. More than one source can
be attached and selected from the front panel or web page menu. In this case a ProductionVIEW HD with HD-22
Cameras is connected to the HD-YPbPr input.
Step 3: Connect the Audio Content Source(s) to the AV Bridge. In this case, a mixer and really good mics are
connected using the balanced audio inputs.
Step 4: Connect the Host PC to the AV Bridge with the provided USB 2.0 Type-A Male to Type-B Male cable.
-OR-
Step 5: For IP streaming and control, connect the AV Bridge to the LAN which will allow set-up, configuration and
control of the AV Bridge via the internal web pages in AV Bridge from any of the approved browsers.
Step 6: From the front panel Menu System (Large Knob, Select and Cancel button), in this example, select the
balanced audio input, and select HD-YPbPr video input that are to be streamed.
Note: The AV Bridge will use DHCP (by default) to obtain an IP address when connected to the LAN.
The IP address will be viewable on the front panel menu. In absence of a DHCP server, the AV Bridge
will default to a Static IP address which is 169.254.1.1
Power
supply
Computer with
recording and
editing Software
Optional
control
system
RS-232
Audio Mixer
Balanced Audio
Low-Z (+4 dBu)
Cool Mics
USB 2.0
Audio and
Video
Cat-5e
PC with approved/tested
browser controlling the AV
Bridge though the
embedded web pages.
Ethernet
HD Video
Program Bus
1080p/60
ProductionVIEW™ HD
RoboSHOT
HDMI
Cameras

AV Bridge USB and IP Streaming Device Page 6
Connector Pin Outs
RS-232 on AV Bridge
Baud Rate: Selectable 9600, 19.2, or 38.4 kbps; default is 38.4 kbps
RS-232 Format: The RS-232 command format is based communication interface of:
•Start Bit: 1
•Stop Bit: 1
•Data: 8
•Polarity: None
•Flow Control: None
•Baud Rate: User selectable between 9600, 19,200, 38,400 (Default is 38,400 bps)
The DE-15 video port will accept either RGBHV or YPbPr video formats.
Pin #
RS-232 Port
1
Unused
2
Unused
3
Unused
4
Unused
5
Unused
6
GND
7
TXD
8
RXD
Pin
RGBHV
YPbPr
1
Red
Pr
2
Green
Y
3
Blue
Pb
4
-
-
5
N/C
N/C -
6
Red GND
Pr GND
7
Green GND
Y GND
8
Blue GND
Pb GND
9
No Pin
-
10
GND
GND
11
-
-
12
-
-
13
H-Sync
-
14
V-Sync
-
15
N/C
N/C
12345678

AV Bridge USB and IP Streaming Device Page 7
Compatibility
We have tested this product with these web browsers:
•Chrome®
•Firefox®
•Microsoft®Edge and Internet Explorer®
•Safari®
We test using the browser version available from the vendor at that time. Other
browsers (including older versions of the ones on this list) are likely to work also.
AV Bridge is compatible with most soft conferencing applications, lecture capture applications, and media players.
The table below lists resolutions and frame rates available internally; the host computer and the AV Bridge auto-
negotiate these within the application, which may optimize for high quality or low bandwidth. An option for setting
video color space as 4:2:0 or 4:2:2 is available in the web interface. The 4:2:0 color space reduces USB
bandwidth by up to 25% and may actually improve video quality with some UC soft clients.
Supported UVC Resolutions
Format
Resolution
Frame Rates
Aspect Ratio
MJPEG
720p (1280 x 720)
15/30
16:9
960 x 544
15/30
~16:9
704 x 576 (4CIF)
15/30
~4:3
640 x 480 (VGA)
15/30
4:3
360p (640 x 360)
15/30
16:9
424 x 240
15/30
~16:9
352 x 240 (SIF)
15/30
~4:3
320 x 240 (QVGA)
15/30
4:3
180p (320 x 180)
15/30
16:9
