VAG-Navisystems NaviTouch Manual

Installation and configuration manual
Compatibility with vehicles that have Concert/Simphony
radio which includes a 6,5" color screen

1
Index
1. Component identification – Page 3
1.1.Multimedia interface components – Page 3
1.2.GPS Box components– Page 4
1.3.Voice module componenets – Page 4
2. Installation – Page 5
2.1.Disassembling cockpit parts – Page 5
2.2.Performing the NaviTouch® system installation– Page 8
2.3.Connections diagram – Page 10
2.4.Connecting an aftermarket rearview camera – Page 11
2.5.Installing and connecting GPS Box – Page 11
2.6.Installing and connecting the voice module – Page 13
2.7.Linking up the interface GPS Box and the multimedia interface – Page 14
3. GPS Box configuration – System configuration – Page 14
3.1.RESET – Page 15
3.2.Maps SD card and GPS signal – Page 16
3.3.Checking the GPS signal – Page 16
4. FAQ’S/Solving problems – Page 18

2
Basic knowledge before installation:
•Please, read fully and carefully this installation handbook before you attempt to install the kit in your vehicle.
•Start installation once you have the car stopped and the key out of the ignition slot, supply power must be the
last step in installation.
•When you connect the product and his accessories cables or connections to the vehicle components, the power
cables of the products must be unplugged.
•Make sure that there are no electric or magnetic devices near of the installation place.
•Installation must be performed by a qualified specialist.
•Product loses his warranty if you dismantle it or if you try to fix it without the manufacturer permission. If you
break up product security stickers, warranty will be lost too.
•Check that you have received all the product components before its installation. If you haven’t, contact us
immediately.
•Problems caused by a user mistake in the installation or manipulation of the product suppose the warranty
invalidation.
•Vag-Navisystems S.L. WON’T make responsible about the product damages caused by a wrong installation or an
improper use of the product.
You must note the manufacturer regulations for the manipulation of electric components, and the disconnection
of the airbags and the dismantling procedures of interiors or pieces needed to perform the installation.

3
1. Component identification:

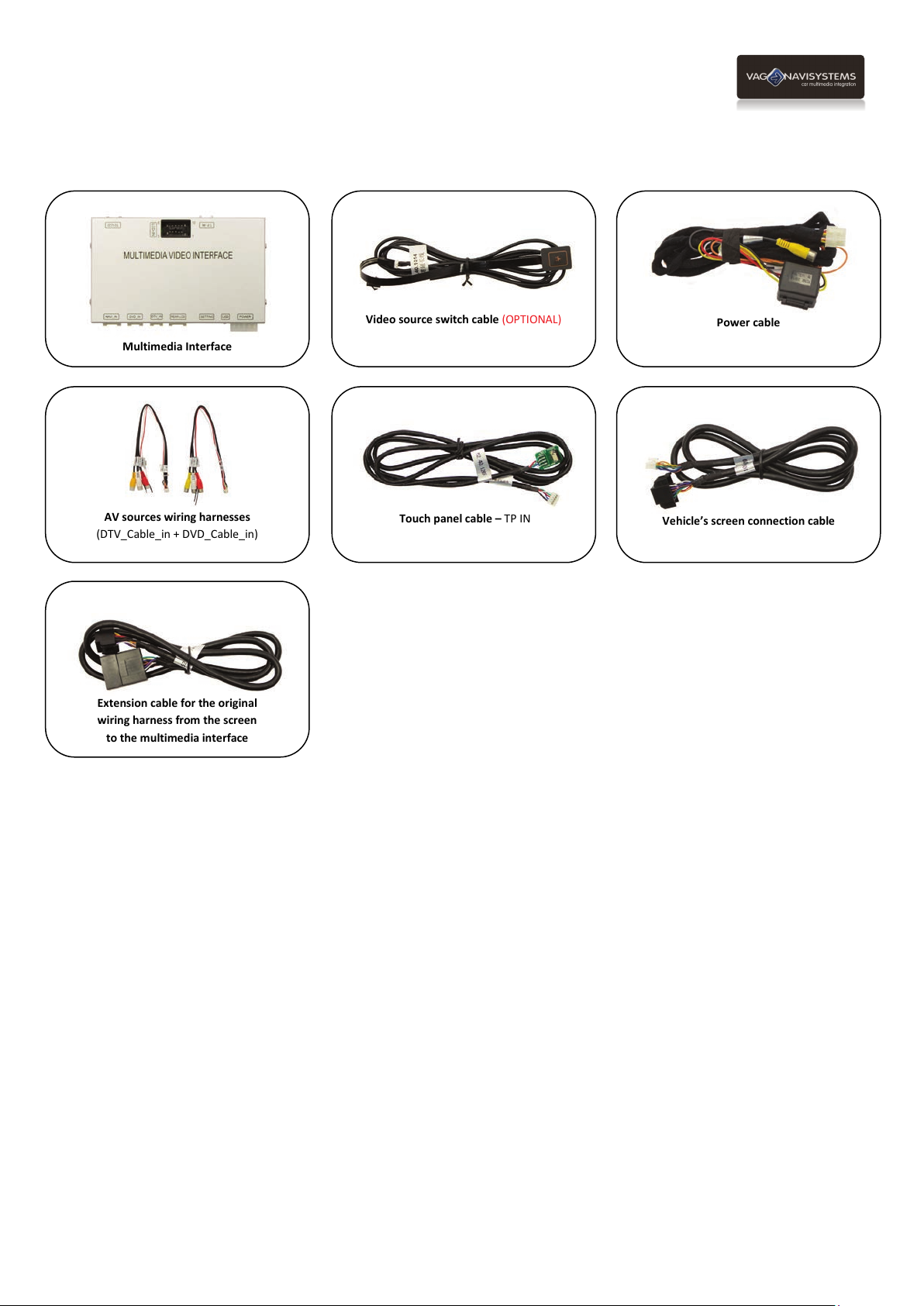

1.1.Multimedia Interface components:
Multimedia Interface
Video source switch cable (OPTIONAL)
Power cable
AV sources wiring harnesses
(DTV_Cable_in + DVD_Cable_in)
Touch panel cable – TP IN
Vehicle’s screen connection cable
Extension cable for the original
wiring harness from the screen
to the multimedia interface

4

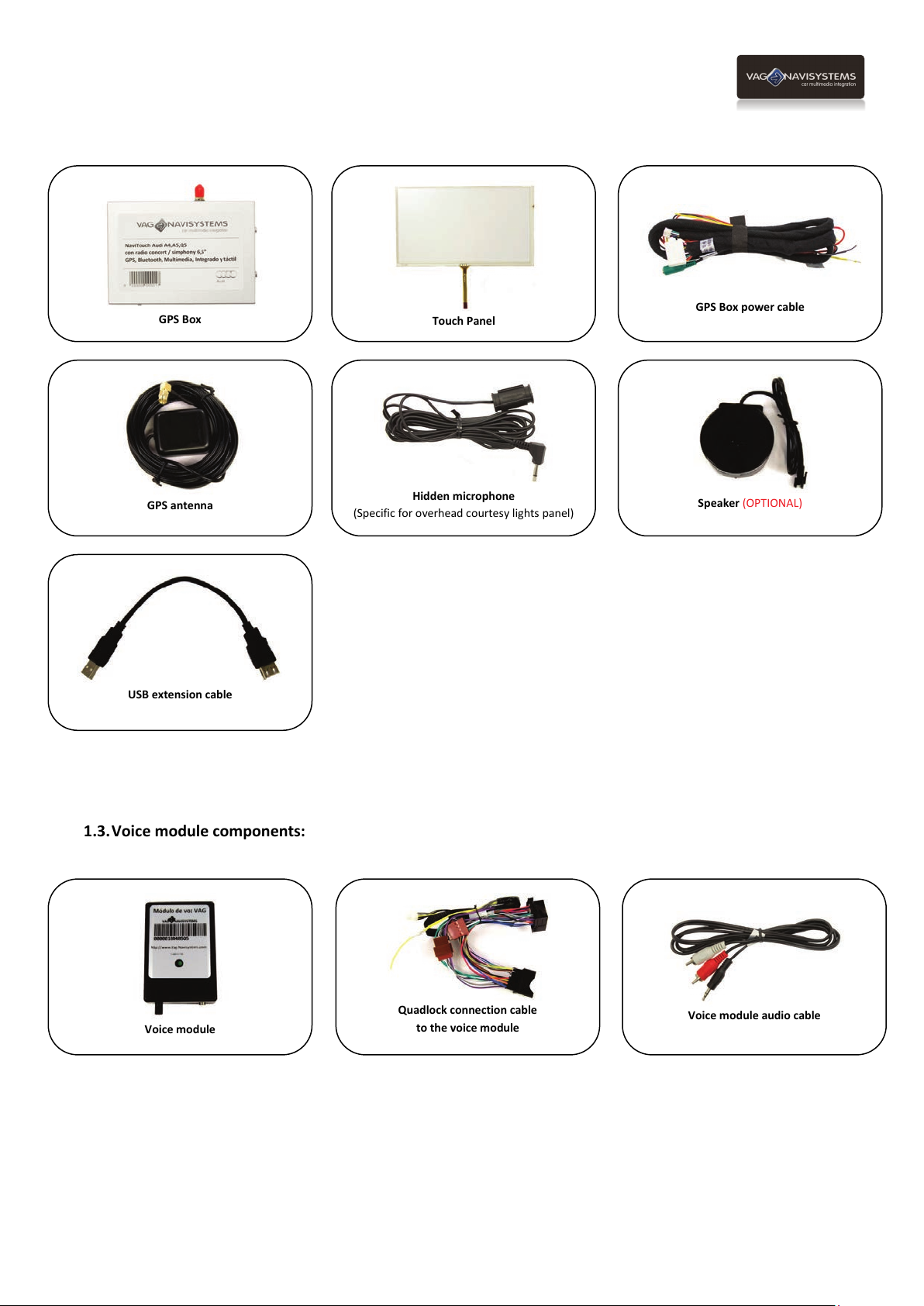

1.2.GPS Box components:
1.3.Voice module components:
GPS Box
Touch Panel
GPS Box power cable
GPS antenna
Hidden microphone
(Specific for overhead courtesy lights panel)
Speaker (OPTIONAL)
USB extension cable
Voice module
Voice module audio cable
Quadlock connection cable
to the voice module

5
2 Installation
2.1. Disassembling cockpit parts:
1) Monitor’s covert trim (models until 2011)
1) Monitor’s covert trim (2012 onwards)
Use removal wedge -3409- to prise off cover -1- for MMI
screen at corners -arrows- and detach.
Unplug electrical connector for warning lamp for airbag
deactivated on front passenger side -K145- / hazard warning
lights button -E229- and detach cover.
Insert hook -T40207- carefully between louvres and engage
at side of vent.
Carefully disengage vent at sides -arrow A-.
A hole is provided on both sides of the vent for engaging
the hook -T40207-.
Carefully unclip cover -1- for MMI screen from dash panel
at top -arrows- and remove it as arrows shou, using a
-3409- wedge and pulling on the edges.
Unplug electrical connector for warning lamp for airbag
deactivated on front passenger side -K145- / hazard
warning lights button -E229- and detach cover for MMI
screen.

6
2)
3)
4)

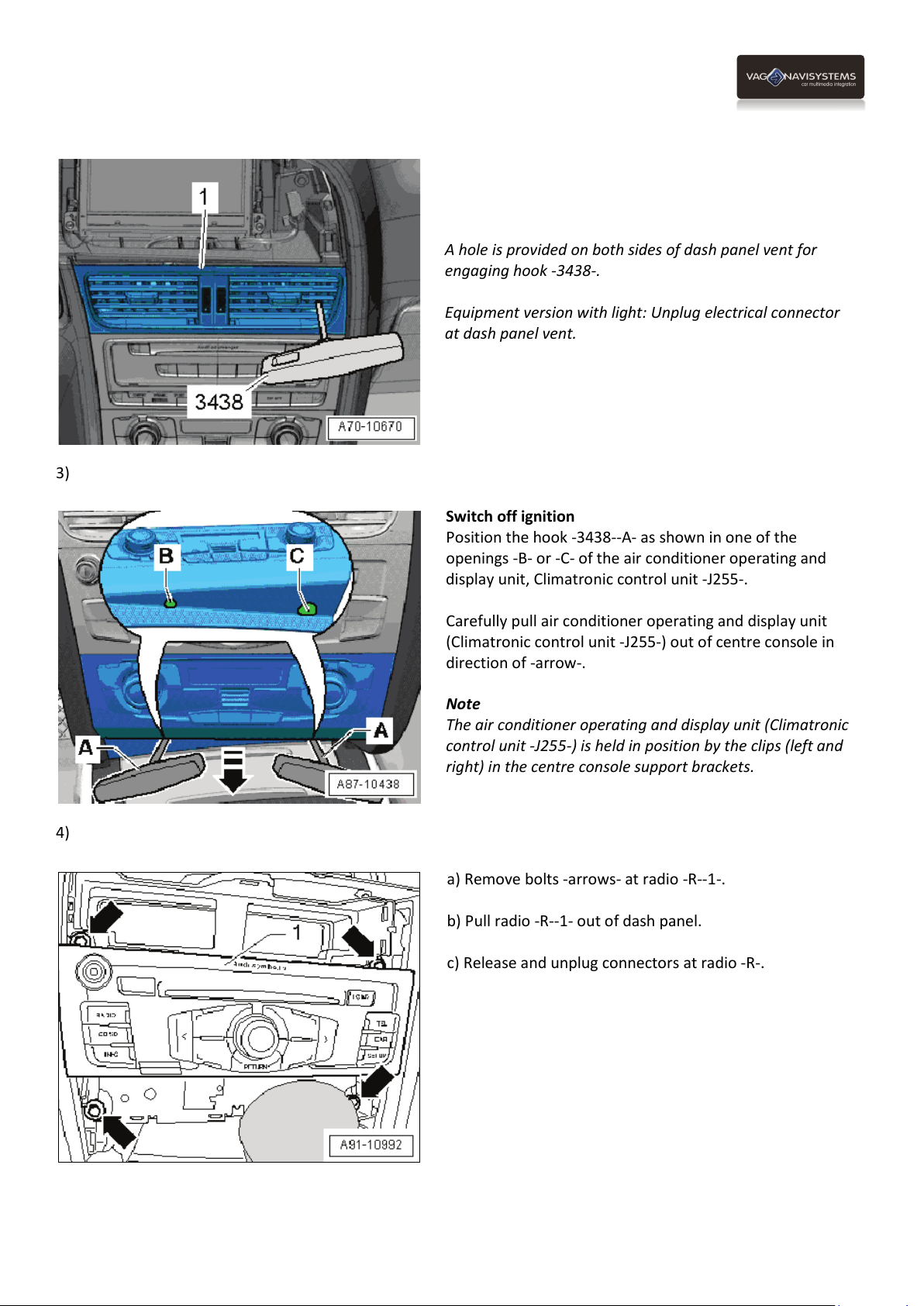

Remove carefully from the center of the dash vent, located
on the cockpit, -1- pulling from both sides with the -3438-
removal hook.
A hole is provided on both sides of dash panel vent for
engaging hook -3438-.
Equipment version with light: Unplug electrical connector
at dash panel vent.
Switch off ignition
Position the hook -3438--A- as shown in one of the
openings -B- or -C- of the air conditioner operating and
display unit, Climatronic control unit -J255-.
Carefully pull air conditioner operating and display unit
(Climatronic control unit -J255-) out of centre console in
direction of -arrow-.
Note
The air conditioner operating and display unit (Climatronic
control unit -J255-) is held in position by the clips (left and
right) in the centre console support brackets.
a) Remove bolts -arrows- at radio -R--1-.
b) Pull radio -R--1- out of dash panel.
c) Release and unplug connectors at radio -R-.

7
5)
6)

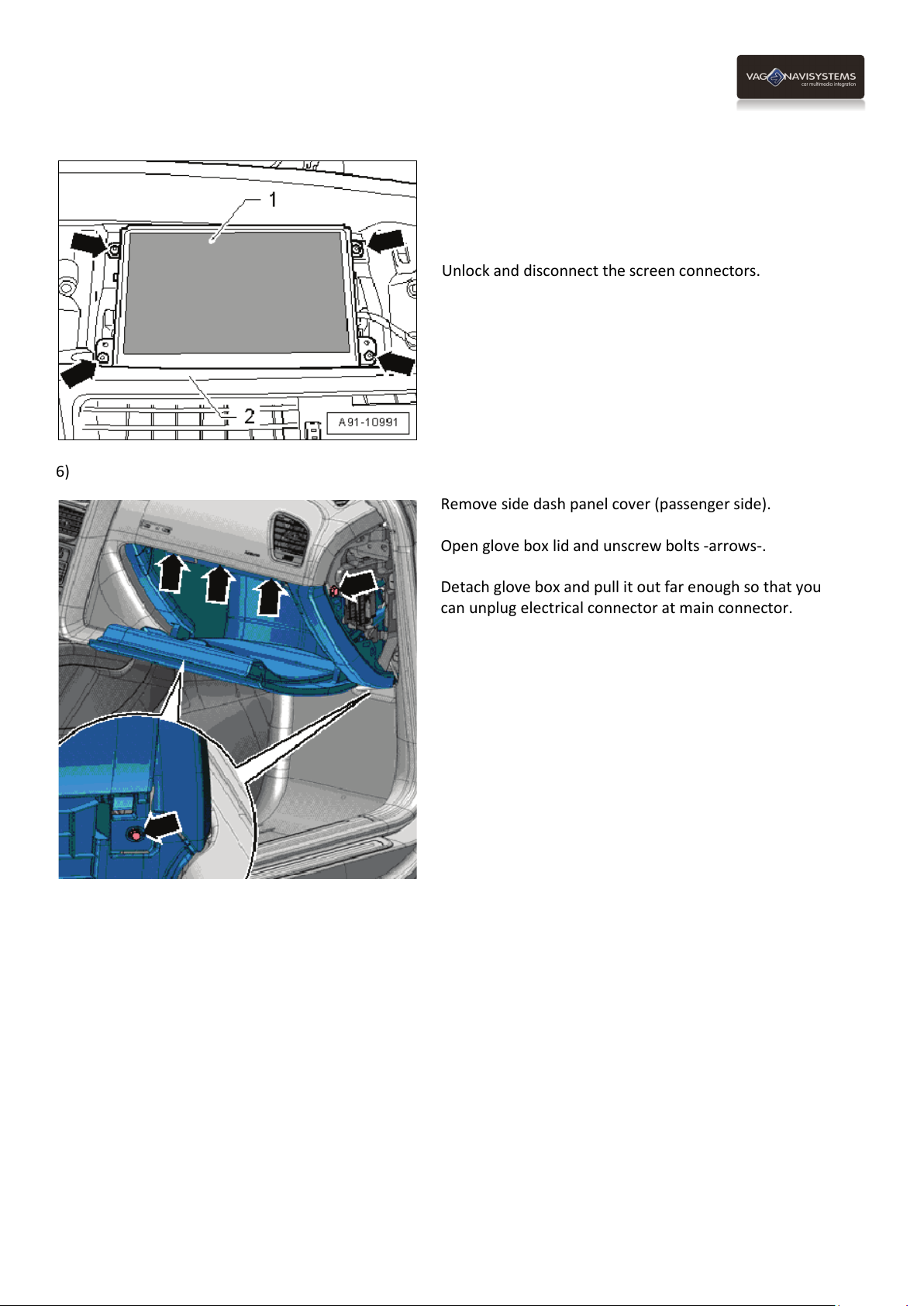

Unscrew screws of the monitor -arrow-, monitor with
controls for managing the information, in front -J685--1-.
Pull up the monitor from the dashboard -2-.
Unlock and disconnect the screen connectors.
Remove side dash panel cover (passenger side).
Open glove box lid and unscrew bolts -arrows-.
Detach glove box and pull it out far enough so that you
can unplug electrical connector at main connector.

8
2.2 Performing the NaviTouch® system installation:
Now we are going to prepare the “TOUCH SCREEN” to the original vehicle screen.
1) Unscrew the 4 screws of the screen’s metal frame.
2) Clean the screen with a non-abrasive cleaner and a microfiber cloth, then, immediately place the touch
screen panel.
Place the touch screen above, and screw again the screws that you have removed a before. DON’T tighten too much
the screws because you could break the touch screen or damage it and make it work wrong because of the central
pressure. Center it, and make the connection cable of the touch screen pass under the frame.
NOTE: Some of the touch screen incorporate a protection film, remove it before.
3) Join the touch screen 4-wire cable to the Brown connector of the “Touch panel cable” (TP IN)
that is connected into the “TP IN” port of the Multimedia interface.
NOTE: Make sure that the 4-wire (golden metallic part) is right connected to the 4 metallic pin of
the brown tap connector before you close it.

9

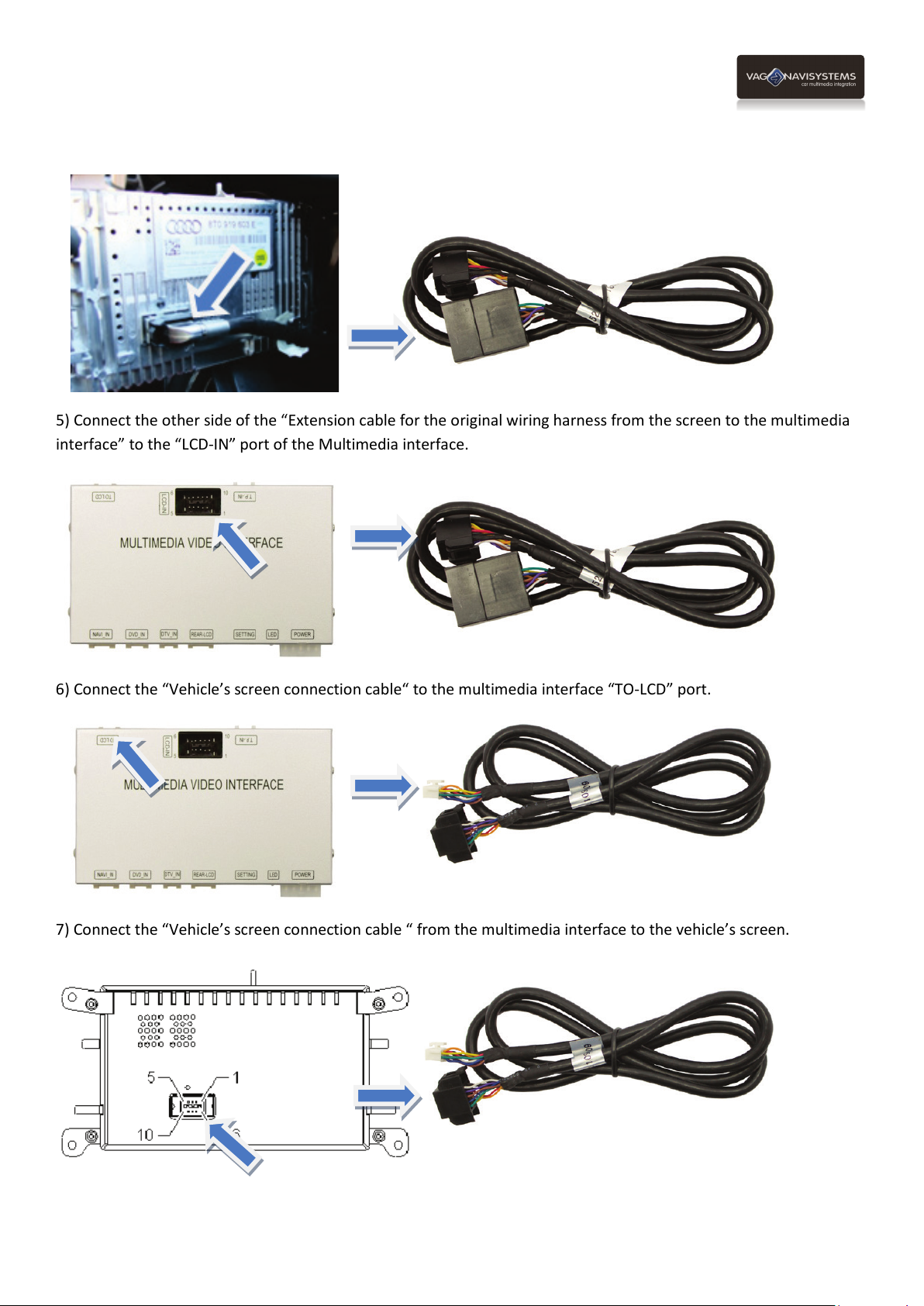

4) Connect the “Vehicle’s screen connection cable”, to the female connector of the “Extension cable for the original
wiring harness from the screen to the multimedia interface”.
5) Connect the other side of the “Extension cable for the original wiring harness from the screen to the multimedia
interface” to the “LCD-IN” port of the Multimedia interface.
6) Connect the “Vehicle’s screen connection cable“ to the multimedia interface “TO-LCD” port.
7) Connect the “Vehicle’s screen connection cable “ from the multimedia interface to the vehicle’s screen.

10

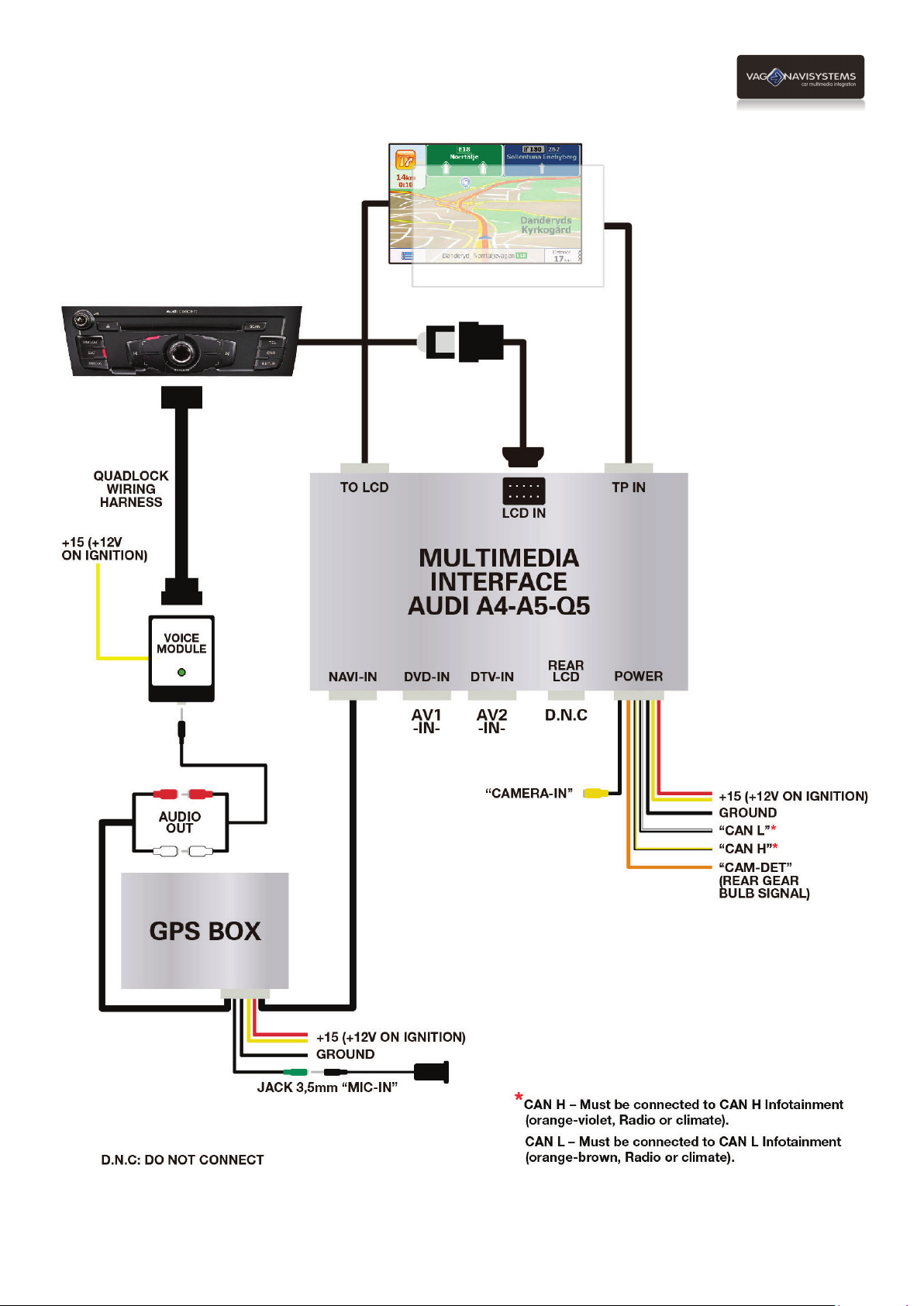

2.3 Connections diagram:
NOTE: The not identified connections in this diagram or the useless ones, must be isolated/ignorated.

11

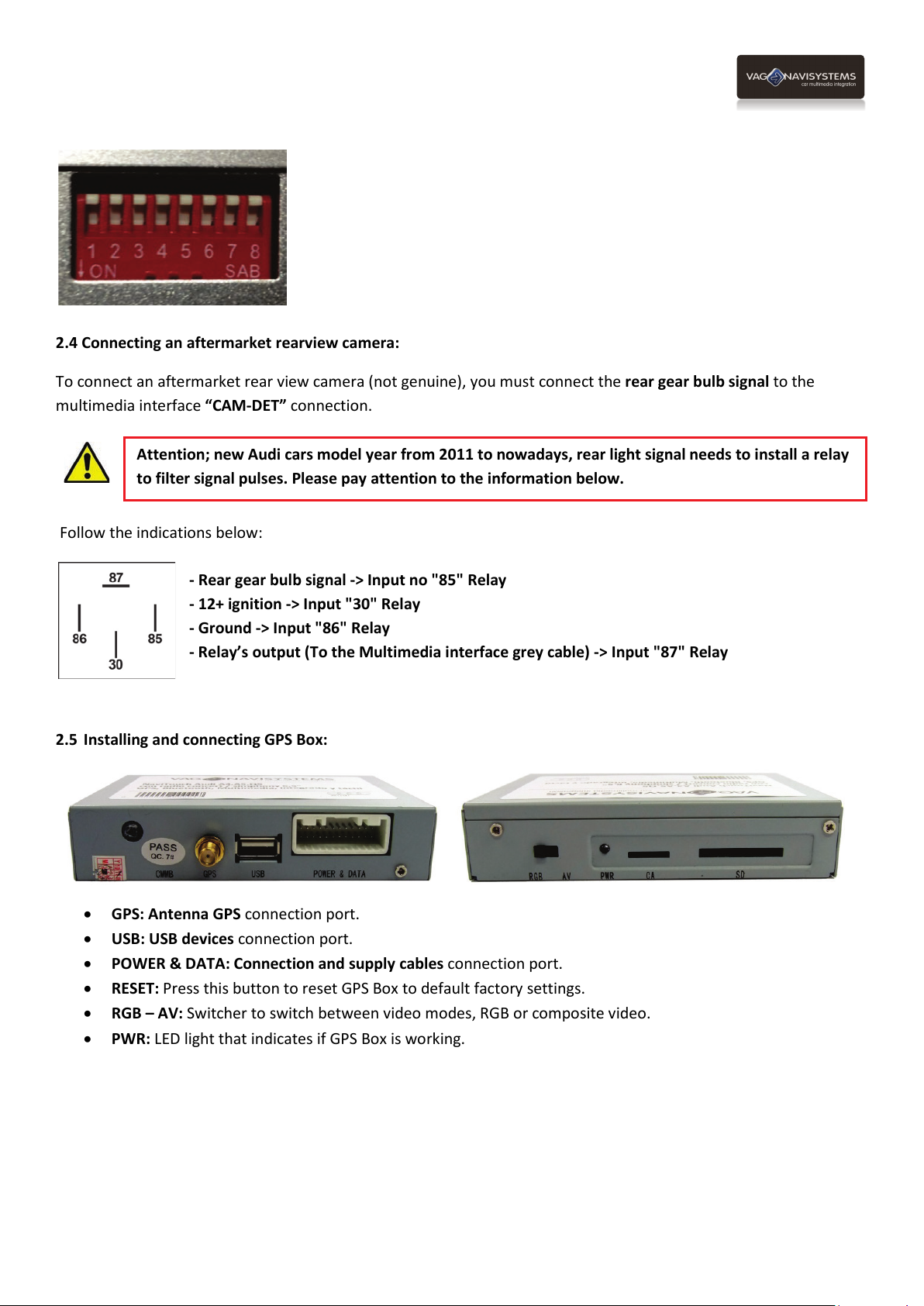

Multimedia interface DIP switches position: ALL IN OFF POSITION (UP).
2.4 Connecting an aftermarket rearview camera:
To connect an aftermarket rear view camera (not genuine), you must connect the rear gear bulb signal to the
multimedia interface “CAM-DET” connection.
Follow the indications below:
- Rear gear bulb signal -> Input no "85" Relay
- 12+ ignition -> Input "30" Relay
- Ground -> Input "86" Relay
- Relay’s output (To the Multimedia interface grey cable) -> Input "87" Relay
2.5 Installing and connecting GPS Box:
•GPS: Antenna GPS connection port.
•USB: USB devices connection port.
•POWER & DATA: Connection and supply cables connection port.
•RESET: Press this button to reset GPS Box to default factory settings.
•RGB – AV:Switcher to switch between video modes, RGB or composite video.
•PWR: LED light that indicates if GPS Box is working.
•CA: No function.
•SD: SD card connection port (Maps, Multimedia…).
Attention; new Audi cars model year from 2011 to nowadays, rear light signal needs to install a relay
to filter signal pulses. Please pay attention to the information below.

12
GPS antenna:
Hidden microphone specific for overhead courtesy lights panel:
USB extension cable:
GPS Box POWER cable:
RCA and Jack connectors:
Connect to the GPS antenna port of the interface GPS Box.
Connect to the 3.5 Jack connector
(green) of the connection cables and
power supplying of the GPS Box (if
we are going to use it).
Connect to the USB port of the GPS Box.
Connect to the GPS Box POWER & DATA port.
White Conector: AUDIO L OUT, connect to the left side audio IN of the voice module.
Red Conector: AUDIO R OUT, connect to the right side audio IN of the voice module.
Green Conector: Green MIC, jack 3.5mm connection for microphone (if it’s going to be used).
Yellow Conector: VIDEO OUT, GPS Box video out connection (if RGB OUT is not being used).
GPS Box must be accessible to be able to connect the SD card, the placement on the auto glove
compartment it’s ok, holded by double face tape or with plastic flanges, will be enough, you
also have to make a hole (diameter of about 20mm) on the back of the glove compartment to
pass the GPS Box cables through it.

13
Cables de alimentación, altavoz y mute:
2.6 Installing and connecting the voice module:
Voice module:
fig.1 fig.2 fig.3
Voice Module with a LED Light that indicates that is working (fig. 1), Quadlock cable connection port (fig.2), Jack
connection port for the Audio cable connection and volume regulator (fig.3).
NOTE: Voice module for the audio signal to the vehicle’s front speakers.
Audio connection cable of the voice module:
Quadlock connection cable to the voice module:
NOTE: The POWER connection always must be the last step in installation.
•Black cable: GND, connect to the vehicle’s mass (you must weld,
don't braid).
•Red cable: ACC, connect on +12V ACC ignition.
•Yellow cable: BATT+, connect on +12V ACC ignition.
•White/blue cable: SPEAKER, (Speaker connection, optional).
•Green cable: AUDIO CONT, (Mute, optional).
Insert to the voice module the black jack 3.5 type connector, connect the white and
the red RCA connectors to the RCA AUDIO L OUT and AUDIO R OUT connectors from
the “GPS Box POWER wiring harness” (red to red, white to white).
2) Connect the female connector of the “Quadlock connection
cable to the voice module”to the male Quadlock connector of
the vehicle (once you have removed the radio from the vehicle),
connect the male connector to the “Quadlock connection cable
to the voice module”to the vehicle’s radio connector.
3) Connect the 12 pin white connector to the connection port for
the “Quadlock connection cable to the voice module”, connect
the remaining yellow cable to +12V on ignition.

14
2.7. Linking up the interface GPS Box and the multimedia interface:
See the “Connections diagram” on page 10. Connect the GPS Box outgoing cable to the “NAVI IN” connection port
of the multimedia interface.
Once you have done all connections correctly, you can connect all the power cables of the different component and
devices that will be used (always with the vehicle stopped, and with the ignition key out of its port), then, connect
again the connectors that you had removed from the radio, and place the radio on its original position, start the
vehicle to check if radio works properly. Then we are going to proceed to configure the system for its tune up.
GPS Box features:
Navigation maps SD card (supports SDHC, max.16GB)
Operative system WINCE 6.0 CORE
Audio formats MP3/PCM/WMA
Video formats mp4, mpeg, mpg, asf, wmv, mov, avi, 3gp, 3g2, wm, divx, mkv, ogm, wvx, mpv
USB 16GB
3. GPS Box configuration – System configuration:
1) Calibrating touch and setting image:
When starting the vehicle, it will appear on its screen, the OEM original
menu image.
Don’t insert the SD Card map yet, Push briefly the touch screen or push
MODE button of the steering wheel for 2 sec. to enter NAVI mode, Screen’s
image will change and it’s going to show NAVI mode (GPS Box) image, wait
some seconds, until appears calibration image.
2) Push this cursor “+” on the touch screen (hold it for 1 second and then
stop pressing it), the cursor “+” will change its position. Repeat the process
in every corner of the panel (4 corners), until you receive the message “OK”.
Now, the touch panel has been calibrated successfully; if “OK” message
doesn’t appear, you’ll have to repeat all the process again.
Once you have calibrated the unit, this message will be shown on the
screen; “Unable to find navigation software”, push on the message to
omit it.

15
3) Now you will have to adjust the screen’s image position, push on the “Settings”button, then push on the
“Screen” button, and finally on the “Adjust position”button, this way we will enter to the screen’s setting menu,
adjust it using the menu buttons. You can also use the “Adjust Size”button to adjust even more the screen's image.
4) Once you have adjusted image, you have to calibrate the touch screen again, push on “Settings”, then push on
“Touch Screen”, and repeat the steps for calibration process mentioned before.
Even if you do this changes and you can’t adjust the image as much as you want, you can use the multimedia
interface image setting menu. Now you can insert the maps SD Card to the GSP Box.
3.1 RESET:
If you RESET the GPS Box or the multimedia interface, repeat again the steps from the chapter 2.1, maybe, when you
perform a RESET on it, the language of the GPS Box could be changed, follow the next steps to config. it again to your
desired language.
1) Make a touch calibration of the GPS Box following the steps described before, now push the “Settings” button,
then push the “Usual Setup” button and select the language that you prefer.
The default settings of the “Adjust Size”menu are the next ones:
Horizontal 0 & Vertical 5.
The default settings of the “Brightness/color” menus are the next ones:
Brightness 18 & Color 12.
NOTE: Remember to do again a
calibration of the touch screen
after adjusting the image on the
screen.

16
NOTE: If you change the position of the RGB to AV Switch from the GPS Box (in RGB default position) it will RESET,
then follow the steps described before to adjust the system again.
3.2 Maps SD card and GPS signal:
Once you have insert the Maps SD card, we will have to setup the route of the executable file (.exe), to do that,
follow the next steps:
1) Push on “Settings”, then in “Navigate Setup”,uncheck the auto initialization software option, and push on the
folder icon.
Once you have pressed the folder icon, you must search for the .exe file of the SD card, use the menu arrows to
move through it, and push “OK” button to confirm you selection, once you have done this; it will appear the selected
route, then push the “X” on the right top corner of the screen to go back to the Main Menu of the GPS Box.
2) Once you are in the Main Menu push on the “Navigation” icon to access to the SD card maps.
3.3 Checking the GPS signal:
* Perform these steps on a space with good GPS reception. Don't try to perform the steps with the vehicle inside
of a building or a garage
•Disconnect the GPS Box antenna.
•In the main menu push on “Settings”.
•Push on “GPS DATA”.
•Push on the third image starting at the top (graph bar).
•Now connect the GPS antenna.
•Look how many bars rise when you have connected the antenna (wait for some time) from 3 to 5 bars
is a normal reception, from 7 to 8 it’s an excellent reception.

17
•If bars don’t rise, try to connect another GPS antenna, it may be that the connected one isn’t working
properly as it should.
•If you have tried different antennas, and the system is still not working, it could be that the problem is
located on the interface GPS Box.
* We recommend to perform the antenna installation on the A Pillar base of the vehicle, in the dark zone of the
vehicle’s front glass, because of this zone permits the GPS data signal reception. See the sample image below:
If you DON’T receive GPS signal with the antenna connected after performing the previous steps;follow next steps:
•Go back to the GPS Box Main Menu.
•Enter to “Navigation”, once you are in the Navigation Menu, push on the “Settings” button.
•Push the button with an arrow on it, that is in the right bottom of the screen.
•Push on “GPS”.
•Uncheck the “GPS Active” box.
•Push on “Auto. Detec.” and wait for the final of the process.
•The normal channels that may appear are: port 2 / Caud Baud 38400 and/ or port 0/ Cau Baud 9600
•Now, go back to the navigation menu and push on “Map”.
•Push on an antenna image (antenna and vehicle) in the bottom left part of the map’s screen.
•Push on GPS, and wait for the necessary time until the system receives the satellite signal .
•If in the “Precisión” box, the precision is mid-high, then there is a good GPS reception and the system is
working properly.
GPS ANTENNA

18
4FAQ’S/Solving problems:
1. ¿Why do I can’t change the interface mode?
•Check if the interface green LED lights “2” are shining or not. If they aren’t shining, check if the “POWER”
connector is right connected.
•Check if CAN connections have been done correctly.
2. ¿Why does my screen show up all black?
•Check if the interface green LED light is shining or not. If it isn’t shining, check the RGB connections of the
devices connected to the multimedia interface, and check that these devices are working properly.
•Check that the GPS Box RGB cables are correctly connected.
3. ¿Why do I can’t see the rear’s camera image?
•Check all the connection from the camera to the multimedia interface: “CAM-DET” y “CAMERA-IN”
4. ¿Why do I can’t see my vehicle screen's original image?
•Check if the cables of the original screen of the vehicle are correctly connected.
