Vaillant climaVAIR V 10-025 NW User manual

V 10-025 NW
V 10-035 NW
V 10-050 NW
V 10-065 NW
V 10-050 M2N
V 10-060 M2N
climaVAIR
DE, EN, ES, HR, IT, NL, TR

For the fitter
V 10-025 NW
V 10-035 NW
V 10-050 NW
V 10-065 NW
V 10-050 M2N
V 10-060 M2N
Installation Manual
Air-conditioner - climaVAIR
Split Type
EN

2
Contents
Installations-und Wartungsanleitung Split-Gerät, wandhängend
Contents
1 Your Safety
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
1.1 Symbols used
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
1.2 Proper Use of the Unit
. . . . . . . . . . . . . . . . . . . . . . .
3
2
Extreme Operating Conditions.
. . . . . . . . . . . . .
3
3
Identification of the Unit
. . . . . . . . . . . . . . . . . .
3
4
Declaration of Conformity
. . . . . . . . . . . . . . . .
4
5
Description of the Unit
. . . . . . . . . . . . . . . . . . .
4
5.1
Indoor Unit
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
5.2
Outdoor Unit
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
5.3
Remote Controller
. . . . . . . . . . . . . . . . . . . . . . . . . . .
6
5.4
Connections and Channels.
. . . . . . . . . . . . . . . . . . .
6

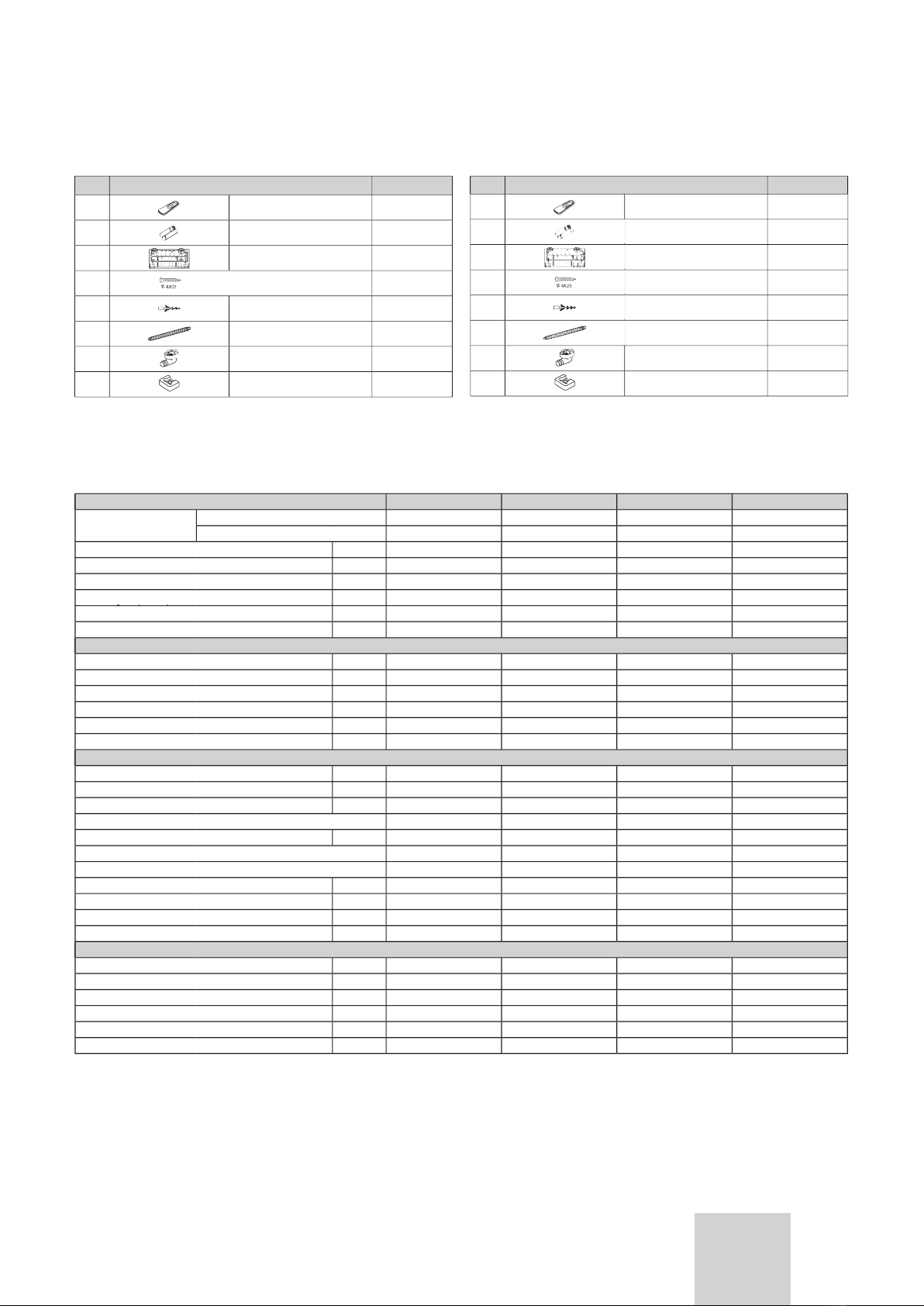

5.5
Accessories
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
5.6
Technical Specifications
. . . . . . . . . . . . . . . . . . . . . .
7
6
Transport
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
7
Unpacking
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
8 Installation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
8.1
Qualification of the Installation Personnel
. . . . . .
9
8.2
General precautions to be taken into account
before starting the installation
. . . . . . . . . . . . . . . .
9
8.3
General Installation Diagram
. . . . . . . . . . . . . . . . .
10
9
Installation of the Indoor Unit
. . . . . . . . . . . . .
11
9.1
Selecting the Assembly Location
. . . . . . . . . . . . . .
11
9.2
Fixing the Assembly Plate
. . . . . . . . . . . . . . . . . . . .
11
9.3 Installation of the Pipes
. . . . . . . . . . . . . . . . . . . . . .
1
1
9.3.1
Methods for the Correct Discharge of the
Condensed Water
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
1
9.3.2 Handling the Coolant Pipes
. . . . . . . . . . . . . . . . . . .
1
2
9.3.3
Handling the Condensed Water Pipe
. . . . . . . . . . . .
1
2
9.3.4
Making Holes for the Pipes
. . . . . . . . . . . . . . . . . . .
1
3
9.3.5 Laying the Pipes.
. . . . . . . . . . . . . . . . . . . . . . . . . . .
1
4
9.3.6 Installation of the Indoor Unit Body
. . . . . . . . . . .
1
4
10 Installation of the Outdoor Unit
. . . . . . . . . . .
1
5
10.1 Selecting the Assembly Location
. . . . . . . . . . . . . .
1
5
10.2 Planning the Coolant Return
. . . . . . . . . . . . . . . . . .
1
5
10.3 Connection of the Coolant Pipes
. . . . . . . . . . . . . .
1
5
10.4
Connection of the Pipe for the Removal of the
Condensed Water
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
6
11 Electric Wiring
. . . . . . . . . . . . . . . . . . . . . . . . . .
1
6
11.1 Safety Precautions.
. . . . . . . . . . . . . . . . . . . . . . . . .
1
6
11.2
Remark with regard to Directive 89/336/EEC
. . . . .
1
7
11.3 Elektrischer Anschluss des Innengerätes
. . . . . . .
1
7
11.4
Electric Connection of the Outdoor Unit
. . . . . . .
19
11.5
Electric Characteristics
. . . . . . . . . . . . . . . . . . . . . .
19
12
Preparation for Use.
. . . . . . . . . . . . . . . . . . . .
20
12.1
Checking for Leaks
. . . . . . . . . . . . . . . . . . . . . . . . .
20
12.2
Purging the Installation
. . . . . . . . . . . . . . . . . . . . . .
21
12.3 Start Up
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
2
12.4 Troubleshooting
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
2
13
Erro
r Codes
. . . . . . . . . . . . . . . . . . . . . . . . . . .
2
3
13.1
Error Codes:
V 10-025 NW / V 10-035 NW /
V 10-050 NW /
V 10-065 NW
. . . . . . . . . . . . . . . . .
2
3
13.2
Error Codes:
V 10-050 M2N /
V 10-060 M2N
. .
2
5

Split Type Installation Manual
3
EN
1
Your Safety
1.1
Symbols used
Danger!
Direct danger for life and health.
Danger!
Danger of electric shock.
Warning!
Potentially dangerous situation for the
product and the environment.
Note!
Useful information and indications.
1.2
Proper Use of the Unit
This unit has been designed and manufactured for
acclimatisation purposes by means of air conditioning.
The use thereof for other domestic or industrial
purposes shall be the exclusive responsibility of the
persons projecting, installing or using them in that way.
Prior to handling, installing, start up, using or
performing maintenance on the unit, the persons
assigned to perform these tasks should be familiar with
all the instructions and recommendations set forth in
the unit’s installation manual.
Note!
Keep the manuals throughout the service life
of the unit.
Note!
The information relating to this unit is
divided between two manuals: installation
manual and user manual.
Note!
This equipment contains R-410A refrigerant.
Do not vent R-410A into atmosphere: R-410A, is
a fluorinated greenhouse gas, covered by
Kyoto Protocol, with a Global Warming Potential
(GWP) = 1975.
Note!
The refrigerant fluid contained in this equipment
must be properly recovered for recycling,
reclamation or destruction before the final
disposal of the equipment.
Note!
The relevant personnel performing the
maintenance operations related with the
handling of the refrigerant fluid must have the
necessary certification issued by local
authorities.
2
Extreme Operating Conditions
This unit has been designed to operate within the range
of temperatures indicated on Figure 2.1. Ensure that
these ranges are not exceeded.
CALEFACCIÓN
Fi
g
. 2.1
Operating ranges of the unit.
Legend
D.B. Temperature measured by dry bulb
3
Identification of the Unit
This manual is valid for the Split Murales series. In order
to know the specific model of your unit please refer to
the unit nameplates.
The nameplates are located on the outdoor and indoor
units.
Your Safety 1
Extreme Operating Conditions 2
Identification of the Unit 3
Indoor
Outdoor
43ºC D.B.
18ºC D.B.
18ºC D.B.
18ºC D.B.
27
ºC D.B.
24ºC D.B.
-15ºC D.B.
COOLING
HEATING
27
ºC D.B.

Split Type Installation Manual
4
4
Declaration of Conformity
The manufacturer declares that this unit has been
designed and constructed in compliance with the
standard in force with regard to obtaining the CE
Marking.
5
Description of the Unit
This unit is comprised of the following elements:
- Indoor unit.
- Outdoor unit.
- Remote controller.
- Connections and channels.
- Accessories.

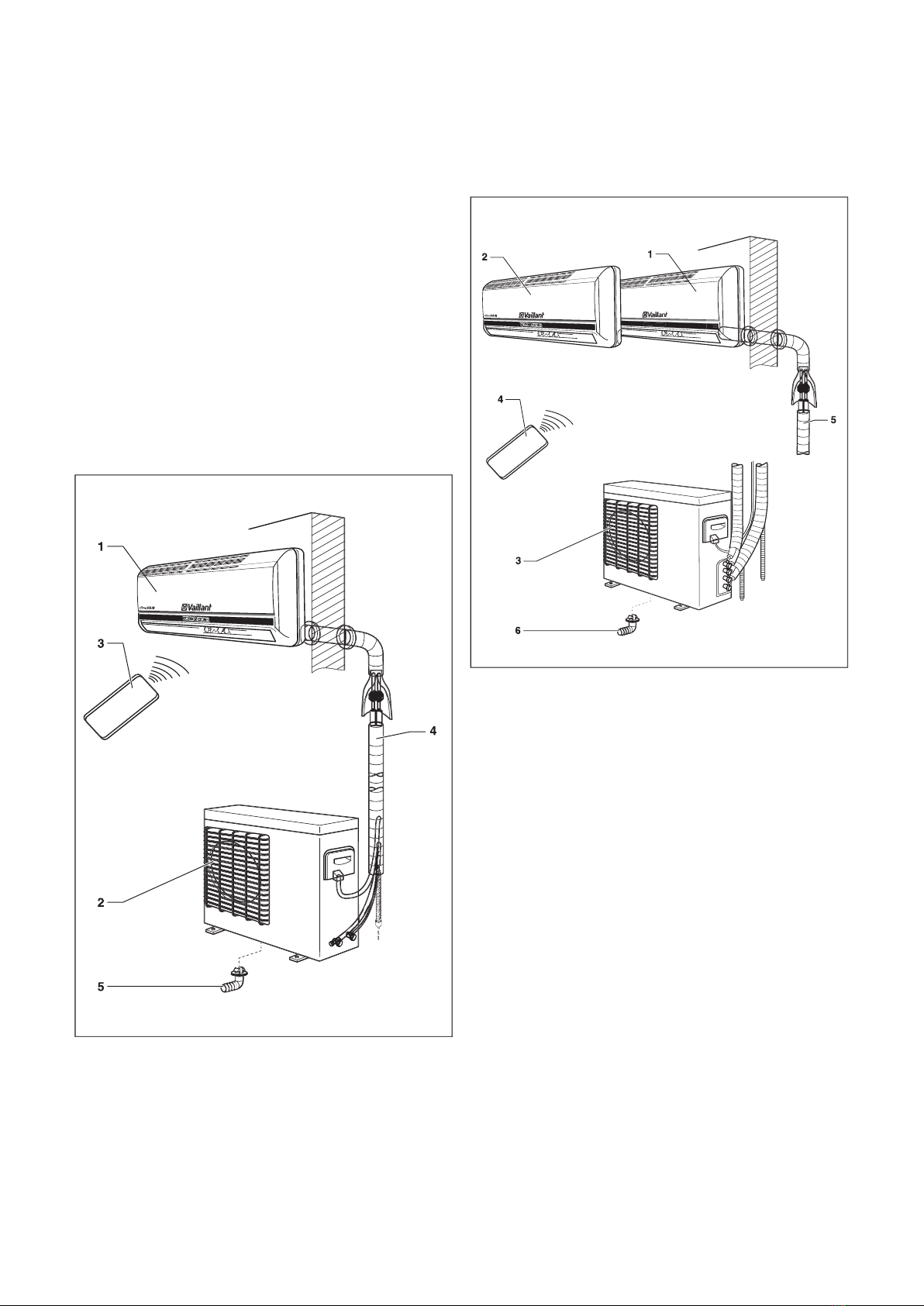

Figure 5.1 shows the unit components.
Fig
. 5.1 Unit components. (MONO).
Legend
1
Indoor Unit
2
Outdoor Unit
3
Remote controller
4
Connections and channels
5
Condensed water drainage pipe
Figure 5.2 shows the unit components.
Fig. 5.2 Unit components. (MULTI).
Legend
1 Indoor Unit A
2 Indoor Unit B
3 Outdoor Unit
4 Remote controller
5 Connections and channels
6 Condensed water drainage pipe
4 Declaration of Conformity
5 Description of the Unit

Split Type Installation Manual
5
EN
5.1
Indoor Unit
The indoor unit provides acclimatised air inside the
room to be acclimatised.
The dimensions and weights of the indoor unit are
shown on Figure 5.3 and Table 5.1, depending on the
model (please consult the model nameplate).
The dimensions are given in mm.

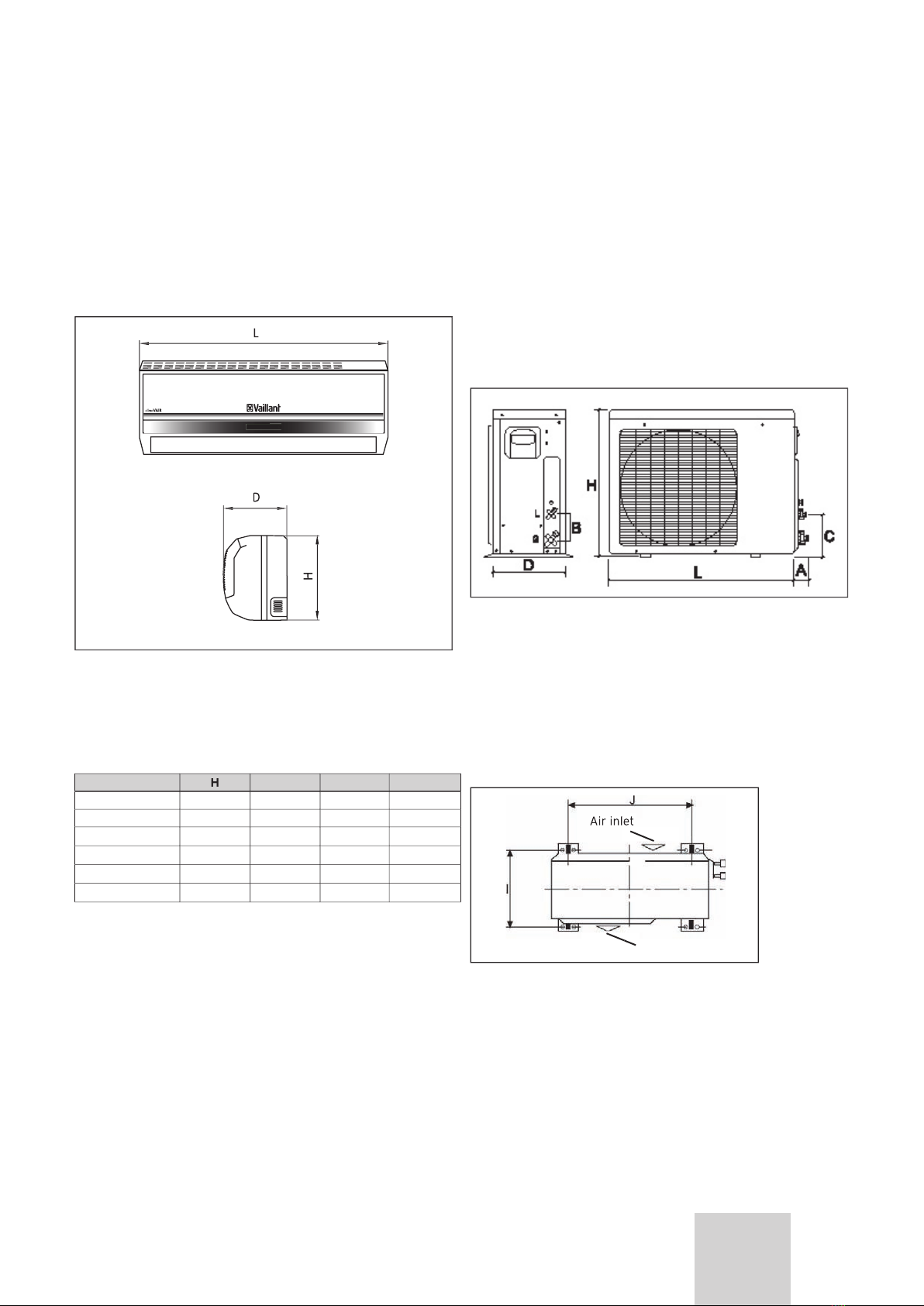

Fig. 5.3 Dimensions of the indoor unit.
Legend
H Height
L Length
D Depth
MODEL
H
L
D
kg
V 10-025 NW
285
760
185
8,5
V 10-035 NW
285
760
185
8,5
V 10-050 NW
304
865
228
12
V 10-065 NW
304
865
228
12
V 10-050 M2N
285
760
185
8,6
V 10-060 M2N
285
760
185
8,6
Table 5.1 Dimensions and weights of the indoor unit.
5.2
Outdoor Unit
The outdoor unit ensures that the absorbed air is
released to the outside from the room during operation
in cooling mode and that the heat introduced into the
room during operation in heat pump mode is taken from
the outside.
The dimensions and weights of the outdoor unit are
shown on Figures 5.4, 5.5 and Table 5.2, depending on
the model (please consult the model nameplate).
The dimensions are given in mm.
Fig
. 5.4
Dimensions of the outdoor unit. (MONO)
Legend
H Height
L Length
D Depth
A Length of valves
B Distance between valves
C Distance from the second valve to the floor
Description of the Unit 5
Air inlet
Air outlet
Air outlet

Split Type Installation Manual
6

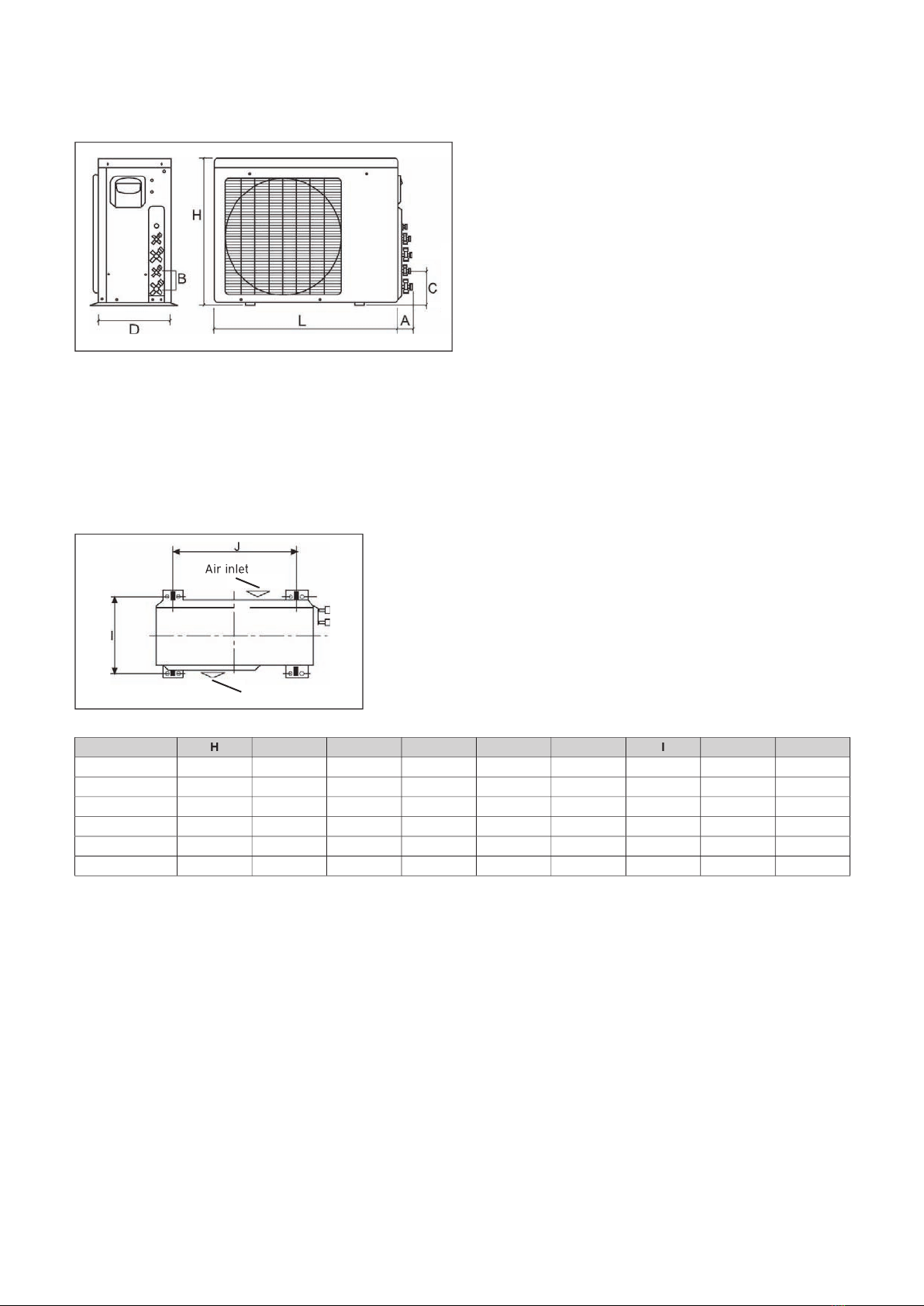

Fig. 5.5 Dimensions of the outdoor unit. (MULTI).
Legend
H Height
L Length
D Depth
A Length of valves
B Distance between valves
C Distance from the second valve to the floor
MODEL
H
L
D
A
B
C
I
J
kg
V 10-025 NW
543
783
255
45
55
80
265
500
33
V 10-035 NW
543
783
255
45
55
80
265
500
33
V 10-050 NW
650
820
290
45
55
80
265
500
39
V 10-065 NW
680
810
288
50
65
155
344
583
45
V 10-050 M2N
699
915
325
45
55
80
344
583
42
V 10-060 M2N
699
915
325
45
55
80
344
583
42
Table 5.2 Dimensions and weights of the outdoor unit.
5.3
Remote Controller
The remote control allows using the unit.
5.4
Connections and Channels
This unit has the following connections and channels:
- Gas (G) and liquid channels (L): they carry the cooling
agent between the outdoor and indoor unit.
-
Discharge channels for condensed water (in the
outdoor and indoor unit): they allow the water to be
properly discharged which condenses during the
normal operation of the unit.
-
Electric connections: they supply electric energy to
the unit.
5 Description of the Unit
Air inlet
Air outlet
Air outlet

Split Type Installation Manual
7
EN
5.5
Accessories
Nr.
Accessory
(MONO)
Quantity
1
Remote
1
2
Batteries
2
3
Mounting plate
1
4
Screw
4
5
Plastic cap
4
6
Drain Tubes
1
7
Drainage elbow
1
8
Cushion
4
Table 5.3
Accessories supplied with the unit. (MONO).
5.6
Technical specifications
Units
V 10-025 NW
V 10-035 NW
V 10-050 NW
V 10-065 NW
Indoor Unit
V 10-025 NHI
V 10-035
NHI
V 10-050
NHI
V 10-065
NHI
Outdoor Unit
V 10-025 NHO
VH 10-035
NHO
V 10-050
NHO
V 10-065
NHO
Cooling Capacity
kW
2,57
3,81
4,93
5,84
Power input
kW
0,72
1,05
1,56
1,89
Operating current
A
4,07
5,07
7,07
8,07
Heating capacity
Heating capacity
kW
3,17
3,91
5,96
6,06
Power input
kW
0,82
1,04
1,84
1,86
Operating current
A
4,50
5,50
8,02
9,08
Indoor Unit
Air Flow volume
m
3
/h
420/370/320
500/440/380
600/530/470
680/610/530
Sound Power level
dB(A)
45/52/56
45/52/56
47/54/59
47/54/59
Sound Pressure level
dB(A)
32/39/43
32/39/43
34/41/45
34/41/45
Sound Pressure level min speed
dB(A)
30/36/41
30/36/41
31/38/42
31/38/42
Dimensions (HxLxD)
mm
285x760x185
285x760x185
304x865x228
304x865x228
Net Weight
kg
8,5
8,5
12
12
Outdoor Unit
Air Flow volume
m
3
/h
1800
2100
2600
2800
Sound Power level
dB(A)
63
63
66
66
Sound Pressure level
dB(A)
50
50
53
53
Refrigerant
R410A
R410A
R410A
R410A
Refrigerant charge heat pump
gr
650
940
1380
1700
Compressor type
DA89X1C-20FZ
C-6RZ092H1A
5CS130XCC03
5CS160XAA23
Expansion system
CAPILLARY
CAPILLARY
CAPILLARY
CAPILLARY
Dimensions (HxLxD)
mm
543x783x255
543x783x255
650x820x290
680x810x288
Dimensions Valves A/B/C
mm
45x55x80
45x55x80
45x55x80
50x65x155
Dimensions Installation I/J
mm
265x500
265x500
265x500
344x583
Net Weight
kg
33
33
39
45
Pipe Connections
Pipe conection diameter liq/gas
Inches
1/4 - 3/8
1/4 - 3/8
1/4-1/2
1/4-1/2
Maximum piping length
m
15
15
15
15
Max. height IU under OU
m
10
10
10
10
Max. height OU under IU
m
10
10
10
10
Chargeless lenght
m
5
5
5
5
Additional charge per meter
gr
20
20
20
30
Table 5.5 Technical specifications. (MONO).
Nr.
Accessory
(MULTI)
Quantity
1
Remote
2
2
Batteries
4
3
Mounting plate
2
4
Screw
8
5
Plastic cap
8
6
Drain Tubes
2
7
Drainage elbow
1
8
Cushion
4
Table 5.4
Accessories supplied with the unit. (MULTI).
Description of the Unit 5

Split Type Installation Manual
8
Uni
ts
V 10-050 M2N
V 10-060 M2N
Outdoor Unit
VA 10-050 M2NHO
VA 10-060 M2NHO
Indoor Unit 1
VA 10-025 MNHI
VA 10-025 MNHI
Indoor Unit 2
VA 10-025 MNHI
VA 10-035 MNHI
Cooling Capacity
kW
5,42
5,47
Power input
kW
1,63
1,64
Operating current
A
7,5
7,8
Heating capacity
kW
6,32
6,44
Power input
kW
1,63
1,77
Operating current
A
8,8
7,4
Indoor Unit
Air Flow volume
m
3
/h
380/440/500
380/440/500
m
3
/h
380/440/500
380/440/500
Sound Power level
Indoor 1
dB(A)
45/52/56
45/52/56
Indoor 2
dB(A)
45/52/56
45/52/56
Sound Pressure level
Indoor 1
dB(A)
32/39/43
32/39/43
Indoor 2
dB(A)
32/39/43
32/39/43
Sound Pressure level min speed
Indoor 1
dB(A)
30/36/41
30/36/41
Indoor 2
dB(A)
30/36/41
30/36/41
Dimensions (HxLxD)
mm
285x760x185
285x760x185
Net Weight
kg
8,6
8,6
Outdoor Unit
Air Flow volume
m
3
/h
2800
2800
Sound Power level
dB(A)
63
63
Sound Pressure level
dB(A)
52
52
Refrigerant
R410A
R410A
Refrigerant charge heat pump
gr
1800
1800
Compressor type
5CS130XCC03
5CS130XCC03
Expansion system
EXV
EXV
Dimensions (HxLxD)
mm
699x915x325
699x915x325
Dimensions Valves A/B/C/F
mm
45X55X80
45X55X80
Dimensions Installation I/J
mm
344x583
344x583
Net Weight
kg
48,8
48,8
Pipe Connections
Pipe conection diameter liq/gas Outdoor
Zoll
1/4 - 3/8
1/4 - 3/8
Max. L1+L2+(L3)
m
30
30
Max. L1
m
15
15
Max. height IU under OU
m
10
10
Max. height OU under IU
m
10
10
Chargeless lenght
m
5
5
Additional charge per meter
gr
20
20
Table 5.6
Technical specifications. (MULTI).
Note!
As part of its policy for ongoing improvements
of its products, Vaillant reserves the right to
modify these specifications without prior notice.
5 Description of the Unit

Split Type Installation Manual
9
EN
6 Transport
Danger of injury and physical damage! During
transport and unloading, the unit could fall and
injure anyone within the immediate vicinity. To
avoid this:
-
Use transport and lifting gear with suitable
load capacity for the unit weight.
-
Use the transport and lifting gear correctly
(consult the respective user manuals).
-
Use the slinging points provided for such a
purpose on the unit.
-
Secure the unit correctly.
-
Use suitable personal protection
equipment (helmet, gloves, safety boots and
protective glasses).
7
Unpacking
Danger of injury and physical damage! During
unpacking you could get cut and bruised. To
avoid this:
- Use lifting gear with suitable load capacity
for the unit weight.
-
Use the transport and lifting gear correctly
(consult the respective user manuals).
-
Use the slinging points provided for such a
purpose on the unit.
-
Use suitable personal protection
equipment (helmet, gloves, safety boots and
protective glasses).
Unpack the unit and check that:
-
The supply is complete
.
- All the elements are in perfect condition.
Failing this, contact the manufacturer.
Warning!
Protect the environment. Dispose of
the packaging following the local standards in
force. Do not dispose of it without the proper
controls.
8
Installation
8.1
Qualification of the Installation Personnel
Ensure that this unit is installed by authorised
personnel.
The personnel authorised by Vaillant must be suitably
qualified and able to install the unit correctly.
8.2
General precautions to be taken into account
before starting the installation
Danger of injury and physical damage! During
unpacking you could get cut and bruised. To
avoid this:
-
Use lifting gear with suitable load capacity
for the unit weight.
-
Use the transport and lifting gear correctly
(consult the respective user manuals).
-
Use the slinging points provided for such a
purpose on the unit.
-
Use suitable personal protection
equipment (helmet, gloves, safety boots and
protective glasses).
Danger of injury and physical damage! The unit
should be installed in accordance with the
Regulations and Standards for
refrigerator, electrical and mechanical
installation prevailing in relation to the location
of such installations.
Danger!
Danger of electric shock. Connect the earth
cable to the right line (not to the gas pipe,
water pipe, lightning conductor or telephone
line).
Danger!
Danger of electric shock. Install differentials to
avoid short-circuits.
Warning!
Danger of breakdowns or malfunction. Use the
pipes specifically intended for coolant for the
cooling installation. Never use plumbing pipes.
Transport 6
Unpacking 7
Installation 8

Split Type Installation Manual
10
8.3
General Installation Diagram
Warning!
Danger of breakdowns or malfunction. Observe
the minimum assembly distances indicated in
Figure 8.1.
Fig
. 8.1
General diagram of the installation and the minimum
assembly distances. (MONO).
Legend
1 Indoor Unit
2 Outdoor Unit
3 Pipe for draining the condensed water
A Front separation (minimum 10 cm)
B Top separation in relation to the ceiling (minimum 5 cm)
D Height in relation to the floor (minimum 2 m)
E Side separation opposite side connections (minimum 10 cm)
F Rear separation (minimum 10 cm)
G Side separation connections side (minimum 15 cm)
H Front separation (minimum 60 cm)
Fig
. 8.2
General diagram of the installation and the minimum
assembly distances. (MULTI).
Legend
1 Indoor Unit 1
2 Indoor Unit 2
3 Outdoor Unit
4 Pipe for draining the condensed water
A Front separation (minimum 10 cm)
B Top separation in relation to the ceiling (minimum 5 cm)
D Height in relation to the floor (minimum 2 m)
E Side separation opposite side connections (minimum 10 cm)
F Rear separation (minimum 10 cm)
G Side separation connections side (minimum 15 cm)
H Front separation (minimum 60 cm)
8 Installation

Split Type Installation Manual
11
EN
9
Installation of the Indoor Unit
9.1
Selecting the Assembly Location
Warning!
Danger of breakdowns or malfunction. Observe
the minimum assembly distances indicated in
Figure 8.1.
Note!
If a hole already exists in the wall or a
coolant pipe or condensed water pipe has
already been installed, the base plate can be
mounted to adapt to these conditions.
Recommendations
- Install the indoor unit close to the ceiling.
- Choose a mounting site that will allow air to reach all
parts of the room evenly. Avoid beams, installations or
lights which obstruct the airflow.
- Install the indoor unit at an adequate distance from
chairs or workstations in order to avoid unpleasant
draughts.
- Avoid close heat sources.
9.2
Fixing the Assembly Plate
Carry out the steps described below:
•
Place the mounting plate on the chosen installation
point.
•
Level the plate horizontally and mark the holes to be
made on the wall for the installation using the screws
and rawplugs.
•
Remove the plate.
Warning!
Danger of breaks in the domestic installation.
Check that there are no electricity lines, pipes or
any other element which could be
impaired behind the spots where the holes are to
be drilled. If so, choose another installation
location and repeat the aforementioned steps..
•
Make the holes using a drill and insert the rawplugs.
•
Place the assembly plate in the assembly location,
level it horizontally and fix it with the screws and the
rawplugs.
Warning!
Danger of breakdowns or malfunction. Ensure
that the assembly plate has been correctly
levelled. Otherwise, disassemble the plate and
assemble it again correctly.
9.3
Installation of the Pipes
9.3.1
Methods for the Correct Discharge of the
Condensed Water
Warning!
Danger of breakdowns or malfunction. Danger of
condensed water spillage. In order to ensure that
the unit drains correctly take the requirements
described in this section into account.
Methods for the removal of the condensed water which
is generated in the indoor unit:
-
Condensed water can be allowed to drain naturall
using the natural tilt of the condensed water pipe
along with the coolant pipe. In order for it to
be aesthetically pleasing, use a joint channel.
-
The natural tilt of the condensed water pipe from the
indoor unit to the container (washbasin, sink,
etc.). Different invisible installation solutions also exist.
-
Using an external pump for condensed water,
carrying the condensed water to the outside or to the
house drainage system.
-
By natural tilt to the collector deposit for
condensed water which is emptied using a pump for
condensed water. The pump for condensed water
receives a signal from the tank and takes the water
from the tank conveying it to the outside or to the
house drainage system.
Note!
This pump for condensed water is available as an
original Vaillant accessory with the
corresponding installation instructions.
Warning!
Danger of breakdowns or malfunction. Danger of
condensed water spillage. To ensure that the unit
carries out the drainage properly in the event of
draining using a natural tilt, the condensed water
pipe must also have a tilt from the indoor unit.
Installation of the Indoor Unit 9

Split Type Installation Manual
12
9.3.2 Handling the Coolant Pipes
Danger!
Danger of burns and eye injuries. In the event of
soldering, use suitable protection equipment
(protective soldering mask, soldering gloves,
solderer clothing).
Warning!
Danger of breakdowns or malfunction. Danger of
wear in the coolant pipes. To ensure that the
coolant pipes do not wear take the following
points into consideration:
-
Use pipes specifically intended for cooling.
Note!
In specialised dealers you will find coolant pipes
which are thermally insulated as a
Vaillant accessory.
- Ensure that the pipes are clean, dry and polished on
the inside.
- The insulation of the pipes should be done using
specific insulation for cooling.
- Observe the minimum and maximum pipe distances
for each model.
- Do not bend the pipes where possible. When bending
them, keep the radius as wide as possible to minimise
load losses.
- If soldering, do so using strong welding (copper-silver
alloy). During the soldering process a stream of dry
nitrogen should be run through the inside of the pipes
in order to avoid rusting.
- Only cut the coolant pipes using pipe cutters and
always keep the pipe ends covered.
- Any flaring work should be performed meticulously in
order to avoid subsequent losses of gas through the
pipes.
- When reviving keep the pipe opening directed
downwards in order to prevent shavings from getting
into the pipes.
- Mount the joining tubes carefully, ensuring they
cannot become displaced. Ensure that they will not
cause traction in the joins.
- Equip the coolant pipes (inflow and outflow) separately
and with thick diffusion heat insulation.
- Carefully squeeze the flaring connector, centring the
flaring cone and the flanged nut. Applying excessive
force without correctly centring can damage the
thread and cause a reduction in the water tightness in
the join.
9.3.3
Handling the Condensed Water Pipe
Warning!
Danger of breakdowns or malfunction. Danger of
incorrect drainage of the condensed water and
wear of materials due to dripping water. Take the
following points into consideration:
- Ensure that air circulates through the condensed
water pipe in order to guarantee that the water can be
freely released. Otherwise, the condensed water could
leak through the indoor unit body.
- Mount the pipe without bending it in order to avoid
blockage.
- If the water pipe is channelled outdoors, ensure that it
is insulated against freezing.
- If the condensed water pipe is installed in a room, fit
thermal insulation.
- Avoid installing the condensed water pipe with an
ascending bend (see Figure 9.1).
Fig
. 9.1
Avoid ascending bends.
-
Avoid installing the condensed water pipe with it free
end submerged in water (see Figure 9.2).
.
Fig
. 9.2
Avoiding submerging the end.
9 Installation of the Indoor Unit

Split Type Installation Manual
13
EN
-
Avoid installing the condensed water pipe with
crimping (see Figure 9.3).
Fig
. 9.3
Avoid crimping.
-
Install the condensed water pipe in such a way that
the distance of its free end from the floor is at least
5 cm (see Figure 9.4).
Fig
. 9.4
Minimum distance from the floor.
Legend
H
Minimum distance from the floor: 5 cm
-
Install the condensed water pipe in such a way that its
free end is kept away from unpleasant odours to
ensure that they do not penetrate the room (see
Figure 9.5).
Fig
. 9.5
Avoids unpleasant odours.
9.3.4
Making Holes for the Pipes
• Case A: laying the rear piping.
In the event of laying the rear piping, a suitable hole
must be made (see Figure 9.6).
• Drill a hole in accordance with the diameter
indicated in Figure 9.6, slightly descending to the
outside.
A=180mm
B=70mm
5
3
Fig
. 9.6
Dimensions of the hole for the piping.
• Case B: laying the side or bottom piping.
In this case holes do not have to made on the wall
since the indoor unit body has windows which can be
opened to admit the pipes: choose the most adequate
one for the desired outlet position (see Figure 9.7).
•
Carefully break the chosen window on the lid using pliers.
Fig
. 9.7
Windows for the installation of the pipes.
Legend
1 Lid for right piping
2 Lid for indoor piping
3 Securing with adhesive tape
4 Lid for left piping
Avoiding submerging the end 9

Split Type Installation Manual
14
9.3.5
Laying the Pipes
•
If installing the rear piping:
•
Place the lid supplied for the hole in the piping and
insert the coolant pipes with the condensed water
pipe through the hole.
•
Seal the hole properly after installing the pipes.
•
Carefully bend the installation pipe in the right
direction.
Warning!
Danger of breakdowns or malfunction. Danger of
wear in the coolant pipes. Bend the pipe carefully
to prevent choking or breaks.
•
Cut the pipes, leaving enough extra piping hanging
over to enable the unit to be hooked up at the indoor
unit joins.
•
Insert the nut in the coolant pipe and carry out
the flaring.
•
Carefully remove the insulation of the flared
connections in the indoor unit.
•
Hang the indoor unit on the top edge of the
mounting plate.
•
Tilt the lower part of the indoor unit forwards and
insert an auxiliary tool (e.g. a piece of wood) between
the mounting plate and the unit (see Figure 9.8).

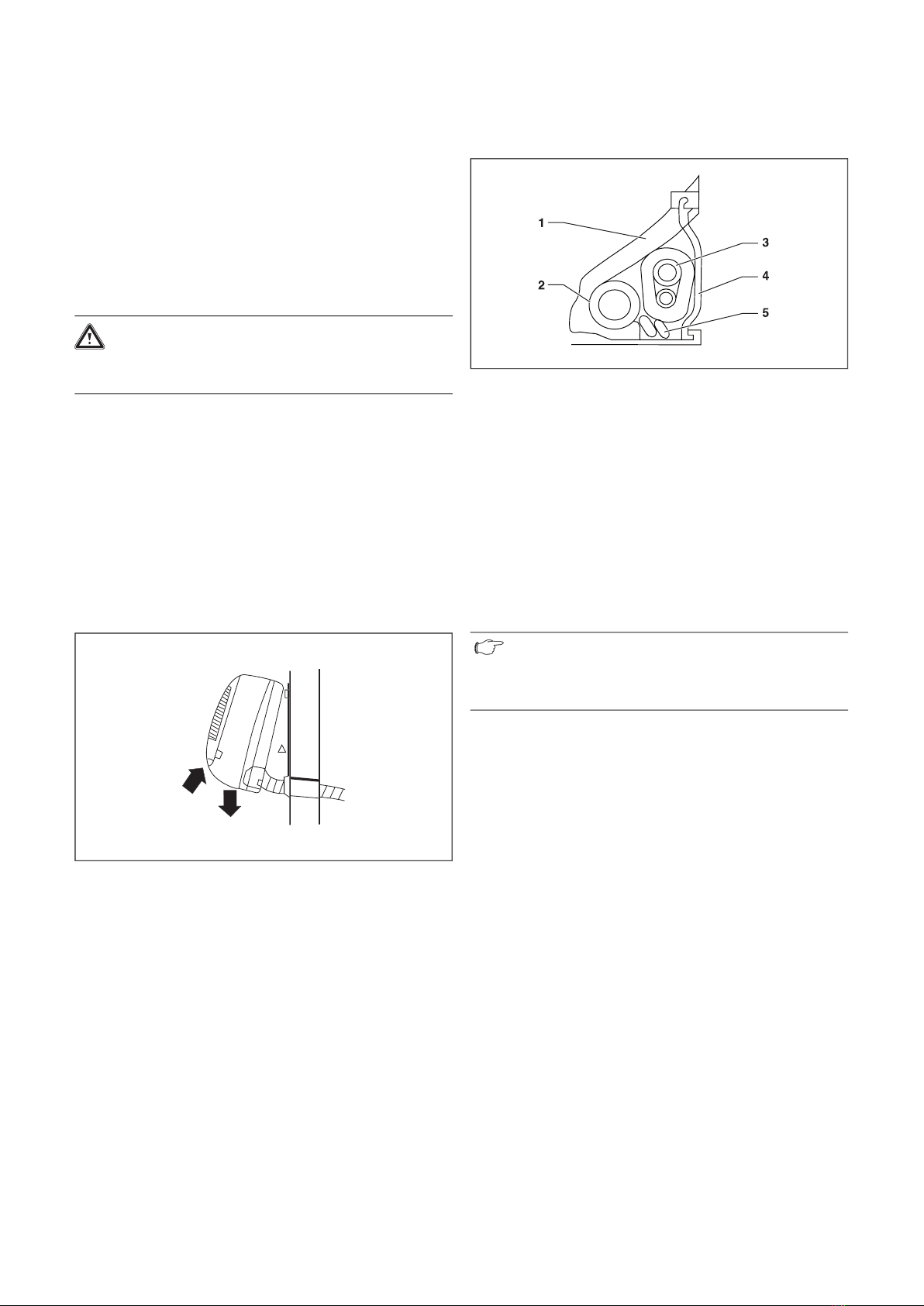

Fig
. 9.8
Assembling the indoor unit.
• Connect the coolant pipes and the condensed water
hose to the corresponding pipes and installation drain.
• Insulate the coolant piping correctly and separately. To
do so, cover any possible cuts with masking tape or
insulate any bare coolant piping with the
corresponding insulation material used for cooling.
Fig
. 9.9
Laying the Pipes.
Legend
1 Heat-resistant material
2 Drain pipe
3 Coolant pipe
4 Piping support plate
5 Indoor/outdoor electric cable
•
Insert the electric piping, connect the line on the
indoor unit terminal strip and assemble the cabling
covering (see section 11).
• Carry out the start up and the equipment functional
test (see section 12).
• Fix the entire indoor unit (see section 9.3.6).
Note!
The connections in the flaring should be
accessible in order to carry out the
water tightness tests.
• Install the mounting plate, lining up the holes with the
help of the plate.
9.3.6
Installation of the Indoor Unit Body
• Check that the installation has been carried out
correctly and that there are no leaks (see section 12.1).
• Securely hang the indoor unit body onto the upper
notches of the mounting plate. Briefly move the body
from side to side to verify that it is secure.
• Lift the body up slightly from underneath, press it
onto the mounting plate and then lower it vertically.
The body will fit into the lower supports on the
mounting plate.
• Check that the indoor unit is properly secured.
• In the event that the body does not slot into the
supports properly, repeat this process.
9 Installation of the Indoor Unit

Split Type Installation Manual
15
EN
10
Installation of the Outdoor Unit
10.1
Selecting the Assembly Location
Warning!
Outdoor units must be placed in accessible areas
for subsequent maintenance and repair
operations. Vaillant will not be responsible for
any costs derived from incorrect positioning that
prevents easy access
.
Danger of personal injury and material damage
from explosion! Install the unit away from gases
or inflammable or easily combustible
substances and free from thick dust formation.
Danger of personal injury and material damage
from collapse! Ensure that the ground can
withstand the weight of the outdoor unit and
allow it to fit in a horizontal position.
Warning!
Danger of corrosion.
Do not install the unit near to corrosive materials.
- The outdoor unit can only be mounted outdoors, never
inside a building.
- Do not install the unit in such a way that the air
current affects the air inlets of premises nearby.
- If possible avoid direct sunlight.
- Ensure that the ground has sufficient rigidity to avoid
vibrations.
- Check that there is sufficient space to observe the
minimum distances (see Figures 8.1 and 8.2).
- Check that neighbours are not disturbed by draughts
or noise.
- If the premises are rented obtain the owner’s consent.
- Comply with local regulations: there are considerable
differences depending on the area.
- Leave enough space to fit the condensed water
drainage pipe (see section 10.4).
10.2
Planning the Coolant Return
The coolant circuit contains a special oil to lubricate the
outdoor unit compressor. To assist the return of the oil
to the compressor the following is recommended:
- that the indoor unit is located higher than the
outdoor unit and,
- that the suction pipe (the thickest one) is assembled
with the tilt towards the compressor.
If the outdoor unit is mounted higher than the indoor
unit, the suction pipe must be mounted in a vertical
position. At heights exceeding 7.5 m:
•
An additional oil deposit should be installed at each
7.5 m interval to collect the oil and suction it, returning
it to the outdoor unit and
•
An elbow can be installed in front of the outdoor
unit to further assist the oil return.
10.3
Connection of the Coolant Pipes
Note!
Installation is easier if the gas suction pipe is
connected up first. The suction pipe is
the thickest one.
•
Mount the outdoor unit in the designated site.
•
Remove the protection hoods from the coolant joints
in the outdoor unit.
•
Carefully bend the installed pipe towards the outdoor
unit.
Warning!
Danger of breakdowns or malfunction. Danger of
wear in the coolant pipes. Bend the pipe carefully
to prevent choking or breaks.
• Cut the pipes, leaving enough extra piping hanging
over to enable the unit to be hooked up at the outdoor
unit joins.
• Flare the coolant pipe when installed.
• Join the coolant pipes to the corresponding outdoor
unit connection.
• Insulate the coolant piping correctly and separately. To
do so, cover any possible cuts with masking tape or
insulate any bare coolant piping with the
corresponding insulation material used for cooling.
Installation of the Outdoor Unit 10

Split Type Installation Manual
16
10.4
Connection of the Pipe for the Drainage of the
Condensed Water
Note!
Applicable only to those units that have built-
in heat pumps.
Whilst the unit is running with the heat pump function,
condensation forms in the outdoor unit and has to be
drained.
•
Insert the elbow included in the supply in the hole
provided at the bottom of the outdoor unit and turn it
90º to fix it (see Figure 10.1).

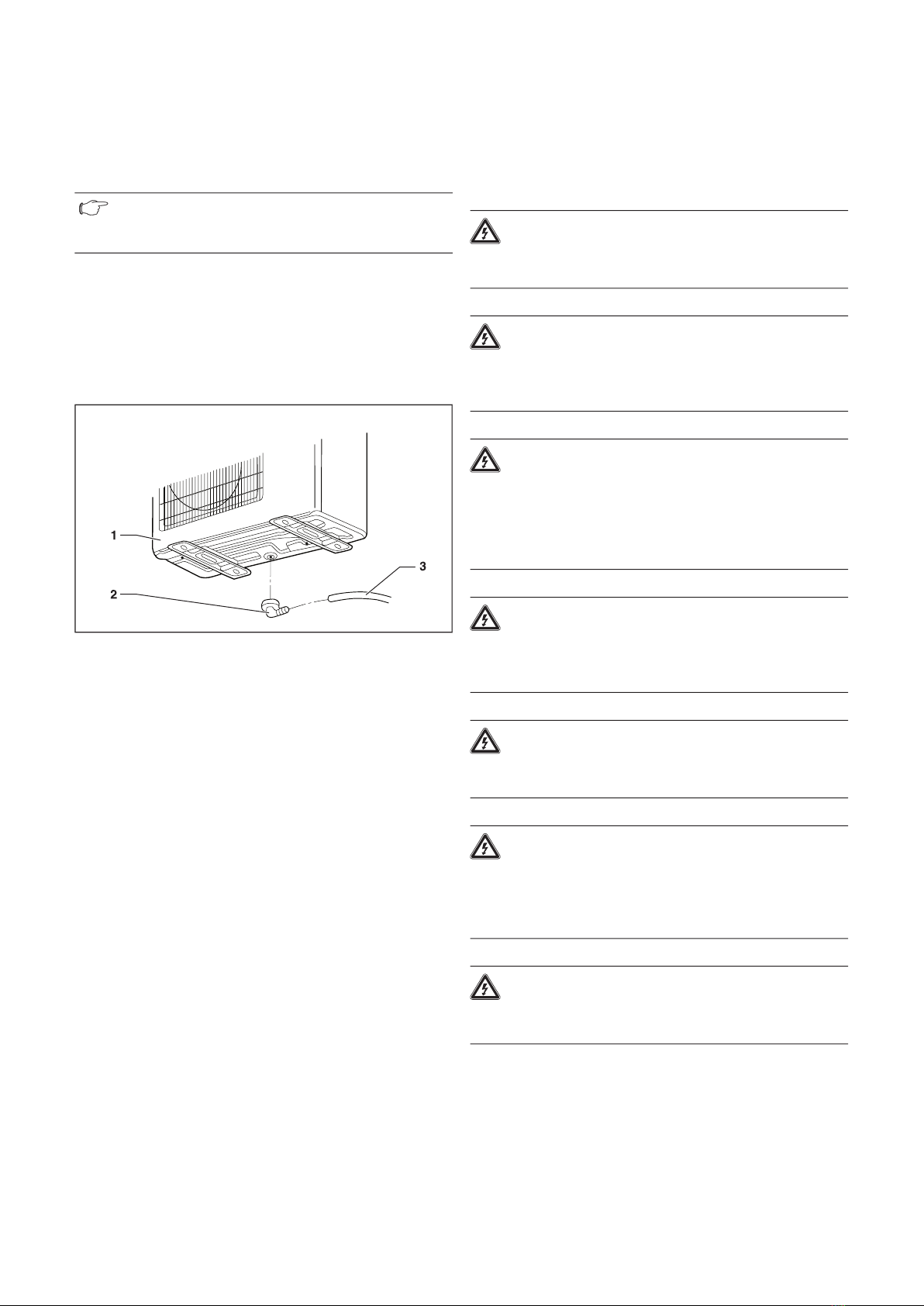

Fig
. 10.1
Assembly of the drainage elbow for condensed water
Legend
1 Outdoor Unit
2 Drainage elbow
3 Drainage hose
•
Mount the drainage hose ensuring that it leaves the
equipment at a tilt.
•
Verify the correct drainage of the water by pouring
the water into a collection tray located at the bottom
of the outdoor unit.
•
Protect the condensed water hose with thermal
insulation to avoid freezing.
11
Electric Wiring
11.1
Safety Precautions
Danger!
Danger of electric shock.
Before connecting the unit to the electric
supply line, ensure that the line is not live.
Danger!
Danger of electric shock.
If the mains cable is damaged, it must be
replaced by the manufacturer, the head
of maintenance or a similarly qualified person.
Danger!
Danger of electric shock.
Ensure that the power line is equipped with a
bipolar or tetrapolar switch according to the
model, (single phase or three-phase) with a
distance of at least 3 mm between contacts
(Standard EN-60335-2-40).
Danger!
Danger of electric shock.
Equip the installation with protection
against short-circuits to avoid electric shocks.
This is a legal requirement.
Danger!
Danger of electric shock.
Use an electric plug which perfectly adapts
to the electric power supply wiring.
Danger!
Danger of electric shock.
Use wiring in accordance with the
respective local, national and international
wiring standards regarding installation in
technical electrics.
Danger!
Danger of electric shock.
Use an approved electric plug and power
supply cable.
10 Installation of the Outdoor Unit
11 Electric Wiring

Split Type Installation Manual
17
EN
Warning!
Danger of breakdowns or malfunction.
Size the electric wiring with sufficient capacity.
Warning!
Danger of breakdowns or malfunction.
Compliance with the Standard EN 61000-3-11:
Check that the nominal power of the main
phase current connection is > 100.
Warning!
Danger of breakdowns or malfunction. Ensure
that the supplied power voltage is in the range of
90% to 110% of the rated voltage.
Warning!
Install the unit in such a way that the
electric plug is easily accessible. Thus, if
required, the unit can be quickly disconnected.
11.2
Remark with regard to Directive 89/336/EEC
In order to prevent electromagnetic interference during
the start up of the compressor (technical process), the
following installation conditions must be adhered to.
• Make the air conditioning unit power supply
connection at the main power distribution. Carry out
the distribution with low impedance. Normally the
required impedance is reached at a
32 A fusing point.
• Check that no other equipment is connected to this
power supply line.
Note!
For more detailed information on the electric
installation, please consult the
Technical Connection Conditions applied by your
electricity supply board.
Note!
In order to obtain more information with regard
to power details of the air conditioner consult
the unit rating plate.
11.3
Electric Connection of the Indoor Unit
Warning!
Danger of breakdowns or malfunction. If the fuse
on the PC board is blown please change it with
type T. 3,15A/250V.
•
Disassemble the outdoor body of the indoor unit by
pulling it upwards.
•
Remove the wiring cover on the right of the body by
unscrewing it (see Figure 11.1).
Fig
. 11.1
Wiring Cover.
•
Insert the cable from the outside:
•
Using the same hole through which the coolant
pipes are installed (or are going to be installed later)
or,
•
Using another of the pipe installation windows
provided on the body.
•
Pull the electrical cable from the rear of the indoor
unit through the specific hole in the front.
•
Connect the line on the terminal strip of the indoor
unit according to the corresponding wiring diagram
(see Figures).
Electric Wiring 11

Split Type Installation Manual
18
Fig
. 11.2
Wiring indoor unit, model VAH 10-025 NW, VAH
10-035 NW, VAH 10-050 NW, VAH 10-065 NW,
VAH 10-050 M2N and VAH 10-060 M2N.
•
Check that the cables are properly fixed
and connected, position the wiring cover and mount
the outside body.
•
Models V10-025 NW, V10-050 NW and V10-035 NW are
equipped with a plug in the indoor unit.
11.4
Electric Connection of the Outdoor Unit
Warning!
Danger of breakdowns or malfunction. If the fuse
on the PC board is blown please change it with
type T. 25A/250V.
•
Remove the protective covering in front of the
electrical connections in the outdoor unit.
•
Loosen the screws in the bushing block and fully insert
the cable terminals of the power supply line in the
bushing block and tighten the screws.
11 Electric Wiring
3
(C
)
(C)(C
1
1
1
(N
)
2
(L
)
(L)(L
3
(C
)
(C)(C
1
1
1
(N
)
2
(L
)
(L)(L
V 10-035 NW
230/1/50 Hz
Outdoor
Indoor
V 10-025 NW
3
(C
)
(C)(C
1
1
1
(N
)
2
(L
)
(L)(L
3
(C
)
(C)(C
1
1
1
(N
)
2
(L
)
(L)(L
V 10-035 NW
230/1/50 Hz
Outdoor
Indoor
V 10-035 NW
3
(C
)
(C)(C
3
1
2
V 10-065 NW
1
(N
)
2
(L
)
(L)(L
Outdoor
Indoor
V 10-065 NW
V 10-050 M2N
V 10-025 MNHWI V 10-025 MNHWI
3
3
3
(C
)
(C)(C
3
3
3
(C
)
(C)(C
2
(L
2
(L
2
)
(L)(L
1
(N
)
(N)(N
2
(L
2
(L
2
)
(L)(L
1
(N
)
B
B
B
(C
)
(C)(C
A
(C
)
(C)(C
A
(L
A
(L
A
)
(L)(L
A
(N
A
(N
A
)
(N)(N
B
(L
B
(L
B
)
(L)(L
B
(N
B
(N
B
)
Outdoor
V 10-050 M2N
Indoor
V 10-060 M2N
V 10-035 MNHWI V 10-035 MNHWI
3
3
3
(C
)
(C)(C
3
3
3
(C
)
(C)(C
2
(L
2
(L
2
)
(L)(L
1
(N
)
(N)(N
2
(L
2
(L
2
)
(L)(L
1
(N
)
B
B
B
(C
)
(C)(C
A
(C
)
(C)(C
A
(L
A
(L
A
)
(L)(L
A
(N
A
(N
A
)
(N)(N
B
(L
B
(L
B
)
(L)(L
B
(N
B
(N
B
)
Indoor
V 10-060 M2N
Outdoor
3
(C
)
(C)(C
1
1
1
(N
)
2
(L
)
(L)(L
3
(C
)
(C)(C
1
1
1
(N
)
2
(L
)
(L)(L
V 10-035 NW
230/1/50 Hz
Outdoor
Indoor
V 10-050 NW

Split Type Installation Manual
19
EN
Warning!
Danger of malfunction and breakdowns resulting
from water penetration. Mount the power cable
below the bushings using a cable loop in order to
avoid water penetration.
Warning!
Danger of malfunction and breakdowns resulting
from short-circuits. Insulate the unused cable
wires using masking tape and ensure that they
cannot come into contact with low voltage parts.
• Secure the cable installed with the outdoor unit’s
contracting device.
• Check that the cables are correctly secured and
connected.
• Mount the protective wiring cover.
11.5
Electric Characteristics
V 10-025 NW
V 10-035 NW
V 10-050 NW
V 10-065 NW
V 10-050 M2N
V 10-060 M2N
Voltage (V/Ph/Hz)
230/1/50
230/1/50
230/1/50
230/1/50
230/1/50
230/1/50
Supply
Supply section up to 25 meters
(in mm2)
1,5
1,5
2,5
2,5
2,5
2,5
Indoor / Outdoor
Indoor
Indoor
Indoor
Outdoor
Outdoor
Outdoor
Thermal-magnetic circuit
breaker, type D (A)
10
10
16
16
16
16
Interconnection section up to
25 meters (mm2)
1,5
1,5
2,5
2,5
2,5
2,5
Inteconnect Shield or not
(YES/NO)
NO
NO
NO
NO
NO
NO
Immediatte residual current
protector (A)
0,03
0,03
0,03
0,03
0,03
0,03
Table 11.1 Electric Characteristics.
Elektrischer Anschluss 11
