Vaillant aroTHERM VWL Series User manual

System assistant
Refrigerant-split heat pump
system
aroTHERM VWL ... AS, uniTOWER VWL ... IS
AT, BE (de), DE
Publisher/manufacturer
Vaillant GmbH
Berghauser Str. 40 D-42859 Remscheid
Tel. [phone]‑0 Fax [phone]‑2810
[email protected] www.vaillant.de

UNIDOMO®
www.unidomo.de
04621- 30 60 89 0
[email protected]
Mo.-Fr. 8:00-17:00 Uhr
a member of DAIKIN group
  
 
  

Contents
2System assistant 0020243831_00
Contents
1 Safety .................................................................... 3
1.1 General safety information .................................... 3
2 Notes on the documentation .............................. 4
2.1 Observing other applicable documents ................. 4
2.2 Working with the system assistant ........................ 4
2.3 Key for the symbols ............................................... 4
2.4 Key for the system components ............................ 4
2.5 Refrigerant-split heat pump systems ..................... 5
3 System without system control
(0020253231) ........................................................ 6
3.1 Basic system diagram............................................ 6
3.2 Preparing for installation........................................ 8
3.3 Installing the refrigerant circuit............................... 8
3.4 Installing the heating and domestic hot water
circuit ..................................................................... 9
3.5 Installing the electrical connections ....................... 9
3.6 Completing installation......................................... 10
3.7 Starting up the system......................................... 10
3.8 Implementing settings on the indoor unit's
control .................................................................. 10
4 System with system control (0020232127)...... 12

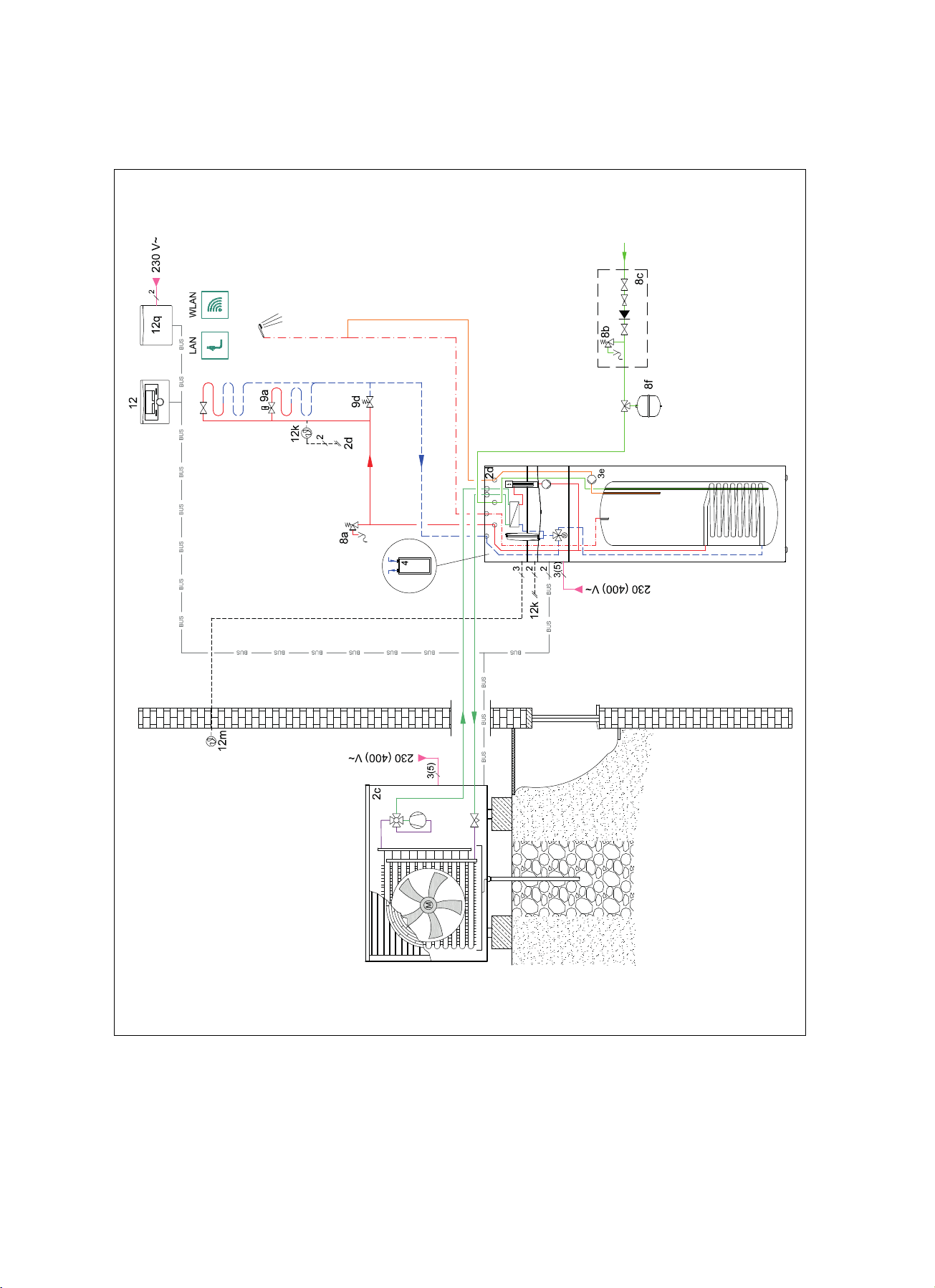

4.1 Basic system diagram.......................................... 12
4.2 Preparing for installation...................................... 14
4.3 Installing the refrigerant circuit............................. 14
4.4 Installing the heating and domestic hot water
circuit ................................................................... 15
4.5 Installing the electrical connections ..................... 15
4.6 Completing installation......................................... 16
4.7 Starting up the system......................................... 16
4.8 Implementing settings on the indoor unit's
control .................................................................. 16
4.9 Configuring the settings on the system control .... 17

Safety 1
0020243831_00 System assistant 3
1 Safety
1.1 General safety information
1.1.1 Risk of death due to lack of safety
devices
The schematic drawings included in this doc-
ument do not show all safety devices re-
quired for correct installation.
▶Install the necessary safety devices in the
system.
▶Observe the applicable national and inter-
national laws, standards and guidelines.
1.1.2 Complying with the safety
information
▶Observe the safety information in the other
applicable documents.
1.1.3 Using the system assistant
The system assistant does not replace the
instructions that are enclosed with the install-
ation's system components.
▶Carry out a complete and proper installa-
tion and start-up, as described in detail in
the instructions for the components.
1.1.4 Using the basic system diagrams
▶The basic system diagrams are examples
of how to set up systems.
▶Choose the basic system diagram you
want to use to set up your installation.
▶Enter the number of the selected basic
system diagram into the control's Basic
system diagram configuration function
(→Installation instructions for the system
control).
1.1.5 Using the wiring diagrams
Each basic system diagram has an associ-
ated wiring diagram that must be used.
▶Only use the wiring diagram that is appro-
priate for the selected system.

2 Notes on the documentation
4System assistant 0020243831_00
2 Notes on the documentation
2.1 Observing other applicable documents
▶Always follow all the operating and installation instruc-
tions included with the system components.
2.2 Working with the system assistant
The system assistant is used to help with the system installa-
tion and start-up. The important steps are shown, depending
on the selected basic system diagram. All other necessary
instructions and information are described in the instructions
for the system components.
▶Use the references to the instructions.
▶Follow the information, directions and instructions that
are described here.
The settings on the control for the indoor unit and/or the
system control refer to the basic system diagram that was
shown before.
▶Configure the system in accordance with the end user's
requirements.
▶Adjust the system settings to the local conditions.
2.3 Key for the symbols
Symbol Meaning
Cooling
Air heat source
2.4 Key for the system components
Compon-
ent
Meaning
2c outdoor unit refrigerant split
2d indoor unit refrigerant split
3e circulation pump DHW
4buffer cylinder
8a expansion relief valve
8b expansion relief valve drinking water
8c safety assembly drinking water connection
8f expansion vessel drinking water
9a single room temperature control valve (thermo-
static, motorized)
9d bypass valve
12 system control
12k overheat protection thermostat
12m outdoor temperature sensor
12q VR 920 communication unit

Notes on the documentation 2
0020243831_00 System assistant 5
2.5 Refrigerant-split heat pump systems
Basic sys-
tem dia-
gram
Heat generator Heat
source
Heating circuits Additional
functions
System
control
Special equipment
Regu-
lated
Non-reg-
ulated
0020253231 aroTHERM VWL ... AS
uniTOWER VWL ... IS
X−1 X –Buffer cylinder
Outdoor temperature
sensor
0020232127 aroTHERM VWL ... AS
uniTOWER VWL ... IS
X−1 X X As of multiMATIC
VRC 700/5
Buffer cylinder
As of the VR 920 commu-
nication unit
Circulation pump
Outdoor temperature
sensor

3 System without system control (0020253231)
6System assistant 0020243831_00
3 System without system control (0020253231)

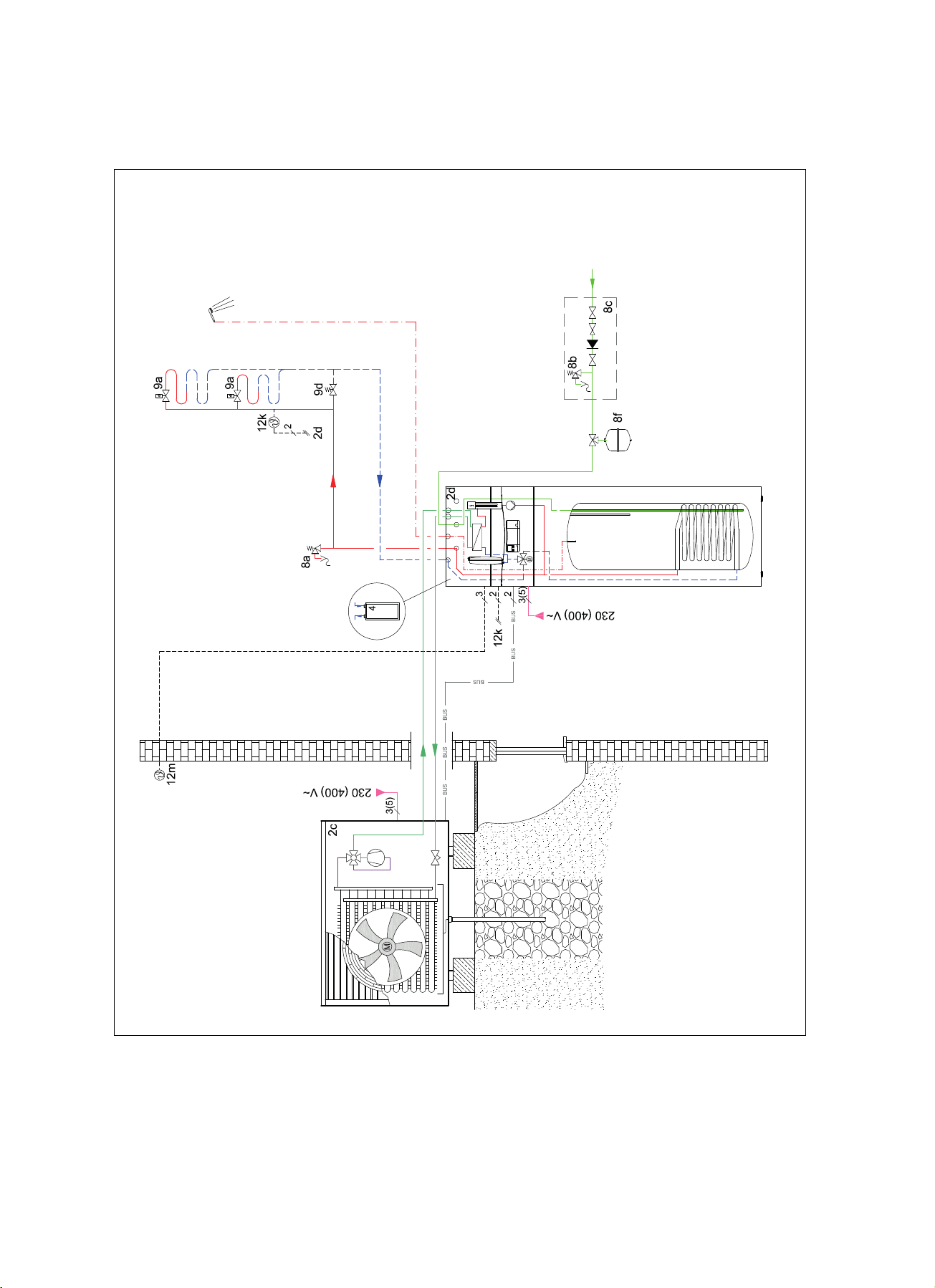

3.1 Basic system diagram

System without system control (0020253231) 3
0020243831_00 System assistant 7

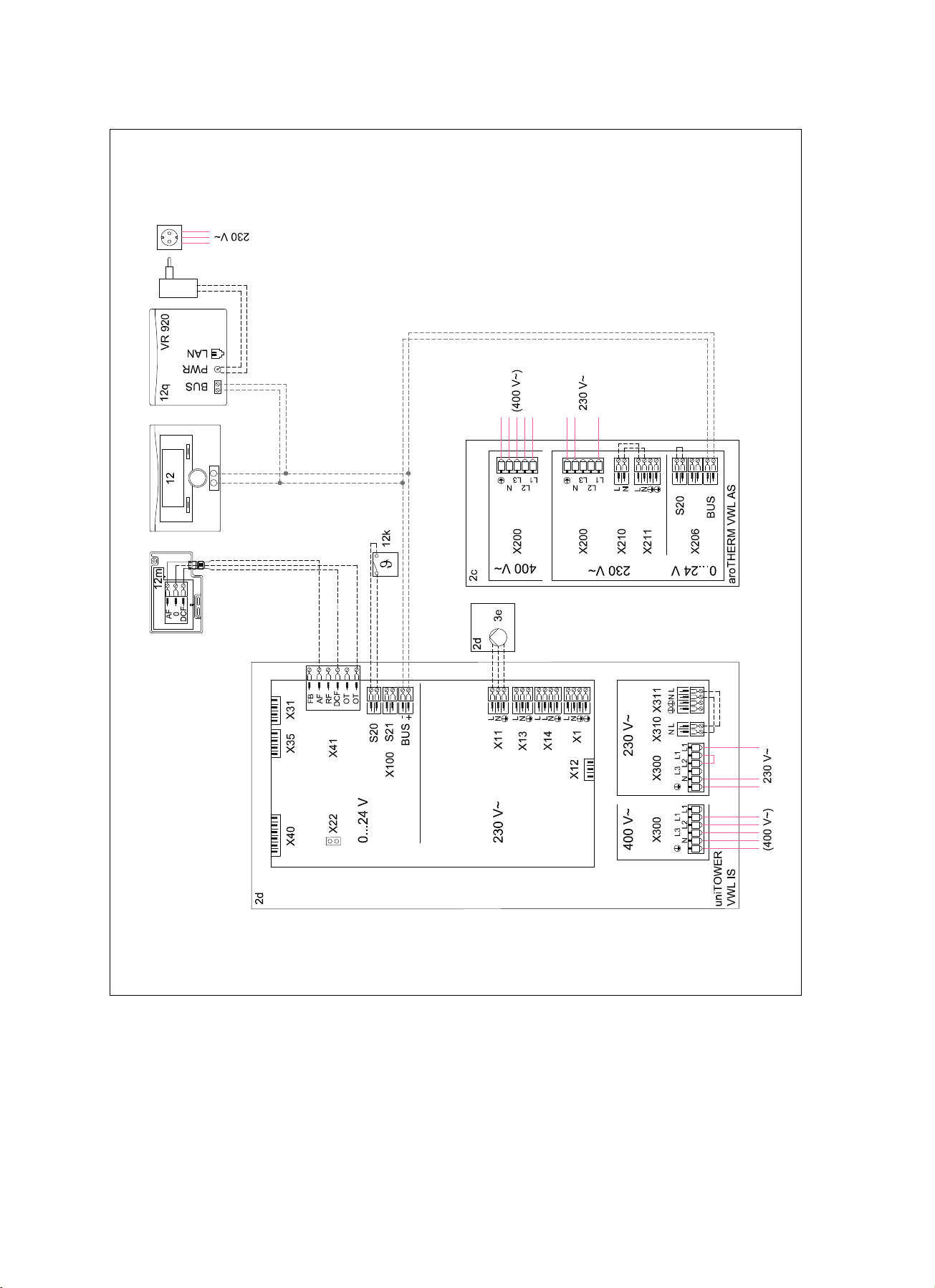

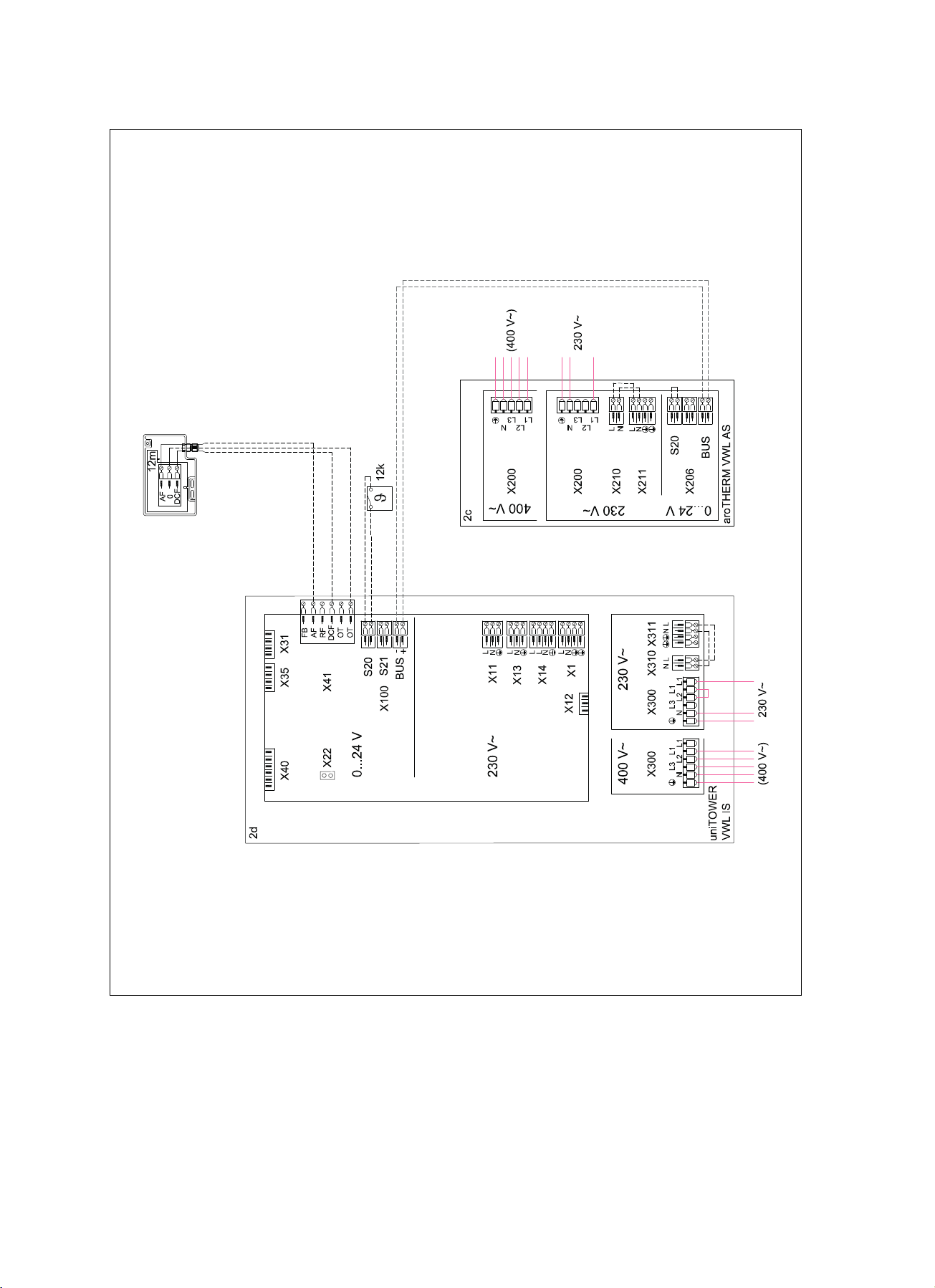

Wiring diagram

3 System without system control (0020253231)
8System assistant 0020243831_00
3.2 Preparing for installation
→uniTOWER installation and maintenance instructions, from section 4.1 onwards
→aroTHERM installation and maintenance instructions, from section 4.1 onwards
→Accessory set-up instructions
Work step Selected information/measures
1Building
►Establishing a wall duct
2Installation site for the outdoor unit, indoor
unit
►Defining the installation site
►Comply with the specific conditions for the installation site and the installation
type.
Important planning dimensions:
–Maximum height difference between the outdoor unit and the indoor unit:
10 m
–Basic length of the refrigerant pipes: Minimum 3 m, maximum 25 m
–Minimum clearances and installation clearances:
→aroTHERM installation and maintenance instructions, from section 4.5
onwards
→uniTOWER installation and maintenance instructions, from section 4.5
onwards
3Outdoor unit
Condition: Depending on the installation
type/condition
►Establishing the strip foundations
►Mounting the wall bracket
►Procuring and installing other accessories
►Setting up/installing the product
Validity: VWL 105/5 AS, VWL 125/5 AS outdoor unit
►If required, use the transport belts that are supplied.
Condition: Establishing the strip foundations
►Ensure that the condensate discharge can be positioned in the centre above
the downpipe.
4Outdoor unit
►Installing the condensate discharge pipe
►Ensure that condensate does not reach paths (ice formation).
5Indoor unit
►Setting up the product
Condition: Optional accessory
►Installing the installation set (hydraulics)
►If required, separate the indoor unit into two modules.
►Remove and dispose of the carrying straps after the unit has been set up.
3.3 Installing the refrigerant circuit
→aroTHERM installation and maintenance instructions, from section 5.1 onwards
→uniTOWER installation and maintenance instructions, from section 5.1 onwards
Work step Selected information/measures
6Outdoor unit, indoor unit
►Preparing work on the refrigerant circuit
►Read all of the sections on working on the refrigerant circuit.
►Comply with the specified test pressures, waiting periods and instructions.
Tools and units:→aroTHERM installation and maintenance instructions, from
section 5.1 onwards
7Outdoor unit, indoor unit
►Routing the refrigerant pipes
►Ensure that there is sufficient vibration decoupling.
►Use a bending wrench and flexible springs in order to prevent kinks in the
pipeline.
►Keep the interior of the refrigerant pipes free from air humidity, dirt and
residue.
►Use a pipe cutter to cut the pipe to length.
►Always hold the pipe downwards during lengthening and deburring.
►Do not blow into the pipe (air humidity).
8Outdoor unit, indoor unit
►Connecting the refrigerant pipes
The outdoor unit is pre-filled with R410A refrigerant.
►Keep the isolation valves on the outdoor unit closed.
The indoor unit is filled with nitrogen.
►When unscrewing the flare nut, check whether you can hear the nitrogen
escaping.
9Outdoor unit
►Checking the refrigerant circuit for tightness
►Only carry out the leak-tightness test on the refrigerant pipes using dry nitro-
gen.
–Test pressure: 2.5 MPa (25 bar)
–Waiting period: 10 mins
►Use a leak detection spray to check the connections.

System without system control (0020253231) 3
0020243831_00 System assistant 9
Work step Selected information/measures
10 Outdoor unit
►Evacuating the refrigerant circuit
►Drain the nitrogen that was poured in.
►Connect a vacuum pump.
►Drain the refrigerant circuit in two rounds of 30 minutes each.
►After each round, check whether the pressure is stable:
–0.1 kPa (1.0 mbar) absolute pressure
11 Outdoor unit
►Adding additional refrigerant
Condition: Basic length of the refrigerant pipe > 15 m
►For each additional metre (above 15 m), add additional refrigerant:
–30 g/m for an output of up to 5 kW
–70 g/m for an output of 7 kW or higher
12 Outdoor unit
►Releasing the refrigerant
►Turn the isolation valves as far as they will go.
3.4 Installing the heating and domestic hot water circuit
→uniTOWER installation and maintenance instructions, from section 5.1 onwards
→Accessory set-up instructions
Work step Selected information/measures
13 Indoor unit
►Installing the domestic hot and cold water
connection
►Installing heating circuit connections
►Observe the connection symbols.
→uniTOWER installation and maintenance instructions, section 3.7
14 Heating circuit
►Connecting the buffer cylinder
►Connecting the bypass valve
15 Heating circuit
►Connecting the additional expansion vessel
Condition: The dimension of the installed expansion vessel is not sufficient
16 DHW circuit
►Connecting the expansion vessel
►Ensure that there is sufficient dimensioning.
►If required, adjust the pre-charge pressure.
17 Safety devices
►Installing the safety devices
►Ensure that all of the required safety device have been installed in the sys-
tem.
3.5 Installing the electrical connections
→aroTHERM installation and maintenance instructions, from section 6.1 onwards
→uniTOWER installation and maintenance instructions, from section 6.1 onwards
→multiMATIC installation instructions, from section 4.1 onwards
→Accessory set-up instructions
Work step Selected information/measures
18 Outdoor temperature sensor
►Connecting the outdoor temperature sensor
19 Outdoor unit
►Establishing the power supply
►Select a correct cable cross-section.
►Comply with the connection conditions for the energy supply company.
►Determine whether an electrical connection 1~/230 V or 3~/400 V (→data
plate) is required.
►Determine whether the power supply should be set up using a single-tariff
meter or a dual-tariff meter.
Condition: Depending on the installation site
►Install one or two type-B residual-current circuit breakers for the outdoor unit,
depending on the connection type.
20 Indoor unit
►Establishing the power supply
►Route the cables from the rear into the product and, from there, to the front
through the strain relief.
Condition: Depending on the installation site
►Install a type-A or type-B residual-current circuit breaker for the indoor unit.
21 Indoor unit, electrical house installation
►Installing components for the energy supply
company lockout function
Condition: Power supply via a dual-tariff meter
Option 1: Disconnect the power supply with contactor
Option 2: Actuating the ESC contact
→uniTOWER installation and maintenance instructions, section 6.4

3 System without system control (0020253231)
10 System assistant 0020243831_00
Work step Selected information/measures
22 Indoor unit
►Connecting a limit thermostat
►Observe the wiring diagram.
→uniTOWER installation and maintenance instructions, appendix B
23 Outdoor unit, indoor unit
►Installing the eBUS line
Condition: Refrigerant pipes with eBUS line
►Check whether the existing conductor cross-sections for the eBUS line are
sufficient for the planned line length.
Validity: Indoor unit
►Do not connect more than two eBUS lines to the plug on the control PCB.
3.6 Completing installation
→aroTHERM installation and maintenance instructions, from section 5.5 onwards
Work step Selected information/measures
24 Building
►Sealing the wall duct
►Seal the wall duct using a suitable sealing compound.
3.7 Starting up the system
→uniTOWER installation and maintenance instructions, from section 7.2 onwards
Work step Selected information/measures
1Heating circuit
►Filling and purging the heating installation
►Observe the requirements for the heating/filling and supplementary water.
2Outdoor unit
►Switching on the power supply
3Indoor unit
►Switching on the power supply
3.8 Implementing settings on the indoor unit's control
Explanation of the control elements and concept: →uniTOWER operating instructions, from section 3.4 onwards
Setting options in the installer level: →uniTOWER installation and maintenance instructions, appendix C
Menu path/entry Comment
−As soon as the indoor unit is supplied with power, the indoor unit's control starts up in the installation assistant. −
4To start the install. assistant, press OK Condition: Installation assistant not started
1. Press and twice at the same time.
2. Enter the competent person code 17.
3. Navigate to Start inst. assistant.
4. Press OK.
5Language ►Set the required language.
6Syst. control avail. ►No
7Im. heater outp. range ►If required, reduce the output of the back-up heater.
8Cooling technology Condition: Product with cooling mode
►Active cooling
9Limit. ODU current Condition: Reduced electrical fuse protection
►Reduce the power supply accordingly.
–Output 3.5–7 kW: 13–16 A
–Output 10–12 kW: 20–25 A
This reduction affects the output for the heating and domestic hot water at the
same time.

System without system control (0020253231) 3
0020243831_00 System assistant 11
Menu path/entry Comment
10 Check program: Purge building circuit ►No
11 Contact details:Telephone number ►Enter your telephone number:
–/ : Insert numbers from 0 to 9 and blank spaces
–/ : Navigate to the next/previous digit
12 End the installation assistant? ►Yes
−The required system settings have been implemented. −
13 Menu →Installer level →Fault list → ► Check the system for faults.
Condition: Fault present
►Troubleshooting: →uniTOWER installation and maintenance instructions, from
section 10.3 onwards
►Carry out sensor/actuator tests: Menu →Installer level →Test menu →
Sensor/actuator test →
−All displayed faults have been eliminated. The heating installation is adapted. –
14 Menu →Installer level →Configuration ►Configure the system in accordance with the end user's requirements.
15 DHW mode ECO: Compressor output control that is as efficient as possible (longer cylinder
charging time)
Normal: Balanced control (short cylinder charging time/maximum compressor
output)
16 Heating curve ►0.2–0.5: Underfloor heating
17 Summer cut-off temp. ►Setting in consultation with the end user
18 Bivalence point CH ►Setting in consultation with the end user
19 Bivalence point DHW ►Setting in consultation with the end user
20 Max flow temperature ►Max. 45 °C: Underfloor heating
21 Target flow temp.: Recommendation: Min. 18 °C
It was possible to fall below the dew point (mould formation).

4 System with system control (0020232127)
12 System assistant 0020243831_00
4 System with system control (0020232127)
4.1 Basic system diagram

System with system control (0020232127) 4
0020243831_00 System assistant 13
Wiring diagram

4 System with system control (0020232127)
14 System assistant 0020243831_00
4.2 Preparing for installation
→uniTOWER installation and maintenance instructions, from section 4.1 onwards
→aroTHERM installation and maintenance instructions, from section 4.1 onwards
→Accessory set-up instructions
Work step Selected information/measures
1Building
►Establishing a wall duct
2Installation site for the outdoor unit, indoor
unit
►Defining the installation site
►Comply with the specific conditions for the installation site and the installation
type.
Important planning dimensions:
–Maximum height difference between the outdoor unit and the indoor unit:
10 m
–Basic length of the refrigerant pipes: Minimum 3 m, maximum 25 m
–Minimum clearances and installation clearances:
→aroTHERM installation and maintenance instructions, from section 4.5
onwards
→uniTOWER installation and maintenance instructions, from section 4.5
onwards
3Outdoor unit
Condition: Depending on the installation
type/condition
►Establishing the strip foundations
►Mounting the wall bracket
►Procuring and installing other accessories
►Setting up/installing the product
Validity: VWL 105/5 AS, VWL 125/5 AS outdoor unit
►If required, use the transport belts that are supplied.
Condition: Establishing the strip foundations
►Ensure that the condensate discharge can be positioned in the centre above
the downpipe.
4Outdoor unit
►Installing the condensate discharge pipe
►Ensure that condensate does not reach paths (ice formation).
5Indoor unit
►Setting up the product
Condition: Optional accessory
►Installing the installation set (hydraulics)
►If required, separate the indoor unit into two modules.
►Remove and dispose of the carrying straps after the unit has been set up.
4.3 Installing the refrigerant circuit
→aroTHERM installation and maintenance instructions, from section 5.1 onwards
→uniTOWER installation and maintenance instructions, from section 5.1 onwards
Work step Selected information/measures
6Outdoor unit, indoor unit
►Preparing work on the refrigerant circuit
►Read all of the sections on working on the refrigerant circuit.
►Comply with the specified test pressures, waiting periods and instructions.
Tools and units:→aroTHERM installation and maintenance instructions, from
section 5.1 onwards
7Outdoor unit, indoor unit
►Routing the refrigerant pipes
►Ensure that there is sufficient vibration decoupling.
►Use a bending wrench and flexible springs in order to prevent kinks in the
pipeline.
►Keep the interior of the refrigerant pipes free from air humidity, dirt and
residue.
►Use a pipe cutter to cut the pipe to length.
►Always hold the pipe downwards during lengthening and deburring.
►Do not blow into the pipe (air humidity).
8Outdoor unit, indoor unit
►Connecting the refrigerant pipes
The outdoor unit is pre-filled with R410A refrigerant.
►Keep the isolation valves on the outdoor unit closed.
The indoor unit is filled with nitrogen.
►When unscrewing the flare nut, check whether you can hear the nitrogen
escaping.
9Outdoor unit
►Checking the refrigerant circuit for tightness
►Only carry out the leak-tightness test on the refrigerant pipes using dry nitro-
gen.
–Test pressure: 2.5 MPa (25 bar)
–Waiting period: 10 mins
►Use a leak detection spray to check the connections.

System with system control (0020232127) 4
0020243831_00 System assistant 15
Work step Selected information/measures
10 Outdoor unit
►Evacuating the refrigerant circuit
►Drain the nitrogen that was poured in.
►Connect a vacuum pump.
►Drain the refrigerant circuit in two rounds of 30 minutes each.
►After each round, check whether the pressure is stable:
–0.1 kPa (1.0 mbar) absolute pressure
11 Outdoor unit
►Adding additional refrigerant
Condition: Basic length of the refrigerant pipe > 15 m
►For each additional metre (above 15 m), add additional refrigerant:
–30 g/m for an output of up to 5 kW
–70 g/m for an output of 7 kW or higher
12 Outdoor unit
►Releasing the refrigerant
►Turn the isolation valves as far as they will go.
4.4 Installing the heating and domestic hot water circuit
→uniTOWER installation and maintenance instructions, from section 5.1 onwards
→Accessory set-up instructions
Work step Selected information/measures
13 Indoor unit
►Installing the domestic hot and cold water
connection
►Installing heating circuit connections
►Observe the connection symbols.
→uniTOWER installation and maintenance instructions, section 3.7
14 Heating circuit
►Connecting the buffer cylinder
►Connecting the bypass valve
15 Heating circuit
►Connecting the additional expansion vessel
Condition: The dimension of the installed expansion vessel is not sufficient
16 DHW circuit
►Connecting the expansion vessel
►Ensure that there is sufficient dimensioning.
►If required, adjust the pre-charge pressure.
17 DHW circuit
►Connecting a circulation pump
18 Safety devices
►Installing the safety devices
►Ensure that all of the required safety device have been installed in the sys-
tem.
4.5 Installing the electrical connections
→aroTHERM installation and maintenance instructions, from section 6.1 onwards
→uniTOWER installation and maintenance instructions, from section 6.1 onwards
→multiMATIC installation instructions, from section 4.1 onwards
→Accessory set-up instructions
Work step Selected information/measures
19 System control
►Connecting the system control
►Ideally, install the system control in a living room.
Conditions: Installation in the indoor unit's electronics box
►Install a separate humidity sensor.
20 Outdoor temperature sensor
►Connecting the outdoor temperature sensor
21 Outdoor unit
►Establishing the power supply
►Select a correct cable cross-section.
►Comply with the connection conditions for the energy supply company.
►Determine whether an electrical connection 1~/230 V or 3~/400 V (→data
plate) is required.
►Determine whether the power supply should be set up using a single-tariff
meter or a dual-tariff meter.
Condition: Depending on the installation site
►Install one or two type-B residual-current circuit breakers for the outdoor unit,
depending on the connection type.

4 System with system control (0020232127)
16 System assistant 0020243831_00
Work step Selected information/measures
22 Indoor unit
►Establishing the power supply
►Route the cables from the rear into the product and, from there, to the front
through the strain relief.
Condition: Depending on the installation site
►Install a type-A or type-B residual-current circuit breaker for the indoor unit.
23 Indoor unit, electrical house installation
►Installing components for the energy supply
company lockout function
Condition: Power supply via a dual-tariff meter
Option 1: Disconnect the power supply with contactor
Option 2: Actuating the ESC contact
→uniTOWER installation and maintenance instructions, section 6.4
24 Indoor unit
►Connecting a limit thermostat
►Connecting a circulation pump
►Observe the wiring diagram.
→uniTOWER installation and maintenance instructions, appendix B
25 Outdoor unit, indoor unit, system control,
communication unit
►Installing the eBUS line
Condition: Refrigerant pipes with eBUS line
►Check whether the existing conductor cross-sections for the eBUS line are
sufficient for the planned line length.
Validity: Indoor unit
►Do not connect more than two eBUS lines to the plug on the control PCB.
4.6 Completing installation
→aroTHERM installation and maintenance instructions, from section 5.5 onwards
Work step Selected information/measures
26 Building
►Sealing the wall duct
►Seal the wall duct using a suitable sealing compound.
4.7 Starting up the system
→uniTOWER installation and maintenance instructions, from section 7.2 onwards
Work step Selected information/measures
1Heating circuit
►Filling and purging the heating installation
►Observe the requirements for the heating/filling and supplementary water.
2Outdoor unit
►Switching on the power supply
3Indoor unit
►Switching on the power supply
4.8 Implementing settings on the indoor unit's control
Explanation of the control elements and concept: →uniTOWER operating instructions, from section 3.4 onwards
Setting options in the installer level: →uniTOWER installation and maintenance instructions, appendix C
Menu path/entry Comment
−As soon as the indoor unit is supplied with power, the indoor unit's control starts up in the installation assistant. −
4To start the install. assistant, press OK Condition: Installation assistant not started
1. Press and twice at the same time.
2. Enter the competent person code 17.
3. Navigate to Start inst. assistant.
4. Press OK.
5Language ►Set the required language.
6Syst. control avail. ►Yes
7Im. heater outp. range ►If required, reduce the output of the back-up heater.

System with system control (0020232127) 4
0020243831_00 System assistant 17
Menu path/entry Comment
8Cooling technology Condition: Product with cooling mode
►Active cooling
9Limit. ODU current Condition: Reduced electrical fuse protection
►Reduce the power supply accordingly.
–3.5–7 kW output: 13–16 A
–Output 10–12 kW: 20–25 A
This reduction affects the output for the heating and domestic hot water at the
same time.
10 Check program: Purge building circuit ►No
11 Contact details:Telephone number ►Enter your telephone number:
–/ : Insert numbers from 0 to 9 and blank spaces
–/ : Navigate to the next/previous digit
12 End the installation assistant? ►Yes
−The required system settings have been implemented. −
13 Menu →Installer level →Fault list → ► Check the system for faults.
Condition: Fault present
►Troubleshooting: →uniTOWER installation and maintenance instructions, from
section 10.3 onwards
►If required, carry out any relevant sensor/actuator tests: Menu →Installer
level →Test menu →Sensor/actuator test →
−All displayed faults have been eliminated. The heating installation is adapted. –
14 Menu →Installer level →Configuration ►Configure the system in accordance with the end user's requirements.
15 DHW mode ECO: Compressor output control that is as efficient as possible (longer cylinder
charging time)
Normal: Balanced control (short cylinder charging time/maximum compressor
output)
16 Noise reduction comp. Condition: Time programmes for noise reduction mode planned
►0: No reduction of the compressor output in noise reduction mode
►1 to 60: Reduction of the compressor output in noise reduction mode by a set
percentage value
Recommendation: 30%
Setting in the system control Noise reduction operation (→Page 18).
4.9 Configuring the settings on the system control
Explanation of the operating concept: →multiMATIC operating instructions, from section 4.1 onwards
Overview of the setting options in the installer level: →multiMATIC installation instructions, appendix B.1
Explanation of the operating and display functions: →multiMATIC installation instructions, from section 7.3 onwards
Menu path/entry Comment
−The system control starts the installation assistant in the query Language −
17 Language ►Set the required language.
Condition: Installation assistant (query Language) not started
1. Activate the system control using the rotary knob.
2. Press the two selection buttons at the same time for at least 10 seconds
(Reset to default setting? appears).
3. Set Everything →Yes.
18 Date ►Set the current date.
19 Time ►Set the current time.
20 Have the installation assistants for all sys-
tem components finished? Press OK to con-
firm
►OK

4 System with system control (0020232127)
18 System assistant 0020243831_00
Menu path/entry Comment
−A search for all active eBUS connections is started −
−The installation assistant automatically configures the system to the Components found.−
►Confirm each of the following configurations using OK:
21 Components found Control: System control
Heat pump 1: Outdoor unit
Add. module heat pump: Indoor unit
22 System diagram 8: Heat pump
23 Heating circuits and zones 1 direct HC: 1 non-regulated heating circuit
24 Additional module: MA2 function Circulation pump detected at multi-function output 2
−The required system settings have been implemented. −
−The unit starts up −
25 Inst.assist. finished. Continue with: ►System configuration
26 →Fault status ►Check the system for faults.
Condition: Fault present
►Troubleshooting: →multiMATIC installation instructions, appendix D.1
−All displayed faults have been eliminated. The heating installation is then adjusted. −
27 Menu →Installer level →System configura-
tion
►Configure the system in accordance with the end user's requirements.
System ----
28 OT constant heating Recommendation: -5 °C
29 Adaptive heat. curve Condition: Control installed in the living room
►Yes
30 Automatic cooling Condition: Product with cooling mode
►Yes
31 Start OT cooling Condition: Product with cooling mode
Recommendation: 24 °C.
32 Heat. bivalence point ►Setting in consultation with the end user
33 DHW bivalence point ►Setting in consultation with the end user
34 Energy supplier ►HP&BH off: Energy supply company lockout function for the heat pump and
back-up heater enabled
35 Noise reduction operation →Condition: Time programmes for noise reduction mode planned
►Set the desired time programmes.
►Ensure that the compressor output in noise reduction mode is reduced. Set-
ting in the indoor unit control Noise reduction comp. (→Page 17).
HEATING1 ----
36 Max limit outs.temp. Recommendation: 16 °C
Condition: Product with cooling mode
►Maintain a hysteresis for the previously set limit temperature value for cooling
mode (→System ---- Start OT cooling).
A hysteresis between two limit temperatures ensures that the installation does
not switch from heating mode into cooling mode.
37 Min. cool. fl. tgt temp. Recommendation: Min. 18 °C
It was possible to fall below the dew point (mould formation).
38 Heating curve ►0.2–0.5: Underfloor heating
ZONE1 ----
39 Anti-legionella day ►Set the desired day of the week.
40 Ch. pump overrun time Recommendation: 1 min
