Vaillant auroTHERM VTK 570/2 User manual

Installation and maintenance instructions
auroTHERM exclusive
VTK 570/2
VTK 1140/2
BE (fr), CH (fr), FR
Publisher/manufacturer
Vaillant GmbH
Berghauser Str. 40 D-42859 Remscheid
Tel. [phone] Fax [phone]
[email protected] www.vaillant.de

Contents
2Installation and maintenance instructions auroTHERM exclusive 0020077989_04
Contents
1 Safety .................................................................... 3
1.1 Action-related warnings ......................................... 3
1.2 Intended use.......................................................... 3
1.3 General safety information .................................... 3
1.4 Regulations (directives, laws, standards).............. 5
1.5 Accident prevention regulations ............................ 5
2 Notes on the documentation .............................. 6
2.1 Observing other applicable documents ................. 6
2.2 Storing documents................................................. 6
2.3 Validity of the instructions...................................... 6
3 Product description............................................. 6
3.1 Product overview ................................................... 6
3.2 Information on the data plate................................. 6
3.3 CE marking............................................................ 6
4 Set-up.................................................................... 6
4.1 Preparing on-roof mounting and flat-roof
installation.............................................................. 6
4.2 Preparing on-roof installation............................... 11
4.3 Preparing flat-roof installation.............................. 15
4.4 Installing collectors (on-roof) ............................... 22
4.5 Installing collectors (flat-roof)............................... 28
5 Installation.......................................................... 34
5.1 Establishing the hydraulic connections (on-
roof installation) ................................................... 34
5.2 Establishing the hydraulic connections (flat-
roof installation) ................................................... 34
5.3 Completing installation......................................... 35
6 Start-up ............................................................... 35
7 Handing over to the end user........................... 35
8 Troubleshooting ................................................ 35
8.1 Replacing defective components......................... 35
9 Inspection and maintenance ............................ 36
9.1 Checking the product for damage, dirt and
leaks .................................................................... 36
9.2 Check solar fluid .................................................. 36
9.3 Cleaning collectors .............................................. 36
9.4 Checking brackets and collector components
for firm seating..................................................... 37
9.5 Checking the pipe insulation for damage ............ 37
10 Decommissioning.............................................. 37
10.1 Temporarily decommissioning............................. 37
10.2 Permanently decommissioning............................ 37
11 Recycling and disposal..................................... 38
12 Customer service............................................... 38
Appendix ............................................................................ 39
A Inspection and maintenance work................... 39
B Efficiency and pressure loss............................ 39
C Technical data.................................................... 40
Index ................................................................................... 41

Safety 1
0020077989_04 auroTHERM exclusive Installation and maintenance instructions 3
1 Safety
1.1 Action-related warnings
Classification of action-related warnings
The action-related warnings are classified in
accordance with the severity of the possible
danger using the following warning signs and
signal words:
Warning symbols and signal words
Danger!
Imminent danger to life or risk of
severe personal injury
Danger!
Risk of death from electric shock
Warning.
Risk of minor personal injury
Caution.
Risk of material or environmental
damage
1.2 Intended use
There is a risk of injury or death to the user or
others, or of damage to the product and other
property in the event of improper use or use
for which it is not intended.
The Vaillant auroTHERM VTK
auroTHERM VTK tube collectors are used
for solar heating support and for solar-
supported domestic hot water generation.
The collectors must only…
–Be installed vertically. Horizontal installa-
tion is not permitted.
–Be operated with Vaillant ready-mixed
solar fluid (Tyfocor LS).
–Be combined with components (fastening,
connections, etc.) and installation compon-
ents that are supplied by Vaillant.
Installation of the collector in or on a vehicle
is not permissible and is considered im-
proper. Units that are not classed as vehicles
are those that are installed in a fixed and
permanent location (known as "fixed
installation").
Intended use includes the following:
–observance of accompanying operating,
installation and maintenance instructions
for the product and any other system com-
ponents
–installing and setting up the product in ac-
cordance with the product and system ap-
proval
–compliance with all inspection and main-
tenance conditions listed in the instruc-
tions.
Intended use also covers installation in ac-
cordance with the IP code.
Any other use that is not specified in these
instructions, or use beyond that specified in
this document, shall be considered improper
use. Any direct commercial or industrial use
is also deemed to be improper.
Caution.
Improper use of any kind is prohibited.
1.3 General safety information
1.3.1 Risk caused by inadequate
qualifications
The following work must only be carried out
by competent persons who are sufficiently
qualified to do so:
–Set-up
–Dismantling
–Installation
–Start-up
–Inspection and maintenance
–Repair
–Decommissioning
▶Proceed in accordance with current tech-
nology.
1.3.2 Risk of death due to falling collectors
▶Sufficiently secure all collectors from fall-
ing.
1.3.3 Risk of death caused by inadequate
fastening
The products may fall if they are not suf-
ficiently secured to the roof. Observe the
following information in order to install the
products securely:
▶Only install the products on a roof that has
adequate load-bearing capacity. Ensure
that a structural engineer has confirmed
the load-bearing capacity of the roof.

1 Safety
4Installation and maintenance instructions auroTHERM exclusive 0020077989_04
▶Clear out and sufficiently block off the
areas below the roof before the installa-
tion. Use signs, for example, to mark the
hazard area.
▶Only install the products using the fasten-
ing systems that are described in these
instructions.
▶Carry out all of the work steps as de-
scribed in these instructions.
1.3.4 Risk of death and material damage
due to contact corrosion
For roofs or façade sections made of metals
more precious than aluminium (e.g. copper
roofs), contact corrosion may occur on the
anchors. As a result, the anchors may buckle
and the products may fall.
▶Use suitable underlays to separate the
metals.
1.3.5 Risk of burns, scalds and frostbite
due to hot and cold components
There is a risk of burns and frostbite from
some components, particularly uninsulated
pipelines.
▶Only carry out work on the components
once they have reached environmental
temperature.
1.3.6 Risk of injury due to the heavy weight
of the product
▶Make sure that the product is transported
by at least two people.
1.3.7 Risk of burns caused by hot product
surfaces
The products become very hot when the sun
is shining. If you touch the products without
protection, you could burn yourself.
▶Ensure that the collectors are covered
before starting the installation.
▶Remove the sun protection film installed at
the factory only after the solar system has
been started up.
▶Avoid performing installation and mainten-
ance work under direct sunlight.
▶You should preferably perform the work in
the morning.
▶Wear suitable protective gloves.
1.3.8 Risk of injury due to breaking glass
The glass of the collectors may break due to
mechanical impact or torsion.
▶Wear suitable protective gloves.
▶Wear suitable protective goggles.
1.3.9 Material damage due to overvoltage
Overvoltage may damage the solar system.
▶Earth the solar circuit to provide equipoten-
tial bonding and overvoltage protection.
▶Secure the pipe clamps for earthing to the
pipelines.
▶Connect the pipe clamps for earthing to a
busbar using a 16 mm²copper cable.
1.3.10 Material damage due to lightning
Lightning may damage the solar system.
▶Connect the solar system to a lightning
protection device in accordance with the
applicable regulations.
1.3.11 Material damage due to snow falling
from roofs
If the solar system is installed below a slop-
ing roof, then snow falling from the roof may
damage the collectors.
▶Install snow guards above the solar sys-
tem as protection against falling snow.
1.3.12 Material damage caused by a high-
pressure cleaner
High-pressure cleaners may damage the
collectors due to the extremely high pressure.
▶Never clean the collectors with a high-
pressure cleaner.
1.3.13 Risk of material damage caused by
frost
Water residue in the collector may freeze in
frosty conditions and damage the collector.
▶Only fill and flush the solar circuit with our
ready-mixed solar fluid.
▶Check the solar fluid regularly with an anti-
freeze tester.
1.3.14 Risk of material damage caused by
using an unsuitable tool
▶Use the correct tool.

Safety 1
0020077989_04 auroTHERM exclusive Installation and maintenance instructions 5
1.4 Regulations (directives, laws,
standards)
▶Observe the national regulations, stand-
ards, directives, ordinances and laws.
1.5 Accident prevention regulations
▶Observe all regulations that ensure safe
work when mounting collectors at the ap-
propriate heights.

2 Notes on the documentation
6Installation and maintenance instructions auroTHERM exclusive 0020077989_04
2 Notes on the documentation
2.1 Observing other applicable documents
▶Always observe all the operating and installation instruc-
tions included with the system components.
2.2 Storing documents
▶Pass these instructions and all other applicable docu-
ments on to the end user.
2.3 Validity of the instructions
These instructions apply only to:
Product article number
VTK 570/2 0010002225
VTK 1140/2 0010002226

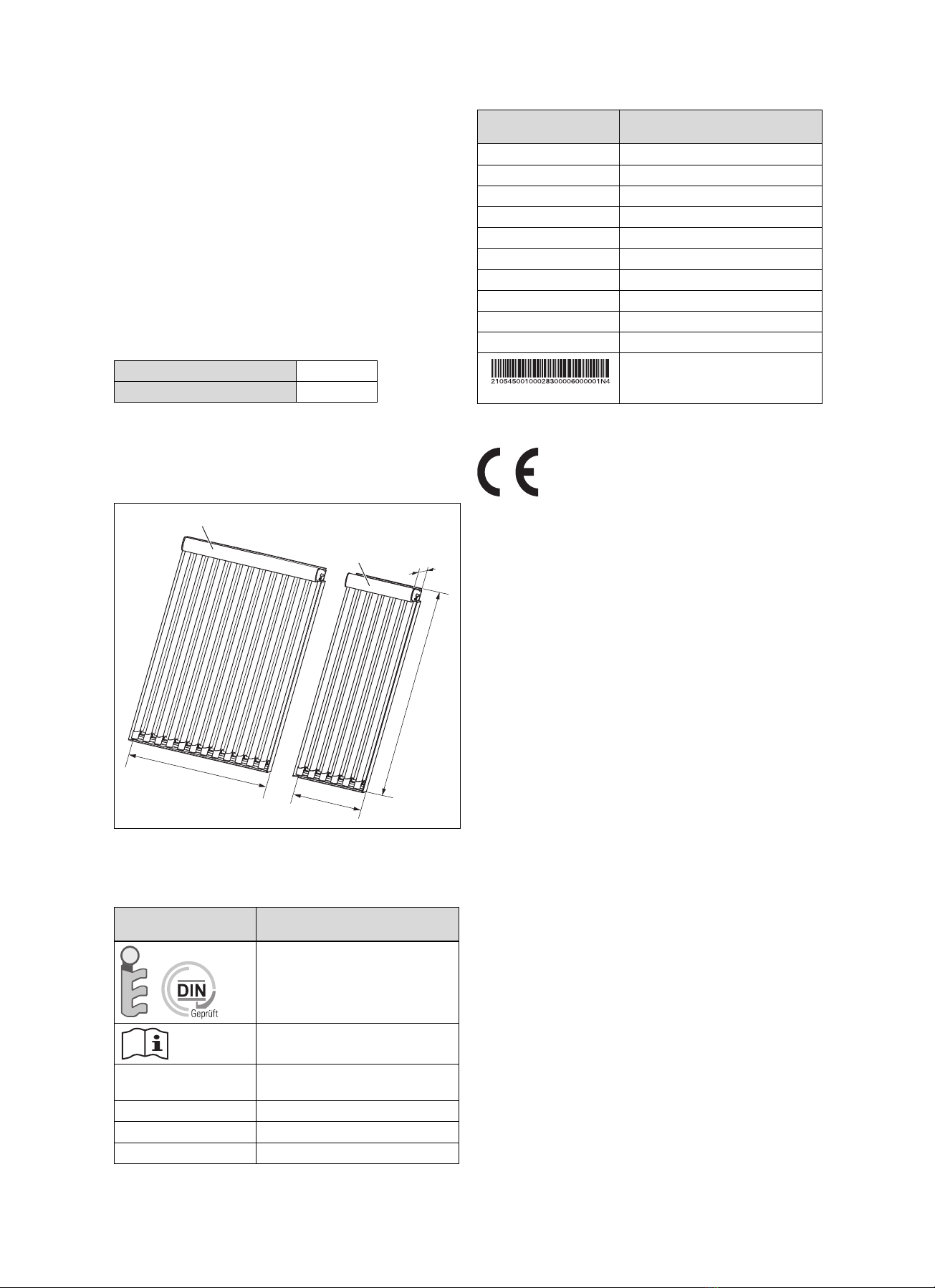

3 Product description
3.1 Product overview
1
2
702
1392
1652
111
1 VTK 1140/2 2 VTK 570/2
3.2 Information on the data plate
Information on the data
plate
Meaning
Solar Keymark:
The collectors have been success-
fully tested according to the rules
and requirements for the Solar Key-
mark.
Read the set-up instructions.
VTK 570/2
VTK 1140/2
Type designation
VTK Vaillant tube collector
570, 1140 Collector output
/2 Unit generation
Information on the data
plate
Meaning
auroTHERM exclusive Unit type
Vacuum tube collector Tube collector
AG Gross area
AA Aperture surface area
VF Liquid volume
m Weight
l Dimensions
Qmax Max. output
tstgf Stagnation temperature
Pmax Max. permissible operating pressure
Barcode with serial number
The 7th to 16th digits of the serial
number form the article number
3.3 CE marking
The CE marking shows that the products comply with the
basic requirements of the applicable directives as stated on
the data plate.
The declaration of conformity can be viewed at the manufac-
turer's site.
4 Set-up
4.1 Preparing on-roof mounting and flat-roof
installation
4.1.1 Storing the product
▶To prevent moisture from penetrating into the collector,
always store the collectors dry and in a weatherproof
area.
4.1.2 Transporting the product
1. To protect the collectors against damage, always trans-
port them when they are in a horizontal position.
2. To transport packaged collectors, use the carrying
loops that are punched into the cardboard packaging.
3. To transport unpackaged collectors, use the retaining
straps that are attached to the sides.
4. To transport the collectors to the roof, use a crane, in-
clined lift or similar equipment.

Set-up 4
0020077989_04 auroTHERM exclusive Installation and maintenance instructions 7
4.1.3 Checking the scope of delivery (on-roof installation)
1
3
2
5
8
9
10
7
11
12
4
6
List of materials for on-roof installation
1 VTK 1140/2 rail set, 2 units
2 VTK 570/2 rail set, 2 units
3 VTK 570/2 tube collector, 1 unit
4 VTK 1140/2 tube collector, 1 unit
5 VTK installation set (basic set), 1 unit
6 VTK installation set (extension set), 1 unit
7 Stop valve, 2-way VTK for parallel connection, 1 unit
8 Roof bracket type P (for pantile) from the basic set,
4 units
Roof bracket type P (for tile) from extension set, on
top of each other, 2 units
9 Roof bracket type S (for beaver tail, etc.) (basic set),
4 units
Roof bracket type S (for beaver tail, etc.) (extension
set, on top of each other), 2 units
10 Roof bracket type S, flat, (for beaver tail, etc.) from
the basic set, 4 units
Roof bracket type S, flat (for beaver tail, etc.) from
extension set, on top of each other, 2 units
11 Hanger bolt fastening set from the basic set, 4 units
Hanger bolt fastening set from extension set, on top
of each other, 2 units
12 Long base, hook type P, 4 units
▶Use the illustration to check that the installation sets are complete.
Note
Not all roof anchor types are available in all countries.

4 Set-up
8Installation and maintenance instructions auroTHERM exclusive 0020077989_04

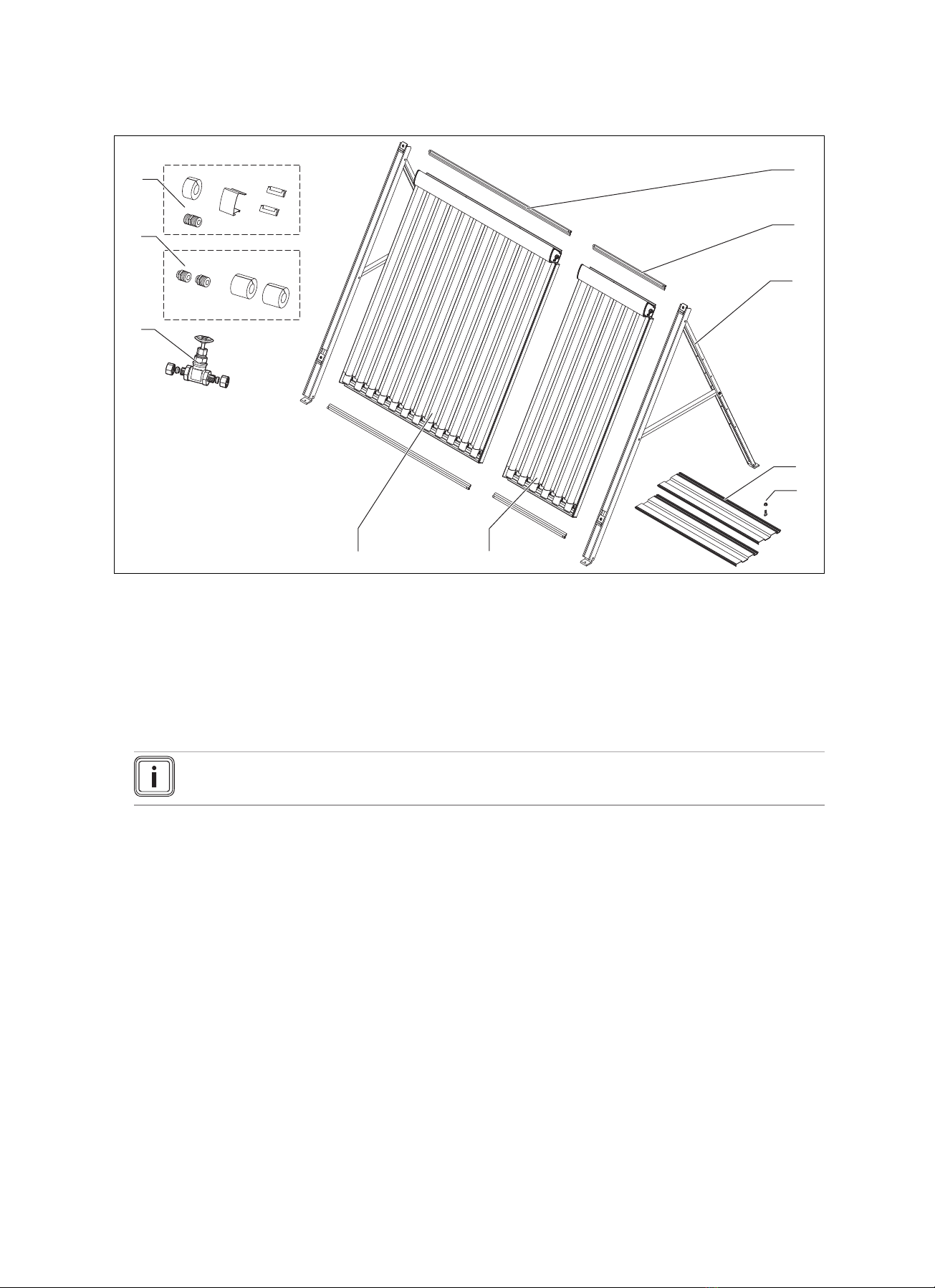

4.1.4 Checking the scope of delivery (flat-roof installation)
1
2
3
76
8
9
10
5
4
List of materials for flat-roof installation
1 VTK 1140/2 rail set, 2 units
2 VTK 570/2 rail set, 2 units
3 Frame set, 1 unit
4 Load plates from load plate set, 4 units
5 Hammer-head bolt and nut from load plate set,
2 units
6 VTK 570/2 tube collector, 1 unit
7 VTK 1140/2 tube collector, 1 unit
8 Stop valve, 2-way VTK for parallel connection, 1 unit
9 VTK installation set (basic set), 1 unit
10 VTK installation set (extension set), 1 unit
▶Use the illustration to check that the installation sets are complete.
Note
Not all roof anchor types are available in all countries.

Set-up 4
0020077989_04 auroTHERM exclusive Installation and maintenance instructions 9
4.1.5 Complying with clearances and installation
clearances
Condition: On-roof installation
▶In order to install the collectors correctly, you must main-
tain (→Page 14)the clearances and installation clear-
ances that are necessary for pitched roofs.
Condition: Flat-roof installation
▶When installing the products on flat roofs, maintain a
clearance of at least 1 m from the edge of the roof in
order to avoid particularly strong wind forces along the
edge of the roof.
4.1.6 Selecting suitable connection
▶Observe the planning information when designing the
flow rate for the array (if available).
▶Select the appropriate connection for the collectors.
▶Ensure that the solar fluid flows through the collectors
either from left to right or from right to left.
Condition: Number of VTK 1140/2 collectors: 1 … 7
max. 7 x VTK 1140/2
▶Switch up to 7 VTK 1140/2 units in series (according to
the 14 m²aperture surface area).
Condition: Parallel connection, aperture surface area: ≤7 m²
▶Always connect as many collectors as possible in series,
even when several collector rows are arranged on top of
each other.
Note
Up to an aperture surface area of 7 m²
(accordingly for 3 pcs VTK 1140/2 + 1 pc
VTK 570/2), you must switch the collectors in
series.
Condition: Parallel connection, aperture surface area: ≥14 m²
▶Set up several parallel collector rows and connect these
hydraulically in parallel.
▶Always connect as many collectors (at least 7 m²) as
possible in series.

4 Set-up
10 Installation and maintenance instructions auroTHERM exclusive 0020077989_04
Condition: Parallel connection
▶To avoid pressure losses in the sub-collector fields, only
use parallel connection for collector rows with the same
number of collectors.
▶Ensure that each sub-collector field has the same total
pipe length in the flow and return (Tichelmann system), in
order to avoid pressure losses in the connection pipes.

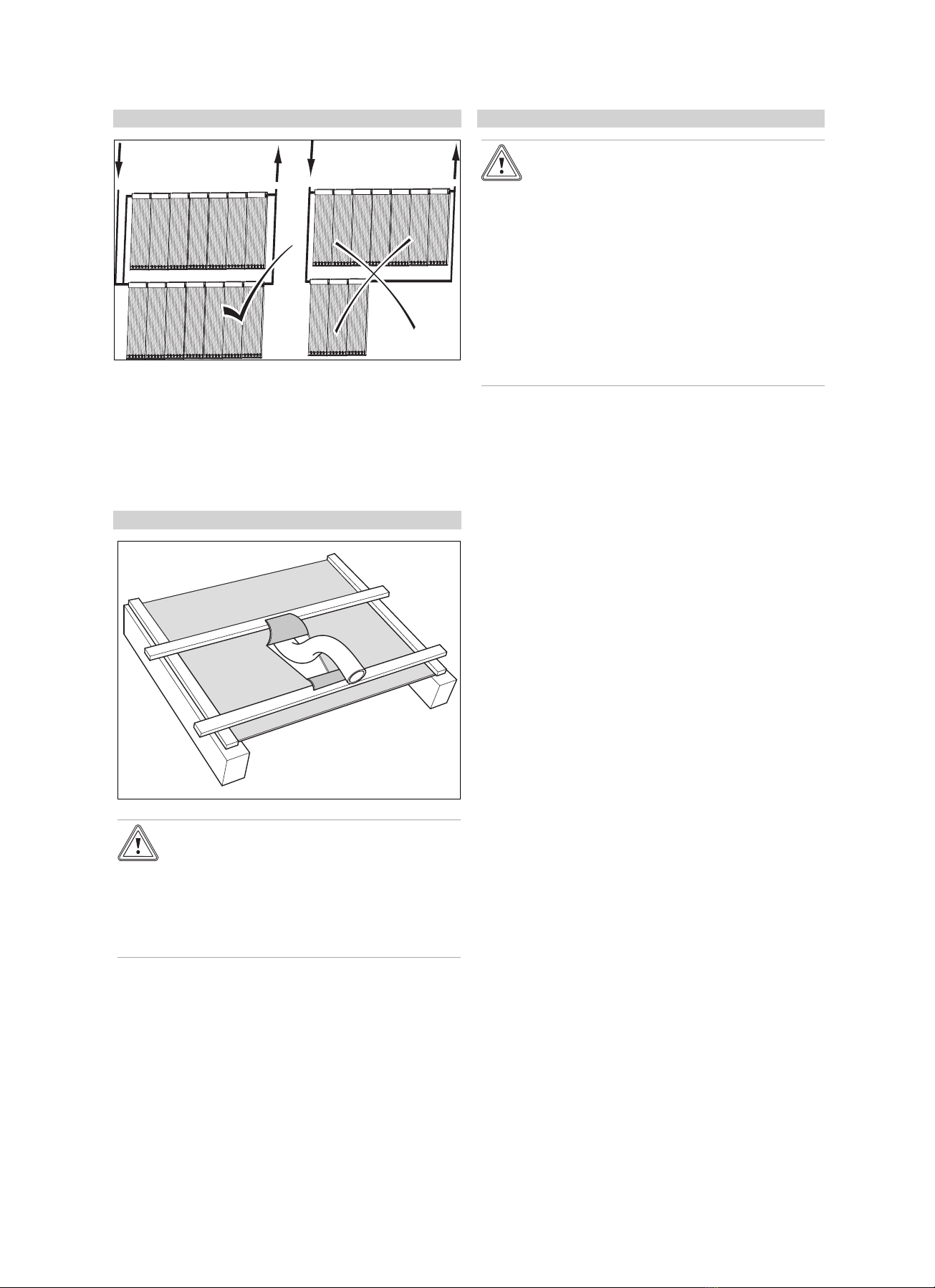

4.1.7 Preparing the roof duct
Condition: On-roof installation
Caution.
Building damage due to penetrating wa-
ter.
If the roof duct is not prepared properly, wa-
ter may penetrate the building interior.
▶Ensure that the roof duct is prepared
properly.
▶Make a v-shaped cut in the roofing felt membrane.
▶Fold the upper, wider flap onto the roof batten above,
and fold the lower, narrower flap onto the roof batten
below.
▶Fix the roofing felt membrane tight to the roof batten, so
that any moisture runs off to the side.
Condition: Flat-roof installation
Caution.
Lack of tightness due to destruction of
the roof skin.
In the event of destruction of the roof skin,
water may penetrate the building.
▶Ensure adequate protection of the roof
skin during installation on roof sealing
surfaces.
▶Place large-area building protection mats
underneath the installation system.
▶After installation, check the tightness of
the building shell where there are directly
connected racks.
▶Commission a roofer to prepare the roof duct.

Set-up 4
0020077989_04 auroTHERM exclusive Installation and maintenance instructions 11
4.2 Preparing on-roof installation
4.2.1 Putting together components
Note
In the case of roof batten clearances of ≥460 mm, the 2-row and 3-row installations are not possible. In this case,
you can install the 2 or 3 rows individually (without using the same central roof anchor).
Not all roof anchor types are available in all countries.
Condition: Collector rows: 1
▶Use the following tables to put together the components for installation.
Number of VTK 1140/2 collectors 1 2 3 4 5 6 7
Components Required sets
VTK installation set (basic set) 11
VTK installation set (extension set) −1 2 3 4 5 6
Roof anchor set type P (tile)
12223242526272
Roof anchor set type S (shingle)
Roof bracket set type S, flat (slate)
Roof anchor set, hanger bolt
Rail set (2 pcs), VTK 1140/2 1 2 3 4 5 6 7
11 set for connecting to the pipelines; the collectors are connected together using the extension set
2valid up to 700 m above sea level
Number of VTK 1140/2 collectors 1 2 3 4 5 6
Number of VTK 570/2 collectors 1 1 1 1 1 1
Components Required sets
VTK installation set (basic set) 11
VTK installation set (extension set) 1 2 3 4 5 6
Roof anchor set type P (tile)
223242526272
Roof anchor set type S (shingle)
Roof bracket set type S, flat (slate)
Roof anchor set, hanger bolt
VTK 1140/2 rail set 1 2 3 4 5 6
VTK 570/2 rail set 1
11 set per row for connecting to the pipelines; the collectors are connected together using the extension set
2valid up to 700 m above sea level

4 Set-up
12 Installation and maintenance instructions auroTHERM exclusive 0020077989_04
Condition: Collector rows: 2
A
B
A
▶Use the following table to put together the components for installation.
Number of VTK 1140/2 collectors per row 1 2 3 4 5 6 7
Components Required sets
VTK installation set (basic set) 21
VTK installation set (extension set) −2 4 6 8 10 12
Roof bracket set type P (pantile)
A12223242526272
Roof bracket set type S (slate)
Roof bracket set type S, flat (slate)
Roof anchor set, hanger bolt
Roof bracket set type P (pantile)
B12223242526272
Roof bracket set type S (slate)
Roof bracket set type S, flat (slate)
Roof anchor set, hanger bolt
Rail set (2 pcs), VTK 1140/2 2 4 5 6 10 12 14
11 set per row for connecting to the pipelines; the collectors are connected together using the extension set –if the rows are also
connected together so that they are flat-sealed.
2Valid up to 700 m above sea level

Set-up 4
0020077989_04 auroTHERM exclusive Installation and maintenance instructions 13
Condition: Collector rows: 3
A
B
B
A
▶Use the following table to put together the components for installation.
Number of VTK 1140/2 collectors per row 1 2 3 4 5 6 7
Components Required sets
VTK installation set (basic set) 31
VTK installation set (extension set) −3 6 9 12 15 18
Roof bracket set type P (pantile)
A12223242526272
Roof bracket set type S (slate)
Roof bracket set type S, flat (slate)
Roof bracket set type P (pantile)
B2242628210 212 214 2
Roof bracket set type S (slate)
Roof bracket set type S, flat (slate)
Rail set (2), VTK 1140/2 3 6 9 12 15 18 21
11 set per row; the collectors are connected together using the extension set –if the rows are also connected together so that
they are flat-sealed.
2Valid up to 700 m above sea level

4 Set-up
14 Installation and maintenance instructions auroTHERM exclusive 0020077989_04
4.2.2 Determining the number of required roof
anchors
1. Ask the local building authority for the regional max-
imum snow load sk.
Condition: Maximum snow load: ≤3 kN/m²
▶Install 4 roof anchors per collector.
Condition: Maximum snow load: 3 … 4.5 kN/m²
▶Install 6 roof anchors per collector.
Condition: Maximum snow load: > 4.5 kN/m²
▶Compile statistics for the individual case.
▶Ensure that the maximum permissible snow load per
collector is 5.4 kN/m².
Note
The maximum permissible load per roof an-
chor type S/type P is: Fmax. = 1.875 kN.
2. If you are using extension sets, ensure that the roof
anchor is positioned centrally with equal clearances.

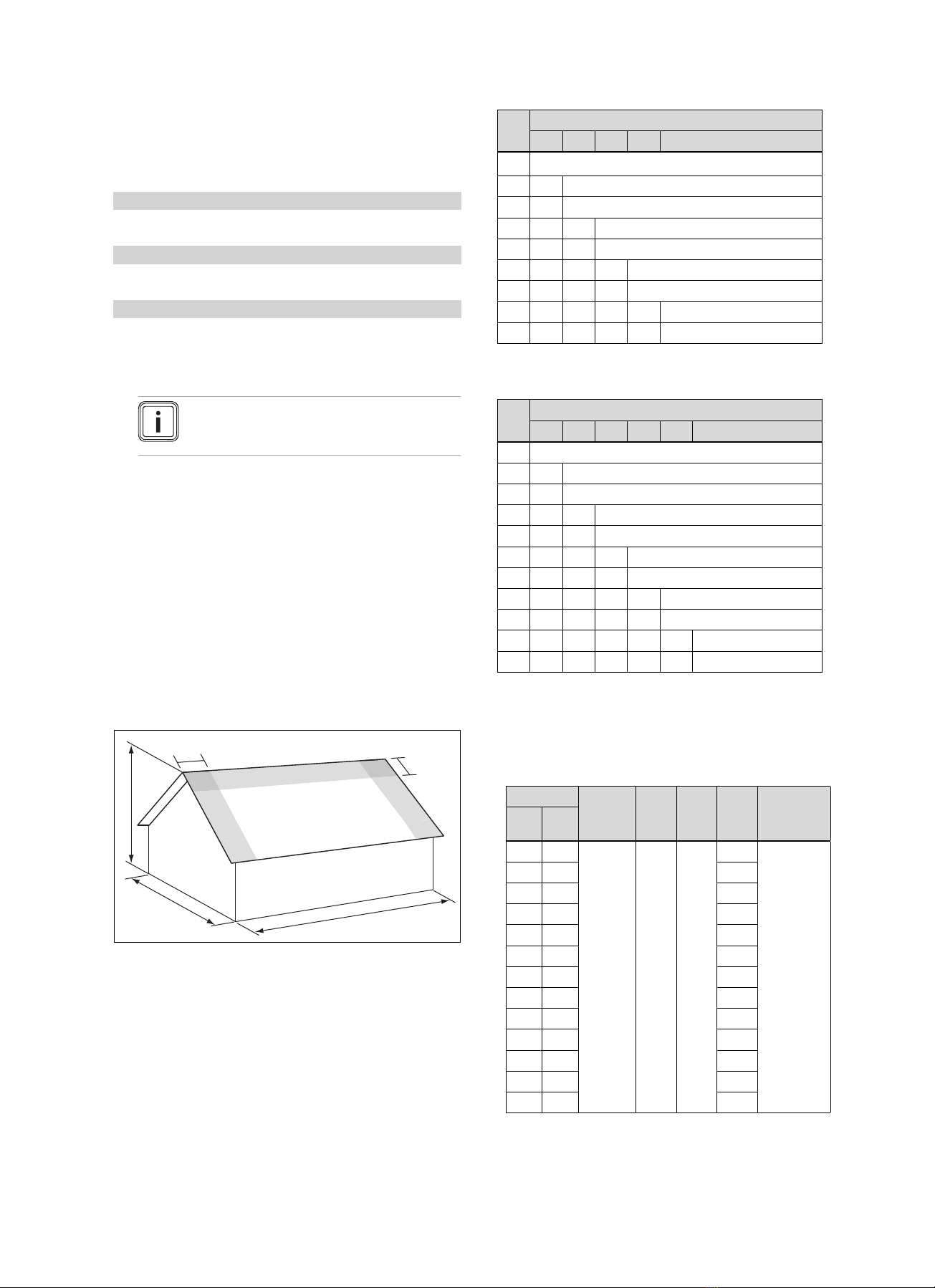

4.2.3 Defining the edge clearances of the roof
anchors
Maximum lift points caused by wind loads can occur at
the cut-away edges of wall and roof areas (e.g. verge and
eaves). These maximum lift points result in high loads on the
collectors and installation systems.
Areas in which lift points occur are called edge areas. Corner
areas are zones in which edge areas overlap and especially
high pull forces occur.
Edge and corner areas must not be used as installation
areas.
e2
e1
h
b
l
b Building width
h Building height
l Building length
e1 Edge clearance eshort
e2 Edge clearance elong
▶Calculate the building width w, building height h and
building length l.
▶The values for the side edge clearances that are to be
observed can be found in the following table:
b
[m]
h [m]
5 6 7 8 9–15
8–10 1.0
11 1.0 1.1
12 1.0 1.2
13 1.0 1.2 1.3
14 1.0 1.2 1.4
15 1.0 1.2 1.4 1.5
16 1.0 1.2 1.4 1.6
17 1.0 1.2 1.4 1.6 1.7
18 1.0 1.2 1.4 1.6 1.8
▶The values for the edge clearances that are to be ob-
served to the roof ridge can be found in the following
table:
l
[m]
h [m]
5 6 7 8 9 10–15
10 1.0
11 1.0 1.1
12 1.0 1.2
13 1.0 1.2 1.3
14 1.0 1.2 1.4
15 1.0 1.2 1.4 1.5
16 1.0 1.2 1.4 1.6
17 1.0 1.2 1.4 1.6 1.7
18 1.0 1.2 1.4 1.6 1.8
19 1.0 1.2 1.4 1.6 1.8 1.9
20 1.0 1.2 1.4 1.6 1.8 2.0
▶When installing the roof anchors, observe the calculated
edge clearances.
4.2.4 Defining the roof anchor clearances
1. Define the clearances of the roof anchors using the
following table:
Quantity
A B C D E
VTK
570
VTK
1140
‑1
1663 * /
1638 **
100–
200
VTK
1140:
997–
1197
—
VTK
570:
507–
607
1397
Two rows:
3322
—
Three
rows: 5006
‑22794
‑34191
‑45588
‑56985
‑68382
‑79779
1 1 2104
1 2 3501
1 3 4898
1 4 6295
1 5 7692
1 6 8382

Set-up 4
0020077989_04 auroTHERM exclusive Installation and maintenance instructions 15
Condition: One collector row
A
C
D
B B B B
A
A
▶Install the roof anchor with sufficient play.
–Pre-installation dimension (*): = Finished installation
dimension (**) + 20-25 mm
Condition: More than one collector row
E
A
A
C
D
B B B B
AE
A
E
▶Install the roof anchor with sufficient play.
–Pre-installation dimension (*): = Finished installation
dimension (**) + 20-25 mm
4.3 Preparing flat-roof installation
4.3.1 Selecting the installation variant
A
B
C
A Floating installation with
load plates and loading
weights.
B Floating installation
without load plates. The
rack must be screwed
onto suitable loading
weights.
C Rack screwed directly
onto the roof.
▶Make a selection from the three available installation
variants.

4 Set-up
16 Installation and maintenance instructions auroTHERM exclusive 0020077989_04
4.3.2 Putting together components
▶Use the following tables to put together the components
for installation.
Number of VTK
1140/2 collectors
1234567
Components Number of required sets
VTK installation set (basic
set) 11)
VTK installation set (exten-
sion set) −123456
Installation set for open-
air/flat-roof installation 2345678
Required rack 2345678
Rail set (2 pcs), VTK
1140/2 1234567
1) 1 set each per collector field for connecting to the
pipelines; the collectors are connected together using the
extension set
Number of VTK
1140/2 collectors
1 2 3 4 5 6
Number of VTK
570/2 collectors
1 1 1 1 1 1
Components Number of required sets
VTK installation set (basic set) 11)
VTK installation set (extension
set) 123456
Installation set for open-air/flat-
roof installation 345678
Required rack 345678
Rail set (2 pcs), VTK 1140/2 123456
Rail set (2 pcs), VTK 570/2 1
1) 1 set each per collector field for connecting to the
pipelines; the collectors are connected together using the
extension set

Set-up 4
0020077989_04 auroTHERM exclusive Installation and maintenance instructions 17
4.3.3 Determining the ballast load (floating installation)
Danger!
Risk of death and material damage due to excessive basic wind speeds!
The racks are designed for basic wind speeds of up to 108 km/h. If the basic wind speed at the site is
greater than 108 km/h, then there can be no guarantee claim for the system.
▶Only install the rack in locations where the basic wind speed is a maximum of 108 km/h.
1. Please note the following for floating installation:
Installation variants Please note
B
Weights that are firmly screwed onto the
rack must consist of material capable of
screw connections.
A and B All weights must be weatherproof.

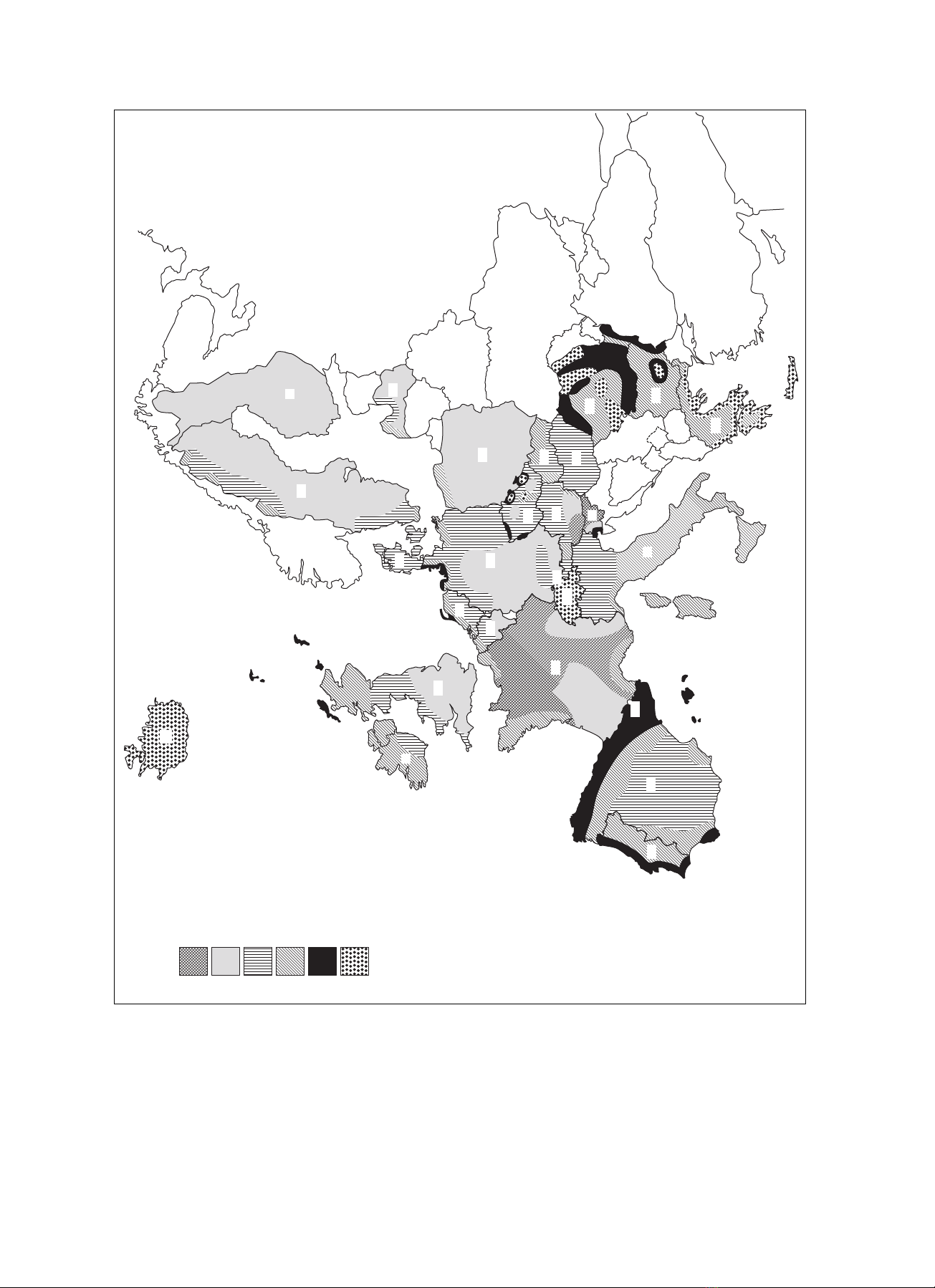

2. For quick determination of the basic wind speed at the site, use the following map.
3. For quick dimensioning of the required weights, use the following tables.
Note
Detailed dimensioning of the ballast loads is only possible using the Vaillant tool for dimensioning the wind
and snow loads. If you have any questions on this subject, contact your responsible Vaillant sales partner.

4 Set-up
18 Installation and maintenance instructions auroTHERM exclusive 0020077989_04
IS
IE
SE
FI
GB
BE DE PL
CH
AT
CZ
HU
SK
SI HR
BA RS
RO
BG
MK
ME
TR
GR
AL
NL
PT ES
FR
IT
NO
DK
BY
UA
MD
EE RU
LV
LT
LU
AD
< 72 km/h < 81 km/h < 90 km/h < 99 km/h < 108 km/h > 108 km/h
4. Use the map to determine the basic wind speed at the site.

Set-up 4
0020077989_04 auroTHERM exclusive Installation and maintenance instructions 19
L1
L2
.............
.............
L1
L2
L1
L1 ½
L1
½
L2
½
L2
½
L2
5. Use the tables to determine the required weights.
Vertical collector position
Installation angle 30°
Weights/rack [kg]
L1
L2
To secure against sliding and
lifting
To secure only against lifting
(if secured/anchored against
sliding)
Note
If the collectors are also anchored using steel ropes from the installation set
for the storm protection, the reduced weights can only be used to protect
against lifting.
When there are at least two collectors in a row, the ballast loads can be re-
duced by half for the outer rack.
Basic wind speed [km/h] Store
Building height Building height
up to 10
m
10-18 m 18-25 m up to 10
m
10-18 m 18-25 m
up to 72 Inland L₁
L₂
301
167
378
213
429
244
44
167
40
213
70
244
up to 72 Coast and islands L₁
L₂
413
234
487
279
534
307
67
234
81
279
90
307
up to 81 Inland L₁
L₂
357
201
469
268
544
313
56
201
78
268
92
313
up to 81 Coast and islands L₁
L₂
527
303
621
359
680
395
89
303
108
359
119
395
up to 90 Inland L₁
L₂
469
268
581
335
656
380
78
268
100
335
115
380
up to 90 Coast and islands L₁
L₂
619
358
731
425
806
470
107
358
129
425
144
470
up to 99 Inland L₁
L₂
581
335
694
403
806
470
100
335
122
403
144
470
up to 99 Coast and islands L₁
L₂
768
448
881
515
955
560
137
448
159
515
174
560
up to 108 Inland L₁
L₂
694
403
843
492
955
560
122
403
152
492
174
560
up to 108 Coast and islands L₁
L₂
918
537
1030
605
1143
672
166
537
188
605
211
672

4 Set-up
20 Installation and maintenance instructions auroTHERM exclusive 0020077989_04

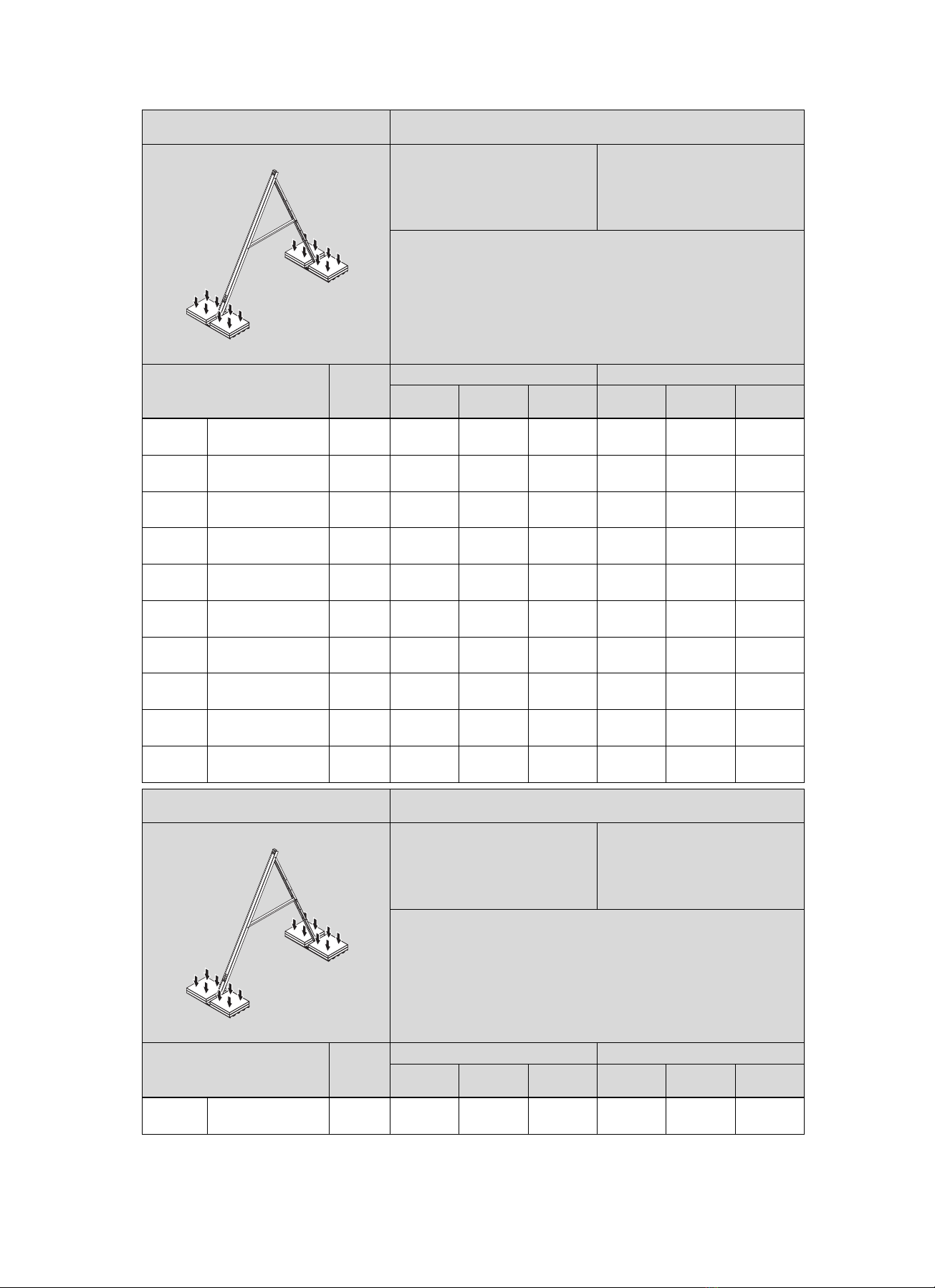

Vertical collector position
Installation angle 45°
Weights/rack [kg]
L1
L2
To secure against sliding and
lifting
To secure only against lifting
(if secured/anchored against
sliding)
Note
If the collectors are also anchored using steel ropes from the installation set
for the storm protection, the reduced weights can only be used to protect
against lifting.
When there are at least two collectors in a row, the ballast loads can be re-
duced by half for the outer rack.
Basic wind speed [km/h] Store
Building height Building height
up to 10
m
10-18 m 18-25 m up to 10
m
10-18 m 18-25 m
up to 72 Inland L₁
L₂
321
191
401
245
454
281
30
173
30
220
30
251
up to 72 Coast and islands L₁
L₂
437
270
513
321
562
354
30
241
30
286
30
314
up to 81 Inland L₁
L₂
379
230
495
309
572
361
30
207
30
275
30
320
up to 81 Coast and islands L₁
L₂
555
350
652
415
713
4547
30
310
30
366
30
402
up to 90 Inland L₁
L₂
495
309
611
388
688
440
30
275
30
342
30
388
up to 90 Coast and islands L₁
L₂
650
414
766
493
843
545
30
365
30
433
30
478
up to 99 Inland L₁
L₂
611
388
727
466
843
545
30
342
30
410
30
478
up to 99 Coast and islands L₁
L₂
804
519
920
598
998
650
30
455
30
523
30
568
up to 108 Inland L₁
L₂
727
466
882
571
998
650
30
410
30
500
30
568
up to 108 Coast and islands L₁
L₂
959
624
1075
703
1191
781
30
546
30
613
34
681
Vertical collector position
Installation angle 60°
Weights/rack [kg]
L1
L2
To secure against sliding and
lifting
To secure only against lifting
(if secured/anchored against
sliding)
Note
If the collectors are also anchored using steel ropes from the installation set
for the storm protection, the reduced weights can only be used to protect
against lifting.
When there are at least two collectors in a row, the ballast loads can be re-
duced by half for the outer rack.
Basic wind speed [km/h] Store
Building height Building height
up to 10
m
10-18 m 18-25 m up to 10
m
10-18 m 18-25 m
up to 72 Inland L₁
L₂
297
267
372
339
421
387
30
179
30
225
37
256
