VALCOBABY HEATRITE ES Series Manual

WARNING
FOR YOUR SAFETY
If you smell gas:
1. Open windows.
2. DO NOT try to light any appliance.
3. DO NOT use electrical switches.
4. DO NOT use any telephone in
your building.
5. Extinguish any open flame.
6. Leave the building.
7. Immediately call your local gas
supplier after leaving the building.
Follow the gas supplier’s
instructions.
8. If you cannot reach your gas
supplier, call the Fire Department.
Fire Hazard
Keep all flammable objects, liquids and
vapors the minimum required clear-
ances to combustibles away from
heater.
Some objects will catch fire or explode
when placed close to heater.
Failure to follow these instructions can
result in death, injury or property
damage.
WARNING
Installation must be done by a contractor qualified
in the installation and service of gas-fired heating
equipment or your gas supplier.
Improper installation, adjustment, alteration, service
or maintenance can result in death, injury or
property damage. Read the Installation, Operation
and Service Manual thoroughly before installing or
servicing this equipment.
Installer
Please take the time to read and understand
these instructions prior to any installation.
Installer must give a copy of this manual to the owner.
Owner
Keep this manual in a safe place in order to provide
your service technician with necessary information.
Val-Co
210 E. Main Street
P.O. Box 117
Coldwater, OH 45828 USA
Telephone: [phone]
Fax: [phone]
www.val-co.com
P/N VES36100NA Rev D 05/18
Gas Fired, Low Intensity
Unitary Heater
Installation, Operation &
Service Manual
ES-40
ES-60
ES-80
ES-100
ES-125
ES-150
ES-175
© 2018 Roberts-Gordon LLC
ES

© 2018
Roberts-Gordon LLC
All rights reserved. No part of this work covered by the copyrights herein may be reproduced
or copied in any form or by any means - graphic, electronic, or mechanical, including
photocopying, recording, taping or information storage and retrieval systems - without the
written permission of Roberts-Gordon LLC.
TABLE OF CONTENTS
SECTION 1: Heater Safety...................................................... 1
1.1 Manpower Requirements ............................................. 1
1.2 Safety Labels and Their Placement ............................. 1
1.3 California Proposition 65 ..............................................1
SECTION 2: Installer Responsibility .....................................4
2.1 Wall Tag ....................................................................... 4
2.2 Corrosive Chemicals.................................................... 4
2.3 National Standards and Applicable Codes .................. 4

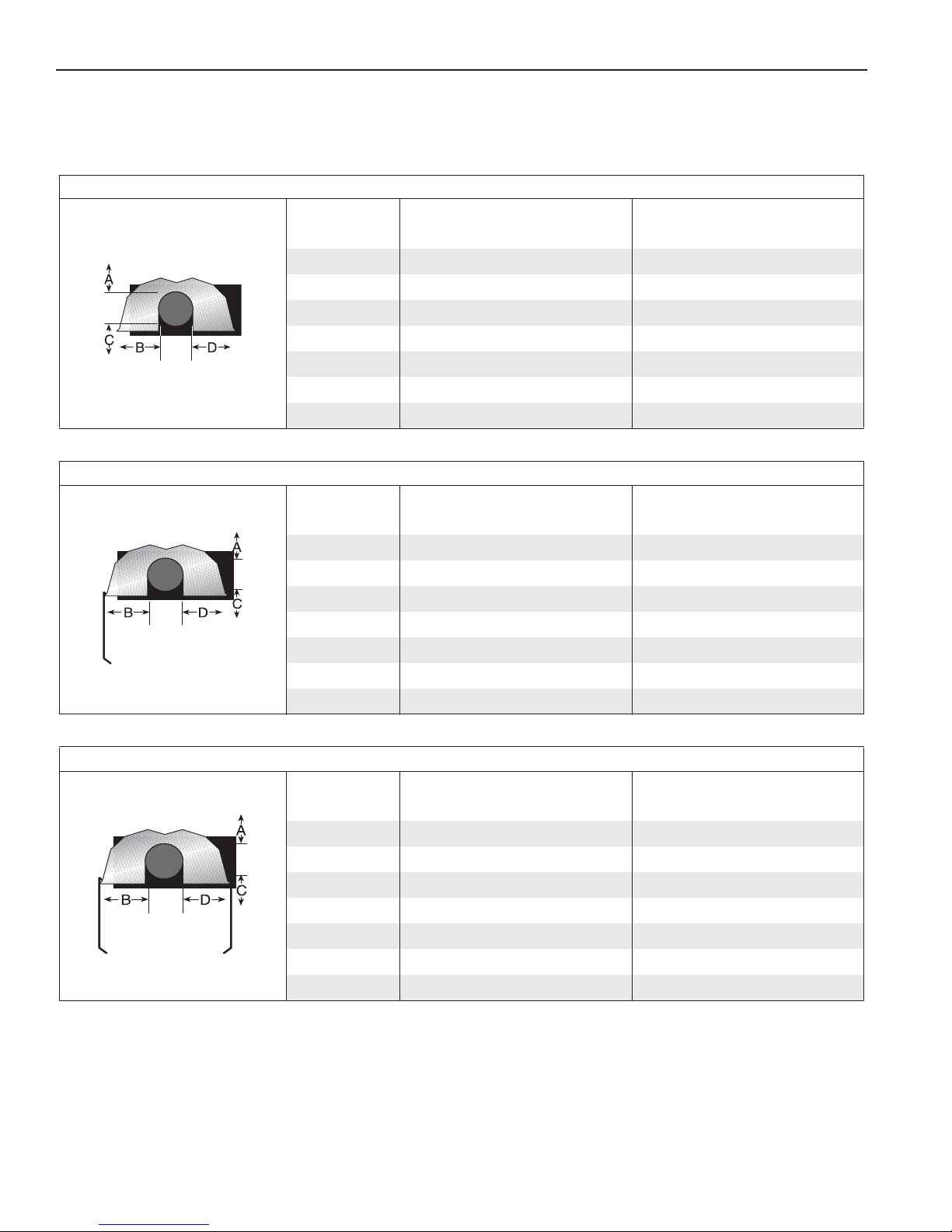

SECTION 3: Clearances to Combustibles............................. 5
3.1 Required Clearances to Combustibles......................... 5
SECTION 4: National Standards and Applicable Codes ..... 8
4.1 Gas Codes................................................................... 8
4.2 Aircraft Hangars ........................................................... 8
4.3 Public Garages ............................................................ 8
4.4 Electrical ...................................................................... 8
4.5 Venting......................................................................... 8
4.6 High Altitude ................................................................ 8

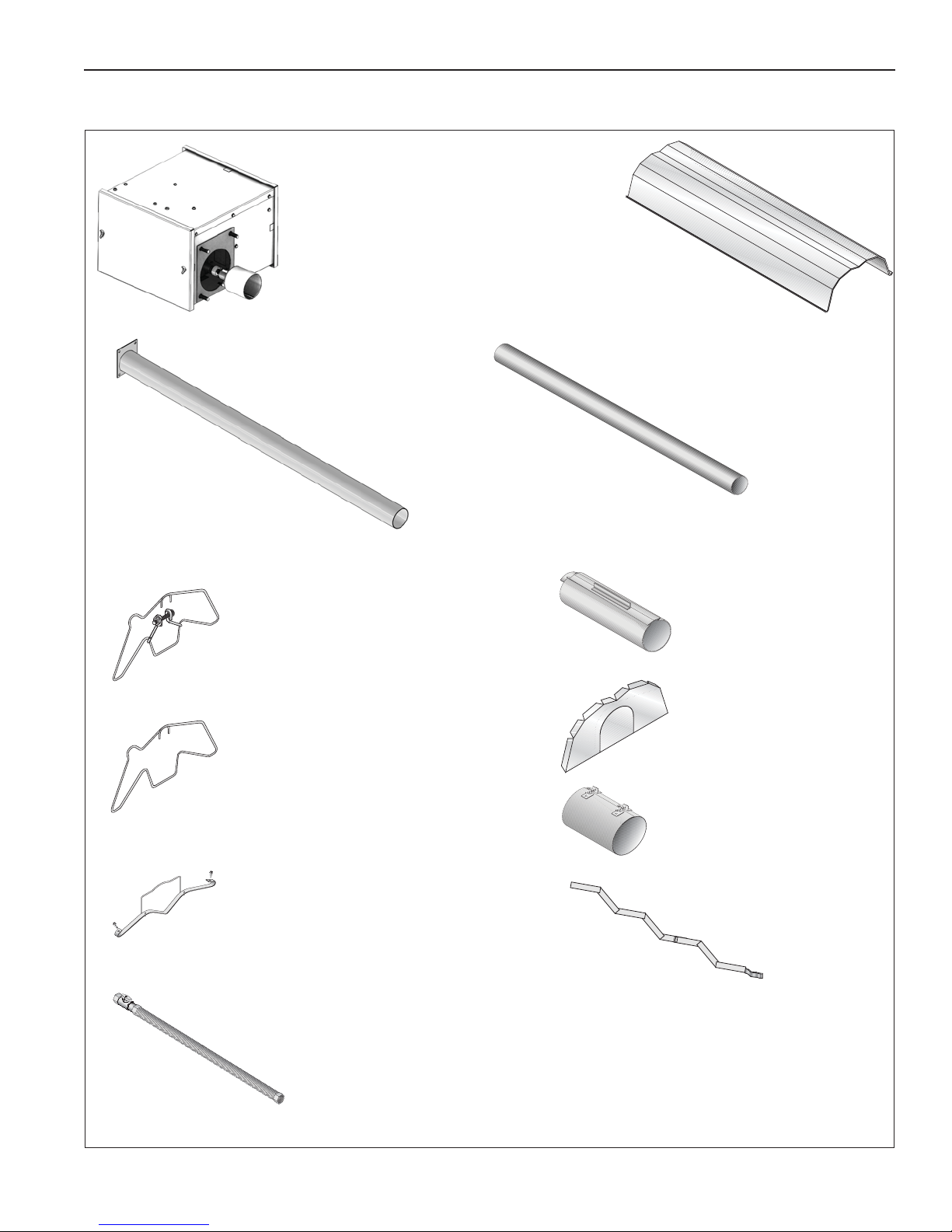

SECTION 5: Major Components ............................................9
5.1 Standard Parts List .................................................... 11
SECTION 6: Heater Installation............................................ 14
SECTION 7: Optional Heater Accessories .......................... 24
7.1 U-Tube Configuration.................................................. 24
7.2 Elbow Package Configuration..................................... 27
7.3 Reflector Side Extension ............................................ 29
7.4 Lower Clearance Shield Installation ...........................30
SECTION 8: Venting.............................................................. 31
8.1 Venting....................................................................... 31
8.2 Unvented Operation................................................... 32
8.3 Horizontal Venting...................................................... 32
8.4 Vertical Venting.......................................................... 32
8.5 Unvented Operation Tube Termination ...................... 32
8.6 Length Requirements ................................................ 32
8.7 Vent Material Recommendations ...............................32
8.8 Horizontal Ventilation 4'' (10 cm) Pipe........................ 33
8.9 Vertical Ventilation 4'' (10 cm) Pipe............................33
8.10 Common Side Wall Venting ..................................... 34
8.11 Common Vertical Venting ........................................35
8.12 Outside Combustion Air Supply ...............................36
SECTION 9: Gas Piping ........................................................ 39
SECTION 10: Wiring.............................................................. 41
10.1 Line Voltage Thermostat Wiring...............................41
10.2 Low Voltage Thermostat with One Burner ............... 41
10.3 Low Voltage Thermostat Wiring with
Multiple Burners ....................................................... 42
10.4 Internal Wiring.......................................................... 43
10.5 Ladder Diagram....................................................... 43
SECTION 11: Operation and Maintenance.......................... 44
11.1 Sequence of Operation ............................................ 44
11.2 To Shut Off Heater.................................................... 44
11.3 To Start Heater ......................................................... 44
11.4 Pre-Season Maintenance and Annual Inspection..... 44
11.5 Maintenance Checklist ............................................. 45
SECTION 12: Troubleshooting............................................. 47
12.1 Troubleshooting Flow Chart..................................... 48
12.2 Manifold Gas Pressure Setting ................................ 50
SECTION 13: Replacement Parts ........................................ 51
SECTION 14: General Specifications.................................. 53
14.1 Material Specifications............................................. 53
14.2 Heater Specifications............................................... 53
14.3 Suspension Specifications....................................... 53
14.4 Controls Specifications ............................................ 53
Printed in U.S.A.

SECTION 1: HEATER SAFETY
1 of 53
SECTION 1: HEATER SAFETY
Your Safety is Important to Us!
This symbol is used throughout
the manual to notify you of
possible fire, electrical or burn
hazards. Please pay special
attention when reading and
following the warnings in these
sections.
Installation, service and annual inspection of heater
must be done by a contractor qualified in the
installation and service of gas-fired heating
equipment.
Read this manual carefully before installation,
operation or service of this equipment.
This heater is designed for heating nonresidential
indoor spaces. Do not install in residential spaces.
This heater is not certified to meet the requirements
of NFPA30A-2012 Section 7.6.6. (maximum tube
temperature of 750 °F (399 °C)). Do not install this
heater in facilities where compressed natural gas
(CNG) or liquid natural gas (LNG) are present. These
instructions, the layout drawing, local codes and
ordinances, and applicable standards that apply to
gas piping, electrical wiring, venting, etc. must be
thoroughly understood before proceeding with the
installation.
Protective gear is to be worn during installation,
operation and service in accordance to the
Occupational Safety and Hazard Administration
(OSHA). Gear must be in accordance to NFPA 70E,
latest revision when working with electrical
components. Thin sheet metal parts have sharp
edges. To prevent injury, the use of work gloves is
recommended. The use of gloves will also prevent
the transfer of body oils from the hands to the surface
of the reflector.
Before installation, check that local distribution
conditions, nature of gas and pressure, and
adjustment of the appliance are compatible.
This heater must be applied and operated under the
general concepts of reasonable use and installed
using best building practices.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do no play with the
appliance.
For additional copies of the Installation, Operation
and Service Manual, please contact Val-Co.
1.1 Manpower Requirements
To prevent personal injury and damage to the heater,
two persons will be required for installation.
1.2 Safety Labels and Their Placement
Product safety signs or labels should be replaced by
the product user when they are no longer legible.
Please contact Val-Co or your VAL-CO independent
distributor to obtain replacement signs or labels. See
Page 2, Figure 1 through Page 3, Figure 2.
1.3 California Proposition 65
In accordance with California Proposition 65
requirements, a warning label must be placed in a
highly visible location on the outside of the
equipment (i.e., near equipment’s serial plate). See
label placement drawing on Page 3, Figure 2 for label
location. Avoid placing label on areas with extreme
heat, cold, corrosive chemicals or other elements. To
order additional labels, please contact Val-Co or your
VAL-CO independent distributor.

ES-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
2 of 53
FIGURE 1: Top and Bottom Panel Label Placement
Description Part Number
Logo Label 91013205
Vent Length Label 91039500
Gas Connection Label 91018122
Burner Status Light Label 91033301

SECTION 1: HEATER SAFETY
3 of 53
FIGURE 2: Side and Back Panel Label Placement
Description Part Number
Rating Plate Label 91010405
Lighting Instruction Plate Label 91029602
Wiring Label 91030308
Clearances to Combustibles Label 91013430
Proposition 65 Label 91070016
Thermostat Connection Label (not shown) 91037902

ES-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
4 of 53
SECTION 2: INSTALLER RESPONSIBILITY
The installer is responsible for the following:
• To install the heater, as well as the gas and
electrical supplies, in accordance with applicable
specifications and codes. Val-Co recommends
the installer contact a local Building Inspector or
Fire Marshal for guidance.
• To use the information given in a layout drawing
and in the manual together with the cited codes
and regulations to perform the installation.
• To install the heater in accordance with the
clearances to combustibles.
• To furnish all needed materials not furnished as
standard equipment.
• To plan location of supports.
• To provide access on all sides for burner servicing
and removal.
• To provide the owner with a copy of this
Installation, Operation and Service Manual.
• To never use heater as a support for a ladder or
other access equipment and never hang or
suspend anything from heater.
• To ensure there is adequate air circulation around
the heater and to supply air for combustion,
ventilation and distribution in accordance with
local codes.
• To safely and adequately install heater using
materials with a minimal working load of 75 lbs
(33 kg).
• To ensure the heater is placed in an approved
application.
2.1 Wall Tag
A laminated wall tag is available for the heater as
a permanent reminder of the safety instructions and
the importance of the required clearances to
combustibles. Please contact Val-Co or your VAL-CO
independent distributor to obtain the wall tag. Affix
the tag by peeling off the backing of the adhesive
strips on the rear surface and position the tag on a
wall near the
heater (e.g. thermostat or VAL-CO Controller).
A copy of the wall tag (P/N 91037912) is illustrated on
the back cover. For an immediate solution, you may
affix this copy on the wall near the heater.
Know your model number and installed configuration.
Model number and installed configuration are found on
the burner and in the Installation, Operation and
Service Manual. See Page 6, Figure 3 through Page
7, Figure 8. Write the proper clearance dimensions in
permanent ink according to your model number and
configuration in the open spaces on the tag.
2.2 Corrosive Chemicals
Val-Co cannot be responsible for ensuring that all
appropriate safety measures are undertaken prior to
installation; this is entirely the responsibility of the
installer. It is essential that the contractor, the sub-
contractor, or the owner identifies the presence of
combustible materials, corrosive chemicals or
halogenated hydrocarbons* anywhere in the
premises.
* Halogenated Hydrocarbons are a family of
chemical compounds characterized by the
presence of halogen elements (fluorine, chlorine,
bromine, etc.). These compounds are frequently
used in refrigerants, cleaning agents, solvents, etc.
If these compounds enter the air supply of the
burner, the life span of the heater components will
be greatly reduced. An outside air supply must be
provided to the burners whenever the presence of
these compounds is suspected. Warranty will be
invalid if the heater is exposed to halogenated
hydrocarbons.
2.3 National Standards and Applicable Codes
All appliances must be installed in accordance with
the latest revision of the applicable standards and
national codes. This refers also to the electric, gas
and venting installation. Note: Additional standards
for installations in public garages, aircraft hangars,
etc. may be applicable.
CAUTION
Product Damage Hazard
Do not use heater in area containing
corrosive chemicals.
Refer to appropriate Material Safety Data
Sheets (MSDS).
Failure to follow these instructions can result
in product damage.

SECTION 3: CLEARANCES TO COMBUSTIBLES
5 of 53
SECTION 3: CLEARANCES TO COMBUSTIBLES
3.1 Required Clearances to Combustibles
Clearances are the required distances that
combustible objects must be away from the heater to
prevent serious fire hazards. Combustibles are
materials that may catch on fire and include common
items such as wood, paper, rubber, fabric, etc.
Maintain clearances to combustibles at all times
for safety.
Clearances for all heater models are located on the
burner of the heater and on Page 6, Figure 3 through
Page 7, Figure 8 in this manual. Check the
clearances on each burner for the model heater
being installed to make sure the product is suitable
for your application and the clearances are
maintained. Read and follow the safety guidelines
below:
• Keep gasoline or other combustible materials
including flammable objects, liquids, dust or
vapors away from this heater or any other
appliance.
• The stated clearances to combustibles represents
a surface temperature of 90 °F (32 °C) above
room temperature. Building materials with a low
heat tolerance (such as plastics, vinyl siding,
canvas, tri-ply, etc) may be subject to degradation
at lower temperatures. It is the installer’s
responsibility to assure that adjacent materials
are protected from degradation.
• Maintain clearances from heat sensitive
equipment and workstations.
• Maintain clearances from vehicles parked below
the heater.
• Maintain clearances from swinging and overhead
doors, overhead cranes, vehicle lifts, partitions,
storage racks, hoists, building construction, etc.
• In locations used for the storage of combustible
materials, signs must be posted to specify the
maximum permissible stacking height to maintain
required clearances from the heater to the
combustibles. Signs must be posted adjacent to
the heater thermostat. In the absence of a
thermostat, signs must be posted in a
conspicuous location.
• Consult local Fire Marshal, Fire Insurance Carrier
or other authorities for approval of proposed
installation when there is a possibility of exposure
to combustible airborne materials or vapors.
• Hang heater in accordance to the minimum
suspension requirements on Page 15, Figure 11.
• If the radiant tubes must pass through the building
structure, be sure that adequate sleeving and fire
stop is installed to prevent scorching and/or fire
hazard.
WARNING
Fire Hazard
Keep all flammable objects, liquids and
vapors the minimum required clearances to
combustibles away from heater.
Some objects will catch fire or explode when
placed close to heater.
Failure to follow these instructions can result
in death, injury or property damage.

ES-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
6 of 53
NOTE: 1. All dimensions are from the surfaces of all tubes, couplings and elbows.
2. Clearances B, C and D can be reduced by 50% after 25' (7.5 m) of tubing downstream
from where the burner and burner tube connect.
FIGURE 3: LEVEL REFLECTOR
(inches) (centimeters)
Model ABCDABCD
ES-40 6 27 53 27 16 69 135 69
ES-60 6 356335168916189
ES-80 6 38 66 38 16 97 168 97
ES-100 6 40 71 40 16 102 181 102
ES-125 6 46 77 46 16 117 196 117
ES-150 6 50 80 50 16 127 204 127
ES-175 8 52 82 52 21 133 209 133
FIGURE 4: LEVEL SIDE REFLECTOR
(inches) (centimeters)
Model ABCDABCD
ES-40 6 9 53 44 16 23 135 112
ES-60 6 9 63 47 16 23 161 120
ES-80 6 9 70 54 16 23 178 138
ES-100 6 9 77 59 16 23 196 150
ES-125 6 9 83 65 16 23 211 166
ES-150 6 9 86 69 16 23 219 176
ES-175 8 9 88 73 21 23 224 186
FIGURE 5: TWO SIDE REFLECTORS
(inches) (centimeters)
Model ABCDABCD
ES-40 6 15 53 15 16 39 135 39
ES-60 6 23 66 23 16 59 168 59
ES-80 6 25 72 25 16 64 183 64
ES-100 6 27 78 27 16 69 199 69
ES-125 6 32 84 32 16 82 214 82
ES-150 6 35 88 35 16 89 224 89
ES-175 8 40 91 40 21 102 232 102

SECTION 3: CLEARANCES TO COMBUSTIBLES
7 of 53
NOTE: 1. All dimensions are from the surfaces of all tubes, couplings and elbows.
2. Clearances B, C and D can be reduced by 50% after 25' (7.5 m) of tubing downstream
from where the burner and burner tube connect.
FIGURE 6: U-TUBE, LEVEL REFLECTOR
(inches) (centimeters)
Model ABCDABCD
ES-40 - UNAPPROVED - - UNAPPROVED -
ES-60 6 35 63 30 16 89 161 77
ES-80 6 38 69 37 16 97 176 94
ES-100 6 40 76 39 16 102 194 100
ES-125 6 46 79 43 16 117 201 110
ES-150 6 50 84 47 16 127 214 120
ES-175 8 54 87 51 21 138 221 130
FIGURE 7: 2-FOOT DECO GRILLE AND PROTECTIVE GRILLE
(inches) (centimeters)
Model ABCDABCD
ES-40 6 27 53 27 16 69 135 69
ES-60 6 35 63 35 16 89 161 89
ES-80 6 38 66 38 16 97 168 97
ES-100 6 40 71 40 16 102 181 102
ES-125 6 46 77 46 16 117 196 117
ES-150 6 50 80 50 16 127 204 127
ES-175 8 52 82 52 21 133 209 133
FIGURE 8: VENTING
(inches) (centimeters)
Model A E F A E F
ES-40 14 18 18 36 46 46
ES-60 141818364646
ES-80 20 24 18 51 61 46
ES-100 20 24 18 51 61 46
ES-125 20 24 18 51 61 46
ES-150 20 30 18 51 77 46
ES-175 20 30 18 51 77 46
Radiant Tubes
Vent
Pipes
Unvented
Vented
AE
F

ES-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
8 of 53
SECTION 4: NATIONAL STANDARDS AND
APPLICABLE CODES
4.1 Gas Codes
Type of gas appearing on the nameplate must be
the type of gas used. Installation must comply
with national and local codes and requirements
of the local gas company.
United States: Refer to National Fuel Gas Code
NFPA 54/ANSI Z223.1 - latest revision.
Canada: Refer to Natural Gas and Propane
Installation Code CSA B149.1 - latest revision.
4.2 Aircraft Hangars
Installation in aircraft hangars must be in
accordance with the following codes:
United States: Refer to Standard for Aircraft
Hangars, NFPA 409 - latest revision.
Canada: Refer to Natural Gas and Propane
Installation Code CSA B149.1 - latest revision.
In aircraft storage and servicing areas, heaters
shall be installed at least 10' (3 m) above the
upper surface of wings or of engine enclosures
of the highest aircraft which may be housed in
the hangar. The measurement shall be made
from the wing or engine enclosure (whichever is
higher from the floor) to the bottom of the heater.
• In shops, offices and other sections of aircraft
hangars communicating with aircraft storage or
servicing areas, heaters shall be installed not
less than 8' (2.4 m) above the floor.
• Suspended or elevated heaters shall be so
located in all spaces of aircraft hangars that they
shall not be subject to injury by aircraft, cranes,
movable scaffolding or other objects. Provisions
shall be made to assure accessibility to
suspended heaters for recurrent maintenance
purposes.
4.3 Public Garages
Installation in garages must be in accordance
with the following codes:
United States: Refer to Standard for Parking
Structures NFPA 88A - latest revision or the
Code for Motor Fuel Dispensing Facilities and
Repair Garages, NFPA 30A - latest revision.
Canada: Refer to Natural Gas and Propane
Installation Code CSA B149.1 - latest revision.
• Heaters must not be installed less than 8'
(2.4 m) above the floor. Minimum clearances to
combustibles must be maintained from vehicles
parked below the heater.
• When installed over hoists, minimum
clearances to combustibles must be maintained
from the upper most point of objects on the hoist.
4.4 Electrical
Heater must be electrically grounded in
accordance with the following codes:
United States: Refer to National Electrical Code®,
NFPA 70 - latest revision. Wiring must conform to
the most current National Electrical Code®, local
ordinances and any special diagrams furnished.
Canada: Refer to Canadian Electrical Code,
CSA C22.1 Part 1 - latest revision.
4.5 Venting
Venting must be installed in accordance with the
requirements within this manual and the
following codes:
United States: Refer to National Fuel Gas Code
NFPA 54/ANSI Z223.1 - latest revision.
Canada: Refer to Natural Gas and Propane
Installation Code CSA B149.1 - latest revision.
4.6 High Altitude
These heaters are approved for installations up
to 2000' (610 m) (US), 4500' (1370 m) (Canada)
without modification. Consult factory if US
installation is above 2000' (610 m) or Canadian
installation is above 4500' (1370 m).

SECTION 5: MAJOR COMPONENTS
9 of 53
SECTION 5: MAJOR COMPONENTS
FIGURE 9: Major Component Descriptions - Standard Reflector
Burner with Tube
Gasket
Must be installed with
the flame observation
window facing down.
Standard
Reflector
(Aluminum or
Stainless
Steel)
Alternate overlap as
shown on overview and on
Page 22, Figure 6.5.1.
Minimum overlap is 6" (16 cm).
Tube and Reflector Hanger
with Clamp Package
Position this hanger no more
than 4" (10 cm) away from the
burner.
Coupling Assembly
with Lock
Reflector End Cap
Punch out center
section to
accommodate tube.
Tube and Reflector Hanger
Suspend system from these
hangers.
Flex Gas Line with
Shut Off Cock
Tube
Hot rolled or heat
treated aluminized tube
supplied in 10' (3 m) lengths.
Reflector Support Strap &
Wire Form
Turbulator
Install turbulator
as specified in the
"Turbulator Installation" chart.
See Page 20, Step 6.4.
Turbulator is not required on the
ES-175.
Vent Adapter
Burner Tube
Supplied in 10' (3 m) lengths.
Burner tube is always the first
tube after the burner.

ES-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
10 of 53
FIGURE 10: Major Component Descriptions - High Efficiency Reflector
Burner with Tube
Gasket
Must be installed with
the flame observation
window facing down.
High Efficiency Reflector
(Aluminum only)
Alternate
overlap as
shown on
overview
and
on Page 22, Step 6.5.1.
Minimum overlap is 6" (16 cm).
Tube and Reflector Hanger
with Clamp Package-EF
Position this hanger no more
than 4" (10 cm) away from the
burner.
Coupling Assembly
with Lock
Reflector End Cap-EF
Punch out center
section to
accommodate tube.
Tube and Reflector Hanger-EF
Suspend system from these
hangers.
Flex Gas Line with
Shut Off Cock
Tube
Hot rolled or heat
treated aluminized tube
supplied in 10' (3 m) lengths.
Reflector Support Strap &
Wire Form
Turbulator
Install turbulator
as specified in the
"Turbulator Installation" chart.
See Page 20, Step 6.4.
Turbulator is not required on the
ES-175.
Vent Adapter
Burner Tube
Supplied in 10' (3 m) lengths.
Burner tube is always the first
tube after the burner.

SECTION 5: MAJOR COMPONENTS
11 of 5 3
5.1 Standard Parts List
Table 1: Contents of the Burner Carton
*Canadian Models: Rubber (Type 1) Gas Hoses available as an accessory. See Page 39, Section 9 .
Table 2: Contents of Standard Core and Extension Packages
Part No. Description ES-40 ES-60 ES-80 ES-100 ES-125 ES-150 ES-175
47481X Burner Assembly (Rate and Fuel Varies) 1 1 1 1 1 1 1
92700025 Gasket (Burner to Burner Tube) 1 1 1 1 1 1 1
VES36100NA Installation, Operation and Service Manual 1 1 1 1 1 1 1
92113900 Hex Head Nuts 5/16" - 18 Rolok 4 4 4 4 4 4 4
96411600 Split Lock washer 4 4 4 4 4 4 4
91201708 Pipe Nipple (Black) 1/2” NPT x 4” 1 1 1 1 1 1 1
91317300 1/4" Quick Disconnect (Wire) 2 2 2 2 2 2 2
*91412200 Flexible Stainless Steel Gas Hose - 1/2" NPT (US Models Only) 1 1 1 1 1
*91412204 Flexible Stainless Steel Gas Hose - 3/4" NPT (US Models Only) - - - - - 1 1
03051503 Turbulator Adapter 1 1 1 1 1 1 -
03051504 Turbulator Aluminized Steel 3 4 5 4 2 1 -
03051505 Turbulator Stainless Steel 1 - - - - - -
Core Packages Extension Packages
Aluminized Aluminized
Part No. Description 10
'
(3m)
20 '
(6m)
30 '
(9m)
40 '
(12m)
10 '
(3m)
20 '
(6m)
30 '
(9m)
40 '
(12m)
91409408 Tube, HT Aluminized, 10
' (3 m) -1231234
03051105 Burner Tube ST, ALUMI-THERM
®
Steel, 10 ' (3 m) --11----
474833 Burner Tube ST, HT ALUMI-THERM
®
Steel, 10 ' (3 m) 11------
01312700 Coupling Assembly - 1 2 3 1234
02750303 Standard Reflector, 8
' (3.5 m) 23462346
02750800EndCap 2222- - - -
03090101TubeandReflectorHanger,WidePattern 23451234
91907302S-Hook 23451234
03050011 Reflector Support Package (Strap, Wire Form, Screws), Wide Pattern 12352346
91107720 U-Clip Package 11111111
03090101VentAdapter 1111- - - -
01318901 Tube Clamp Package 1111- - - -
Part Number
CPWST10ALUM
474828 474829 472830
EXPW10ALUM EXPW20ALUM EXPW30ALUM EXPW40ALUM

ES-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
12 of 53
Table 3: Contents of High Efficiency Core and Extension Packages
Core Packages Extension Packages
Aluminized Aluminized
Part No. Description 10
'
(3m)
20 '
(6m)
30 '
(9m)
40 '
(12m)
10 '
(3m)
20 '
(6m)
30 '
(9m)
40 '
(12m)
91409408 Tube, HT Aluminized, 10
' (3 m) -1231234
03051105 Burner Tube ST, ALUMI-THERM
®
Steel, 10 ' (3 m) --11----
474833 Burner Tube ST, HT ALUMI-THERM
®
Steel, 10 ' (3 m) 11------
01312700 Coupling Assembly - 1 2 3 1 2 3 4
02750313 High Efficiency Reflector, 8
' (3.5 m) 23462346
02750802 End Cap, High Efficiency 2 2 2 2 - - - -
03090102 Tube and Reflector Hanger, High Efficiency 2 3 4 5 1 2 3 4
91907302 S-Hook 2 3 4 5 1 2 3 4
03050012 Reflector Support Package (Strap, Wire Form, Screws) 1 2 3 5 2 3 4 6
91107720 U-Clip Package 1 1 1 1 1 1 1 1
90508701 Vent Adapter 1 1 1 1 - - - -
01318902 Tube Clamp Package - EF 1 1 1 1 - - - -
Part Number
CPST10ALUMEF CPST20ALUMEF CPST30ALUMEF CPST40ALUMEF
EXP10ALUMEF EXP20ALUMEF EXP30ALUMEF EXP40ALUMEF

SECTION 5: MAJOR COMPONENTS
13 of 53
Table 4: Component Package Guide
Table 5: Component Package Guide
Although not recommended, additional tube lengths may be added to the heater. Tubing must be aluminized
(heat-treated or non-heat-treated), or porcelain coated. Additional tube lengths beyond the specified
minimum tubing length are considered vent pipe for length determination. Maximum vent length allowed is
45' (13.7 m) total.
Model Tubing Length Standard Core Packages-Wide Pattern
Minimum Aluminized
ES-40 10’ (3m) CPWST10ALUM
ES-60 20’ (6m) 474828
ES-80 20’ (6m) 474828
ES-100 30’ (9m) 474829
ES-125 40’ (12m) 474830
ES-150 50’ (15m) 474829 + EXPW20ALUM
ES-175 60’ (18m) 474829 + EXPW30ALUM
Model Tubing Length High Efficiency Core Packages
Minimum Aluminized
ES-40 10’ (3m) CPST10ALUMEF
ES-60 20’ (6m) CPST20ALUMEF
ES-80 20’ (6m) CPST20ALUMEF
ES-100 30’ (9m) CPST30ALUMEF
ES-125 40’ (12m) CPST40ALUMEF
ES-150 50’ (15m) CPST30ALUMEF + EXP20ALUMEF
ES-175 60’ (18m) CPST30ALUMEF + EXP30ALUMEF

ES-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
14 of 53
SECTION 6: HEATER INSTALLATION
To ensure your safety and comply with the terms of
the warranty, all units must be installed in
accordance with these instructions.
The gas or the electrical supply lines must not be
used to support the heater.
Do not locate the gas or electric supply lines directly
over the path of the flue products from the heater.
The heater must be installed in a location that it is
readily accessible for servicing.
The heaters must be installed in accordance with
clearances to combustibles as indicated on the rating
plate and in this instruction manual.
The minimum and maximum gas inlet pressures
must be maintained as indicated on the rating plate.
Typical installation configurations are shown on
Page 15, Figure 11.
Expansion and contraction of the tube dictates that
the minimum suspension lengths must be
maintained. See table on Page 15, Figure 11.
WARNING
Severe Injury Hazard
Secure burner to burner tube with nuts and
lockwashers.
Hang heater with materials with a minimum
working load of 75 lbs (33 kg).
Failure to follow these instructions can result
in death, injury or property damage.
WARNING
Cut/Pinch Hazard
Wear protective gear during installation,
operation and service.
Edges are sharp.
Failure to follow these instructions can result
in injury.

SECTION 6: HEATER INSTALLATION
15 of 53
FIGURE 11: Critical Hanger Placement
Description
S-Hook
Tube/Reflector Hanger
Run Length Typical Expansion Minimum “X” Length
10' (3 m) - 50' (15.2 m) ±1" (3 cm) 12" (30.5 cm)
51' (15.5 m) - 60' (18.3 m) ±2" (5 cm) 18" (45.7 cm)
61' (18.6 m) - 80' (24.4 m) ±3" (8 cm) 24" (61 cm)

ES-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
16 of 53
FIGURE 12: Linear Heater Assembly Overview
