Valcom VIP-429A-A-IC User manual

Issue 1
1947533
VIP-429A-A-IC
InformaCast®Compliant
IP Talkback Speaker Clock Assembly
INTRODUCTION
The VIP-429A-A-IC InformaCast Compliant IP Wall
Speaker with Clock enables voice access and visual time
indication to a single zone of paging over an IP-based
LAN/WAN. This allows page zone extension anywhere
on the network. Clock synchronization is provided by the
InformaCast server. The enclosure is made of steel with
a durable powder coated finish. The color of the
enclosure can easily be changed to match any decor.
Power is provided to the VIP-429A-A-IC via a Power over
Ethernet (PoE) switch meeting the 802.3af specification.
SPECIFICATIONS
Access Methods
Singlewire InformaCast server
PBX, FXO Port via Valcom FXS Network
Station Port
SIP –enabled telephone system
POTS telephone set via Valcom
FXS Network Station Port
PBX, FXS Port via Valcom FXO Network Trunk
Port
Valcom Multicast Page Group
Features
802.3af compatible
High efficiency Class-D amplifier
DIMENSIONS/WEIGHT
14.50” H x 13.00” W x 3.40” D
(36.93cm x 33.02cm W x 8.64cm D)
Weight: 4.8 LBS (2.17 kg)
Environment
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
Nominal Power Requirements
Via 802.3af PoE Ethernet Switch: Class 3
These products are intended for use with a UL
Listed power source marked “Class 2” or “LPS”
rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended for
intra-building.
Precautionary Designations
•WARNING-To Reduce The Risk Of Fire Or
Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.
•AVERTISSEMENT - Afin de réduire les
risques d'incendie ou de décharge électrique,
évitez d'exposer le système à la pluie ou à
l'humidité.
•Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids,
such as vases, shall be placed on the
apparatus.
•L’appareil ne doit pas être exposé à des
égouttements et éclaboussures et aucun
Objet Rempli de liquide, comme vase, ne doit
être placé sur l’appareil.

2 947533
VB-R22
VB-S23
VB-A24

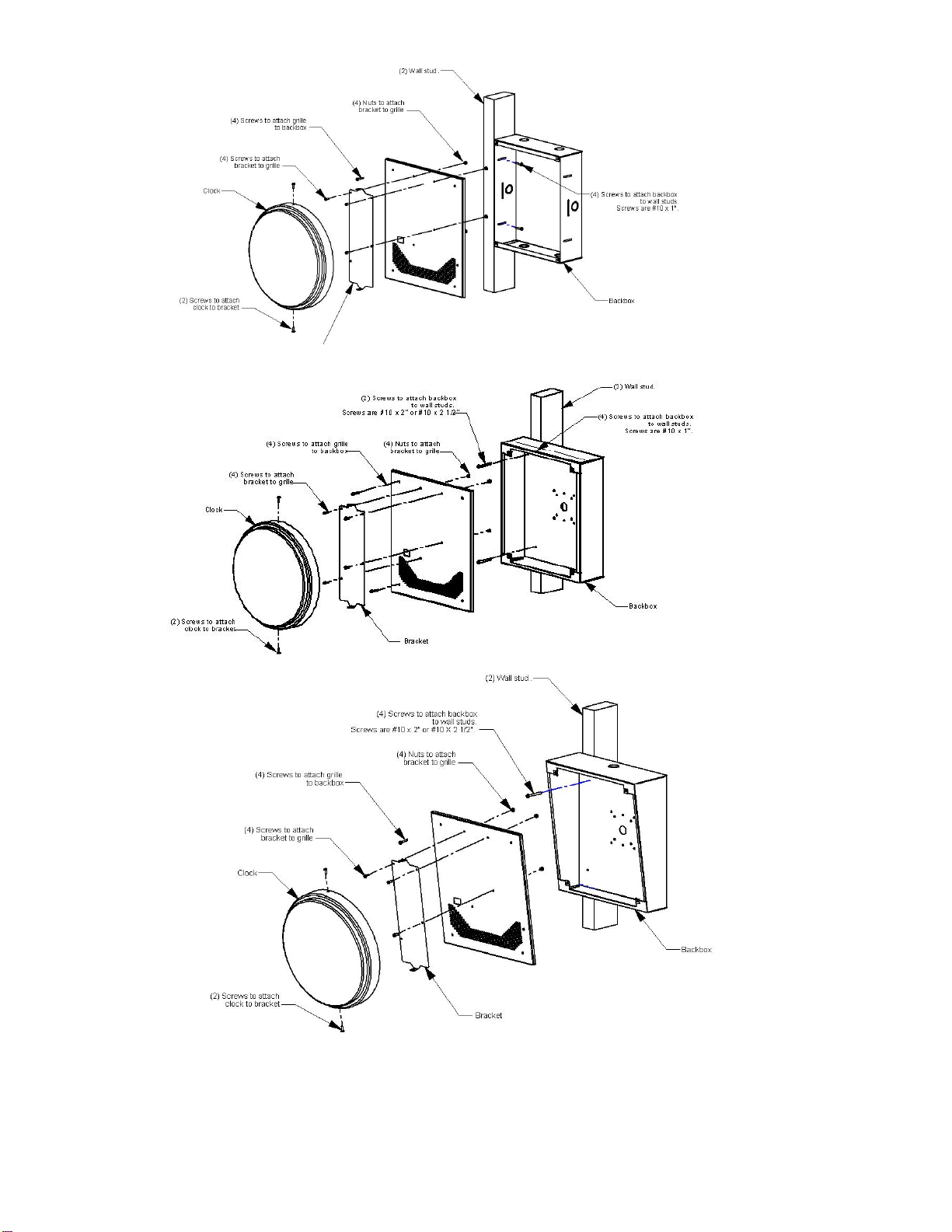

Figure 1. Assembly and Mounting

3 947533
CAUTION: To reduce the risk of electric shock,
Do not remove cover (or back).
No user serviceable parts inside.
Refer servicing to qualified service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when
the equipment is operated in a commercial
environment.
This equipment generates, uses and can radiate
radio frequency energy and if not installed and
used in accordance with the instruction manual,
may cause harmful interference to radio
communications. Operation of this equipment
in a residential area may cause harmful
interference in which case the user will be
required to correct the interference at one’s own
expense.
INSTALLATION
Assembly and Mounting
The VIP-429A-A-IC is designed for recessed or
flush mounting to a Valcom backbox (not included).
For recessed mounting, the Valcom VB-R22 may
be used. For surface mounting, use the Valcom
VB-S23 or VB-A24.
Mount the clock face to the speaker grille using the
clock mounting bracket included in the clock
package (See Figure 1). The mounting bracket
should be attached to the speaker grille using two
screws and nuts provided, with the large
rectangular cutout in the bracket aligned with the
similar hole in the grille.
Before mounting the clock to the bracket, remove
the shipping pin from the back of the clock
movement. Connect the 5-pin Molex connector to
the clock movement and route the wiring harness
through one of the square cutouts in the speaker
grille to the clock circuit board. Insert the 4-pin
screw connector into the receptacle on the clock
circuit board. Mount the clock face to the clock
bracket with the two black screws provided
With the clock mounted to the speaker grille,
connect an RJ-45 Ethernet cable to the network
jack on the speaker circuit board, then mount the
grille to the backbox with the hardware provided.
Network Connection
The VIP-429A-A-IC has one RJ-45 network
connector on the rear panel. Use a standard patch
cable to connect the VIP-429A-A-IC to an Ethernet
switch providing Power over Ethernet (PoE)
meeting the 802.3af specification. If the switch
does not provide power, a mid-span power injector
may be used. (See Figure 2)
Mute Out Connection
The Mute Out may optionally be connected to the
mute input of Valcom Classroom audio
management systems in order to suspend locally
originated classroom audio during intercom
announcements.
IMPORTANT SAFETY INFORMATION
CONSIGNES DE SÉCURITÉ IMPORTANTES
1. Read these instructions.
Lisez ces instructions.
2. Keep these instructions.
Conservez ces instructions.
3. Heed all warnings.
Respecteztous les avertissements.
4. Follow all instructions.
Suivez toutes les instructions.
5. Do not use this apparatus near water.
Ne pas utiliser cet appareil près de l'eau.
6. Clean only with dry cloth.
Nettoyer avec un chiffon sec.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Ne pas bloquer les ouvertures de ventilation. Installer formément aux instructions du
fabricant.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
Ne pas installer à proximité de sources de chaleur telles que radiateurs, registres de
chaleur, poêles ou autres appareils (y compris les amplificateurs) produisant de la chaleur.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade and the third prong are provided for your safety. If
the provided plug does not fit into your outlet consult an electrician for replacement of the
obsolete outlet.
Ne pas contourner le dispositif de sécurité de la fiche polarisée ou demise à la terre. Une
fiche polarisée possède deux lames dont une plus large que l'autre. Une fiche de terre a
deux lames et une troisième broche de mise à la terre. La lame large et la troisième
broche sont fournies pour votre sécurité. Si la fiche fournie ne rentre pas dans votre prise,
veuillez consulter un électricien pour le remplacement de la prise obsolète.
10.Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles and the point where they exit from the apparatus.
11.Only use attachments/accessories specified by the manufacturer.
N'utilisez que des fixations / accessoires spécifiés par le fabricant.
12. Use only with the cart, stand, tripod, bracket or table specified
by the manufacturer or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
Utilisez uniquement avec le chariot, stand, trépied, support ou table spécifié par le
fabricant ou vendu avec l'appareil. Quand un chariot est utilisé, Soyez prudent lorsque
vous déplacez l'ensemble chariot / appareil pour éviter des blessures dues au
renversement.
13. Unplug this apparatus during lightning storms or when unused for a long period of time.
Débranchez cet appareil pendant les orages ou lorsqu'il n'est pas utilisé pendant une
longue période de temps.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way. Such as when the power supply cord or plug is
damaged, liquid has been spilled, objects have fallen into the apparatus or the
apparatus has been exposed to rain or moisture and does not operate normally or has
been dropped.
Confiez toute réparation à un personnel qualifié. Une réparation est nécessaire lorsque
l'appareil a été endommagé de quelque façon. Par exemple lorsque le cordon
d'alimentation oula fiche est endommagé, du liquide a été renversé, si des objets sont
tombés dans l'appareil ou le appareil a été exposé à la pluie ou àl'humidité et ne
fonctionne pas normalement ou s'il est tombé.

4 947533
.
Figure 2. Ethernet Connection
Call Switch Connection
The Talkback IP Speaker provides a call switch
input via screw terminal connections. Connect a
momentary contact switch to Switch 1 and Ground.
See Figure 3 for detailed connections.
-10 Db Line Level Out Connection
The -10dBm Line Level Out may be connected to
up to 40 Valcom Self Amplified Speakers in order to
provide additional sound reinforcement in an area.
Figure 3. IP Speaker Connection
LED Connection
LED 1 (+) and LED 2 (-) is a current limited output
designed to illuminate an optional LED.
The LED is intended to provide visual indication of
call progress. The LED illumination will flash when
the call switch is pressed and will continue to flash
until the call is answered. The LED illumination will
be solid when a connection to the unit is
established
Setup
The VIP-429A-A-IC will automatically acquire an
IP address (using DHCP) and connect to the
InformaCast server when connected to the network
and powered up. Time synchronization is provided
by the InformaCast server. Information specific to
your application will need to be programmed into
the InformaCast server. Refer to the InformaCast
documentation for further information
TECHNICAL ASSISTANCE
When trouble is reported, verify power is being
supplied to the unit and there are no broken
connections. If a spare unit is available, substitute
a spare unit for the suspected defective unit.
Assistance in troubleshooting is available from the
factory. Call [phone] and press 1 for
Technical Support. When requesting assistance,
you should include all available information. It is
strongly suggested that you also review available
documentation on http://www.valcom.com.
Valcom equipment is not field repairable. Valcom,
Inc. maintains service facilities in Roanoke, VA.
Should repairs be necessary, attach a tag to the
unit clearly stating your company name, address,
phone number, contact person and the nature of
the problem. Send the unit to:
Valcom, Inc.
Repair & Return Dept.
5614 Hollins Road
Roanoke, Va. 24019-5056
WARRANTY
Warranty information may be found on our website
at www.valcom.com/warranty
