Valcourt SRF40 User manual

DANGER
HOT GLASS WILL CAUSE BURNS. DO NOT TOUCH GLASS UNTIL
COOLED. NEVER ALLOW CHILDREN TO TOUCH GLASS. A barrier
designed to reduce the risk of burns from the hot viewing glass is provided
with this appliance and shall be installed for the protection of children and
other at-risk individuals. NOTE : Barrier required, may be sold separately.
Printed in Canada
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE
WARNING
46195I_A
2021-11-10
MODEL
SRF40
(FG00002 & FG00020)
DIRECT VENT
ZERO CLEARANCE
GAS FIREPLACE HEATER
MULTIFUNCTION REMOTE (MF)
ENGLISH
FIRE OR EXPLOSION HAZARD
• Failure to follow safety warnings exactly could result in
serious injury, death or property damage.
• Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone
in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier,call the fire department.
• Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
WARNING
• If not installed, operated and maintained in accordance
with the manufacturer’s instructions, this product could
expose you to substances in fuel or from fuel combustion
which can cause death or serious illness.
• This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA only) or
mobile home, where it is not prohibited by local codes.
• This appliance is only for use with the type of gas
indicated on the rating plate.
• This appliance is not convertible for use with other
gases, unless a certified kit is used.
• Fuelsusedingas,wood-burningoroilfiredappliances,and
the products of combustion of such fuels, contain chemicals
known to the State of California to cause cancer, birth defects
or other reproductive harm. For more information go to
www.P65warnings.ca.gov/
INSTALLATION
INSTRUCTIONS
Safety tested
according to ANSI Z21.88-2017
and CSA 2.33-2017 standards
by an accredited laboratory.

Page 3
Installation Manual - SRF40
ENGLISH
To reduce the risk of fire,
follow the installation
instructions in this manual.

Page 4 Installation Manual - SRF40
ENGLISH
TABLE OF CONTENTS
PART A - OPERATION .................................................................................................................. 7
1. Safety Information................................................................................................................... 7
2. General Information .............................................................................................................. 11
2.1 Appliance Certification ..................................................................................................... 11
2.2 Qualified Installing/reparing Agency .................................................................................. 11
2.3 High Altitude.................................................................................................................... 12
2.4 While unpacking .............................................................................................................. 12
2.5 Installation Guidelines ...................................................................................................... 12
2.6 Preparation...................................................................................................................... 12
2.7 Specifications .................................................................................................................. 13
2.8 Plastic bag contents and Hardware Pack.......................................................................... 14
2.9 Dimensions...................................................................................................................... 15
PART B - INSTALLATION............................................................................................................ 16
3. Fireplace Installation............................................................................................................. 16
3.1 Safety Information............................................................................................................ 16
3.2 Appliance Location .......................................................................................................... 16
3.3 Framing Clearances and Mantle ....................................................................................... 17
3.4 Finishing.......................................................................................................................... 22
3.5 Installing a television above a fireplace ............................................................................. 24
4. Venting installation................................................................................................................ 25
4.1 General ........................................................................................................................... 25
4.2 Damper Adjustment ......................................................................................................... 26
4.3 Clearance to Combustibles .............................................................................................. 27
4.4 Termination Vent System.................................................................................................. 28
4.5 Framing........................................................................................................................... 35
4.6 Minimum Vent Height Above the Roof............................................................................... 37
4.7 Installing the Vent System in a Chase ............................................................................... 37

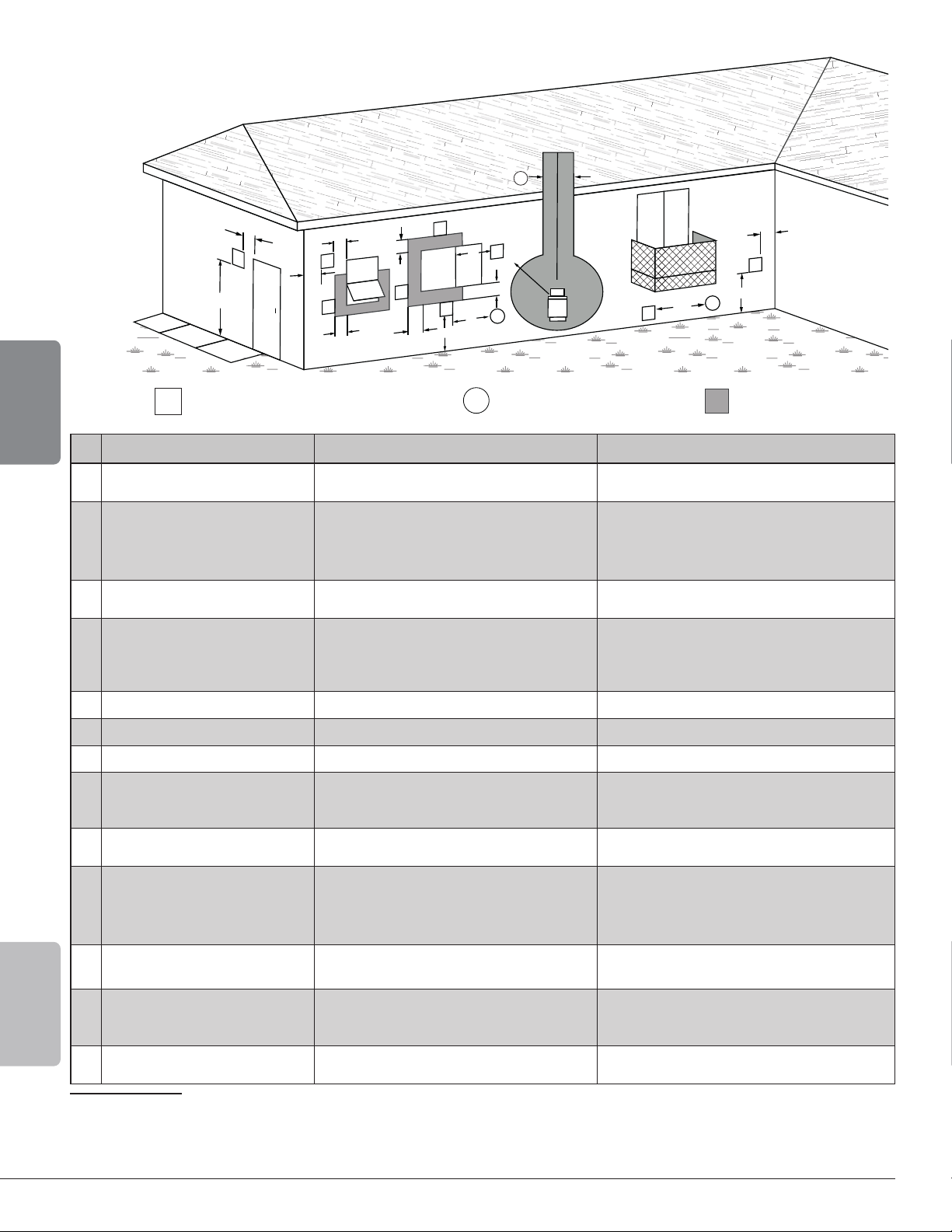

4.8 Termination Clearances.................................................................................................... 39
5. Gas Connections................................................................................................................... 40
5.1 Gas Supply...................................................................................................................... 40
5.2 Installing a New Shut-Off Valve......................................................................................... 41
5.3 Checking Manifold Pressures ........................................................................................... 42
5.4 Gas Line Connection ....................................................................................................... 42
6. Electrical Connections.......................................................................................................... 43

Page 5
Installation Manual - SRF40
ENGLISH
6.1 Control Module Access.................................................................................................... 44
6.2 Wiring Diagram................................................................................................................ 45
7. Optional Traditional Gravity Hot Air Distribution Kit Installation (AC04367)....................... 47
8. Optional Modern Gravity Hot Air Distribution Kit Installation (AC04369) .......................... 51
Appendix 1: Accessories .......................................................................................................... 55

Page 6 Installation Manual - SRF40
ENGLISH
CERTIFICATION PLATE

Page 7
Installation Manual - SRF40
ENGLISH WARNING
PART A - OPERATION
1. Safety Information
Before enclosing the vent pipe assembly,
operate the appliance to ensure it is venting properly.
WARNING
DO NOT OPERATE THIS APPLIANCE WITHOUT GLASS FRONT PANEL INSTALLED.
1. Due to high temperatures, the appliance should
be located out of traffic and away from furniture
and draperies.
2. Children and adults should be alerted to the
hazards of high surface temperature and should
stay away to avoid burns or clothing ignition.
3. Young children should be carefully supervised
when they are in the same room as the
appliance. Toddlers, young children, and others
may be susceptible to accidental contact burns.
A physical barrier is recommended if there are
at-risk individuals in the house. To restrict access
to a fireplace or stove, install an adjustable safety
gate to keep toddlers, young children, and other
at-risk individuals out of the room and away from
hot surfaces.
4. For appliances requiring a barrier, as determined
under Clause 5.15.4: “A barrier designed to
reduce the risk of burns from the hot viewing
glass is provided with this appliance and shall be
installed for the protection of children and other
at-risk individuals.”
5. If the barrier becomes damaged, the barrier shall
be replaced with the manufacturer’s barrier for
this appliance.
6. Clothing or other flammable material should not
be placed on or near the appliance.
7. Any safety screen, guard, or barrier removed for
servicing an appliance must be replaced prior to
operating the appliance (see Clause 4.1.6).
8. Installation and repair should be done by a
qualified service person. The appliance should
be inspected before use and at least annually
by a professional service person. More frequent
cleaning might be required due to excessive lint
from carpeting, bedding material, et cetera. It is
imperative that control compartments, burners,
and circulating air passageways of the appliance
be kept clean.
9. Only doors certified with the appliance shall be
used.

Page 8 Installation Manual - SRF40
ENGLISH WARNING
WARNING
CARBON MONOXIDE POISONING HAZARD
FAILURE TO FOLLOW THE STEPS OUTLINED BELOW FOR EACH APPLIANCE CONNECTED TO THE VENTING
SYSTEM BEING PLACED INTO OPERATION COULD RESULT IN CARBON MONOXIDE POISONING OR DEATH.
THE FOLLOWING STEPS SHALL BE FOLLOWED FOR EACH APPLIANCE CONNECTEDTO THE VENTING SYSTEM
BEING PLACED INTO OPERATION, WHILE ALL OTHER APPLIANCES CONNECTED TO THE VENTING SYSTEM
ARE NOT IN OPERATION:
1. Seal any unused openings in the venting
system.
2. Inspect the venting system for proper size and
horizontal pitch, as required in the National
Fuel Gas Code ANSI Z223.1/NFPA 54 or
the National Gas and Propane Installation
Code CSA B149.1 and these instructions.
Determine that there is no blockage or
restriction, leakage, corrosion and other
deficiencies which could cause an unsafe
condition.
3. As far as practical, close all building doors
and windows and all doors between the
space in which the appliance(s) connected
to the venting system are located and other
spaces of the building.
4. Close fireplace dampers.
5. Turn on clothes dryers and any appliance not
connected to the venting system. Turn on
any exhaust fans, such as range hoods and
bathroom exhausts, so they are operating at
maximum speed. Do not operate a summer
exhaust fan. Follow the lighting instructions. Place
the appliance being inspected into operation.
Adjust the thermostat so appliance is operating
continuously.
6. Test for spillage from draft hood equipped
appliances at the draft hood relief opening after 5
minutes of main burner operation. Use the flame
of a match or candle.
7. If improper venting is observed during any of
the above tests, the venting system must be
corrected in accordance with National Fuel Gas
Code, ANSI Z223.1/NFPA and/or National Gas
and Propane Installation Code, CSA B149.1.
8. After it has been determined that each appliance
connected to the venting system properly vents
when tested as outlined above, return doors,
windows, exhaust fans, fireplace dampers and
any other gas-fired burning appliance to their
previous conditions of use.

Page 9
Installation Manual - SRF40
ENGLISH WARNING
SAFETY INFORMATION FOR USERS OF PROPANE GAS
Propane is a flammable gas which can cause fires and explosions. In its natural state, propane
is odorless and colorless. You may not know all the following safety precautions which can
protect both you and your family from an accident. Read them carefully now, then review
them point by point with the members of your household. Someday when there may not be a
minute to lose, everyone’s safety will depend on knowing exactly what to do. If, after reading
the following information, you feel you still need more information, please contact your gas
supplier.
If a gas leak happens, you should be able to smell the gas because of the odorant put in the
propane gas. That’s your signal to go into immediate action!
• Do not operate electric switches, light matches, use your phone. Do not do anything
that could ignite the gas.
• Get everyone out of the building, vehicle, trailer, or area. Do that IMMEDIATELY.
• Close all gas tank or cylinder supply valves.
• Propane Gas is heavier than air and may settle in low areas such as basements.
When you have reason to suspect a gas leak, keep out of basements and other
low areas. Stay out until firefighters declare them to be safe.
• Use your neighbor’s phone and call a trained Propane Gas service person and the
fire department.
• Even though you may not continue to smell gas, do not turn on the gas again. Do
not re-enter the building, vehicle, trailer, or area.
• Finally, let the service man and firefighters check for escaped gas. Have them
air out the area before you return. Properly trained Propane Gas service people
should repair the leak, then check and relight the gas fireplace for you.
NO ODOR DETECTED - ODOR FADE
Some people cannot smell well. Some people cannot smell the odor of the chemical put into
the gas. You must find out if you can smell the odorant in propane. Smoking can decrease your
ability to smell. Being around an odor for a time can affect your sensitivity or ability to detect that odor.
Sometimes other odors in the area mask the gas odor. People may not smell the gas odor or their minds
are on something else. Thinking about smelling a gas odor can make it easier to smell. The odorant in
Propane Gas is colorless, and it can fade under some circumstances. For example, if there is an
underground leak, the movement of the gas through soil can filter the odorant. Odorants in Propane Gas
also are subject to oxidation. This fading can occur if there is rust inside the storage tank or in iron gas
pipes.
PROPANE GAS
WARNING ODOR

Page 10 Installation Manual - SRF40
ENGLISH WARNING
SAFETY INFORMATION FOR USERS OF PROPANE GAS
(CONT’D)
The odorant in escaped gas can adsorb or absorb onto or into walls, masonry and other materials and
fabrics in a room. That will take some of the odorant out of the gas, reducing its odor intensity. Propane
Gas may stratify in a closed area, and the odor intensity could vary at different levels. Since it is heavier
than air, there may be more odor at lower levels. Always be sensitive to the slightest gas odor. If you
detect any odor, treat it as a serious leak. Immediately go into action as instructed earlier.
SOME POINTS TO REMEMBER
Learn to recognize the odor of Propane Gas.
Your local Propane Gas Dealer can give you a “Scratch and Sniff” pamphlet. Use it to find out what the
propane odor smells like. If you suspect that your Propane Gas has a weak or abnormal odor, call your
Propane Gas Dealer.
If you are not qualified, do not light pilot lights, perform service, or make adjustments to appliances on
the Propane Gas system. If you are qualified, consciously think about the odor of Propane Gas prior to
and while lighting pilot lights or performing service or making adjustments.
Sometimes a basement or a closed-up house has a musty smell that can cover up the Propane Gas odor.
Do not try to light pilot lights, perform service, or make adjustments in an area where the conditions are
such that you may not detect the odor if there has been a leak of Propane Gas.
Odor fade, due to oxidation by rust or adsorption on walls of new cylinders and tanks, is possible.
Therefore, people should be particularly alert and careful when new tanks or cylinders are placed in
service. Odor fade can occur in new tanks, or reinstalled old tanks, if they are filled and allowed to set too
long before refilling. Cylinders and tanks which have been out of service for a time may develop internal
rust which will cause odor fade. If such conditions are suspected to exist, a periodic sniff test of the gas
is advisable.
If you have any question about the gas odor, call your Propane Gas Dealer.
A periodic sniff test of the Propane Gas is a good safety measure under any
condition.
If, at any time, you do not smell the Propane Gas odorant and you think you should, assume you have a
leak. Then take the same immediate action recommended above for the occasion when you do detect
the odorized Propane Gas.
If you experience a complete “gas out,” (the container is under no vapor pressure), turn the tank valve
off immediately. If the container valve is left on, the container may draw in some air through openings
such as pilot light orifices. If this occurs, some new internal rusting could occur. If the valve is left open,
then treat the container as a new tank. Always be sure your container is under vapor pressure by turning
it off at the container before it goes completely empty or having it refilled before it is completely empty.

Page 11
Installation Manual - SRF40
ENGLISH WARNING
2. General Information
• This fireplace is configured to operate with propane (FG00020) or natural gas (FG00002).
A fireplace configured to run on propane gas can be converted to run on natural gas.
See instructions packaged with the conversion kit for further information.
• This appliance is designed and approved as a supplemental heater and provides the potential for
most energy conservation when used while attended. The use of an alternative primary heat source
is advisable.
• The blower kit is already installed.
• Sample Warnings and Definitions
DANGER
Indicates a hazardous
situation which, if
not avoided, WILL
RESULT IN DEATH or
serious injury.
WARNING
Indicates a hazardous
situation which, if
not avoided, COULD
RESULT IN DEATH or
serious injury.
CAUTION
Indicates a hazardous
situation which, if
not avoided, COULD
RESULT IN MINOR OR
MODERATE INJURY.
NOTICE: Addresses practices not related to personal injury.
2.1 Appliance Certification
Consult your local building code agency, prior to installation, to ensure compliance with local codes-
including permits and inspections. The fireplace, when installed, must be electrically grounded in
accordance with local codes or, in absence of local codes, with the National Electric Code ANSI/NFPA
70 or Canadian Electric code, CSA C22.1, if an external electrical source is utilized.
2.2 Qualified Installing/reparing Agency
Installation and replacement of gas piping, gas utilization equipment or accessories and repair and
servicing of equipment shall be performed only by a qualified agency.
The term “qualified agency” means any individual, firm, corporation or company which either in person
or through a representative is engaged in and is responsible for :
(a) the installation or replacement of gas piping or
(b) the connection, installation, repair or servicing of equipment, who is experienced in such work,
familiar with all precautions required and has complied with all the requirements of the authority
having jurisdiction.
NOTICE: The installation must be made by a licensed plumber or gas fitter in the Commonwealth of
Massachusetts.
WARNING
ANY CHANGE TO THIS FIREPLACE OR ITS CONTROLS CAN BE DANGEROUS.
Improper installation or use of the fireplace can cause serious injury or death
from fire, burns, explosions, or carbon monoxide poisoning.
The installation must conform with local codes or, in the absence of local codes, with the National Fuel
Gas Code ANSI Z223.1/ NFPA 54* Natural Gas and Propane Installation Code, or CSA B149.1 in Canada.
Any alteration of the original design, installed other than as shown in these instructions or use
with a type of gas not shown on the rating plate is the responsibility of the person and company
making the change.

Page 12 Installation Manual - SRF40
ENGLISH
2.3 High Altitude
When installing this fireplace at an elevation above 2,000 feet (in the United States) it may be necessary
to decrease the input rating by changing the existing burner orifice to a smaller size. Generally, input
should be reduced 4 percent for each 1,000 feet above sea level. However, if the heating value of the gas
has been reduced, this general rule may not apply. Check with SBI for proper orifice size identification.
Canadian High Altitude
This fireplace can be installed at elevations up to 4,500 feet without changing the BTU. When installing
this fireplace at an elevation above 4 500 feet (1,370 m), check with local gaz utility for assistance in
determining the proper orifice for location.
2.4 While unpacking
Before starting to unpack, place the fireplace near its final location. Undo the uprights from the packaging,
be careful not to damage the appliance. Unscrew the anchors holding the fireplace to the pallet. Lift the
hearth out the pallet. While unpacking, verify that the fireplace and components have not been damaged
during shipping and there is no components missing.
2.5 Installation Guidelines
In planning the installation for the fireplace, determine where the fireplace is to be installed and
whether optional accessories are desired. Gas supply piping, electrical connections and venting
should also be planned at this time. Refer to the framing section to understand proper opening
size of framing required for installation of the fireplace. The framing of the fireplace will determine
how the fireplace finishing materials will be applied.
NOTICE: A manufactured home (USA only) or mobile home OEM installation must conform with the
Manufatured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a standard is
not applicable, the Standard for ManufacturedHome.
2.6 Preparation
This direct vent gas fireplace and its components are tested and safe when installed in accordance with
this installation manual. Report to your dealer any parts damaged in shipment, specifically check glass
condition. Do not install fireplace with damaged, incomplete, or substitute parts. Read all instructions
before starting installation and follow these instructions carefully during installation to insure maximum
benefit and safety. Failure to follow them will void your warranty and may present a fire hazard.
The warranty will be voided by, and the warranter disclaims any responsibility for the following actions:
• Installation of any damaged fireplace or vent system component.
• Modification of the fireplace or direct vent system.
• Installation other than as instructed by SBI.
• Improper positioning of the glass door, or decorative accessories including logs, rocks, crushed glass
or other approved media.
• Installation or use of any component part not manufactured or approved by manufacturer.

Page 13
Installation Manual - SRF40
ENGLISH
2.7 Specifications
Propane Natural
Altitude (ft) 0 - 4,500 0 - 4,500
Max. Input (BTU/Hr) 45,000 47,500
Min. Input (BTU/Hr) 35,000 30,000
KWH (Max.) 13.19 13.92
KWH (Min.) 10.26 8.79
Maximum Gas Supply Pressures
(inches water column) 14.0 14.0
Minimum Gas Supply Pressures
(inches water column) 10.8 4.5
Manifold Gas Supply Pressures
(inches water column) 10.0 3.5
Burner orifice Front #56 2.25 mm
Burner orifice Rear 1.55 mm 2.45 mm
Efficiency 72.78 % 66.37 %
Air Shutter Opening Front Fully Open Fully Closed
Air Shutter Opening Rear Fully Open 1/18" Closed
Gas Inlet Shut-off Valve (pipe) 1/2" NPT 1/2" NPT
Vent Size 5" x 8" 5" x 8"
Blower spec 120 V, 60 HZ, 33W, 76 CFM
Light Bulb replacement 35w Clear Halogen, BI-Pin 6.35 mm base, 120 vac, UL
NOTICE: Air shutter settings are factory minimum settings. Some venting configurations may require minor
air shutter adjustments for optimum performance.

Page 14 Installation Manual - SRF40
ENGLISH
2.8 Plastic bag contents and Hardware Pack
See complete parts list for ordering replacement parts. Do not order batteries, bolts, screws, washers
or nuts. They are standard hardware items and can be purchased at any local hardware store.
AA Battery
4x
AAA Battery
3x
Remote
1x
Cover Plate, Battery Box
1x
(2)
Battery Box
1x
Wire Assembly
Module to Interface
1x
Wire Grommet
1X
Rear spacers (for installation
with forced air distribution kit)
2X

Page 15
Installation Manual - SRF40
ENGLISH
2.9 Dimensions
18 7/8"
481mm 5 1/4" 133mm
12 3/8"
314mm 43 3/8"
1103mm
35"
890mm
43 7/8"
1113mm
10mm
3/8" (MIN.)
1 1/4'' (MAX.)
32mm
36"
913mm
10 1/8"
257mm
14"
356mm
40 7/8"
1039mm
48 7/8"
1242mm 1 1/2"
38mm
4"
103mm
24 1/2"
622mm
SRF40 (FG00002 / FG00020)
© 2021, FABRICANT DE POÊLES INTERNATIONAL INC. TOUS DROITS RESERVÉS / ALL RIGHTS RESERVED
O5"
130mm
O8"
203mm
24 1/2"
623mm
26 3/8"
669mm
2"
51mm
30 3/8"
772mm
35 3/4"
909mm

Page 16 Installation Manual - SRF40
ENGLISH FRAMING
PART B - INSTALLATION
3. Fireplace Installation
3.1 Safety Information
WARNING
Hot Wall surfaces! The Wall directly above the fireplace is constructed of non-combustible
materials and although safe, it may reach temperatures in excess of 250°F depending on
choice of trims or optionnal accessories. Do not touch. Finish the wall using materials
suitable for these temperatures.
3.2 Appliance Location
ROOM DIVIDER
INSTALLATION
FLUSH WALL
INSTALLATION
ISLAND
INSTALLATION
CABINET
INSTALLATION
CORNER
INSTALLATION
ANGLED CORNER
INSTALLATION
NOTE: Island and Room Divider installation is possible
as long as the horizontal portion of the vent system
does not exceed 20 feet with a minimum vertical run
of 8 feet.
NOTE: When installing this fireplace against an exterior
wall, insulate to applicable insulation codes. When you
install your direct vent fireplace in room divider or flat
on wall corner positions, a minimum of 4 ¼ inches
clearance must be maintained from the perpendicular
wall and the front opening of the fireplace.
3"
76mm
4 1/4"
108mm
45°

Page 17
Installation Manual - SRF40
ENGLISH FRAMING
3.3 Framing Clearances and Mantle
A chase is a vertical box-like structure built to enclose the gas fireplace and its vent system. In cooler
climates the vent should be enclosed inside the chase.
NOTICE: Treatment of ceiling firestops and wall shield firestops and construction of the chase
may vary with the type of building. These instructions are not substitutes for the requirements
of local building codes. Therefore, you MUST check local building codes to determine the
requirements to these steps.
A chase should be constructed in the manner of all outside walls of the home to prevent cold air drafting
problems. The chase should not break the outside building envelope in any manner. Walls, ceiling, base
plate and cantilever floor of the chase should be insulated. Vapor and air infiltration barriers should be
installed in the chase as per regional codes for the rest of the home.
Additionally, in regions where cold air infiltration may be an issue, the inside surfaces may be sheet
rocked and taped (or an equivalent method may be used) to achieve maximum air tightness.
To further prevent drafts, the wall shield and ceiling firestops should be caulked with caulk rated for a
minimum of 300°F continuous exposure rating to seal gaps. Gas line holes and other openings should
be caulked or stuffed with unfaced insulation.
If the fireplace is being installed on a cement surface, a layer of plywood may be placed underneath to
prevent conducting cold up into the room.
Attention: Cold climate installation recommendation: When installing this fireplace against a non-
insulated exterior wall, it is recommended that the outer walls be insulated to conform to applicable
insulation codes.
WARNING
Before building the framing, make sure to remove the
glass door latch tool secured to the top of the left side for
shipping. This tool is needed to open the glass door.

Page 18 Installation Manual - SRF40
ENGLISH FRAMING
Framing dimension A includes a 18 inch clearance for framing standoffs on fireplace.
After installing fireplace into framing, the non-combustible board must cover the 18 inch
opening above the fireplace.
NON-COMBUSTIBLE
HEADER
The appliance can be mounted on any of the following surfaces:
1. A flat, hard combustible or non-combustible surface.
2. A raised wooden platform.
3. Four corner supports (such as masonry blocks). These supports must be positioned so they contact
all four perimeter edges on the bottom of the unit.
3.3.1 Corner Framing
59 11/16"
1516mm
49 1/2"
1257mm
84 3/8"
2143mm
45 9/16"
1157mm

Page 19
Installation Manual - SRF40
ENGLISH FRAMING
M011
A
B
C
D
78"
1981mm MIN.
MANTEL
COMBUSTIBLE TRIM
AND MANTEL ALLOWED
IN SHADED AREA
NON COMBUSTIBLE
MATERIAL AREA
Index
letter
Distance from
finished wall
(in.)
Distance from
fireplace opening
(in.)
A 6'' (152 mm) 21'' (533 mm)
B 8'' (203 mm) 22 3/4" (576 mm)
C 10'' (254 mm) 24 1/4" (617 mm)
D 12'' (305 mm) 27 3/4" (703 mm)
FRAMING HEADER
(NON-COMBUSTIBLE)
58 5/8"
1490mm
65 3/8"
1660mm
41"
1041mm MIN.
34 7/8"
887mm
15"
381mm
3" 76mm
18"
457mm
1"
28mm
21"
533mm
MIN.
NON COMBUSTIBLE
MATERIAL AREA
3"
76mm
4 1/4"
108mm
45°
Index
letter
Distance from
fireplace opening
Distance
from finished
wall
A21" (533 mm) 6" (152 mm)
B22 ¾" (576 mm) 8" (203 mm)
C24 ¼" (617 mm) 10" (254 mm)
D27 ¾" (703 mm) 12" (305 mm)
This fireplace can be elevated off the floor provided that the fireplace is properly supported by
framing materials and the ceiling clearances are maintained.
Fireplace framing can be built before or after the fireplace is set in place. Framing should be positioned to
accommodate wall covering and fireplace facing material. The fireplace framing should be built with 2 x 4
lumbers and/or metals studs. The framing header must mandatorily be built with metal studs.
CAUTION
Measure fireplace dimensions and verify framing methods, and wall covering details
before framing construction begins.
WARNING
If the fireplace is installed directly on carpeting, tile or other combustible material
other than wood flooring, it should be installed on a metal or wood panel extending
the full width and depth of the fireplace.

Page 20 Installation Manual - SRF40
ENGLISH FRAMING
v
A
A
J
B
B
B
B
L
BB
B
I
A
A
K
F
VENT TERMINAL
SORTIE DU TUYAU D’EVACUATION
VAIR SUPPLY INLET
ENTRÉE D’AIR FRAIS
AAREA WHERE TERMINAL IS NOT PERMITTED
ZONE OU LA SORTIE N’EST PAS PERMISE
V
V
V
V
V
V
V
V
H
F
v
A
A
J
B
B
B
B
L
BB
B
I
A
A
K
F
VENT TERMINAL
SORTIE DU TUYAU D’EVACUATION
V
AIR SUPPLY INLET
ENTRÉE D’AIR FRAIS
AAREA WHERE TERMINAL IS NOT PERMITTED
ZONE OU LA SORTIE N’EST PAS PERMISE
V
V
V
V
V
V
V
V
H
F
v
A
A
J
B
B
B
B
L
BB
B
I
A
A
K
F
VENT TERMINAL
SORTIE DU TUYAU D’EVACUATION
VAIR SUPPLY INLET
ENTRÉE D’AIR FRAIS
A
AREA WHERE TERMINAL IS NOT PERMITTED
ZONE OU LA SORTIE N’EST PAS PERMISE
V
V
V
V
V
V
V
V
H
F
v
A
A
J
B
B
B
B
L
BB
B
I
A
A
K
F
VENT TERMINAL
SORTIE DU TUYAU D’EVACUATION
VAIR SUPPLY INLET
ENTRÉE D’AIR FRAIS
AAREA WHERE TERMINAL IS NOT PERMITTED
ZONE OU LA SORTIE N’EST PAS PERMISE
V
V
V
V
V
V
V
V
H
F
DESCRIPTION CANADA1UNITED STATES2
AClearance above grade, veranda,
porch, deck, or balcony 12 in (30 cm) 12 in (30 cm)
BClearance to window or door that
may be open
12 in (30 cm) for appliances > 10,000 Btuh (3 kW)
and ≤ 100,000 Btuh (30 kW)
9 in (23 cm) for appliances > 10,000 Btuh (3 kW)
and ≤ 50,000 Btuh (15 kW)
CClearance to permanently closed
window 12 in (30 cm) 12 in (30 cm)
D
Vertical clearance ventilated soffit
located above the terminal within a
horizontal distance of 2 feet (61 cm)
from the center line of the terminal
18 in (46 cm) 18 in (46 cm)
EClearances to unventilated soffit 18 in (46 cm) 18 in (46 cm)
FClearance to outside corner see page 41 see page 41
GClearance to inside corner see page 41 see page 41
H
Clearance to each side of center
line extended above meter/
regulator assembly
3 ft (91 cm) within a height 15 ft (4.5 m) above
the meter/regulator assembly 3 ft (91 cm)
IClearance to service regulator
vent outlet 3 ft (91 cm) 61 in (1.55 m)
J
Clearance to nonmechanical air
supply inlet to building or the
combustion air inlet to any other
appliance
12 in (30 cm) for appliances > 10,000 Btuh (3 kW)
and ≤ 100,000 Btuh (30 kW)
9 in (23 cm) for appliances > 10,000 Btuh (3 kW)
and ≤ 50,000 Btuh (15 kW)
KClearance to a mechanical air
supply inlet 6 ft (1.83 m) 3 ft (91 cm) above if within 10 ft (3 m) hori-
zontally
L
Clearance above paved sidewalk
or paved driveway located on
public property
7 ft (2.13 m)37 ft (2.13 m)4
MClearance under veranda, porch
deck, or balcony 12 in (30 cm)412 in (30 cm)
1In accordance with the current CSA B149.1, Natural Gas and Propane Installation Code
2In Accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code
3A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single family dwellings and serves both dwellings.
4Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the oor.
