VALLEY CRAFT ROTOLIFT-78 AIR User manual

Z41493A0 Last Updated 08/15
ROTOLIFT
BATTERY POWERED
INSTRUCTION MANUAL
VALLEY CRAFT, INC. 2001 SOUTH HWY. 61, LAKE CITY, MN 55041 PH: 1-800-328-1480

2
TABLE OF CONTENTS
A. OPERATING INSTRUCTIONS PG. 3
B. SAFETY PG. 4
C. MAINTENANCE INFORMATION PG. 4
D. MSDS PG. 4
E. BATTERY CHARGING INSTRUCTIONS PG. 5
F. PARTS DIAGRAMS PG. 6-11
G. HYDRAULIC/ELECTRICAL SCHEMATIC PG. 12
H. TROUBLESHOOTING CHART PG. 13
I. WARRANTY STATEMENT PG. 14

3
A. Operating Instructions
NOTE: IT IS RECOMMENDED THAT ALL OPERATORS FAMILIARIZE THEMSELVES
WITH THE MACHINE AND DEVELOP SAFE WORKING HABITS.
1. IMPORTANT! Remove solid plug on hydraulic reservoir and install breather cap
(included in the Power Pak) for proper air venting.
2. Install battery with the negative pole on the left hand side (do not allow ground wire to
come in contact with any other wires or a short will occur).
3. Loosen rotator straps in the following way. A) Depress “finger release” on ratchet and
fold handle open. B) Pull strap through ratchet just far enough to unhook metal ring
from T-bar at the end of the rotating arm. C) Perform this on both ratchets.
4. Move the Roto-Lift forward, straddling the drum, and center the rotating arms to the
drum using the “up/down” switch on the control box panel.
5. After arms are centered on drum, push unit forward the rest of the way so the drum
touches the rear of the rotating arms.
6. Pull both straps around the front of the drum and hook the metal ring onto the T’bar on
the end of the rotating arms.
7. By depressing the “finger release” on the ratchet and returning it to the original position,
you may now ratchet the straps tight around the drum.
8. With BOTH straps tight, raise the drum by using the “up” function switch.
9. To dump, raise the drum to the desired height and rotate the switch on the control box
panel the direction you want the drum to dump.

4
B. Safety Instructions
1. When transporting a load, it is recommended that the attachment is lowered as close to the floor as
possible to reduce the chances of accidents during transport.
2. Do not leave load suspended for an extended period of time or premature wear to the lifting cylinder will
occur.
3. Maximum lifting capacity is 800 pounds.
C. Maintenance Information
1. Use 12 Volt 80AH sealed lead acid AGM battery. Approximate dimensions of the battery is 10 ¼ long
x 6 ¾ wide x 8 3/8 high (to top of terminal). Battery warranty is free replacement within one year of
purchase.
2. Check hydraulic fluid every 40 hours or before using the machine after long set-aside periods. Three
quarts of hydraulic fluid is sufficient to operate the system properly. Do no overfill. Use Dexron
automatic transmission fluid only!
3. The lifting chain should be oiled periodically as needed. This is best accomplished by lowering the
backplate completely and spraying lubricant onto the chain.
4. Check nylon straps occasionally for wear and replace as necessary.
D. Material Safety Data Sheets (MSDS)
A Material Safety Data Sheet (MSDS) provides information on the safe use, handling and potential hazards of a
product. This information assists with the proper response in the event of an emergency.
Valley Craft maintains material safety data sheets (MSDS) on all our products. You are urged to obtain copies of
the relevant MSDS before using our products to protect yourself and others against any known health or safety
hazards described in the MSDS. Valley Craft strives to make safety a top priority. Do not hesitate to contact us
to discuss any safety aspects of our products.
The relevant MSDS codes for Valley Craft products are listed below.
www.conocophillips.com
Super ATF Transmission Oil, MSDS Code 778846
Super-Sta Grease, MSDS Code 775440
www.batteriesplus.com
Sealed Lead Acid Battery
SLA for English version
SLA Sp for the Spanish version
Paint
Contact Valley Craft Customer Services at 1-800-328-1480 or on the web at [e-mail]

5
E. Battery Charging Instructions
1. Always turn the key to the “off” position when unit is not in use.
2. To charge your battery, plug a grounded extension cord into the built-in receptacle in
the Control Box and an outlet (see below).
3. The battery will charge automatically after the charger is plugged in and can be left
unattended.
•Batteries will generally require equal charging to work time.
4. Keep the charger plugged in to maintain a full battery level when the unit is not being
used.
NOTES:
•See charger MANUAL for SAFETY PRECAUTIONS and charger
TROUBLESHOOTING.
•DO NOT USE BATTERIES UNTIL THEY ARE TOTALLY DISCHARGED.
i. Doing so may damage your battery.
ii. For maximum battery life, your unit is equipped with a charger that collects
information from the battery and adjusts the current and voltage
accordingly. If your battery voltage drops below a certain threshold the
charger will not charge the battery.
•If the battery becomes discharged and won't charge by ordinary means, a
suggested solution is to “trick” the charger into reading a higher voltage from the
battery. To do this connect a second, well-charged battery (12.4 volts or greater)
in parallel with the dead battery-positive to positive, negative to negative. Then
plug in your charger and charge the combination until the dead battery has
enough voltage to enable being charged by itself.

6

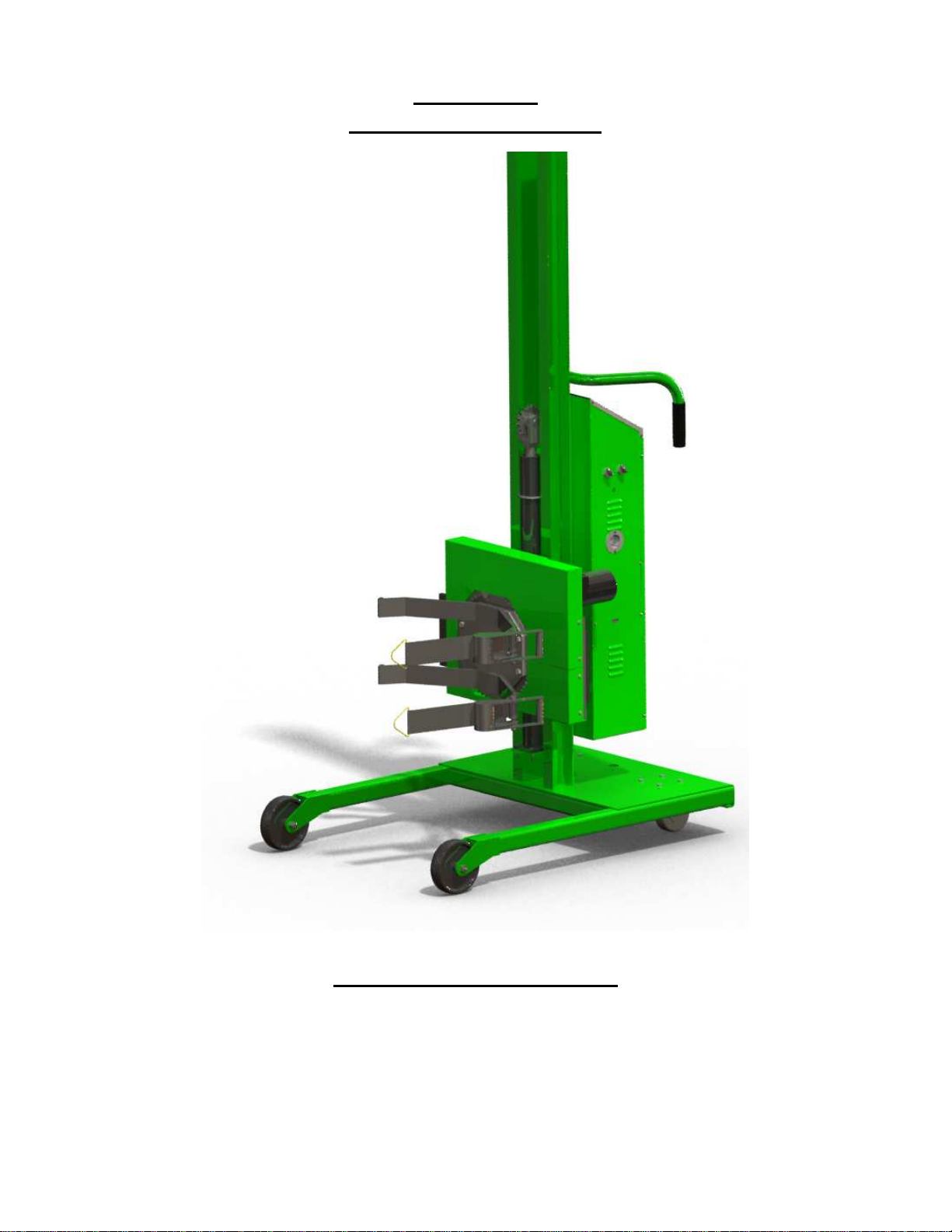

F. Parts Diagrams
F88565C7 ROTOLIFT-78
F88566C6 ROTOLIFT-90
F52067A6 CLEVIS PIN
F63091A3 SPROCKET ASSEMBLY
F60860A8 ROLLER CHAIN
–
78
F61446A9 ROLLER CHAIN
-
90
F62848B1 FRONT SECTION
Z20753A0 CYLINDER
-
78
Z20754A9 CYLINDER
-
90
Z20740A3
50
” HOSE (2)
-
78
Z20741A2 66” HOSE (2)
-
90
F68725A5
CONTROL BOX
Z30228A2 4” CASTER (2)
Z31606A9 6” PHENOLIC WHEEL
(2)
F68993 AXLE BOLT ASSY/SL (2)
Z10048A2 NUT-NYLOCK NE 1/2-13 (2)

7

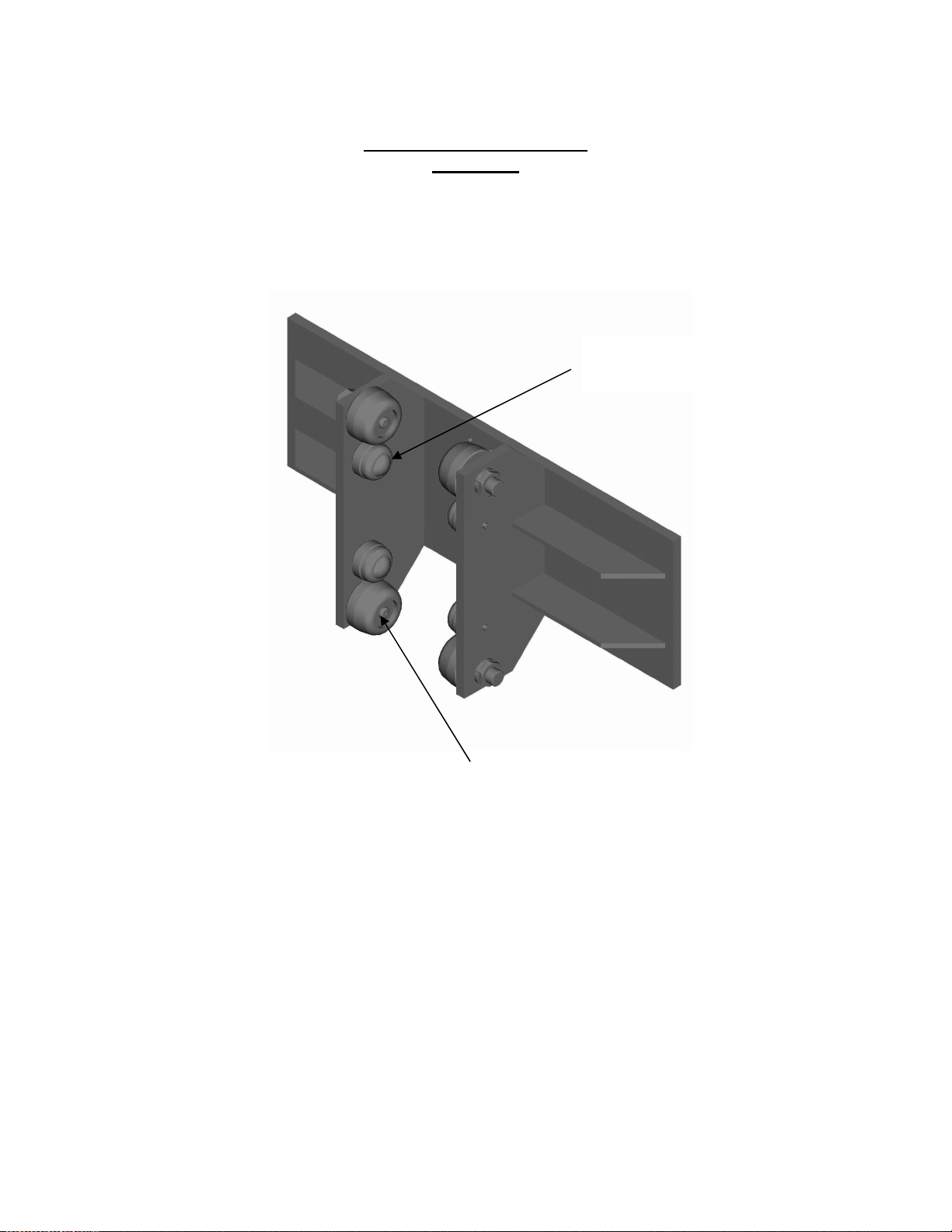

BACKPLATE ASSEMBLY
F64367A4
F64056A3
ROLLER/BRG ASSY (4)
Z30700A8
BALL TRANSFER-STUD (4)

8

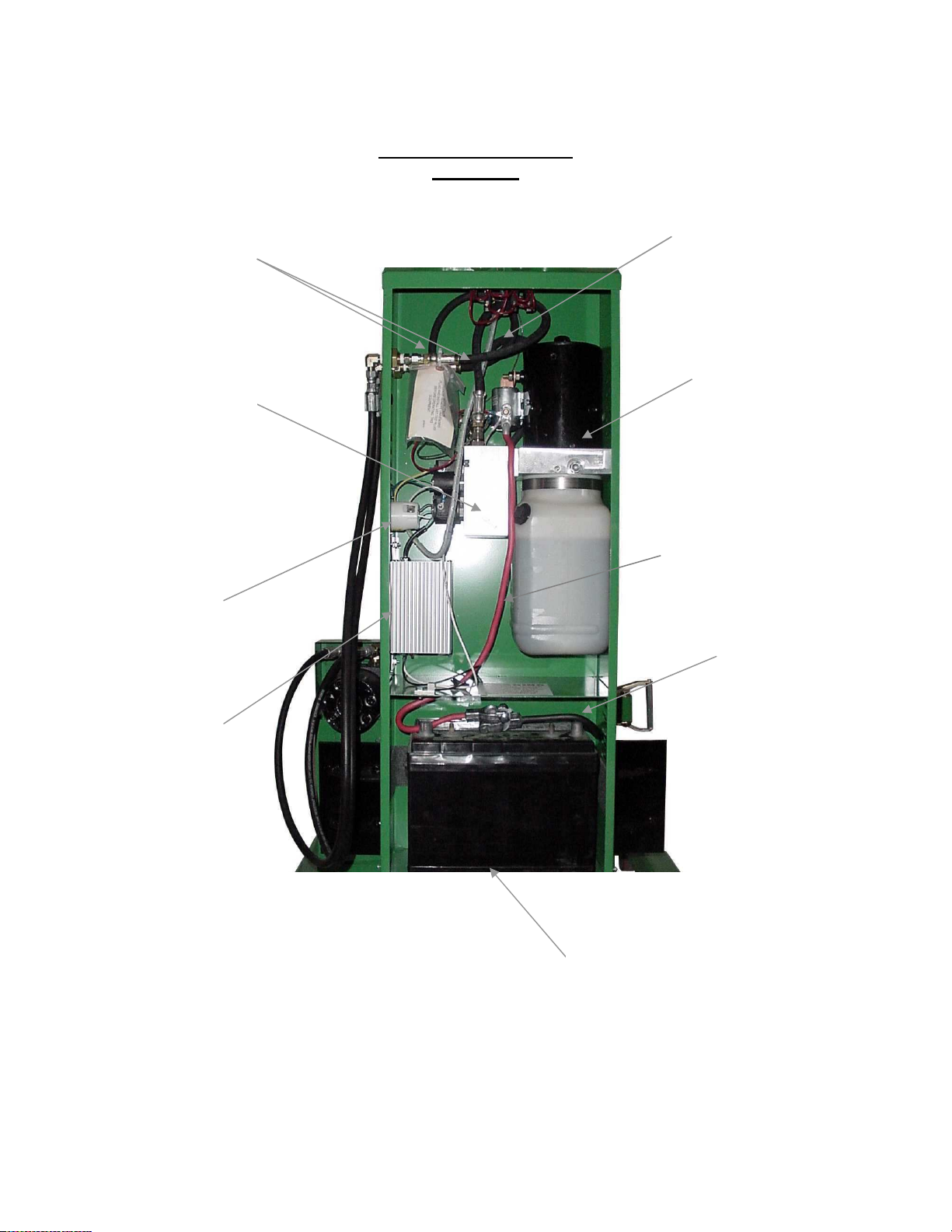

CONTROL BOX ASSY
F68725A5
F61306A3 POWER PAK
Z20661A1 MANIFOLD
Z00546A4 CHARGER
Z00120A4 PLUG
Z00011A6
BATTERY CABLE
-
27” RED
Z00114A2
BATTERY CABLE
15.5” BLACK
Z20739A5 39.5” HOSE
Z20736A8 20” HOSE (2)
Z00172A5
BATTERY-12V 80AH
SEALED LEAD ACID

9

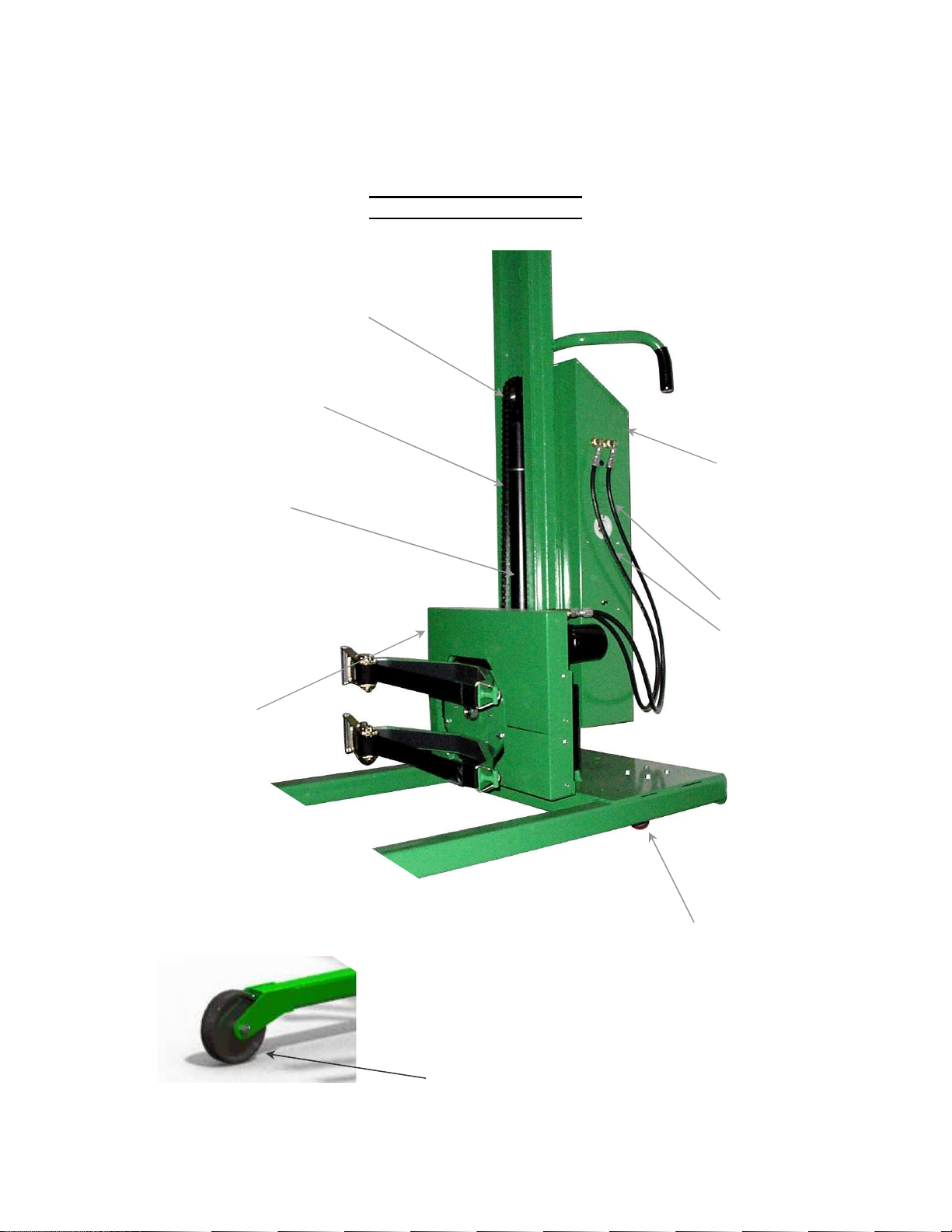

PARTS BREAKDOWN
FRONT SECTION ASSEMBLY
F62848B1

10
FRONT SECTION ASSEMBLY
PARTS LIST
ITEM
PART NUMBER
DESCRIPTION
QTY.
1 F30214A4 CHAIN-ROLLER 1
2 F52527A0 NUT-LOCK 1-14 1
3 F62980A9 RATCHET ASSY 2
4 F52651A8 MNT-MOTOR 1
5 F62629A6 FRT SECT WLDMT 1
6 F62630A3 BACK SECT WLDMT 1
7 F52648A4 GUARD-CHAIN TOP 1
8 F52649A3 GUARD-CHAIN BTM 1
9 F52650A9 SPROCKET-LARGE 1
10 Z10026A8 NUT-HEX JAM 3/8-16ZP 4
11 Z10090A9 S-SHS 5/16-18X3/8 2
12 Z10122A1 S-HHC 5/16-18X3/4 2
13 Z10132A9 S-HHC 3/8-16X1 4
14 Z10134A7 S-HHC 3/8-16X1-1/2 4
15 Z10148A1 S-HHC ½-13X1-1/2 2
16 Z10166A8 S-HHTC #10-24X1/2 8
17 Z10202A4 WASHER-3/8 FLAT 4
18 Z10214A0 WASHER-3/8 LOCK 8
19 Z10393A3 NUT-LOCK ½-13 2
20 Z10430A5 BUSH-MACH 1X14GAX2 1
21 Z10627A7 ZERK-GREASE .188 2
22 Z20701A3 FTG 90 6801-6-10 NWO 2
24 Z20656A6 MOTOR-HYD 1
25 Z30059A6 LINK-CONN SPG/CLIP 1
26 Z30400A2 SPROCKET-SM W/SHS 1
27 Z30420A8 BRG-TAPER ROLL 1” BORE 1
28 Z50037A1 RUBBER PAD 4.17’

11
TOP PANEL CONTROL BOX
F68730A0
Z00523A7
3-POSITION SWITCH
Z00524A6
CONTACT BLOCK N/O
(DOWN)
Z00542A8
CONTACT BLOCK 2 N/O
(ROTATE LEFT)
Z00542A8
CONTACT BLOCK 2 N/O
(UP)
F68727A3
WIRE HARNESS Z00542A8
CONTACT BLOCK 2 N/O
(ROTATE RIGHT)
UP/DOWN
LEFT/RIGHT

12

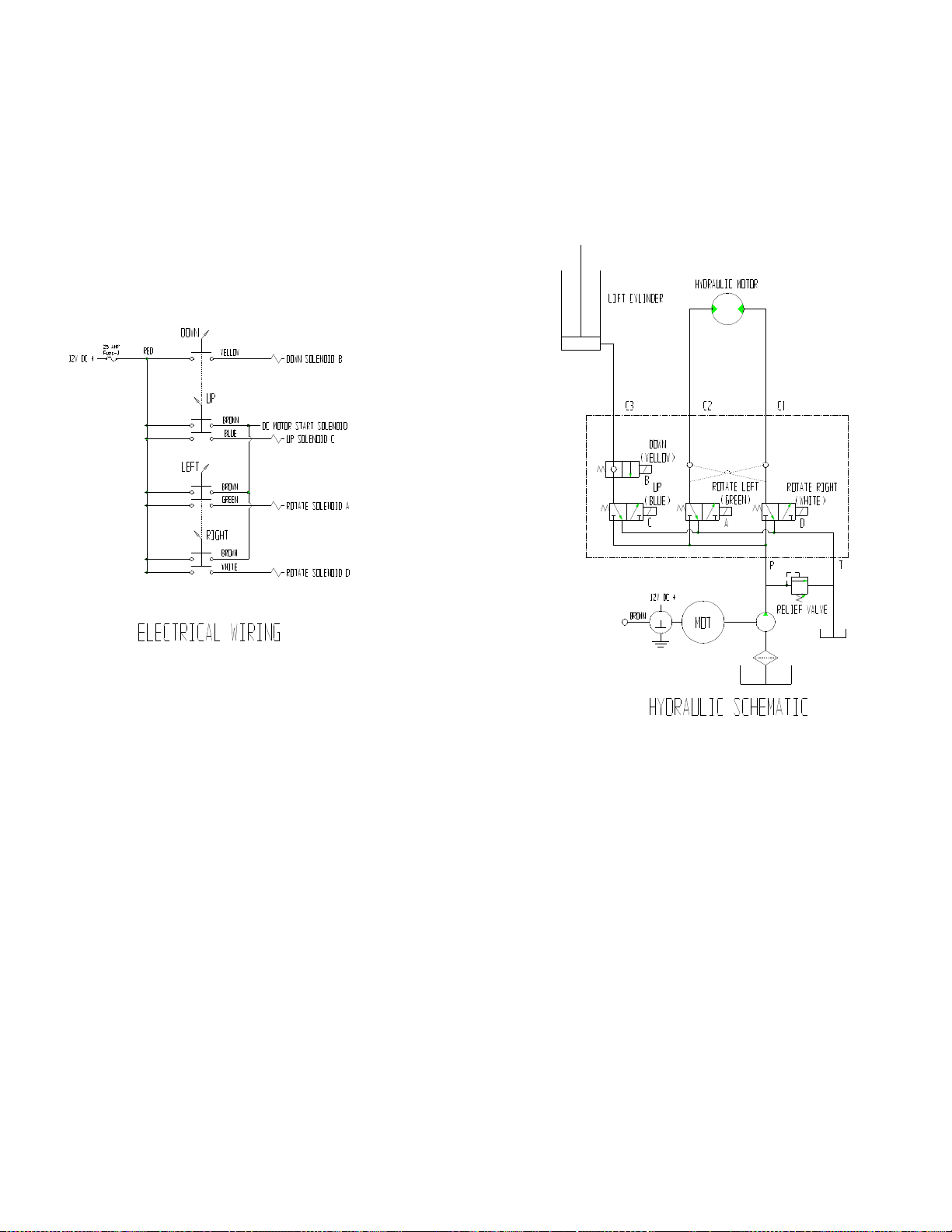

F. Hydraulic/Electrical Schematic

13
H. Troubleshooting Chart
PROBLEM
POSSIBLE
CAUSE
SOLUTION
Batteries won’t
charge
Faulty Battery(s)
Not following recharging
directions
Improper grounding/wiring
Load test Batteries to ensure it is good. If
battery is bad see page 8 for replacement.
Refer to Battery Charging Instructions
(Page 5)
Tighten Charger mounting bolts and check
wiring
Unit not functioning Low/Dead Batteries
Improper grounding
Damaged or loose wiring
Bad Switches
Recharge Batteries
Check Motor & Battery wire connections.
Tighten if necessary
Check wiring to switches in Control Box.
Re-attach loose connections.
Call factory for replacement

14

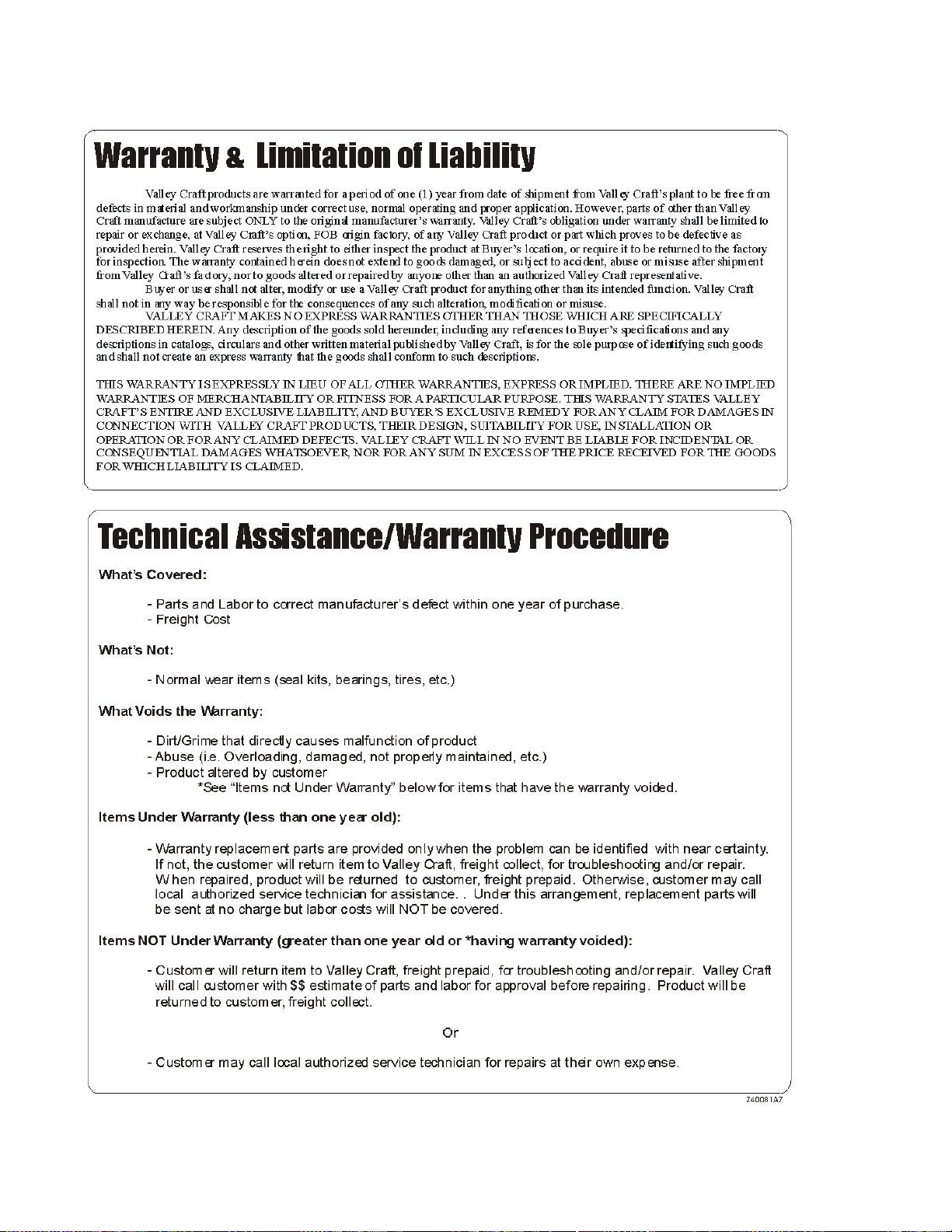

I. Warranty Statement
