1HOSE REEL
STACKING KIT
OWNER’S MANUAL
HRSK-M 800.864.1649
[e-mail]

HAVING TROUBLE? CALL THE SUPPORT TEAM AT: 800.864.1649
2
9/16” WRENCH x 2
INCLUDED
COMPONENTS
TOOLS REQUIRED
Stacking Bracket (2)
31-201053
Flat Washer (12)
33-300003
FITS MODELS:
HR-12AF-HP, HR-12AF-SW,
HR-18AF-HP & HR-18AF-SW
TOOLS NOT INCLUDED
SOLD
SEPARATELY
ACCESSORIES
ALL ACCESSORIES ARE
AVAILABLE THROUGH
YOUR VALLEY INDUSTRIES
DEALER. SEE STORE FOR
DETAILS.
12” Hose Reel Guides
HG-12-AL
18” Hose Reel Guides
HG-18-AL
Nylock Hex Nut (12)
33-300002
Hex Head Bolt (12)
33-201080

HAVING TROUBLE? CALL THE SUPPORT TEAM AT: 800.864.1649
3

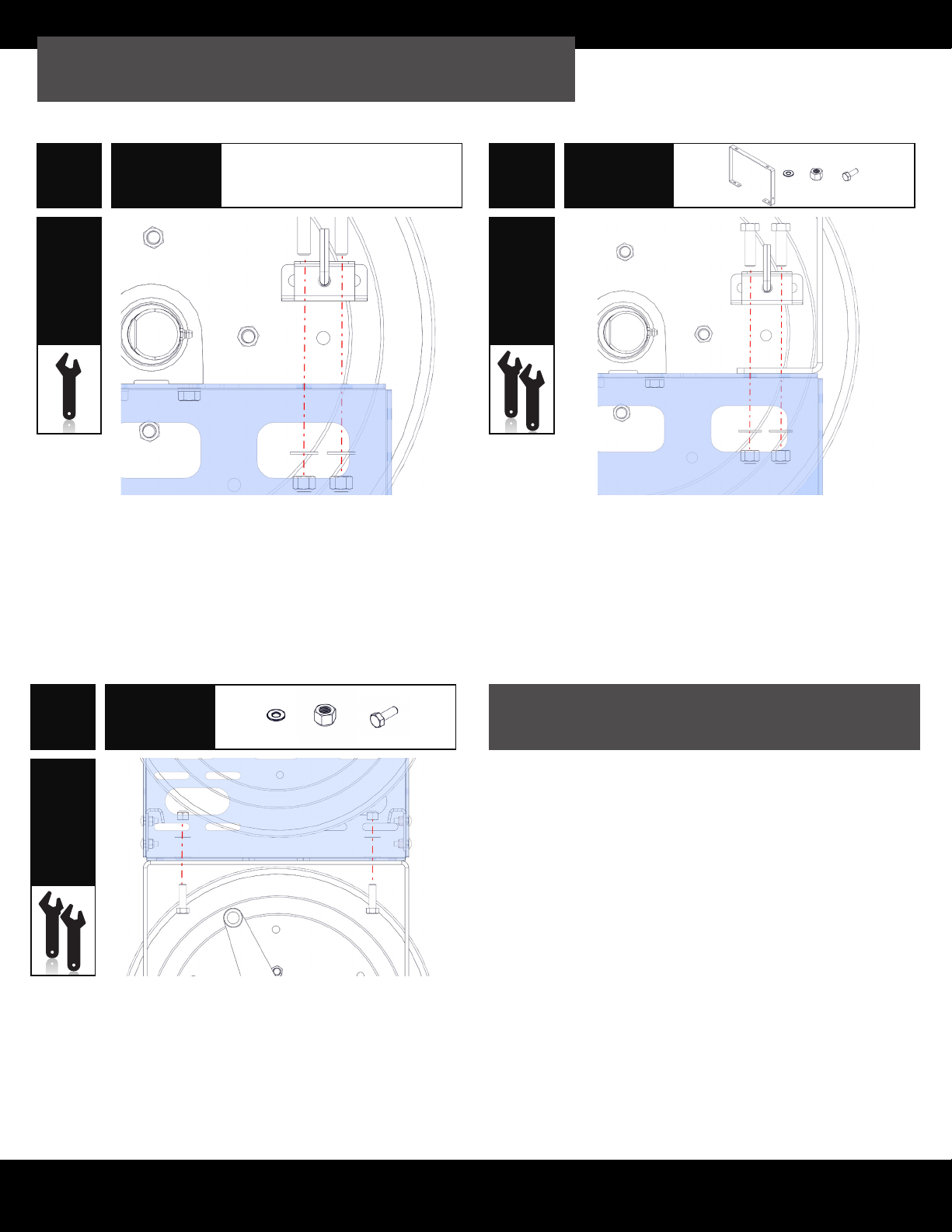

TOOLS
PARTS
Remove the Hex Head Bolts from the bottom hose reel’s
Locking Mechanism and set aside.
1.
TOOLS
PARTS
Set the Stacking Brackets on top of the hose reel frame,
open side down over the frame’s Mounting Holes.
Place the Locking Mechanism above the bottom tab of
the Stacking Bracket over its original location.
Insert Hex Head Bolts through the 8 Mounting Holes,
secure with Flat Washers and Nylock Hex Nuts as shown
above, and tighten with 9/16” Wrenches.
2.
TOOLS
PARTS
Place the top Hose Reel on the Stacking Brackets
and secure to the frame’s bottom 4 mounting holes
with Hex Head Bolts, Flat Washers and Nylock Hex
Nuts as shown above.
Tighten with 9/16” Wrenches.
3.
HOSE REEL STACKING KIT ASSEMBLY
WARRANTY INFORMATION
Stacking kits manufactured by Valley Industries are
warrantied for 1-year from date of shipment when
properly installed, maintained and operated.
The Warranty will cover parts replacement on
manufacturer and workmanship defects.

HAVING TROUBLE? CALL THE SUPPORT TEAM AT: 800.864.1649
4
BREAKDOWN STACKING KIT
ID Part Number Description Qty
1 31-201053 Stacking Bracket 2
2 33-300002 Nylock hex Nut 12
3 33-300003 Flat Washer 12
4 33-201080 Hex Head Bolt 12
