Vallone NERO 11 User manual

WALL MOUNTED THERMOSTATIC BATHTUB/SHOWER MIXER,
WITH 1 EXIT, BUILT-IN AND EXTERNAL PARTS
1600-50-111-C-MB
MATT
BLACK
TECHNICAL DRAWING (MEASUREMENTS IN MM)
NERO 11
TECHNICAL FILE
4
270º
45
2034
25
6
8
6
4
60
43
45
101
101
Ø60
WWW.VALLONE.DE

COLD WATER INLET
HOT WATER INLET
3
4
5
6
7
8
1
2
MIN.60MM/MÁX.80MM
NERO PRO U5
NERO PRO 11
WATER OUTLET

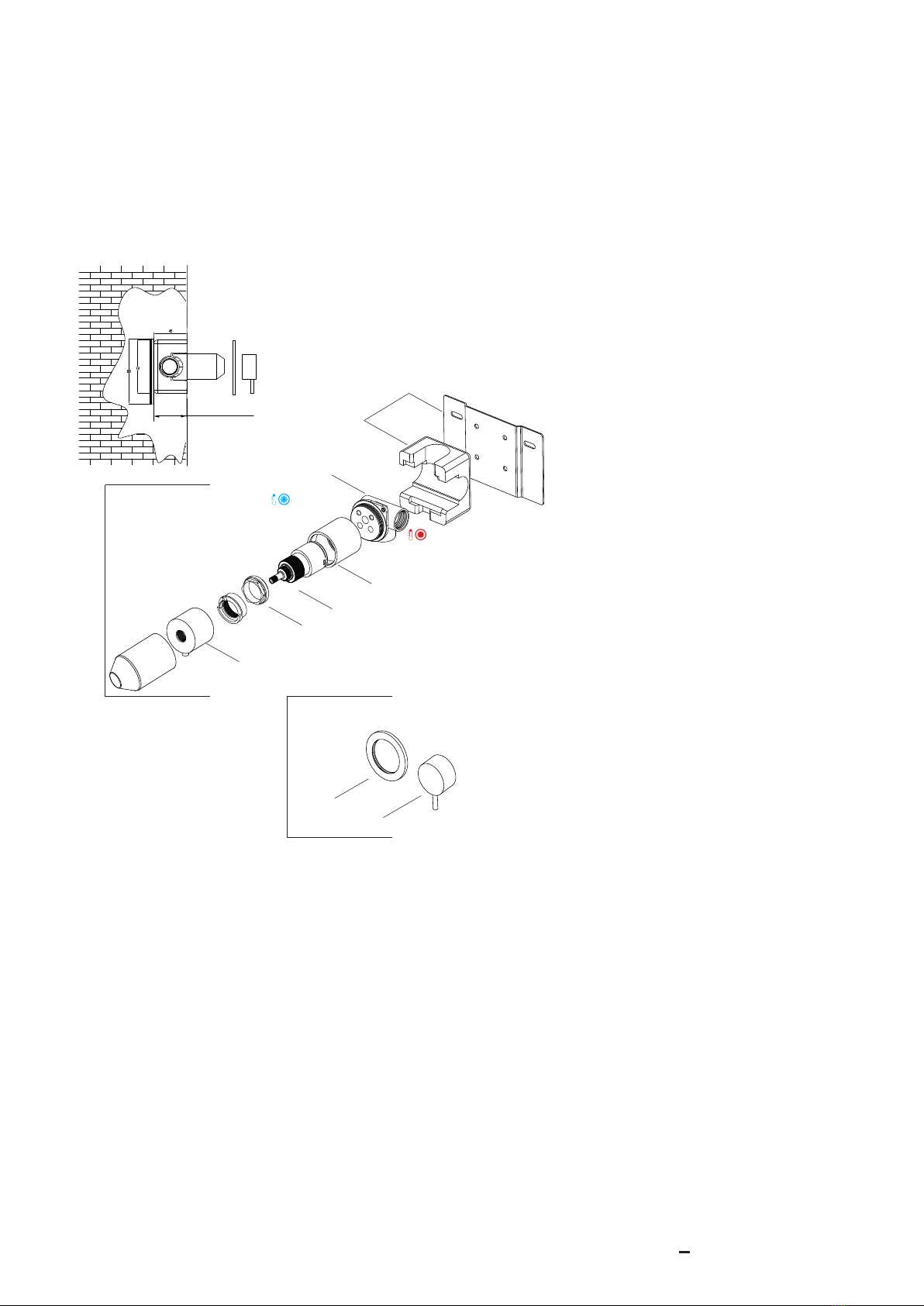

ASSEMBLY INTRODUCTIONS
FOR ASSEMBLY FOLLOW
THE INDICATIONS OF THE DRAWING
TECHNICAL DATA
TECHNICAL FILE
Nº DESCRIPTION
01 PLATE
02 HANDLE
03 THERMOSTATIC HANDLE
04 LOCKNUT
05 THERMOSTATIC CARTRIDGES
06 HOOD
07 CARTRIDGES FORGED BASE
08 EASY BOX
INSTALLATION RECOMMENDATIONS
Before installing a tap, it is good to rinse the supply
pipes to remove all residues. We also recommend
installing the taps with a filter. The installation of
the tap must be done with the surface clean and
dry. to perform the water pressure test, the taps
must be open.
CLEANING AND MAINTENANCE
Cleaning must be done with liquid soap and water.
Do not use liquid detergents containing abrasive or
acidic substances, abrasive sponges or disinfectants.
Incorrect cleaning may permanently ruin the surface
of taps.
On color finishings, do not use products containing
alcohol, acetone and other solvents.
WARRANTY
VALLONE®guarantees all its products in case of
manufacturing defects, as follows:
5-year warranty:
- Fusion or porosity defects;
- Cartridge defects (the wear of this component
depends on water quality);
- Chrome plating defects (defects caused by
maintenance errors
are excluded, please refer to cleaning instructions).
1-year warranty:
- O-rings or fittings defects.
- Defects on remaining finishes.
In order to use this warranty, please keep the invoice
and attach it to this document.
Warranty grants the right of free replacement of
parts that cause an irregular operation due to
manufacturing defects, in every cases in which
malfunction is not caused by incorrect use,
maintenance errors, irregular installation, assembly
made by unqualified people or reasons of force
majeure.
Defective products must be sent to VALLONE®,
with shipping expenses borne by the sender – this
warranty document and a copy of the purchase
invoice must be attached to the package – where
the products will be promptly replaced and send
back with shipping expenses borne by VALLONE®
Non-compliance of this conditions will render the
warranty null and void.
This warranty excludes any liabilities on the
consequences arising from use or installation
defects of VALLONE®products.
