Valmar 2055 User manual

2055 / 2455 / 3255 Pneumatic
Granular Applicator
OPERATOR'S
MANUAL
Valmar Airflo Inc.
Box 100
Elie, MB R0H 0H0
Phone (204) 353
Issue Date: June 1999 FAX [phone]
Email: [e-mail]

Box 100
Elie, MB
R0H 0H0
Phone [phone]
FAX [phone]
Email: valma[email protected]
Printed in Canada
Issue Date: June 1999 Part No. 20.6191

Page 1
VALMAR 2055 / 2455 / 3255 Applicator
Table of Contents
Item Page
Serial Number Location 3
1 - Introduction 4
2 - Safety 5
3 - Safety Decals 8
4 - Operation 11
5 - Calibration 17
6 - Adjustments and Service 29
7 - Troubleshooting 37
8 - Options 41
9 - Specifications 43
10- Parts 48
Printing Date: March 2009

Page 3

Warranty VALMAR
Page 2
VALMAR WARRANTY
All Valmar products are warranted for one year against defects in materials and workmanship and
to perform according to specifications when such products are properly assembled, installed, used
and maintained.
Valmar warrants that its manufactured parts will be as specified and will be free from defects in
material and workmanship.
Valmar's liability under this warranty shall be limited to one of the following:
1. Repair or replacement of the defective part at our discretion.
2. Granting of a reasonable allowance providing action of dealer has been approved by Valmar.
Warranty will be allotted only upon return and inspection of part by Valmar and if part is determined
to be defective in terms of materials or workmanship.
This obligation shall not include any transportation charges or any extra costs or liability for any
direct, indirect or consequential damages or delay.
WARRANTY LIMITED OR VOID
Any use for purposes other than those for which the product was designed, operation beyond rated
capacity, substitution of parts not approved by Valmar, or alteration or repair by others in such
manner as in our judgment affects the product materially and adversely shall void this warranty.
Warranty does not apply to any machine or part which has been repaired or altered in any way so
as in Valmar's judgement to affect its reliabilty, or which has been subject to misuse, negligence, or
accident.
Component parts, equipment, accessories and items not fabricated by Valmar are warranted only
to the extent of the original manufacturer's warranty.
Valmar reserves the right to make improvement changes on any of our products without notice.
WARRANTY CLAIMS PROCEDURE
1. A warranty claim form must be completed by your Valmar dealer.
2. Defective parts for which a warranty claim is made must be returned to Valmar within 15 days
from the claim date.

Page 3

VALMAR Serial Number Location
Page 3
Serial Number Location
Your Valmar applicator has a model and serial
number to clearly identify it. Always give your
dealer the Model Number and Serial Number of
your machine when ordering parts or requesting
service information. Mark the model and serial
numbers in the spaces provided for easy
reference.
Applicator Serial Number

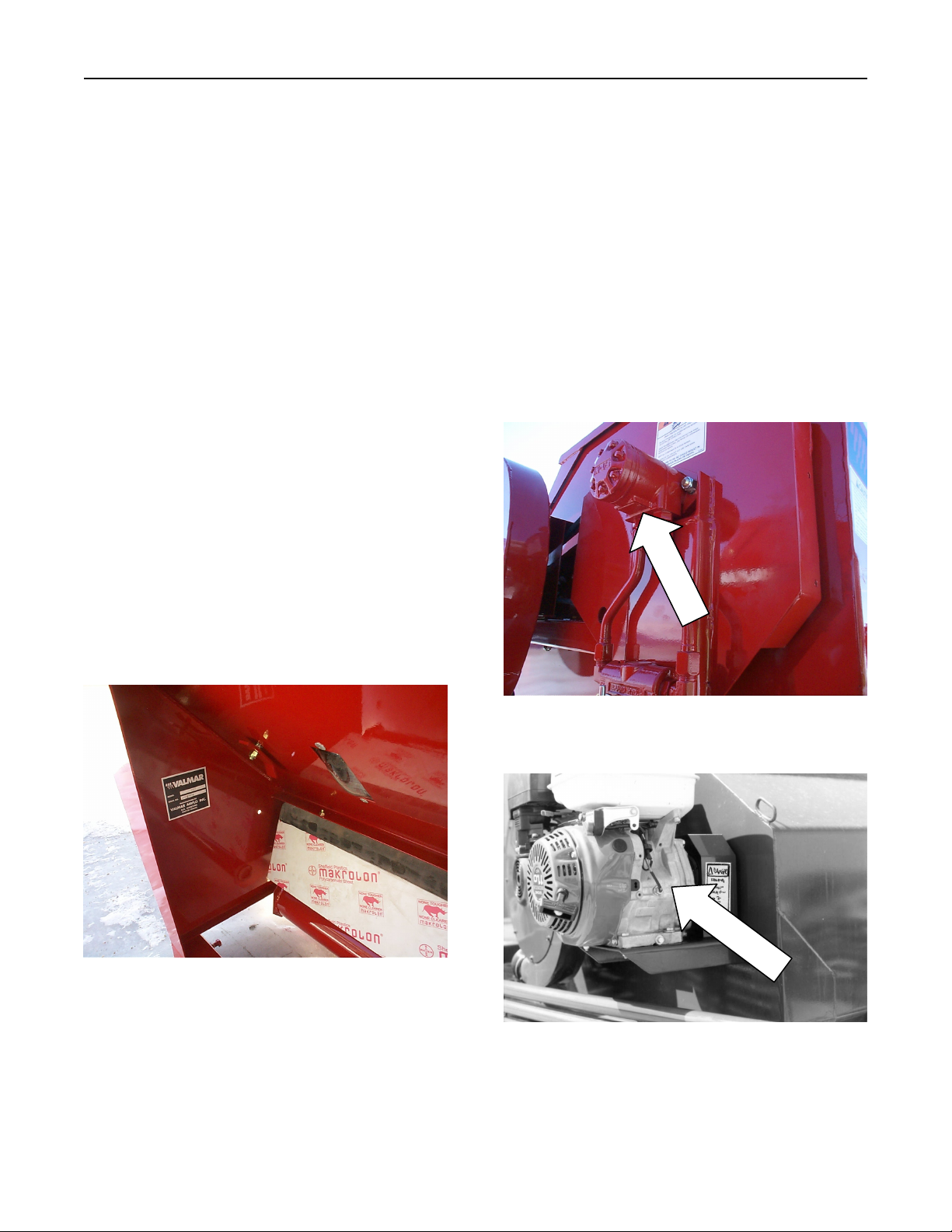

The Serial Number Plate is located on the front
right-hand inside panel of the hopper as shown
in the photo below.
Model No. ___________________________
Serial No. ___________________________
Hydraulic Motor Serial Number
______________________________
Gas Engine Serial Number
_____________________________

VALMAR Introduction
Page 4
1 - Introduction
Congratulations on your choice of a Valmar applicator for your farming operation. This equipment has
been designed to meet the needs of a discerning agricultural industry for the pneumatic application of
fertilizer and granular herbicide products.
Safe, efficient and trouble-free operation of your applicator requires that you and all who operate or
maintain this machine read and understand all information contained in this Operator's Manual.
Safety Alert Symbol
This SAFETY ALERT SYMBOL indicates important safety
messages in this manual. When you see this symbol be
alert to the possibility of personal injury. CAREFULLY
READ THE MESSAGE THAT FOLLOWS.
Dealer Information
Your Valmar dealer is your source for parts and service for your applicator. If you need any assistance
with the operation or maintenance of your machine, call your Valmar dealer. Write the dealer's name
and phone number below for handy reference.
Dealer's Name:
Dealer Phone No.:
Operator Orientation
The directions left, right, front and rear as mentioned throughout the manual are as seen from the
driver's seat and facing in the direction of travel.

Valmar Safety
Page 5
2 – Safety
Read the Operator’s Manual
ALL OPERATORS must read and
understand the Operator’s manual before
working with the applicator. Review the
Operator’s manual and safety decals of this
machine before each season of use.
The Safety Alert Symbol is on all safety
decals. When you see the symbol, follow
the instructions to avoid injury or death.
Signal Words
Note the use of the words DANGER,
WARNING and CAUTION on the safety
decals. Each signal word denotes a
different type of hazard as shown:
DANGER
AN IMMEDIATE AND SPECIFIC HAZARD
WHICH WILL RESULT IN SEVERE
PERSONAL INJURY OR DEATH IF THE
PROPER PRECAUTIONS ARE NOT TAKEN
WARNING
A SPECIFIC HAZARD OR UNSAFE
PRACTICE WHICH COULD RESULT IN
SEVERE PERSONAL INJURY OR DEATH IF
PROPER PRECAUTIONS ARE NOT TAKEN
CAUTION
UNSAFE PRACTICES WHICH COULD
RESULT IN PERSONAL INJURY IF PROPER
PRECAUTIONS ARE NOT TAKEN, OR AS A
REMINDER OF GOOD SAFETY PRACTICES
Operator Safety
If your Valmar applicator is mounted on a
towed implement, the operator must
observe the safety requirements of both the
towing vehicle and the applicator. Applicator
owners must give operation instructions to
employees or operators before allowing
them to operate the applicator, and at least
annually thereafter according to OSHA
(Occupational Safety and Health
Administration) Regulation 1928.57.

Safety Valmar
Page
6
Follow these safety guidelines:
1. Provide a first aid kit. Store it in a visible,
accessible location and know how to
use it.
2. Keep safety decals clean and legible at
all times. Replace missing or damaged
decals.
3. Before servicing, adjusting, repairing or
unplugging the applicator, stop the
tractor, set the park brake and wait for
all moving parts to come to a complete
stop.
4. Ensure that all guards and shields are in
place. Replace any that are damaged.
5. Have a qualified tire repairman perform
any tire repairs. Improper tire mounting
procedures can produce a serious
explosion resulting in injury or death.
6. Do not allow riders on the applicator.
PTO Shaft Safety
1. Do not operate any PTO unless all
shields and guards are in place.
2. Stop the tractor and wait for all moving
parts to come completely to a stop
before making any adjustments to the
PTO.
3. Be sure that both ends of the PTO shaft
are coupled securely.
Granular Chemical Safety
1. Read and strictly follow the
manufacturer’s instructions found on the
product container.
2. Wear chemically resistant clothing,
gloves and safety goggles.
3. Avoid contact with skin and eyes.
4. Wear a respirator as directed by the
chemical manufacturer.
5. Wash thoroughly after working with
chemicals, especially before eating.
6. Wash all clothing contaminated by
chemicals.
7. Wash down the applicator prior to any
maintenance. Dispose of wash water in
accordance with local standards and
laws.
8. Know the poison control emergency
telephone numbers in your area.
Hydraulic Safety
1. Keep hydraulic components clean so
that leaks can be easily identified.
2. Replace damaged hoses and fittings.
3. Use a piece of cardboard when trying to
pinpoint leaks. Wear heavy gloves and a
face shield.
4. Have hydraulic components repaired by
a qualified repair facility. Makeshift
repairs may fail suddenly creating a
hazardous condition.
5. If injured by a high pressure stream of
hydraulic fluid, seek medical attention
immediately. Serious infection can
result.
Fan Safety
1. Do not operate the fan unless all shields
and guards are in place.
2. Stay well away from the fan during
operation. Keep others away.
3. Stop the tractor and wait for all moving
parts to come completely to a stop
before making any repairs to the fan or
servicing its drive components.
Transport Safety
1. Be sure that an SMV (Slow Moving
Vehicle) sign and all reflectors and lights
required by local highway authorities are
in place, clean and functional.
2. Use a hitch pin that is strong enough to
tow the implement without breaking.
3. Use the safety chain to secure the hitch
on the implement to the tractor.

Valmar Safety
Page 7
4. Do not exceed the maximum speed
rating on implement tires (generally 25
mph or 40 kph).
5. Ensure that the booms are folded and
latched in place.
6. Disengage the metering drive tire.
Failure to do so may result in the
metering of chemicals and fertilizer onto
roadways. This may also cause the
metering drive to operate at very high
speeds and damage some of its
components.
Storage Safety
1. Store the applicator on a firm, level
surface.
2. Thoroughly clean the applicator before
storing to avoid contaminating the
surrounding area with pesticide and
fertilizer residue. Dispose of the wash
water in accordance with local standards
and laws.

Valmar Safety Decals
Page 7

Safety Decals Valmar
Page
8
3 – Safety Decals
Safety Decals
Keep safety decals clean and legible at all times. Replace decals that are missing or have become
illegible. Safety decals are available from the Valmar Parts Department.
Safety Decal Installation
•Be sure the installation area is clean and dry.
•Decide on the exact position before removing the backing paper.
•Remove the smallest portion of the backing paper.
•Align the decal over the desired area and press the small portion of the decal into place.
•Remove the remainder of the backing paper and press the entire decal in place.
•Pierce any air pockets and smooth them out.
Familiarize yourself with the location and message of all safety decals on these pages.

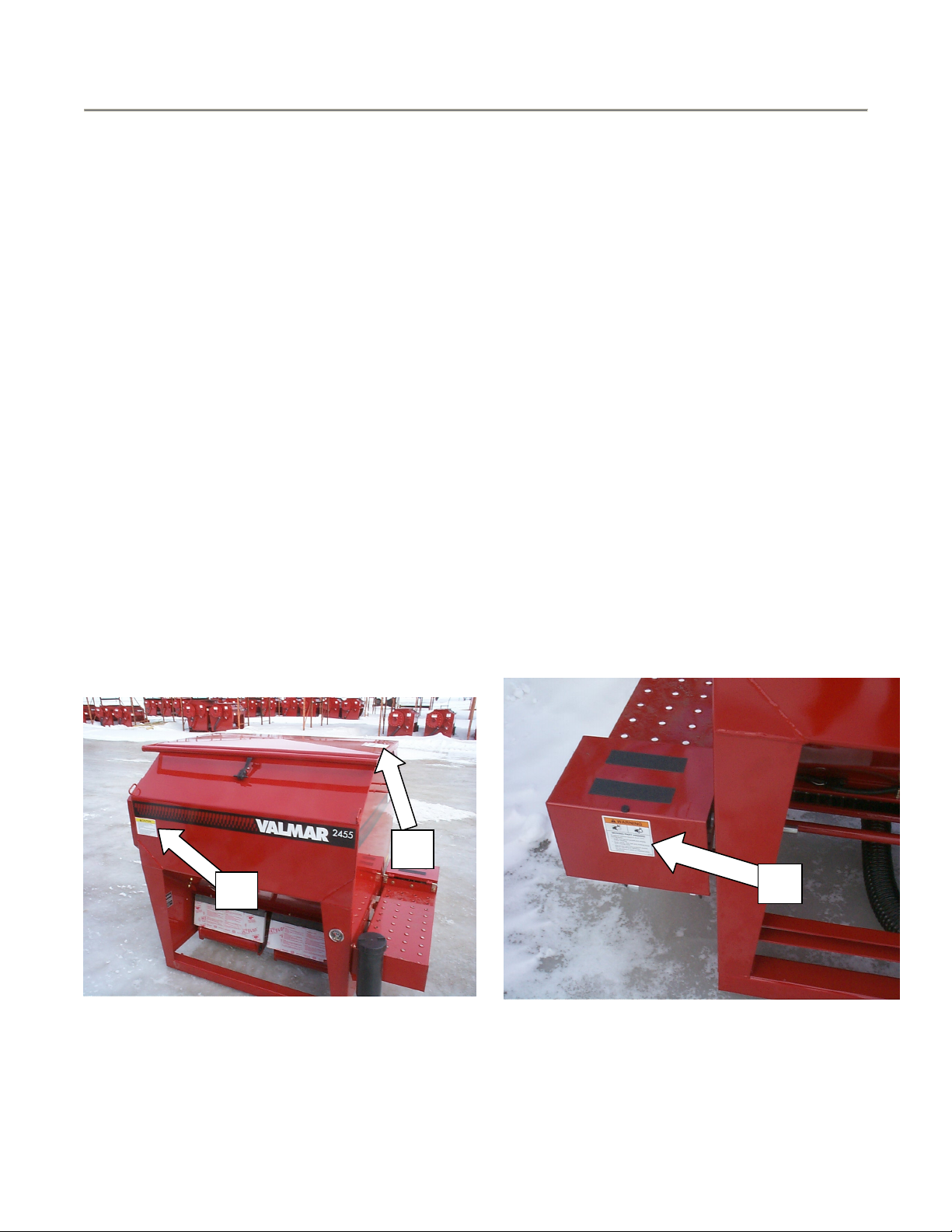

1
2
3

Valmar Safety Decals
Page 9
Decal 1
Decal 2
Decal 3
Decal 4
4 5
6

Safety Decals Valmar
Page
10
Decal 5
Decal 6

VALMAR Operation
Page 11
4 - Operation
Your Valmar applicator is designed to efficiently broadcast seeds and granular chemicals.
As noted in the diagram below, the system operates by using a hydraulically (optional gas engine)
powered fan to blow product through an air delivery system. A grooved metering roller accurately
meters product from the hopper into the venturis. Air passing through the manifold and venturis draws
the product into an airstream and sends it down a distribution hose where it can be spread by a
deflector. Product application rate is controlled by a sixty speed gearbox driven by a metering wheel in
contact with the ground.

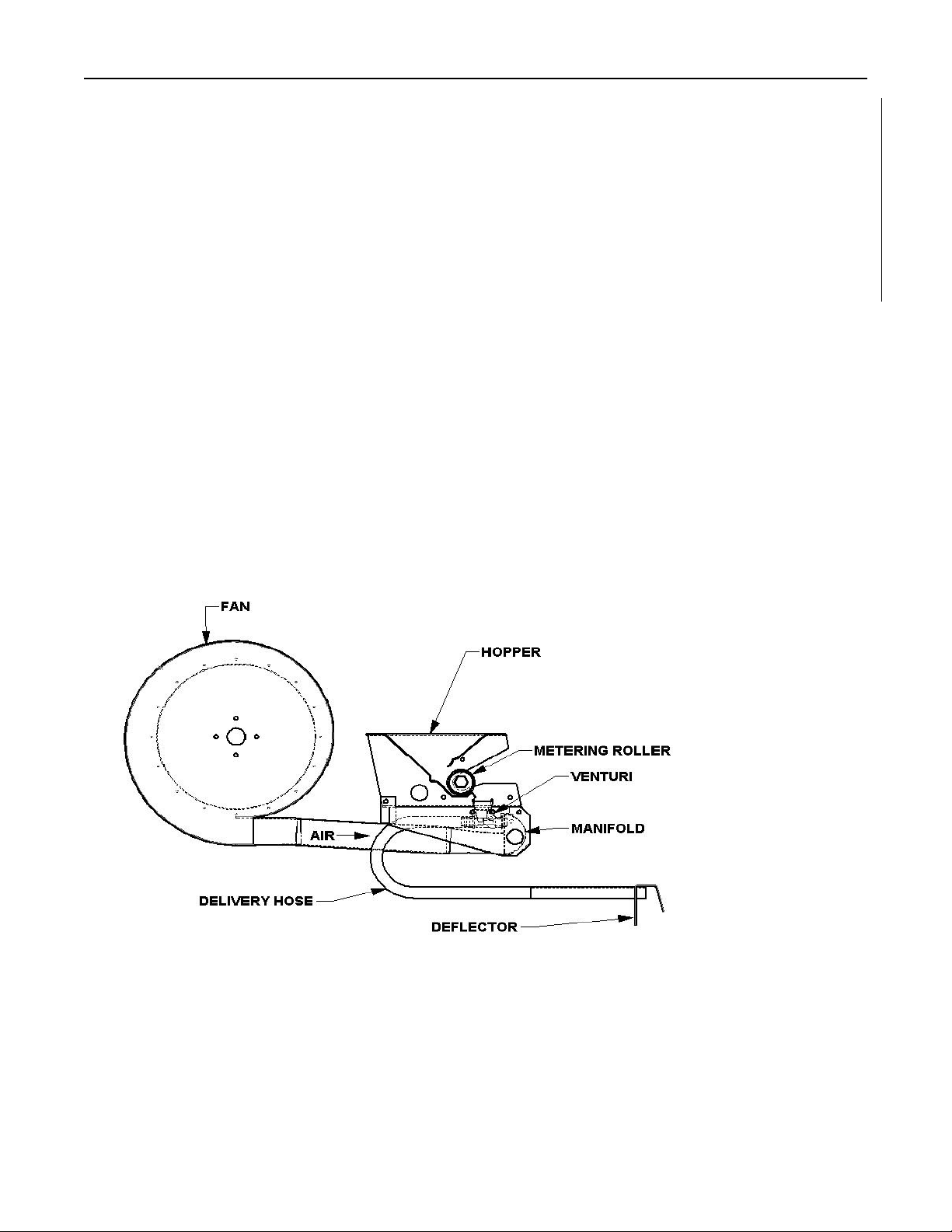

Figure 4-1: How the System Works

Operation VALMAR
Page 12
Safe Operation
Efficient and safe operation of the Valmar
Pneumatic Applicator requires that each
operator reads and understands the operating
procedures and all related safety precautions
outlined in this section. A pre-operation
checklist is provided. It is important for both
personal safety and maintaining the good
mechanical condition of the Applicator, that this
checklist is followed.
Pre-Operation Checklist
Before operating the applicator and each time
thereafter, check off the fallowing areas:
1. Check the implement and applicator
hydraulic system. Ensure that the
hydraulic reservoir in the tractor is filled
to the required specifications.
2. Inspect all hydraulic lines, hoses, fittings
and couplers. Use a clean cloth to wipe
any accumulating dirt from the couplers
before connection to the tractor’s
hydraulic system.
3. Inspect all delivery hoses for any wear
and restrictions. Repair or replace if
necessary.
4. Inspect the hopper for accumulation of
any foreign material that could plug the
venture system.
5. Check all the chains, sprockets, belts
and pulleys for proper adjustment and
tension. Adjust as shown in the
Adjustment and Service section of
manual.
6. Check the fan and manifold for any
accumulation of straw of dirt. Clean as
required. Run the fan at field speed to
clear hoses and outlets of foreign
material.
7. Check the metering rollers. They must
turn easily. Worn rollers will alter rates.
8. Ensure that all bearings turn freely.
9. Inspect the gearbox for alignment and
proper lubrication. Refer to Adjustment
and Service section of manual.
10. Operate the electrical clutches for proper
engagement. Refer to Adjustment and
Service if clutches do not work properly.
11. Make sure that all guards and shield are
in place.
12. Check the ground drive tire pressure.
Inflate to 30 psi.
13. Check mounting hardware for hopper to
implement. Tighten where necessary.
Control Unit (Figure 4-2)
The applicator is equipped with an electrically
operated control unit. The unit allows selection
of left, right or both metering rollers as well as
normal or alternate rates of product application.
The control unit also indicates incorrect
manifold pressures. Refer to Assembly and
Installation Manual for control unit installation.
Power Switch
Push the power switch to “ON” position for
operation of control unit. A light above the
switch indicates power is on.
Selector Switch
Select BOTH for the operation of both metering
rollers for full width application of product.
Select LEFT or RIGHT when only half the
application width is desired. This is useful when
finishing a field or where overlapping may occur.
Green lights above the dial indicate which
option is selected.
Normal/Alternate Rate (Optional)
If an alternate rate kit is installed, either a
NORMAL rate or an ALT (alternate) rate can be
selected and switched from one to the other at
any time. The desired alternate rate must be
determined when purchasing the kit according
to the following chart:
Alternate Rate Sprockets
No. of Teeth % Change in Rate
12 40% Lower
14 30% Lower
16 20% Lower
18 10% Lower
22 10% Higher
24 20% Higher
26 30% Higher
28 40% Higher

VALMAR Operation
Page 13
The green light indicates NORMAL rate and the
yellow light indicates ALT (alternate) rate.
Assembly procedures are contained in the
alternate rate kit itself.
Pressure Alarm
The red ALARM light and buzzer alerts the
operator to inadequate or excessive air manifold
pressure. The light and buzzer are activated by
the manifold pressure gauge. Refer to Manifold
Pressure Gauge in the Operation Section.
Figure 4 - 2: Control Unit
Manifold Pressure Gauge (Figure 4-2)
The manifold pressure gauge indicates proper
fan speed by measuring air pressure in the
manifold in inches (cm) of water column. The
pressure gauge includes a low pressure contact
set at 10 inches and a high pressure contact set
at 25 inches. The gauge is wired to the pressure
alarm light on the control unit. The pressure
alarm light will light up for two reasons:
1. The air pressure is below 10 inches.
2. The air pressure is above 25 inches.
Proper fan speed is achieved at a manifold
pressure of 17 inches of water column. Fan
speed is set by adjusting the speed of a gas
engine or a hydraulic motor which drives the
fan.
Figure 4 - 3: Pressure Gauge
Gas Engine Fan Drive (Optional)
The 2055 can be equipped with a 9 hp Honda
engine. The 2455 and 3255 can be equipped
with an 11 hp Honda engine.
Refer to the Honda Owner’s Manual for correct
startup and operation of the engine.
The engine is equipped with centrifugal clutch
that engages at 1600 rpm. Below that speed the
fan will not operate.
Hydraulic Fan Drive (Figure 4-4)
Operation of the hydraulic fan drive requires an
oil flow of 10.5 U.S. gpm for the 2055 and 2455,
and 11.5 U.S. gpm for the 3255.
The major components of the hydraulic fan
drive are:
1. the hydraulic motor for operating the fan.
2. The flow control valve for adjusting fan
speed.
There are two basic tractor hydraulic systems:
the Open Center system and Closed Center
System. Contact your tractor dealer to establish
which system you have. Set your fan speed as
follows:

Operation VALMAR
Page 14
Closed Center Hydraulic System with
Adjustable Value
1. Set the Valmar flow control valve to
maximum setting or “10”
2. Engage the tractor hydraulic system.
3. Adjust fan speed using the tractor’s
adjustable flow valve. If oil surges
through the system, close off the Valmar
flow control value slowly until the surging
stops. Readjust the fan speed from the
tractor valve.
4. If a problem occurs refer to the
Troubleshooting section of manual.
Open Center Hydraulic System Without An
Adjustable Valve
1. Set the Valmar flow control valve in the
closed position; setting of “0.”
2. Engage your tractor hydraulic system.
3. Adjust the fan speed from the Valmar
flow control valve by slowly turning the
lever to a higher number.
4. If a problem occurs, refer to the
Troubleshooting Section of manual.
0
10

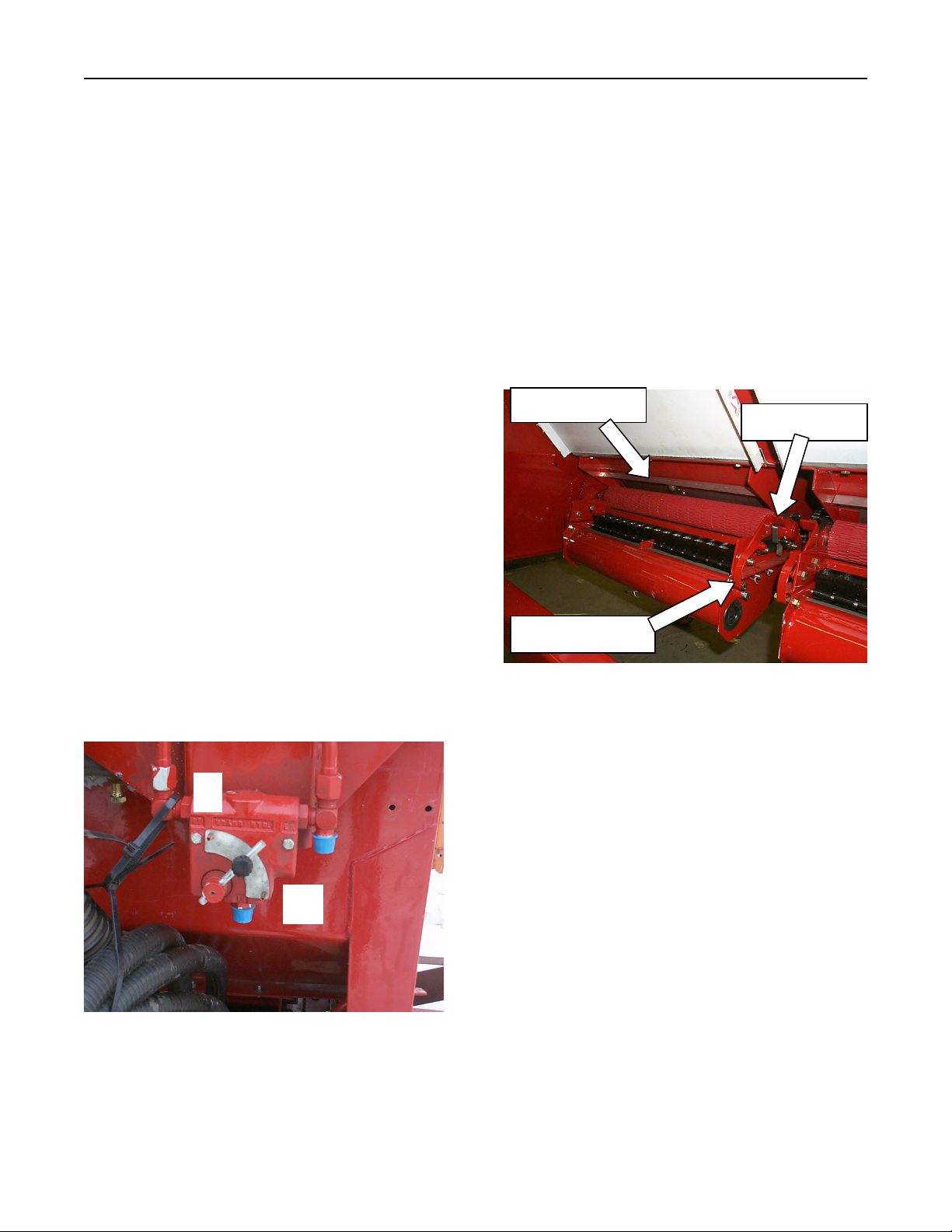

Figure 4 - 4: Hydraulic Fan Drive
Shut-Off Gate & Metering Rollers (Figure 4-5)
The shut-off gates are located above each
metering roller. They must be fully open when
metering product. Do not use the shut-off gates
to regulate product flow. The shut-off gates can
be pushed down when removing the metering
rollers if product is still in the hopper.
The metering rollers are held in place by a
bearing clip on either end of the roller. Pull
down on the manifold latches to lower the
manifold. Pull up on the bearing clips to release
the metering roller.
Figure 4-5: Metering Roller
Metering Roller Gap
Product application rate can be affected by the
gap between the metering lip. Maintain a gap of
¼ inch for the RED roller as well as the GREY
roller. See the Adjustments and Service Section
of this manual for instructions on setting the
roller gap.
Setting the Application Rate
Up to sixty (60) product application rates are
available with the mechanical metering gearbox.
Three mechanisms need to be set to select the
desired application rate: input ratio, range and
speed.
Input Ratio
Four gearbox input ratios can be selected by
pairing the 12 and 34-tooth gears or the 19 and
Bearing Clip
Manifold Latch
Shut-off Gate
