Valor Fires 473 Black Beauty Unigas II Instruction Manual

5115716/05
© Baxi Heating U.K. Limited 2010.
Model 473
ROOM SEALED RADIANT / CONVECTOR
GAS FIRE
Black Beauty Unigas II
(GC No. 32-810-58)
INSTALLER: Please leave this guide with the owner
INSTALLATION AND OWNER GUIDE
We trust that this guide gives
sufficient details to enable this
appliance to be installed and
maintained satisfactorily. However, if
further information is required, our
Valor Fires Technical Helpline will
be pleased to help.
Telephone [phone] (National
call rates apply in the United
Kingdom).
In the Republic of Ireland
Telephone [phone].

Baxi Heating U.K. Limited 2010.
All rights reserved. No part of this publication may be reproduced in any material form
(including photocopying), stored in any medium by electronic means (including in any
retrieval system or database) or transmitted, in any form or by any means, whether
electronic, mechanical, recording or otherwise, without the prior written permission of
the copyright owner.
Applications for the copyright owner's permission to reproduce any part of this
publication should be made, giving details of the proposed use, to the following
address: The Company Secretary, Baxi Heating UK Limited, Brooks House,
Coventry Road, Warwick, CV34 4LL
Warning: Any person who does any unauthorised act in relation to a copyright work
may be liable to criminal prosecution and civil claims for damages.
Valor Fires, Erdington, Birmingham B24 9QP
www.firesandstoves.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from
those given in this publication
Page 2
© Baxi Heating U.K. Limited 2010.
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20).
UNDER NO CIRCUMSTANCES IS THIS APPLIANCE TO BE CONVERTED TO
LPG. AN LPG CONVERSION KIT DOES NOT EXIST FOR THIS APPLIANCE
THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED
KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE).

Safety First.
Valor Fires fires are CE Approved and designed to meet the appropriate British
Standards and Safety Marks.
Quality and Excellence.
All Valor Fires fires are manufactured to the highest standards of quality and
excellence and are manufactured under a BS EN ISO 9001 quality system accepted
by the British Standards Institute.
The Highest Standards
Valor Fires is a member of SBGI and HHIC (Heating and Hot water Industry Council)
that work to ensure high standards of safety, quality and performance.
Careful Installation
This gas fire must be installed by a competent GAS SAFE REGISTER engineer (GAS
SAFE REGISTER or CORGI engineer outside of UK) in accordance with our installer
guide and should not be fitted directly on to a carpet or floor of combustible material.
Page 3
© Baxi Heating U.K. Limited 2010.

Page 4
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
INSTALLER GUIDE
FOR OWNER GUIDE SEE PAGES 31 TO 43

CONTENTS
Section Heading Page
INSTALLER GUIDE 4 - 30
OWNER GUIDE 31 - 43
1. SAFETY 7
2. ACCESSORY LIST 7
3. APPLIANCE DATA AND EFFICIENCY 8
3.1 General information. 8
3.2 Efficiency. 8
4. GENERAL INSTALLATION REQUIREMENTS 9
4.1 Regulations, Standards and Law. 9
4.1.1 Installations into timber framed buildings. 9
4.2 Ventilation requirements. 10
4.3 Fireguard requirements. 10
4.4 Room considerations. 10
4.5 The hearth. 10

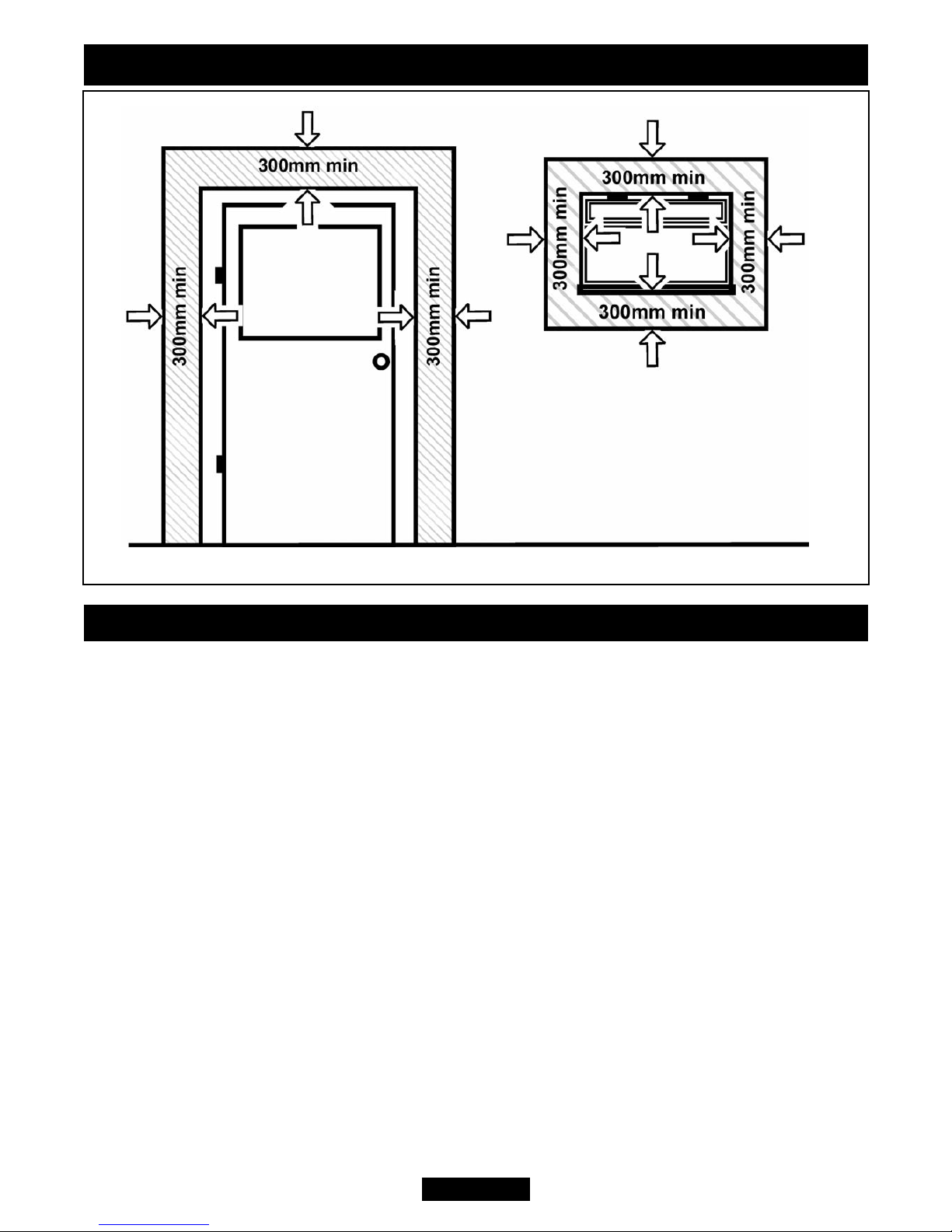

4.6 Fireplace clearances 11
4.7 Wall thickness and material. 12

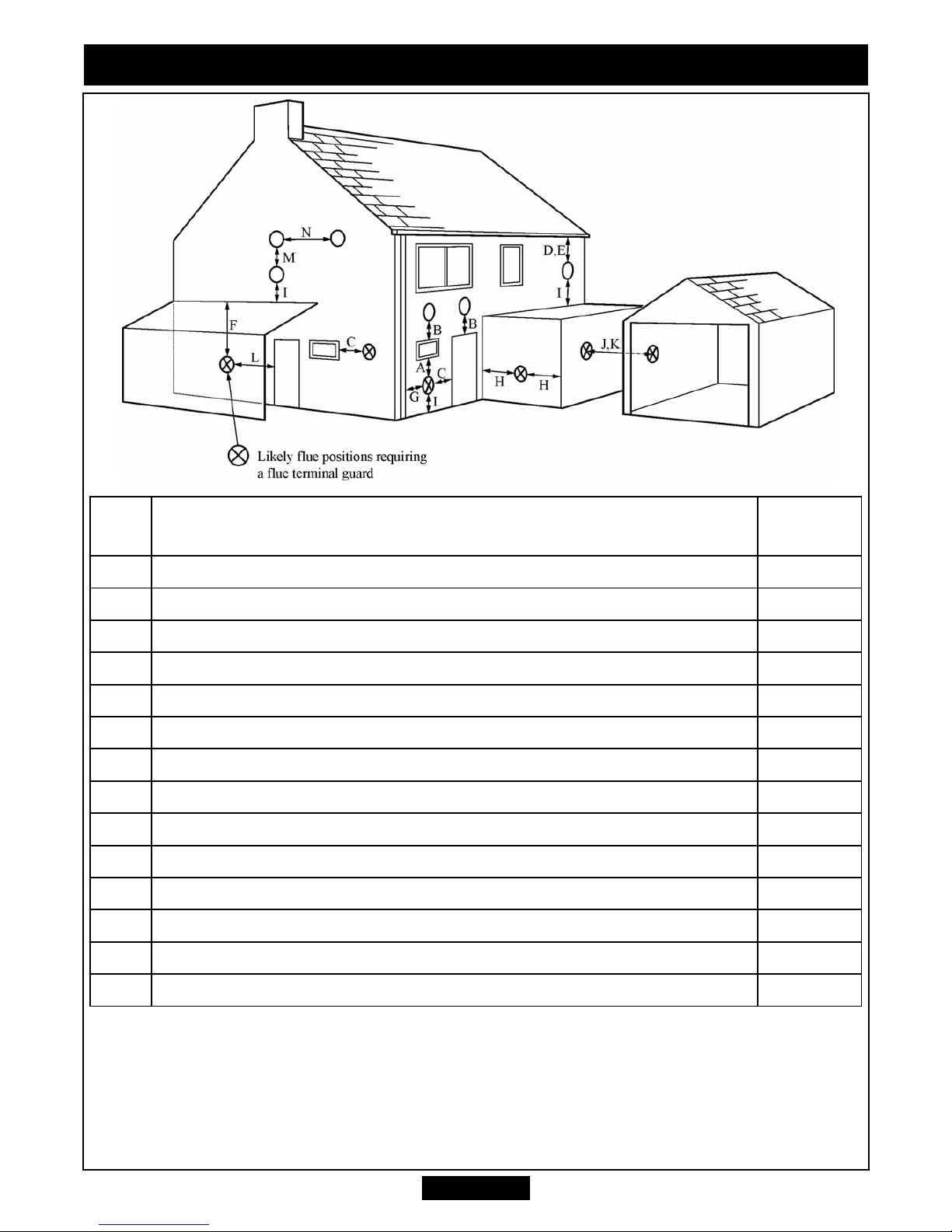

4.8 Flue hole size and location. 12
4.9 Flue terminal guard. 12
5. PACK CONTENTS 14
6. PREPARING THE FIRE 15
7. PREPARING THE WALL 15
7.1 Preparation 15
7.2 Core Drilling 16
7.3 Hammer & Chisel Cutting 16
7.4 Leaving a Hole, Building under Construction 17
7.5 Combustible Walls (Wood, Fibreboard, Plasterboard etc.) 17
8. PREPARING THE FLUE UNIT 19
9. TERMINAL GUARD FITTING 21
Page 5
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
Continued on next page

CONTENTS (Continued)
Section Heading Page
10. CHECK IGNITION SPARK 21
11. CONNECTING THE GAS SUPPLY 22
12. FITTING THE CERAMIC COAL EFFECT 23
13. CHECK APPLIANCE OPERATION 26
14. CHECK THE REFERENCE PRESSURE 26
15. REPLACING THE FASCIA 27
16. FINAL REVIEW 27
17. SERVICING AND PARTS REPLACEMENT 28
17.1 To remove the fascia. 28
17.2 To remove the window unit. 28
17.3 To remove the ceramic fuel effect. 28
17.4 To remove the burner(s). 29
17.5 To remove the injectors(s). 29
17.6 To remove the thermocouple. 29
17.7 To remove the electrode pin. 29
17.8 To remove the pilot pipe and pilot injector. 29
17.9 To remove the gas tap and piezo unit. 30
17.10 To remove the piezo generator. 30
17.11 To grease the control tap. 30
Page 6
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE

1. SAFETY
Installer
Before continuing any further with the installation of this appliance please read the
following guide to manual handling:
The lifting weight of the appliance is 26.2 kg.
One person should be sufficient to lift the fire. If for any reason this weight is
considered too heavy then obtain assistance.
When lifting always keep your back straight. Bend your legs and not your back.
Avoid twisting at the waist. It is better to reposition your feet.
Avoid upper body/top heavy bending. Do not lean forward or sideways whilst
handling the fire.
Always grip with the palm of the hand. Do not use the tips of fingers for support.
Always keep the fire as close to the body as possible. This will minimise the
cantilever action.
Use gloves to provide additional grip.
Always use assistance if required.
This product uses fuel effect pieces and gaskets containing Refractory Ceramic
Fibres (RCF), which are man-made vitreous silicate fibres. Excessive exposure to
these materials may cause irritation to eyes, skin and respiratory tract.
Consequently, it is important to take care when handling these articles to ensure
that the release of dust is kept to a minimum. To ensure that the release of fibres
from these RCF articles is kept to a minimum, during installation and servicing we
recommend that you use a HEPA filtered vacuum to remove any dust and soot
accumulated in and around the fire before and after working on the fire. When
replacing these articles we recommend that the replaced items are not broken up,
but are sealed within a heavy duty polythene bag, clearly labelled as RCF waste.
RCF waste is classed as a stable, non-reactive hazardous waste and may be
disposed at a landfill licenced to accept such waste. Protective clothing is not
required when handling these articles, but we recommend the use of suitable
gloves to prevent irritation. We also recommend you follow the normal hygiene
rules of not smoking, eating or drinking in the work area and always wash your
hands before eating or drinking.
This appliance does not contain any component manufactured from asbestos or
asbestos related products.
2. ACCESSORY LIST
The following accessories are available:-
Description Part Number
Terminal guard 516539
Page 7
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE

3. APPLIANCE DATA AND EFFICIENCY
3.1 General information.
The appliance information label is at the left side of the rear case and is visible after
removing the fascia. In addition, for customers reference, there is a label giving the
appliance serial number on the outside of the fascia at the bottom right side.
3.2 Efficiency.
The efficiency of this appliance has been measured as specified in BS EN 613 and
the result is as below :
Model Efficiency % (Gross)
473 72
The gross calorific value of the fuel has been used for this efficiency calculation. The
test data from which it has been calculated has been certified by Advantica
Certification services (0087). The efficiency value may be used in the UK
Government's Standard Assessment Procedure (SAP) for energy rating of dwellings.
The convertion of net efficiency to gross was achieved by multiplying the net
efficiency by the following conversion factor from Table E3 of SAP 2005, rounding
down to the nearest whole number.
Page 8
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
Gas Natural (G20)
Inlet Pressure 20mbar
Input - Max. (Gross) 4.9kW (16,719Btu/h)
Input - Min. (Gross) 2.2kW (7,507Btu/h)
Pressure Setting (Cold) 18.2 + 0.75mbar
Gas Connection RP 1/4 (1/4in. B.S.P) Female.
Main Burner Injector Cat. 960 Size 240.
Flame Effect Burner Injector Cat. 960 Size 130.
Main Burner: Simplex aerated.
Flame Effect Burner: Simplex aerated.
Aeration Adjustment: None required.
Control Tap: Variable position fitted with flame supervision
device and integral piezo igniter.
Pilot Unit: Right side of firebox. Combined pilot jet
thermocouple sensor and electrode.

4. GENERAL INSTALLATION REQUIREMENTS
4.1 Regulations, Standards and Law.
The installation must be in accordance with this guide.
For the user’s protection, in the United Kingdom it is the law that all gas appliances
are installed by competent persons in accordance with the current edition of the Gas
Safety (Installation and Use) Regulations. Failure to install the appliance correctly
could lead to prosecution. GAS SAFE REGISTER and CORGI require their members
to work to recognised standards.
In the United Kingdom the installation must also be in accordance with:
All the relevant parts of local regulations.
All relevant codes of practice.
The relevant parts of the current editions of the following British Standards:-
BS 5440 Part 1 - Installation of flues.
BS 5871 Part 1 - Installation – Gas fires
BS 6891 - Gas pipework installation
In the republic of Ireland the installation must also conform to:
a) The relevant parts of the current edition of IS 813 “Domestic Gas Installations”
b) All applicable national and local rules in force.
In England and Wales, the current edition of the Building Regulations issued by the
Department of the Environment and the Welsh Office.
In Scotland, the current edition of the Building Standards (Scotland) Regulations
issued by the Scottish Executive.
In Northern Ireland, the current edition of the Building regulations (Northern
Ireland) issued by the Department of the Environment for Northern Ireland.
In the Republic of Ireland the installation must be carried out by a competent
person and also conform to the relevant parts of:
a) The current edition of IS 813 “Domestic Gas Installations”
b) All relevant national and local rules in force.
Where no specific instructions are given, reference should be made to the relevant
British Standard Code of Practice.
4.1.1 Installations into timber framed buildings.
Installation to a timber-framed building should be in accordance with the relevant
sections of The Institute of Gas Engineers publication IGE/UP/7 “Gas installations in
timber frame buildings”.
Please note that advice should be sought before installing in a timber frame building
since the alterations required may nullify any NHBC cover relating to the property. If
in doubt, guidance should be requested from your local authority planning or building
department.
Page 9
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
Gas Conversion factor from net to gross efficiency
Natural Gas 0.901

4.2 Ventilation requirements.
No special ventilation bricks or vents into the room containing the appliance are
required.
4.3 Fireguard requirements.
A fireguard complying with BS 8423 should be fitted for the protection of young
children, the elderly, the infirm and pet animals.
Although this fire conforms to all the applicable standards, it is a heating appliance
and certain parts of its surface will become hot.
4.4 Room considerations.
It is advisable that combustible fabrics such as curtains are not fitted above the fire. If,
however, this is unavoidable, a clearance of at least 150mm must be maintained from
the extreme bottom edge of the fabric to the extreme top surface of the fire.

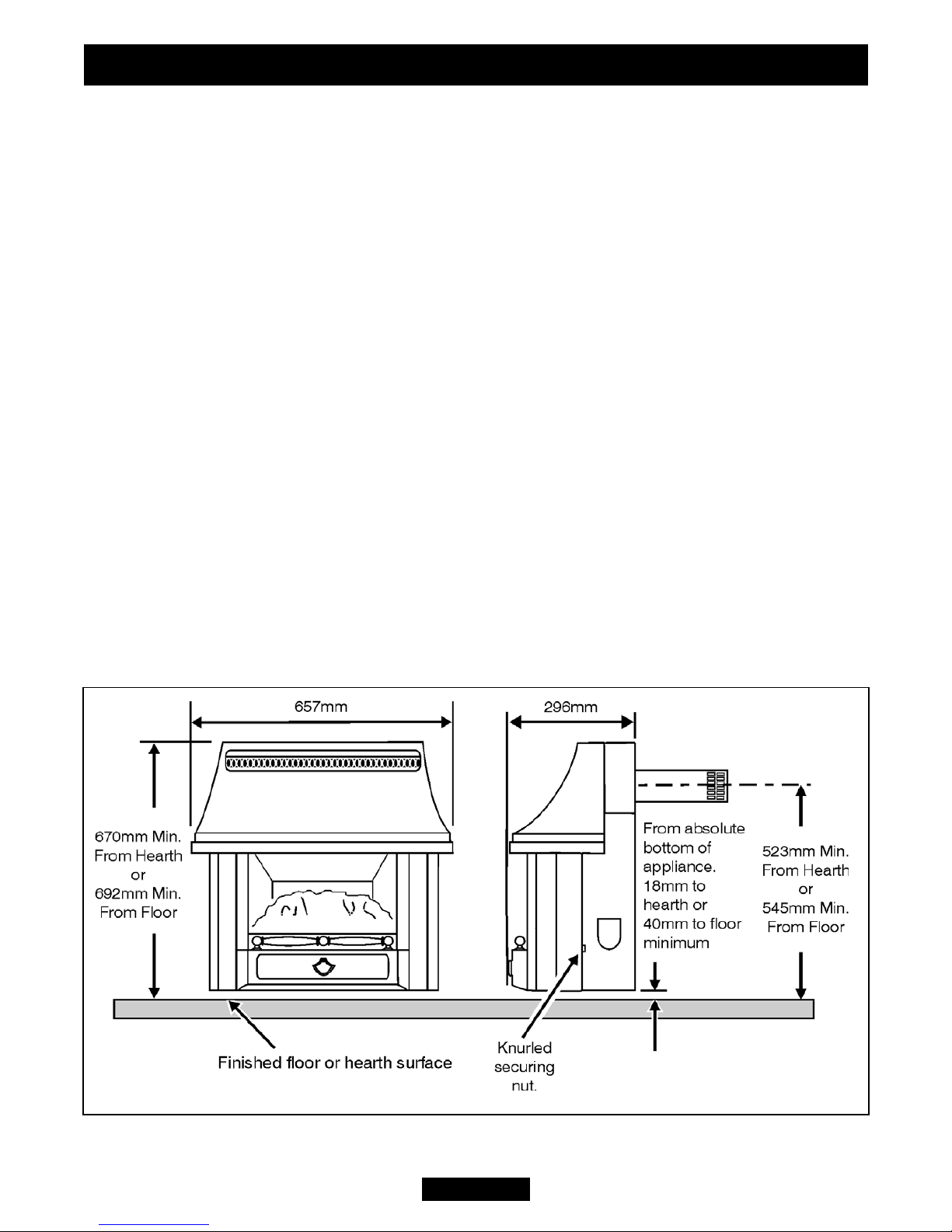

4.5 The hearth.
The appliance can be installed with or without a non-combustible hearth. If a non-
combustible hearth is installed, there must be a minimum clearance from the top
surface of the hearth to the absolute bottom of the appliance of 18mm (See figure 1).
The hearth must be at least 700mm wide x 300mm deep. The non-combustible
hearth material must be at least 12mm thick. Its top surface should be preferably
50mm above floor level to discourage the placing of carpets or rugs over it. If the
appliance is not installed with a hearth meeting the above conditions, the minimum
distance from the top surface of the finished floor covering (including any carpet etc.)
to the absolute bottom of the appliance must be at least 40mm (See figure 1).
Page 10
© Baxi Heating U.K. Limited 2010.
Figure 1. Dimensions
INSTALLER GUIDE

Where there is no floor covering or carpet and the floor is of a type that is likely to be
covered in such a way in the future then the distance from the base of the fireplace
opening in the wall to the finished floor level should be increased to at least 115mm.
4.6 Fireplace clearances (See figure 2).
4.6.1 The minimum height from the extreme top surface of the fire to the underside of
any shelf made from wood or other combustible materials is as follows:
For a shelf up to 150mm deep
Minimum height from the extreme top surface of the fire = 150mm.
For a shelf deeper than 150mm
150mm + 12.5mm for every 25mm depth over 150mm.
There is no restriction on the depth of non-combustible projections but a space of at
least 30mm should be allowed above the top of the appliance to enable removal of
the fascia.
4.6.2.1 For combustible projections up to a depth of 178mm (Measured from the
rear fixing plane of the fire) a minimum clearance of 75mm should be maintained at
the left and right side of the fire. This is measured from the extreme side of the fascia.
This will allow easy access to the control knob and knurled nuts for removal of the
fascia. This clearance is mandatory for temperature requirements.
4.6.2.2 For any combustible projections beyond 178mm (Measured from the rear
fixing plane of the fire) a minimum clearance of 100mm should be maintained at the
left and right side of the fire. This is measured from the extreme side of the fascia.
This clearance is mandatory for temperature requirements.
4.6.2.3 For non-combustible projections a minimum clearance of 75mm should be
maintained at the left and right side of the fire. This is measured from the extreme
side of the fascia. This will allow easy access to the control knob and knurled nuts for
Page 11
© Baxi Heating U.K. Limited 2010.
figure 2. Combustible shelf clearances.
INSTALLER GUIDE

removal of the fascia.
If the fireplace opening is greater than the acceptable dimensions given in this guide,
do not use the back of a fire surround or marble to reduce the opening. This may
cause cracking of the surround back or marble.
4.7 Wall thickness and material.
Wall thickness:
Minimum wall thickness 102mm (4in.).
Maximum wall thickness 660mm (26in.).
This fire is suitable for use with combustible walls provided that there is no
combustible material or combustible cladding in the area indicated on the wall fixing
template.
Please note that soft wall coverings (e.g. embossed vinyls etc.) are easily affected by
heat. They may therefore, scorch or become discoloured when close to a heating
appliance. Please bear this in mind when installing.
4.8 Flue hole size and location.
A hole 152mm (6in) is required through the wall for the flue unit.
The minimum height of the hole centre is shown in figure 1 and on the wall fixing
template.
Minimum allowable distances from the terminal are shown figure 3.
4.9 Flue terminal guard.
In England and Wales the Building Regulations require a terminal guard to be fitted if
the terminal could come into contact with people near the building or be subject to
damage.
Fitting a terminal guard is recommended where contact with or damage to the
terminal is possible even if regulations do not demand it.
A suitable guard - Part No. 516539 - is available.
Page 12
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE

Page 13
© Baxi Heating U.K. Limited 2010.
Key Terminal position Minimum
distance.
A* Directly below an opening, air brick, opening window etc. 300mm
B* Above an opening, air brick, opening window etc. 300mm
C* Horizontally to an opening, air brick, opening window etc. 300mm
DBelow gutters, soil pipes or drain pipes. 300mm
EBelow eaves. 300mm
FBelow balconies or car port roof. 600mm
GFrom a vertical drain pipe or soil pipe. 300mm
H** From an internal or external corner. 600mm
IAbove ground, roof or balcony level. 300mm
JFrom a surface facing the terminal. 600mm
KFrom a terminal facing the terminal. 600mm
LFrom an opening in a car port (e.g. door, window) into dwelling. 1200mm
MVertically from a terminal on the same wall. 1500mm
NHorizontally from a terminal on the same wall. 300mm
Figure 3.
*In addition, the terminal should not be nearer than 300mm to an opening in the
building fabric formed for the purpose of accommodating a built-in element such as
a window frame or door frame (See figure 4).
** The reference to external corners does not apply to building protrusions not
exceeding 450mm, such as disused chimneys on external walls.
INSTALLER GUIDE

5. PACK CONTENTS
The carton contains the following:-
1 Fire assembly.
1 Ceramic fuel base.
4 Ceramic coals.
1 Flue unit.
1 Inlet elbow.
1 Pack of fixing screws and wall plugs.
1 Wall fixing template.
1 Length of flue sealing tape.
Remove all the items carefully to prevent damage. Some items may be contained in
the packaging fitments - Examine the packaging carefully before discarding. Check
that all the items are present and undamaged.
Page 14
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
Figure 4.

6. PREPARING THE FIRE
 Stand the fire upright.
 Detach the fascia by removing the knurled nuts
and washers at the fascia sides (See figure 1).
 Pull the bottom of the fascia forward and then lift
to remove.
 Remove the window unit by detaching the 12
wing nuts securing the window frame and pulling
forward (See figure 5).
7. PREPARING THE WALL
7.1 Preparation
The flue must be installed so that it is at right angles to the back panel of the fire all
round the flue circumference. The fire itself should be fitted vertically against a flat
wall. Where this is difficult to achieve due to building inaccuracies care should be
taken to ensure that the back of the fire is not stressed in any way due to distortion of
the assembly when tightening the fixing screws. Where necessary, non-combustible
packing pieces should be used to provide a satisfactory fixing surface. Before cutting
the hole in the wall make sure that the
height to the top surface of the finished
floor is known. The minimum acceptable
height from this surface to the flue hole
centre is shown in figure 6.
If a loose hearth or plinth is to be used,
the height from its top surface must be
used when determining the minimum flue
height. Where installation is to a timber
frame wall, the appliance should be
positioned so that the right side wall
fixings are into timber studs to absorb any
pressure generated by operating the
control knob.
Proprietary cavity fixings should be used
at the left side if the fixing at this side is
Page 15
© Baxi Heating U.K. Limited 2010.
Figure 6. Wall drilling.
Figure 5. Window removal
INSTALLER GUIDE

into plasterboard.
 Place dust sheets on the floor and over any furnishings etc.
 Place the template against the wall. Make sure that the centre of the flue hole is
not less than the minimum shown in figure 6.
 Pierce the centre of the screw fixing holes and the flue hole and mark the
positions on the wall. Remove the template.
 Cut the hole for the flue
unit. Make sure that it is
straight and level. Though a
hammer and chisel can be
used, using a core drill is by
far the quickest and simplest
method for normal brickwork.
7.2 Core Drilling
 Drill a pilot hole through
the wall. Inspect the hole to
ensure that it is in the
brickwork and not in mortar. If
it is in mortar, it is advisable to
reposition the hole
approximately 25mm away
(making sure that the
minimum side clearances and
height are complied with).
Remember to reposition the
screw fixing holes.
 Drill the flue hole with a 6in. (152mm) core drill. Where practical, it is
recommended that the hole is drilled from inside the building to about half the wall
depth with the remainder drilled from outside. This ensures that the edges of the hole
are clean on both sides.
7.3 Hammer & Chisel Cutting
 Mark a 152mm (6in) diameter circle for the flue hole. Chisel out the area marked.
 It may be necessary to make good both the internal and external wall faces. To
achieve a neat finish and to make any future removal of the flue unit easier, it is
recommended that a cardboard cylinder is formed around the flue unit and inserted in
the hole while making good. Remove the cardboard cylinder after making good.
 Recheck the screw fixing holes relative to the flue hole.
 Drill the four fixing holes to a minimum depth of 42mm using a suitably sized
masonry drill for the wall plugs supplied.
 Insert the four wall plugs supplied.
 Remove any combustible wall cladding material from the area shown in figure 7.
Page 16
© Baxi Heating U.K. Limited 2010.
Figure 7. Removal of combustible cladding.
INSTALLER GUIDE

7.4 Leaving a Hole, Building under Construction
It will be convenient to use a non-corrosive metal tube 160mm diameter built into the
wall at the correct position for the flue unit.
7.5 Combustible Walls (Wood, Fibreboard, Plasterboard etc.)
Building regulations require that the inlet and outlet ducts and terminal bust not be
closer than 25mm to combustible material.
 If the heater is to be mounted on to a plasterboard wall that has a wooden frame
behind it then the integrity and ability of the wall to carry the weight of the appliance
must be confirmed. It is important that any vapour control barrier is not damaged, and
that the structural members of the house are not damaged. We recommend a
minimum 12mm thick plasterboard.
 Mark out and cut a hole 202mm diameter through the combustible part of the wall.
A 152mm diameter hole can be cut through non-combustible parts of the wall. A
152mm diameter hole can be cut through non-combustible parts of the wall (See
figure 8).
Page 17
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
Figure 8. Timber frame wall preparation.

Page 18
© Baxi Heating U.K. Limited 2010.
 Cover the hole with a square sheet
steel plate 500mm x 235mm with a
152mm diameter hole cut out of the
centre (See figure 9). The steel should
be not less than 1.5mm thick. Fix with
suitable screws and plugs.
 Where the whole wall is of
combustible material, a non-corrosive
plate 455mm x 455mm with a 152mm
diameter hole in the centre must be
fitted to the outer wall. The hole
through the wall should be lined with a
non-corrosive metal tube 202mm
diameter.
Cut the Flue Hole -Timber Frame
Buildings
Drill the pilot hole and hole in the outer wall as section 7.5.
 Since the flue will pass through combustible material in the inner leaf of the wall, a
non-combustible sleeve 203mm (8in.) diameter will be required round the flue (See
figure 8).
 Cut a hole through the inner leaf to accommodate a non-combustible sleeve
203mm (8in.) outside diameter. To minimise the effect of breaking through the vapour
control layer (VCL), if possible, cut the hole approximately 10mm undersize so that
the sleeve will be forced through the layer. A recommended technique for cutting the
inner leaf is shown in figure 9.
 Fit the non-combustible sleeve to the inner leaf. The sleeve must extend to be at
least flush with the breather membrane / timber sheathing but must not protrude more
than 10mm into the cavity.
 The annular gap between the flue unit and the sleeve must be sealed to prevent
air heat and moisture passing along it.
INSTALLER GUIDE
Figure 9. Wall cover plate.

8. PREPARING THE FLUE UNIT
 Measure the total wall thickness
from the outside surface to the inside
face. Add 80mm to this measurement
to obtain the correct length of flue unit
required.
 Mark off the flue length on the
outer (air) tube measuring from the
end of the terminal.
 Insert the polystyrene ring between
the inner and outer tubes to support
them and cut both tubes squarely at
the marked distance.
 Important: Remove all polystyrene
from the flue unit after cutting.
Page 19
© Baxi Heating U.K. Limited 2010.
Figure 10. Flue unit installation into a
traditional brick built wall.
INSTALLER GUIDE
Figure 11. Flue unit installation into timber framed buildings.

 Fit the flue unit tubes firmly over the
spigots at the rear of the fire. Make sure that
the seam on the flue tube is NOT at the
bottom. Push on until the outer tube touches
the screw heads on the outer spigot (See
figure 12).
 If it is felt of benefit, the flue unit may be
additionally secured to the fire with one or
two suitable self tapping screws (we suggest
No.6) before installing into the wall as
follows:-
 Using a suitable metal cutting drill bit, drill
through the outer flue tube and outer spigot
at a distance of between 6mm & 7mm from
the cut end of the outer flue tube (See figure
12).
 Fit the self tapping screw(s) in the drilled
hole(s).
 Seal the flue unit all round the
circumference of the fire spigot with the tape
supplied.
 Insert the plugs into the wall fixing holes. Insert the top right fixing screw leaving
the plain shank proud to allow the top fixing keyhole in the fire back to go over the
screw.
 Offer the fire complete with flue unit through the wall and hook the top right
keyhole slot over the previously fitted wall screw.
 Insert the top left and two bottom fixing screws and tighten.
 Seal, the outer flue tube to the outside surface of the wall with fireclay or cement.
Make sure that the slots in the flue terminal are not closer than 8mm to the wall
and are not obstructed by cement.
Page 20
© Baxi Heating U.K. Limited 2010.

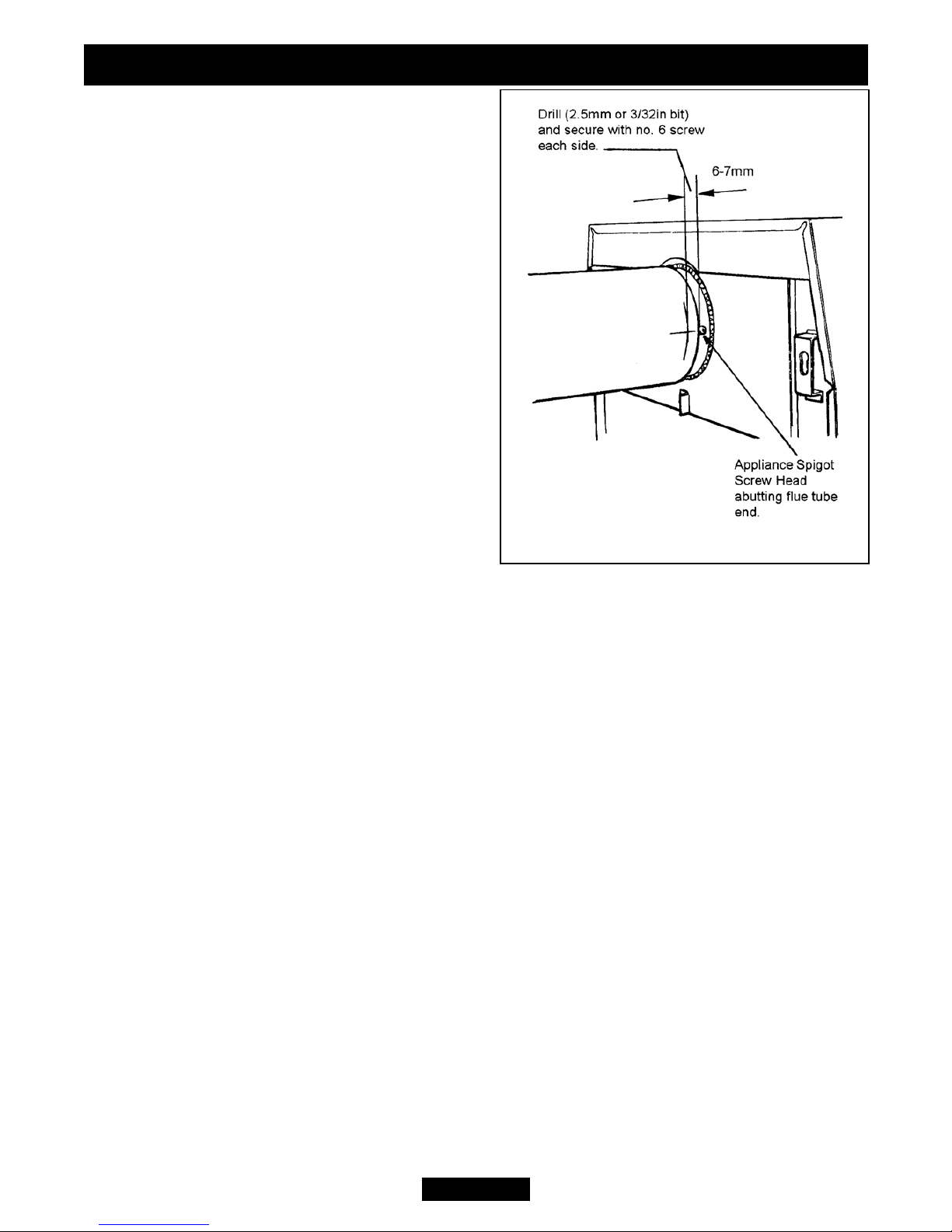

Figure 12. Flue securing.
INSTALLER GUIDE
