Valor Fires 964 Instructions for use

5137913/02
© Baxi Heating U.K. Limited 2010.
Model 964
Inset live fuel effect gas fire
Fitted with the following fascia:
Homeflame Blenheim.
(GC No. 32-032-93)
INSTALLER: Please leave this guide with owner
We trust that this guide gives
sufficient details to enable this
appliance to be installed, operated
and maintained satisfactorily.
However, if further information is
required, our
Valor Fires Technical Helpline will
be pleased to help.
Telephone [phone] (National
call rates apply in the United
Kingdom).
In the Republic of Ireland
Telephone [phone].
INSTALLER AND OWNER GUIDE

© Baxi Heating U.K. Limited 2010.
All rights reserved. No part of this publication may be reproduced in any material form
(including photocopying), stored in any medium by electronic means (including in any
retrieval system or database) or transmitted, in any form or by any means, whether
electronic, mechanical, recording or otherwise, without the prior written permission of
the copyright owner.
Applications for the copyright owner's permission to reproduce any part of this
publication should be made, giving details of the proposed use, to the following
address: The Company Secretary, Baxi Heating UK Limited, Brooks House,
Coventry Road, Warwick, CV34 4LL
Warning: Any person who does any unauthorised act in relation to a copyright work
may be liable to criminal prosecution and civil claims for damages.
Valor Fires, Erdington, Birmingham B24 9QP
www.firesandstoves.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from
those given in this publication
Page 2
© Baxi Heating U.K. Limited 2010.
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20).
UNDER NO CIRCUMSTANCES IS THIS FIRE TO BE CONVERTED TO LPG.
AN LPG KIT DOES NOT EXIST FOR THIS GAS FIRE.
THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED
KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE).

Safety First.
Valor Fires fires are CE Approved and designed to meet the appropriate British
Standards and Safety Marks.
Quality and Excellence.
All Valor Fires fires are manufactured to the highest standards of quality and
excellence and are manufactured under a BS EN ISO 9001 quality system accepted
by the British Standards Institute.
The Highest Standards
Valor Fires is a member of SBGI and HHIC (Heating and Hot water Industry Council)
that work to ensure high standards of safety, quality and performance.
Careful Installation
This gas fires must be installed by a competent GAS SAFE REGISTER engineer
(GAS SAFE REGISTER or CORGI engineer outside of UK) in accordance with our
installer guide and should not be fitted directly on to a carpet or floor of combustible
material.
Page 3
© Baxi Heating U.K. Limited 2010.

Page 4
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
FOR OWNER GUIDE SEE PAGES 43 TO 59
INSTALLER GUIDE

CONTENTS
Section Heading Page
INSTALLER GUIDE 4 - 42
OWNER GUIDE 43 - 59
1. IMAGE 7
2. SAFETY AND UNPACKING 8
3. APPLIANCE DATA, EFFICIENCY AND NOx 9
3.1 General information. 9
3.2 Efficiency. 10
3.3 NOx 10
4. GENERAL INSTALLATION REQUIREMENTS 11
4.1 Regulations, Standards and Law. 11
4.2 Ventilation requirements. 12
4.3 The Atmosphere sensing device (ASD). 12
4.4 Fireguard requirements. 12
4.5 Room considerations. 12
4.6 Chimney preparation. 12
4.7 Fireplace preparation. 13
4.8 The hearth and back panel. 13
4.9 Fireplace clearances. 14
4.10 Installation options. 16
4.11 Flues. 19
5. PACK CONTENTS 20
6. FIREPLACE CHECK 23
6.1 Soundness for appliance attachment. 23
6.2 Fireplace flue pull. 23
7. IGNITION CHECK 24
8. GAS SUPPLY CONNECTION 24
9. PREPARING APPLIANCE FOR INSTALLATION 25
9.1 Appliance preparation. 25
9.2 Fitting the foam seal. 26
9.3 The flue restrictor. 26
Page 5
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
Continued on next page

CONTENTS (Continued)
Section Heading Page
10. CONVECTION BOX INSTALLATION 27
10.1 Method 1- Front fixing to fireplace surround. 27
10.2 Method 2 - Cable retention. 28
10.3 Floor sealing. 30
10.4 Sealing convection box holes. 30
11. BURNER INSTALLATION 31
11.1 Burner and supply pipe installation. 31
11.2 Preliminary burner checks. 31
11.2.1 Lighting the burner. 31
11.2.2 Operating the burner. 31
11.3 Inlet pressure check. 32
12. FITTING THE CERAMIC FUEL EFFECT 32
13. FITTING THE WINDOW 32
14. SPILLAGE AND FLAME SUPERVISION CHECKS 33
14.1 Check for spillage. 33
14.2 Flame supervision and spillage monitoring system. 34
15. FITTING THE HEAT BAFFLE 34
16. FITTING THE FASCIA 35
17. FULL OPERATING CHECKS 36
17.1 Check the control settings. 36
17.2 Lighting the burner. 36
17.3 Operating the burner. 36
18. FIREFRONT CASTING INSTALLATION 36
19. FINAL REVIEW 37
20. SERVICING & PARTS REPLACEMENT 38
20.1 Checking the aeration setting of the burner. 39
20.2 To remove the fascia trims. 39
20.3 To remove the fascia. 39
20.4 To remove the window. 40
20.5 To remove the burner unit. 40
20.6 To remove the pilot unit. 41
20.7 To remove the gas valve. 41
20.8 To remove the burner. 42
20.9 To remove the main burner injector. 42
20.10 To remove the appliance from the fireplace. 42
Page 6
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE

1. IMAGE
Page 7
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
Blenheim fascia

2. SAFETY AND UNPACKING
Installer
Before continuing any further with the installation of this appliance please read the
following guide to manual handling.
The approximate lifting weight (kg) of this appliance is as below:
Model Heat Engine Firefront Fascia and trim Combined Weight
Blenheim 9.36 3.84 2.32 15.52
One person should be sufficient to lift the fire. If for any reason this weight is
considered too heavy then obtain assistance.
When lifting always keep your back straight. Bend your legs and not your back.
Avoid twisting at the waist. It is better to reposition your feet.
Avoid upper body/top heavy bending. Do not lean forward or sideways whilst
handling the fire.
Always grip with the palm of the hand. Do not use the tips of fingers for support.
Always keep the fire as close to the body as possible. This will minimise the
cantilever action.
Use gloves to provide additional grip.
Always use assistance if required.
This product uses fuel effect pieces and a burner compartment wall containing
Refractory Ceramic Fibres (RCF), which are man-made vitreous silicate fibres.
Excessive exposure to these materials may cause irritation to eyes, skin and
respiratory tract. Consequently, it is important to take care when handling these
articles to ensure that the release of dust is kept to a minimum. To ensure that the
release of fibres from these RCF articles is kept to a minimum, during installation
and servicing we recommend that you use a HEPA filtered vacuum to remove any
dust and soot accumulated in and around the fire before and after working on the
fire. When replacing these articles we recommend that the replaced items are not
broken up, but are sealed within a heavy duty polythene bag, clearly labelled as
RCF waste. RCF waste is classed as a stable, non-reactive hazardous waste and
may be disposed at a landfill licensed to accept such waste. Protective clothing is
not required when handling these articles, but we recommend you follow the
normal hygiene rules of not smoking, eating or drinking in the work area and
always wash your hands before eating or drinking. This appliance does not
contain any component manufactured from asbestos or asbestos related products.
Page 8
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE

3. APPLIANCE DATA, EFFICIENCY AND NOx
3.1 General information.
Under no circumstances is this fire to be converted to LPG. An LPG conversion kit
does not exist for this gas fire.
The appliance information label is located on a ‘swing out’ plate at the base of the
fire. On fires that are already installed this can be seen by removing the bottom front
cover of the fascia.
Page 9
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
Gas Natural (G20)
Inlet Pressure 20mbar
Input - Max. (Gross) 3.9kW (13,307 Btu/h)
Input - Min. (Gross) 2.0kW (6,824 Btu/h)
Input - Max. (Net) 3.51kW (11,976 Btu/h)
Input - Min. (Net) 1.80kW (6,142 Btu/h)
Inlet Test Pressure (Cold) 20.0 ± 1.0mbar (8.0 ± 0.4in w.g.)
Gas Connection 8mm pipe
Burner Injector Cat 82 - 280
Pilot & Atmosphere Sensing Device Copreci Ref. O.D.S 21100/234
Ignition Piezo electric, integral to with gas tap
Aeration See section 20.1
Figure 1.

3.2 Efficiency.
The efficiency of this appliance has been measured as specified in BS 7977 - 1 and
the result is as below:
Model Efficiency % (Gross) Efficiency % (Net)
964 80 89
The gross calorific value of the fuel has been used for this efficiency calculation. The
test data from which it has been calculated has been certified by BSI (0086). The
efficiency value may be used in the UK Government's Standard Assessment
Procedure (SAP) for energy rating of dwellings.
The conversion of net efficiency to gross was achieved by multiplying the net
efficiency by the following conversion factor from Table E3 of SAP 2005, rounding
down to the nearest whole number.
3.3 NOx
The 'Weighted' result for this appliance equates to NOx Class II.
Page 10
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
Gas Conversion factor from net to gross efficiency
Natural Gas 0.901

4. GENERAL INSTALLATION REQUIREMENTS
4.1 Regulations, Standards and Law.
The installation must be in accordance with these instructions.
For the user’s protection, in the United Kingdom it is the law that all gas appliances
are installed by competent persons in accordance with the current edition of the Gas
Safety (Installation and Use) Regulations. Failure to install the appliance correctly
could lead to prosecution. GAS SAFE REGISTER and CORGI require their members
to work to recognised standards.
In the United Kingdom the installation must also be in accordance with:
All the relevant parts of local regulations.
All relevant codes of practice.
The relevant parts of the current editions of the following British Standards:-
BS EN 1856 Part 1 - Chimneys - Requirements for metal chimneys.
BS 715 - Specification for metal flue boxes for gas-fired appliances not
exceeding 20kW.
BS EN 1858 - Chimneys - Components - Concrete flue blocks.
BS EN 1806 - Chimneys - Clay / ceramic flue blocks.
BS 5440 Part 1 - Installation of flues.
BS 5440 Part 2 - Installation and maintenance of flues and ventilation for gas
appliances of rated input not exceeding 70 kW net (1st, 2nd
and 3rd family gases).
BS 6461 Part 1 - Masonry chimney & flues - Installation
BS 1251 - Fireplace components
BS 5871 Part 2 - Installation - Inset LFE gas fires
BS 6891 - Gas pipework installation
In England and Wales, the current edition of the Building Regulations issued by the
Department of the Environment and the Welsh Office.
In Scotland, the current edition of the Building Standards (Scotland) Regulations
issued by the Scottish Executive.
In Northern Ireland, the current edition of the Building regulations (Northern Ireland)
issued by the Department of the Environment for Northern Ireland.
In the Republic of Ireland the installation must be carried out by a competent
person and installed in accordance with:
a) The current edition of IS 813 “Domestic gas installations”.
b) All relevant national and local rules in force.
c) The current building regulations
Where no specific instructions are given, reference should be made to the relevant
British Standard Code of Practice.
Page 11
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE

4.2 Ventilation requirements.
Normal adventitious ventilation is usually sufficient to satisfy the ventilation
requirements of this appliance. In GB reference should be made to BS 5871 Part 2
and in IE reference should be made to the current edition of IS 813 “Domestic Gas
Installations” which makes clear the conditions that must be met to demonstrate that
sufficient ventilation is available.
4.3 The Atmosphere sensing device (ASD).
The appliance is fitted with an A.S.D (Atmosphere sensing device). If the appliance
closes down after a period of operation for no apparent reason, the consumer should
be informed to stop using the appliance until the installation and appliance have been
thoroughly checked. The A.S.D will shut the appliance down if an unacceptable
amount of harmful products of combustion accumulate. Under no circumstances
should the A.S.D be altered or bypassed in any way. Only a genuine manufacturer’s
replacement part should be fitted. The individual A.S.D components are not
replaceable.
4.4 Fireguard requirements.
A fireguard complying with BS 8423 should be fitted for the protection of young
children, the elderly, the infirm and pet animals.
4.5 Room considerations.
4.5.1 This appliance must not be installed in any room that contains a bath or shower
or where steam is regularly present.
4.5.2 An extractor fan may only be used in the same room as this appliance, or in any
area from which ventilation for the appliance is taken, if it does not affect the safe
performance of the appliance. Note the spillage test requirements detailed further on
in this guide. If the fan is likely to affect the appliance, the appliance must not be
installed unless the fan is permanently disconnected.
4.5.3 Note that soft wall coverings (e.g. embossed vinyl, etc.) are easily affected by
heat. They may scorch or become discoloured when close to a heating appliance.
Please bear this in mind when installing.
4.6 Chimney preparation.
4.6.1 If the appliance is intended to be installed to a chimney that was previously
used for solid fuel, the flue must be swept clean prior to installation. All flues should
be inspected for soundness and freedom from blockages.
4.6.2 Any chimney damper or restrictor should be removed. If removal is not possible,
they must be secured in the open position.
Page 12
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE

4.7 Fireplace preparation.
4.7.1 If the fireplace opening is an underfloor draught type, it must be sealed to stop
any draughts.
4.7.2 The fireplace floor should be reasonably flat to ensure that the convection box
can be installed without it rocking and so that a good seal can be made at the bottom
front of the box.
4.7.3 The front face of the fireplace should be reasonably flat over the area covered
by the convection box top and side flange seals to ensure good sealing. These faces
should be made good if necessary.
4.7.4 If the appliance is to be fitted against a wall
with combustible cladding, the cladding must be
removed from the area covered by the fascia. The
cladding must also not touch the fascia (See
figure 2). We suggest that the actual fascia is
used as a template to mark the area for
combustible cladding removal and that this area
is increased by at least 2mm all round.
4.7.5 If the fireplace opening is greater than the
acceptable dimensions given in this guide, do not
use the back of a fire surround or marble to
reduce the opening. This may cause cracking of
the surround back or marble.
4.8 The hearth and back panel.
The appliance must be mounted behind a non-
combustible hearth unless the conditions of
section 4.10.1.1 are met (N.B. conglomerate
marble hearths are considered as non-combustible). The appliance can be fitted to a
purpose made proprietary class “O”-150°C surround. The hearth material must be at
least 12mm thick. The periphery of the hearth (or fender) should be at least 50mm
above floor level to discourage the placing of carpets or rugs over it.
The appliance must not stand on combustible materials or carpets.
Page 13
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
Figure 2.

4.9 Fireplace clearances.
4.9.1 The minimum height from the base of the fireplace opening to the underside of
any shelf made from wood or other combustible materials is detailed below.
• For a shelf up to 150mm deep: Minimum height = 700mm.
• For a shelf deeper than 150mm: 700mm + 12.5mm for every 25mm depth over
150mm (See Figure 3).
4.9.2 The minimum allowable distance from the outside of the appliance fascia to a
corner wall having combustible material or any other combustible surface which
projects beyond the front of the appliance is shown in figure 4. A 10mm access
clearance from a non-combustible surface is necessary at the left side.
Page 14
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
Figure 3. Combustible shelf clearances

Page 15
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
Figure 4. (Dimensions are subject to manufacturing tolerances)
Key Description
Model
Homeflame
Blenheim
AHeight (mm) 612
BWidth (mm) 505
CDepth into room (mm) 131
D
Minimum mandatory clearance
to combustible surfaces projecting beyond the front of
appliance (mm).
100
ERecommended clearance to non-combustible surfaces
for access purposes (mm). 50

4.10 Installation options.
In the United Kingdom, as supplied, the appliance can be installed in the following
situations: -
4.10.1 Conventional fireplace and hearth.
To a fireplace complete with hearth as shown in figure 5. Chair brick removal may not
be required providing at least 50mm clearance is available from the flue outlet to any
fireplace component.
4.10.1.1 ‘Hole-in-the-wall’ Installations.
It is recommended that a hearth should be installed as in section 4.8 (See figure 5).
If a reduced depth hearth is fitted, the fire must be installed so that the distance
from the base of the fireplace opening in the wall to the finished floor level is at least
72mm. Where there is no floor covering or carpet and the floor is of a type that is
likely to be covered in such a way then the distance from the base of the fireplace
opening in the wall to the finished floor level should be increased to at least 147mm.
If the lower part of the fascia (the firefront) is free standing, the recommended
reduced hearth depth is 100mm. This is necessary to support the firefront (See figure
4 for appliance dimensions).
To protect from the risk of burns and ignition of clothing a tactile separator shall be
used. The hearth detailed in section 4.8 meets the requirements for a tactile
separator. If this is not used then a 590mm long fender, kerb, horizontal bar, or other
barrier, being fixed not less than 50mm above floor level and positioned 300mm in
front of the fixing plane of the fire will meet the requirement.
Page 16
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
Figure 5. Hearth and fireplace opening dimensions

4.10.2 Metal flue box and hearth.
The appliance can be installed to a fireplace incorporating a twin wall metal flue box
complying with the constructional requirements of the current edition of
BS 715 and with a flue conforming to BS EN 1856 part 1. The dimensions of the flue
box must conform to those shown in figure 6.
The top surface of the metal flue box and the upper 200mm of the sides and rear
faces must be covered with a 50mm layer of mineral wool or equivalent insulation
(See figure 6).
Important Note: Where the flue box has a base sheet that is single wall (i.e. a single
metal sheet) the flue box must be mounted on a non-combustible hearth. The hearth
material must be at least 12mm thick.
Page 17
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE

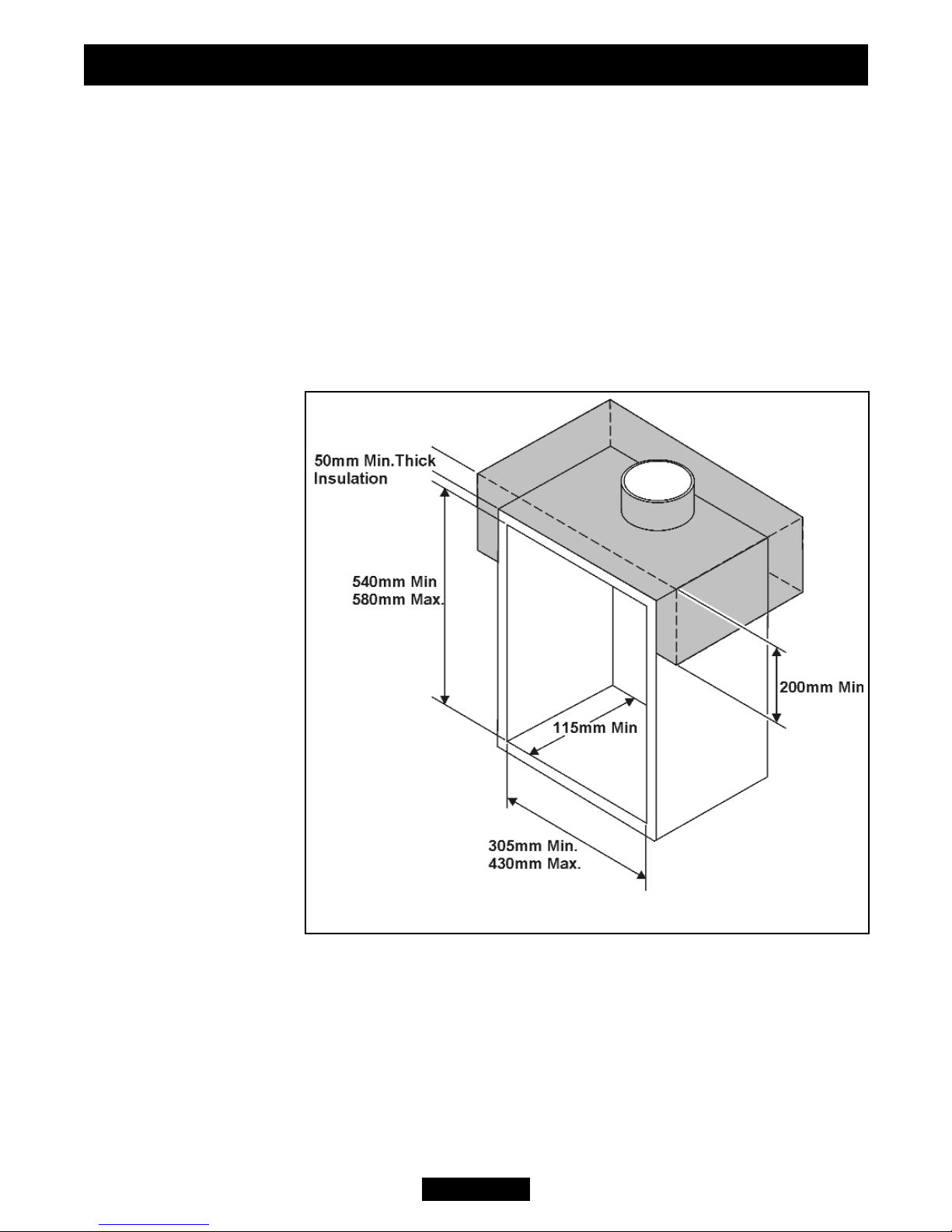

Figure 6. Metal flue box

Page 18
© Baxi Heating U.K. Limited 2010.
4.10.3 Precast concrete or clay flue block system and hearth.
The appliance can be installed to a precast concrete or clay flue block system
conforming to BS1289 or BS EN 1858 with dimensions as in figure 7.
BS 1289 part 1 recommends there should be an air space or insulation between the
flue blocks and the plaster because heat transfer may cause cracking on directly
plastered flues. However, generally this appliance is suitable for installations under all
circumstances unless there is a history of cracking problems. Remember that faults
such as cracking may be caused by poorly built and restrictive flues, e.g. mortar
extrusions, too many bends, flue heights below three metres, restrictive terminations
etc.
The appliance is suitable for installations conforming to older versions of BS1289 as
well as the current edition. The flue blocks must have a minimum width (Depth as you
look at the flue block when installed) not less than 63mm and a cross-sectional area
not less than 13,000mm2. Older editions of BS1289 required a cross-sectional area
of 13,000mm2. The current revision of the standard requires 16,500mm2. This
appliance is suitable in both cases. The total depth of the opening measured from the
finished front of the fireplace (Including plaster, surround etc.) must be 115mm.
INSTALLER GUIDE

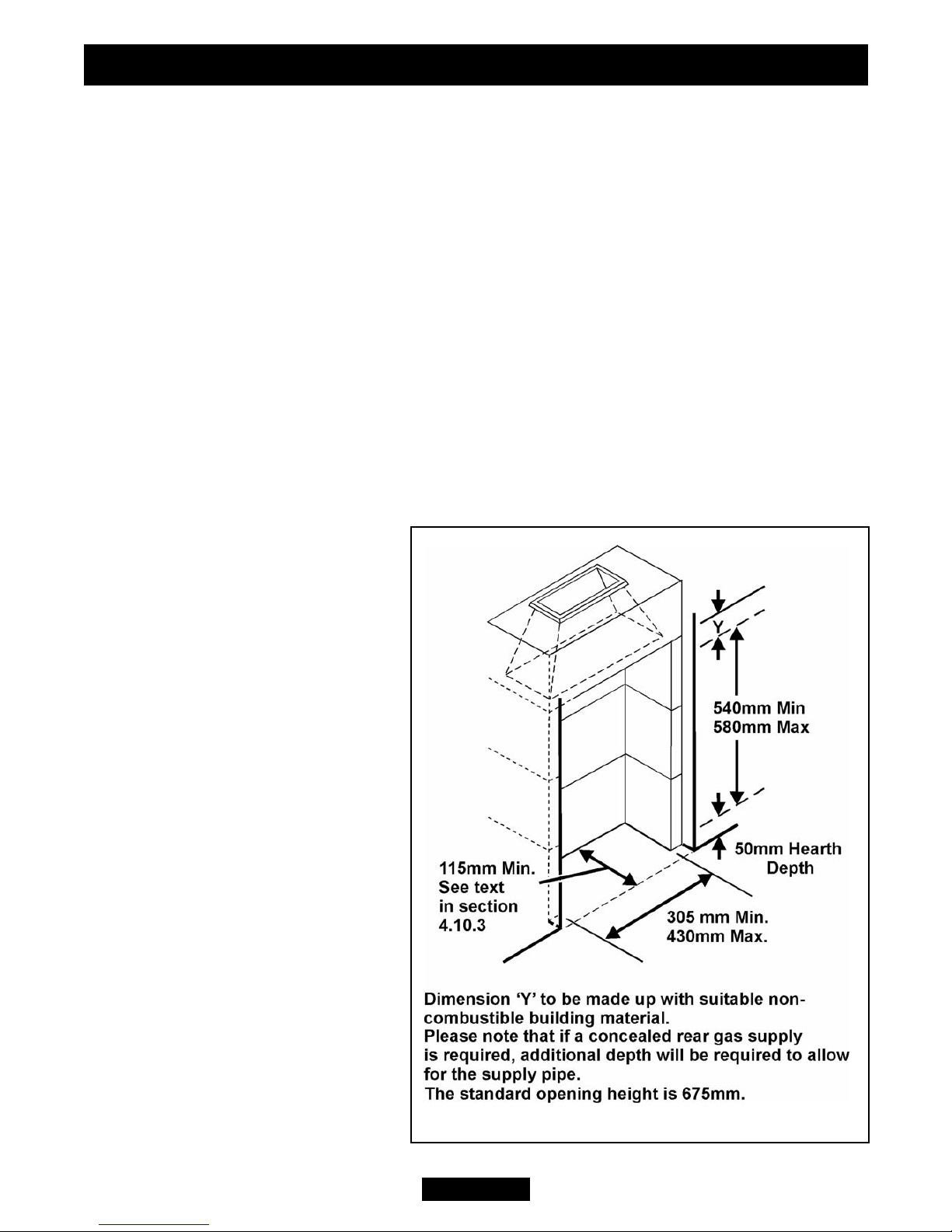

Figure 7. Pre-cast Fireplace

4.11 Flues.
1. Suitable flues and minimum flue sizes are as follows:
It should be noted that, as with many appliances, sharp bends or horizontal runs in
metal flues at the top of the system can be a cause of problems in these types of
installation.
225mm x 225mm conventional brick flue.
Single wall, twin wall or flexible flue liner with a minimum diameter of 125mm. The
materials to be used are stainless steel or aluminium as specified in
BS EN 1856 Part 1. The liner must be sealed to the surrounding area above the
fireplace opening and to the top of the chimney. An approved terminal must be fitted.
175mm diameter lined brick or stone flue.
200mm diameter factory made insulated flue manufactured to BS4543 Part 2.
175mm diameter flue pipe. See BS6461 Part 1 for suitable materials.
A properly constructed precast concrete or clay flue system conforming to BS1289
or BS EN 1858. This system is only suitable if the conditions stated in section 4.10.3
are met.
2. The flue must conform to BS 5440: Part 1 in design and installation.
The flue, measured from the bottom of the fireplace opening to the bottom of the
terminal, shall be not less than 3m in actual vertical height. When calculated in
accordance with BS 5440: Part 1 Annex A, the minimum equivalent height of the flue
shall be 2.0m of 125mm dia. flue pipe.
3. The flue must not be used for any other appliance or application.
4. Proprietary terminals must comply with BS 715 or BS 1289. Any terminal or
termination must be positioned in accordance with BS 5440 Part 1 to ensure that the
products of combustion can be safely dispersed into the outside atmosphere. Where
the appliance is connected to an unlined brick chimney it is generally unnecessary for
the chimney pot to be replaced or for a terminal to be fitted unless the flue has a
diameter smaller than 170mm.
5. The flue must be completely sealed so that combustion products do not come into
contact with combustible materials outside the chimney.
Page 19
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE

5. PACK CONTENTS
1 Heat engine.
1 Grommet for rear of convection box.
2 Strips of floor sealing tape.
6 Fibre / wooden plugs.
4 Wood screws.
2 Fire retaining cables.
2 Cable adjusters.
4 Eyebolts.
1 Length of self-adhesive foam seal.
1 Inlet “T” connector including pressure test point, nut and olive for 8mm inlet pipe.
1 Ceramic fuel effect pack (Not shown).
1 Smoke match tube.
1 Fascia frame.
1 Trim set.
8 Magnets
1 Firefront casting.
1 Front cover casting.
1 Outlet baffle.
3 No.8 x 3/8 screws for securing the outlet baffle.
Remove all the items carefully to prevent damage. Take special care when handling
the ceramic components. Some items may be contained in the packaging fitments -
Examine the packaging carefully before discarding. Check that all the items are
present and undamaged.
Page 20
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
