Valor Fires 756 Instructions for use

5132685/02
© Baxi Heating U.K. Limited 2010.
Model 756
INSET LIVE FUEL EFFECT GAS FIRE
Fitted with one of the following fascia.
Denver, Exquisite,
Madison or Splendour.
(GC No. 32-811-46)
INSTALLER: Please leave this guide with the owner
We trust that this guide gives
sufficient details to enable this
appliance to be installed and
maintained satisfactorily. However, if
further information is required, our
Valor Fires Technical Helpline will
be pleased to help.
Telephone [phone] (National
call rates apply in the United
Kingdom).
In the Republic of Ireland
Telephone [phone].
INSTALLER AND OWNER GUIDE

© Baxi Heating U.K. Limited 2010.
All rights reserved. No part of this publication may be reproduced in any material form
(including photocopying), stored in any medium by electronic means (including in any
retrieval system or database) or transmitted, in any form or by any means, whether
electronic, mechanical, recording or otherwise, without the prior written permission of
the copyright owner.
Applications for the copyright owner's permission to reproduce any part of this
publication should be made, giving details of the proposed use, to the following
address: The Company Secretary, Baxi Heating UK Limited, The Wyvern Business
Park, Stanier Way, Derby, DE21 6BF.
Warning: Any person who does any unauthorised act in relation to a copyright work
may be liable to criminal prosecution and civil claims for damages.
Valor Fires, Erdington, Birmingham B24 9QP
www.firesandstoves.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from
those given in this publication
Page 2
© Baxi Heating U.K. Limited 2010.
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20).
WHEN CONVERTED USING CONVERSION KIT NO. 0575621 THIS
APPLIANCE IS FOR USE WITH PROPANE GAS (G31).
THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED
KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE).

Safety First.
Valor Fires fires are CE Approved and designed to meet the appropriate British
Standards and Safety Marks.
Quality and Excellence.
All Valor Fires fires are manufactured to the highest standards of quality and
excellence and are manufactured under a BS EN ISO 9001 quality system accepted
by the British Standards Institute.
The Highest Standards
Valor Fires is a member of SBGI and HHIC (Heating and Hot water Industry Council)
that work to ensure high standards of safety, quality and performance.
Careful Installation
This gas fires must be installed by a competent GAS SAFE REGISTER engineer
(GAS SAFE REGISTER or CORGI engineer outside of UK) in accordance with our
installer guide and should not be fitted directly on to a carpet or floor of combustible
material.
Page 3
© Baxi Heating U.K. Limited 2010.

Page 4
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
FOR OWNER GUIDE SEE PAGES 36 TO 47

CONTENTS
Section Heading Page
INSTALLER GUIDE 4 - 35
OWNER GUIDE 36 - 47
1. SAFETY AND UNPACKING 7
2. ACCESSORY LIST 8
3. APPLIANCE DATA AND EFFICIENCY 8
3.1 General information. 8
3.2 Efficiency. 8
4. GENERAL INSTALLATION REQUIREMENTS 9
4.1 Regulations, Standards and Law. 9
4.2 Ventilation requirements. 10
4.3 The Atmosphere sensing device (ASD). 10
4.4 Fireguard requirements. 10
4.5 Room considerations. 10
4.6 Chimney preparation. 11
4.7 Fireplace preparation. 11
4.8 The hearth. 12

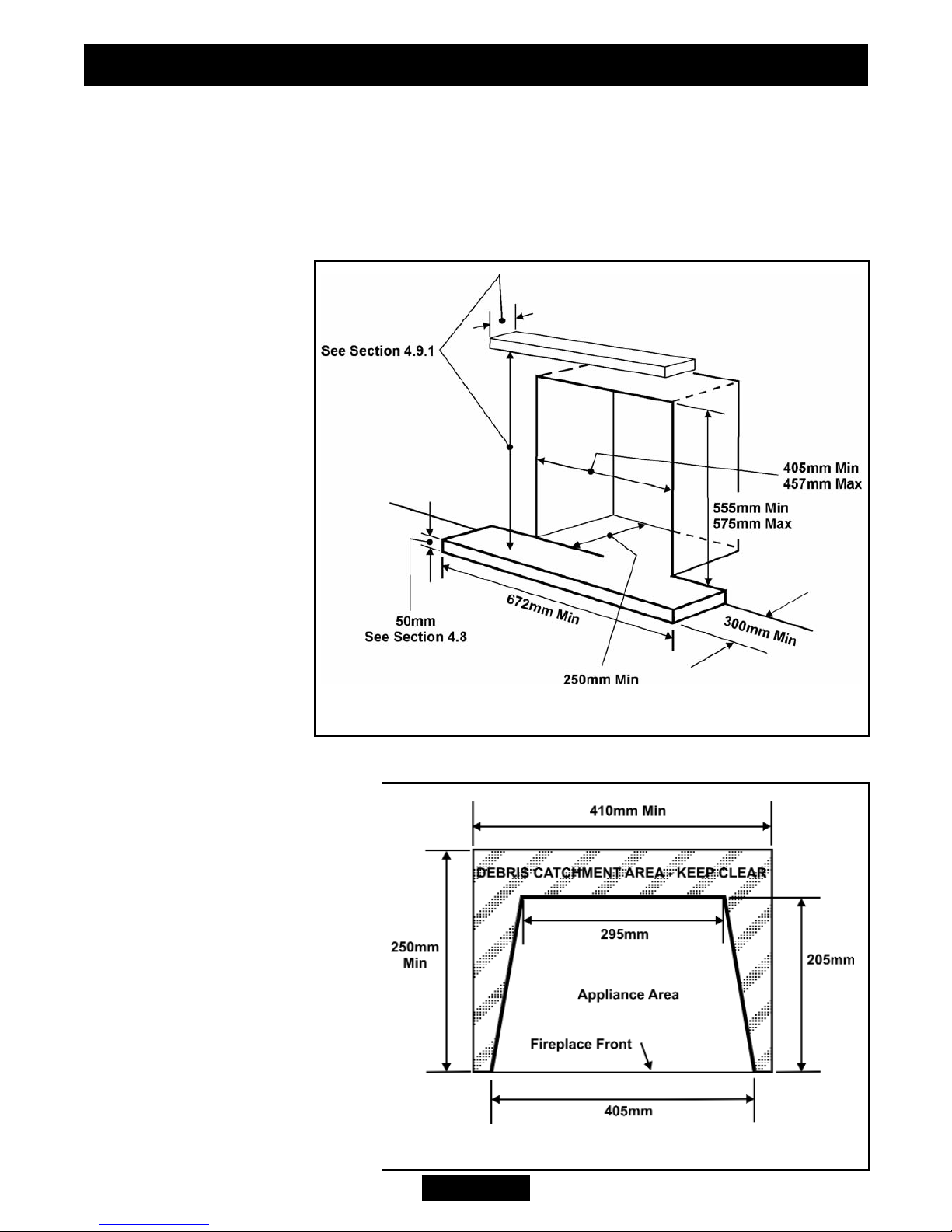

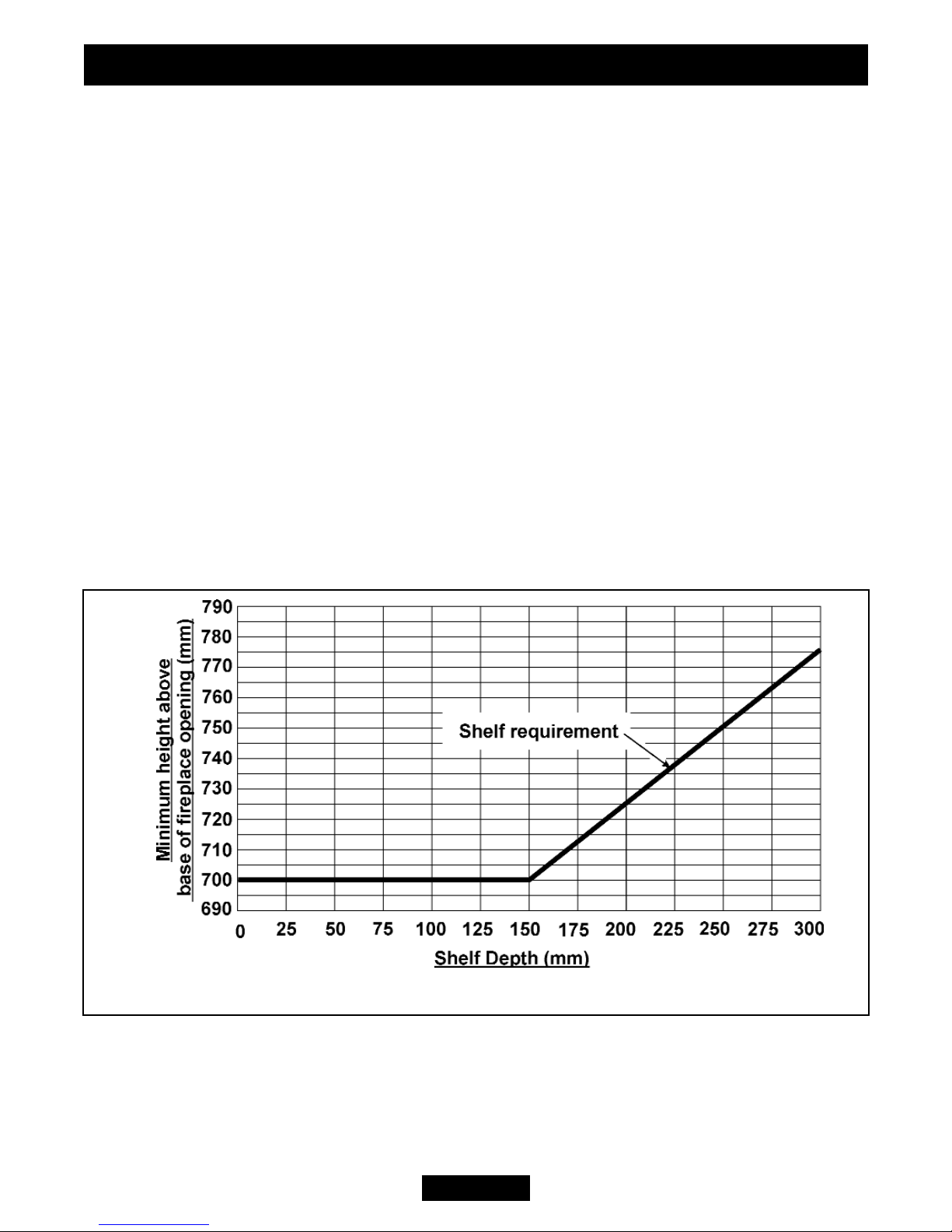

4.9 Fireplace clearances. 12
4.10 Installation options. 14
4.10.1 Conventional fireplace and hearth. 14
4.10.1.1 ‘Hole-in-the-wall’ Installations. 15

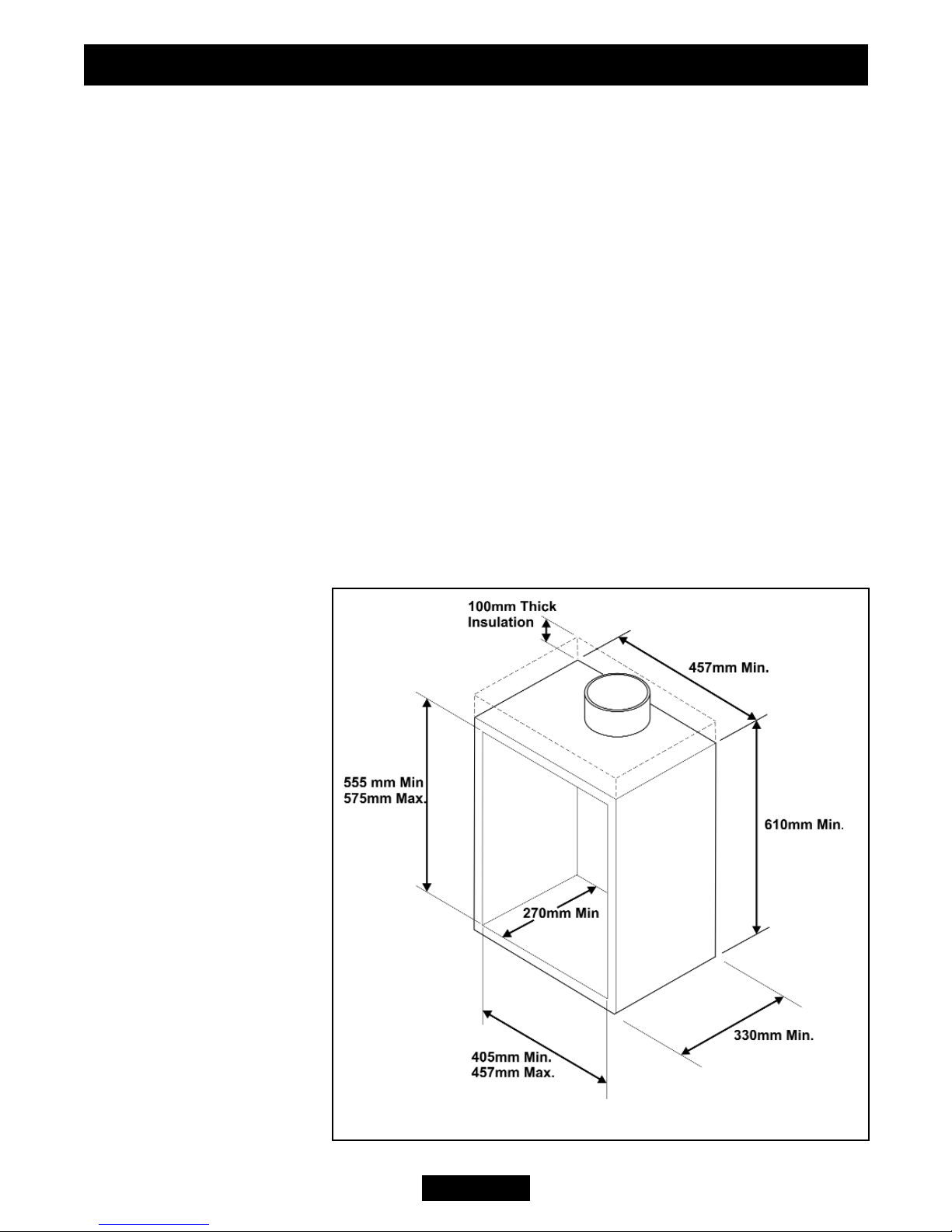

4.10.2 Metal flue box and hearth. 15

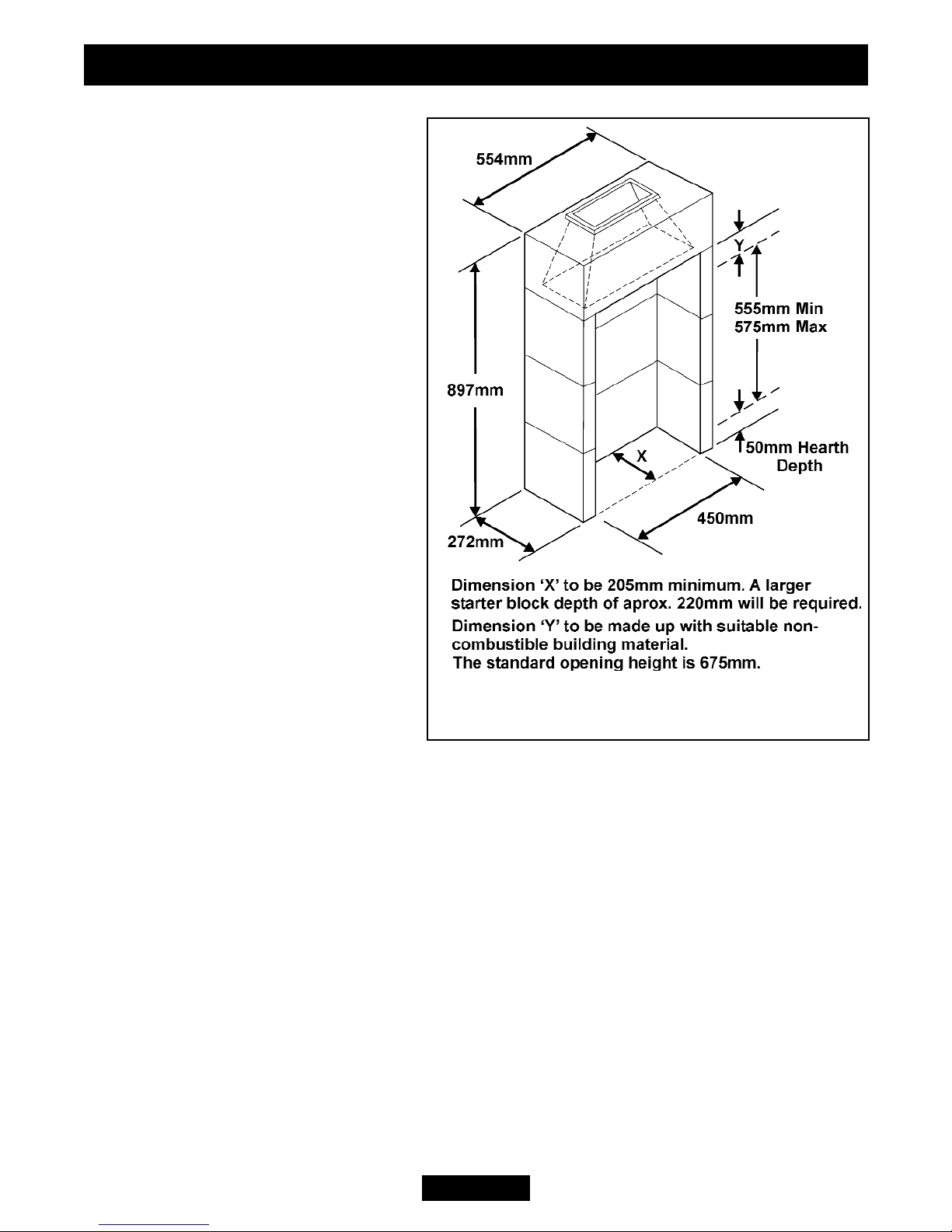

4.10.3 Precast concrete or clay flue block system and hearth. 16
4.11 Flues. 16
4.12 Propane gas fires. 17

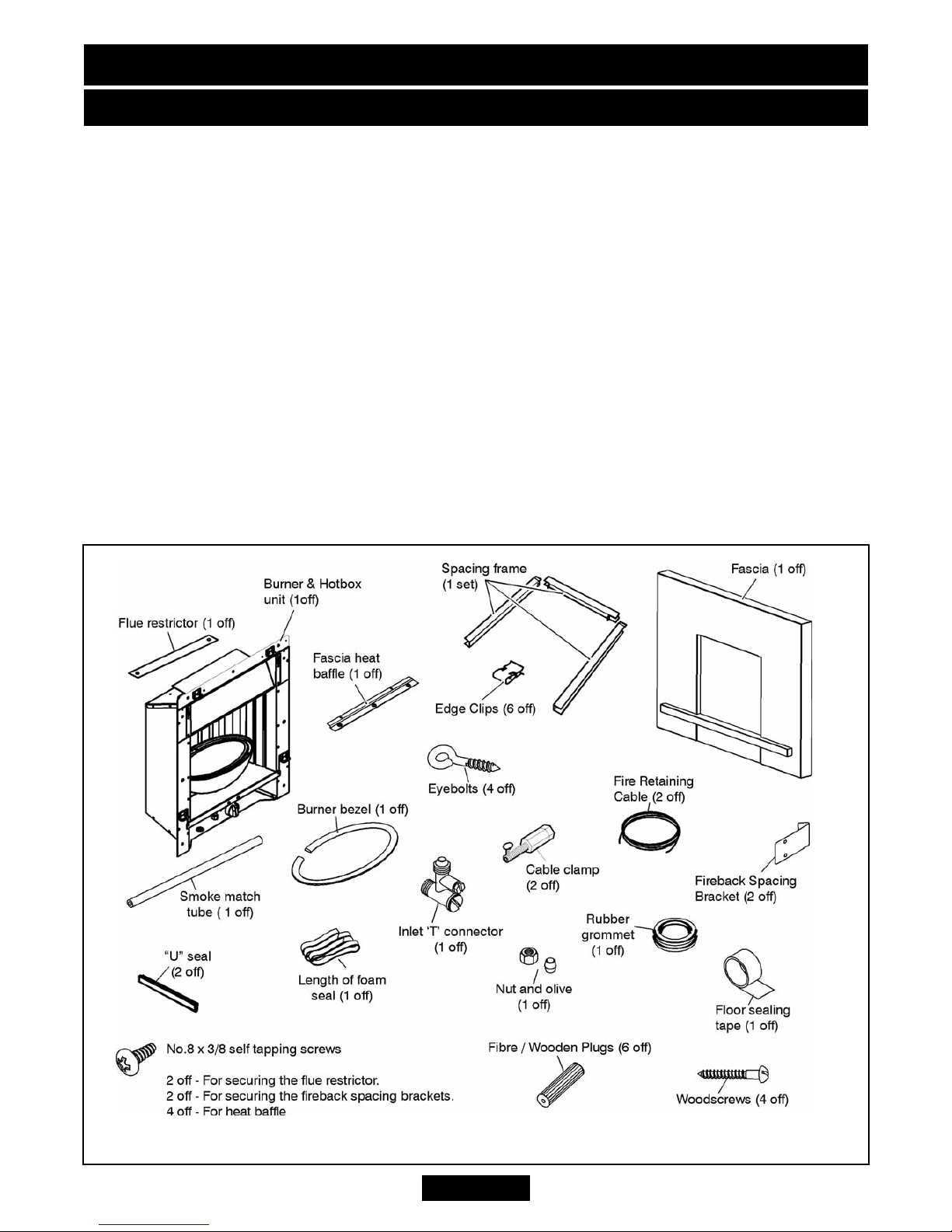

5. PACK CONTENTS 18
6. FIREPLACE CHECK 19
6.1 Soundness for appliance attachment. 19
6.2 Fireplace flue pull. 19

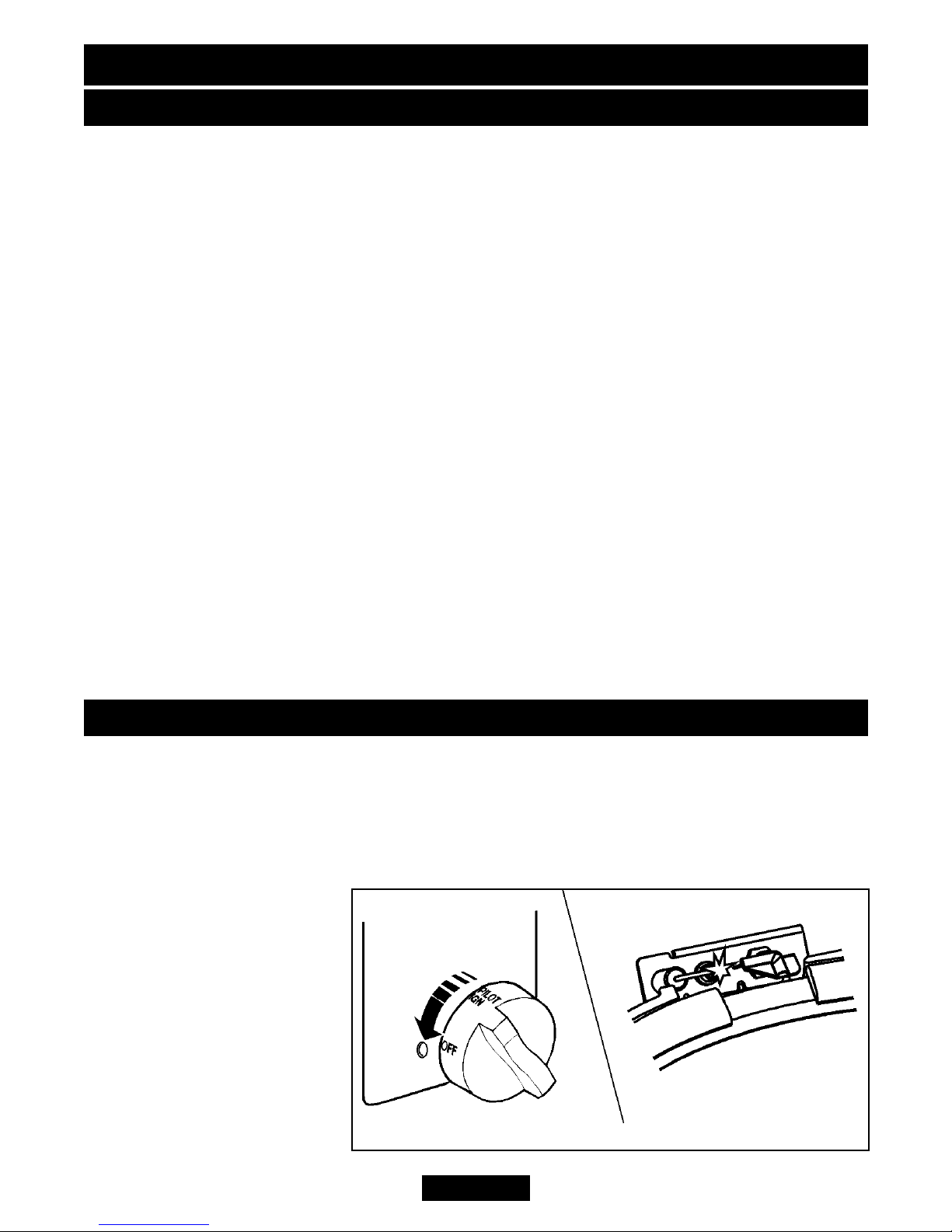

7. IGNITION CHECK 19
8. GAS SUPPLY CONNECTION 20
9. PREPARING APPLIANCE FOR INSTALLATION 20

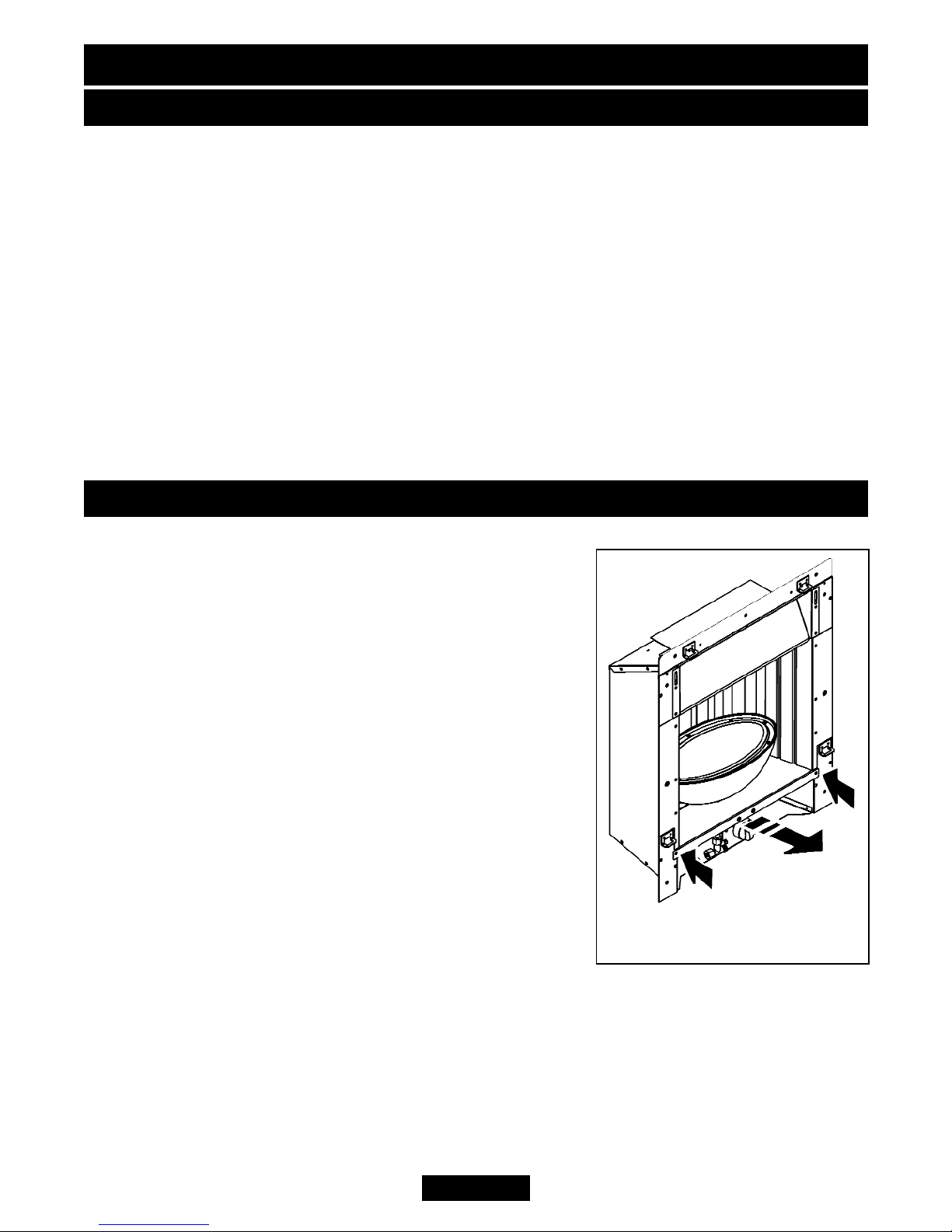

10. HOTBOX INSTALLATION 24
10.1 Cable retention and floor fixing. 24
10.2 Sealing floor front - all installations. 26
Page 5
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2010.
Continued on next page

CONTENTS (Continued)
Section Heading Page
11. BURNER & SUPPLY PIPE INSTALLATION 26
11.1 Fitting the burner. 26
11.2 Supply pipe installation. 26
11.3 Preliminary burner checks. 27
11.3.1 Lighting the fire. 27
11.3.2 Operating the burner. 27
11.4 Check inlet pressure. 27
12. FASCIA INSTALLATION 28
12.1 Fitting the fascia. 28
12.2 Fitting the heat baffle. 28
13. FULL OPERATING CHECKS 29
13.1 Check the burner operation. 29
13.2 Check for spillage. 29
13.3 Flame supervision and spillage monitoring system. 30
14. FINAL REVIEW 30
15. SERVICING & PARTS REPLACEMENT 31
15.1 To remove the fascia. 32
15.2 To remove the burner unit. 32
15.3 To remove the spillage plate. 33
15.4 To remove the inner panel. 33
15.5 To remove the pilot unit. 33
15.6 To remove the gas valve. 34
15.7 To remove the piezo generator. 34
15.8 To grease the control tap. 34
15.9 To replace the top surface of the burner. 35
15.10 To replace the burner. 35
15.11 To remove the burner injector. 35
15.12 To remove the appliance from the fireplace. 35
Page 6
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE

1. SAFETY AND UNPACKING
Installer
Before continuing any further with the installation of this appliance please read the
following guide to manual handling:
 The approximate lifting weight (kg) of this appliance is as below:
Model Hotbox Heat engine Fascia Total
Denver 5.56 7.71 4.27 17.54
Exquisite 5.56 7.71 4.27 17.54
Madison 5.56 7.71 4.27 17.54
Splendour 5.56 7.71 4.27 17.54
 One person should be sufficient to lift the fire. If for any reason this weight is
considered too heavy then obtain assistance.
 When lifting always keep your back straight. Bend your legs and not your back.
 Avoid twisting at the waist. It is better to reposition your feet.
 Avoid upper body/top heavy bending. Do not lean forward or sideways whilst
handling the fire.
 Always grip with the palm of the hand. Do not use the tips of fingers for support.
 Always keep the fire as close to the body as possible. This will minimise the
cantilever action.
 Use gloves to provide additional grip.
 Always use assistance if required.
This product uses a burner gasket containing Refractory Ceramic Fibres (RCF). The
burner surface is also made of Refractory Ceramic Fibres (RCF), which are man-made
vitreous silicate fibres. Excessive exposure to these materials may cause irritation to
eyes, skin and respiratory tract. Consequently, it is important not to touch or disturb
the burner surface to ensure that the release of dust is kept to a minimum. To ensure
that the release of fibres from these RCF articles is kept to a minimum, during
installation and servicing we recommend that you use a HEPA filtered vacuum to
remove any dust and soot accumulated in and around the fire before and after
working on the fire. Do NOT vacuum the burner surface. When replacing the burner
surface we recommend that the replaced items are not broken up, but are sealed
within a heavy duty polythene bag, clearly labelled as RCF waste. RCF waste is
classed as a stable, non-reactive hazardous waste and may be disposed at a landfill
licensed to accept such waste. Protective clothing is not required when handling
these articles, but we recommend the use of suitable gloves to prevent irritation. We
also recommend you follow the normal hygiene rules of not smoking, eating or
drinking in the work area and always wash your hands before eating or drinking.
This appliance does not contain any component manufactured from asbestos or
asbestos related products.
Page 7
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE

2. ACCESSORY LIST
The following accessories are available: -
Description Part Number
LPG conversion kit 0575621
3. APPLIANCE DATA AND EFFICIENCY
3.1 General information.
* When converted using conversion kit number 0575621.
The appliance information label is located on a plate at the base of the fire (See
figure 6 on the last page of the owner guide). This can be seen by lowering the
bottom front cover access panel of the fascia.
3.2 Efficiency.
The efficiency of this appliance has been measured as specified in BS 7977 - 1 and
the result is as below:
Model Efficiency % (Gross)
756 47
756 when converted to LPG. 47
Page 8
© Baxi Heating U.K. Limited 2010.
Gas Natural (G20) Propane (G31)*
Inlet Pressure 20mbar 37mbar
Input Max. (Gross) 5.3kW (18,084 Btu/h) 5.3kW (18,084 Btu/h)
Input - Min. (Gross) 3.2kW (10,918 Btu/h) 4.3kW (14,672 Btu/h)
Inlet Test Pressure (Cold) 20.0 ± 1.0mbar
(8.0 ± 0.4in w.g.)
37.0 ± 1.0mbar
(14.85 ± 0.4in w.g.)
Gas Connection 8mm pipe 8mm pipe
Burner Injector Size 170 Size 115
Pilot & Atmosphere Sensing
Device OPNG 9030 OPLPG 9222
Ignition Integral piezo (Mounted on
gas valve)
Integral piezo (Mounted on
gas valve)
Aeration Non-adjustable Non-adjustable
INSTALLER GUIDE

The gross calorific value of the fuel has been used for this efficiency calculation. The
test data from which it has been calculated has been certified by Advantica
Certification services (0087). The efficiency value may be used in the UK
Government's Standard Assessment Procedure (SAP) for energy rating of dwellings.
The conversion of net efficiency to gross was achieved by multiplying the net
efficiency by the following conversion factor from Table E3 of SAP 2005, rounding
down to the nearest whole number.
4. GENERAL INSTALLATION REQUIREMENTS
4.1 Regulations, Standards and Law.
The installation must be in accordance with these instructions.
For the user’s protection, in the United Kingdom it is the law that all gas appliances
are installed by competent persons in accordance with the current edition of the Gas
Safety (Installation and Use) Regulations. Failure to install the appliance correctly
could lead to prosecution. GAS SAFE REGISTER and CORGI require their members
to work to recognised standards.
In the United Kingdom the installation must also be in accordance with:
All the relevant parts of local regulations.
All relevant codes of practice.
The relevant parts of the current editions of the following British Standards:-
BS EN 1856 Part 1 - Chimneys - Requirements for metal chimneys.
BS 715 - Specification for metal flue boxes for gas-fired appliances not
exceeding 20kW.
BS EN 1858 - Chimneys - Components - Concrete flue blocks.
BS EN 1806 - Chimneys - Clay / ceramic flue blocks.
BS 5440 Part 1 - Installation of flues.
BS 5440 Part 2 - Installation and maintenance of flues and ventilation for gas
appliances of rated input not exceeding 70 kW net (1st, 2nd
and 3rd family gases).
BS 6461 Part 1 - Masonry chimney & flues - Installation
BS 1251 - Fireplace components
BS 5871 Part 2 - Installation - Inset LFE gas fires
BS 6891 - Gas pipework installation
In England and Wales, the current edition of the Building Regulations issued by the
Department of the Environment and the Welsh Office.
Page 9
© Baxi Heating U.K. Limited 2010.
Gas Conversion factor from net to gross efficiency
Natural Gas 0.901
LPG 0.921
INSTALLER GUIDE

In Scotland, the current edition of the Building Standards (Scotland) Regulations
issued by the Scottish Executive.
In Northern Ireland, the current edition of the Building regulations (Northern
Ireland) issued by the Department of the Environment for Northern Ireland.
In the Republic of Ireland the installation must be carried out by a competent
person and also conform to the relevant parts of:
a) The current edition of IS 813 “Domestic Gas Installations”
b) All relevant national and local rules in force.
Where no specific instructions are given, reference should be made to the relevant
British Standard Code of Practice.
4.2 Ventilation requirements.
Normal adventitious ventilation is usually sufficient to satisfy the ventilation
requirements of this appliance. In GB reference should be made to BS 5871 Part 2
and in IE reference should be made to the current edition of IS 813 “Domestic Gas
Installations” which makes clear the conditions that must be met to demonstrate that
sufficient ventilation is available.
4.3 The Atmosphere sensing device (ASD).
The appliance is fitted with an A.S.D (Atmosphere sensing device). If the appliance
closes down after a period of operation for no apparent reason, the consumer should
be informed to stop using the appliance until the installation and appliance have been
thoroughly checked. The A.S.D will shut the appliance down if an unacceptable
amount of harmful products of combustion accumulate. Under no circumstances
should the A.S.D be altered or bypassed in any way. Only a genuine manufacturer’s
replacement part should be fitted. The individual A.S.D components are not
replaceable.
4.4 Fireguard requirements.
A fireguard complying with BS 8423 should be fitted for the protection of young
children, the elderly, the infirm and pet animals.
4.5 Room considerations.
4.5.1 This appliance must not be installed in any room that contains a bath or shower
or where steam is regularly present.
4.5.2 An extractor fan may only be used in the same room as this appliance, or in any
area from which ventilation for the appliance is taken, if it does not affect the safe
performance of the appliance. Note the spillage test requirements detailed further on
in this manual. If the fan is likely to affect the appliance, the appliance must not be
installed unless the fan is permanently disconnected.
4.5.3 Note that soft wall coverings (e.g. embossed vinyl, etc.) are easily affected by
heat. They may scorch or become discoloured when close to a heating appliance.
Please bear this in mind when installing.
Page 10
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE

4.6 Chimney preparation.
4.6.1 If the appliance is intended to be installed to a chimney that was previously
used for solid fuel, the flue must be swept clean prior to installation. All flues should
be inspected for soundness and freedom from blockages.
4.6.2 Any chimney damper or restrictor should be removed. If removal is not possible,
they must be secured in the open position.
4.7 Fireplace preparation.
4.7.1 If the fireplace opening is an underfloor draught type, it must be sealed to stop
any draughts.
4.7.2 The fireplace floor should be reasonably flat to ensure that the convection box
can be installed without it rocking and so that a good seal can be made at the bottom
front of the box.
4.7.3 The front face of the fireplace should be reasonably flat over the area covered
by the convection box top and side flange seals to ensure good sealing. These faces
should be made good if necessary.
4.7.4 If the appliance is to be fitted against a wall with combustible cladding, the
cladding must be removed from the area
covered by the fascia. The cladding must
also not touch the fascia (See figure 1).
We suggest that the actual fascia is used
as a template to mark the area for
combustible cladding removal and that
this area is increased by at least 2mm all
round. If the cladding projects forward
from the fixing plane of the fire the
clearance at the top of the appliance must
be increased to a minimum 15mm. This
will allow for fascia removal.
4.7.5 If the fireplace opening is greater
than the acceptable dimensions given in
this guide, do not use the back of a fire
surround or marble to reduce the opening.
This may cause cracking of the surround
back or marble.
Page 11
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
Figure 1. Removal of combustible
cladding

4.8 The hearth.
The appliance must be mounted behind a non-combustible hearth unless the
conditions of section 3.10.1.1 are met (N.B. conglomerate marble hearths are
considered as non-combustible). The appliance can be fitted to a purpose made
proprietary class “O”-100°C surround. The hearth material must be at least 12mm
thick. The periphery of the hearth (or fender) should be at least 50mm above floor
level to discourage the placing of carpets or rugs over it.
The surface of the hearth must be sufficiently flat to enable the fascia to locate
correctly and for the bottom front cover to operate. Any excessive unevenness
(uneven tiles, Cotswold stone, etc.) should be rectified.
The appliance must not stand on combustible materials or carpets.
4.9 Fireplace clearances.
4.9.1 The minimum height from the base of the fireplace opening to the underside of
any shelf made from wood or other combustible materials is detailed below.
•For a shelf up to 150mm deep
Minimum height = 700mm.
•For a shelf deeper than 150mm
Minimum height = 700mm + 12.5mm for every 25mm depth over 150mm.
(See figure 2).
4.9.2 The minimum allowable distance from the outside of the appliance fascia to a
corner wall having combustible material or any other combustible surface which
projects beyond the front of the appliance is shown in figure 3.
Page 12
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
Figure 2. Combustible shelf clearances

Page 13
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
Figure 3. Appliance dimensions and clearances

4.10 Installation options.
In the United Kingdom, as supplied, the appliance can be installed in the following
situations: -
4.10.1 Conventional fireplace and hearth.
To a fireplace complete with surround and hearth as shown in figure 4 and complying
with BS1251 after removal of the fireback and sufficient material behind the fireback
for a debris catchment
space. The required
fireplace, hearth, debris
catchment area and
clearance dimensions
are shown in figure 5.
Page 14
© Baxi Heating U.K. Limited 2010.
Figure 5. Fireplace area
INSTALLER GUIDE
Figure 4. Hearth and fireplace opening dimensions

4.10.1.1 ‘Hole-in-the-wall’ Installations.
 It is recommended that a hearth should be installed as in figure 4.
If a hearth is not fitted, the fire must be installed so that the distance from the base of
the fireplace opening in the wall to the finished floor level is at least 25mm. Where
there is no floor covering or carpet and the floor is of a type that is likely to be
covered in such a way then the distance from the base of the fireplace opening in the
wall to the finished floor level should be increased to at least 100mm.
 To protect from the risk of burns and ignition of clothing a tactile separator shall be
used. The hearth detailed in section 4.8 meets the requirements for a tactile
separator. If this is not used then a 672mm long fender, kerb, horizontal bar, or other
barrier, being fixed not less than 50mm above floor level and positioned 300mm in
front of the fixing plane of the fire will meet the requirement.
4.10.2 Metal flue box and hearth.
The appliance can be installed to a fireplace incorporating a metal flue box complying
with the constructional requirements of the current edition of BS 715 and with a flue
conforming to BS EN 1856 part 1. The dimensions of the flue box must conform to
those shown in figure 6.
The top surface of the metal flue box must be covered with a 100mm layer of mineral
wool or equivalent insulation (See figure 6).
Important Note: Where
the flue box has a base
sheet that is single wall
(i.e. a single metal sheet)
the flue box must be
mounted on a non-
combustible hearth. The
hearth material must be at
least 12mm thick.
Page 15
© Baxi Heating U.K. Limited 2010.
Figure 6. Metal flue box
INSTALLER GUIDE

4.10.3 Precast concrete or clay flue block system and hearth.
The appliance can be installed to a
precast concrete or clay flue block
system conforming to BS EN 1858
with dimensions as in figure 7.
BS 1289 part 1 recommends there
should be an air space or insulation
between the flue blocks and the
plaster because heat transfer may
cause cracking on directly plastered
flues. However, generally this
appliance is suitable for installations
under all circumstances unless there
is a history of cracking problems.
Remember that faults such as
cracking may be caused by poorly
built and restrictive flues, e.g. mortar
extrusions, too many bends, flue
heights below three metres,
restrictive terminations etc.
4.11 Flues.
1. Suitable flues and minimum flue
sizes are as follows:
It should be noted that, as with many
appliances, sharp bends or
horizontal runs in metal flues at the
top of the system can be a cause of problems in these types of installation.
 225mm x 225mm conventional brick flue.
 175mm diameter lined brick or stone flue.
 200mm diameter factory made insulated flue manufactured to the current edition
of BS EN 1859.
 175mm diameter flue pipe. See BS6461 Part 1 for suitable materials.
 Single wall, twin wall or flexible flue liner with a minimum diameter of 125mm. The
materials to be used are stainless steel or aluminium as specified in
BS EN 1856 Part 1. The liner must be sealed to the surrounding area above the
fireplace opening and to the top of the chimney. An approved terminal must be fitted.
 A properly constructed precast concrete or clay flue system conforming to BS1289
or BS EN 1858. This system is only suitable if the conditions stated in section 4.10.3
are met.
Page 16
© Baxi Heating U.K. Limited 2010.
Figure 7. Precast or clay flue block system
dimensions
INSTALLER GUIDE

2. The flue must conform to BS 5440: Part 1 in design and installation.
The flue, measured from the bottom of the fireplace opening to the bottom of the
terminal, shall be not less than 3m in actual vertical height. When calculated in
accordance with BS 5440: Part 1 Annex A, the minimum equivalent height of the flue
shall be 2.0m of 125mm dia. flue pipe.
3. The flue must not be used for any other appliance or application.
4.Proprietary terminals must comply with BS 715 or BS 1289. Any terminal or
termination must be positioned in accordance with BS 5440 Part 1 to ensure that the
products of combustion can be safely dispersed into the outside atmosphere. Where
the appliance is connected to an unlined brick chimney it is generally unnecessary for
the chimney pot to be replaced or for a terminal to be fitted unless the flue has a
diameter smaller than 170mm.
4.12 Propane gas fires.
Propane gas appliances must not be installed in a room, which is built entirely below
ground level (See BS 5871 Pt2).
Page 17
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE

5. PACK CONTENTS
1 Burner and hotbox unit.
1 Spacing frame (Three separate pieces).
6 Edge clips for securing the spacing frame.
1 Inlet ‘T’ Connector which includes a nut
and olive for 8mm inlet pipe.
1 Flue restrictor plate.
2 Screws (For flue restrictor).
2 Fireback spacing brackets.
2 Screws (For fireback spacing brackets).
2 Small “U” seals for hotbox side flanges.
1 Strip of floor sealing tape.
4 Eyebolts.
Carefully remove all the contents. Check that all the listed parts are present and in
good condition. The pack may contain additional components to that stated above.
These can be discarded following installation.
Page 18
© Baxi Heating U.K. Limited 2010.
Figure 8. Pack contents
1 Length of foam seal.
6 Fibre plugs.
4 Woodscrews.
2 Fire retaining cables.
2 Cable clamps.
1 Rubber grommet.
1 Literature pack (Not shown).
1 Smoke match tube.
1 Fascia.
1 Elliptical burner bezel.
1 Fascia heat baffle.
4 Screws for fascia heat baffle.
INSTALLER GUIDE

6. FIREPLACE CHECK
6.1 Soundness for appliance attachment.
A primary method of retaining the appliance is provided. This involves using
concealed tension cables fixed to the rear of the fireplace opening together with
secondary fixing to the fireplace floor. This method is detailed in section 10 of this
manual. This method is particularly useful for instances where drilling holes in the
front surface of the fireplace surround is unacceptable to the customer or otherwise
impractical. N.B. It is unwise to attempt to drill into marble without the proper tools
and equipment.
Make sure that the areas at the back and towards the centre of the fireplace floor are
sound enough to take the eyebolts and screws. If these areas have deteriorated due
to prolonged use, they should be made sound with suitable cement.
6.2 Fireplace flue pull.
Close all doors and windows in the room in which the appliance is to be installed.
After confirming with a match that smoke is drawn into the flue, light a 13 gram
smoke pellet and check that there is a definite flow through the flue. Verify outside
that the smoke exits from one terminal only and that the termination is suitable.
Observe where possible, upstairs rooms and loft spaces for signs of escaping smoke
indicating a defective flue. If there is not a definite flow warm the flue for a few
minutes and repeat the smoke pellet test. If there is still no definite flow the flue may
need remedial work – Do not fit the appliance until there is a definite flow
through the flue.
7. IGNITION CHECK
Before attempting to install, it is worth checking that the ignition system performs
satisfactorily.
Set the control knob to the OFF position. Depress the control knob and rotate it
SLOWLY anticlockwise to the PILOT/IGN position (See figure 9). A 'click' will be heard
as the integral piezo operates. A spark should be seen between the electrode and
pilot tip. If there is no spark
check the following: -
 Ensure that the electrode
lead is connected to the
terminal at the base of the
electrode.
 If the above is correct,
check for damage to the
electrode lead.
Page 19
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
Figure 9. Ignition operation

8. GAS SUPPLY CONNECTION
A nut and olive are provided for an 8mm pipe inlet connection to the ‘T’ connector at
the bottom front of the appliance. The ‘T’ connector can be rotated to allow a
connection from any rear-concealed connection. The ‘T’ connector includes a valve
for isolating the gas supply and a pressure test point.
The supply pipe must be rigid material. Flexible pipe must not be used.
Concealed supply pipe connection.
If a concealed connection from inside the fireplace is required then, before the
appliance is fitted into the fireplace it will be necessary to extend the supply line so
that it will project through the hole in the back of the hotbox and run to the ‘T’
connector at the front. The pipe run from the supply line up to the rear opening in the
hotbox must be kept away from the area which will be taken by the hotbox when it is
installed. Note that the centre of the appliance inlet ‘T’ connector is 25mm above the
fireplace floor. The inlet ‘T’ connector should be fitted to the supply pipe at this stage.
9. PREPARING APPLIANCE FOR INSTALLATION
1. The fire is fitted with two transit support screws.
These are located on the sides of the hotbox and are
labelled. They prevent burner assembly movement
during transit. Remove the transit screws and discard.
2. Remove the two screws to the side of the burner
assembly (See figure 10).
3. Detach the burner assembly from the hotbox by
holding the ‘bowl’ and gently sliding forward. The burner
assembly is heavy and if not supported sufficiently will
drop when clear of its support brackets. When sliding
the burner assembly be careful not to lift it as this may
scratch the top surface.
Page 20
© Baxi Heating U.K. Limited 2010.
Figure 10. Burner module
removal.
INSTALLER GUIDE
