Valor Multimedia NVG-720W User manual

NVG-720W

Contents
Preparation
Feature
Tools and Supplies
Warnings
Disconnecting the Battery
Controls and Indicators
Button Operation
LCD Display / Indicators
The Key Areas of Touch Screen
Remote Control
Front Zone Remote Control
Rear-Zone Remote Control
Smart Dial Remote Control
TFT Monitor Operation
Open/Close TFT Monitor
TFT Monitor Auto Open
Monitor Tilt Angle Adjustment
Rear Camera Mode
Image Setting
Parameter Adjustment Procedure
Parking Brake Interlock
Monitor Movement Mechanism
Operating Instructions
Power On / Off
Playing Source Selection
Volume Adjustment
Audio Control Menu
Six-Channel Audio Control
Rear Zone
System Reset
Mute
System Setup Menu
MAIN Menu
Screen Setting
General Setup Menu
ASP(Audio Signal Processing) Configuration Menu
Rear-Zone Operation
Standby
Tuner Operation
Tuner TFT Display
Switch to Radio Tuner source
Select FM/AM Band
Auto Tuning
Manual Tuning
Using Preset Stations
Auto Store (AS)
Program Scan (PS)
Local Radio Stations Seeking (LOC)
DVD Player Operation
Opening/Closing the TFT Video Screen
Insert/Eject Disc
Reset the Loading Mechanism
Accessing DVD Mode
Using the Touch-Screen Controls
Controlling Playback
Accessing the DVD Menu
Moving Through Chapters
Fast Forward/Fast Reverse
Selecting 2-Channel or 6-Channel Audio Playback
GOTO Search
Direct Chapter / Track Selection
Viewing an Alternate Picture Angle (DVD Only)
Zooming
Multi-Language Discs (DVD Only)
Playback Information

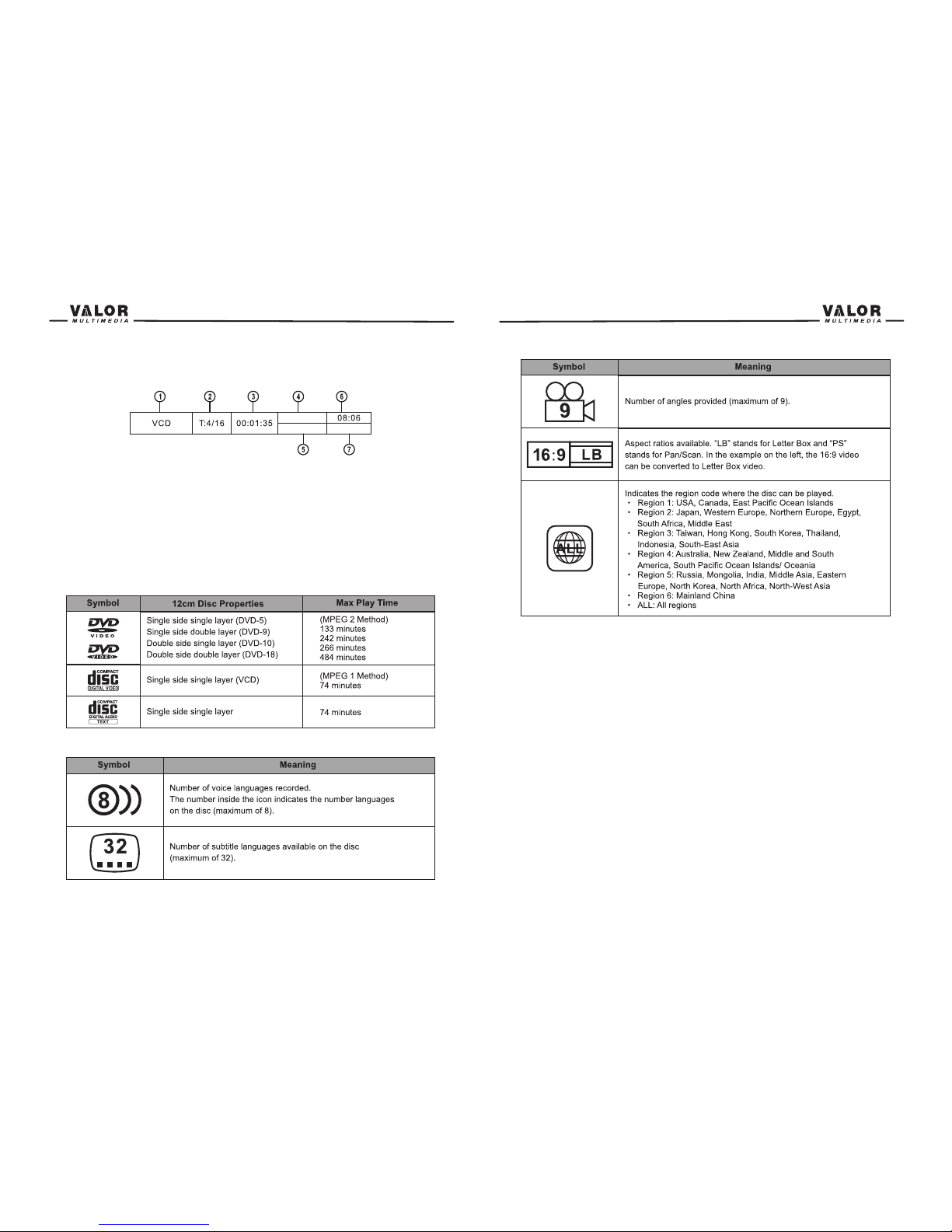

General Disc Information
DVD Setup Menu
Accessing the DVD Setup Screen
LANGUAGE Menu
ASP SET Menu
VIDEO Menu
SPEAKER Menu
RATING (Parental Lock) Menu
CD/MP3/WMA/JPEG Operation
CD Player User Interface
MP3/WMA Discs
JPEG Discs
SD Card Reader Operation
Accessing SD Card Mode
Using the Touch-Screen Controls
1
1
1
1
2
3
3
4
5
6
6
7
8
10
10
10
10
10
10
11
11
11
12
12
12
12
12
14
14
14
14
15
15
16
16
18
20
21
22
22
22
23
23
23
23
23
24
24
25
25
25
25
25
25
26
26
27
27
27
28
28
29
29
29
29
30
32
32
32
33
33
34
35
36
36
37
38
39
39
39
Thank you for your choosing a Valor Multimedia product. We hope you will find the instructions
in this user manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn
how to use all the features of your new unit for maximum enjoyment.
After you have finished reading the instructions, please keep this manual in a safe place for future
reference.

iPod Operation
Accessing iPod Mode
iPod Instructions
Playback of video on iPod
Sat Radio Operation
Accessing Sat Radio Mode
Auto Scan
Manual Scan
Storing a Channel
Recalling a channel
Bluetooth Operation
Before using the Bluetooth
The Bluetooth Indicator
Accessing the Bluetooth Mode
Bluetooth User Interface
Phone Book
Bluetooth Setup
Pairing
Auto Connect
Making a phone call
Answering an incoming call
End a call
Navigation Operation
Access the Navigation mode
Inavigation Operation
How to Listen to an Audio program While Using/viewing the Navigation
Troubleshooting
Specifications
NOTE:
1. certain description in the book may differ from the actual unit.
2. Some pictures or icons in the book may differ from actual display.
3. Specifications subject to change without notice.
Preparation
Please read all of the instructions below before beginning your installation. We recommend that
you have your unit installed by an experienced mobile video/navigation installer.
Features
•Single DIN size, all-in-one integrated entertainment system
•Built-in DVD Player, automotive specification slot loading mechanism
•Built-in ISS FM/AM Tuner.
•SD card reader with READ/PLAY functionality.
•Built-in Bluetooth hands-free dial/answer for connection to Bluetooth enabled handsets.
•High resolution 7”(16:9) TFT color monitor, contrast and brightness adjustment.
•Built-in 50W X 4 output amplifier, 5.1 channel surround sound output.
•Dual zone function with easy operation.
•Smart Touch-screen operation.
•All functions can be operated by included Remote Controls.
•Rear zone remote control operation.
•”Smart Dial” remote control operation.
•Built-in Satellite Radio Control, Built-in iPod Control, Navigation Ready.
•Powerful Graphic User Interface and software update ability.
Tools and Supplies
We suggest using these tools and supplies to install the unit.
• Torx type, flat-head and Philips screwdrivers
• Wire cutters and strippers
• Tools to remove existing radio (screwdriver, socket wrench set or other tools)
• Electrical tape
• Crimping tool
• Multimeter
• Crimp connections
• 18 gauge wire for power connections
• 16 – 18 gauge speaker wire
• Heatshrink tubing
• Soldering iron and solder
Warnings
1
40
40
40
41
42
42
42
43
43
43
44
44
44
44
44
45
45
46
46
46
46
47
48
48
48
48
49
54
1. Only connect the unit to a 12-volt negative ground system.
2. Never install this unit where operation and viewing could interfere with safe driving
conditions.
3. To reduce the risk of a traffic accident (except when using for rear view video camera) never
use the video display function while driving the vehicle. This may be in violation of local laws.
4. To reduce the risk of a traffic accident, never driving with the sound at a level that prevents
you from hearing sounds outside around the vehicle.
5. Never disassemble or adjust the unit without the assistance of a professional. For details,
please consult your local car stereo specialty shop.

Disconnecting the Battery
To prevent a short circuit, turn off the ignition and remove the negative (-) battery cable prior to
starting the installation.
NOTE: If the unit is to be installed in a car equipped with an on-board drive or navigation
computer, do not disconnect the battery cable. If the cable is disconnected, the computer
memory may be lost. Under these conditions, use extra caution during installation to avoid
causing a short circuit.
NOTE: It is especially important that you read the WARNINGS and NOTES in this manual.
Controls and Indicators
Button Operation
3
410
5
2
1
6
789 11
12
13
15
16
17
14
3
2
1.POWER OFF/VOL
Rotary encoder.
Press the encoder to turn on the unit, press and hold to turn off.
Rotate clockwise/counterclockwise to adjust the volume.
Press to enter the audio adjust menu when the unit is on.
Press to answer an incoming call (if the unit has been connected to a Bluetooth enabled cell
phone).
2. IR REMOTE CONTROL RECEIVER
3. SRC
Press to select a source.
Press and hold to toggle rear zone mode On/Off.
4. MUTE
Press the button ( ) to mute the volume, and press the button again to restore the volume.
5. PREVIOUS
6. NEXT
7. PLAY/PAUSE
Press to play/pause.
8. BLUETOOTH MICROPHONE
9. SD CARD SLOT
10. DISC SLOT
11. RESET
18
19
20
21
22
23
6. To prevent injury from shock or fire, never expose this unit to moisture or water.
7. Never use irregular discs, the only recommended disc size is a 12cm round disc.
8. To prevent damage to the mechanism inside this unit, avoid impact to the TFT monitor.
9. Do not change the fuse on the power wire without professional guidance. Using an improper
fuse may cause damage to the unit and result in a fire.
10. The monitor employs an automatic motorized mechanism. To prevent damage to the core
mechanism, please do not push, pull or swivel the monitor manually.

The key areas of touch screen
The touch key areas are outlined below, for DVD, VCD mode and all other operating modes.
5
12. SMART DIAL
Rotary encoder.
Press the encoder to access MAIN menu.
Rotate clockwise/counterclockwise to select a desired item and press to access or confirm.
Press to reject/end an incoming call while operating a phone source.
13. EJECT
Press once to eject the disc.
Hold to reset loading mechanism.
14. INFO
Press to display playback information on the screen on DVD mode, if the TFT monitor is
closed
DVD playback information will display on the LCD screen.
Press and hold to access the picture setup.
15. ANGLE+
Press the button to adjust the upward tilt angle of the screen one step at a time.
Press and hold this button to continuously adjust the upward tilt.
Press this button to adjust the picture settings in picture setup.
16. ANGLE-
Press the button to adjust the downward tilt angle of the screen one step at a time.
Press and hold this button to continuously adjust the downward tilt.
Press this button to adjust the picture settings in picture setup.
17. TFT DISPLAY
18. OPEN
Press the OPEN button to activate the motorized system and move the TFT monitor into viewing
position.
Press again to close the TFT.
19. DISP/NAVI
Press to display system information on the front LCD screen when the main screen is closed.
When main screen is open, press to select Navigation mode
20. LCD DISPLAY
21. AS/PS (Auto store/program scan)
Press to auto store strong radio stations in the 12 preset channels in the current band.
Press and hold to start to scan The preset radio station
22. FM/AM
Press to change among the following bands: FM1,FM2,FM3,AM
23. DISC INDICATOR LIGHT
It is blue when there is no disc in the unit.
It is red when there is disc in the unit.
A — Return to MAIN MENU
B — Display playing information
C — Select previous chapter
D — Select next chapter
E — Display the on-screen controls, and different mode displays different menu
F —On DVD/VCD mode, display the GOTO search menu on the screen directly
LCD Display / Indicators
1.Main display area, displays the time, tuning frequency and other text information.
2.Local indicator, Indicates the local radio station seeking function is activated or not
3.Stereo broadcasting indicator, Indicates the radio is in stereo mode or not
4.Loudness indicator, Indicates the LOUD function is activated or not.
5.Satellite (SAT) radio indicator
4

Repeat
Next
Previous
Fast Reverse
Fast Forward
Audio
Zoom
Angle
SUB Title
Title
Root
Also can activate and disable SCAN mode while playing CD
Repeat playback for current chapter
Select the next chapter/track for playback
Search an available radio station by increasing tuning
frequency on tuner mode
Select the previous chapter/track for playback
Search an available radio station by decreasing tuning
frequency on tuner mode
Fast reverse the disc content
Fast forward the disc content
Change the audio language for disc playback
Zooming in/out on an image
Play in different angle for a scene scene(if it is applicable)
Language selection for subtitle
Turn on PBC while playing VCD
Enter the main menu of the disc
Rear-Zone Remote Control
1
3
4
6
8
10
13
16
17
20
21
2
5
9
7
11
15
14
19
18
12
7
6
Select FM/AM band on Tuner mode
Stop playback
Remote Control
Front Zone Remote Control
1
2
3
4
5
6
7
8
9
10
11
12 13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Power
Open
Mute
SRC
Numeric button
VOL up
VOL down
Information
GOTO search
Stop/Band
Select
ESC
Menu
Repeat A—B
OK
Direction buttons
Turn the power on/off
Open/close the motorized screen
Toggle on/off audio output
Select playing mode
Directly access certain chapter / track / preset
station in current band
Increase the volume
Decrease the volume
Display playing information
Position search function on VCD/DVD mode
Enter the audio settings
Exit the current menu
Enter the main menu of system
Adjust the picture settings
Set start point A and end point B to repeat continually
Start or pause playback, confirm the settings
Up/down/left/right to select items for setting

1
2
3
VOL up
VOL down
Increase the volume
Decrease the volume
Smart Dial Press this encoder to access system setup.
Rotate up/down to select a desired item and
press once to access or confirm.
NOTE: The buttons of NAV MENUF1\F2\F3\F4\F5\F6 are used on the navigation mode. If your
unit has the navigation function, please read the user manual of navigation to find the functions
of the buttons.
98
Mute
R-SRC
Numeric button
GOTO search
OK
Direction buttons
Toggle on/off audio output
Directly access certain chapter / track / preset
station in current band
Position search function on VCD/DVD mode
Up/down/left/right to select items for setting
Title
Root
Also can activate and disable SCAN mode while playing CD
Turn on PBC while playing VCD
Enter the main menu of the disc
Previous Select the previous chapter/track for playback
Search an available radio station by decreasing tuning
frequency on tuner mode
Next Select the next chapter/track for playback
Search an available radio station by increasing tuning
frequency on tuner mode
Fast Reverse
Fast Forward
Fast reverse the disc content
Fast forward the disc content
Repeat Repeat playback for current chapter
Audio Change the audio language for disc playback
SUB Title Language selection for subtitle
Angle Play in different angle for a scene scene(if it is applicable)
Repeat A—B Set start point A and end point B to repeat continually
Stop
Play/pause
Zoom
Slower Play
Select rear playing sources
Start or pause playback, confirm settings
Stop playback
Start/pause playback
Zooming in/out on an image
Slow forward playback
Smart Dial Remote Control

Parameter Adjustment Procedure
1. Enter Picture Quality Setting Mode:
Press the PIC button on the remote or press and hold the INFO button on the front panel of the
unit.
2. Select Items to Set:
Press the ( / ) buttons on the remote or rotate the SMART DIAL button
clockwise/anticlockwise to select an item.
3. Set Parameters:
Rotate the“ VOL” on the front panel can also adjust the selected feature.
4. Exit Picture Quality Setting Mode:
Press the PIC button on the remote or press and hold the INFO button on the unit.
NOTE: A video source must be connected to the AUX input and be playing to access the above
Adjustments.
Parking Brake Interlock
1. When the “PARKING” lead is properly connected to the brake switch, the display on the TFT
monitor will display video only when the vehicle is stopped and the parking brake is applied.
2. Parking brake function is overridden when the video source is set to CAMERA.
3. When the “parking brake interlock” is active, the front monitor displays a caution message
with blue background, preventing the driver from watching video while driving to reduce the risk
of a traffic accident. Rear video screens are not affected.
Please see “INSTALLATION SECTION” for installation.
Monitor Movement Mechanism
If an obstruction occurs on the monitor path, the motion will stop automatically to prevent
damage for the mechanism or monitor.
Normal operation is resumed by pressing the OPEN button ( ) or restart the unit while “TFT
Auto Open” is “On”.
11
10
TFT Monitor Operation
Open/Close TFT Monitor
Press the ( ) button on the front panel or on the front zone remote control to open/close the
monitor.
TFT Monitor Auto Open
If “TFT Auto Open” is “On”, when the unit is turned on, the monitor automatically opens to the
last viewing position, and closes automatically when the unit is turned off.
If “TFT Auto Open” is “Off”, when the unit is turned on, the monitor will not open automatically,
but will close automatically when the unit is turned off. You can press the ( ) button on the
front panel or on the remote control to move the monitor into the desired viewing position.
If “TFT Auto Open” is “Manual”, when the unit is turned on or turned off, the monitor has no
movement.
See “General setting” for details.
Monitor Tilt Angle Adjustment
The monitor angle can be adjusted for optimum viewing using one of the following methods:
Press the ( ) or ( ) buttons on the front panel to adjust the tilt angle of the screen one
step at a time.
Press and hold the ( ) or ( ) buttons to continuously adjust the tilt angle.
Adjust the “Screen Tilt” in the “Screen setting” to adjust the tilt of the screen to the desired
degree.
Rear Camera Mode
When the vehicle is placed in "Reverse", and an optional rear camera is connected to the unit,
The TFT monitor will automatically switch to the camera input source.
Image Setting
Video Output Format
The table below shows the video output format for each source.
Adjustable Parameters
While in RGB mode, the only parameter that can be adjusted is brightness (BRIGHT). To access
“SHARPNESS” “COLOR” “CONTRAST” “BRIGHTNESS” and “TINT ”you must be in CVBS
Mode.
SAT RGB Mode

Audio Adjustments
NOTE: The Bass and Treble levels are only adjustable when EQ is on “User” mode.
The Loudness function compensates for deficiencies in sound ranges at low levels. Loudness
levels range from 1-4 or “off”. When the Loud function is on, LOUD is displayed on the screen.
Exiting the Audio Control Menu
Press and hold the POWER OFF/VOL button on the front panel to exit the audio control menu, or
press the escape arrow on the top right corner of the TFT display.
Press the (ESC) button on the remote control to exit the audio control menu.
13
12
Operation Instructions
Power On / Off
Press the POWER OFF /VOL button to turn the unit on. The buttons on the front of the unit are
illuminated and start up message is briefly displayed on the LCD screen, and then displays the
current mode status. You can also turn on the unit by pressing the POWER button ( ) on the
remote control.
Press and hold the POWER OFF /VOL button on the front panel for more than 1 second or press
the POWER button ( ) on the remote to power off the unit. The monitor is drawn back into
the main compartment and the LCD screen displays “BYE BYE”.
NOTE: The operating voltage range is 10.5v~16v. The unit will power off automatically to protect
itself, when the voltage is out of the operating range.
PlayingSource Selection
Press the SRC button on the front panel or the (SRC) button on the remote to select among the
available sources: TUNER, Disc, iPod,, AUX IN, CAMERA (rear view video camera),
Bluetooth,NAVI ,SAT and SD Card. The selected playing mode is displayed on the TFT or LCD
screen.
AUX IN Mode
An external peripheral device can be connected to this unit via RCA cables to the “AUX-IN”.
CAMERA Mode
“CAMERA” mode is only available when the camera is connected and when backing up. To
install a rear view video camera, connect the CAMERA video input cable to the rear view camera
Output cable.
NOTE: If you have not connected a device to the unit, the source can not be selected. Example:
If you have not connected an iPod to the unit, the iPod source will not be available.
Volume Adjustment
To increase or decrease the volume level, turn the POWER OFF/VOL on the front panel or press
the VOL+/ VOL- buttons on the remote control. The volume ranges from “0” to “40”. The default
volume is “10” when the unit is powered on each time. Default volume memory setup: Rotate
Smart Dial/VOL knob on the front panel to select volume value and then press and hold the
Smart Dial/VOL button until you hear a single beep. When you hear the beep, setup is
completed.
Audio Control Menu
The Audio Control feature allows you to easily adjust your audio system to meet the acoustical
characteristics of your vehicle, which vary depending on the type of vehicle and its
measurements. To get the best possible sound quality from your new system, be sure to adjust
the settings for the speakers as well. Proper setting of the Fader and Balance boosts the effects
of the cabin equalizer.
Accessing the Audio Control Menu
Press and hold the POWER OFF/VOL button on the front panel once or press the (SEL ) button
on the remote control to enter the “Audio” menu.
Selecting an Audio Feature for Adjustment
Press the ( / ) buttons on the remote or press the POWER OFF/VOL button on the front
panel once to select an audio feature to be adjusted or rotate the “Smart Dial ”on the front panel
to select.
Adjusting an Audio Feature
Press the ( / ) buttons on the remote or rotate the POWER OFF/VOL
clockwise/counterclockwise to adjust the selected feature to the desired setting.

System Setup Menu
MAIN Menu
There are three methods to access the MAIN menu.
•Press the MENU button on the front panel .
•Press the MENU button on the remote control.
•Touch the A area on the touch-screen.
1.Touch to access Front-Zone menu.
2.Touch to access Rear-Zone menu.
3.Touch to access DVD setup.
4.Touch to access ASP setup.
5.Touch to access General setup.
6.Touch to access Screen setup.
7.Touch to turn to the previous menu.
8.Bluetooth indicator.
9.Touch to access Tuner mode.
10.Touch to access DVD mode.
11.Touch to access iPod mode.
12.Touch to access SAT Radio mode.
13.Touch to access AUX IN mode.
14.Touch to access SD Card mode.
15.Touch to access Navigation mode.
16.Touch to access Camera mode.
17.Touch to access Bluetooth mode.
18.Touch to access the Standby mode.
Note: Remote, Smart dial, touch screen operations and buttons on front panel are all useable to
select menu and adjust settings. The following instructions will show the different ways to
access menus and adjustments.
1 2 67
15
345
17
16
18
11 13
9
12
14
8
10
15
14
Six-Channel Audio Control
Master Volume
Front Left Channel Volume
Front Right Channel Volume
Rear Left Channel Volume
Rear Right Channel Volume
Center Channel Volume
Subwoofer Volume
Item
00 to 40
-10 to +10
-10 to +10
-10 to +10
-10 to +10
-10 to +10
-10 to +10
6-Channel Audio Adjustments
Rear Zone
If a monitor is installed in the rear zone and connected to the rear zone AV output, passengers in
the back seat can control the DVD output using the rear zone remote control. See “Rear-Zone
Remote Control” for instructions.
System Reset
To correct a system halt or other unusual operation, use the tip of a pen to press the RESET
button located on the front bottom-right corner of the unit. After a system reset, the unit restores
the settings before last power off.
Mute
The volume will be muted when the following cases occur:
• Automatic: audio output mutes when a telephone call is received by the car phone or when
verbal navigation is performed.
• When the “MUTE” wire is connected to a cell phone that will output a mute signal to the “MUTE”
Wire.
• Manual: Press the MUTE button ( ) on the front panel or the MUTE button ( ) on the
remote to mute the volume from the unit.
NOTE: Press the MUTE button again to restore the volume.
Adjusting the volume or using any of the audio set-up features will cancel the mute function.

Selecting a Feature for Adjustment
Press the direction buttons on the remote control or touch the option directly on the screen to
select the feature to be adjusted.
Adjusting a Feature
1. Enter the option field for the feature you want to adjust by pressing the (OK) button on the
remote or by pressing the SMART DIAL button. A submenu appears in a second row with the
selected option.
2. Select a new value by pressing the direction button.
3. Confirm your selection by pressing (OK) button or pressing the SMART DIAL button. The new
value setup is complete.
Adjusting the Clock
1. Access the “Clock” setting under the General Setup menu.
2. Press the direction button on the remote to move the cursor to the “Hour” or “Min” position,
and press the (OK) button. You also can touch the “Hour” or “Min” position directly.
3. The numeric keypad will pop up.
4. Press the numeric button on the remote control or touch the numeric keypad on the screen to
adjust the hour or minutes.
5. Press the (OK) button on the remote control or on the keypad of the screen to confirm setup.
Return to normal playback
The system will automatically return the previous playback mode that it was in before accessing
the setup menu 20 seconds after the last operation.
17
16
Selecting a Feature for Adjustment
Press the ( / ) buttons on the remote to select a feature to be adjusted.
Rotate SMART DIAL clockwise/counterclockwise to select a feature to be adjusted.
Directly touch the options on the screen to select a feature to be adjusted.
Adjusting a Feature
General setup Menu
Accessing the General Setup Menu
•Select the TOOLS button on the bottom of the touch screen to access the General setup.
Screen Setting
Accessing the Screen Setup Menu 
•Press the SMART DIAL on the front panel or press the (MENU) button on the remote control to
access MAIN menu.
•Select the SCREEN SETUP button on the right bottom of the screen to access the Screen
setup.

Selecting a Feature for Adjustment
Press the direction buttons on the remote control or touch the option directly on the screen to
select a feature to be adjusted.
Adjusting a Feature
1. Enter the option field for the feature you want to adjust by pressing the (OK) button on the
remote or by pressing the SMART DIAL. A submenu appears in a second row with the selected
option.
2. Select a new value by pressing the direction button.
3. Confirm your selection by pressing (OK) button on the remote control or pressing the SMART
DIAL on the front panel. The new setup is complete.
Return to normal playback
The system will automatically return the previous playback mode that it was in before accessing
the setup menu 20 seconds after the last operation.
Bass Freq
60Hz
80Hz
100Hz
130Hz
150Hz
200Hz
Depending on the audio source, select the Bass
Center Frequency to achieve the best Bass effect.
1918
ASP(Audio Signal Processing) Configuration Menu
The ASP Configuration menu allows you to make fine audio adjustment.
Accessing the ASP Configuration Menu
Press the MENU on the front panel or press the (MENU) button on the remote control to access
MAIN menu.
Select the SPEAKER TOOLS button on the bottom of the screen to access the ASP setup.
A menu appears with the option for the first item, and then you can touch the button to the
option on the next page, press the button to return.
Select to activate/deactivate the Bluetooth function.Bluetooth

2. Use the Rear-Zone Remote Control to access the Rear-Zone and select a source to play.
3. Press and hold the SRC button on the front panel to toggle Rear-Zone mode On.
Exit Rear-Zone
1.Touch the Off button on the Rear-Zone menu.
2.Press and hold the SRC button on the front panel.
NOTE: If DVD is selected as the front source and SD Card can not be selected for the rear
source, if SD card is selected as the front source and DVD can not be selected for the rear
source .Since the multimedia processor is shared between optical and SD Card media, one or
the other can be selected but not both simultaneously.
Selecting a Source for the Front Zone
Access the Front-Zone menu, and this menu allows you to select a source for the front zone.
You can also use the button on the front panel or on the front remote control.
The AM/FM tuner/iPod/SAT Radio graphics will change to a "blue screen" background when the
DVD play or SD Card media is selected from the Rear-Zone menu.
Remote, Smart dial, touch screen operations and buttons on front panel are all useable to
control the front source.
The functions of the buttons on the touch-screen are discribed in the next chapters about AM/FM
tuner/iPod/SAT Radio.
NOTE: Optical media and an SD Card cannot be selected from the Rear-Zone Source Menu
simultaneously.
21
20
Standby
1. Touch the button on the touch-screen to access Standby mode.
2. In the standby mode, the unit stands in low-power state with audio output only.
3. In the standby mode, you can return to normal screen mode by performing any unit operation.
Treble Freq
10KHz
12.5KHz
15KHz
17KHz
Depending on the audio source, select the Treble
Center Frequency to achieve the best Treble effect.
Selecting a crossover frequency sets a cut-off
frequency of the subwoofer’s LPF(low-pass filter)
and the “SMALL” speakers’ HPF (high-pass filter).
The Crossover frequency setting has no effect if
the subwoofer is set to “Off” and any other speaker
is set to “Large”.
Sub Filter
80Hz
120Hz
160Hz
Adjust the FM/AM gain
Adjust the DVD gain
Adjust the NAVI gain
Adjust the Bluetooth gain
Adjust the SAT gain
Adjust the iPod gain
Adjust the AUX IN gain
Adjust the SD Card gain
-07 ~ +07
-07 ~ +07
-07 ~ +07
-07 ~ +07
-07 ~ +07
-07 ~ +07
-07 ~ +07
-07 ~ +07
FM/AM Gain
DVD Gain
NAVI Gain
Bluetooth Gain
SAT Gain
iPod Gain
AUX IN Gain
SD Card Gain
Sub Phase
0°
180°
Subwoofer output IN phase
Subwoofer output OUT OF phase
When the Bass Center Frequency is selected,
adjusting the Bass Q-Factor alters the sharpness
of the Bass output.
NOTE: Depending on your installation, reversing the
subwoofer phase may increase bass output.
1.0
1.25
1.5
2.0
Bass Q-Factor
Rear-Zone Operation
Independent sources can be played simultaneously on the unit. For example, the FM/AM tuner
can be listened to by the front passengers, while DVD video is available to rear passengers.
Access Rear-Zone
1.Touch the REAR ZONE button on the bottom of the display to access the Rear-Zone menu and
you can select a source to play.

Select FM/AM Band
Touch the button on the screen, or press the BAND button( )on the remote control to
change among the following bands: FM-1, FM-2, FM-3 and AM.
Auto Tuning
Press the button ( ) on remote control or touch the button on the screen to seek the
next available channel by increasing the tuning frequency. Press the button again to stop
searching.
Press the button ( ) on the remote control or touch the button on the screen to seek
the next available channel by decreasing the tuning frequency. Press the button again to stop
searching.
Manual Tuning
Press the button on the remote control or touch the button to increase the tuning
frequency one step at a time.
Press the button on the remote control or touch the button to decrease the tuning
frequency one step at a time.
Using Preset Stations
12 numbered preset buttons store and recall stations for each band. Front 6 stored stations (P1-
P6) for the current band appear on the screen, touch the channel directly to select.
You can touch the arrow buttons on the screen to see the other 6 stations.
Storing a Station
1. Select a band (if needed), then select a station.
2. Touch and hold an onscreen preset button (6) for three seconds. The preset number appears
at the top of the screen.
Recalling a Station
1. Select a band (if needed).
2. Touch an on-screen preset button (6) to select the corresponding stored station.
Auto Store (AS)
Press the AS/PS button on the panel or Press and hold the button on the screen to
automatically scan and store all stations in current band.
23
22
Tuner Operation
1. Current Source information, touch this area to return to MAIN menu
2. Current Radio Band Indicator
3. Current Preset Station playing Indicator
4. Stereo Broadcast Indicator
5. Radio Frequency Indicator
6. Preset Radio Stations: Touch to recall preset stations or touch and hold to store a station.
(total 12 stations a Band can be preset.)
7. System EQ setting
8. Loud Setting Indicator (See “Audio control menu” for instructions.)
9. Rear Zone Playing Mode
10.Volume Indicator.
11.Strong Local Signal Broadcasting Indicator: Touch to active Local/DX function
12.Current time
13.Bluetooth Indicator
14. : Touch to change among the following bands: FM-1, FM-2, FM-3 and AM.
15. : Touch to automatically scan and store stations in current radio band. You also can
press the AS/PS button on the front panel.
16. : Touch to seek down.
17. : Touch to seek up.
18. : Touch to tune down once a step.
19. : Touch to tune up once a step.
20. : Touch to activate/deactivate Scan Mode
Switch to Radio Tuner source
Press the SRC button on the front panel or on the remote control to switch to the Tuner source.
You can also access the tuner mode from the MAIN menu directly.
Tuner TFT Display
1 2
6
7
15
3
4
5
17
16 18
13
14 19 20
12
8
9
10
11

DVD Player Operation
NOTE: When properly installed, DVD video cannot be displayed on the main TFT screen unless
the parking brake is applied. If you attempt to play a DVD while the vehicle is moving, the TFT
screen displays caution information with a blue background. Rear video screens, if applicable,
will operate normally.
Opening/Closing the TFT Video Screen
Opening the TFT Screen
To open the TFT video screen, press the ( ) button on the unit or press the ( ) button
on the remote control.
Closing the TFT Screen
Press the ( ) button on the unit or press the ( ) button on the remote control again to
Close the TFT screen.
Insert/Eject Disc
Inserting a Disc
When inserting a DVD disc, DVD mode is entered and disc play begins.
NOTE: If Parental Lock (Rating) is activated and the disc inserted is not authorized, the 4-digit
code must be entered and/or the disc must be authorized (see “RATING (Parental Lock) Menu”).
You cannot insert a disc if there is already a disc in the unit or if the power is off.
NOTE: CD-R/RW, DVD-R/RW, DVD+R/RW will not play unless the recording session is closed.
Ejecting a Disc
Press the button on the unit to eject the disc. The unit automatically reverts to Tuner mode
at the same time.
Reset the Loading Mechanism
If the disc loads abnormally or does not play properly, press and hold the button on the unit
to reset the loading mechanism. The disc is ejected and normal operation resumes.
Accessing DVD Mode
To switch to DVD mode when a disc is already inserted, press the SRC button on the front panel
or on the remote control till DVD appears at the top of the screen.
Using the Touch-Screen Controls
25
24
Program Scan (PS)
1. Press and hold the AS/PS button on the panel Or press the button on the screen to
automatic scan and store strong radio stations in the 12 preset channels in the current band.
2. Touch the button on the screen to automatically scan all stations in current band to
preview stations.
3. Press any button to stop scanning and listen to the selected station.
Local Radio Stations Seeking (LOC)
When the Local function is on, only radio stations with a strong signal are tuned. When the Local
function is active, “LOC” appears on the screen and an indicator is illuminated.
To activate the Local function in AM/FM tuner mode, touch the button on the screen .
Touch the again to activate the DX function

2.Use the arrow buttons on the remote to select a title from the menu.
3.Press the (TITLE) button on the remote control to select a different title for playback.
4. Press the (OK) button on the remote control or touch the item directly to confirm your
selection and begin playback.
Moving Through Chapters
Press the ( ) button on the remote control to advance to the next chapter on the DVD.
Press the ( ) button on the remote control to move to the previous chapter on the DVD.
Touch the right side of the screen to advance to the next chapter, or touch the left side of the
Screen to move to the previous chapter.
Fast Forward/Fast Reverse
Press the ( ) button on the remote control or touch the of area E on the screen to fast
forward. Keep pressing or touching and releasing the button to increase the rate from “2X” to
“4X”, “8X”, and “20X”.
Press the ( ) button on the remote control or touch the of area E on the screen to fast
reverse. Keep pressing or touching and releasing the button to increase the rate from “2X” to
“4X”, “8X”, and “20X”.
Selecting 2-Channel and 6-Channel Audio Playback
2-Channel Audio (Down Mix) Support for CD, SD Card and DVD
Linear pulse code modulation (LPCM) and pulse code modulation (PCM) support is available for
CD, SD Card and DVD discs when 2-channel audio is selected.
6- Channel Audio Support for CD, SD Card and DVD
Surround I is available for decoding analog or digital 2- channel down mixed sources.
Surround II is available for decoding digital bit-stream sources.
NOTE: Only 2-Channel audio support is available for AM / FM tuner, Auxiliary input.
27
26
1.Touch to Play/Pause
2.Touch to stop
3.Touch to fast reverse
4.Touch to fast forward
5.Touch to repeat playback
6.Touch to repeat from A to B. Select the repeat point A wherever you want to start and the point
B wherever you want to end, then, DVD displays from A to B continually.
7.Touch to choose a language, if the disc is recorded in multiple languages.
8.Touch to display Sub-title
9.Touch to return to DVD main menu
Controlling Playback
Stopping Playback
Touch the stop button on the screen or press the ( ) button on the remote control to
stop DVD play; touch the play/pause button on the screen or the (OK) button on the remote
Control to resume disc play.
Pausing Playback
Touch the play/pause button on the screen to suspend or resume disc play.
Repeat Playback
Press the Repeat button on the screen or on the remote control to alter repeat mode
according to the following:
• DVD: Repeat Title, Repeat Chapter, Repeat Off
• VCD (PBC Off): Repeat Single, Repeat Off
• MP3: Repeat Single, Repeat Folder, Repeat Off
NOTE: For VCD play, the repeat function is not available if PBC is on.
PBC (Play back Control) (VCD Only)
For VCD with play back functionality, play back control (PBC) provides additional controls for
VCD playback.
Press the (ROOT) button on the remote control to toggle the PBC function “On”/”Off”. Once PBC
is on, playback starts from track one of the play list.
NOTE: When PBC is activated, fast forward, slow playback, and previous/next track are
available. Repeat and direct track selection are not available. When PBC is activated, selecting
random, scan, or search playback automatically deactivates PBC.
Sectional Repeat Function (A-B)
Use the A-B function to define a specific area of a disc to repeat.
• Press the Repeat A-B button ( ) on the screen or on the remote control to set the start
point (A) of the repeated section.
• Press the Repeat A-B button ( ) again once you reach the desired end point (B) of the
repeated section. The selected portion of the DVD will now repeat continuously.
• Press the Repeat A-B button ( ) again to cancel the A-B section setting and stop repeat
play.
Accessing the DVD Menu
1.You can touch the area F, and then touch the button to recall the main DVD menu.
Sub- Woofer
Front speaker Rear Speaker Center SpeakerSpeaker Setup
2CH mode
Play 2CH audio in
6CH mode with
surround “off”
Play 2-channel
(DownMix) audio
in 6-channel mode
with surround “on”
Play 6-channel
audio in 6-channel
mode with
surround “on”
Speaker Output Options

Viewing an Alternate Picture Angle (DVD Only)
Some DVDs contain scenes that have been shot simultaneously from different angles. For discs
recorded with multiple angles, press the (ANGLE) button on the remote control to toggle
available angles of the on-screen image.
Zooming
Press the ZOOM button on the remote control to enlarge and pan through the video image using
the following options: “Q1”, “Q2”, “Q3”, and “OFF”.
Multi-Language Discs (DVD Only)
Changing Audio Language
If you are watching a disc recorded in multiple languages, press the (AUDIO) button on the
remote control to choose a language. You also can touch area E, and then touch the button.
NOTE: During VCD playback, press the (AUDIO) button on the remote control to choose
between Left Channel, Right Channel, and Stereo.
Changing Subtitle Language
If you are watching a disc recorded in multiple languages with subtitles, press the (SUB-T)
button on the remote control to choose the language in which you would like the subtitles to
appear. You also can touch area E, and then touch the button.
Playback Information
During DVD and VCD playback, press the (INFO) button on the remote or press the DISP button
on the front panel or touch the area B to display playback information on the screen,including
the media playing and current playback time.
DVD Playback Information
The following information is displayed at the top of the screen during DVD playback:
1.Indicates Current playing source.
2.Indicates the forth of 16 titles on the DVD is currently playing.
3.Indicates the first of 20 chapters on the DVD is currently playing.
4.Indicates the playback time of the current title.
5.Indicates EQ setting (or decoding mode when listening to a DVD with 5.1 surround sound.)
6.Indicates the Loud Setting.
7.Indicates the current system time.
8.Indicates the current playback source of the rear zone.
2928
GOTO Search
During DVD or VCD playback, perform the following steps to use the GOTO feature to access a
specific location on a disc:
1. Press the( -/--) button on remote control or touch Area F on the screen to enter “GOTO” mode.
2. Press the ( / ) buttons on the remote control to select a category.
• For DVD mode, you can choose Time or Title/ Chapter search.
• For VCD mode, press the( -/ --) button to choose between Track Search, Disc Search and Exit.
3. Touch the( )/ (--- /---) area on the screen to display a numeric keypad on the touch
Screen.
4. Enter a time/Track number into the field using the numeric keypad on the remote control or on
the screen.
5. Press the OK button on the remote control or on the touch screen to go to the specified
Location on the disc.
6. Press the ( -/--)button on the remote control or touch the F Area on the screen again to exit.
Direct Chapter / Track Selection
During DVD, VCD and CD playback, you can use the numeric keypad on the remote control to
access a track directly.
Rear:Off
8
User
Level 2

3130
VCD Playback Information
The following information is displayed at the top of the screen during VCD playback:
1.Indicates Current playing source.
2.Indicates the forth of 16 tracks on the DVD is currently playing.
3.Indicates the playback time of the current title.
4.Indicates EQ Setting.
5.Indicates the Loud Setting.
6.Indicates the current system time.
7.Indicates the current playback source of the rear zone.
General Disc Information
Disc Symbols
Rear:Off
Level 2
User

ASP SET Menu
The unit has a built-in Pink Noise generator to help set the relative speaker levels for multi-
channel audio playback.
ASP SET Features
NOTE: When Down Sampling is On, the audio output signal will be converted to 48kHz. When
Down Sampling is Off, the original sampling frequency is preserved.
VIDEO Menu
VIDEO Menu Features
3332
DVD SETUP MENU
In “DVD Setup” mode, “LANGUAGE”, “ASP SET”, “VIDEO”, “SPEAKER” “SURROUND” and
“RATING” (parental lock) are available for setup. This operation can be performed using rotary
encoder, the remote control or touch screen.
Accessing the DVD Setup Screen
If DVD is selected as the current playing source, you can access the DVD setup screen through
following methods:
• Press the SMART DIAL on the front panel or touch area A to access the MAIN menu, and then
Touch the DVD TOOLS button to access DVD Setup Screen.
• Press the (MENU) button on the remote control , press the direction button to select DVD
TOOLS and press the (OK)button to access.
Accessing a Menu
To access a menu (LANGUAGE .ASP SET, VIDEO, SPEAKER. SURROUND, RATING), press
the direction buttons on the remote control to highlight the desired menu. You can also touch the
on-screen menu selection to access that menu.
NOTE: Once the DVD setup is complete, the settings are memorized. If you want To restore the
factory default settings, please use the “Load Factory “ in the RATING Menu. (See RATING
Menu.)
Selecting a Feature for Adjustment
Once inside a menu, press the ( / ) on the remote control or touch the item directly to select
the feature to be adjusted.
Adjusting a Feature
1. Enter the option field for the feature you want to adjust by pressing the (OK) button on the
remote or by pressing SMART DIAL. A submenu appears in a second row with the selected
option.
2. Select a new value by pressing the ( / ) buttons on the remote control or rotate clockwise
or anticlockwise the SMART DIAL.
3. Confirm your selection by pressing the (OK) buttons on the remote control, or press the
SMART DAIL. The new setup is completed.
LANGUAGE Menu
If a DVD supports more than 1 Subtitle or Audio language, all the languages are available for
selection during playback. If the selected language is not supported by the DVD, then the default
language is used. During playback, press the (SUBT)or (AUDIO) button on the remote control to
Change the language directly. This will not affect the DVD menu settings.
LANGUAGE Menu Features
Pink noise
DRC
Center Control
Rear Control
Down Sampling
Off
Left
Right
Off
On
5ms
4ms
3ms
2ms
1ms
0ms
15ms
12ms
9ms
6ms
3ms
0ms
Off
On
Stop output of pink noise
Left channel pink noise
Right channel pink noise
Employ the Dynamic Range Control for better
playback for low volumes.
Adjust the time difference between the center and
front speakers to create a time delay between
1 and 5 milliseconds, producing a more accurate
audio effect.
Adjust the time difference between the rear and
front speakers to create a time delay between 3
and 15 milliseconds, producing a more accurate
audio effect.
Normal Output
Audio signal output at 48kHz

RATING (Parental Lock) Menu
The DVD system has a built-in parental lock feature to prevent unauthorized persons from
viewing restricted disc content. By default, the rating system is unlocked. Once setup, the
parental lock is released only by entering the correct password. Once the password is entered,
rating is available for setup.
RATING Menu Features
Password
Rating
Load Factory
----
1. Kid Safe
2. G
3.PG
4. PG-13
5. PG-R
6. R
7. NC-17
8. ADULT
No
Yes
Enter a 4-digit password to activate the “Rating”
feature.
Select the appropriate rating level for the intended
audience. You may override higher ratings by using
your password.
Select “Yes” to restore the factory default settings
for the DVD setup only (except the password and
parental lock setting).
To reset the password, access the “RATING” menu and enter the current password. Once the
correct password is entered, you can access the “Password” field and enter a new one.
NOTE: Record the password and keep it in a safe place for future reference. The rating for each
disc is marked on the disc, disc packing, or documentation. If the rating is not available on the
disc, the parental lock feature is unavailable. Some discs restrict only portions of the disc and
the appropriate content will play. For details, please refer to the disc description.
3534
NOTE: For standard discs not formatted for “widescreen”, use of the 16:9 aspect ratio will result
in image distortion.
SPEAKER Menu
Speaker Menu Features
Speaker Mode
Front
Surround
Subwoofer
Center
Full 6CH
DownMix
Large
Small
Large
Small
None
Present
None
Large
Small
None
6-channel mode
2-channel mode. If you select this mode, the
selections below will not be available.
Use when front speakers have good bass output.
Use when front speakers do not have good bass
output.
Use when rear speakers have good bass output.
Use when rear speakers do not have good bass output.
Use when rear speakers are not present.
Use when subwoofer is present.
Use when subwoofer is not present.
Use when center speaker has good bass output.
Use when center speaker does not have good bass
output.
Use when center speaker is not present.
Speaker Selection
Selecting LARGE for the multi-channel speaker option will give a full range output. Selecting
SMALL for the multi channel speaker option will activate a high pass filter whose crossover is
dependent upon the sub-woofer low pass filter frequency. For example, if the subwoofer low
pass filter is set to 80Hz, then the high pass SMALL speaker crossover will be set to 90Hz.
Low pass
80Hz
120Hz
160Hz
High pass
90Hz
135Hz
180Hz
TV Shape
(Aspect Ratio)
4:3
16:9
Image is presented in wide view with a 4:3 aspect
ratio.
Image is presented in wide view with a 16:9 aspect
ratio.
