Valor AutoFire G3 User manual

WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings
exactly could result in serious
injury, death, or property damage.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
▪Do not try to light any appliance.
▪Do not touch any electrical switch; do
not use any phone in your building.
▪Leave the building immediately.
▪Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
▪If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
Hot glass
will cause burns.
Do not touch glass
until cooled.
Never allow children
to touch glass.
A barrier designed to reduce
the risk of burns from the hot
viewing glass is provided with this
appliance and must be installed for
the protection of children and
other at-risk individuals.
DANGER
Direct Vent Gas Fireplace Insert
Gas Fireplace
natural gas 739VN
propane gas 739VP
Installation Manual
G3
Canadian Patent 2,717,779 Issued October 24 2017
US Patent 10,060,624 Issued August 28 2018
US Patent 10,935,246 Issued March 2 2021
with
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
Installer: Place model/serial number here.
4008730-02

Ce guide est disponible en français sur demande.
This appliance is a domestic room-
heating appliance. It must not be used
for any other purposes such as drying
clothes, etc.
This appliance is suitable for
installation in a bedroom or bed
sitting room.
2
The information contained in this manual is believed
to be correct at the time of printing. Miles Industries
Ltd. reserves the right to change or modify any
information or specifications without notice. Miles
Industries Ltd. grants no warranty, implied or stated,
for the installation or maintenance of your heater,
and assumes no responsibility for any consequential
damage(s).
© Copyright Miles Industries Ltd., 2023. All rights reserved.
Designed and manufactured for Miles Industries Ltd.
Valor Fireplaces
190–2255 Dollarton Highway
North Vancouver, BC, Canada V7H 3B1
T 604.984.3496 F 604.984.0246
valorfireplaces.com
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where
not prohibited by local codes. This
appliance is only for use with the type
of gas indicated on the rating plate.
This appliance is not convertible for
use with other gases, unless a certified
kit is used.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
Massachusetts:
The piping and final gas connection must be
performed by a licensed plumber or gas fitter
in the State of Massachusetts. Also, see Carbon
Monoxide Detector requirements in this manual,
page 35.
WARNING
This product can expose you to chemicals
including Benzene, which is known to the State
of California to cause cancer and birth defects or
other reproductive harm. For more information
go to www.P65Warnings.ca.gov.
Note: Natural gas, in its original state, contains
Benzene.

Please read this manual BEFORE
installing and operating this
appliance.
3
This appliance has been professionally installed by:
Dealer Name: ________________________________
Phone:______________________________________
Welcome to Valor®
Fireplace Safety ................................................. 4
Specifications..................................................... 6
Kits and Accessories.......................................... 7
Dimensions and Cavity..................................... 8
Clearances .......................................................... 9
Installation Planning ....................................... 10
Before Installation ......................................................10
Concept ........................................................................11
Venting .............................................................. 12
Preparation ...................................................... 14
Existing Fireplace ........................................................14
Installation ....................................................... 15
Window and Fan..........................................................15
Venting System and Appliance .................................16
Gas Supply....................................................................17
Liner Panels .................................................................18
Fuel Beds ..................................................................... 20
Birch Log Kit 739VBLK ...............................................20
Driftwood Kit 739VDWK............................................23
Traditional Log Kit 739VLSK......................................26
Window Re-Installation and Verification............... 29
Batteries and Remote Control................................. 30
Operation and Aeration Verification ...................... 31
Accessories ................................................................. 32
Side Shrouds ...............................................................32
Front, Trim and Barrier Screen ................................32
Handset Wall Holder..................................................32
Wiring Diagram................................................ 33
Approved Venting Components.................... 34
Commonwealth of Massachusetts ............... 35
Appendix A - Lighting Instructions Plate...... 36
Appendix B - Remote Control Operation ...... 37
Appendix C - Spare Parts................................ 41

4
Fireplace Safety
This manual contains very important information about the safe installation and operation of the fireplace. Read and
understand all instructions carefully before installing and operating the fireplace. Failure to follow these instructions
may result in possible fire hazard and will void the warranty.
Replacement manuals are available by contacting the Valor Customer Service at 1-800-468-2567, or by visiting
valorfireplaces.com.
WARNING: Extremely Hot!
Heat and flammability
• Some parts of the fireplace are extremely hot, particu-
larly the glass window. Use the barrier screen provid-
ed or a gate to reduce the risk of severe burns.
• The glass windows can exceed 500°F at full capacity.
• Always keep the appliance clear and free from com-
bustible materials, gasoline, and other flammable
vapors and liquids.
• Be aware of hot wall surfaces! The wall directly above
the fireplace can get very hot when the fireplace
heats. Although safe, it may reach temperatures in ex-
cess of 200ºF (93°C) depending on choice of optional
accessories. Do not touch!
• Be aware of hot shelf/hearth/floor surfaces! Any
projections directly around the fireplace can get very
hot when the fireplace heats. Although safe, they may
reach temperatures in excess of 200ºF (93°C) depend-
ing on their elevation. Be careful of touching these! Do
not put objects on the hearth or shelf. Temperature
of projection surfaces will be reduced when barrier
screen is installed.
• Some materials or items, although safe, may discolor,
shrink, warp, crack, peel, and so on because of the
heat produced by the fireplace. Avoid placing candles,
paintings, photos and other combustible objects
sensitive to heat or furniture within 36 inches (0.9m)
around the fireplace.
• Solid wood flooring in front of the fireplace (if allowed)
may shrink during the heating season due to heat.
• Due to high temperatures, the appliance should be
located out of traffic areas and away from furniture
and draperies.
• Clothing or other flammable material should not be
placed on or near the appliance.
Barrier Screen and Safety
• A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and must be installed for the protection of children
and other at-risk individuals.
• Children and adults should be alerted to the hazards
of high surface temperature and should stay away to
avoid burns or clothing ignition.
• Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children, and others may be susceptible to
accidental contact burns. A physical barrier is recom-
mended if there are at-risk individuals in the house. To
restrict access to a fireplace or stove, install an adjust-
able safety gate to keep toddlers, young children, and
other at-risk individuals out of the room and away
from hot surfaces.
• Any safety screen, guard, or barrier removed for ser-
vicing an appliance, must be replaced prior to operat-
ing the appliance.
Do not put
furniture or other objects
in this space in front of
WKHȴUHSODFH
36” [0.9 m]
)LUHSODFH
Hearth

5
Fireplace Safety
Glass window
• The glass front assembly must be in place and sealed
before the unit can be placed into safe operation.
• The glass front assembly must only be replaced as a
complete unit, as supplied by the fireplace manufac-
turer. No substitute material may be used.
• Do not use abrasive cleaners on the glass front as-
sembly. Do not attempt to clean the glass when it is
hot.
Venting
• This unit must be used with a vent system as de-
scribed in this manual. No other vent system or com-
ponents may be used.
• Never obstruct the flow of combustion and ventilation
air. Keep the front of the appliance clear of all obsta-
cles and materials for servicing and proper operation.
• This gas fireplace and vent assembly must be vented
directly to the outside and must never be attached to
a chimney serving a separate solid fuel burning ap-
pliance. Each gas appliance must use a separate vent
system. Common vent systems are prohibited.
Intended use
• This appliance is designed and approved as a supple-
mental heater and provides the potential for most
energy conservation when used while attended. The
use of an alternate primary heat source is advisable.
• This unit is not for use with solid fuel.
• Do not use this heater as a temporary source of heat
during construction.
Installation and Servicing
• Installation and repair should be done by a qualified
service person. The appliance should be inspected
before use and at least annually by a professional
service person. More frequent cleaning might be
required due to excessive lint from carpeting, bedding
material, et cetera. It is imperative that control com-
partments, burners, and circulating air passageways
of the appliance be kept clean.
• Do not use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the
control system and any gas control that has been
under water.
WARNING
Do not operate this appliance with the
glass front removed, cracked, or broken.
Do not strike or slam the glass front.
Replacement of the glass front should
be performed by a licensed or qualified
service person.

WARNING
NO ELECTRICAL CONNECTION ALLOWED
for any outdoor installation!
6

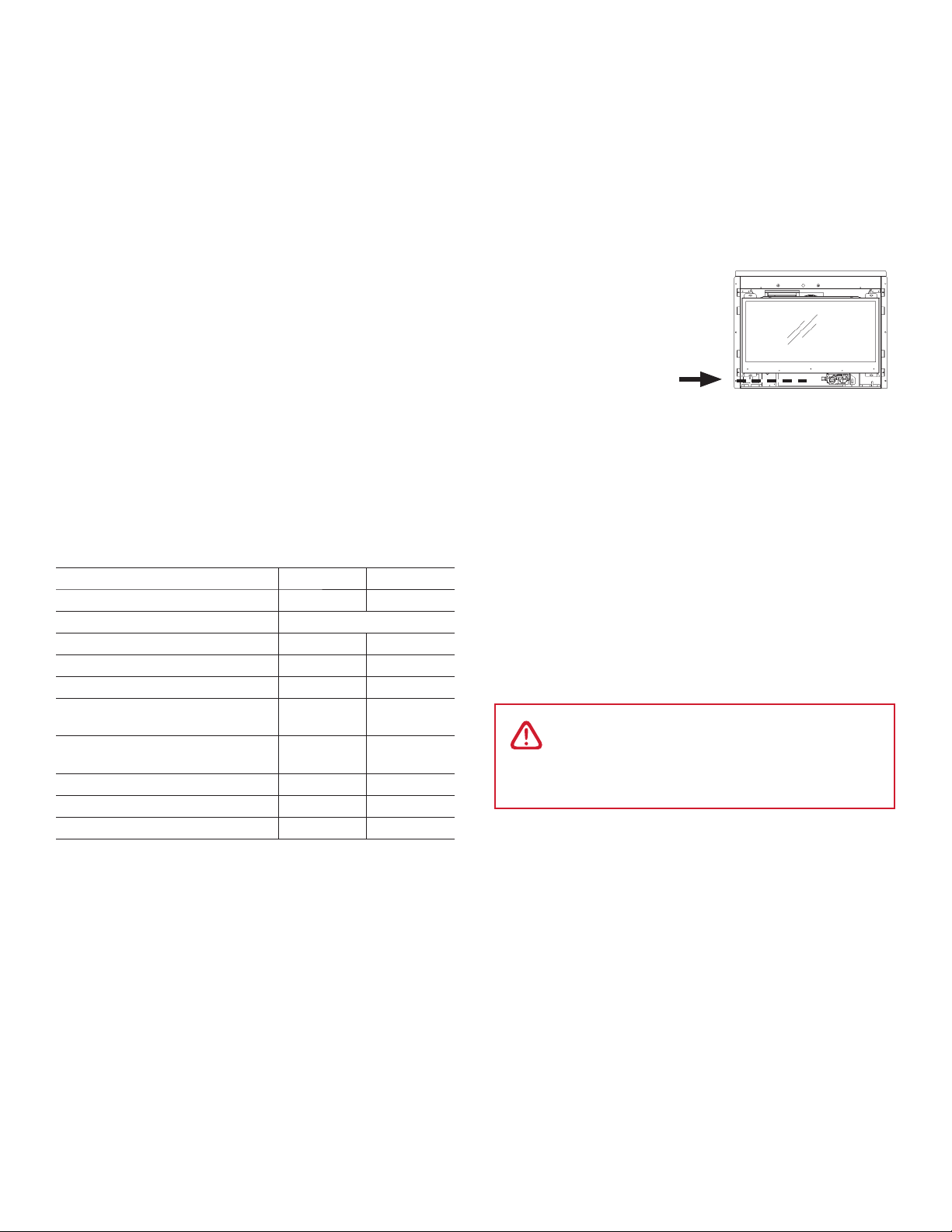

Specifications
Approval & Codes
This appliance is certified to ANSI Z21.88/CSA 2.33
American National Standard / CSA Standard for Vented
Gas Fireplace Heaters for use in Canada and USA, and
to CGA 2.17-91 High Altitude Standard in Canada. This
appliance is for direct vent installations.
This appliance complies with CSA P.4.1-15 Testing
method for measuring annual fireplace efficiencies.
The installation must conform to local codes or, in
the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54 or the Natural Gas
and Propane Installation Code CAN/CGA-B149.1. Only
qualified licensed or trained personnel should install
this appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70
or the Canadian Electrical Code, CSA C22.1.
Ratings
*High Altitude Installations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to 4,500
feet (1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas utility
to confirm.
For installations at elevations above 4,500 feet (1,370 m)
in Canada, please consult provincial and/or local
authorities having jurisdiction.
Supply Gas
Heater engine 739VN is used with natural gas.
Heater engine 739VP is used with propane gas.
The supply pressure must be between the limits shown
in the Ratings section.
The supply connection
is 3/8” NPT female and
located on the left side of
the control valve. The gas
line entry point is on the
bottom left hand side
of the fireplace. See
“Gas Supply” on page
17 for connection details.
Conversion Kits
The 739V is supplied as natural gas or propane gas
and is field convertible between fuels. See instructions
packaged with the conversion kits for further
information.
Electrical
The 739V is designed to run on battery power and
does not require an electrical source to operate as a
heater. However, if the appliance is fitted the 755CFK—
Circulating Fan Kit, a grounded power source is
required.
Floor/Hearth
This appliance is approved for installation into existing
solid-fuel burning fireplaces only. Combustible material
such as plywood and so on may be used for leveling
and shimming beneath the unit. This appliance does
not require a hearth other than to support the weight
of certain fronts.
Outdoor Conversion Kit
The 739V models are supplied standard for indoor
applications and may be adapted for installation in
specific “outdoor” applications protected from weather
as defined in the GV60CKO outdoor conversion kit
manual.
XX
Model 739VN 739VP
Gas Natural Propane
Altitude (Ft.)* 0-4,500 feet*
Input Maximum (Btu/h) 24,000 24,000
Input Minimum (Btu/h) 13,000 13,000
Manifold Pressure (in w.c.) 3.2 10.0
Minimum Supply Pressure (in
w.c.) 5.0 11.0
Maximum Supply Pressure (in
w.c.) 10.0 14.0
Main Burner Injector Marking 82-750 92-260
Pilot Injector Marking 51 30
Min. Rate By-Pass Screw 185 125

WARNING
NO ELECTRICAL CONNECTION ALLOWED
for any outdoor installation!
7
Required Kits
Above information accurate at the time of printing and
subject to change without notice.
Optional Accessories
Fuel Beds (choose one)
739VDWK Driftwood Log Set
739VBLK Birch Log Set
739VLSK Traditional Log Set
Liners (choose one)
739RGL Reflective Glass Panels
739FBL Fluted Black Panels
739VRL Valor Red Brick Panels
Fronts and Backing Plates (choose one) Barrier
Screen
741 Contemporary Steel Fronts 4003360
742 Traditional Cast Front 4003293
743 FenderFire Double Door w doors
744 FenderFire Single Door w door
745 Clearview Front 4003313
765 Contemporary Surrounds 4003426
772 Matte Black Front 4004666
Outer Surrounds, Trims & Frets
See your dealer for your choice of Outer Surrounds, Trims &
Frets.
Gas Conversion Kits
739VNGK Conversion Kit to Natural Gas
739VPGK Conversion Kit to Propane Gas
Other Accessories
1265WSK Wall Switch Kit
RBWSK Remote Battery & Wall Switch Kit
755CFK*Circulating Fan Kit
GV60CKO Outdoor Fireplace Conversion Kit
Hearth Gate
Hearth gates such as Cardinal’s VersaGate
are available at retail stores carrying safety
products for children.
Kits and Accessories

8
Minimum Cavity Dimensions
Check that masonry step does not interfere with install
dimensions or vent pipe.
If mantel is combustible, see the following section for
allowable clearances.
Outer Trims
746CTK,
748CTK, 756ST,
767STB, 757ST,
715CV, 764PF
747DTK,
753OTK 763BPB
Minimum Depth (X) 12-7/8”
[327 mm]
12-1/4”
[312 mm]
14-3/4”
[375 mm]
Minimum Height (Y) 20-1/2”
[521 mm]
20-1/2”
[521 mm]
24”
[610 mm]
Minimum Width 28”
[711 mm]
28”
[711 mm]
31”
[788 mm]
Dimensions and Cavity

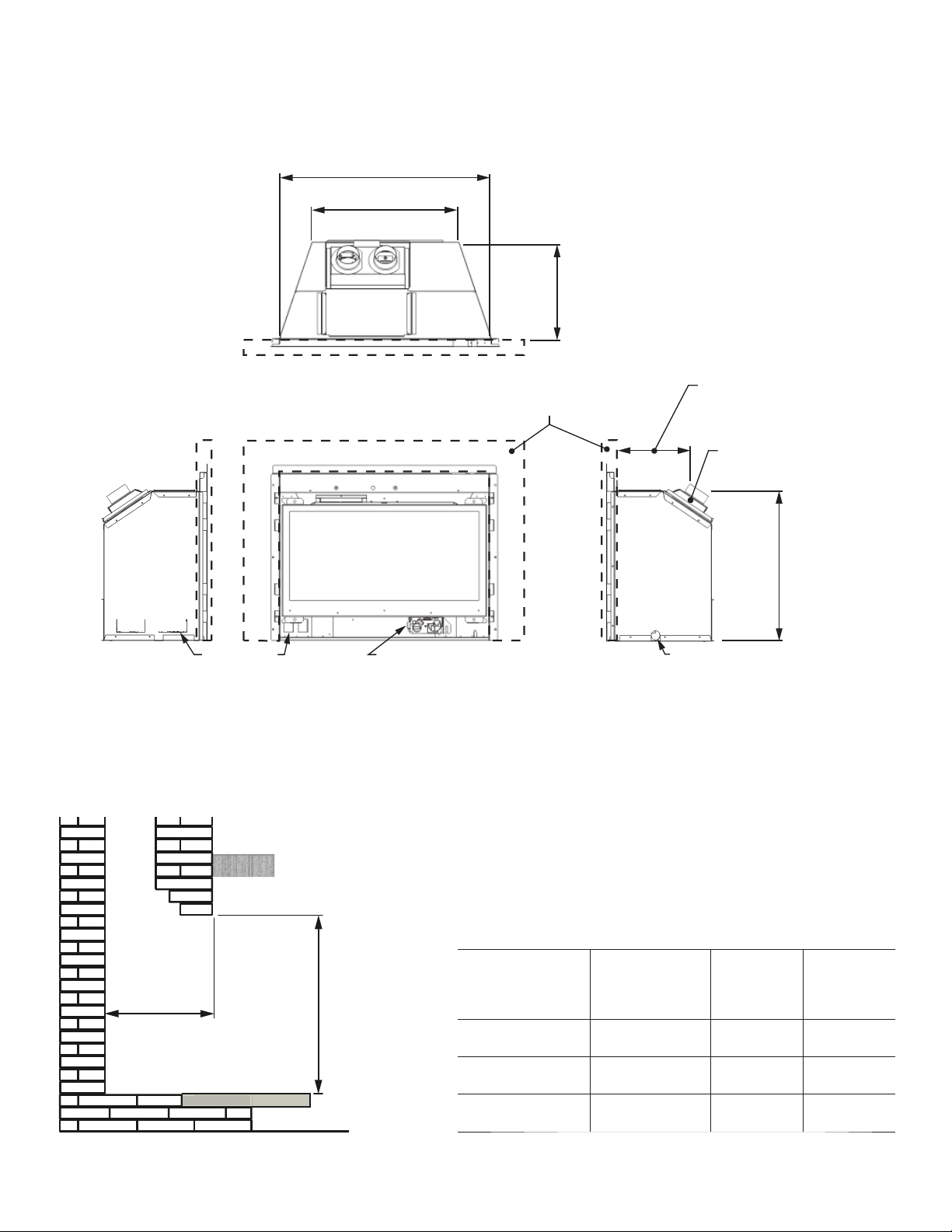

Fireplace Dimensions
Cavity
X
Y
28-5/8” [727 mm]
19-1/2” [495 mm]
See table below for
minimum cavity
dimensions
9-3/4” [248 mm]
(11-3/4” [298 mm]
with 763 plate)
AutoFire slider
assembly
20” [508 mm]
WRWRSRIȴUHER[
Gas inlet Gas connection Electrical inlet
Optional Outer Trim or
Surround sold separately
Top
FrontLeft Side Right Side

9
A
B
Do not put
furniture or
objects within
36” (914 mm)
of the front of
appliance
9” (229 mm)
Clearances
WARNING
Some materials or items, although safe,
may discolor, shrink, warp, crack, peel,
and so on because of the heat produced
by the fireplace. Avoid placing candles,
paintings, photos, and other items
sensitive to heat around the fireplace.
WARNING
HOT GLASS! The use of a screen in front
of the glass is highly recommended,
particularly in households with children
WARNING
HOT HEARTH/FLOOR! The hearth or floor
in front of the fireplace may become very
hot when the fireplace heats. Do not
use the hearth as a seat or shelf. Solid
wood flooring in front of the fireplace (if
allowed) may shrink during the heating
season due to heat.
inches [mm]
*Measure taken from underside of mantel to finished hearth or
surface that the unit is sitting on.
Combustible Mantel and Sidewall
Sidewall
Minimum distance from side of appliance (liner box) to
combustible wall: 9” (229 mm).
Mantel legs projecting forward less than 6” (152 mm)
may be located within 5” (127 mm) of the side of the
appliance (liner box).
Floor/ Hearth Clearances
Combustible shims/supports may be used beneath
the appliance to level or raise the appliance within the
existing fireplace cavity.
Combustible flooring/hearths in front of the appliance
are allowed provided they are no higher than the base
of the appliance. Carpet, vinyl flooring should be kept
back to a minimum of 12” (305 mm) from the front of
the insert. The gas insert does not require a hearth.
sidewall
Combustible Mantel
Finishing Materials
Combustible Materials: Materials made of or surfaced
with wood, compressed paper, plant fibers, plastics, or
other material that can ignite and burn, whether flame
proofed or not, or plastered or unplastered.
Non-Combustible Materials: Material which will not
ignite and burn. Such materials are those consisting
entirely of steel, iron, brick, tile, concrete, slate, glass or
plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750 °C.
Mantel
Projection A
1
[25]
1-6
[25-152]
9
[229]
12
[305]
Mantel
Height B*
36
[914]
39
[991]
42
[1067]
45
[1143]

10
Installation Planning Before Installation
Before Installation
1. YOU NEED TO KNOW FROM THE HOMEOWNER:
• What trim, front, and optional accessories (if any)
will be installed with this unit.
2. Unpack the appliance and recycle the packaging.
3. Check that you have everything, using the Pack Con-
tent sheet. Also, check that you have:
• Fuel bed (packed separately)
• Liner panels (packed separately)
• Venting accessories
• Electrical accessories (if using a fan kit)*
• Any other accessories
4. Carefully read the Installers Checklist included with
the fireplace for the installation sequence.
Caution
Only qualified, license, or trained personnel
should install this appliance.
WARNING
NO ELECTRICAL CONNECTION ALLOWED
for any outdoor installation!

11
Installation Planning Concept
WARNING
HOT HEARTH / FLOOR! The hearth or floor
in front of the fireplace may become very
hot when the fireplace heats. Do not use
the hearth as a seat or shelf. Solid wood
flooring in front of the fireplace (if allowed)
may shrink during the heating season due
to heat.
WARNING
Some materials or items, although safe,
may discolor, shrink, warp, crack, peel, and
so on because of the heat produced by the
fireplace. Avoid placing candles, paintings,
photos, and other items sensitive to heat
around the fireplace.
Fret
(optional, sold separately)
Inner Front with Barrier Screen
(required, sold separately)
739 fireplace
Gas insert does not require a hearth.
Combustible flooring/hearths allowed
provided level with or lower than base
of insert.

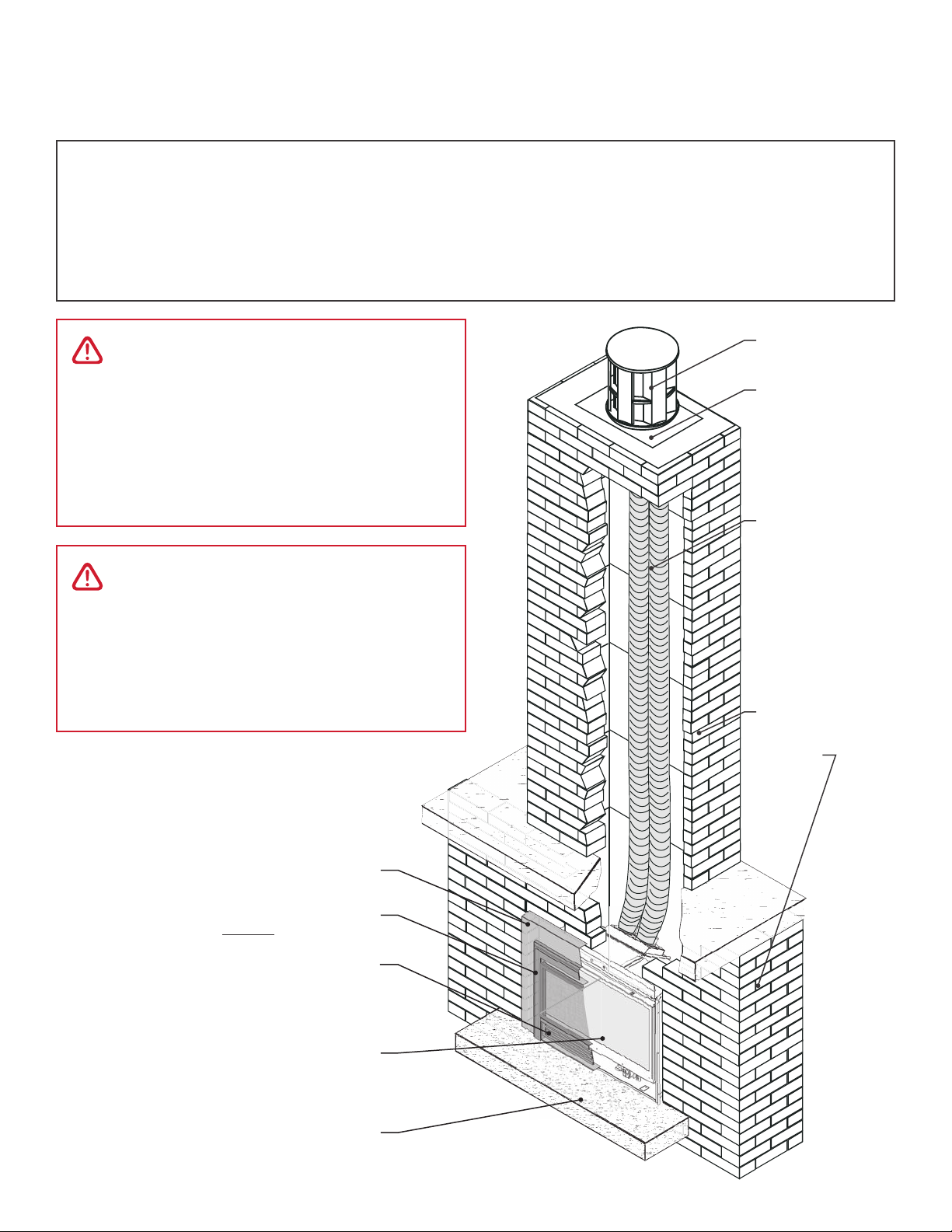

Chimney Terminal
Cap
Flashing
2 x 3” approved
flex chimney liners
running full length
Existing unaltered,
functioning solid-fuel
burning fireplace &
chimney
Outer trim
(optional, sold separately)
This appliance may ONLY be installed in an existing unaltered, functioning solid-fuel burning fireplace with a
working flue and constructed of non-combustible material.
This appliance may be installed in outdoor, weather protected environments as defined in the GV60CKO
Outdoor Conversion Kit instruction manual.
DO NOT install into combustible construction. This appliance is NOT APPROVED for installation with a zero
clearance kit.

12
Typical Vent Installation
See “Approved Venting Components” on page
34 of this manual.
Vent Location
The vent terminal must be located through
the roof. This direct vent appliance is designed
to operate when an undisturbed airflow hits
the outside vent terminal from any direction.
Check local codes for allowable vertical vent
termination.
Venting Table
Maximum vertical
height
40 ft (measured to
bottom of termination)
Minimum vertical
height
10 ft (measured to
bottom of termination)
Maximum
horizontal run
4 ft (measured center
to center of pipe)
Maximum offset
angle
45˚(sweeping bend to
allow for obstructions)
Venting Notes
Where possible, avoid joining flex pipes. If joints
are required, use a approved connector and
seal joints with RTV high temp sealant.
Horizontal offset is permissible to allow for
routing around masonry projections. Avoid
bending flex pipe over a 45 degrees radius
where possible.
Flex liners may only be installed into solid-fuel
burning fireplace and chimney systems (no
combustible constructions).
The appliance must not be connected to a
chimney flue serving a separate solid-fule
burner appliance.
Terminal Cap
Flashing
2 x 3” flex
liners—see
Venting Table
for length
allowed
Existing
fireplace and
chimney
3” Liners
3” min.
Bend
Radius
Venting Concept

Alternate Venting with optional
720SWK-M—Co-linear sidewall kit
The appliance may also be vented using the optional
720SWK-M—Co-linear sidewall kit—see installation
instructions supplied with the kit.
* If more than 10’-0” vertical
vent run, the vent plate
supplied on the appliance (with
restrictor) can be used. No
need to replace it.
Min. 3’-0”
*Max. 10’-0”
720SWK
Terminal
3” Liners
3” min.
Bend
Radius
720SWK-M
Terminal
NOTE
Depending of the length of the vertical vent run,
the AutoFire vent plate may need to be replaced
by the vent plate included with the 720SWK-M
terminal—see instructions provided with the
terminal.
13
Venting Concept

14
Preparation
Existing Fireplace Preparation
A few points must be considered before inserting
the 739 into an existing fireplace cavity. Generally, no
modifications are allowed to the existing fireplace that
will compromise the integrity of the existing fireplace.
Components that are bolted or screwed on such as
dampers or baffles may be removed to accommodate
the installation of the 739 engine.
Cutting away any sheet metal parts of the existing
fireplace to accommodate the installation of the 739
is prohibited.
Check with local authorities if in doubt.
Clean Fireplace and Chimney
Have the chimney swept and the fireplace cavity
including ash dumps and clean-outs cleaned before
installing the 739 heater and vent liners. Any creosote
or soot residue remaining in the fireplace cavity
chimney or clean-out may cause odors or stains once
the 739 insert is installed. Consult with chimney sweep
for information on how best to clean.
Existing Dampers
Factory-built, zero-clearance fireplaces will require
the damper to be removed in order to install the vent
liners. These dampers are usually bolted into place.
Dampers in masonry fireplaces must be fixed open and
may remain in place.
Ash Retaining Curbs
Some fireplaces (particularly factory-built) have a
raised curb at the front edge to retain ashes. Check the
dimensions carefully to ensure the 739 engine will fit
behind any raised curb (some curbs may be removed
separately from the refractory base).
Gas Line Routing
Plan the routing of the gas line before proceeding.
Utilize the existing hole for the gas line of the factory-
built fireplace.
If the fireplace has no access hole, carefully drill an
access hole of 1.5 inch (38 mm) or less through the
lower sides or bottom of the firebox. The access hole
must be plugged with non-combustible insulation after
the gas supply line has been installed.
See Dimensions section for detailed location of gas inlet.
Also, take into consideration whether or not a fan or
shut-offvalve will interfere when planning routing of
the gas line.
Existing Glass Doors and Wire Screens
Existing glass doors must be permanently removed
prior to installing the 739 insert.
Combustible Mantels
Combustible mantel clearances must conform to those
required for the original solid-fuel fireplace into which
the 739 is being installed.
Attach Warning Conversion Plate to Existing
Fireplace
(Label supplied loose with 739 heater)
Attach the “This fireplace has been converted...” label to
the existing fireplace using screws or other mechanical
means and store any removed parts in back of the
existing fireplace for future use.
Existing Fireplace

15
Window and Fan
Installation

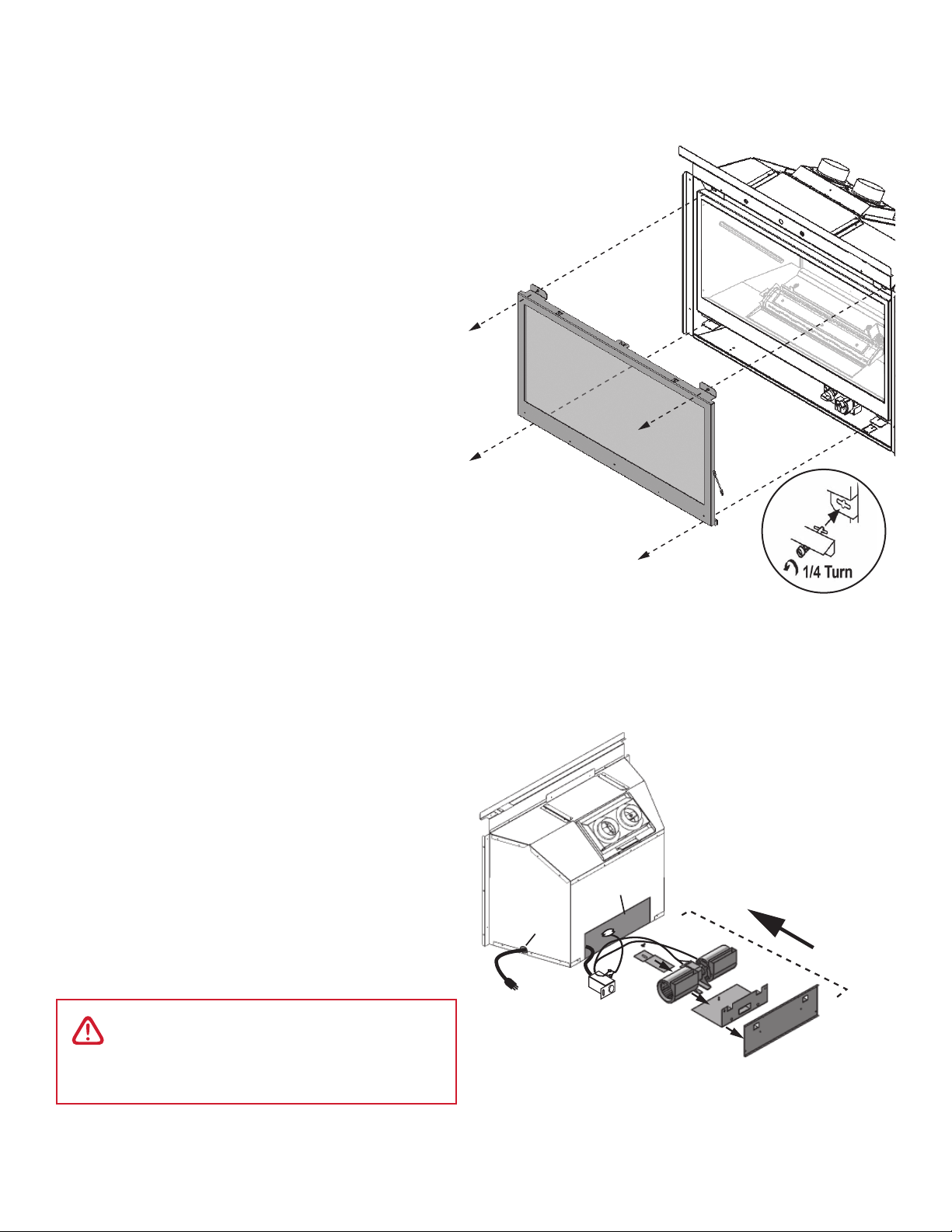

Remove Window
The window is held in place by four spring-loaded bolts,
two at the top and two at the bottom.
1. To remove the window, turn each bolt a quarter
turn to disengage the bolt pin.
2. Gently pull the bottom of the window outward and
unhook it from the firebox’s top.
3. Set the window aside in a safe place to avoid dam-
age.
Install Fan (if used)
If the 755CFK—Circulating Fan Kit (blower) is to be
installed, we suggest that you do it now.
The fan cavity is accessible from the back of the firebox
to facilitate its installation. If the fan is retrofitted after
the installation of the appliance, the burner module
will need to be removed. Therefore, we recommend
that, where possible, the fan be installed before the
appliance is fitted into the cavity.
Refer to instructions provided with the 755CFK to
install the fan.
electrical
outlet
fan
cavity
WARNING
NO ELECTRICAL CONNECTION ALLOWED
for any outdoor installation!

16
Venting System and Appliance
Installation
Connect Venting
IMPORTANT: This appliance’s venting system is room sealed and there-
fore, does not require room air to be used in the combustion process.
1. Rough-in two 3” diameter vent liners into the existing chimney
system from the roof. Be careful not to tear or damage the liners in
the process. It may be easier to install both liners at the same time
rather than one at a time. Leave plenty of liners at the bottom to
facilitate the connection of the liners to the vent slider. It is best to
leave the top termination until later.
Designate and mark the top and bottom of one liner as “EX-
HAUST” to avoid confusion later.
2. Release the two screws retaining the vent slider to the front of the
firebox. Remove the slider from the firebox by sliding it towards the
back of the firebox.
3. Fit the two liners ensuring that the exhaust liner is connected to
the identified “EXHAUST” vent collar. Secure liners to collars with
hose clamps (included) and 2 tapping screws per liner.
4. Slide the firebox onto the vent slider in the cavity taking care not to
damage the liners. Make sure that the rear edge of the slider is
hooked over the cleat on the firebox. Secure the vent slider to the
front of the firebox with two screws removed earlier.
5. From the roof, pull the liners and fit the flashing.
6. Fit the terminal cap ensuring that the exhaust liner is connected to
the exhaust vent collar. Secure with screws.
7. Seal the terminal and flashing from water penetration as required.
3
7
1
5
4
6
2
Vent slider
cleat
WARNING
Failure to position the parts in accordance
with these diagrams or failure to use
only parts specifically approved with this
appliance may result in property damage or
personal injury.

17
Gas Supply
Installation
Connect Gas Supply
The gas supply inlet connection is a 3/8” NPT female
connector and is located on the left hand side of the
control valve.
Use only new black iron or steel pipes, CSST, or copper
tubing if acceptable—check local codes. Note that
in USA, copper tubing must be internally tinned for
protection against sulfur compounds.
The burner module and gas train on this appliance
may be removed as a unit for servicing. The flex pipe
supplied with the unit provides a union for removal of
the module.
Unions in gas lines should be of ground joint type.
The gas supply line must be sized and installed to
provide a supply of gas sufficient to meet the maximum
demand of the appliance without undue loss of
pressure.
Sealant used must be resistant to the action of all gas
constituents including LP gas. Sealant should be applied
lightly to male threads to ensure excess sealant does
not enter gas lines.
Pressure test the supply line for leaks.
The appliance and its individual shut-offvalve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in
excess of 1/2 psig (3.5 kPa).
The appliance must be isolated from the gas supply
piping system by closing its equipment shut-offvalve
during any pressure testing of the gas supply piping
system at test pressures equal to or less than
1/2 psi (3.5 kPa).
Failure to either disconnect or isolate the appliance
during pressure testing may result in regulator or valve
damages and void the warranty. Consult your dealer in
case of damages.
Pressure Test Points
The minimum supply pressure is given in the section
“Specifications” on page 6 of this manual.
All piping and connections must be tested for leaks
after installation or servicing. All leaks must be
corrected immediately.
When testing for leaks:
• Make sure that the appliance is turned off.
• Open the manual shut-offvalve.
• Test for leaks by applying a liquid detergent or soap
solution to all joints. Bubbles forming indicate a
gas leak.

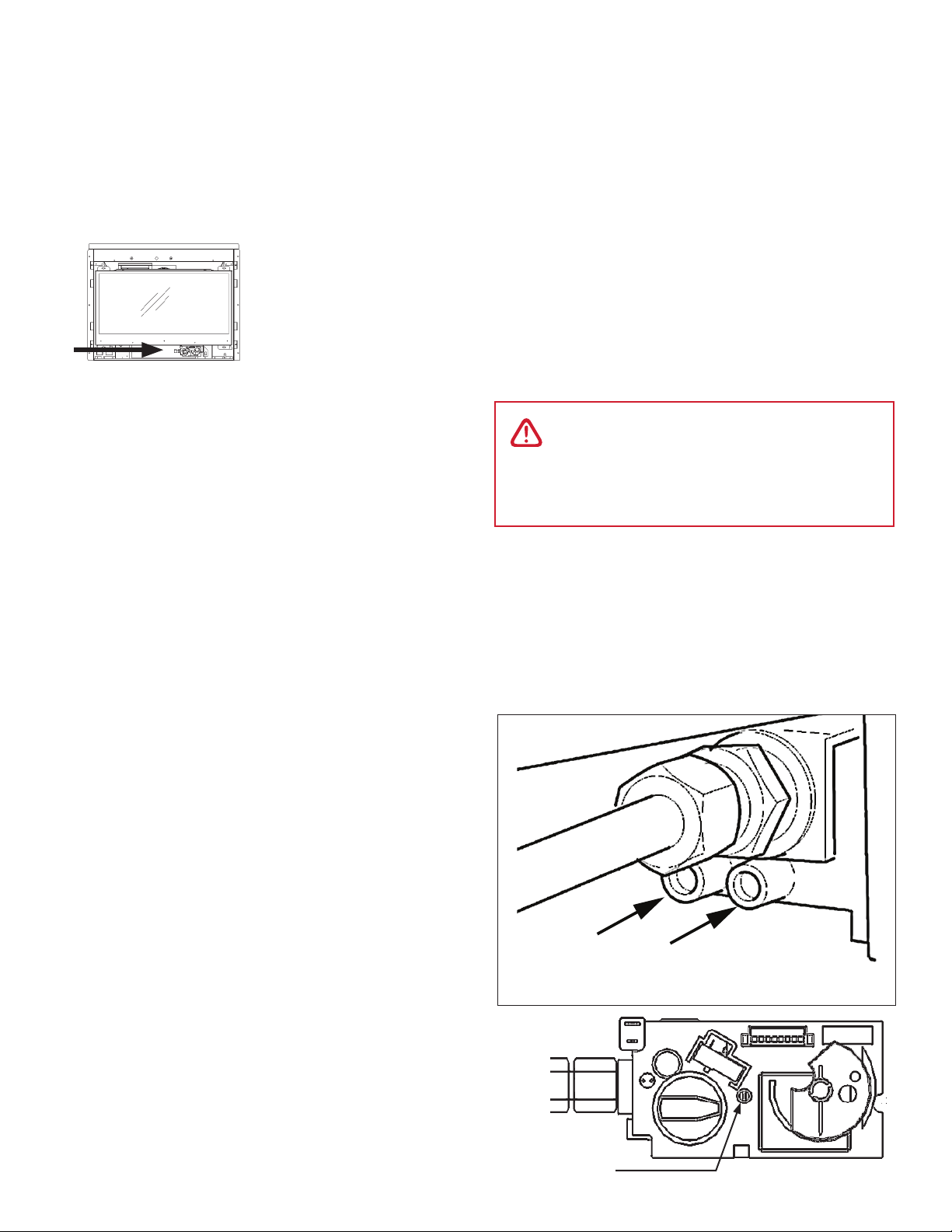

The pressure test tapping locations are shown in the
figure below. An internal regulator within the valve
controls the burner manifold pressure.
The correct pressure range is shown in the table in
section “Specifications” on page 6 . The pressure
check should be made with the burner alight and at its
highest setting. See “Appendix A - Lighting Instructions
Plate” on page 36 for full lighting details.
X
Supply
pressure
test tapping
Manifold
pressure
test tapping
Control
Valve
Manifold Pressure
Adjustment behind
Plastic Cap
WARNING
NEVER USE an open flame to check
for leaks. Correct any leak detected
immediately.
Pressure Testing

18
Installation Liner Panels
Install Liners
The following guidelines apply for all liners (with the
exception of the 739RGL Reflective Glass Liners—see
the installation manual supplied with that liner kit for
details).
1. Inside the firebox, on the top of each side, release
the screw of the side brick anchors (one per side)
just enough to allow them to rotate.
2. Remove the fuel bed support (2 screws).
3. Remove the burner cover (2 screws).
4. Rotate the anchor up and out of the way and slide
the left hand side panel against the firebox side. The
panel should be parallel to the edge of the burner
plate. Slide the panel forward. Rotate the anchor
back down to hold the panel.
5. Place the rear panel against the back of the firebox
resting it on the ledge at bottom. Two tabs are hold-
ing it. Slide it behind the left side panel to hold it.
6. Rotate the anchor up and out of the way and slide
the right hand side panel against the firebox side.
The panel should be parallel to the edge of the
burner plate. Rotate the anchor back down to hold
the panel.
7. Tighten the side brick anchors on each side of the
firebox.
8. Reinstall the burner cover being careful not to
scratch the brick while inserting it into the firebox.
Secure it (2 screws).

19

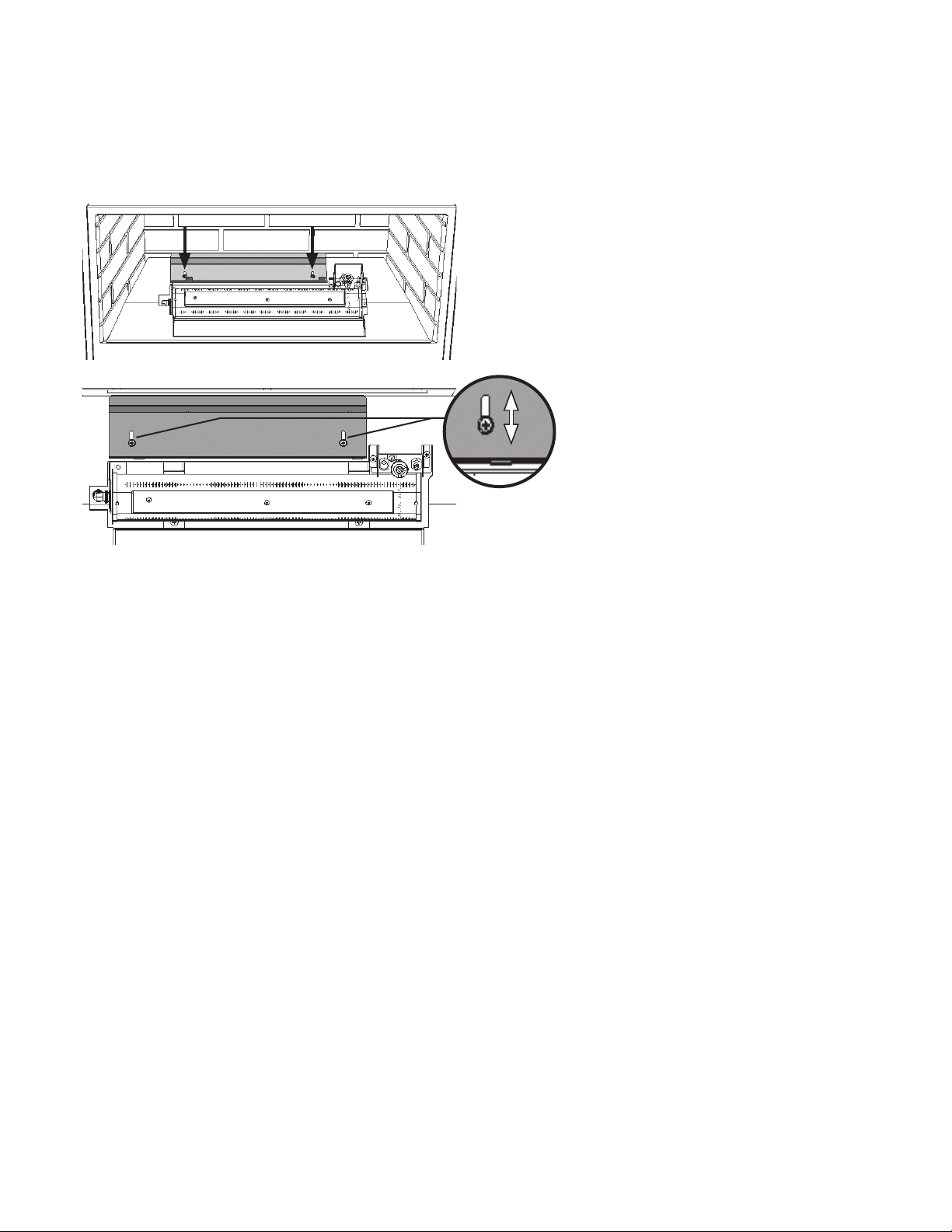

Installation Liner Panels
9. Reinstall the fuel bed support without tightening the
screws yet; slide it as far back as possible and then,
tighten the two screws.
Generally, the fuel bed support, as installed above,
will generate the best flame for any of the log sets.
However, its position can be adjusted in certain
circumstances.
Moving the log support forward will allow more
impingement/glow/flame height; moving the log
support backward will do the opposite.

20
Installation Fuel Beds

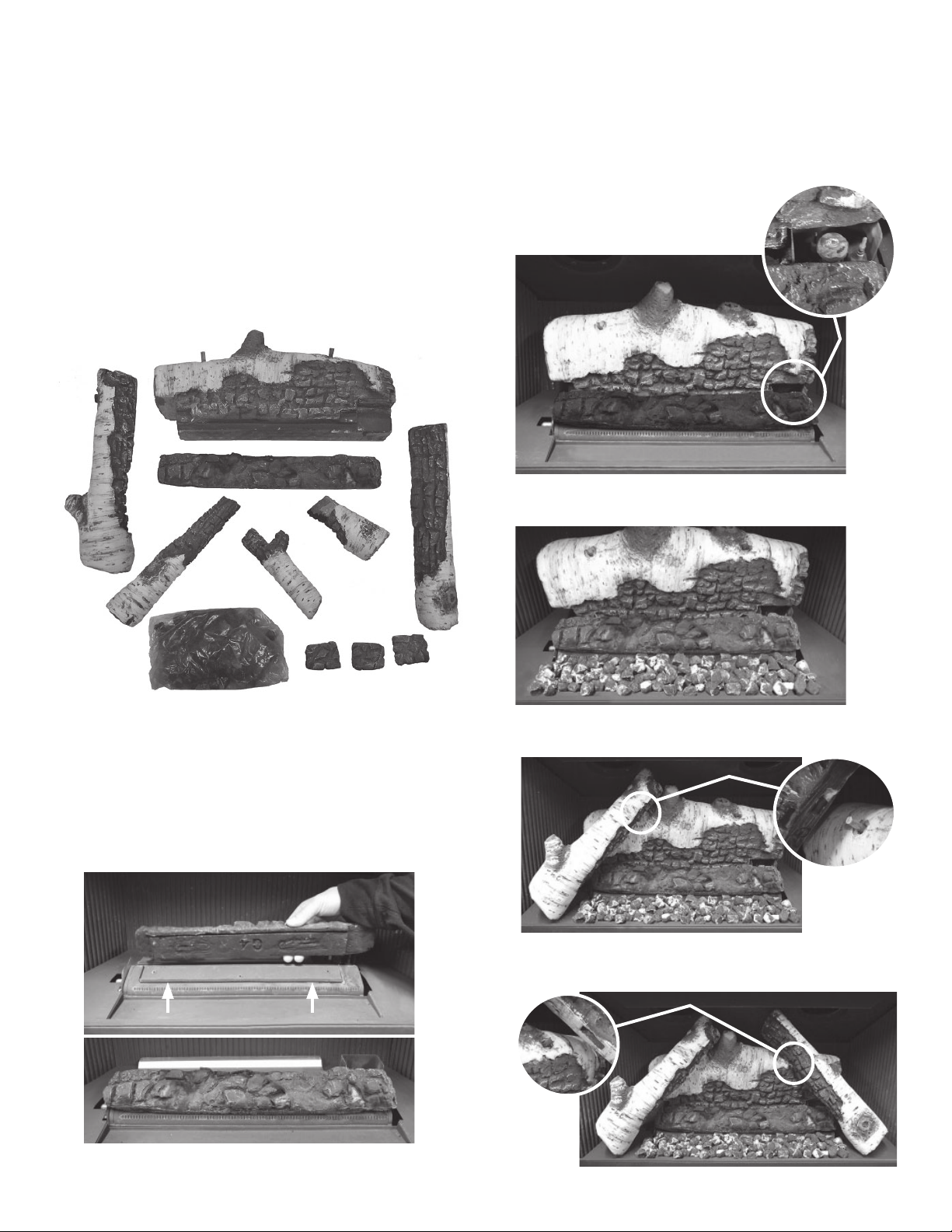

Birch Log Kit 739VBLK
Material required
• Birch Log Kit, which contains:
• 7 logs
• 3 ember chunks
• 1 2-cup bag of embers
• Gloves, if desired, non included
Installation
Carefully unpack the kit. Note each log has its own
number stamped on the bottom. Some logs have pegs
to help place them.
1. Place G4 ember bed onto the burner, placing the
groove under the log on the burner’s front top rail
as indicated.
G4
Log G4 installed
G1
G4
G5 H7
G6
G23
G25
2. Place log G1 behind the burner on the fuel bed sup-
port and slide it forward until it touches the front
vertical tabs of the support. Slide
the log to the right so it rests
against the pilot shield.
3. Place embers, by hand, in the cavity in front of the
burner as indicated.
4. Place log G25 on the left pin of G1 resting the other
end on the burner cover left side of the embers.
5. Place log G23 on the right pin of G1 resting the other
end on the burner cover right of the embers.
G25 G1
G1
G23
G1
