Valor British Gas BG C-2 User manual

3002164/02
OWNER’S GUIDE
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20)
THIS APPLIANCE IS FOR USE IN THE UNITED KINGDOM (GB) AND THE
REPUBLIC OF IRELAND (IE) ONLY.
This guide is intended to help you care for your gas fire. Please read thoroughly before
using and keep for future reference
For Service Phone [phone]
Manufactured exclusively for British Gas & Scottish Gas by Valor Heating, Wood Lane,
Erdington, Birmingham B24 9QP
This guide to be left with the owner
© Valor Heating
Model BGC2 Balanced Flue
(GC No. 32-032-20)
INSET BALANCED FLUE
GAS FIRE
(Manufacturer ref. 540)

OWNER’S GUIDE
Page 2
Safety First.

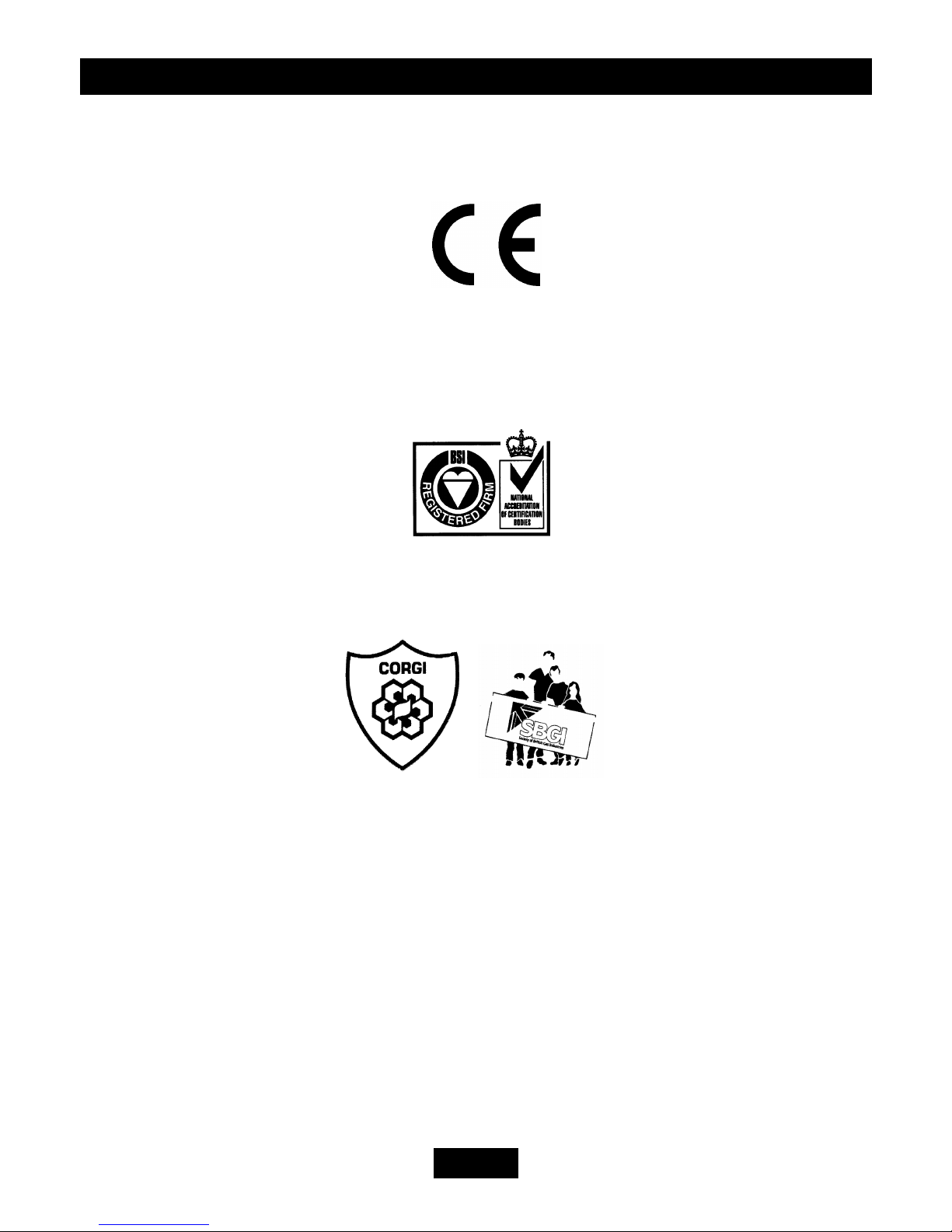

This fire is CE Approved and designed to meet the appropriate British Standards and
Safety Marks.
Quality and Excellence
This fire has been manufactured to the highest standards of quality and excellence and
was manufactured under a BS EN ISO 9001 quality system accepted by the British
Standards Institute.
The Highest Standards
The manufacturer is a member of the Society of British Gas Industries which works to
ensure high standards of safety, quality and performance.
Careful Installation
The manufacturer is a CORGI registered company. This gas fire must be
installed by a competent CORGI Registered Installer in accordance
with our Installer Guide and should not be fitted directly on to a
carpet .
Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication

OWNER’S GUIDE
Page 3
LIST OF CONTENTS
SAFETY ..............................................................................................................................4
DIMENSIONS & GAS CONSUMPTION.......................................................................6
OPERATING YOUR FIRE ..............................................................................................7
CLEANING YOUR FIRE .................................................................................................8
Metal parts........................................................................................................................8
To clean the inside of the window. ..................................................................................8
To Clean the Fuel Bed or Rear Ceramic Wall .................................................................9
Ceramic Coals and Rear Wall ..........................................................................................9
SERVICING & MAINTENANCE ................................................................................ 10
Battery Replacement ..................................................................................................... 10
Servicing........................................................................................................................ 11
CUSTOMER CARE
This gas fire is designed to meet the most stringent quality, performance and safety
requirements to provide our customers with many years’ trouble-free service.
Your owner guide aims to improve your understanding and appreciation of your gas fire
by providing simple and informative instructions to ensure that you benefit from the
excellent performance and features it has to offer.

OWNER’S GUIDE
Page 4
SAFETY
IF YOU SMELL GAS
DON’T SMOKE
EXTINGUISH ALL NAKED FLAMES
DON’T TURN ELECTRICAL SWITCHES ON OR OFF
TURN OFF THE GAS SUPPLY AT THE METER
OPEN DOORS AND WINDOWS TO GET RID OF THE GAS
IMMEDIATELY CALL THE GAS EMERGENCY SERVICE – SEE YOUR
LOCAL TELEPHONE DIRECTORY
DO
✔
✔✔
✔Have the fire installed by a competent person. In the United Kingdom, installation
must be in accordance with the latest edition of the Gas Safety (installation & use)
Regulations. In the Republic of Ireland, installation must be in accordance with all
national and local regulations in force.
✔
✔✔
✔Have the fire installed in accordance with the installation instructions
✔
✔✔
✔Provide a minimum clearance as shown in graph 1 above the hearth to any shelf made
of wood or other combustible material. Please bear this in mind if you are making any
alterations to the room.
✔
✔✔
✔Provide a minimum clearance of 51mm each side of the fire to combustible surfaces
and for servicing access.
Graph 1. Combustible shelf clearances.

OWNER’S GUIDE
Page 5
✔
✔✔
✔Provide a suitable guard which complies with BS 6539 or 6778 for the protection of
young children, the elderly and the infirm. Such a guard is also recommended for the
protection of pet animals. Although this fire conforms to all the applicable standards,
it is a heating appliance and certain parts of its surface will become hot.
✔
✔✔
✔Wait three minutes before attempting to relight if the fire is switched off or the flames
are extinguished for any reason. Your fire is fitted with a safety device which will
automatically shut off the gas supply to the fire if, for any reason, the flames go out.
✔
✔✔
✔Get advice about the suitability of any wall covering near your fire. Soft wall
coverings (e.g. embossed vinyl, etc.) which have a raised pattern, are easily affected
by heat. They may, therefore, scorch or become discoloured when close to a heating
appliance. Please bear this in mind whenever you are considering redecorating.
✔
✔✔
✔Keep the flue terminal on the outside wall free from all obstructions and blockages.
DON’T
HHang clothing, towels or any other fabrics over the fire.
HUse the fire without the glass window panel in position or with damaged glass.
HAdd any loose coals on to the ceramic fuel piece supplied with the fire. This could
cause a safety hazard.
HUse the fire without the ceramic fuel bed and rear wall correctly in position or if they
are damaged.
HPut paper or any other material on the fire.
HPlace any carpet, rug or other soft surface material under or within 300mm forward of
the appliance over its full width side-to-side. (Although this fire does not have to be
on a non-combustible hearth, such soft materials could interfere with the air flow into
and through the bottom of the heater)
HAttempt to clean or service the fire until it has been switched off and allowed to cool
completely.

OWNER’S GUIDE
Page 6
DIMENSIONS & GAS CONSUMPTION
Gas Consumption
This appliance has a maximum gas at input its highest setting of 3.65kW (Gross)
The maximum heat output is 2.7 kW.
The minimum heat input is 1.13 kW.

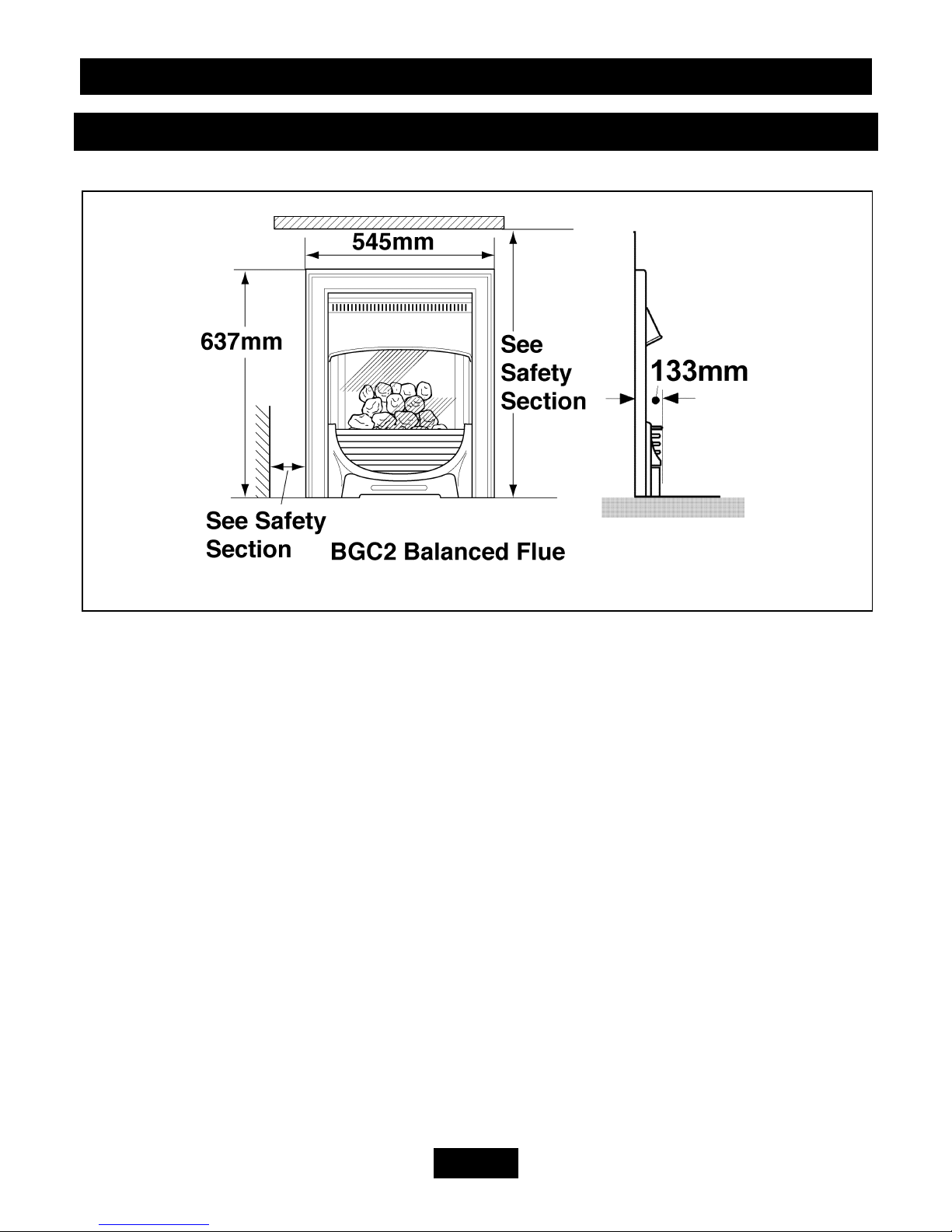

Figure 1 Appliance dimensions

OWNER’S GUIDE
Page 7

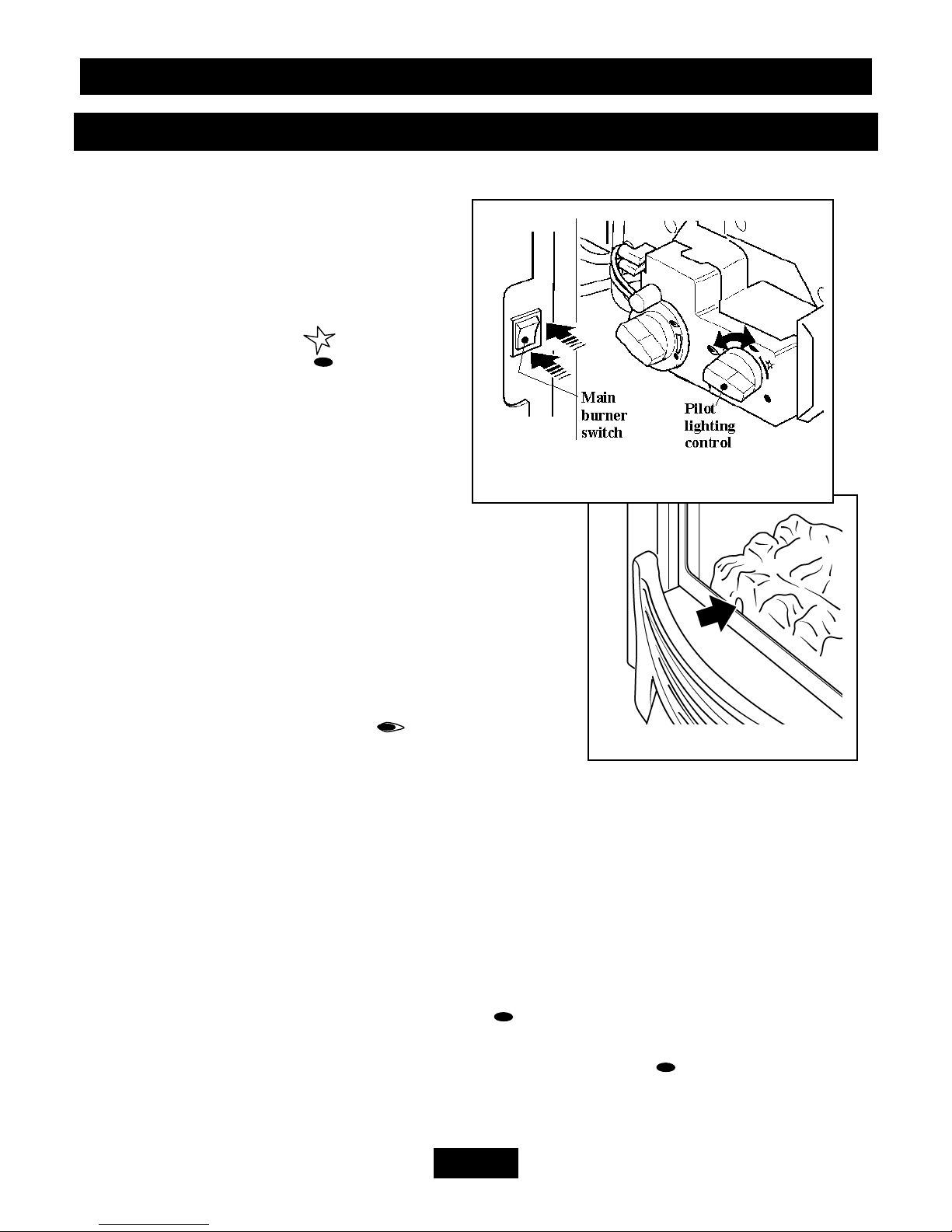

Figure 3 Pilot flame
Figure 2 Controls
OPERATING YOUR FIRE
The controls are shown in figure 2.
To light the pilot
•Push in the right control knob (the pilot
lighting knob) and, while keeping it
depressed, turn anticlockwise through the
ignition position marked and up to
the pilot position marked . The spark
should light the pilot. The pilot flame can
be seen by looking through the gap near
the left side of the coal front (See figure
3).
•When the pilot has lit, keep the right
hand control knob depressed for a few seconds to
prevent the flame supervision device from shutting off
the gas supply while its probe warms up, as explained
above, then release it. If the pilot does not remain alight
turn the knob back to the off position marked •.Wait a
few seconds and repeat the lighting sequence.
To Light the Main Burner
•Partially depress the right control knob and turn to
the main burner position marked .
•The main burner flames are controlled by using the
rocker switch at the right side of the fire case. Operating the rocker switch automatically
causes the knob at the left side of the pilot control knob to rotate. Pressing in the top half
of the switch turns the main burner on. Keeping the top half pressed gradually increases
the flame height and heat output. Pressing the bottom half reduces the flame height and
heat output and finally turns the main burner off. In the unlikely event of failure of the
rocker switch, the left side knob can be turned manually.
To Turn Off the Main Burner Only
•Press in and hold the bottom half of the rocker switch until the main burner is
extinguished. Alternatively, the main burner can be extinguished by turning the right
hand control knob to the pilot position marked .
To Turn Off the Main Burner and Pilot
•Turn the right hand control knob to the pilot position marked . Push the knob in at
this position and turn to the off position marked •.

OWNER’S GUIDE
Page 8
CLEANING YOUR FIRE
Turn the fire off and allow it to cool before
attempting any cleaning. Note that the fire will
retain heat for some time after it has been turned
off.
Metal parts
Clean the metal parts with a slightly damp cloth and
then dry. Do not use abrasive cleaners, they could
scratch the surface.
To clean the inside of the window.
Before the window can be detached, the front units
will have to be removed as follows:

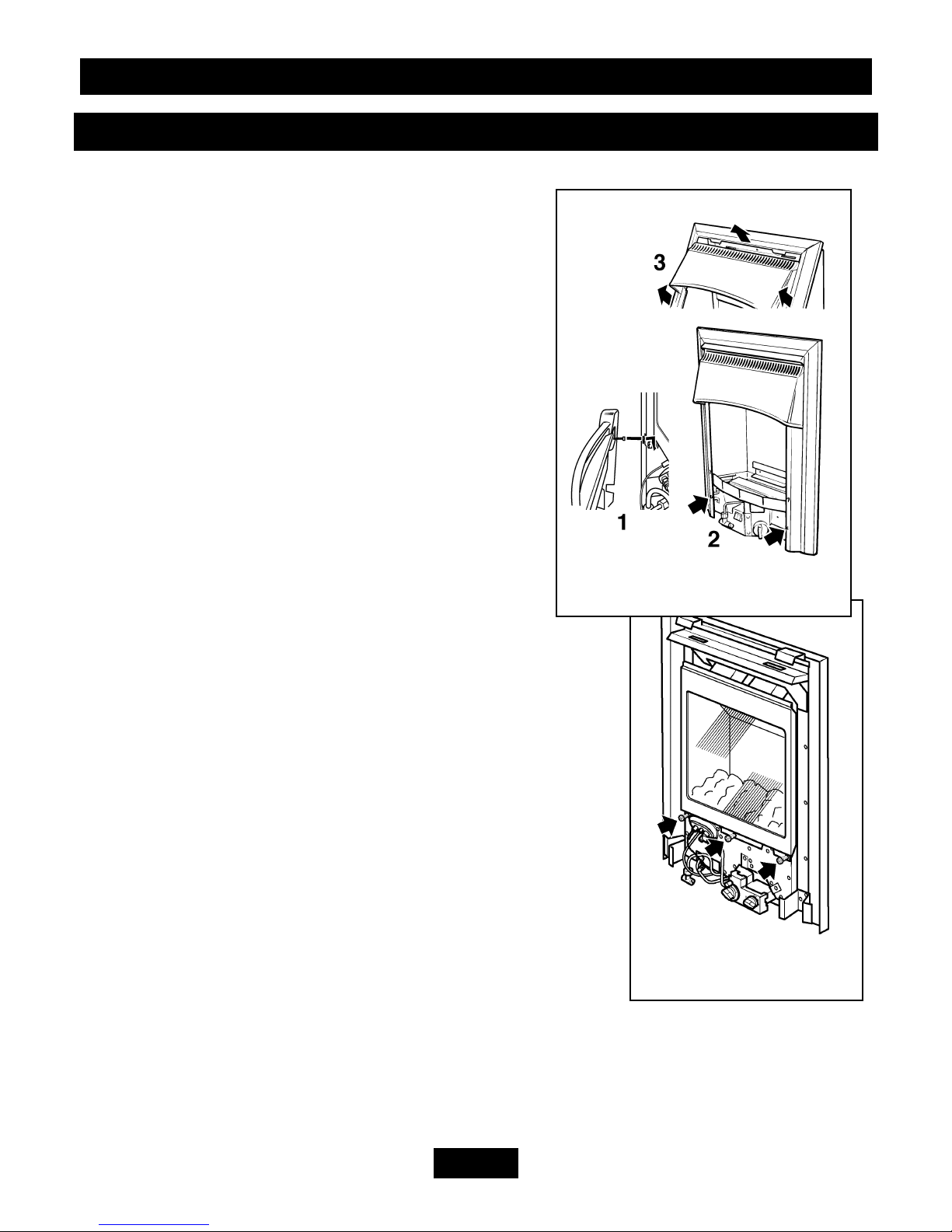

See figure 4.
•Remove the bottom front casting.
•Lift the fire front casting clear by lifting the fire
front casting up and forward to release the locating
screw heads at the back of the casting from the
keyholes in the surround sides.
•Remove the two screws securing the bottom of the front
surround to the sides of the convection box
•Raise the front surround to allow the retaining lugs at the
top to clear the slots in the convection box hood and then lift
clear.
Window removal & Cleaning
•Unscrew and remove the three spring loaded window
fixing screws and washers from the base of the window
frame. See figure 5. Keep the screws and washers in a safe
place.
•Gently swing the base of the window frame forward
while lifting the frame upwards. The window should lift
clear of the fire. Put the window in a safe place away from
your immediate work area.
•Any stains on the glass can be removed with a non-abrasive cleaner such as a ceramic
hob cleaner. Never use abrasive cleaners. Clean the window carefully in accordance
with the instructions supplied with the cleaner.
Figure 5 Window
Removal
Figure 4 front removal

OWNER’S GUIDE
Page 9
•Replace the window making sure that the seal around the frame is not damaged or
misplaced. Locate the channel at the top of the window over the top of the firebox
opening.
•Refit the three spring-loaded screws and washers. Tighten sufficiently to seal to the
firebox.
•Replace the case front.
To Clean the Fuel Bed or Rear Ceramic Wall
Ceramic Coals and Rear Wall
•This product uses a rear wall and gaskets containing Refractory Ceramic Fibres (RCF),
which are man-made vitreous silicate fibres. Excessive exposure to these materials may
cause temporary irritation to eyes, skin and respiratory tract. Consequently, it makes
sense to take care when handling these articles to ensure that the release of dust is kept
to a minimum. To ensure that the release of fibres from these RCF articles is kept to a
minimum, during installation and servicing we recommend that you use a HEPA
filtered vacuum to remove any dust and soot accumulated in and around the fire before
and after working on the fire. When replacing these articles we recommend that the
replaced items are not broken up, but are sealed within a heavy duty polythene bag,
clearly labelled as RCF waste. This is not classified as “hazardous waste” and may be
disposed of at a tipping site licensed for the disposal of industrial waste. Protective
clothing is not required when handling these articles, but we recommend you follow the
normal hygiene rules of not smoking, eating or drinking in the work area and always
wash your hands before eating or drinking.
•Light coatings of soot will usually be burnt off during the normal operation of the fire.
•Should any soot accumulation become excessive, the fuel effect pieces and rear wall
should be removed from the fire for cleaning.
•Cleaning should be carried out in a well-ventilated area or in the open air by gently
brushing with the pieces held away from your face so that you avoid inhaling the dust.
This appliance does not contain any component manufactured from asbestos or asbestos
related products.
If, for any reason the fuel bed or rear wall require cleaning proceed as follows:-
•Remove the front case and window as described above.
•Carefully lift the fuel bed out of the firebox and place it on a piece of cardboard or
similar.
•If necessary remove the rear ceramic wall from the bottom channel by pushing the
bottom edge of the wall upwards and very slightly pulling the top forward.
•Carefully vacuum the upper and lower surfaces of the fuel bed (and wall if necessary)
using a soft brush attachment.

OWNER’S GUIDE
Page 10

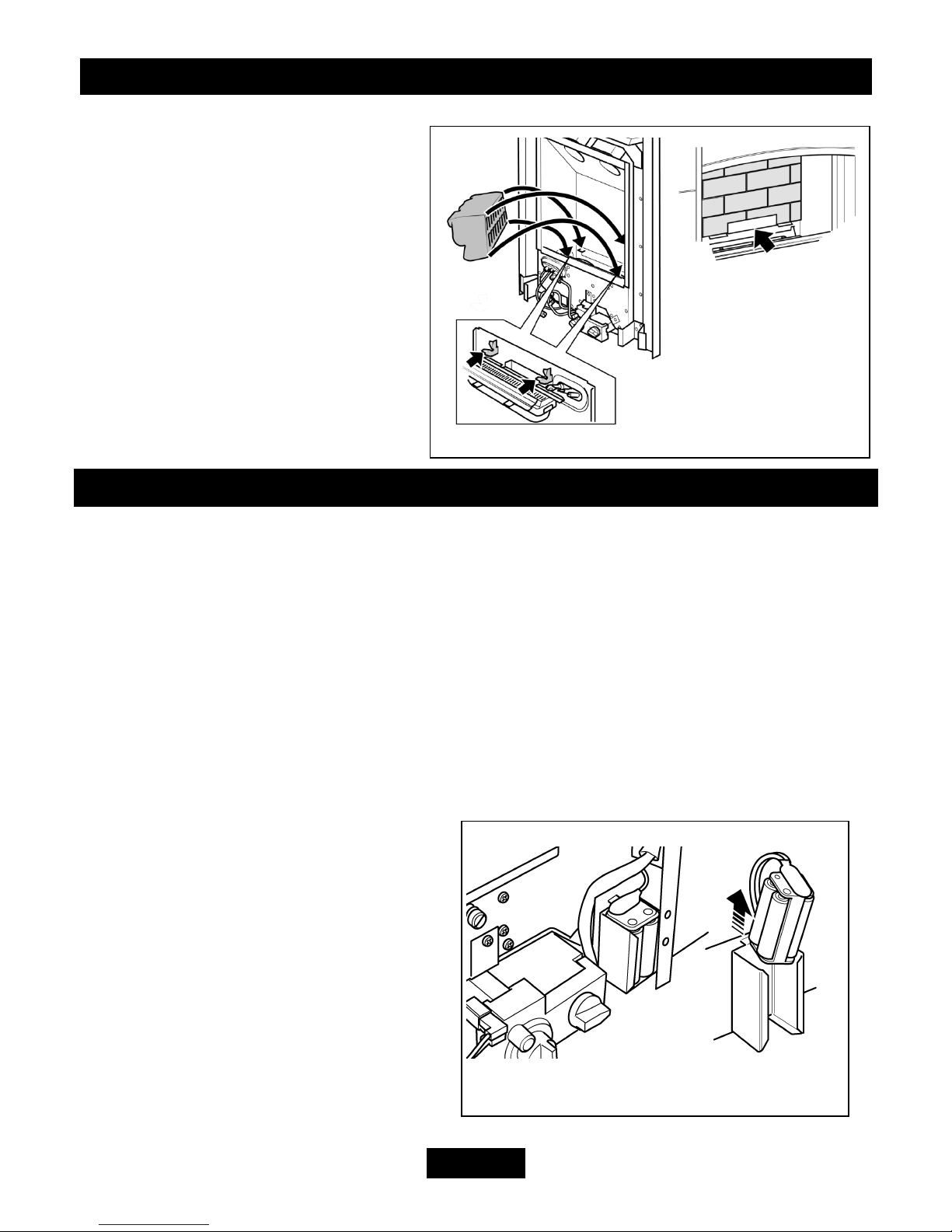

•When refitting the fuel bed, make
sure that the front of the coal locates
behind the two brackets that are
behind the bottom front panel of the
firebox. See figure 6.
SERVICING & MAINTENANCE
•In order to achieve and maintain high levels of personal safety and performance
efficiency it is essential that the flue terminal outside the building is kept clear of any
form of obstruction.
•We recommend that all gas appliances and their flues, are checked annually by a
competent person (in the UK a CORGI registered installer).
•In the United Kingdom it is the law that a landlord must have any gas appliance, flue
and pipework which is situated in a tenant’s premises checked for safety at least every
twelve months.
Battery Replacement
This appliance uses four 1.5V AA batteries.
•To change the batteries remove the bottom front casting.
•Remove the fire front casting by
lifting it up and forward to release the
locating screw heads at the back of the
casting from the keyholes in the surround
sides.
•The battery case is at the right side.
Lift the plastic battery holder out of the
metal case and detach the batteries. See
figure 7.
•Replace the casting in the reverse
order. Figure 7 Battery replacement
Figure 6 Fuel bed & rear wall positions

OWNER’S GUIDE
Page 11
Servicing
•If you require your fire to be serviced, please contact British Gas or Scottish Gas.
Telephone [phone] and please quote the following details which can be found on
the label tied below the burner and behind the bottom hearth casting.
a) Model and GC number
b) Appliance serial number
The following owner replaceable parts are available.
Please quote the part number when ordering.
Description Part no.
Ceramic rear wall 0571789
Ceramic fuel bed 0571839
Window unit 0571849
Spring loaded thumb screw (for window) 0571899
When fitting replacement parts, follow the instructions contained in this guide. It is
important that only approved parts are used for maximum safety.
