Valor Black Beauty Radiant Assembly instructions

600B718/08
INSTALLER GUIDE
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20)
THIS APPLIANCE IS FOR USE IN THE UNITED KINGDOM (GB) AND
THE REPUBLIC OF IRELAND (IE) ONLY.
We trust that this Installer Guide gives sufficient details to enable the appliance to be
installed and maintained satisfactorily. However, if further information is required, our
Valor Technical Helpline will be pleased to help.
Please telephone [phone] (National call rates apply in the United Kingdom).
INSTALLER: Please leave this guide with the owner
© Valor Heating
BLACK BEAUTY
Radiant
Gas Fire
MODEL 340
(GC No. 32-032-33)

INSTALLER’S GUIDE
Page 2
CONTENTS
1 SAFETY ......................................................................................................................3
2 LIST OF ACCESSORIES.........................................................................................3
3 APPLIANCE DATA ..................................................................................................4
4 GENERAL INSTALLATION REQUIREMENTS ................................................5
5 PRE-INSTALLATION PREPARATION ............................................................ 11
5.1 Unpacking ............................................................................................................. 11
5.2 Fireplace Flue Pull ................................................................................................ 11
5.3 Appliance Preparation........................................................................................... 11
5.4 Fit The Closure Plate............................................................................................. 12
6 APPLIANCE INSTALLATION............................................................................ 14
6.1 Installing To A Hearth .......................................................................................... 14
6.2 Wall Mounting ....................................................................................................... 14
6.3 Gas Supply Connection......................................................................................... 14
6.4 Radiants Installation.............................................................................................. 14
6.5 Flue Restrictor Adjustment ................................................................................... 15
7 CONTROL & PRESSURE CHECKS .................................................................. 15
7.1 Check Control Settings ......................................................................................... 15
7.2 Flame Supervision & Spillage Monitoring System .............................................. 16
7.3 Check Reference Pressure..................................................................................... 16
8 OUTER CASE FITTING ....................................................................................... 17
9 SPILLAGE CHECK ............................................................................................... 17
10 FINAL REVIEW..................................................................................................... 18
11 SERVICING & PARTS REPLACEMENT ......................................................... 19
11.1 To Replace Radiant(s)........................................................................................... 19
11.2 To Remove the Outer Case ................................................................................... 19
11.3 To Replace the Pilot Unit...................................................................................... 19
11.4 To Remove the Piezo Generator ........................................................................... 20
11.5 To Remove The Complete Burner Module, Pipes and Pilot ................................ 20
11.6 To Grease the Gas Tap .......................................................................................... 21
REPLACEMENT PARTS – SHORT LIST ................................................................. 21
Valor Heating, Erdington, Birmingham B24 9QP
www.valor.co.uk
Because our policy is one of constant development and improvement, details may vary slightly
from those given in this publication.

INSTALLER’S GUIDE
Page 3
1 SAFETY
Installer
•Before continuing any further with the installation of this appliance please read the
following guide to manual handling
•The lifting weight of this appliance is 15.74 kg. One person should be sufficient to lift
the fire. If for any reason this weight is considered too heavy then obtain assistance.
•When lifting always keep your back straight. Bend your legs and not your back.
•Avoid twisting at the waist. It is better to reposition your feet.
•Avoid upper body/top heavy bending. Do not lean forward or sideways whilst
handling the fire.
•Always grip with the palm of the hand. Do not use the tips of fingers for support.
•Always keep the fire as close to the body as possible. This will minimise the
cantilever action.
•Use gloves to provide additional grip.
•Always use assistance if required.
2 LIST OF ACCESSORIES
Description Part number
Spigot extension 0595191

INSTALLER’S GUIDE
Page 4
3 APPLIANCE DATA
This appliance does not contain any component manufactured from asbestos or asbestos
related products.
The appliance data label is on the inner face of the back panel at the lower left-hand side.
It is visible when the outer case is removed.
Gas Natural (G20)
Inlet Pressure 20mbar
Gross Heat Input Max. 5.6kW (19,100Btu/h)
Min. 1.25kW (4,300Btu/h)
Burner Test Pressure (Cold) 17.95+0.75mbar
(7.2+0.3in w.g.)
Gas Connection 8mm pipe
Burner Injector Upper
(Centre Radiant)
Bray Cat. 16 Size 120
Lower
(Outer Radiants)
Bray Cat. 28 Size 250B
Pilot & Atmosphere Sensing Device OPNG9093
Ignition Twin-spark Piezo-
electric integral with
gas tap
Aeration Non-adjustable

INSTALLER’S GUIDE
Page 5
4 GENERAL INSTALLATION
REQUIREMENTS
4.1 The installation must be in accordance with these instructions.
For the user’s protection, in the United Kingdom it is the law that all gas appliances are
installed by competent persons in accordance with the current edition of the Gas Safety
(Installation and Use) Regulations. Failure to install the appliance correctly could lead to
prosecution. The Council for the Registration of Gas Installers (CORGI) requires its
members to work to recognised standards.
In the United Kingdom the installation must also be in accordance with:
•All the relevant parts of local regulations.
•All relevant codes of practice.
•The relevant parts of the current editions of the following British Standards:-
BS 715
BS 1251
BS 1289 Part 1
BS EN 1806
BS 4543 Part 2
BS 5440 Part 1
BS 5440 Part 2
BS 5871 Part 1
BS 6461 Part 1
BS 6891
•In England and Wales, the current edition of the Building Regulations issued by the
Department of the Environment and the Welsh Office.
•In Scotland, the current edition of the Building Standards (Scotland) Regulations
issued by the Scottish Executive.
•In Northern Ireland, the current edition of the Building regulations (Northern Ireland)
issued by the Department of the Environment for Northern Ireland.
•In the republic of Ireland the installation must also conform to the relevant parts of:
•The current edition of IS 813
•All relevant national and local rules in force.
4.2 If the appliance is intended to be installed to a chimney that was previously used
for solid fuel, the flue must be swept clean prior to installation. All flues should be
inspected for soundness and freedom from blockages.
4.3 Any chimney dampers or restrictors should be removed. If removal is not possible
they must be fixed in the open position.
4.4 In the United Kingdom (GB) special ventilation bricks or vents are not normally
required in the room for this appliance.
In the Republic of Ireland (IE), permanent ventilation must comply with the regulations
currently in force.

INSTALLER’S GUIDE
Page 6

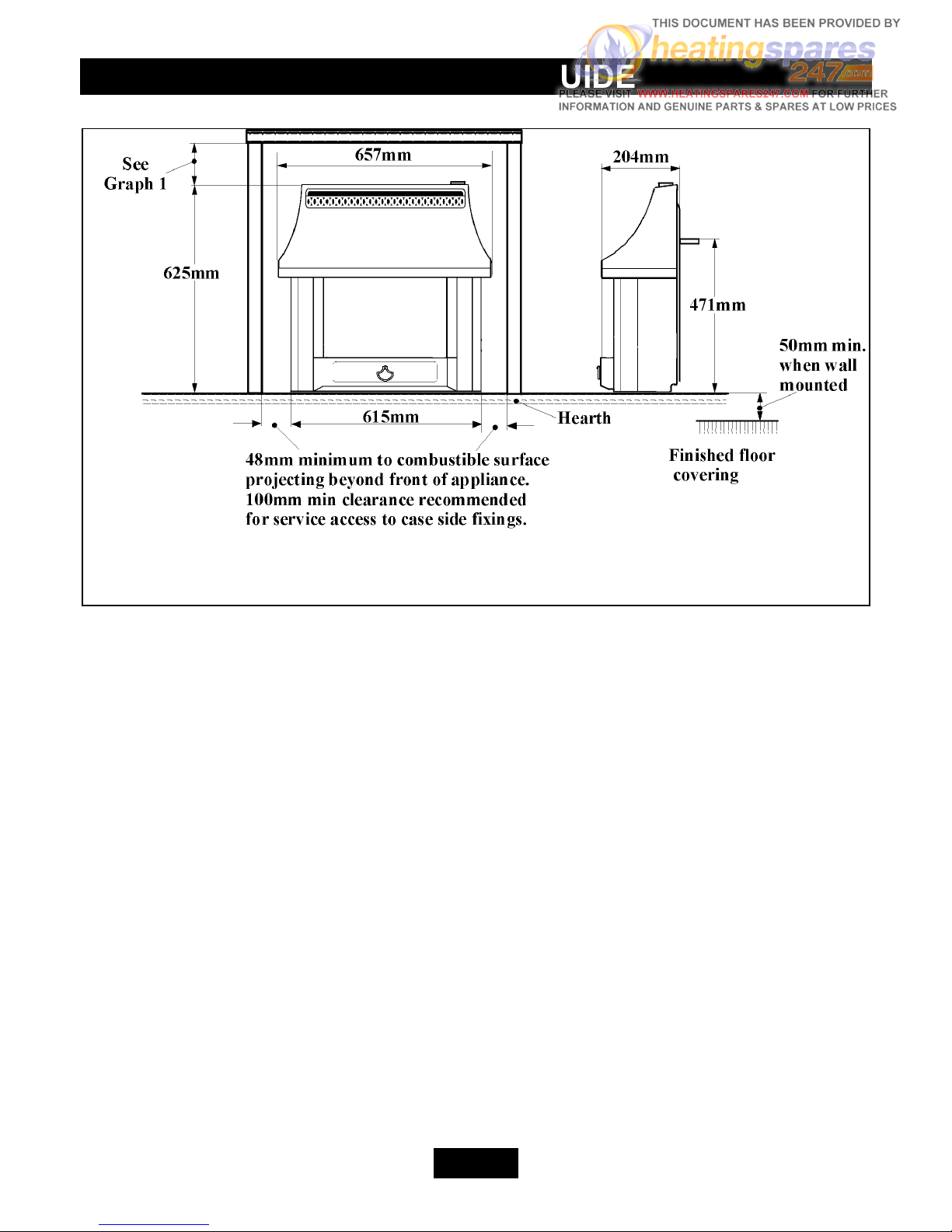

Figure 1. Dimensions & clearances
4.5 Note that soft wall coverings (e.g. embossed vinyl, etc.) are easily affected by heat.
They may scorch or become discoloured when close to a heating appliance. Please bear
this in mind when installing.
4.6 The minimum side clearances to combustible surfaces and recommended side
access clearances are given in figure 1.
4.7 The appliance must not be installed in any room, which contains a bath, or shower
or where steam is regularly present.

INSTALLER’S GUIDE
Page 7
Graph 1 Shelf clearances
4.8 Allow a minimum clearance of 95mm from the top surface of the appliance case to
the underside of any shelf whether it is made from combustible or non-combustible
materials. This clearance is necessary to allow the case to be lifted off for servicing and
also allows the owner sufficient access to operate the control knob.
For a shelf made from wood or other combustible materials deeper than 150mm, the
minimum clearance must be as shown in graph 1.
4.9 In the United Kingdom, as supplied, this appliance can be installed in the following
situations: -
Note: A spigot extension is available (Valor part number 0595191). When fitted this shall
extend through the closure plate for at least 15mm and have a minimum clearance of
50mm from the end to any surface.
4.9.1 Conventional Fireplace
The fireplace opening must be within the following dimensions:
Width Max. 440mm
Min. 305mm
Height Max. 610mm★
Min. 525mm

INSTALLER’S GUIDE
Page 8
★Though the total height of the closure plate will accommodate a maximum opening
height of 650mm, heights above 610mm will leave the closure plate and sealing tape
visible above the appliance.
The appliance must be mounted on a non-combustible hearth (N.B. conglomerate marble
hearths are considered as non-combustible). The hearth must be at least 880mm wide x
300mm deep. The hearth material must be at least 12mm thick. The periphery of the
hearth (or fender) should be at least 50mm above floor level to discourage the placing of
carpets or rugs over it.
The appliance can be fitted to a purpose made proprietary class “O” 150°C surround.
4.9.2 Wall Mounted
The wall opening must be within the following dimensions:
Width Max. 440mm
Min. 305mm
Height Max. 610mm★
Min. 350mm
★Though the total height of the closure plate will accommodate a maximum opening
height of 650mm, heights above 610mm will leave the closure plate and sealing tape
visible above the appliance.
The bottom of the appliance must be at least 50mm above the finished floor covering. See
figure 1. This requires the top of the opening to be at least 575mm above the finished floor
covering. Any opening visible below the appliance may be closed in but the depth of the
catchment space within the wall opening must be as shown in figure 2.
4.9.3 Precast Flues
The appliance can be installed to a fireplace that has a properly constructed precast
concrete or clay flue block system conforming to BS1289 or BS EN 1806. The appliance
is suitable for installations conforming to older versions of BS1289 as well as the current
standards. The flue blocks must have a minimum width not less than 63mm and a cross-
sectional area not less than 13,000mm2
.Older editions of BS1289 required a cross-
sectional area of 13,000mm2. The current revision of the standard requires 16,500mm2.
This appliance is suitable in both cases.
The chimney should be one or two storeys high but not less than 3m vertical height and
be correctly terminated. No mortar fangs between the blocks should be extruded into the
flueway. If raking blocks are used, they must be fitted in accordance with the
manufacturer’s instructions. Mortar must not be allowed to drop down and accumulate in
the raked positions.
The fireplace opening must be within the following dimensions:
Width Max. 440mm
Min. 305mm
Height Max. 610mm1
Min. 525mm2

INSTALLER’S GUIDE
Page 9
1Though the total height of the closure plate will accommodate a maximum opening
height of 650mm, heights above 610mm will leave the closure plate and sealing tape
visible above the appliance.
2Any opening visible below the appliance may be closed in.
4.9.4 Metal Flue Box
The appliance can be installed to a metal flue box conforming to BS715 Section 6 (For
gas fires to BS5258: Part 5) having a minimum internal depth of 165mm.
The opening must be within the following dimensions:
Width Max. 440mm
Min. 380mm
Height Max. 610mm★
Min. 525mm
★Though the total height of the closure plate will accommodate a maximum opening
height of 650mm, heights above 610mm will leave the closure plate and sealing tape
visible above the appliance.
4.10 If the fireplace opening is greater than the acceptable dimensions given in this
guide, do not use the back of a fire surround or marble to reduce the opening. This
may cause cracking of the surround back or marble.
4.11 The following flues are suitable:
•225mm x 225mm conventional brick flue.
If a flue liner is used, it must be a minimum of 125mm diameter. The liner must be sealed
to the surrounding area above the fireplace opening and to the top of the chimney. An
approved terminal must be fitted.
•A properly constructed precast flue conforming to B.S 1289 or BS EN 1806.
•A flue pipe with a minimum diameter of 127mm. See B.S 6461 Part 1 for suitable
materials. Metal flue pipes must comply with B.S 715. See section 4.9.4 of this guide for
flue box opening sizes.
4.11.1 The flue must conform to BS 5440: Part 1 in design and installation.
The flue, measured from the bottom of the fireplace opening to the bottom of the
terminal, shall be not less than 3m in actual vertical height. When calculated in
accordance with BS 5440: Part 1 Annex A, the minimum equivalent height of the flue
shall be 2.0m of 125mm dia. flue pipe.
4.11.2 The flue must be clear of any obstruction and its base must be clear of debris.
4.11.3 The flue must be completely sealed so that combustion products do not come into
contact with combustible materials outside the chimney.
4.11.4 The flue must serve only one fireplace.
4.11.5 Proprietary terminals must comply with BS 715 or BS 1289. Any terminal or
termination must be positioned in accordance with BS 5440 Part 1 to ensure that the

INSTALLER’S GUIDE
Page 10

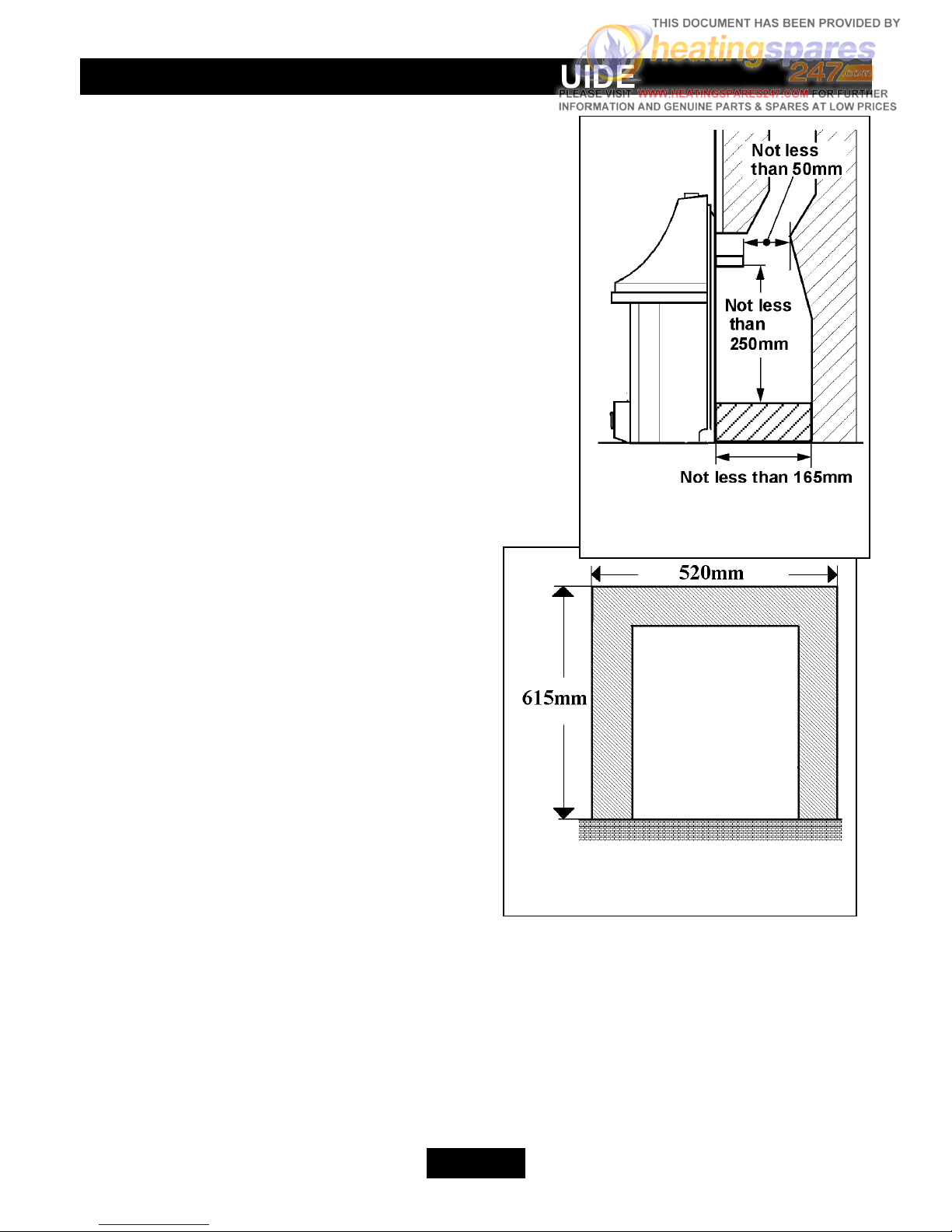

Figure 3 Area to be free of
combustible cladding
Figure 2 Fireplace catchment
space
products of combustion can be safely dispersed into the
outside atmosphere. Where the appliance is connected
to an unlined brick chimney it is generally unnecessary
for the chimney pot to be replaced or for a terminal to
be fitted unless the flue has a diameter smaller than
170mm.
4.12 If the fireplace opening is an underfloor
draught type, it must be sealed to stop any draughts.
4.13 The flue spigot and any spigot extension must be
capable of passing through the closure plate by at least
25mm with a minimum clearance of 50mm between its
open end and the nearest obstruction. There must also
be a minimum clearance of 165mm between the back
of the closure plate and the back of the catchment
space.
The catchment space below the flue spigot
must extend at least 250mm downwards
measured from the bottom of the flue spigot.
See figure 2.
4.14 The front of the fireplace should be flat
over an area sufficient to ensure a good seal
with the closure plate. The flat surface should
extend for a height equal to that of the closure
plate plus 20mm and for a width equal to that
of the closure plate plus 40mm.
4.15 If the fire is to be fitted against a wall
with combustible cladding, the cladding must
be removed from the area shown in figure 3.
4.16 An extractor fan may only be used in the same room as this appliance, or in any
area from which ventilation for the appliance is taken, if it does not affect the safe
performance of the appliance. Note the spillage test requirements detailed further on in
this manual. If the fan is likely to affect the appliance, the appliance must not be installed
unless the fan is permanently disconnected.
4.17 The space between the fireplace front face and the back of the outer case must not be
filled in.

INSTALLER’S GUIDE
Page 11

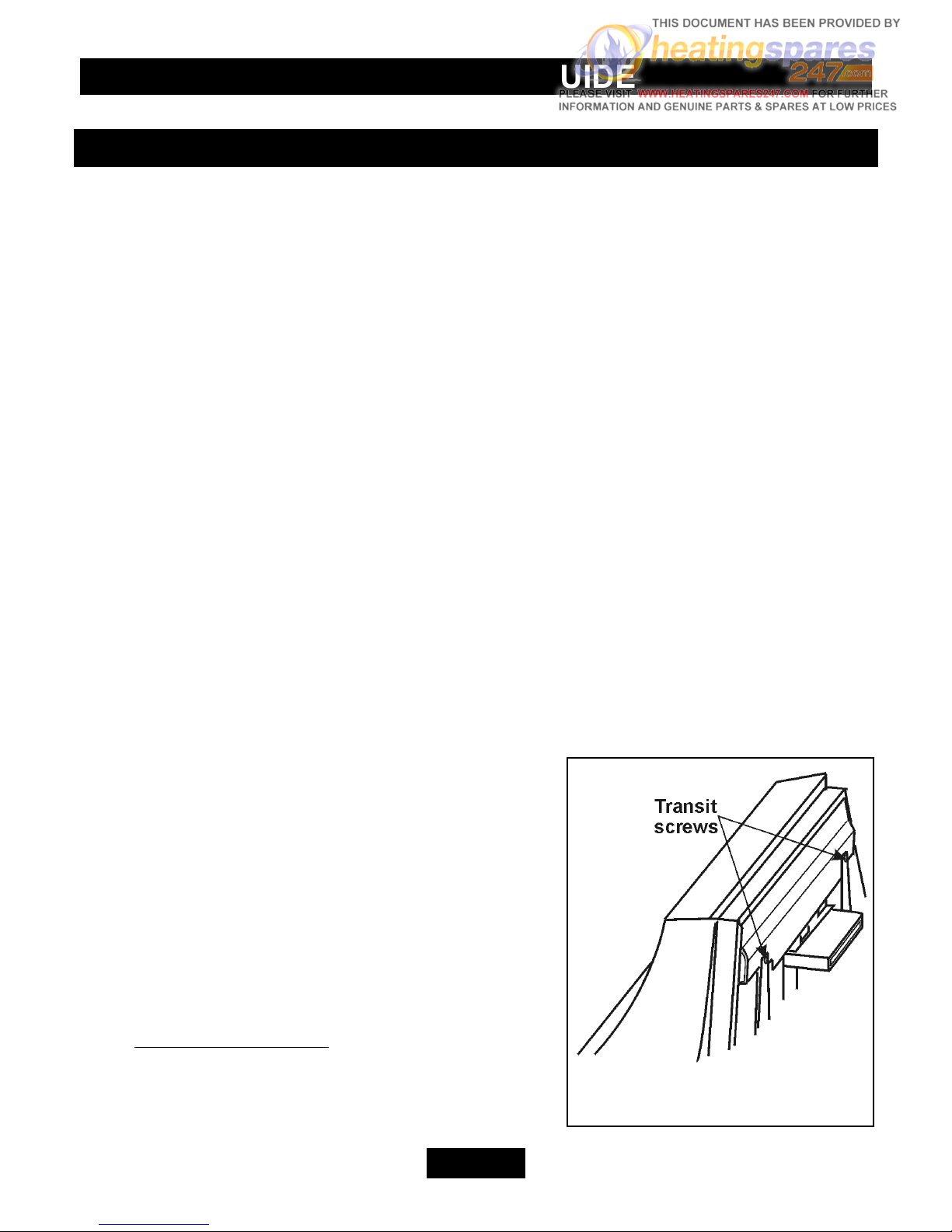

Figure 4. Transit screws
5 PRE-INSTALLATION PREPARATION
5.1 Unpacking
This appliance is supplied completely assembled except for: -
•3 radiants which are in a cardboard pack inside the firebox.
•The closure plate
•Literature pack
•An olive & olive nut for gas line connection
Remove all the items carefully to prevent damage. Some items may be contained in the
packaging fitments -Examine the packaging carefully before discarding. Check that all the
items are present and undamaged.
5.2 Fireplace Flue Pull
Close all doors and windows in the room in which the appliance is to be installed. After
confirming with a match that smoke is drawn into the flue, light a 13 gram smoke pellet
and check that there is a definite flow through the flue. Verify outside that the smoke
exits from one terminal only and that the termination is suitable. Observe where possible,
upstairs rooms and loft spaces for signs of escaping smoke indicating a defective flue. If
there is not a definite flow warm the flue for a few minutes and repeat the smoke pellet
test. If there is still no definite flow the flue may need remedial work – Do not fit the
appliance until there is a definite flow through the flue.
5.3 Appliance Preparation
5.3.1. Stand the fire upright.
5.3.2 Remove the two transit screws from near the
top of the back panel extensions. See figure 4.
5.3.3. Remove the control knob by pulling clear of the
gas tap spindle.
5.3.4. Remove the two case retaining screws located
at the sides of the case near the bottom.
5.3.5. Lift the case up and forward to clear the rear
top location. Store in a safe place.
5.3.6. Remove the radiant pack.
5.3.7. Remove any protective film from all the bright
trims.
5.3.8. Check ignition spark: Before attempting to
install, it is worth checking that the piezo electric
spark ignition system operates satisfactorily.
To initiate the spark, temporarily refit the control

INSTALLER’S GUIDE
Page 12

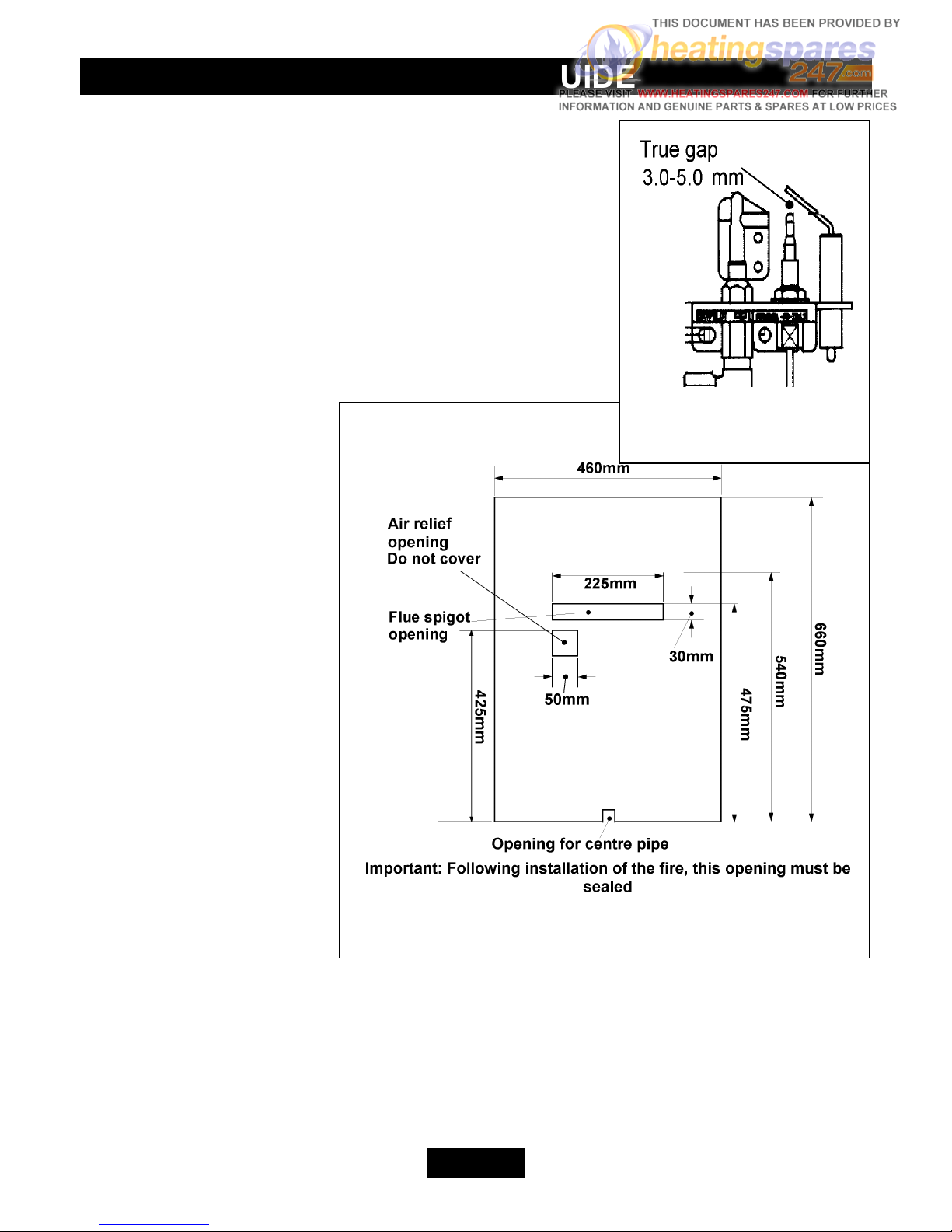

Figure 6. Closure plate
Figure 5.
Pilot spark gap
knob to the spindle. Depress the knob and while keeping it
depressed, turn to the 1/IGN position. A spark should track
from the electrode pin to the thermocouple tip. If there is
no spark or incorrect tracking, check the spark gap between
the electrode wire and thermocouple tip. See figure 5.
If the spark gap is correct, check the ignition wiring.
5.3.9. If the fire is fitted to a recessed fireplace, an
extension flue spigot up to a maximum total length of
125mm may be used. The extension must be a tight fit over
the flue spigot and be secured by two self tapping screws.
Note the minimum
clearance required as
shown in figure 2.
5.4 Fit The Closure Plate
See figure 6.
The closure plate has an
opening at the bottom for
a central gas feed pipe.
The gap between the pipe
and this opening should
be sealed with tape after
connection. If a central
feed pipe is not required
the opening should be
completely sealed with
tape.

INSTALLER’S GUIDE
Page 13

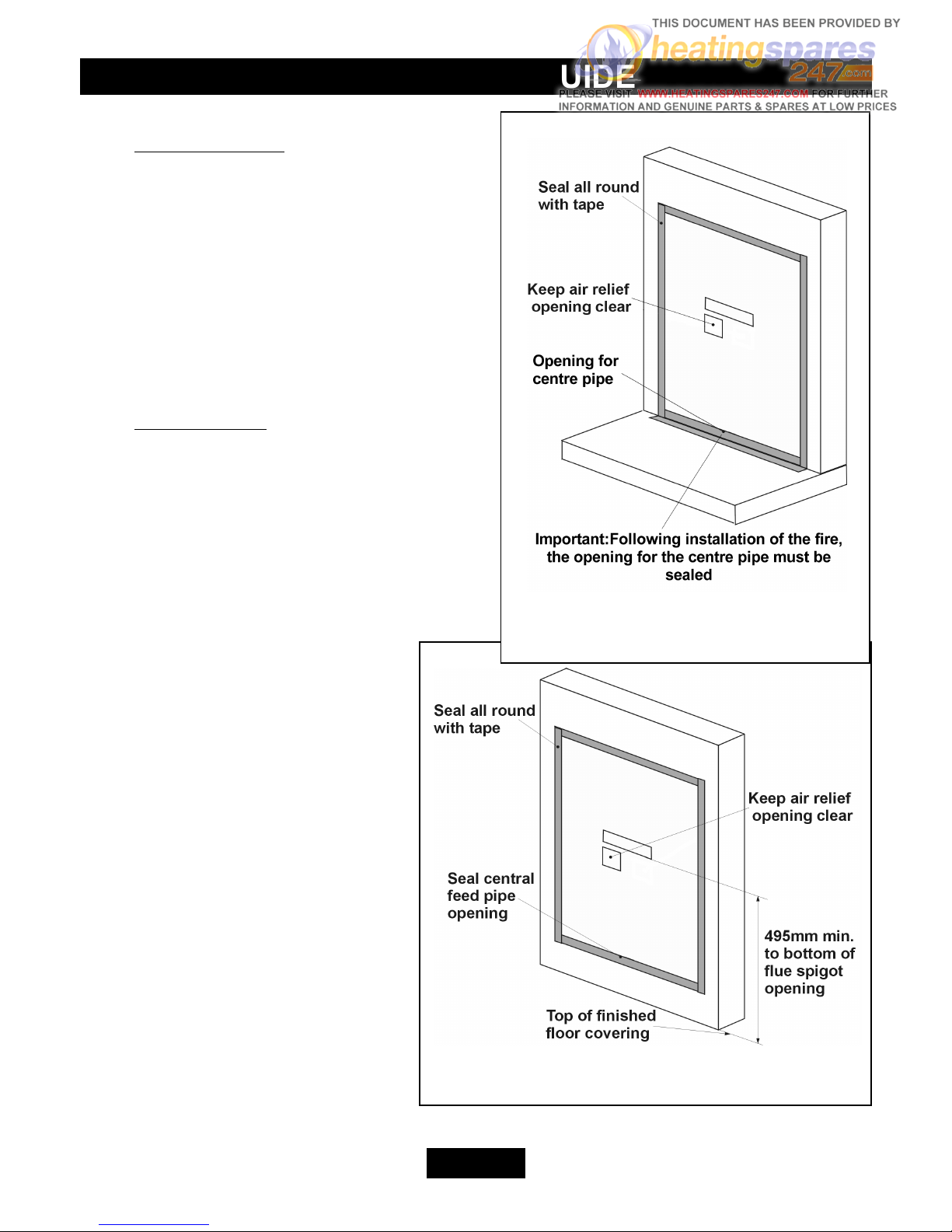

5.4.1 Hearth mounting
See figure 7.
The closure plate must be fitted and sealed to
the hearth and fireplace opening using a
suitable heat resistant material. If necessary
cut the closure plate but make sure that it
overlaps the fireplace opening sufficiently to
allow satisfactory sealing. Make sure that the
rectangular air relief opening is fully within
the fireplace opening.
5.4.2 Wall mounting
See figure 8.
The closure plate must be fitted and sealed to
the hearth and fireplace opening using a
suitable heat resistant material. If necessary
cut the closure plate but make sure that it
overlaps the fireplace opening sufficiently to
allow satisfactory sealing. Make sure that the
rectangular air relief opening is fully
within the fireplace opening.
The bottom of the appliance must be
at least 50mm above any carpet or
other floor covering. To achieve
this, the bottom of the flue spigot
opening must be at least 495mm
above the finished floor covering.
5.4.3 Check the flue pull with
closure plate fitted by applying a
lighted match or smoke match to the
flue spigot opening in the closure
plate and observe the smoke. If there
is a definite flow continue with the
installation. If not check the fitting
of the closure plate. The fireplace
flue pull check described in section
5.2 should have confirmed that the
fireplace itself is satisfactory. Figure 8 Closure Plate for Wall Mounting
Figure 7 Closure Plate for Hearth
Mounting

INSTALLER’S GUIDE
Page 14
6 APPLIANCE INSTALLATION
6.1 Installing To A Hearth
6.1.1 Place the fire centrally on the hearth making sure that the spigot lines up with the
spigot hole in the closure plate. Gently slide the appliance into place. The spigot must
enter the closure plate to a depth of at least 25mm.
6.1.2 Level the fire by loosening the lock nuts and turning the levelling screws in the feet
up or down as required while they bear on the hearth. When the fire is level and square
to the wall, retighten the lock nuts.
6.2 Wall Mounting
The fixing hole positions in relation to the
flue spigot opening are shown in figure 9.
Mark these positions on the wall. The
positions can alternatively be marked by
placing the fire in position and marking the
wall through the holes in the back panel.
Drill and plug the holes using no. 10 wall
plugs. Place the fire in position and secure
with four no. 10 x 2in. woodscrews.
6.3 Gas Supply Connection
8mm rigid tubing must be used to connect
the gas supply to the appliance. An olive
and nut are provided for connection to the
“T” connector on the appliance. The
connector can be rotated to allow connection
from either side or the rear. The connector
includes a valve for isolating the gas supply.
The closure plate has a cut-out for rear connection. Seal the gap between the cut-out and
the supply pipe.
Pressure check the installation pipework for gas soundness. In the United Kingdom check
in accordance with the current edition of BS6891. In the Republic of Ireland check in
accordance with the rules in force.
6.4 Radiants Installation
Important: Fit the radiants ensuring that there rear face rests against the horizontal ribs
in the rear panel. There will be a small gap between their bottom front edge and the
retaining channel at the front of the radiant box.
Figure 9 Wall fixing holes

INSTALLER’S GUIDE
Page 15
Figure 10. Flue restrictor
adjustment
6.5 Flue Restrictor Adjustment
See figure 10.
The appliance has an integral adjustable flue draught
restrictor. This is supplied set in the fully open
(unrestricted) position and in most cases no adjustment
should be necessary. It can be reset to a fully restricted
position if the flue draught is excessive. The restrictor
must remain in its fully open position if the flue has
an equivalent height of 4m or less (as calculated in
accordance with BS5440: Part 1 Appendix A) or
where a pre-cast flue is used.
To close the restrictor:
1. Loosen the screw situated behind the cut-out in the
black upper heat shield. Do not fully remove the screw.
2. Push the restrictor firmly down as far as it will go. The top of the slot in the restrictor
bracket should touch the screw.
3. Fully tighten the screw.
There may be certain exceptional circumstances where closing the restrictor causes the
fire to fail the spillage test (See section 9). In such cases the restrictor will have to be
reopened.
7 CONTROL & PRESSURE CHECKS
7.1 Check Control Settings
7.1.1 If closed,open the isolating valve at the inlet elbow.
7.1.2 To check the control positions temporarily place the outer case loosely over the
engine. Fit the control knob over the gas tap spindle.
7.1.3 Depress the control knob and turn anticlockwise partially towards the 1/IGN
position until some resistance is felt. Keep depressed at this position for a few seconds to
purge air from the system then, while keeping it depressed, turn fully to the 1/IGN
position. A spark should be generated at the pilot while turning. The spark should ignite
the pilot. If it does not, keeping the knob depressed, continue to turn the knob
anticlockwise. A second spark should be generated at the pilot while turning. This spark
should ignite the pilot.
7.1.4 When pilot ignition has been achieved, keep the control knob depressed for
approximately ten seconds to allow the thermocouple probe to warm up and then release
it. If the pilot does not remain alight, ensure that the air has been purged, that the pilot

INSTALLER’S GUIDE
Page 16
orifice is clear and that the thermocouple connections are sound. Replace the pilot unit if
necessary (see servicing section of this manual).
7.1.5 Check all the control settings. These are: -
Knob
Position
Radiants Condition
2 Centre radiant on low. Outer radiants off.
3 Centre radiant fully on. Outer radiants off.
4 Centre radiant fully on. Outer radiants on low.
5 All radiants fully on.
7.2 Flame Supervision & Spillage Monitoring System
The pilot unit incorporates a system that will automatically shut off the gas supply if the
pilot flame goes out or if there is insufficient oxygen due to spillage or lack of
ventilation.
Check that the system operates properly as follows:
7.2.1 Light the appliance. Set at position 5 and leave for one minute.
7.2.2 Turn back to “OFF” to extinguish the pilot. Note the time when the pilot goes
out. Listen for a snap sound at the gas tap. Note the time when the sound is heard. An
electromagnetic valve shutting off the gas supply through the tap causes this sound. The
valve is located in the body of the tap. The valve should operate within 60 seconds of
the pilot going out. If the valve does not operate within this time limit do not allow the
appliance to be used until the fault has been corrected.
This monitoring system must not be adjusted, bypassed or put out of operation.
This monitoring system, or any of its parts, must only be exchanged using Valor
authorised parts.
7.3 Check Reference Pressure
The appliance is pre-set to give the correct heat input at the inlet pressure shown in
section 1 of this manual. No adjustment is necessary.
7.3.1 Detach the control knob from the spindle. Remove the outer case.
7.3.2 Check the burner pressure by fitting a pressure gauge at the test point. The test
point is on the gas tap. Refit the control knob to the spindle and check the pressure with
the appliance alight and set at maximum output (Control position 5).
7.3.3 After checking, turn off the appliance. Remove the pressure gauge and replace the
test point sealing screw. Relight the appliance. Turn to the maximum output position and
test around the sealing screw for gas soundness with a suitable leak detection fluid.
7.3.4 If all the above checks are satisfactory, continue with the installation. If not, check
the control and ignition circuitry and components as described in the servicing section of
this manual.

INSTALLER’S GUIDE
Page 17
Figure 11 Case top location
Figure 12. Spillage
check
8 OUTER CASE FITTING
•Remove the control knob from the spindle.
•Refit the outer case. The outer case top rear
strip should locate in front of, but touching,
the side extensions of the engine back panel.
See figure 11.
•Secure the case at the bottom sides with the
two screws previously removed.
•Fit the control knob fully over the gas tap
spindle.
9 SPILLAGE CHECK
A spillage test must be made before the installed appliance is left with the customer.
1. Close all doors and windows in the room containing the
fire.
2. Light the appliance and set the control knob to the
maximum position (Position 5).
3. Leave the appliance on for five minutes.
4. Place a smoke match tube (with lighted match)
horizontally underneath the radiant box but touching the top
lip of the box. The tube should be between the two vertical
inner ribs of the centre radiant. The tip of the match should
project between 2mm and 5mm beyond the lowest edge of
the radiant box lip (The radiant box lip is behind the black
outer case panel). See figure 12.
5. The installation is satisfactory if the smoke is drawn into
the appliance. If the smoke is not drawn into the appliance,
leave the appliance alight at the maximum setting for a
further ten minutes and then repeat the test. If the smoke is still not drawn into the
appliance, inspect the sealing of the closure plate. If the sealing is satisfactory but the
appliance is installed with the flue restrictor in the closed position (see section 6.5),
reopen the restrictor, reseal the appliance and retest. If smoke is still not drawn into the
appliance Disconnect the appliance and seek expert advice

INSTALLER’S GUIDE
Page 18
6. If the above test is satisfactory, open all internal connecting doors, hatches, etc. in the
room. Keep all doors and windows that open to the outside of the building closed.
Recheck for spillage as above. If an extractor fan is installed in the same room as the
appliance or a connecting room, check that spillage does not occur with the fan operating
and all doors and other openings between the fan and the appliance open. If the test is
satisfactory continue with the installation. If the test is not satisfactory disconnect the
appliance and advise the customer of the cause of failure.
10 FINAL REVIEW
•Make sure that the dress guard is securely in position.
•Recheck the operation of the fire at all control positions. Explain to the customer that
the appliance is fitted with a two-spark ignition system. (See section 7.1.3)
•Visually inspect the appliance. Clean off any marks incurred during installation.
•Advise the customer how to operate the fire.
•Explain to the customer that the appliance has a flame failure and spillage monitoring
system. Point out the explanation of this system shown in the owner’s guide. Advise that if
the fire goes out for any reason, wait at least three minutes before relighting. Stress that if
the monitoring system repeatedly shuts off the fire, the appliance should be switched off
and a specialist should be consulted.
•Advise that the dressguard can be removed to replace the radiants.
•Advise that the fire may give off a slight odour while new. This is quite normal and it
will disappear after a short period of use.
•Advise that any cleaning must only be carried out when the fire is off and cold.
•Advise the customer that they should read the Owner’s guide before operating the fire
and always follow the advice in the section headed “Cleaning your fire”.
•Advise the user that the appliance can be lit with a match if necessary by inserting it
through the central opening at the bottom of the radiant box.
•Recommend that the appliance should be serviced and the chimney inspected by a
competent person (In the UK a CORGI registered person) at least annually.
If the appliance is in premises in the United Kingdom occupied by a tenant, point out that
by law a landlord must have any gas appliance, flue and pipework which is situated in a
tenant’s premises checked for safety at least every 12 months.
•Mention that the radiants may become brown with use, that this is quite normal and
has no adverse effect.
•Hand this guide to the customer.

INSTALLER’S GUIDE
Page 19
11 SERVICING & PARTS REPLACEMENT
•Always turn off the gas supply before commencing any servicing (The appliance
inlet “T” connector incorporates an isolating valve).
•It is recommended that, at least once a year, the appliance is disconnected and
the catchment space behind the closure plate checked and cleared of any debris.
The closure plate must be resealed to the wall after checking.
•Check that soot or debris is not impairing the electrode spark or pilot burner.
•Check that soot or debris is not blocking any of the holes in the main burner.
•Always test for gas soundness and spillage after servicing the appliance.
11.1 To Replace Radiant(s)
11.1.1. Remove the dress guard by pressing down the two hooks at the top. Tilt the
guard forward and lift out.
11.1.2. Remove the old radiant(s) Fit the new radiant(s) ensuring that their rear face
rests against the horizontal ribs in the rear panel. There will be a small gap between
their bottom front edge and the retaining channel at the front of the radiant box.
11.1.3 Replace in the reverse order.
11.2 To Remove the Outer Case
11.2.1 Remove the control knob by pulling clear of the gas tap spindle.
11.2.2. Remove the two case retaining screws located at the sides of the case near the
bottom.
11.2.3. Lift the case up and forward to clear the rear top location.
11.2.4. Replace in the reverse order. Make sure that the outer case top rear strip locates in
front of, but touching, the side extensions of the engine back panel. See figure 11 in the
installation section.
Make sure that the radiants are not dislodged when refitting the case.
11.3 To Replace the Pilot Unit
11.3.1. Remove the outer case as section 11.2 above.
11.3.2. Disconnect the thermocouple connection at the bottom of the gas tap.
11.3.3. Disconnect the pilot pipe from the gas tap. It is the upper connection at the right
side of the tap.
11.3.4. Remove the first screw securing the dust cage to the pilot unit & burner bracket.
Carefully remove the dust cage and place aside. Remove the second screw securing the
pilot unit to the burner bracket.
11.3.5. Disconnect the electrode lead from below the pilot electrode.
11.3.6. Carefully remove the pilot unit together with the pilot pipe then disconnect the
pipe from the pilot unit.

INSTALLER’S GUIDE
Page 20
Figure 13 Burner Module Removal
11.3.7. Replace in the reverse order.
Note: 1 The pilot unit is an atmosphere sensing device. It must be replaced as a whole
assembly. Its individual components are not separately replaceable.
2. Once removed, ensure that the dust cage is cleaned before refitting. Make sure
that it locates squarely onto the pilot unit without any gaps between the cage
edges and the pilot unit.
11.4 To Remove the Piezo Generator
11.4.1. Remove the outer case as section 11.2 above.
11.4.2. Disconnect the electrode lead from below the pilot electrode.
11.4.3. Disconnect the control spindle & adapter from the gas tap by removing the split
pin. Lift the adapter clear of the gas tap spindle.
11.4.4. Remove the circlip holding the piezo generator to the tap.
11.4.5. Replace in the reverse order. Make sure that the control knob with spindle is
correctly turned to agree with the gas tap position before refitting the split pin.
11.5 To Remove The Complete Burner Module, Pipes and Pilot
11.5.1. Remove the outer case as section 11.2 above.
11.5.2 Support the inlet isolating elbow to avoid straining the pipework and disconnect
the appliance from the elbow.
11.5.3. Disconnect the control spindle &
adapter from the gas tap by removing the split
pin. Lift the adapter clear of the gas tap
spindle.
11.5.4. Detach the left end of the burner
module from the radiant box by removing one
screw. See figure 13.
11.5.5. Carefully slide the burner module to
the right to free it from the right side of the
radiant box. See figure 13.
11.5.6. Remove the pipes, gas tap or injectors
as required.
11.5.7. Replace in the reverse order.
Take care when replacing the injectors. The injectors have ceramic tips at each end. It is
important not to allow jointing compound to get on either end of the injectors.
Make sure that the control knob with spindle is correctly turned to agree with the gas tap
position before refitting the split pin.
