Valor LEGEND G4 780IN (NG) Installation instructions

LEGEND G4
4002252-06
©2011, Miles Industries Ltd.
Direct Vent Gas Insert
780IN (NG) & 780IP (LPG)
Installation and Owner’s Manual
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury or loss of life.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light the appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the fire department.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
This appliance is a domestic room-heating
appliance. It must not be used for any other
purposes such as drying clothes, etc.
This appliance is suitable for installation in a
bedroom or bed sitting room.
Manufactured by
MILES INDUSTRIES LTD., British Columbia, Canada
www.valorfireplaces.com
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where not
prohibited by local codes.
Please read this manual BEFORE installing
and operating this appliance.
Massachusetts: The piping and final
gas connection must be performed by a
licensed plumber or gas fitter in the State of
Massachusetts.
Patent Pending
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
INSTALLER
Leave this manual
with the appliance.
CONSUMER
Retain this manual
for future reference.
Ce guide est disponible en français sur demande.

Thank You ...
For purchasing a Valor by Miles Industries. Your new radiant gas heater is a technical
appliance that must be installed by a qualified dealer. Each Valor fireplace is fully
tested during the production process for your safety and comfort.
Your unit has been professionally installed by:
Dealer Name _______________________________________
Phone Number ______________________________________
Should you encounter an operational problem, call your dealer immediately.
Do not try to repair the unit as you may cause an injury or damage the fireplace.
The information contained in this installation manual is believed to be correct at
the time of printing. Miles Industries Ltd. reserves the right to change or modify any
information or specifications without notice. Miles Industries Ltd. grants no warranty,
implied or stated, for the installation or maintenance of your heater, and assumes no
responsibility for any consequential damage(s).
Designed and Manufactured by / for
Miles Industries Ltd.
190–2255 Dollarton Highway, North Vancouver, BC, CANADA V7H 3B1
Tel. [phone] Fax [phone]
www.valorfireplaces.com
© Copyright Miles Industries Ltd., 2011
Do not put
furniture or other objects
in this space in front of
the replace:
36” (0.9 m)
Fireplace
Hearth
2

3
Safety and Your Fireplace
Safety and Your Fireplace
Please Follow These Important
Child Safety Precautions and
Recommendations,
• Parts of your Valor Fireplace become
extremely hot while in operation.
• The glass viewing window
temperature can
exceed 500 F
at full capacity.
Momentary contact
with a hot glass
surface can cause
a severe burn, even if the fireplace
is operating at reduced heating
capacity.
• The glass window will remain hot
for an extended period of time after
the fireplace has been turned off.
Ensure that children are prevented
from touching the fireplace during the
cool down period.
• Toddlers and Young Children
must be closely supervised at all
times when they are in the same
room as the operating fireplace. They
lack full awareness of danger and
rely on your protection. Toddlers,
in particular, do not have the motor
skills and response reflexes to
withdraw in the event of accidental
contact with a hot surface.
• A physical barrier is strongly
recommended if there are young
children, or at-risk individuals in the
house. Install an approved after-
market safety gate to keep toddlers,
young children and other at-risk
individuals a safe distance from the
fireplace.
• Keep the remote control handset
out of reach of children at all
times. A wall mount storage holster
is provided with your remote control
handset.
• Ensure that the fireplace, including
the pilot light, is completely turned
off when children are present and
close supervision and safety barriers
are not available—see page 29 of
Owner’s Information section.
• If the fireplace is not going to be used
for the summer or any extended
period of time, remove the batteries
from the remote control handset
and receiver. It is recommended that
batteries are replaced annually in any
event—see page 28.
Please Read and Carefully Follow all Safety Warnings and
Operating Instructions Contained in Your Owners Manual
(Replacement Manuals are available by contacting our service department at
1-800-468-2567 or visit www.valorfireplaces.com).

= Updated content
◊
◊
◊
◊
◊
◊
◊
Table of Content
Safety and Your Fireplace.............................................................................3
Safety and Warning Information...................................................................5
Specifications ................................................................................................6
Overview.........................................................................................................7
Dimensions ....................................................................................................8
Cavity..............................................................................................................8
Clearances......................................................................................................9
Venting..........................................................................................................10
Installation Planning....................................................................................11
Existing Fireplace Preparation...................................................................11
Appliance Preparation.................................................................................12
Supply Gas Installation...............................................................................15
Ceramic Panels Installation........................................................................17
Ceramic Logs Installation...........................................................................18
Ceramic Rocks Installation.........................................................................21
Window Refitting .........................................................................................23
Remote Control Initial Set-up.....................................................................24
Operation Check & Aeration Settings Adjustment...................................25
Side Shrouds Installation............................................................................25
Remote Control Handset Wall Holder Installation....................................26
Owner’s Information....................................................................................26
Remote Control Operation..........................................................................30
Options.........................................................................................................35
Lighting Instructions...................................................................................36
Wiring Diagram............................................................................................37
Approved venting components..................................................................38
Warranty .......................................................................................................39
Spare Parts...................................................................................................40
4

Safety and Warning Information
Children and adults should be ALERTED to the hazards
of high surface temperature and should STAY AWAY to
avoid burns or clothing ignition.
YOUNG CHILDREN should be CAREFULLY
SUPERVISED when they are in the same room as
the appliance. Toddlers, young children and others
may be susceptible to ACCIDENTAL CONTACT
BURNS. A physical barrier is recommended if there
are at risk individuals in the house. To restrict access
to a fireplace or stove, INSTALL AN ADJUSTABLE
SAFETY GATE to keep toddlers, young children and
other at risk individuals out of the room and away from
hot surfaces.
DO NOT place furniture or any other combustible
household objects within 36” of the fireplace front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO FOLLOW
these installation instructions may result in possible fire
hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Owner’s Information section of this manual.
DO NOT USE this appliance if any part has been under
water. Immediately, CALL a qualified service technician
to inspect the unit and to replace any part of the control
system and any gas control that has been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use and at
least annually by a professional service person. More
frequent cleaning may be required due to excessive
lint from carpeting, bedding, etc. It is IMPERATIVE that
the unit’s control compartment, burner, and circulating
air passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other flammable
vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance CLEAR
of all obstacles and materials for servicing and proper
operation.
Due to the high temperature, the appliance should be
LOCATED out of traffic areas and away from furniture
and draperies. Clothing or flammable material SHOULD
NOT BE PLACED on or near the appliance.
This unit MUST be used with a vent system as
described in this installation manual. NO OTHER vent
system or components MAY BE USED.
This gas fireplace and vent assembly MUST be vented
directly to the outside and MUST NEVER be attached
to a chimney serving a separate solid fuel burning
appliance. Each gas appliance MUST USE a separate
vent system. Common vent systems are PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris, plants, trees, shrubs are
interfering with the air flow.
The glass door assembly MUST be in place and sealed
before the unit can be placed into safe operation.
DO NOT OPERATE this appliance with the glass door
removed, cracked, or broken. Replacement of the glass
door should be performed by a licensed or qualified
service person. DO NOT strike or slam the glass door.
The glass door assembly SHALL ONLY be replaced
as a complete unit, as supplied by the fireplace
manufacturer. NO SUBSTITUTE material may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass door
when it is hot.
TURN OFF the gas before servicing this appliance.
It is recommended that a qualified service technician
perform an appliance check-up at the beginning of each
heating season.
Any safety screen or guard removed for servicing
MUST BE REPLACED before operating this appliance.
BE CAREFUL not to put any decorating objects
sensitive to heat to close above or around the fireplace
as it gets very hot when operating.
DO NOT use this heater as a temporary source of heat
during construction.
This appliance is a DOMESTIC ROOM-HEATING AP-
PLIANCE. It must not be used for any other purposes
such as drying clothes, etc.
State of California. Proposition 65 Warning. Fuels
used in gas, wood-burning or oil fired appliances,
and the products of combustion of such fuels, contain
chemicals known to the State of California to cause
cancer, birth defects and other reproductive harm.
California Health & Safety Code Sec. 25249.6.
5
OWNER’S INFO

X
X
Safety and Warning Information
Ratings
Model NG LPG
Gas Natural Propane
Altitude (Ft.)* 0-4,500 feet*
Input Maximum (Btu/h) 30,000 28,000
Input Minimum (Btu/h) 6,500 14,500
Manifold Pressure (in
w.c.) 4.0 10.5
Minimum Supply
Pressure (in w.c.) 5.0 11.0
Maximum Supply
Pressure (in w.c.) 10.0 14.0
Main Burner Injector
Marking 850 300
Pilot Injector Marking 51 30
Min. Rate By-Pass Screw 125 125
Specifications
Approval & Codes
This appliance is certified to ANSI Z21.88-2009 / CSA
2.33-2009 American National Standard / CSA Standard
for Vented Gas Fireplace Heaters for use in Canada
and USA, and to CGA 2.17-91 High Altitude Standard
in Canada. This appliance is for direct vent insert
installations.
This appliance complies with CSA P4.1-09 Testing
method for measuring annual fireplace efficiencies.
The installation must conform to local codes or, in the
absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1 or the Natural Gas and Propane
Installation Code CAN/CGA-B149. Only qualified
licensed or trained personnel should install this
appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA
70 or the Canadian Electrical Code, CSA C22.1.
*High Altitude Installations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to 4,500 feet
(1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas utility
to confirm.
For installations at elevations above 4,500 feet
(1,370 m) in Canada, please consult provincial and/or
local authorities having jurisdiction.
Supply Gas
Heater engine 780IN is used with natural gas.
Heater engine 780IP is used with propane gas.
The supply pressure must be between the limits shown
in the Ratings section above.
The supply connection is 1/2” NPT female and located
on the left hand side of the control valve. The gas
line entry point is on the upper left hand side on the
fireplace.
Conversion Kits
The 780 Legend G4 is supplied as natural gas or
propane gas and is field convertible between fuels. See
instructions packaged with the conversion kit for further
information.
Electrical
The 780 does not require an electrical power source to
operate as a heater. However, if the appliance is fitted
with a fan, a grounded power source is required.
Operating your fireplace for the first time. When
operating your new fireplace for the first time, some
vapors may be released due to the burning of curing
compounds used in the manufacture of the appliance.
They may cause a slight odor and could cause the
flames to be the full height of the firebox, or even
slightly higher, for the first few hours of operation.
It is also possible that these vapors could set off any
smoke detection alarms in the immediate vicinity.
These vapors are quite normal on new appliances. We
recommend opening a window to vent the room. After
a few hours use, the vapors will have disappeared and
the flames will be at their normal height.
6
OWNER’S INFO

Overview
This appliance may ONLY be installed in an existing unaltered,
functioning solid-fuel burning fireplace with a working flue and
constructed of non-combustible material.
DO NOT install into combustible construction. This appliance
is NOT APPROVED for installation with a zero clearance kit.
780I fireplace
Chimney Terminal Cap
Flashing
2 x 3” approved
flex chimney liners
running full length
Existing unaltered,
functioning solid-fuel
burning fireplace &
chimney
Existing hearth—must
be non-combustible (as
required for existing solid-
fuel burning fireplaces
Trim
(sold separately)
WARNING
HOT HEARTH / FLOOR!
HOT HEARTH / FLOOR!
The
The
hearth or floor in front of the fire-
hearth or floor in front of the fire-
place may become very hot when
place may become very hot when
the fireplace heats. Do not use the
the fireplace heats. Do not use the
hearth as a seat or shelf. Solid wood
hearth as a seat or shelf. Solid wood
flooring in front of the fireplace (if
flooring in front of the fireplace (if
allowed) may shrink during the heat-
allowed) may shrink during the heat-
ing season due to heat.
ing season due to heat.
WARNING
Some materials or items, although
Some materials or items, although
safe, may discolor, shrink, warp,
safe, may discolor, shrink, warp,
crack, peel, and so on because of
crack, peel, and so on because of
the heat produced by the fireplace.
the heat produced by the fireplace.
Avoid placing candles, paintings,
Avoid placing candles, paintings,
photos, and other items sensitive to
photos, and other items sensitive to
heat around the fireplace.
heat around the fireplace.
7
INSTALLATION

33”(838 mm)
24”(610 mm)
15”
(381 mm)
15”
(381 mm)
4”
(102 mm)
3”
(76 mm)
3”
(76 mm)
3”
(76 mm)
10”
(254 mm)
23”
(584 mm)
Gas line
access
Alternate gas line access hole.
12”(305 mm) of flex protruding
from sheet metal box if using
this access hole.
Gas line approx. 24“ (610 mm)
of flex protruding from
sheet metal box
Optional
fan
Optional fan
6’ (1,8 m) fan
power cord
outlet
6’ (1.9 m) Fan power cord
Trim
(sold separately)
Valve
access
panel
X
Y
Dimensions
Cavity
Check that masonry step does not interfere with install dimensions or
vent pipe.
If mantel is combustible, see section following section for allowable
clearances.
A non-combustible hearth is required.
Minimum width of fireplace opening at front: 33-1/4” (855 mm)
X = 15-1/2” (394 mm) minimum
16” (406 mm) if using leveling platform
18-1/2” (470 mm) with fan
Y = 23-1/4” (591 mm)
8
INSTALLATION

9” (229 mm)
A
B
Non-combustible hearth
With optional
Fan: depth
+3”(76 mm) Do not put
furniture or
objects within
36” (914 mm)
of the front of
appliance
Sidewall Clearances
Minimum distance from side of appliance (liner box) to
combustible wall: 9” (229 mm).
Mantel
Projection A 1” (25 mm)
4”
(101 mm)
8”
(203 mm)
14”
(355 mm)
Mantel
Height B* 34” (864 mm)
36”
(914 mm)
38”
(965 mm)
40”
(1016 mm)
sidewall
WARNING
Some materials or items, although safe, may discolor, shrink, warp, crack, peel,
Some materials or items, although safe, may discolor, shrink, warp, crack, peel,
and so on because of the heat produced by the fireplace. Avoid placing candles,
and so on because of the heat produced by the fireplace. Avoid placing candles,
paintings, photos, and other items sensitive to heat around the fireplace.
paintings, photos, and other items sensitive to heat around the fireplace.
Combustible Mantel Clearances
*Measure taken from the underside of the mantel to finished
hearth or surface that the unit is sitting on.
Finishing Materials
Combustible materials: Material such as wood,
compressed paper, plant fibers, plastics or any material
capable of igniting and burning, whether flame-proofed
or not, plastered or un-plastered.
Non-combustible materials: Material such as steel,
iron brick, tile, concrete or materials that bear the UL
mark for zero (0) fire rating.
WARNING
HOT GLASS!
HOT GLASS!
The use of a screen in front of
The use of a screen in front of
the glass is highly recommended particularly in
the glass is highly recommended particularly in
households with children.
households with children.
WARNING
HOT HEARTH / FLOOR!
HOT HEARTH / FLOOR!
The hearth or floor in
The hearth or floor in
front of the fireplace may become very hot when
front of the fireplace may become very hot when
the fireplace heats. Do not use the hearth as a seat
the fireplace heats. Do not use the hearth as a seat
or shelf. Solid wood flooring in front of the fireplace
or shelf. Solid wood flooring in front of the fireplace
(if allowed) may shrink during the heating season
(if allowed) may shrink during the heating season
due to heat.
due to heat.
9
Clearances INSTALLATION

3”Liners
3” min.
Bend
Radius
Terminal Cap
Flashing
2 x 3” flex
liners—see
Venting Table
for length
allowed
Existing
fireplace
and
chimney

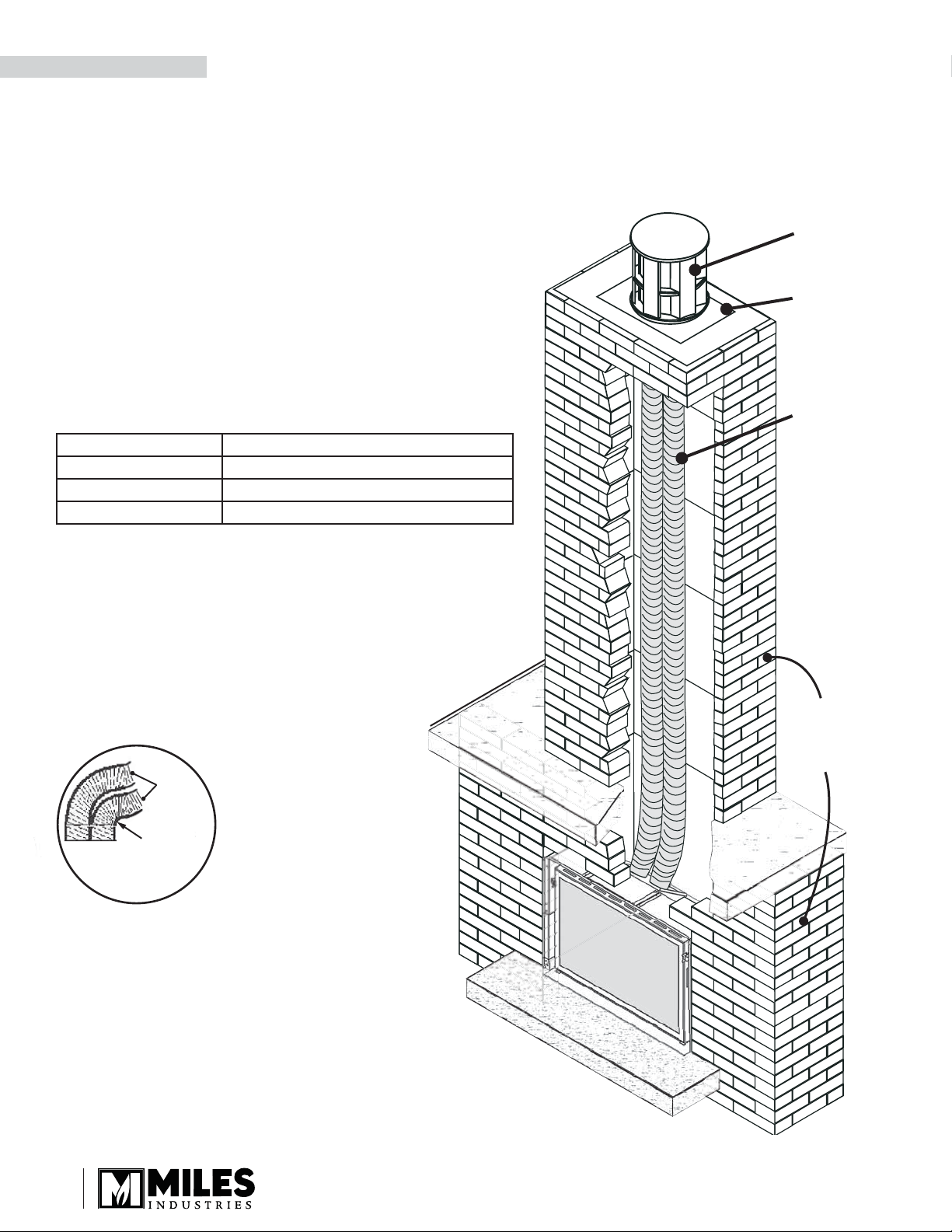

Typical Vent Installation
See list of approved Venting Accessories on page 38 of this manual.
NOTE: Flexible co-linear vent pipes may only be installed into existing
non-combustible solid-fuel burning fireplaces and chimneys.
Vent Location
The vent terminal must be located through the
roof. This direct vent appliance is designed to
operate when an undisturbed airflow hits the
outside vent terminal from any direction.
Check local codes for allowable vertical vent
termination.
Venting Table
Maximum vertical height 40 ft (measured to bottom of termination)
Minimum vertical height 10 ft (measured to bottom of termination)
Maximum horizontal run 4 ft (measured center to center of pipe)
Maximum offset angle 45˚(sweeping bend to allow for obstructions)
Venting Notes
Where possible, avoid joining flex pipes. If joints
are required, use a approved connector and seal
joints with RTV high temp sealant.
Horizontal offset is permissible to allow for
routing around masonry projections. Avoid
bending flex pipe over a 45 degrees radius
where possible.
10
Venting
INSTALLATION

Installation Planning
Installer—READ THIS FIRST
1. YOU NEED TO KNOW FROM THE
HOMEOWNER what accessories (surround,
screen, fan/blower, etc.) will be installed with
this fireplace;
2. Unpack the appliance.
3. Check that you have everything.
4. Clean cavity, chimney, ash dump, and clean-out.
5. Install venting pipes.
6. Attach conversion plate to existing fireplace.
7. Install electrical wiring for fan if used.
8. Place appliance on hearth in front of fireplace
opening.
9. Install and test fan if used.
10. Put batteries in remote control handset and battery
box. Connect battery box.
11. Connect and test gas supply.
12. Fit appliance into cavity.
13. Remove window.
14. Install ceramic panels and fuel bed.
15. Refit window.
16. Set-up remote control.
17. Verify operation and adjust aeration settings.
18. Install the remote control handset wall holder.
19. Instruct the homeowner on the operation and
maintenance of the fireplace.
20. Install the trim and screen if required.
Tools and supplies required
• Packing knife
• Screwdriver set
• Pliers
• Adjustable Wrench
• Sealant
• Dish soap/water solution
• Gloves
• Eye Protection
• Electric outlet if installing a fan
Existing Fireplace Preparation
A few points must be considered before inserting the
780I into an existing fireplace cavity. Generally, no
modifications are allowed to the existing fireplace that
will compromise the integrity of the existing fireplace.
Components that are bolted or screwed on such as
dampers or baffles may be removed to accommodate
the installation of the 780I engine. Cutting away
any sheet metal parts of the existing fireplace
to accommodate the installation of the 780I is
prohibited. Check with local authorities if in doubt.
Clean Fireplace and Chimney
Have the chimney swept and the fireplace cavity
including ash dumps and clean-outs cleaned before
installing the 780I heater and vent liners. Any creosote
or soot residue remaining in the fireplace cavity
chimney or clean-out may cause odors or stains once
the 780I insert is installed. Consult with chimney sweep
for information on how best to clean.
Existing Dampers
Factory-built, zero-clearance fireplaces will require the
damper to be removed in order to install the vent liners.
These dampers are usually bolted into place. Dampers
in masonry fireplaces must be fixed open and may
remain in place.
Ash Retaining Curbs
Some fireplaces (particularly factory-built) have a
raised curb at the front edge to retain ashes. Check the
dimensions carefully to ensure the 780I engine will fit
behind any raised curb (some curbs may be removed
separately from the refractory base).
11
INSTALLATION

Unpacking the appliance
Beware of sharp edges! Wear gloves!
1. Unpack the appliance.
2. Unpack any loose items from around the appliance
and check against the Pack Content list provided in
the documentation package.
3. Remove the window and set aside in a safe place to
avoid damage—see next page.
4. Verify that you have all the components required
for the installation, including:
-ceramic panels & fuel bed;
- trim;
- venting components and accessories;
- fan and electrical components for its
installation if used.
Appliance Preparation
Existing Fireplace Preparation
Gas Line Routing
Plan the routing of the gas line before proceeding.
Utilize the existing hole for the gas line of the factory-
built fireplace.
If the fireplace has no access hole, carefully drill an
access hole of 1.5 inch (38 mm) or less through the
lower sides or bottom of the firebox. The access hole
must be plugged with non-combustible insulation after
the gas supply line has been installed.
See Dimensions section for detailed location of gas
inlet. Also, take into consideration whether or not a fan
or shut-off valve will interfere when planning routing of
the gas line.
Existing Glass Doors and Wire Screens
Existing glass doors must be permanently removed
prior to installing the 780I insert.
Combustible Mantels
Combustible mantel clearances must conform to those
required for the original solid-fuel fireplace into which
the 780I is being installed.
Attach Warning Conversion Plate to Existing
Fireplace (label supplied loose with 780I
heater)
Attach the “This fireplace has been converted...”
label to the existing fireplace using screws or other
mechanical means and store any removed parts in
back of the existing fireplace for future use.
12
INSTALLATION

Appliance Preparation
Fan installation
If the 795CFK Circulating Fan Kit (blower) is to be
installed, we suggest that you do it now.
The fan cavity is accessible from the back of the firebox
to facilitate its installation. If the fan is retrofitted after
the installation of the appliance, the appliance will need
to be removed. Therefore, we recommend that, where
possible, the fan be installed before the appliance is
fitted into the cavity.
Refer to instructions provided with the 795CFK to
install the fan.

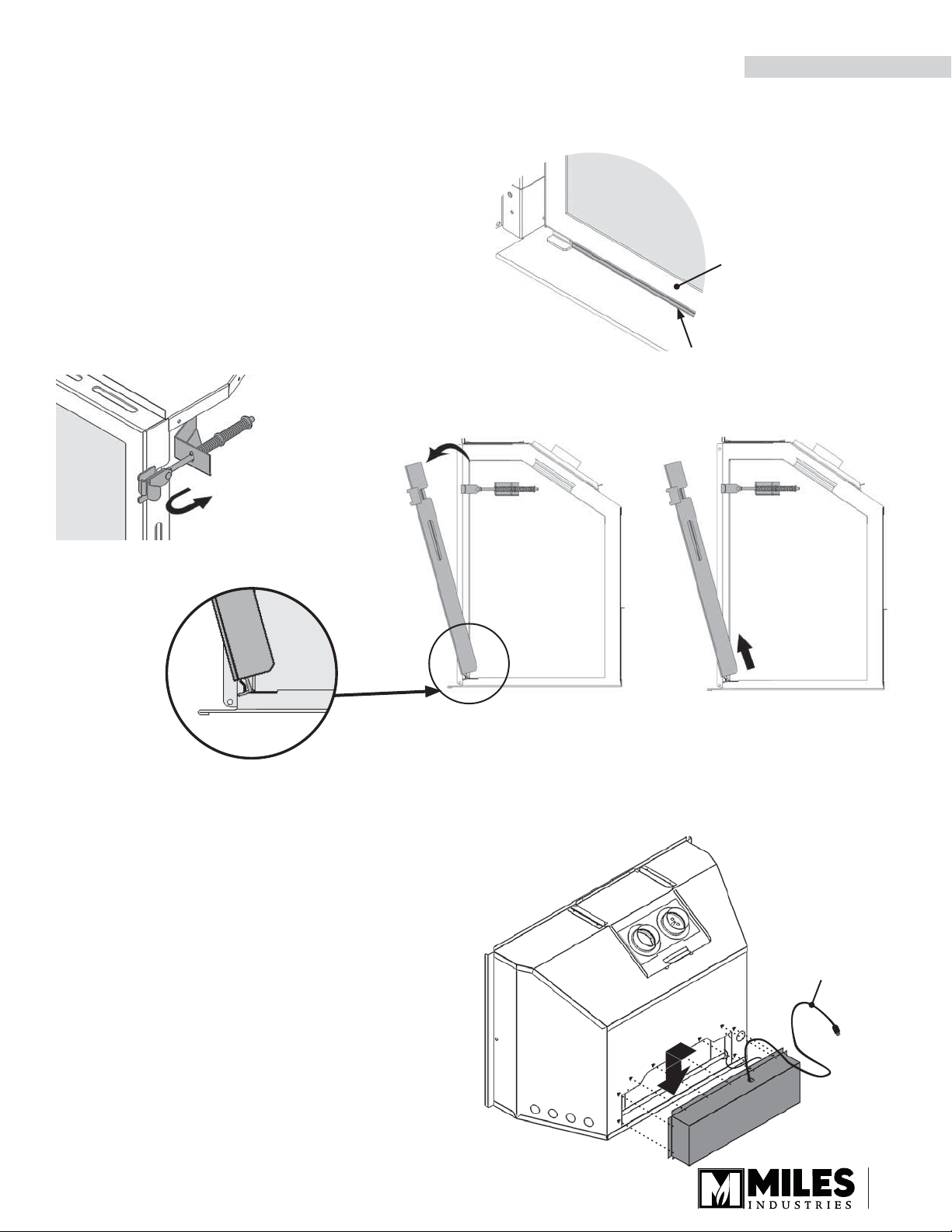

Window Removal
The window is held in place by a spring-loaded lever on
each side.
1. To remove the window, locate the levers on each
side of the window towards the top. Using your
finger, pull the lever towards you and unhook it from
the window frame bracket.
2. Gently pull the top of the window outward.
3. Lift the window out of its bottom railing and set it
aside in a safe place to avoid damage.
Section Views
Window frame
6’ power
cord
Bottom railing
13
INSTALLATION

Venting Installation
IMPORTANT: This appliance’s venting system is room sealed and
therefore, does not require room air to be used in the combustion process.

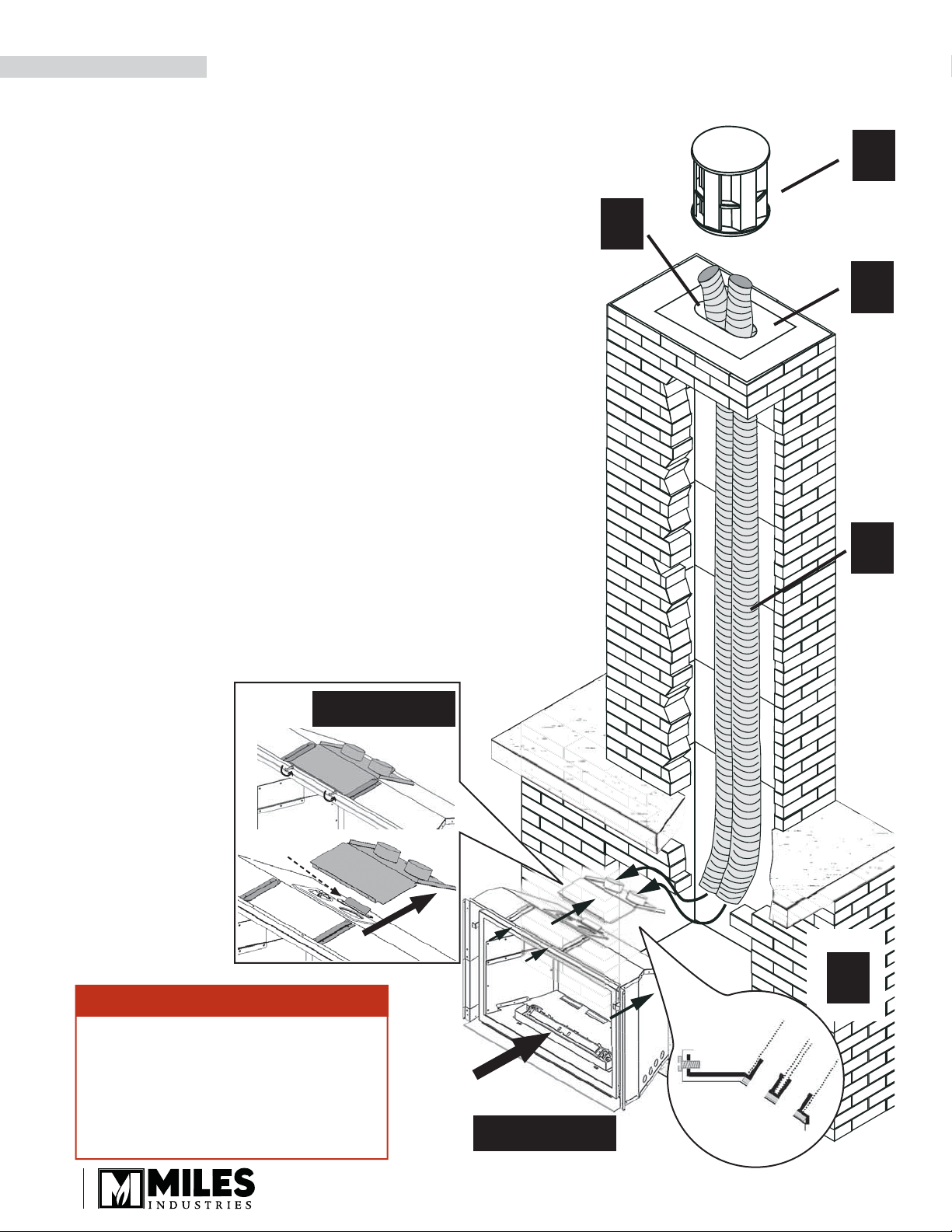

1. Rough-in two 3” diameter vent liners into the existing chimney
system from the roof. Be careful not to tear or damage the liners in
the process. It may be easier to install both liners at the same time
rather than one at a time. Leave plenty of liners at the bottom to
facilitate the connection of the liners to the vent slider. It is best to
leave the top termination until later.
Designate and mark the top and bottom of one liner as
“EXHAUST” to avoid confusion later.
2. a) Large cavity opening
Slide the appliance into the cavity.
b) Smaller cavity opening
Release the two screws retaining the vent slider to the front
of the firebox.
Remove the slider from the firebox by sliding it towards the
back of the firebox.
3. Apply RTV sealant to the collars on the vent slider and fit the
two liners ensuring that the exhaust liner is connected to
the identified “EXHAUST” vent collar. Secure with 4 tapping
screws per liner.
If the vent slider was removed from the firebox, slide the firebox
onto the vent slider in the cavity taking care not to damage the
liners. Make sure that the rear edge of the slider is hooked
over the cleat on the firebox. Secure the vent slider to the
front of the firebox with two screws removed earlier.
4. From the roof, pull
the liners and fit the
flashing.
5. Fit the terminal
cap ensuring that
the exhaust liner
is connected to
the exhaust vent
collar. Secure with
screws.
6. Seal the terminal
and flashing from
water penetration
as required.
1
3
4
5
Appliance Preparation
option 2b
option 2a
6
Vent slider
cleat
WARNING
Failure to position the parts in
Failure to position the parts in
accordance with these diagrams or
accordance with these diagrams or
failure to use only parts specifically
failure to use only parts specifically
approved with this appliance
approved with this appliance
may result in property damage or
may result in property damage or
personal injury.
personal injury.
14
INSTALLATION

Supply Gas Installation
The gas supply inlet connection is a 1/2” NPT female.
Gas shut-off valve supplied on the end of stainless
steel flexible connector. Flex connector is located on
the left hand rear corner of the appliance.
Use only new black iron or steel pipes or copper tubing
if acceptable—check local codes. Note that in USA,
copper tubing must be internally tinned for protection
against sulfur compounds.
The burner module and gas train on this appliance
may be removed as a unit for servicing. The flex pipe
supplied with the unit provides a union for removal of
the module.
Unions in gas lines should be of ground joint type.
The gas supply line must be sized and installed to
provide a supply of gas sufficient to meet the maximum
demand of the appliance without undue loss of
pressure.
Sealant used must be resistant to the action of all
gas constituents including LP gas. Sealant should be
applied lightly to male threads to ensure excess sealant
does not enter gas lines.
Pressure test the supply line for leaks.
The appliance and its individual shut-off valve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in
excess of 1/2 psig (3.5 kPa).
The appliance must be isolated from the gas supply
piping system by closing its equipment shut-off valve
during any pressure testing of the gas supply piping
system at test pressures equal to or less than 1/2 psi
(3.5 kPa).
Failure to either disconnect or isolate the appliance
during pressure testing may resulting regulator or
valve damages and void the warranty. Consult your
dealer in case of damages.
X
X
Pressure Testing
Manifold Test
Pressure
Valve Inlet
Pressure
Valve Assembly
Control
Valve
34” (864 mm)
flex pipe
supplied with
appliance
Shut-off valve
supplied with
appliance
1/2” NPT
female
Manifold
Pressure
Adjustment
behind
Plastic Cap
Pressure Test Points
The minimum supply pressure is given in the
section Specifications of this manual—page 6.
All piping and connections must be tested for
leaks after installation or servicing. All leaks
must be corrected immediately.
When testing for leaks:
• Make sure that the appliance is turned off.
• Open the manual shut-off valve.
• Test for leaks by applying a liquid detergent or
soap solution to all joints. Bubbles forming indicate
a gas leak.
Never use an open flame to check for leaks.
Correct any leak detected immediately.
The pressure test
tapping locations is
shown in the figure
below. An internal
regulator within the
valve controls the
burner manifold
pressure.
The correct pressure
range is shown in
the table in section
Specifications of this
manual on page 6.
The pressure check
should be made with
the burner alight and at
its highest setting. See
Lighting Instructions
section for full operating
details on page 36.
15
INSTALLATION

Front view,
left side
Top view, left side
Flex connector redirected using one elbow.
Flex connector redirected using two elbows.
Common fittings required (not supplied)
3/8” elbow
+ short 3/8”
nipple
OR
3/8” street
elbow(s)
(where al-
lowed)
1. Remove flex connector.
2. Remove flared connector.
3. Install new inlet elbow.
4. Add flared connector to new
elbow and fit flex connector.
Close the access panel.
Alternate Inlet Connection
In cases where local codes do not permit the flex
connector to be used inside the appliance case,
reconnect the flex connector outside of the appliance
case. A cut-out is provided in the appliance case for
this purpose. Cut-out
Option 1 Option 2
4. Add another elbow, the flared
connector and refit the flex
connector. Direct it towards
the rear of the appliance or
downward.
Close the access panel.
Supply Gas Installation
Use common elbow and fittings (not
supplied) to redirect the position of
the flex connector. NOTE: the flex
connector bend radius must be no
smaller than the size of a golf ball
(approx. 1-3/4” or 44 mm).
16
INSTALLATION

Ceramic Panels Installation
The following guidelines apply for all brick liners.
1. Remove the rear log support (3 screws).
2. Remove the front brick support.
3. Inside the firebox, on the top of each side, release
the screw of the side brick anchors (one per side)
just enough to allow them to rotate.
4. Place the rear panel against the back of the firebox,
on the ledge at bottom.
5. Rotate the anchor up and out of the way and slide

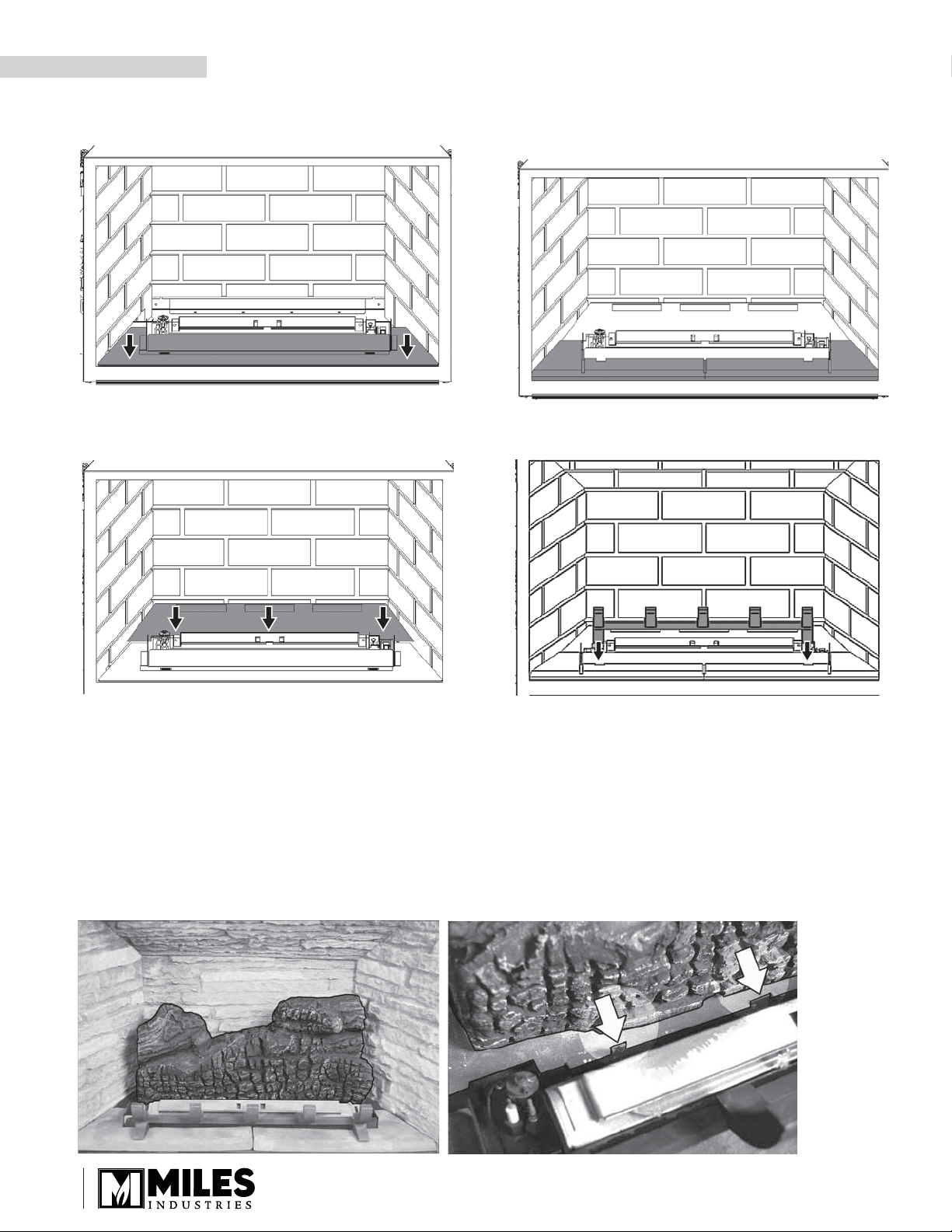

the left hand side panel against the firebox side.
Rotate the anchor back down to hold the panel.
6. Rotate the anchor up and out of the way and slide
the right hand side panel against the firebox side.
Rotate the anchor back down to hold the panel.
7. Tighten the side brick anchors on each side of the
firebox.
8. Install the top brick supporting it with the back and
side panels.
17
INSTALLATION

Ceramic Panels Installation
9. Reinstall the front brick support.
10. Reinstall the rear log support (3 screws). Its rear
edge rests on the rear brick support ledge.
Ceramic Logs Installation
For ceramic rocks, see next section. Unpack the ceramic logs very carefully to avoid damaging the fragile
material. Install the logs as shown below. Please note that the position of the Logs is critical to insure proper
performance of the appliance.
11.With logs only: Install the front bricks in front of the
burner.
12. With logs only: Slide the cast iron grate in the
slots in front of the burner.

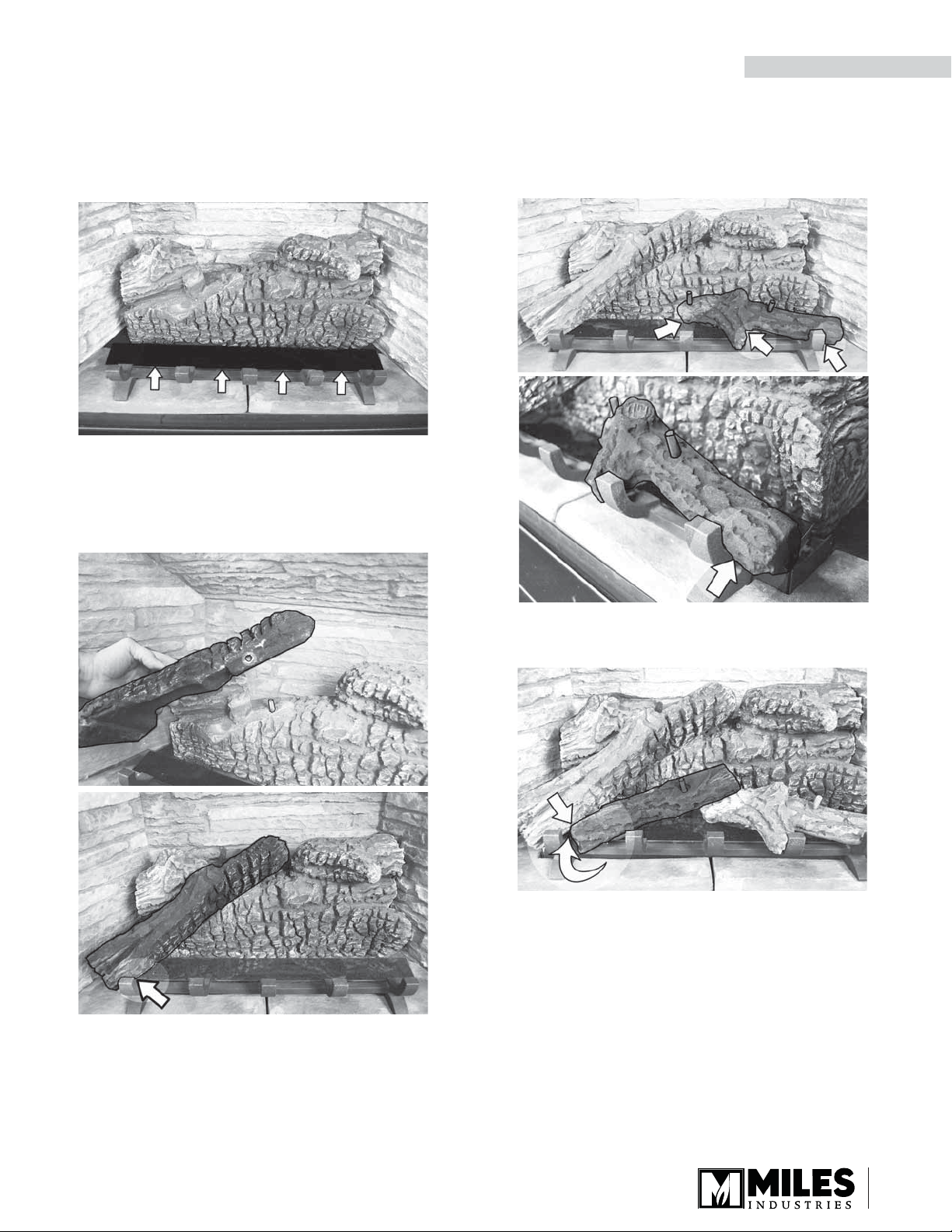

1. Center the rear log in the firebox. Bring the log
forward to rest against the sheet metal tabs behind
the burner.
18
INSTALLATION

Ceramic Logs Installation
2. Place the black glass piece on top of the burner and
move it forward to rest in the grooved recess of the
grate and center it. The glass should not hang over
the space between the burner and the rear log.
3. Identify the left log and place it over the peg on top
of the rear log as shown. The lower end rests on the
glass and should be rotated forward against the cast
grate allowing flames to come up behind the left log.
4. Place the right front log with its left end flat on the
glass. The notch in the log should place squarely on
the second-to-right peg on the grate. The right end
of the log sits against the grate’s peg.
5. Place the front left log locating it on the left peg of
the right front log. Rotate the left end towards the
left log until they touch.
19
INSTALLATION

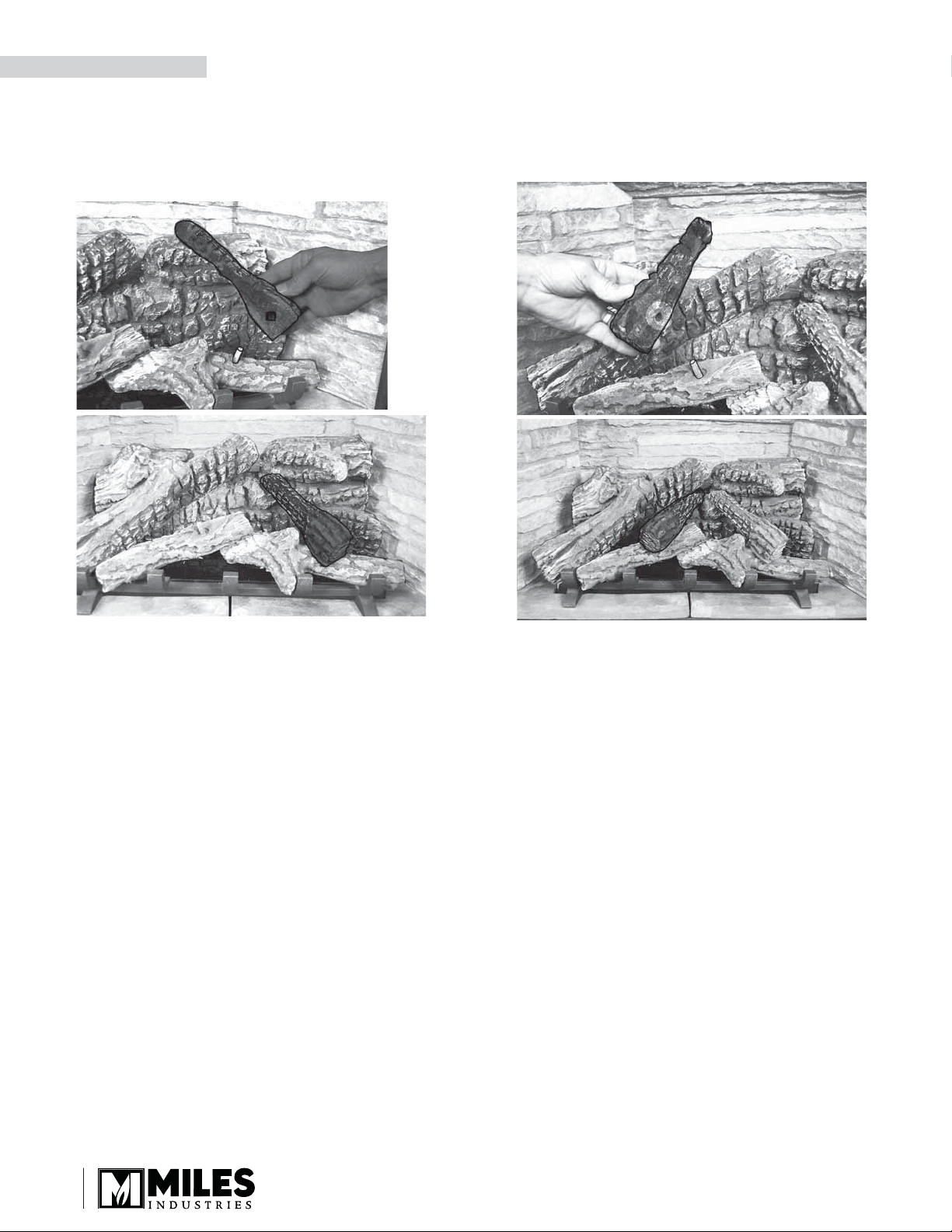

6. Identify the top right log. It is the longest of the two
remaining logs. Place its wider end on the front right
log’s peg and rest its narrow end in the notch on the
rear log.
7. Place the top left log’s wider end on the peg of the
front left log and rest its narrow end in the notch on
the rear log.
Ceramic Logs Installation
20
INSTALLATION
