Valor British Gas BG C-2 User manual

600B743/03
OWNER’S GUIDE
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20)
WHEN CONVERTED USING CONVERSION KIT NO.0591149 THIS
APPLIANCE IS FOR USE WITH PROPANE GAS (G31)
THIS APPLIANCE IS FOR USE IN THE UNITED KINGDOM (GB) AND
THE REPUBLIC OF IRELAND (IE) ONLY.
This guide is intended to help you care for your BG C-2 gas fire. Please read
thoroughly before using and keep for future reference
For Service Phone [phone]
Manufactured exclusively for British Gas & Scottish Gas by
Valor Heating, Wood Lane, Erdington, Birmingham B24 9QP
This guide to be left with the owner
© Valor Heating
Model BG C-2
(GC No. 32-032-37)
INSET LIVE FUEL
EFFECT GAS FIRE
(Manufacturer ref. BR658VA)

OWNER’S GUIDE
Page 2
LIST OF CONTENTS
SAFETY ..............................................................................................................................3
APPLIANCE DIMENSIONS............................................................................................5
OPERATING YOUR FIRE ..............................................................................................6
The Oxysafe flame sensing & flue blockage safety system. ...........................................6
To light the fire.................................................................................................................6
To turn the fire off............................................................................................................7
Lighting with a taper ........................................................................................................7
CLEANING ........................................................................................................................8
Metal Parts........................................................................................................................8
Ceramic Coals and Rear Wall ..........................................................................................8
Ceramic burner.................................................................................................................9
FUEL BED REFITTING ............................................................................................... 10
MAINTENANCE ............................................................................................................ 12
Battery replacement....................................................................................................... 12
Regular maintenance ..................................................................................................... 12
Servicing........................................................................................................................ 12
Owner Replaceable Parts .............................................................................................. 12
This gas fire is designed to meet the most stringent quality, performance and safety
requirements to provide you with many years’ trouble-free service.
This guide aims to improve your understanding and appreciation of your BG C-2 gas fire
by providing simple and informative instructions to ensure that you benefit from the
excellent performance and features it has to offer.

OWNER’S GUIDE
Page 3
SAFETY
IF YOU SMELL GAS
DON’T SMOKE
EXTINGUISH ALL NAKED FLAMES
DON’T TURN ELECTRICAL SWITCHES ON OR OFF
TURN OFF THE GAS SUPPLY AT THE METER
OPEN DOORS AND WINDOWS TO GET RID OF THE GAS
IMMEDIATELY CALL THE GAS EMERGENCY SERVICE - SEE YOUR
LOCAL TELEPHONE DIRECTORY
Do have the fire installed by a competent person. In the United Kingdom, installation
must be in accordance with the latest edition of the Gas Safety (installation & use)
Regulations. In the Republic of Ireland, installation must be in accordance with all
national and local regulations in force.
Do have the chimney swept prior to installation if it was previously used for solid fuel.
Do have the fire installed in accordance with the installation instructions.
Do provide a minimum clearance as shown in graph 1 above the hearth to any shelf made
of wood or other combustible material. Please bear this in mind if you are making any
alterations to the room.
Graph 1 Combustible shelf clearances

OWNER’S GUIDE
Page 4
Do provide a suitable guard which complies with BS 6539 or 6778 for the protection of
young children, the elderly and the infirm. Such a guard is also recommended for the
protection of pet animals. (Although this fire conforms to all the applicable standards, it
is a heating appliance and certain parts of its surface will become hot.).
Do wait three minutes before attempting to relight if the fire is switched off or the flames
are extinguished for any reason. (Your fire is fitted with a safety device which will
automatically shut off the gas supply to the fire if, for any reason, the flames go out.).
Do get advice about the suitability of any wall covering near your fire. Soft wall
coverings (e.g. embossed vinyl, etc.) which have a raised pattern are easily affected by
heat. They may, therefore, scorch or become discoloured when close to a heating
appliance. Please bear this in mind whenever you are considering redecorating.
Do provide a minimum side clearance as detailed in figure 1. Please bear this in mind if
ever you are considering altering the room.
Don’t hang clothing, towels or any other fabrics over the fire.
Don’t add any extra coals above the number stated in this guide. This could cause a
safety hazard.
Don’t put paper or any other material on the fire.
Don’t place any combustible material (rugs, carpet, plastic tiles, etc.) on the hearth.
Don’t attempt to clean or service the fire until it has been switched off and allowed to
cool completely.

OWNER’S GUIDE
Page 5
Figure 1 Dimensions & Clearances
APPLIANCE DIMENSIONS

OWNER’S GUIDE
Page 6
Figure 2. The Control
OPERATING YOUR FIRE
PLEASE NOTE
When operating your fire for the first time, some vapours may be given off which may
cause a slight odour and could possibly set off any smoke alarms in the immediate
vicinity. These vapours are quite normal with new appliances. They are totally harmless
and will disappear after a few hours use.
The Oxysafe flame sensing & flue blockage safety system.
For your safety, this appliance is fitted with a flue blockage safety device which will shut
down the appliance in the event of abnormal flue conditions. This device is NOT a
substitute for an independently mounted Carbon Monoxide detector.
The device will also automatically shut off the gas supply to the fire if the pilot flame
goes out due to lack of oxygen or for any other reason.
If this device starts to repeatedly shut off the gas, get expert advice.
This device incorporates a probe which senses that the heat from the pilot flame is
correct. If this probe is cool, the device will prevent any gas flow unless the control knob
is held in at the ignition position.
If, for any reason, the flames go out when the fire is hot or if the fire is turned off when
hot, always wait at least three minutes before attempting to relight.
To light the fire
The slide control is shown in figure 2.
1. Slide the control button to the bottom (ignition)
position marked .
In this position, the electronic ignition system
should cause a series of sparks which should light
the pilot. Within four seconds of the pilot igniting,
the main burner should light at its minimum
setting.
If no sparks are produced to light the pilot, the
battery may need replacing. Details of battery
replacement are given further on in this manual.
Until you can obtain a replacement battery the fire can be lit with a taper as described
later in the instructions.
2. Keep the button at the ignition position for a further ten seconds. This will prevent the
flame-sensing device from shutting off the gas while its probe warms up as explained
above.

OWNER’S GUIDE
Page 7

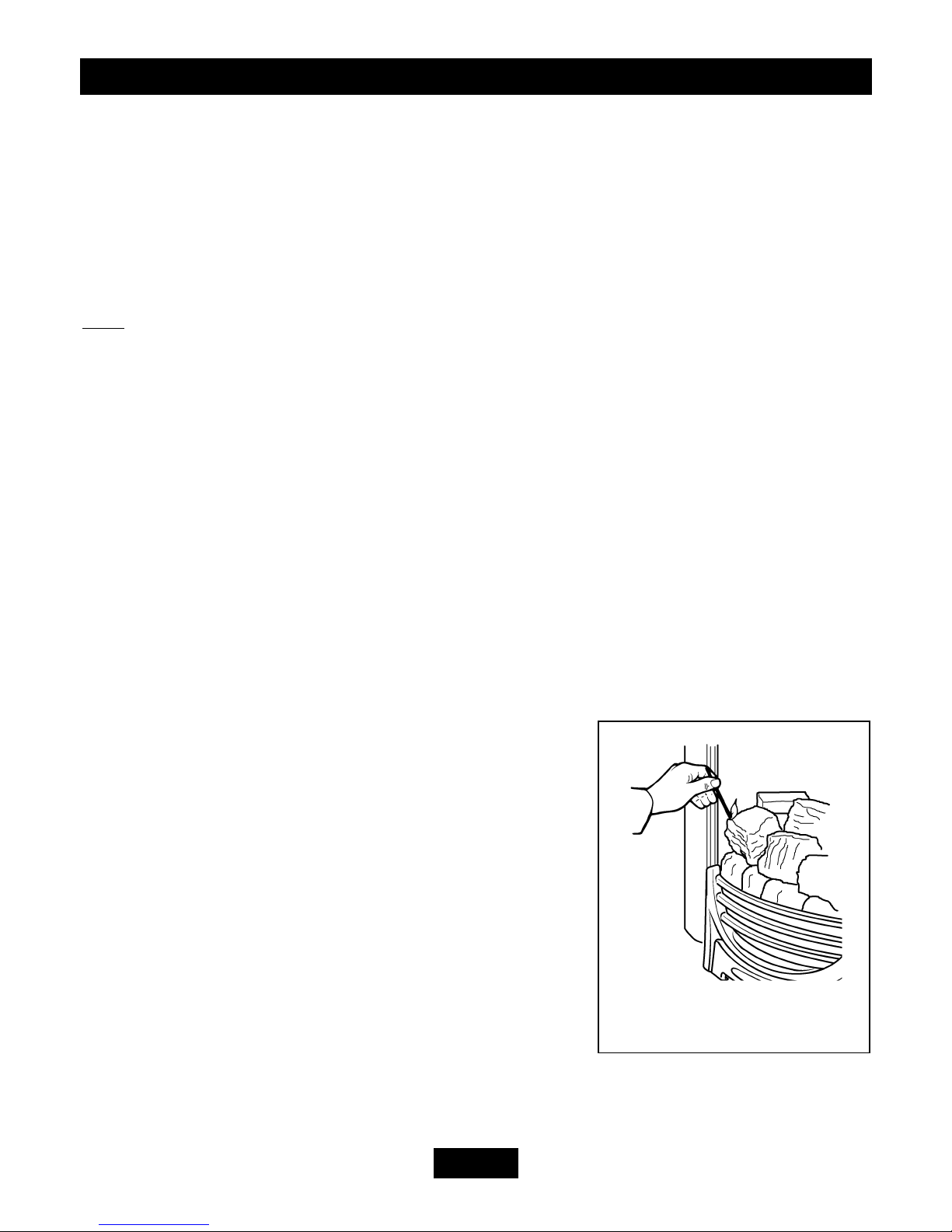

Figure 3. Lighting with a
taper
3. If low heat is required, release the button. The button will automatically spring up to the
low heat position shown in figure 2 (See note i).
4. For a higher heat level slide the button upwards. The burner flames and heat output
will gradually increase until the button reaches the high heat position shown in figure 2.
When the button reaches the high heat position you will feel a check to its movement. Do
not slide the button above the high heat position unless you want to turn the fire off
(See note i).
Note i) If the flames go out while setting the control, repeat the full lighting procedure.
If the flames repeatedly go out have the fire serviced.
ii) Please note. When first turned on the flames will appear predominantly blue.
The coals will take time to warm up. Although some glow will be seen after
approximately ten minutes, the full visual effect will only be apparent after a
somewhat longer time.
iii) The appliance will operate to its maximum potential if the flue is primed during
the first 20 – 30 minutes of operation. To do this, simply slide the control
button to its highest setting. This will also burn off any carbon deposits that
may have formed during previous operations.
iv) If operating the appliance for long periods it is beneficial occasionally to
change the settings. This will also help to remove any carbon deposits that may
form during operation.
To turn the fire off
Slide the button up past the high heat position to the “O” position.
Both the main burner and the pilot should go out.
While cooling, the coals may make some crackling
noises. This is quite normal.
Lighting with a taper
See figure 3.
In the unlikely event of failure of the ignition spark, the
pilot can be lit by a taper or long spill. Insert the taper or
spill alongside of the left side wall of the firebox and
operate the slide control as described above.

OWNER’S GUIDE
Page 8
CLEANING
To maintain the high performance and quality finish of your fire please follow these
guidelines:
•Before attempting to clean the fire, please remember to turn off the fire and wait for
the appliance to cool. The fire will retain heat for some time before cleaning can begin.
•If any pieces of debris are found in the firebox, have the chimney inspected before
further use.
Metal Parts
•Clean the metal parts with a slightly damp cloth and then dry.
•Do not use abrasive cleaners as these will scratch the fire surface.
Ceramic Coals and Rear Wall
•This product uses fuel effect pieces, burner compartment rear wall and gaskets
containing Refractory Ceramic Fibres (RCF), which are man-made vitreous silicate
fibres. Excessive exposure to these materials may cause irritation to eyes, skin and
respiratory tract. Consequently, it is important to take care when handling these articles
to ensure that the release of dust is kept to a minimum. To ensure that the release of
fibres from these RCF articles is kept to a minimum, during installation and servicing
we recommend that you use a HEPA filtered vacuum to remove any dust and soot
accumulated in and around the fire before and after working on the fire. When replacing
these articles we recommend that the replaced items are not broken up, but are sealed
within a heavy duty polythene bag, clearly labelled as RCF waste. This is not classified
as “hazardous waste” and may be disposed of at a tipping site licensed for the disposal
of industrial waste. Protective clothing is not required when handling these articles, but
we recommend you follow the normal hygiene rules of not smoking, eating or drinking
in the work area and always wash your hands before eating or drinking.
•Light coatings of soot will usually be burnt off during the normal operation of the fire.
•Should any soot accumulation become excessive, the fuel effect pieces and rear wall
should be removed from the fire for cleaning.
•Cleaning should be carried out in a well ventilated area or in the open air by gently
brushing with the pieces held away from your face so that you avoid inhaling the dust.
This appliance does not contain any component manufactured from asbestos or asbestos
related products.
•We suggest that you remove the coals in the reverse order to that shown in the fuel
bed refitting instructions.

OWNER’S GUIDE
Page 9
Ceramic burner
Remove any deposits of soot or other foreign matter from the solid areas of the burner
with a dry soft brush. Be careful not to brush any particles into the open slots. Remove
any particles from the slots with a vacuum cleaner fitted with a soft brush attachment. Do
not poke wire, etc. into the slots in the burner.

OWNER’S GUIDE
Page 10

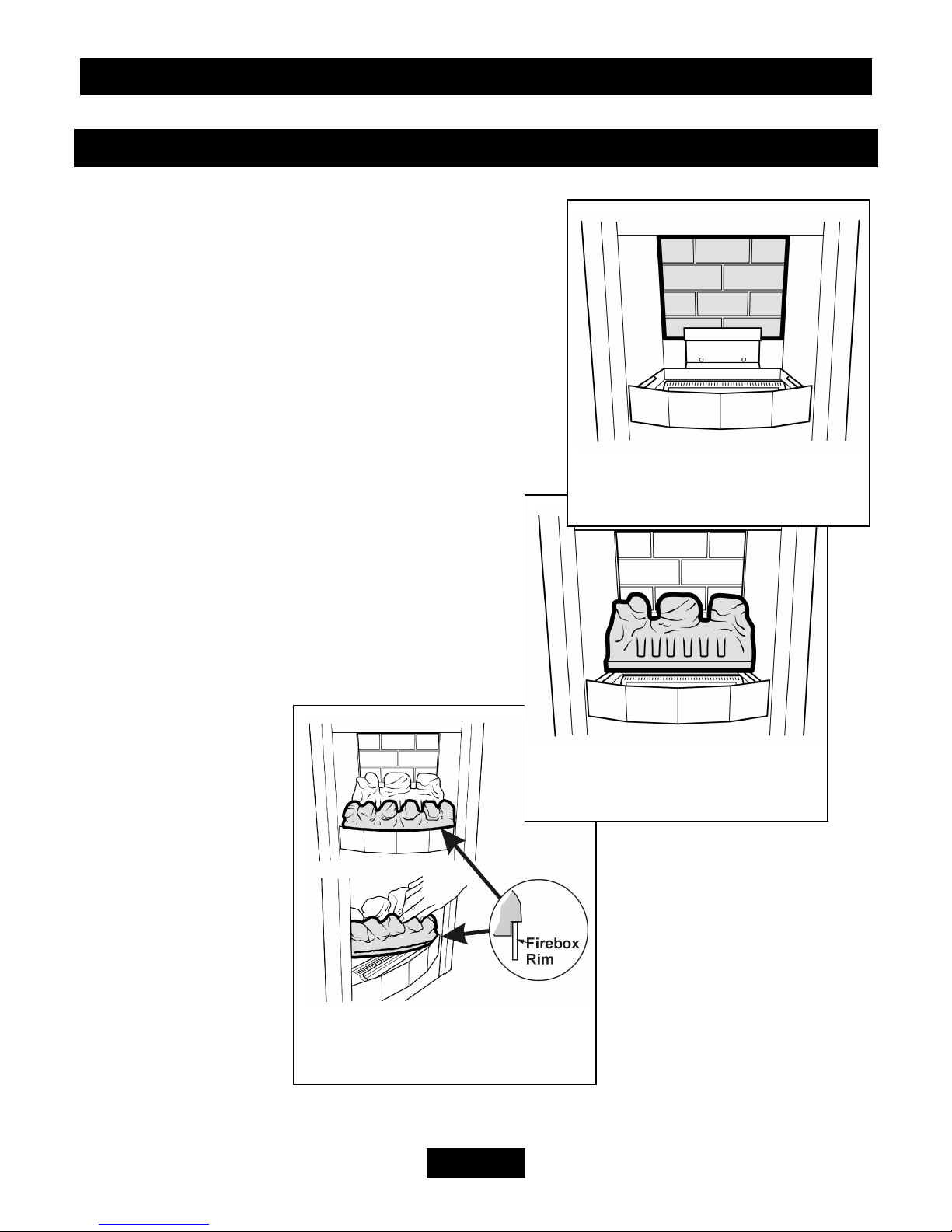

Figure 6. Front Base Coal
position.
Figure 5. Rear Base Coal
position
Figure 4. Ceramic Rear Wall
Position.
FUEL BED REFITTING
1. Fit the ceramic rear wall into the bracket at the
back of the firebox .See figure 4.
2. Place the rear base coal in the firebox. It should
rest on the ledges at the sides and back of the firebox
and its rear face should touch the rear ceramic wall.
See figure 5.
3. Place the front base coal in the firebox with its
bottom front locating over the front rim of the
firebox. Pull the coal forward so that it locates
immediately behind the front rim of the firebox.
See figure 6.

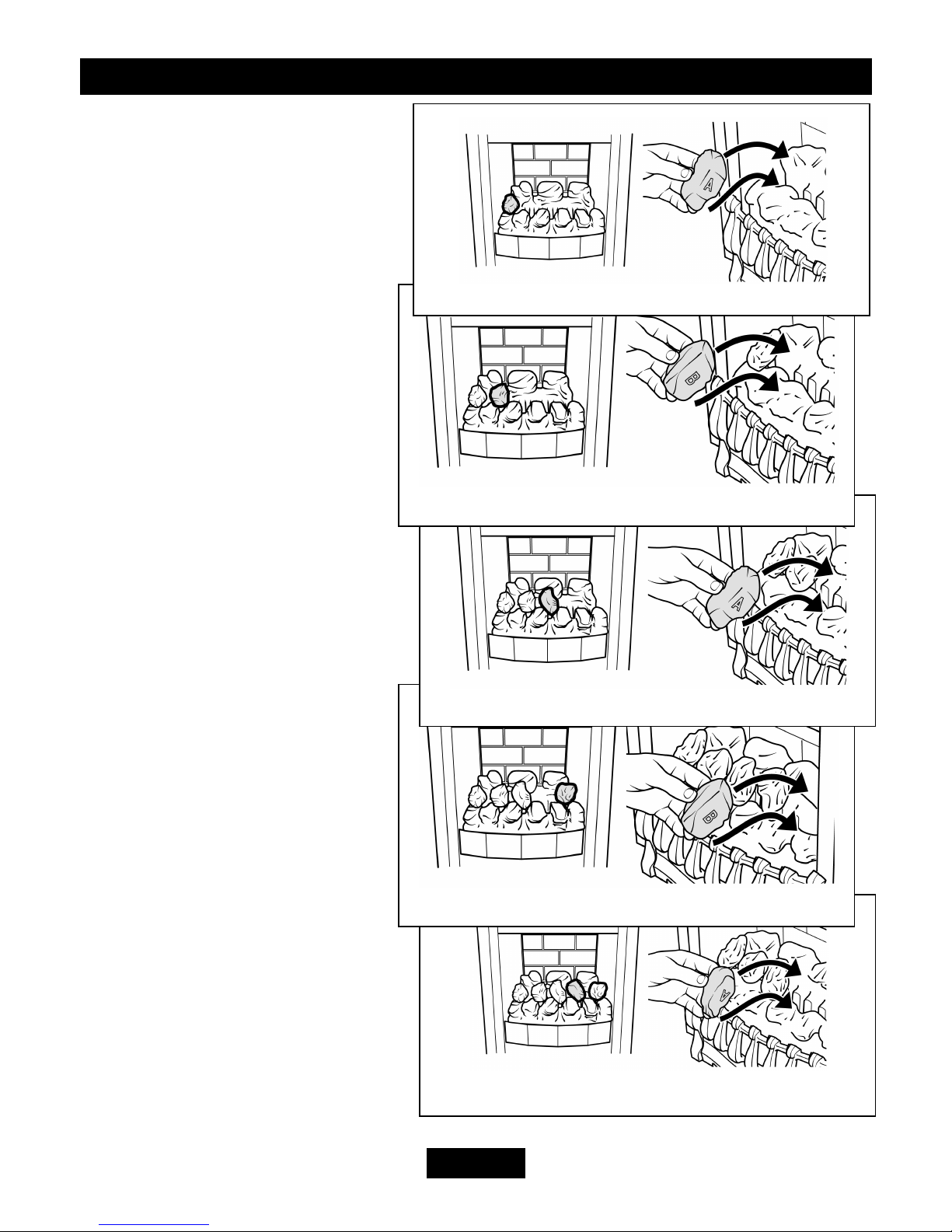

4. There are two types of loose coals. These are
identified with the letter “A” or “B” on the
underside of the coal.
There are three “A” coals and two “B” coals.

OWNER’S GUIDE
Page 11
Figure 11
Figure 10
Figure 9
Figure 8
Figure 7
5. Place a type “A” coal between
the front and rear base coals with
the letter “A” upright and so that
the coal is against the left side of
the firebox. See figure 7.
6. Place a type “B” coal between
the front and rear base coals as
shown in figure 8. The letter “B”
should be upright.
7. Place a type “A” coal between
the front and rear base coals with
the letter “A” upright. The top of
the coal should rest against the
centre coal of the rear base coal as
shown in figure 9.
8. Place the remaining type “B”
coal at the right side of the firebox
between the front and rear base
coals. The letter “B” should be
upright. The coal should touch the
right side of the firebox. See
figure 10.
9. Place the remaining type “A”
coal between the front and rear
base coals. The letter “A” should
be upside down with its rear face
between the right and centre coals
of the rear base coal. Angle the coal
so that the gap between it and the
type “B” coal to its right is
appreciably larger than the gap
between it and the type “A” coal to
its left but do not have it touching
the type “A” coal. This will give the
best flame effect. See figure 11.

OWNER’S GUIDE
Page 12
Figure 12. Battery Fitting
MAINTENANCE
Battery replacement
This appliance requires one 9V PP3 Ever Ready
Silver Seal (or equivalent) battery.
To replace the battery remove the bottom front
casting.
Fit the new battery firmly to the connections on
the ignition block. See figure 12.
Regular maintenance
In order to achieve and maintain high levels of
personal safety and performance efficiency, it is
essential that the opening at the back of the fire and the flue are kept clear of any form of
obstruction. It is possible that deposits of mortar or soot could fall and accumulate
causing the flue to be blocked or restricted and so preventing proper clearance of
dangerous exhaust fumes.
In the United Kingdom it is the law that a landlord must have any gas appliance, flue and
pipework which is situated in a tenant’s premises checked for safety at least every twelve
months by a competent person (In the U.K, a CORGI registered installer).
We recommend that all gas appliances and their flues, wherever situated, are checked
annually by British Gas or Scottish Gas.
Servicing
•If you require your fire to be serviced, please contact British Gas or Scottish Gas.
Telephone [phone] and please quote the following details which can be found on a
label tied below the burner and behind the bottom hearth casting:
a) - Model and GC number.
b) - Appliance serial number.
The following owner replaceable parts are available.
Please quote the part number when ordering.
Owner Replaceable Parts
Description Part No
Ceramic rear wall 0579339
Front base coal 0579119
Rear base coal 0579129
Pack of 5 loose coals 0579149
•When fitting replacement parts, follow the instructions contained in this guide. It
is important that only approved parts are used for maximum safety.
