Valor Ultimate 717 User manual

5108620/02
OWNER GUIDE
This guide is intended to help you care for your Valor gas fire. Please read thoroughly
before using and keep for future reference
This guide to be left with the owner
© Valor Heating
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20)
WHEN CONVERTED USING CONVERSION KIT NO. 0595221 THIS
APPLIANCE IS FOR USE WITH PROPANE GAS (G31)
THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED
KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE).
We trust that these instructions give sufficient details to enable this appliance to be
installed and maintained satisfactorily. However, if further information is required, our
Valor Technical Helpline will be pleased to help.
Telephone [phone] (National call rates apply in the United Kingdom)
Ultimate
Model 717
(GC No. 32-032-52)
INSET LIVE FUEL EFFECT GAS FIRE

the nation’s favourite for
PLUMBING & HEATING SUPPLIES
SECURE PAYMENTS
shop online with confidence
FREE SHIPPING
on all orders over £100 to mainland UK
FINANCE AVAILABLE
spread the cost with low interest rates
PRICE MATCH
always get the best deals available
Boilers
Radiators
Heating controls

Cylinders
Fires
Renewable energy
Bathroom suites
Kitchen sinks & taps
Showers
Wet rooms
Towel warmers
Bathroom furniture
& much more
HUGE REDUCTIONS
we have
ON THOUSANDS OF ITEMS
0844 800 3460
CALL US ON
visit our website
plumbnation.co.uk

Safety First.
Valor fires are CE Approved and designed to meet the appropriate British Standards and
Safety Marks.
Quality and Excellence.
At the heart of every Valor fire.
All Valor fires are manufactured to the highest standards of quality and excellence and
are manufactured under a BS EN ISO 9001 quality system accepted by the British
Standards Institute.
The Highest Standards
Valor is a member of the Society of British Gas Industries which works to ensure high
standards of safety, quality and performance.
Careful Installation
Valor is a CORGI registered company. All our gas fires must be
installed by a competent CORGI Registered Installer in accordance
with our Installer Guide and should not be fitted directly on to a
carpet or floor of combustible material.
Valor Heating, Erdington, Birmingham B24 9QP
www.valor.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from those
given in this publication
Page 2
OWNER GUIDE

LIST OF CONTENTS
Section Page
SAFETY 4
APPLIANCE DIMENSIONS 6
GAS CONSUMPTION 6
OPERATING YOUR FIRE 7
Lighting the pilot 7
Lighting the Main Burner 8
Lighting with a taper 8
Selecting the Heat Setting 8
CLEANING 9
Burner 9
Ceramic fuel effect and Rear Wall 9
Metal Parts 9
FUEL BED REFITTING 10
MAINTENANCE 12
Regular maintenance 12
Servicing 12
USEFUL TELEPHONE NUMBERS 13
This gas fire is designed to meet the most stringent quality, performance and safety
requirements to provide you with many years’ trouble-free service.
This guide aims to improve your understanding and appreciation of your gas fire by
providing simple and informative instructions to ensure that you benefit from the
excellent performance and features it has to offer.
Page 3
OWNER GUIDE

SAFETY
Do
have the fire installed by a competent person. In the United Kingdom, installation
must be in accordance with the latest edition of the Gas Safety (installation & use)
Regulations. In the Republic of Ireland, installation must be in accordance with all
national and local regulations in force.
Do
have the chimney swept prior to installation if it was previously used for solid fuel.
Do have the fire installed in accordance with the installation instructions
Do
provide a minimum clearance of 750mm from the top surface of the hearth to any
shelf made of wood or other combustible material where the shelf is not more than
150mm deep. For a shelf deeper than 150mm, add 12.5mm to the clearance for every
25mm of additional shelf depth.(See graph1)
Page 4
OWNER GUIDE
IF YOU SMELL GAS
DON’T SMOKE
EXTINGUISH ALL NAKED FLAMES
DON’T TURN ELECTRICAL SWITCHES ON OR OFF
TURN OFF THE GAS SUPPLY AT THE METER
OPEN DOORS AND WINDOWS TO GET RID OF THE GAS
IMMEDIATELY CALL THE GAS EMERGENCY SERVICE – SEE YOUR LOCAL TELEPHONE
DIRECTORY

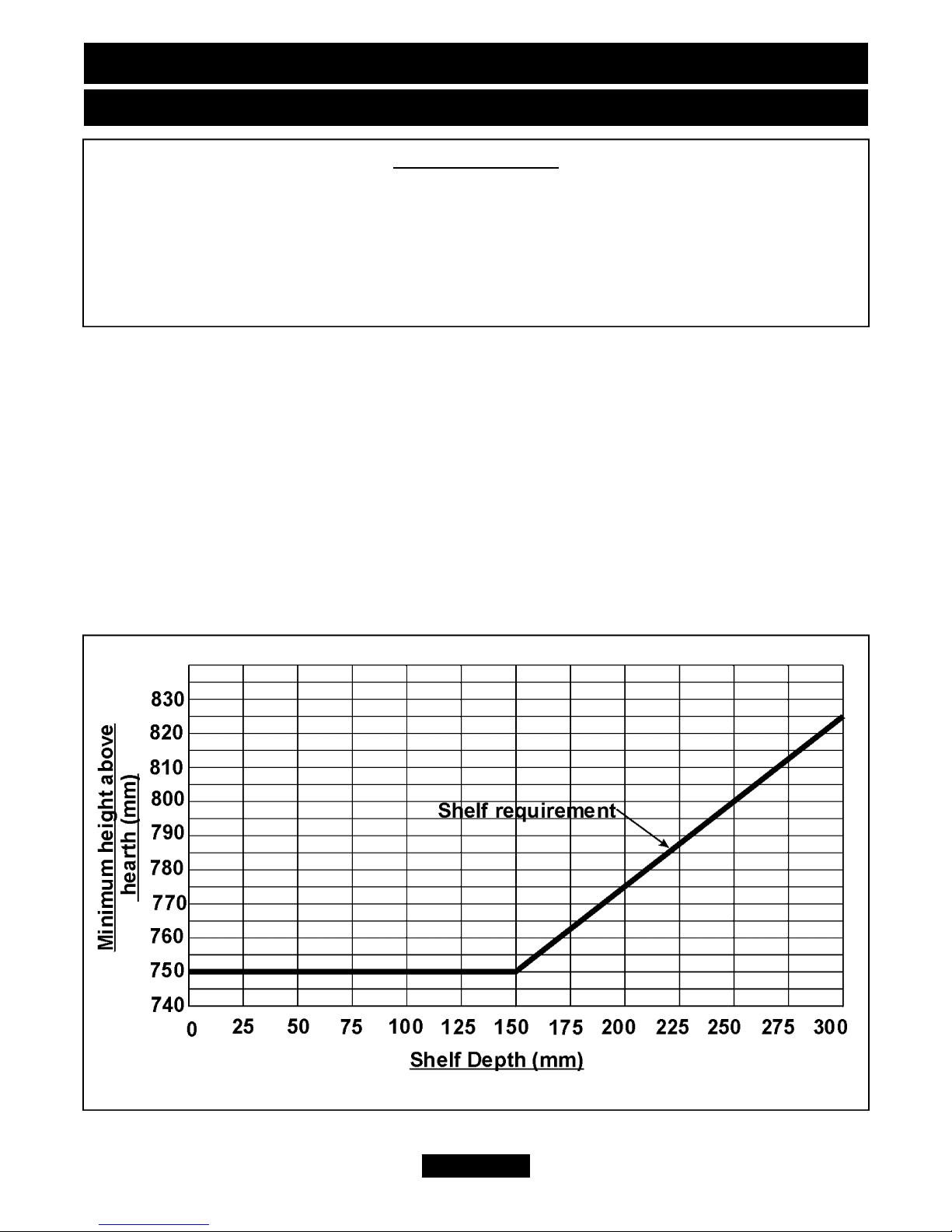

Graph 1. Combustible shelf clearances

Do always use a fireguard complying with BS 8423 for the protection of young
children, the elderly or infirm.
Do wait three minutes before attempting to relight if the fire is switched off or the
flames are extinguished for any reason.(Your fire is fitted with a safety device that will
automatically shut off the gas supply to the fire, if for any reason , the flame goes out)
Do get advice about the suitability of any wall covering near your fire. Soft wall
coverings (e.g. embossed vinyl, etc.) which have a raised pattern are easily affected by
heat. They may, therefore, scorch or become discoloured when close to a heating
appliance. Please bear this in mind whenever you are considering redecorating.
Do
provide a minimum side clearance as detailed in figure 1. Please bear this in mind if
ever you are altering the room.
Don’t hang clothing, towels or any other fabrics over the fire.
Don’t
put more loose coals on the fire than the number given in this guide or use any
coals other than those authorised for this fire. Incorrect combustion could result.
Don’t put paper or other materials onto your fire.
Don’t use the fire with damaged base ceramics.
Don’t place any combustible material (rugs, carpet, plastic tiles, etc.) on the hearth
Don’t
attempt to clean or service the fire until it has been switched off and allowed to
cool completely.
Page 5
OWNER GUIDE

APPLIANCE DIMENSIONS
GAS CONSUMPTION
Model 717
Has a maximum natural gas input of 6.0kW (Gross)
Has a maximum natural gas output of 3.5kW
Has a minimum natural gas input of 2.3kW (Gross)
Has a minimum natural gas output of 1.15kW
Model 717 when converted using kit number 0595221
Has a maximum propane gas input of 6.1kW (Gross)
Has a maximum propane gas output of 3.6kW
Has a minimum propane gas input of 3.8kW (Gross)
Has a minimum propane gas output of 1.9kW
Page 6
OWNER GUIDE

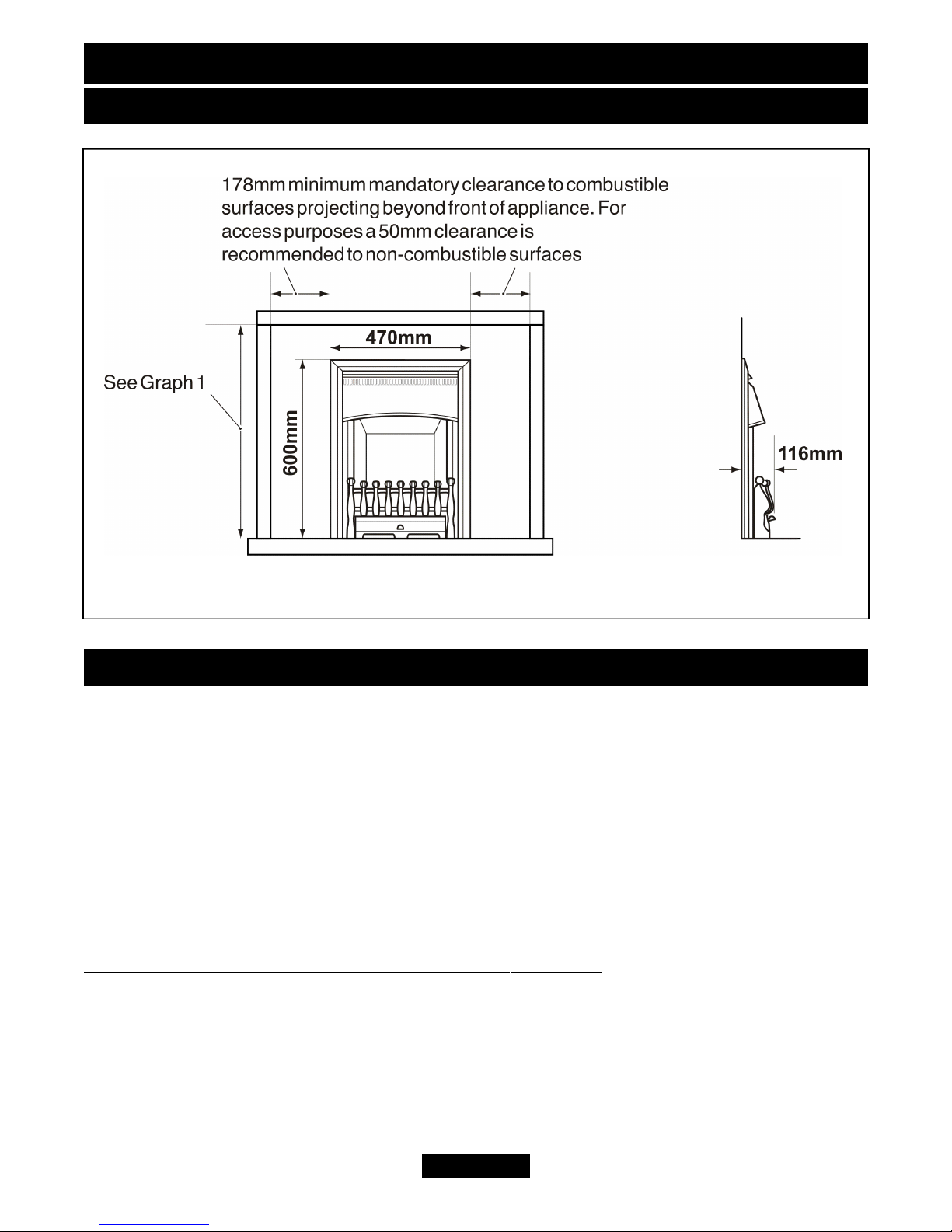

Figure 1. Appliance dimensions

OPERATING YOUR FIRE
The Oxysafe flame sensing & flue blockage safety system.
For your safety, this appliance is fitted with a flue blockage safety device which will
shut down the appliance in the event of abnormal flue conditions.
This device is NOT a
substitute for an independently mounted Carbon Monoxide detector.
The device will also automatically shut off the gas supply to the fire if the pilot flame
goes out due to lack of oxygen or for any other reason.
If this device starts to repeatedly shut off the gas, get expert advice.
This device incorporates a probe which senses that the heat from the pilot flame is
correct. If this probe is cool, the device will prevent any gas flow unless the control
knob is kept depressed at the “Pilot/Ign” position.
If, for any reason, the flames go out when the fire is hot or if the fire is turned off when
hot, always wait at least three minutes before attempting to relight.
Lighting the pilot
This fire is controlled by a 4-position gas tap mounted on the front leg of the appliance.
In addition to the “Off” position there is a pilot light and 2 heat control settings. See
figure 2.
! Depress the control knob and turn anticlockwise
towards the “Pilot/Ign” position. A spark should be
generated at the pilot while turning. The spark should
ignite the pilot. The pilot flame can be seen through the
lower left hand opening in the front of the fuel effect
bed.
! Keep the button depressed at the “Pilot/Ign” position
for a further ten seconds. This will prevent the flame-
sensing device from shutting off the gas while its probe
warms up.
! If the pilot does not ignite instantly, repeat procedure.
If after 10 seconds pilot ignition has not occurred,
turn the control knob back to the “Off” position, wait
for 3 minutes and then repeat the ignition procedure.
Page 7
OWNER GUIDE
PLEASE NOTE
When operating your fire for the first time, some vapours may be given off which may
cause a slight odour and could possibly set off any smoke alarms in the immediate
vicinity. These vapours are quite normal with new appliances. They are totally harmless
and will disappear after a few hours use.
Figure 2.

Lighting the Main Burner
! Once the pilot light is established, the main burner can be lit by depressing and
turning the control knob anticlockwise to the “High” position.
Selecting the Heat Setting
!
In order to change from one setting to another depress the control knob slightly and
turn the knob to the required position. Any setting from “Low” to “High” may be
selected.
Note: The appliance will operate to its maximum potential if the flue is primed during
the first 20-30 minutes of operation. To do this, simply operate the appliance at its
“High” setting. This will also burn off any carbon deposits that may have formed
during previous operations. If operating the appliance for long periods it is beneficial to
change between settings. This will help to remove any carbon deposits that may form
during operation.
Turning the fire back to Pilot Setting
! Depress the control knob and turn clockwise until the pilot setting is reached.
Turning the Appliance Off
! Make sure that the control knob is in the pilot position. Depress the control knob
and turn clockwise to the “Off” position.
! Wait at least three minutes before relighting.
Lighting with a taper
See figure 3.
In the unlikely event of failure of the ignition
spark, the pilot can be lit by a taper or long spill.
Insert the taper or spill through the lower left
hand opening in the front of the fuel effect bed.
! Follow the section ‘ Lighting the pilot’ as
described previously.
Page 8
OWNER GUIDE

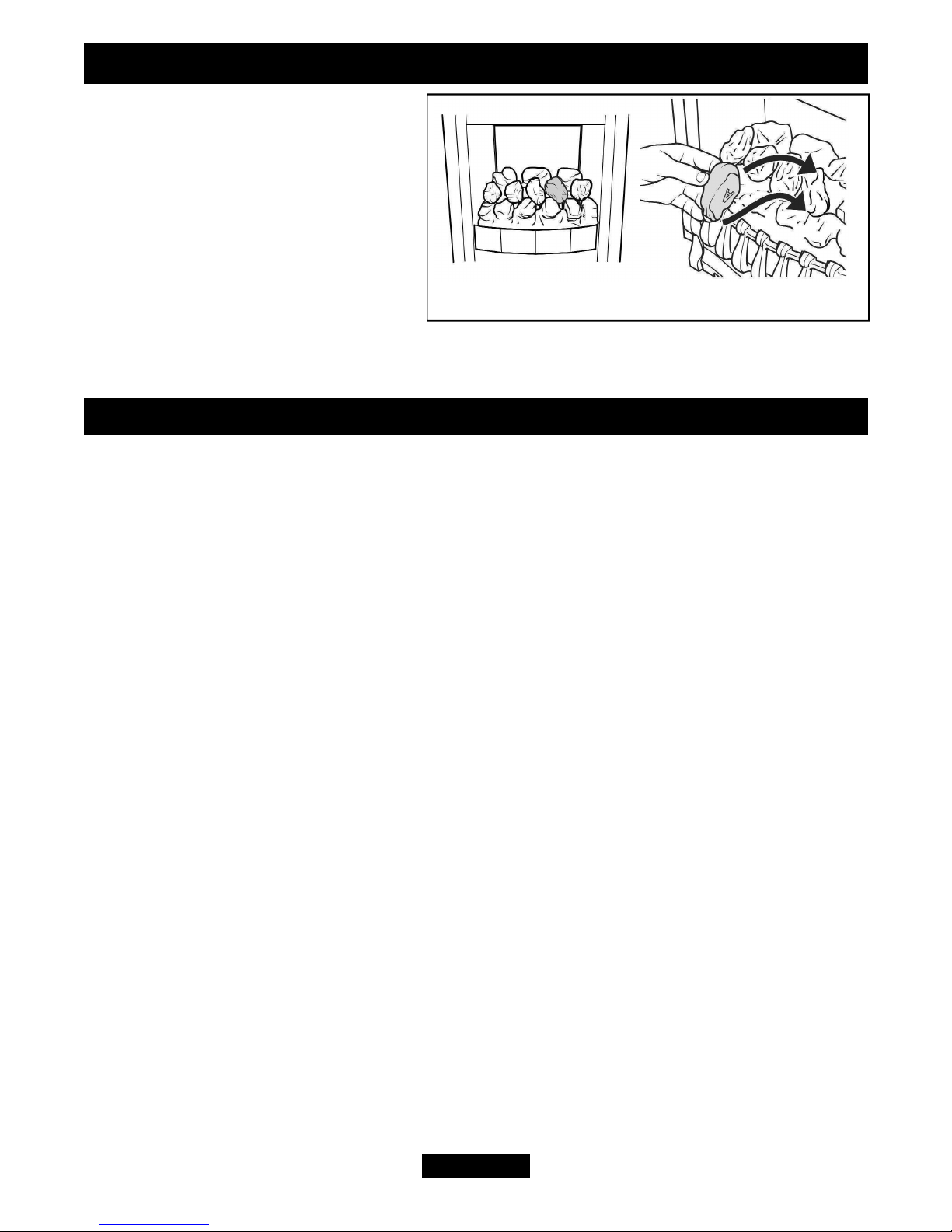

Figure 3. Lighting with a taper

CLEANING
To maintain the high performance and quality finish of your Valor appliance, please
follow these guidelines:
!
Before attempting to clean the fire, please remember to turn off the fire and wait for
the appliance to cool. The fire will retain heat for some time before cleaning can begin.
!
If any pieces of debris are found in the firebox, have the chimney inspected before
further use.
Metal Parts
! Clean the metal parts with a slightly damp cloth and then dry.
! Do not use abrasive cleaners as these will scratch the fire surface.
Ceramic fuel effect and Rear Wall
! This product uses fuel effect pieces and burner compartment rear wall
containing Refractory Ceramic Fibres (RCF), which are man-made vitreous
silicate fibres. Excessive exposure to this material may cause irritation to eyes, skin
and respiratory tract. Consequently, it is important to take care when handling
these articles to ensure that the release of dust is kept to a minimum.
!
Light coatings of soot will usually be burnt off during the normal operation of the
fire.
! Should any soot accumulation become excessive, the fuel effect pieces and walls
should be removed from the fire for cleaning.
!
Cleaning should be carried out in a well ventilated area or in the open air by gently
brushing with the pieces held away from your face so that you avoid inhaling the
dust.
!
We suggest that you remove the coals in the reverse order to that shown in the fuel
bed refitting instructions.
Burner
! The burner surface can be carefully cleaned to remove any loose particles after
taking off the coals. Make sure that no particles are pushed into the burner holes.
Page 9
OWNER GUIDE

FUEL BED REFITTING
1.
Place the rear base coal in the firebox. It should rest on the ledges at the rear sides of
the burner unit. When located gently
move the rear base coal so that it is as far
forward as possible. The amount of
movement will be negligible (See figure
4).
2. Place the front base coal in the firebox
with its bottom front locating over the
front rim of the firebox. Pull the coal
forward so that it locates immediately
behind the front rim of the firebox. (See
figure 5).The front base coal will touch
the rear base coal as it is located.
Page 10
OWNER GUIDE
Figure 5. Front base coal position
Figure 4. Rear Base Coal Position

There are two types of loose coals.
These are identified with the letter
“A” or “B” on the underside of the
coal.
There are three “A” coals and two
“B” coals.
3. Place a type “A” coal between
the front and rear base coals with
the letter “A” upright and so that the
coal is against the left side of the
firebox. See figure 6.
4. Place a type “B” coal between the
front and rear base coals as shown in
figure 7. The letter “B” should be
upright.
5. Place a type “A” coal between
the front and rear base coals with
the letter “A” upright. The top of
the coal should rest against the
centre coal of the rear base coal as
shown in figure 8.
6. Place the remaining type “B” coal
at the right side of the firebox
between the front and rear base coals.
The letter “B” should be upright. The
coal should touch the right side of the
firebox. See figure 9.
Page 11
OWNER GUIDE
Figure 9.
Figure 8.
Figure 7.
Figure 6.

7. Place the remaining type “A” coal
between the front and rear base coals.
The letter “A” should be upside down
with its rear face between the right
and centre coals of the rear base coal.
Angle the coal so that the gap
between it and the type “B” coal to its
right is appreciably larger than the
gap between it and the type “A” coal
to its left but do not have it touching the type “A” coal. This will give the best flame
effect. See figure 10.
MAINTENANCE
Regular maintenance
In order to achieve and maintain high levels of personal safety and performance
efficiency, it is essential that the opening at the back of the fire and the flue are kept
clear of any form of obstruction. It is possible that deposits of mortar or soot could fall
and accumulate causing the flue to be blocked or restricted and so preventing proper
clearance of dangerous exhaust fumes.
In the United Kingdom it is the law that a landlord must have any gas appliance, flue
and pipework which is situated in a tenant’s premises checked for safety at least every
twelve months by a competent person (In the U.K, a CORGI registered installer).
We recommend that all gas appliances and their flues, wherever situated, are checked
annually.
Servicing
! In the United Kingdom servicing can be carried out either by a Valor service
engineer or a CORGI registered installer.
! If you require your fire to be serviced, please contact Valor Service on
08706 090
081 and quote the following details;
Model name and number.
Appliance serial no. (To be found on the plate close to the control knob.)
! If you wish to replace any of the owner replaceable parts listed below,
spare parts
are available nationwide via the ‘interpart stockist network’. For your local
stockist consult Yellow pages under Central Heating.
When ordering please quote the part number shown below.
Page 12
OWNER GUIDE
Figure 10.

Owner Replaceable Parts
Description Part No
Ceramic rear wall 0579399
Coal model
Front coal 5108541
Rear base coal 5108542
Pack of loose coals 0582839
!
When fitting replacement parts, follow the instructions contained in this guide.
It is important that only Valor approved parts are used for maximum safety.
! In the United Kingdom, for general advice about gas and your gas fire call our
Technical Helpline 08706 061 065.
! In the Republic of Ireland call 0044 08706 061 065 for all enquiries.
USEFUL TELEPHONE NUMBERS
General advice about gas and your gas fire:
VALOR TECHNICAL HELPLINE 08706 061 065.
To report faults or arrange for your fire to be serviced:
VALOR SERVICE 08706 090 081.
For sales or product information:
VALOR SALES 08706 061 067.
For spares inquiries
Spare parts are available nationwide via the ‘interpart stockist network’. For your
local stockist consult Yellow pages under ‘Central Heating’.
CALLERS IN THE REPUBLIC OF IRELAND
Call 0044 08706 061 064
Page 13
OWNER GUIDE
