Valor Wonderfire BR417 User manual

600B207/02
MODEL BR417
(G.C.32-032-07)
Inset Live Fuel Effect
Gas Fire
with
Ultimate
or
Superflame
Front
OWNER GUIDE
ThisOwner Guideis intended to help youcare for yourValor gas fire.
Please readcarefully before using your gasfire andkeep for future reference.
This Owner Guide givessufficient details to enable your gasfire to be operated and maintained.
IMPORTANT.
Please keep your Owner Guide in a safe place together with the Installer
Guide.

2
Thank you for choosing Valor.
All Valor gas fires are designedto meet the most stringent quality, performance and safety requirements to provideour customers with many years’
trouble-freeservice.
Your owner guide aims to improve your understanding and appreciation of your Valor gas fire by providing simple and informative instructions to
ensure that you benefit from the excellent performance and features it has to offer.
Ifyourequirefurtherassistanceor any adviceabout gasingeneral,theValor AdviceLine will be pleased to help.
Please telephone[phone] (local call rates apply in the United Kingdom).
FOR OTHER USEFUL TELEPHONE NUMBERS SEE INSIDE BACK COVER.
Page
Safety…………………………………………………………………………………… 3
Major Dimensions…………………………………………………………………….. 4
Gas Consumption………………………………………………………..…….……… 4
Operating the Fire……………………………………………………….……………. 5
Cleaning……………………………………………………………………………….. 6
Fuel Bed Refitting………………………………………………………….…….……. 7
Maintenance…………………………………………………………………………… 8
Useful Telephone Numbers……………………………………………… Inside back cover
As supplied, this appliance is for use with natural gas (G20)
When converted using Valor conversion kit no. 591149 this
appliance is for use with propane gas (G31)
This appliance is for use in the United Kingdom (GB) and the
Republic of Ireland (IE) only.
CONTENTS
CUSTOMER CARE

3
SAFETY
IF YOU SMELL GAS
DON’T SMOKE
EXTINGUISH ALL NAKED FLAMES
DON’T TURN ELECTRICAL SWITCHES ON OR OFF
TURN OFF THE GAS SUPPLY AT THE METER
OPEN DOORS AND WINDOWS TO GET RID OF THE GAS
IMMEDIATELY CALL THE GAS EMERGENCY SERVICE - SEE YOUR LOCAL TELEPHONE DIRECTORY
1. As with any gas appliance, this fire must be installed
by a competent person. In the United Kingdom,
installation must be in accordance with the latest
edition of the Gas Safety (installation & use)
Regulations.
In the Republic of Ireland, installation must be in
accordance with all national and local regulations
in force.
2. If the fire is intended to be installed to a chimney
which was previously used for solid fuel, please
note that the chimney must be swept prior to
installation.
3. On no account must the fire stand on carpets or
other combustible materials. The fire must stand
behind a non-combustible hearth surface. The
hearth material must be at least 12mm thick. Its top
surface should be 50mm above floor level to
discourage placing carpets. Rugs or other
combustible materials over the hearth. The
minimum size of the hearth is shown in figure 1.
4. If the fire is intended to be installed against a wall
with combustible cladding, the cladding must be
removed from the area covered by the outer
surround (see figure 1).
5. The minimum height from the top surface of the
hearth to the underside of any shelf made from
wood or other combustible material and which is
not more than 150mm deep is 750mm. (This will
give a clearance of 150mm above the top edge of the
outer surround).
for shelves deeper than 150mm add 12.5mm to the
above clearance for every 25mm of additional shelf
depth.
6. Never put any paper or other material on the fire.
Never add any extra coals above the number stated
in these instructions. This could cause a safety
hazard.
7. It should be appreciated that although this
appliance conforms to all the applicable standards,
it is a decorative fuel effect heating appliance and
certain parts of its surface will become hot. A
suitable guard that complies with BS 6539 or 6778
should be used for the protection of young
children, the elderly and the infirm. Such a guard is
also recommended for the protection of pet
animals.
8. Always switch the fire off and allow to cool before
handling. Note that this appliance retains heat for
some time after it has been switched off.
9. Never hang clothing, towels or any other fabrics
over the fire.
10. This appliance is fitted with a device that will
automatically shut off the supply of gas to the fire
if, for any reason, the pilot goes out. If this device
does operate or if the fire is turned off accidentally
or intentionally, always wait three minutes before
attempting to relight.
11. Soft wall coverings (e.g. embossed vinyl etc.) are
easily affected by heat. They may, therefore, scorch
or become discoloured when close to a heating
appliance. Please bear this in mind when having a
heating appliance installed and when redecorating.
Please note
When operating your fire for the first time, some vapours may be
given off which may cause a slight odour and could possibly set off
any smoke alarms in the immediate vicinity. These vapours are
quite normal with new appliances. They are totally harmless and
will disappear after a few hours use.
This fire is supplied with ceramic “coals” to simulate a real coal
fire. These items are safe to handle and are designed for easy
refitting if removed.
After some use, the ceramic walls and coals may change colour.
This is quite normal.

4
Please observe the caution statements on the previous page.
GAS CONSUMPTION
Natural gas appliances have a maximum gas input at the high
setting of 6.0kW (Gross) and a minimum gas input at the low
setting of 2.2kW (Gross).
Propane gas appliances have a maximum gas input at the high
setting of 6.1kW (Gross) and a minimum gas input at the low
setting of 3.6 kW (Gross).
To calculate the running cost of this fire, multiply the gas
consumption (gas input) by the cost of gas which you will find on
your gas bill.
GAS XCOST =RUNNING
CONSUMPTION OF GAS COST
(HEAT INPUT)
Natural gas appliances have a heat output of 3.5kW at the high
setting and 1.1kW at the low setting.
Propane gas appliances have a heat output of 3.6kW at the high
setting and 1.8kW at the low setting.

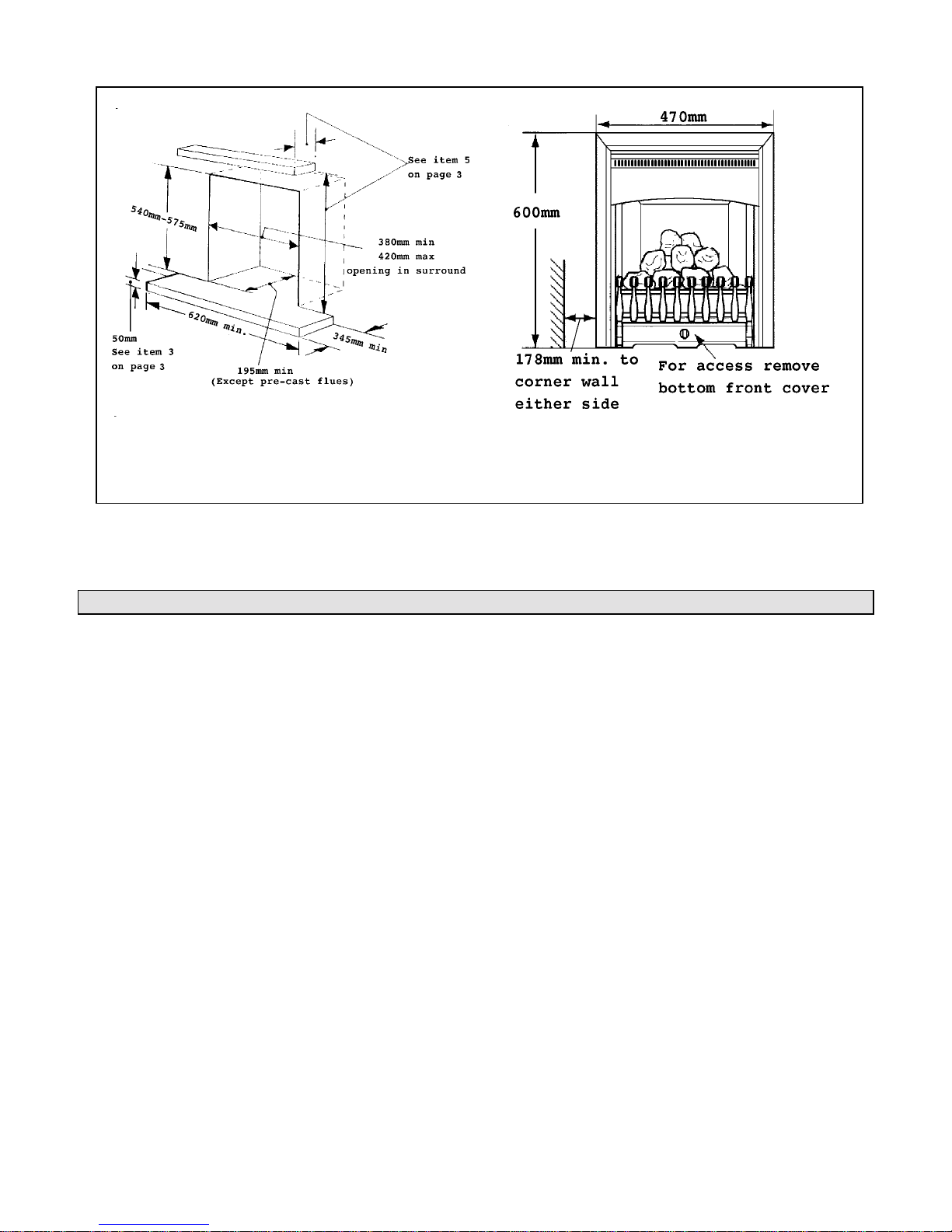

Fig.1 Hearth dimensions & clearances

5
Fig.2 Control knob
Fig.3 Lighting with a taper
OPERATING THE FIRE
The flame sensing & flue blockage safety system.
For your safety, this appliance is fitted with a flue blockage safety
device that will shut down the appliance in the event of abnormal
flue conditions. This device is NOT a substitute for an
independently mounted Carbon Monoxide detector.
The device will also automatically shut off the gas supply to the fire
if the pilot flame goes out due to lack of oxygen or for any other
reason.
If the device starts to shut off the gas frequently, get expert advice.
The system incorporates a probe that senses that the heat from the
pilot flame is correct. If this probe is cool, the device will prevent
any gas flow unless the control knob is kept depressed at the
PILOT/IGN position.
If, for any reason, the flames go out when the fire is hot or if the
fire is turned off when hot, always wait at least three minutes before
attempting to relight.
To light the fire
To get access to the control knob, remove the bottom front cover
(Figure 1).
Depress the control knob and turn anticlockwise towards the
PILOT/IGN position (Figure 2). A spark should be generated at
the pilot while turning. The spark should ignite the pilot. The pilot
flame can be seen below round coal at the front left side.
Keep the button at the PILOT/IGN position for a further ten
seconds. This will prevent the flame sensing device from shutting
off the gas while its probe warms up as explained previously.
When the pilot is alight and stable, partially depress the knob and
turn to “LOW”. The pilot should then light the main burner at its
low setting. There may be a delay of up to four seconds between
the pilot lighting and ignition of the gas at the main burner. This is
normal and is due to the time required to fill the main burner
compartment with sufficient gas forignition.
When the burner is main burner is alight at its low setting, partially
depress the knob and gradually turn it anti-clockwise until the
burner is at your desired level. The burner flames will gradually
increase until the knob reaches the “HIGH” position.
To turn off
To turn the main burner off but leave the pilot alight, partially
depress the knob and turn to PILOT/IGN.
To turn the fire fully off, partially depress the knob and turn to
OFF.
While cooling, the coals may make some crackling noises. This is
quite normal.
Lighting with a taper (see figure 3)
In the unlikely event of failure of the ignition spark, the pilot can
be lit by a taper or long spill. Insert the taper or spill alongside of
the left side wall of the fire box, Depress the control knob, turn it
to PILOT/IGN
The appliance will operate to its maximum potential if the flue is
primed during the first 20 – 30 minutes of operation. To do this,
simply turn the control knob to its highest setting. This will also
burn off any carbon deposits that may have formed during
previous operations.
If operating the appliance for long periods it is beneficial to
occasionally change settings. This will also help to remove any
carbon deposits that may form during operation.

6
CLEANING
Turn the fire off and allow it to cool before attempting any
cleaning. Note that the fire will retain heat for some time after it
has been turned off.
If large pieces of debris are found anywhere in the fireplace, have the
chimney inspected beforefurther use.
Metal parts
Clean the metal parts with a slightly damp cloth and then dry. Do
not use abrasive cleaners, they could scratch the surface.
Coals
Light coatings of soot will usually be burnt off during the normal
operation of the fire. If, however, deposits of soot or particles of
sand, mortar, etc. from the chimney accumulate to 3mm (1/8in) or
more, these should be removed from the coals by dismantling
them and cleaning with a soft brush. We suggest that you remove
the coals in the reverse order to that shown in the fuel bed refitting
instructions. Cleaning with a vacuum cleaner is not recommended because
it may damage the coals.
Ceramic fire box walls
Clean with a dry soft brush. Cleaning with a vacuum cleaner is not
recommended because it may damage the coals.
Ceramic burner
Remove any deposits of soot orotherforeign matter from the solid
areas of the burner with a dry soft brush. Be careful not to brush
any particles into the open slots. Remove any particles from the
slotswith avacuumcleaner fitted with a soft brush attachment. Do
not poke wire, etc. into the slots in the burner.

7

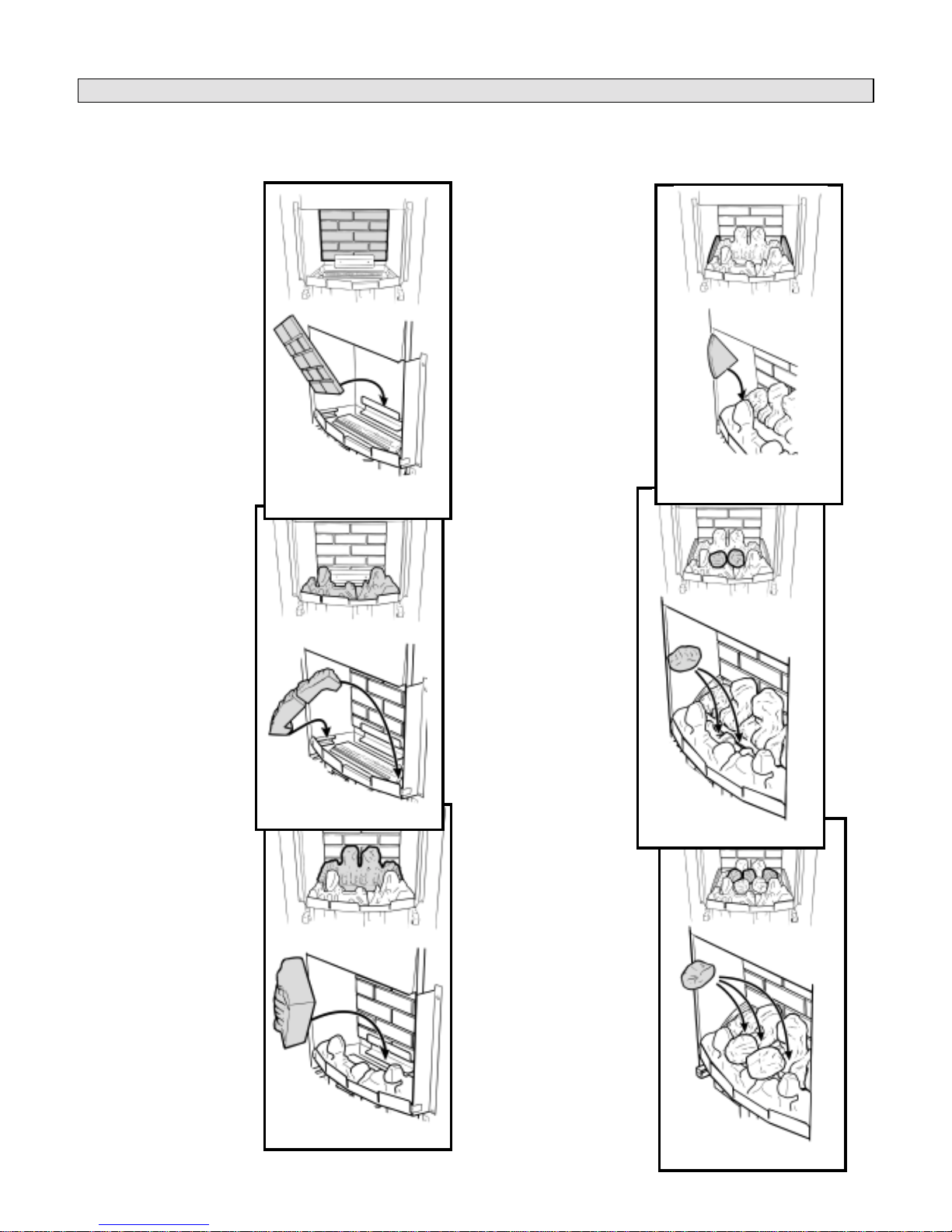

FUEL BED REFITTING
If the fuel bedcomponents are dislodged or removed, they must be refitted as follows:
Only the fuel bed parts supplied with this appliance or authorised Valor replacements must be used. Never add extra coals above the number stated in
these instructions.
1. With its feather edge at
the top, place the ceramic
rear wall into the channel
at the back of the fire box.
Push the wall flat against
the rear of the fire box.
(See figure 4).
2. Place the two halves
of the front base coal in
the burner compartment
so that they rest on the
ledges at the sides and
front. Pull the coals
forward so that they are
immediately behind the
front rim of the burner
compartment (See fig. 5).
3. Place the rear base
coal in the burner
compartment behind the
front coal. Its rear face
should touch the rear
ceramic wall (See figure 6).
4. The ceramic side walls
are marked at the rear
bottom corners “L” (Left
side) & “R” (Right side).
Place the side walls against
the sides of the fire box
and in the recesses at the
sides of the base coals.
The markings “L” & “R”
should be at the back
bottom corners and facing
to the centre of the back
of the firebox (See figure
7).
5. Install the 5 loose
coals as follows. The
smooth surfaces of the
coals should be at the
bottom and back.
5.1 Select the two
largest coals. Place
them in the central
two valleys of the front
coal (See figure 8).
5.2 Place the three
remaining coals behind
and approximately midway
between each of the coals
in the front row (See
figure 9).
Fig 9 Middle row of coals
Fig. 8 Front row inner coals
Fig. 6 Rear base coal installation
Fig. 5 Front coal installation
Fig. 4 Ceramic rear wall
installation
Fig. 7 Ceramic side walls
installation

8
MAINTENANCE
Debris from the chimney
The opening at the back of the appliance must be always kept clear
of obstruction. If the chimney has previously been used for coal
fires or is of normal construction it is possible that loose mortar
and soot can fall behind the appliance. This, in time, may build up
until the flue becomes restricted or even blocked. The chimney
should be checked annually to ensure continued clearance of the
combustion products and to ensure that no excessive build up of
soot or other debris occurs. The appliance should be serviced
regularly in order to ensure good mechanical operation.
It is important that this workis carriedout by a competent person
such as a CORGI registered installer.
General servicing
If you require any attention to your fire, contact your supplier
mentioning the model number. It will also be helpful if the
appliance serial number is quoted. This will be found on a tied
label next to the control knob. It is visible when the bottom front
cover is removed.
In the United Kingdom it is the law that a landlord must have any
gas appliance and pipework which is situated in a tenant’s premises
checked forsafety at least every 12 months. We recommend that all
gas appliances, wherever situated, are checked annually by a
competent person (In the UK, a CORGI registered installer).
The ceramic fuel bed items are customer replaceable. When
ordering please quote the number shown below.
Description Part No
Rear wall 545999
Front base coal halves 569449
Rear base coal 569459
Pack of 5 top coals 569469
Right side wall 546039
Left side wall 546049
When fitting replacement parts, follow the instructions contained in
this guide. It is important that only Valor approved parts are used for
maximum safety.

9
a) Your Post Code.
b) Type of fire.
c) Model/Name.
d) Serial Number.
e) The fault, problem or request.
General advice about gas and your gas fire:
VALOR ADVICELINE 0345 626341.
To report faults or arrange for your fire to be serviced:
VALOR SERVICE 0121 386 6203.
To order spares or for sales information:
VALOR SALES 0121 386 6260.
CALLERS IN THE REPUBLIC OF IRELAND
Call 0044 121 373 8111
USEFUL TELEPHONE NUMBERS
To help us quickly help you, please try to have the
following information available before you contact us:

10
Safety First.
Valor fires are CE Approved and designed to meet the appropriate British
Standards and Safety Marks.
Quality and Excellence.
At the heart of every Valor fire.
All Valor fires aremanufactured to the highest standards of quality and
excellence and are manufacturedunder a BS EN ISO 9001 quality system
accepted by the British Standards Institute.
The Highest Standards
Valor is a member of the Society of British Gas Industries which works to
ensure high standards of safety, quality and performance.
Careful Installation
Valor is a Corgi registered company. All our gas fires must be
installed by a competent Corgi Registered Installer in accordance
with our Installer Guide and should not be fitted directly on to a
carpet or floor of combustible material.
Valor Heating, Erdington, Birmingham B24 9QP
Because our policy is one of constant development and improvement, details may vary slightly from those given
in this publication
© Valor Heating
