Valor Legend 736XN User manual

Legend
MODEL 736XN
FOR USE WITH NATURAL GAS
MODEL 736XP
FOR USE WITH PROPANE
INSTALLER’S & OWNER’S MANUAL
INSTALLER – PLEASE LEAVE THIS MANUAL WITH THE HOME OWNER
FOR YOUR SAFETY
Do not store or use gasoline or other flammable
liquids in the vicinity of this or any other appliance.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause injury
or property damage. Refer to this manual. For
assistance or additional information consult a
qualified installer, service agency or the gas
supplier.
Massachusetts: The gas piping and the final gas
connection must be performed by a licensed
plumber or gas fitter in the State of Massachusetts.
FOR YOUR SAFETY
WHAT TO DO IF YOU SMELL GAS
TOpen windows
TDo not try to light any appliance
TDo not touch any electrical switches
TDo not use any phone in your building
TExtinguish any open flame
TImmediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
TIf you cannot reach your gas supplier, call the
fire department.
Installation of this appliance in a bedroom is
prohibited in the State of Massachusetts.
Vous pourrez vous procurer un exemplaire en langue française de cette brochure chez votre concessionnaire.
600A992/04

2
CAUTION
WARNING: Do not operate the appliance with the
glass front removed, cracked or broken.
Replacement of the glass should be done by a
licensed or qualified service person.
(The front frame and glass window may be
temporarily removed by the owner for cleaning the
interior of the firebox, etc. The frame and window
must be put back prior to operating the appliance.)
i. Only the authorized Valor replacement window
unit listed in the repair parts booklet must be fitted -
never use substitutes.
If the glass is damaged search inside and adjacent
to the appliance for any glass fragments.
Due to high temperatures, the appliance should be
located out of traffic and away from furniture and
draperies.
Children and adults should be alerted to the hazards
of high surface temperatures and should stay away
to avoid burns or clothing ignition.
Young children should be carefully supervised when
they are in the same room as the appliance.
Clothing or other flammable material should not be
placed on or near the appliance.
This appliance must be installed and repaired by a
qualified service person. The appliance should be
inspected before use and at least annually by a
professional service person. More frequent cleaning
may be required due to excessive lint from
carpeting, bedding material, etc. It is imperative that
control compartments, burners and circulating air
passageways of the appliance are kept clean.This
appliance should be installed and repaired by a
qualified service person.
Keep curtains, clothing, furniture and other
flammable materials at least 36ins (90cm) from the
front and top of the appliance.
Keep the appliance area well clear and free from
combustible materials, gasoline and other
flammable vapors and liquids.
Never attempt to burn paper or any other material in
the appliance.
Keep the area in front of the bottom grill clear to
prevent obstruction of air flow to the appliance for
combustion.
This appliance requires a source of fresh air in order
to vent properly. The venting system should be
checked periodically.
Recent trends in home improvement and new tighter
construction techniques have contributed to
problems with venting. If you suspect that your
appliance is not venting correctly, do not operate –
seek expert advice.
Do not use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of
the control system and any gas control which has
been under water.
If any changes are made to the room construction in
the vicinity of the appliance after installation (e.g.
additional mantle etc.) make sure that the changes
conform to the installation requirements in this
manual.
When equipped with the optional circulating fan kit
(Part #710CFK) or power vent kit (Part #720PVC), the
appliance must be installed and electrically
grounded in accordance with local codes or, in the
absence of local codes, with the latest edition of the
National Electrical Code ANSI/NFPA 70 (in USA) or
CSA C22-1 Canadian Electrical Code.
This appliance must be properly connected to a
venting system. It is equipped with a vent safety
shutoff system. Operating when not connected to a
properly installed and maintained venting system or
tampering with the shutoff system can result in
carbon monoxide (CO) poisoning and possible
death.
NOTE
When operating your new furnace for the first time, some vapors may be released which may cause a slight odor and could possibly
set off any smoke detection alarms in the immediate vicinity. These vapors are quite normal on new appliances. They are totally
harmless and will disappear after a few hours use.

3
1. INSTALLATION INSTRUCTIONS
1.1 OPTIONAL ACCESSORIES
The following kits can be used with this appliance:
i. #700ZCK Zero Clearance Kit – Required for use
with a new zero clearance type installation (See
possible installations section following).
ii. #710CFK Circulating Fan Kit – Operated by a
variable speed controller. It is designed to boost the
natural convection process through the Legend. The
circulating fan may be installed before the Legend is
installed or retrofitted at a later date.
iii. #720PVC Power Vent Conversion Kit – Designed to
boost ventilation in environments where conventional
gravity ventilation may, at times, give a low pull. This
kit will be required for sidewall venting (See possible
installations section following). The power vent system
may be used in combination with either the #700ZCK
or #730FSK kits.
iv. #677FSK 4” Black Beveled Trim - Covers 251/2” high
x 391/2” wide.
v. #740 Beveled Brass Outer Trim – Optional brass trim
for use with #677FSK.
vi. #678FSK 21/2” Black Contoured Trim – Covers
231/2” high x 361/2” wide.
vii. #679FSK 21/2” Etched Champagne Contoured Trim
– Covers 231/2” high x 361/2” wide.
viii. #2945 Brass Closure Plate – Extends trim to cover
29” high x 45” wide.
1.2 POSSIBLE
INSTALLATIONS
This appliance can be
installed either:
i. As an insert in an
existing solid fuel
type fireplace with a
chimney and 4” dia.
liner – See figure 1.
The fireplace must be
built in accordance
with the national,
state, provincial or
territorial building
code recognized by
the authority having
jurisdiction, or, in the
absence of such a
code, in accordance
with the National
Building Code of
Canada or the National Fire Protection Association
Code in the USA. The size of the fireplace recess must
be sufficient to accommodate the fireplace case as
shown in figure 2.
The chimney must be swept and both chimney and
fireplace checked for soundness before installation of
the appliance.
The liner must be a type approved by the enforcing
authority and installed in accordance with the liner
manufacturer’s instructions.
Fig.1 Fireplace with liner
Fig. 2 Appliance dimensions & clearances to combustible materials

4
ii. As a zero clearance
installation fitted with the
optional part #700ZCK
kit, the appliance may be
installed into a minimum
sized enclosure
constructed of
combustible building
materials and connected
to an approved type “B”
vent. This kit (complete
with full installation
details) is available from
your dealer.
iii. With a sidewall vent. For
this application, the
appliance must be
converted to a power vent
system using the
#720PVC power vent
conversion kit. This
allows the appliance to
sidewall vent through any approved 4” dia. vent
to a remote fan/hood up to 75 feet from the
appliance.
All installations must conform with local codes or, in the
absence of local codes, with the National Fuel Gas Code ANSI
Z223.1 or the Canadian Installation Code CAN/CGA-149.
Only qualified licensed or trained personnel should install the
appliance.
This appliance is not intended for use with a thermostat.
1.3 HIGH ALTITUDE INSTALLATIONS
This appliance has been tested for installation at high altitude
to CAN/CGA 2.17-M91. This standard simulates operation up
to 4500ft.
Natural Gas appliances comply with this standard without
deration of normal rated input.
Propane appliances require a 10% deration over 2000ft.
In Canada, installations above 4500ft. will require approval
of the authority having jurisdiction.
In the USA, the National Fuel Utilization Code specifies that
appliances installed at over 2000ft. altitude shall be derated by
4% per 1000ft. altitude. However, these appliances have been
specifically field-tested for high altitude performance.
Therefore, deration of Natural Gas appliances is not necessary
or recommended for installations up to 7000ft. For Propane
appliances a total deration of 10% for all altitudes above
2000ft. and up to 7000ft. is required. Above 7000ft. derate
Natural gas appliances by 4% for each 1000ft. above 7000ft.
Derate Propane appliances by 4% for each 1000ft. above
7000ft. plus 10%.
1.4 SUPPLY GAS
Model 736XN is for use only with Natural Gas. The natural
gas supply pressure at the appliance inlet connection should be
not less than 5”w.c. and not more than 10.5”w.c.
Model 736XP is for use only with Propane Gas. The propane
supply pressure at the appliance inlet connection should be not
less than 11”w.c. and not more than 14”w.c.
The supply connection to all appliances is 3/8” NPT.
1.4.1 Gas Feed Line
The supply gas feed line should enter the appliance through
one of the openings in the appliance case. Openings are
provided at the back and right side. See figure 3.
See section 4 for gas supply connection details.
1.5 CLEARANCES TO COMBUSTIBLE
CONSTRUCTIONS
The minimum clearances from any combustible constructions
at the front of the appliance are shown in figure 2. These front
clearances apply to all installations – Whether in a solid fuel
fireplace, new zero clearance construction or free standing. If
it is intended to fit the appliance in a combustible recess, the
Zero Clearance Kit #700ZCK (available from your dealer)
must be used as shown in figure 4.

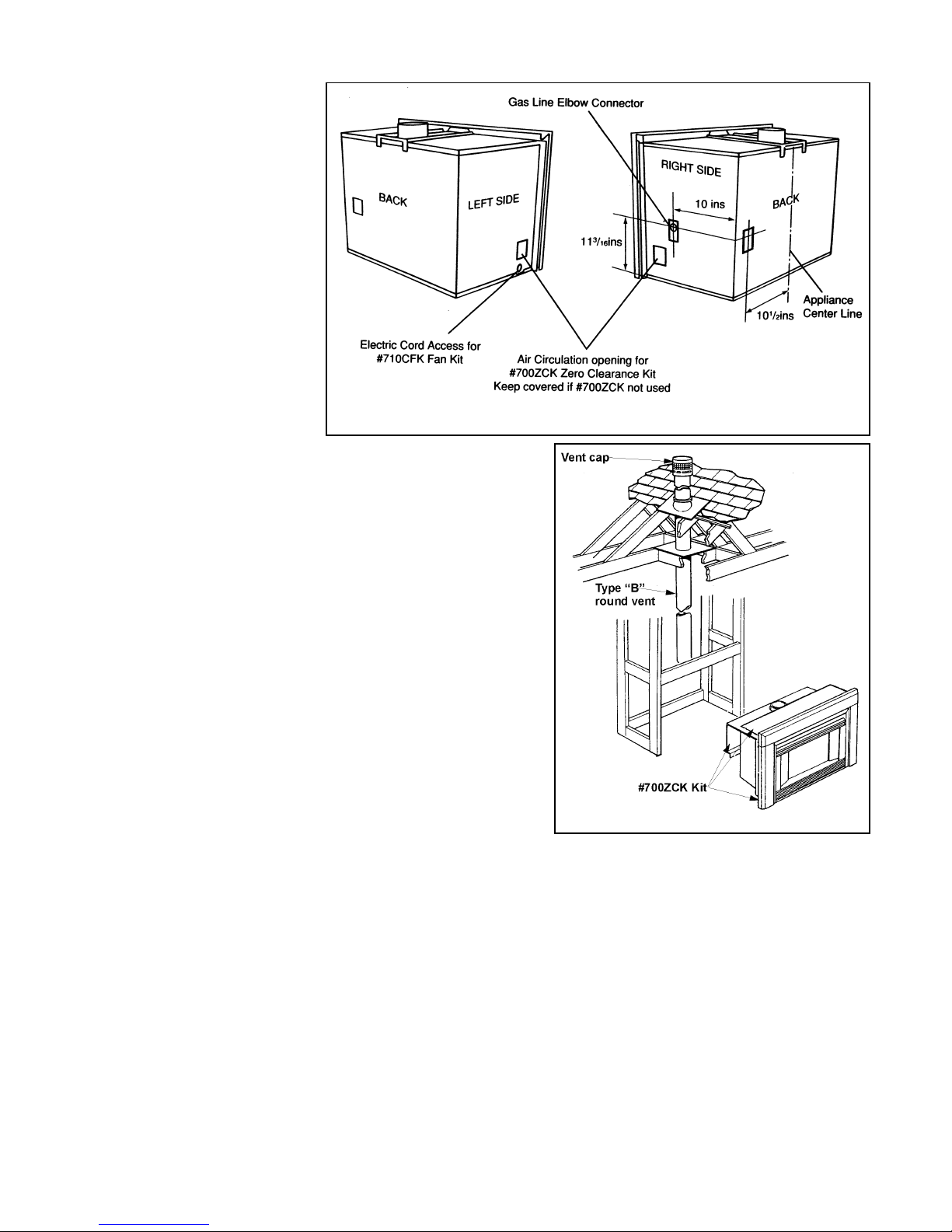

Figure 3 Openings in Case
Fig. 4 New Zero Clearance Installation

5
1.6 FLOOR
The floor in the fireplace recess must be sufficiently flat and
level to support the appliance satisfactorily. Some fireplace
constructions have a well in the floor at the back, which may
need to be filled in. Do not place the appliance on carpeting,
vinyl or other soft-surface floor coverings. Install only on hard
surfaced materials. We recommend that a hard surfaced hearth
area be maintained at least 12” in front of the fireplace for
both aesthetic and maintenance purposes. This may be
finished in brick, ceramic tile, marble etc. Raising the hearth
slightly will help to minimize dust and lint accumulation
under the unit.
If the appliance is installed directly on any combustible
material other than wood flooring, the appliance shall be
installed on a metal or wood panel extending the full width
and depth of the appliance.
1.7 PACK CONTENTS
The pack contains:
1 Appliance fitted with front unit.
4 Ceramic logs.
1 Pair of ceramic firebox side walls.
1 Ceramic firebox back wall.
1 Supply line elbow connector.
Take care when removing the contents from the packaging to
prevent damage.
Check that all the contents are in the pack and are undamaged.
2. INSTALLING IN AN EXISTING
FIREPLACE
2.1 PRE-INSTALLATION PREPARATION
2.1.1 Closing Large Fireplace Openings
This appliance is suitable for fireplace openings from 21” to
251/4” high and 311/4” to 39” wide. For infilling larger
fireplace openings the fireplace opening may be reduced or
the outer surround plate extended provided non-combustible
materials are used.
2.1.2 Remove Inner Front Unit
Unhook the inner front unit and lift clear (see figure 5). Put
the unit in a safe place.
2.1.3 Remove Window and Logs
See figure 6.
1. Detach the window unit by removing the two knurled
screws situated at the bottom corners of the unit.
2. Lift the window unit up and forwards to unhook the
top. Put the window in a safe place.
3. Take the ceramic logs out of the firebox and store in
a safe place.
2.1.4 Remove the Front Frame
Detach the front frame by unscrewing two screws each side.
The lower screws are accessible when the bottom grill is
opened. See figure 7.
2.1.5 Remove the Vent Connection Unit
Detach the vent connection unit from the top of the appliance
case by removing the screw at the front and lifting the unit
clear. See figure 8.
Fig. 5 Inner Front Unit Removal
Fig. 6 Window Removal
Figure 7. Front Unit Removal
Figure 8. Vent Connector Removal

6

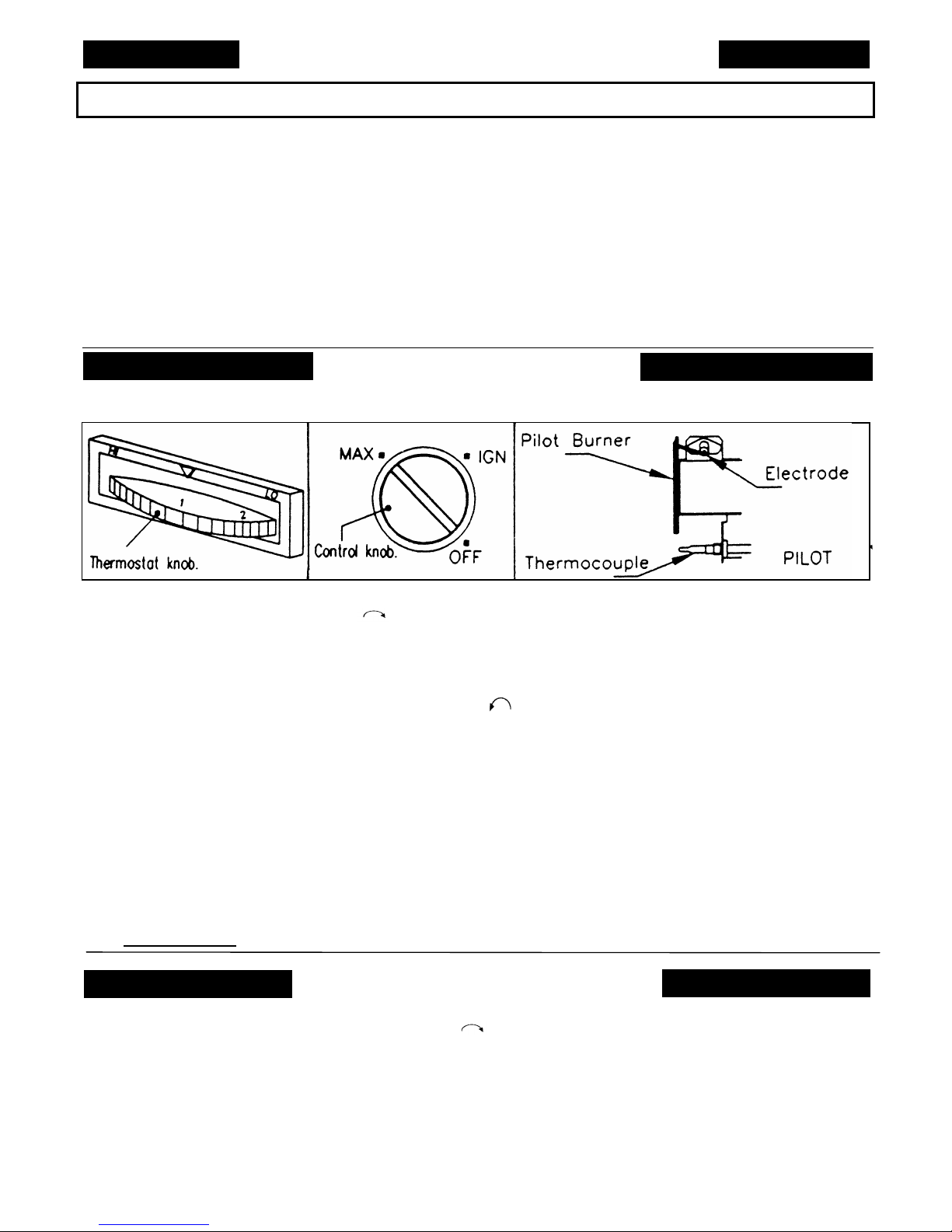

2.1.6 Check Ignition Electrode Spark
Pilot ignition is by a spark produced when the control knob is
pushed in and turned counterclockwise to the “IGN” position.
Check that two consecutive sparks are produced at the pilot
burner. If there is no spark, check that the wiring is secure.
Replace parts if necessary. see figure 9.
2.2 INSTALL TO THE FIREPLACE
2.2.1 Connect the Chimney Liner
Connect the collar on the vent connector unit to the 4”
diameter chimney liner.
2.2.2 Insert the Fire Unit
Solid Fuel Fireplace Installation: Slide the fire unit into the
fireplace making sure that the vent connection unit is above
the appliance case. Leave the case front a few inches clear of
the fireplace front to allow you to fix the vent connector to the
top of the case.
Zero Clearance Installation: Accessory kit #700ZCK
(supplied separately) allows the appliance to be installed with
a 4” diameter type B-1 metal vent recessed into a wall or
partition in a chase (see figure 3). The maximum horizontal
vent pipe length is 8ft and the minimum vertical vent pipe
height is 8ft. For full details please contact your dealer.
Prepare the appliance and install in position in accordance
with the instructions supplied with the kit.
2.2.3 Attach the Vent Connector
Swing the vent connector backwards and locate its rear edge
in the slot at the top rear of the appliance case. Fix the front of
the vent connector plate to the appliance case top using the
screw previously removed. See figure 10.
2.3 OPTIONAL TRIM INSTALLATION
2.3.1 #677FSK 4” Beveled Trim
1. Assemble the two outer surround sides to the top
cross piece using the four nuts, screws and washers
provided. See figure 11.
2. Place the assembled trim in position against the
heater. Secure to the heater front flanges with screws
through two holes on the inner flanges of each of the
surround sides. See figure 12.
3. If required, fit the #740 beveled brass outer trims
over the 4” trim. Secure with the edge clips using
four across the top and three each side.

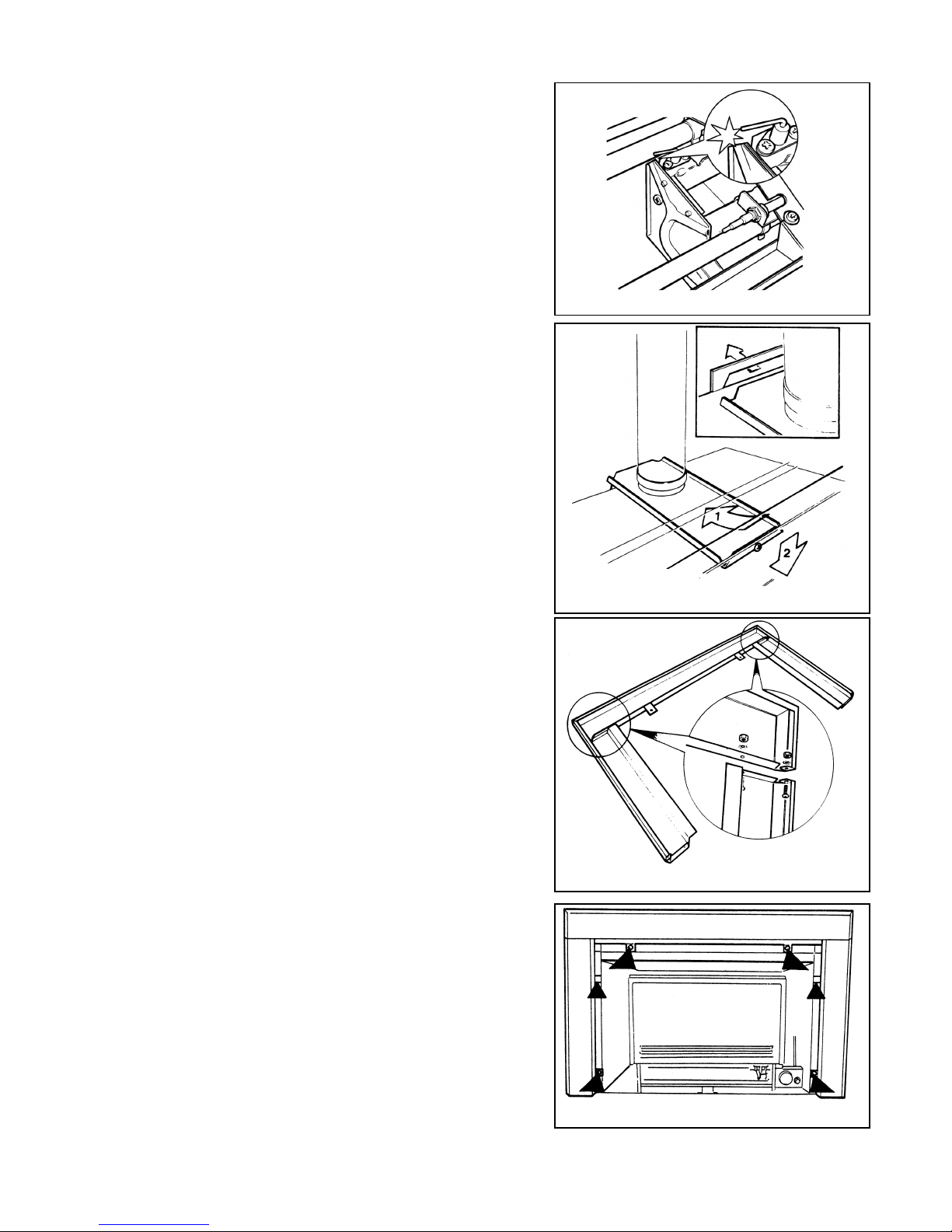

Figure 10. Vent attachment
Figure 9. Pilot Ignition System
Figure 11. 4” Beveled Trim Assembly
Figure 12. 4” Beveled trim Attachment

7
2.3.2 #678FSK & #679FSK
21/2” Contoured Trims
1. Assemble the left and
right side channels to
the top channel using
the inner and outer
corner fixing brackets
and 12 thread cutting
screws provided. See
figure 13.
2. Attach the trims to the
front frame with 4
thread cutting screws
provided. See figure
14.
2.3.3. All Installations
Push the appliance fully
home against the front face
of the fireplace. Make sure
that no sags or dips occur in
the liner.
3. #710CFK
CIRCULATING FAN KIT
If the fan is to be installed at the same time as the appliance, it
will be most convenient to fit it at this stage (i.e. before the
gas supply is connected).
Full installation instructions are supplied with the fan kit. In
order to install this unit, the appliance burner module will
have to be removed. Details of the removal method are
described in the servicing section at the back of this manual.
4. CONNECT THE GAS SUPPLY
4.1 THERMOSTAT SHAFT DISCONNECTION
A 3/8” NPT elbow connector
is supplied for linking the
supply line to the appliance
inlet pipe.
To allow clear access for
connecting the elbow to the
appliance inlet pipe,
disconnect the thermostat
shaft as follows (see figure
15):
1. Remove the “R”
clip securing the
shaft collar to the
thermostat spindle
(figure 15a).
2. Slide the collar up
the shaft to free it
from the thermostat
spindle (figure
15b).
Take care! Hold on to the collar. Don’t let it fall
into the appliance. It could be difficult to retrieve.
3. Swing the lower shaft forward and remove the collar
(figure 15c). Keep the collar safe.
4. Swing the lower shaft back and park it in the slot
opening in the right side of the appliance case (figure
15d).
4.2 GENERAL SUPPLY LINE
REQUIREMENTS
Openings for
the gas supply
line are
provided at the
back and right
side (see figure
3). The
appliance is
supplied with a
plate covering
the back
opening and
with the
opening at the
right side
uncovered. If
the supply line
is to enter
through the
back, remove
the plate and
refit it to the side opening.
Note! The openings at the right and left sides which are
supplied covered with metal plates are not for supply pipe
entry. These openings should only be uncovered when the
#700ZCK zero clearance kit is used.
Use only new black iron or steel pipes or copper tubing if
acceptable – Check local codes!
Note! In the USA copper tubing must be internally tinned
for protection against sulfur compounds.
Unions in gas lines should be of ground joint type.
The gas supply line must be sized and installed to provide a
supply of gas sufficient to meet the maximum demand of the
appliance without undue loss of pressure.
Sealants used must be resistant to the action of all gas
constituents including LP gas. Sealants should be applied
lightly to male threads to ensure that excess sealant does not
enter the gas lines.
The supply line should include a manual shut-off valve and
union in the line to allow the appliance to be disconnected for
servicing.
A plugged 1/8” NPT tapping must be installed in the line. The
tapping must be accessible for test gauge connection and be
immediately upstream of the gas supply connection to the
appliance.

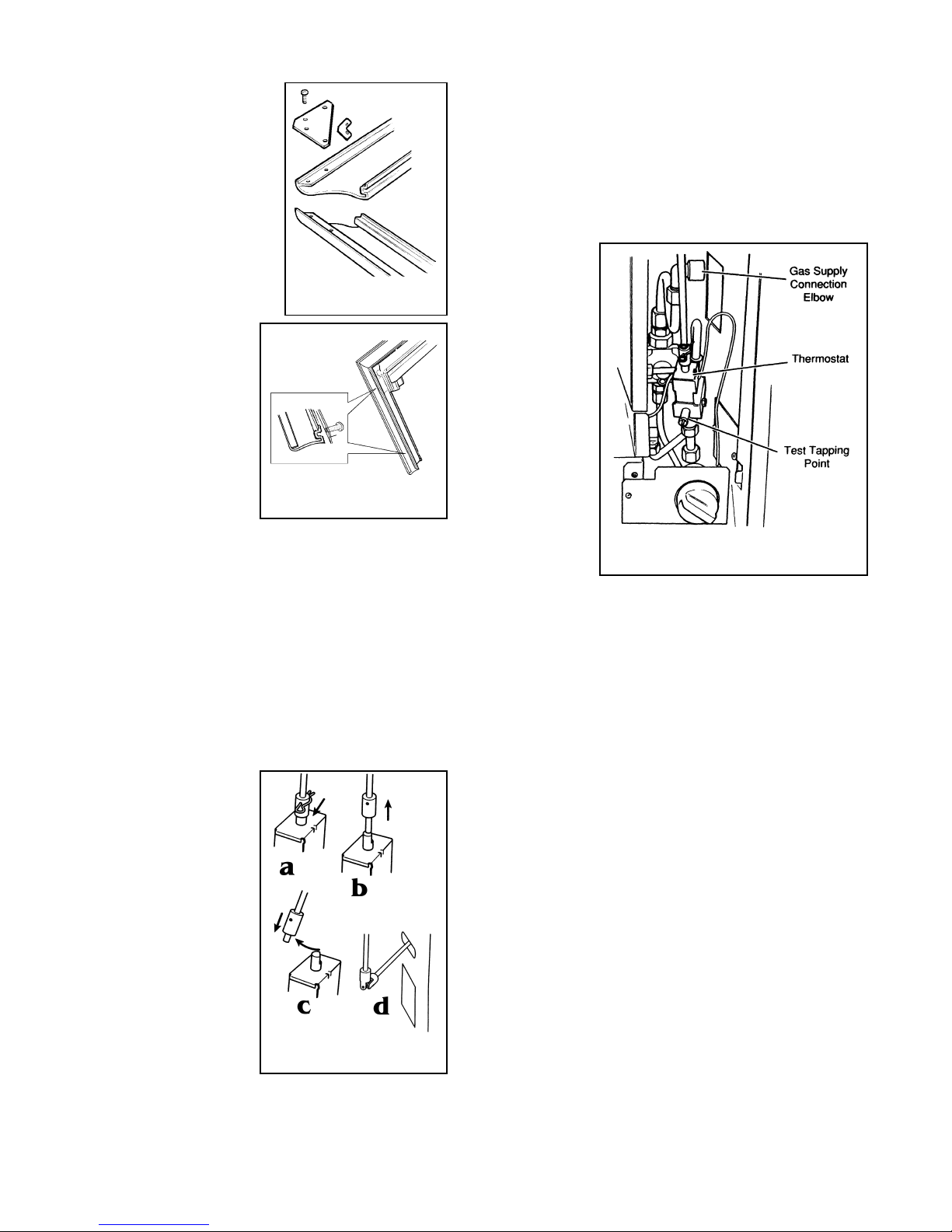

Figure 13. 21/2” Trim
Assembly
Figure 14. Contoured Trim
Attachment.
Figure 15 Thermostat Shaft
Disconnection
Figure 16. Gas Line Connection & Test
Tapping Point

8
4.3 LEAK TESTING
All piping and connections must be tested for leaks after
installation or servicing.
All leaks must be corrected immediately.
When testing for leaks:
1. Make sure that the appliance control knob is at the
off position.
2. Open the manual shut-off valve.
3. Test for leaks by applying a liquid detergent or soap
solution to all joints. Bubbles forming indicate a gas
leak.
DANGER! NEVER USE AN OPEN
FLAME TO CHECK FOR GAS LEAKS
4. Correct any leak immediately.
4.4 THERMOSTAT SHAFT RECONNECTION
1. Turn the thermostat
control wheel fully
counterclockwise to
the lowest setting
(position 1). Turn the
thermostat spindle
fully
counterclockwise. See
figure 17.
2. Release the lower
shaft from its parked
osition. Replace the
collar over the end of
the shaft with the “D”
hole at the bottom.
3. Swing the shaft and
collar over the thermostat spindle.
Rotate the collar so that the “D” lines up with that in
the spindle and allow the collar to drop fully over the
thermostat spindle.
4. Refit the “R” clip. The collar will have to be raised
slightly to align the holes. If it is not raised, the clip
may go below the end of the shaft. Check that the
collar rotates when the thermostat control wheel is
turned.
5. REFIT THE FRONT FRAME
Place the front frame back in position and attach it to the
appliance case with the four screws previously removed.
6. FIT THE FUEL BED
1. Place the ceramic back wall in position at the back of
the firebox. Make sure that the brick pattern is the
right way up so that it will align with the side walls
pattern. See figure 18.
2. Place the ceramic side walls in position at the sides of
the firebox. The sides are left and right handed. The
sides should be held in position at the top by the
angled brackets at the sides of the firebox and at the
bottom by the edges of the black bar at the front of
the firebox. See figure 19.
3. Place the rear log in the retaining cradle behind the
rear burner rail. See figure 20.
4. Place the center log in the retaining cradle between
the rear and front burner rails. See figure 21.
5. Place the two front logs in position on the front log
support tray. It may be necessary to raise the center
log slightly in order to fit the left front log. Make sure
that the spacer blocks positioned on the back surface
of each front log rest against the front face of the
center log at the far left and right positions. See
figure 22.
Check that the fuel bed parts are secure.
Figure 17
Figure 18 Ceramic Back Wall
Figure 19 Ceramic Side walls
Figure 20 Rear Log
Figure 21 Center log
Figure 22 Front logs

9
7. REFIT THE WINDOW
1. Hook the top of the window frame over the firebox
top front edge.
2. Secure the window unit in place by refitting two
knurled screws at the bottom corners of the frame.
8. CHECK OPERATION OF CONTROLS
Check ignition, valve control and thermostat settings as
described in the lighting instructions section of this manual.

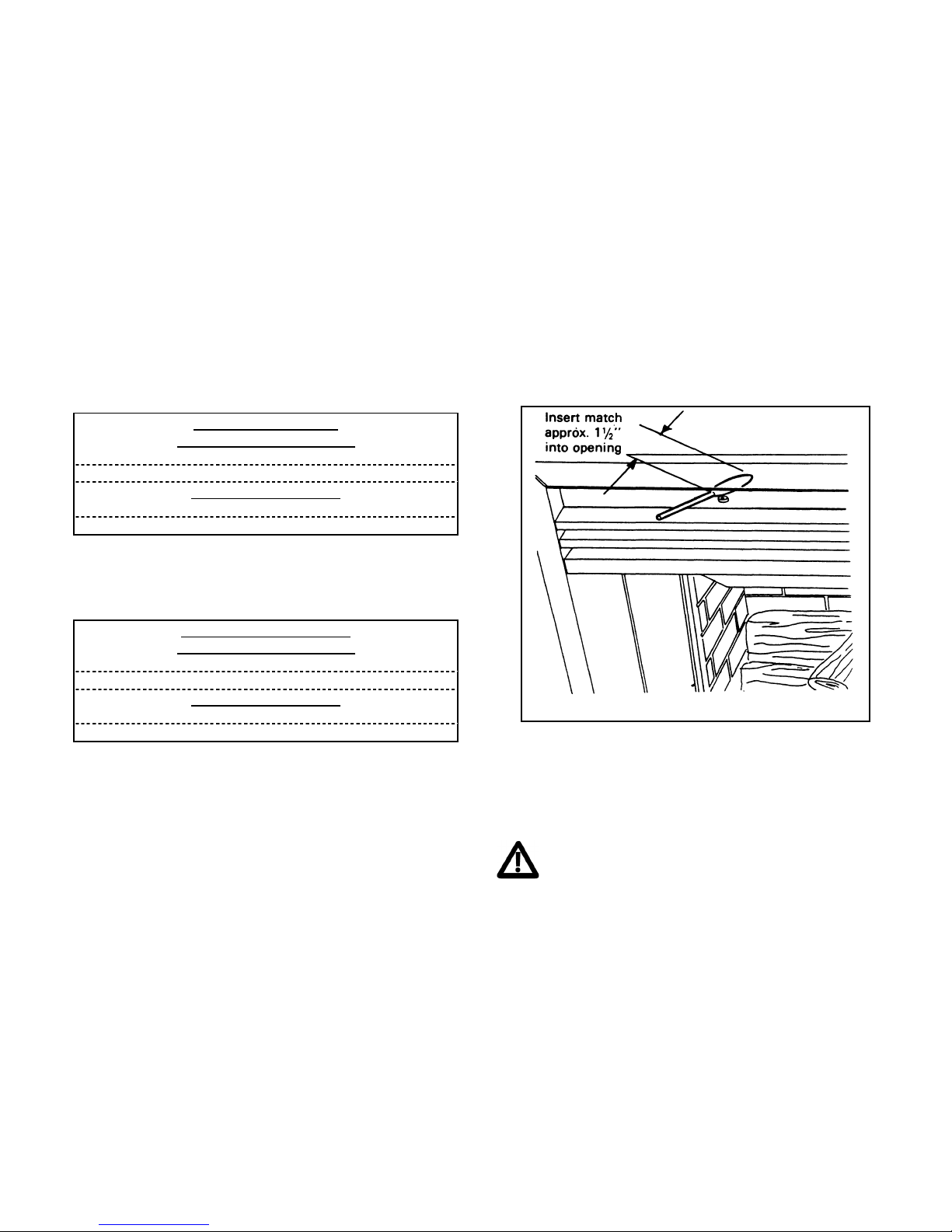

9. CHECK SYSTEM PRESSURE
The appliance is preset to give the correct heat input with the
gas for which it is designed.
For input adjustment, the gas supply pressure to the appliance
must be between the figures shown below.
SUPPLY PRESSURES
Model 736XN – Natural Gas
Maximum 10.5”w.c.
Minimum 5.0”w.c.
Model 736XP - Propane
Maximum 14.0”w.c.
Minimum 11.0”w.c.
The burner manifold pressure is controlled by a built-in non-
adjustable regulator. The manifold pressure must be between
the figures below.
MANIFOLD PRESSURES
Model 736XN – Natural Gas
Maximum 3.9”w.c.
Minimum 3.5”w.c.
Model 736XP - Propane
Maximum 9.4”w.c.
Minimum 9.0”w.c.
The manifold pressure should be checked at the pressure test
point which is located on the thermostat unit (see figure 16).
The pressure check should be made with the appliance
burning, the valve control set at “MAX” and the thermostat
control turned to “FULL”.
The appliance and its individual shutoff valve must be
disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of
1/2psig (3.5kPa). The appliance must be isolated from the gas
supply piping system by closing its individual manual shutoff
valve during any pressure testing of the gas supply piping
system at test pressures equal to or less than 1/2psig (3.5kPa).
10. CHECK VENTING EFFICIENCY
A check for correct venting of combustion products must
be made before the installed appliance is left with the
customer. The test can be made before refitting the inner
front unit but the logs and window unit must be in
position.
Check as follows;
1. Ignite the pilot and set the control knob to “MAX”
and the thermostat wheel to “FULL”.
2. Leave the appliance on for 15 minutes then light a
smoke match and insert it inside the left side of the
top opening. Insert the match approximately 11/2”
into the opening. See figure 23.
The installation is satisfactory if smoke is drawn into
the appliance.
3. If the smoke is not drawn into the appliance, inspect
the sealing at the vent connection unit.
4. If the sealing is satisfactory but the smoke is still not
drawn into the appliance, turn the unit off and check
the vent system for the cause of lack of draft. If
necessary, seek expert advice.
DO NOT LET THE APPLIANCE BE OPERATED
WITH INCORRECT VENTING
Figure 23. Venting Check

1
0
11. AERATION ADJUSTMENT
Both front and rear burners
are equipped with
adjustable shutters to
control primary aeration.
The air holes are at the
right side of the front and
rear burner rails - see
figure 24. The appliance is
supplied with the air holes
of both burners fully open.
The shutters can be pushed
to the right to partially
close the air holes on each
burner. When the shutters
are pushed as far as
possible to the right, the air
holes will be half closed.
For the majority of
installations no adjustment will be necessary. However, in
certain installations (e.g. low Btu value gas or propane with
impurities) it may be necessary to partially close the air holes
of one or both of the burners to obtain the optimal visual
effect.
12. REPLACE THE INNER FRONT
Hook the inner front unit back onto the front frame.
13. FINAL CHECK
1. Recheck the operation of the ignition and control
settings.
2. Instruct the customer how to operate the appliance.
3. Close the bottom hinged grill.
4. Recommend that the appliance should be inspected
and, if necessary, serviced annually.
14. OPERATING PROCEDURE
For your safety this appliance is fitted with a flame
supervision device which will shut off the gas supply if, for
any reason, the pilot flames go out. This device incorporates a
fixed probe which senses the heat from the pilot flame. If the
probe is cool the device will prevent any gas flow unless the
control knob is held in at the “IGN” position. See the lighting
instructions on the next page.
Open the bottom grill to get access for operating the main
control valve. Close the grill when you have finished
operating the main control valve. The control wheel at the top
right side of the appliance controls the thermostat operating
temperature.
When first turned on the decorative flames will appear
predominantly blue. After approximately 15 minutes the
flames will turn yellow.
After approximately three hours use at the high control setting
the fuel pieces will show areas of charcoal gray color, as
would real burning logs.
15. LIGHTING IF THE SPARK IGNITER
FAILS
In the unlikely event of failure of the ignition spark, the
appliance can be lit by inserting a long burning match to the
pilot and holding in the main valve control knob at the “IGN”
position.
Figure 24. Burner Aeration

11
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property
damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the floor because
some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electric switch; do not use any phone in your building.
•Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
•If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the gas control knob. Never use tools. If the knob will not push in or turn
by hand, don’t try to repair it, call a qualified service technician. Force or attempted repair may result in a fire
or explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system and any gas control which has been under
water.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above.
2 set the thermostat to its lowest setting (#1)
3. Turn the control knob clockwise to OFF
NOTE: The knob cannot be turned from IGN to OFF unless it is pushed in partially. Do not force.
4.Wait five (5) minutes to clear out any gas, then smell for gas, including near the floor. If you smell gas,
STOP! Follow “B” in the safety information above. If you don’t smell gas, go to the next step.
5. Find the pilot. It is at the right side of the firebox.
6. Push in and turn the control knob counterclockwise until resistance is felt just before the “IGN”
position.
7. Keep pushed in for a few seconds to allow gas to flow then, keeping knob depressed, turn to “ign” to light
pilot. Hold knob in for a further 5 seconds then release. The knob should pop back out. Pilot should remain
lit. If pilot goes out repeat steps 3 through 7. If pilot does not light at all during a few attempts, try lighting
with a long match as described below.
•If knob does not pop out when released, stop and immediately call your service technician or gas
supplier.
•If pilot lights but will not stay lit after several tries, turn the gas control knob to “OFF” and call your
service technician or gas supplier.
8. When pilot is lit, partially depress the knob and turn to “MAX” position.
•Do not leave knob set between “IGN” and “MAX”.
9. Replace control access panel
10. Set thermostat to desired setting.
Match Lighting: Apply a long match to the pilot while control knob is pushed in and at the “IGN” position.
TO TURN OFF GAS TO APPLIANCE
1. Set the thermostat to its lowest setting (#1)
2. Push in control knob slightly and turn clockwise to “OFF”. Do not force.

1
2
16. CLEANING
All cleaning should be carried out when the appliance is cold.
Normally the appliance should only need dusting. Dust etc.
can be brushed from the logs using a soft brush after detaching
the inner front unit and window – see installation instructions
sections 2.1.2 and 2.1.3. Dust etc. can also be removed from
the burners using a soft brush after removing the logs. When
cleaning the burners also check the aeration holes – see figure
24. If necessary brush clean the aeration holes.
If you are removing the logs, we suggest that they are
removed in the reverse order to that shown in the fuel bed
assembly instructions – see section 6. The logs, window and
inner front unit must be replaced as shown in the installation
instruction sections.
Coloring of the metal firebox with use is normal.
17. CHECKS
1. A periodic visual check of the pilot and burner
flames should be made. See figures 25 and 26.
2. The appliance area must always be kept clear and
free from combustible materials, gasoline and other
flammable vapors and liquids.
3. Keep the area in front of the bottom grill clear to
prevent obstruction of the air flow to the burners for
combustion.
4. The flow of combustion and ventilation air must not
be obstructed. The venting system should be
examined by a qualified agency regularly. We
suggest annually.
18. SERVICING
The repair parts are shown on the repair parts leaflet. Please
always quote part number and description with requests for
spares.
18.1 FOR THE OWNER
If you require any attention to your appliance, contact your
supplier quoting the model number. It is helpful if the
appliance serial number is also quoted. This will be found on
the appliance rating plate which is located on the left side of
the appliance case. It is visible when the inner front unit is
removed.
18.2 FOR THE SERVICE ENGINEER
To aid servicing of the burner and manifold parts or for
installation of the optional circulation fan #710CFK, the
burner module can be removed as follows – see figure 27.
1. Remove the inner front and window – see sections
2.1.2 and 2.1.3.
2. Take all the ceramic parts out of the firebox and store
carefully.
3. Remove the front frame – see section 2.1.4.
4. To allow clear access for disconnecting the supply
line elbow uncouple the thermostat shaft – see
section 4.1.
5. Disconnect the gas supply line elbow at the appliance
inlet pipe union.
6. Remove the two screws holding the burner module to
the firebox sides. These are situated over the bottom
outside flanges, one each side of the firebox.
7. Remove the screw securing the sloping front heat
shield of the burner box to the appliance case.
8. Carefully slide the burner module forward until just
clear of the appliance case.
9. For most servicing operations the vent shutoff switch
wires can remain attached to the burner module. If
the burner module must be completely removed from
the appliance area loosen the thermocouple connector
at the back of the gas valve to detach the wires.
10. When refitting, reconnect the thermostat control shaft
as described in section 4.4.
Figure 25. Burner Flames
Figure 26. Pilot Flame

1
3
Figure 27. Burner Module Removal

Manufactured by
HEATING
BIRMINGHAM, ENGLAND
Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication.
© Valor Ltd. 1999, 2000
