Valor Vogue 1300IRN Manual
Vogue
4001746-11
©2010, Miles Industries Ltd.
Manufactured by
British Columbia, Canada
www.valorreplaces.com
WARNING
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
WARNING
!
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
WARNING
!
2
The information contained in this installation
manual is believed to be correct at the time of
printing. Miles Industries Ltd. reserves the right to
change or modify any information or specications
without notice. Miles Industries Ltd. grants no
warranty, implied or stated, for the installation
or maintenance of your heater, and assumes no
responsibility for any consequential damage(s).

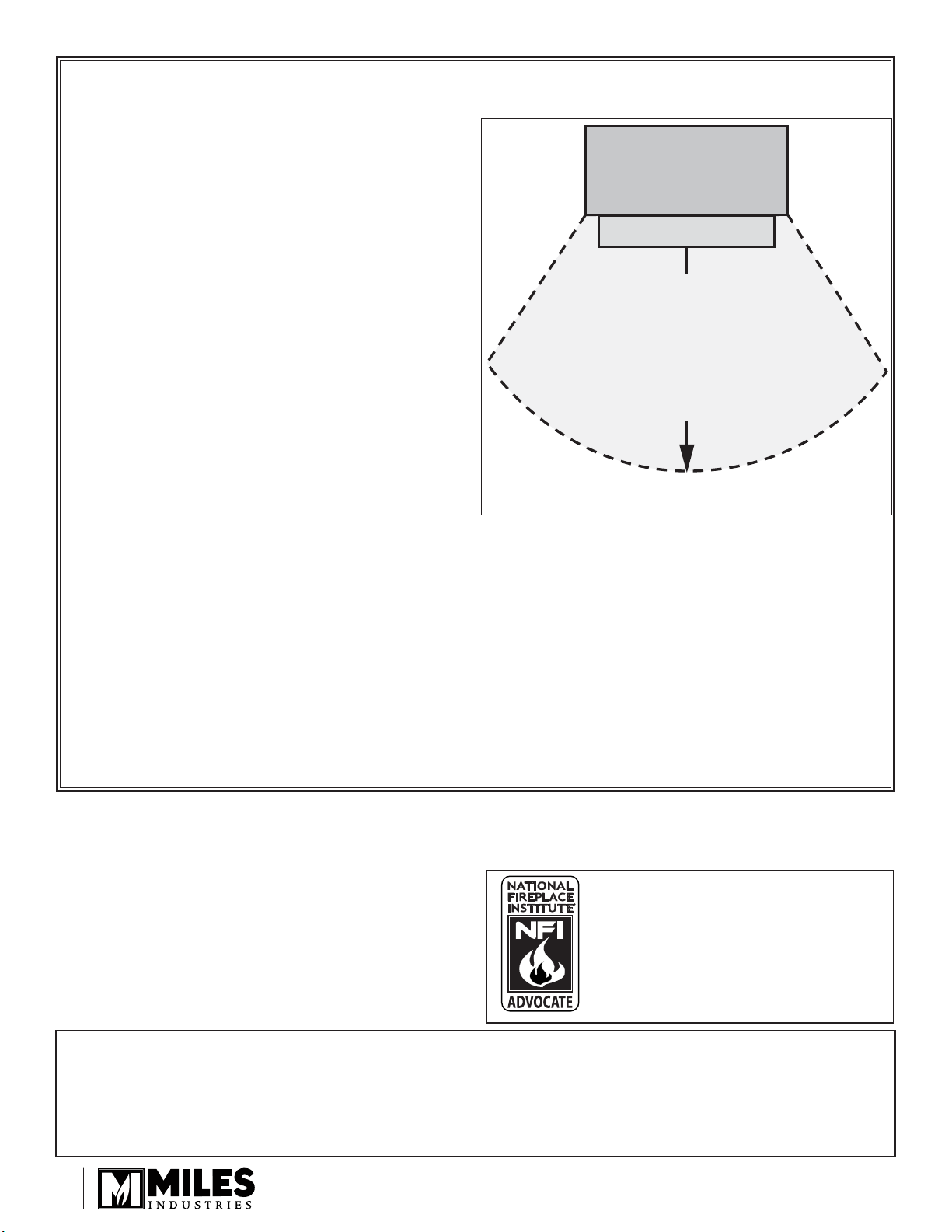

Do not put
furniture or other objects
in this space in front of
the replace:
36” (0.9 m)
Fireplace
Hearth
3
Table of Contents
= Updated content
◊
◊
◊
◊
◊
◊
◊
◊
◊
4
Safety and Warning Information
Children and adults should be to the
hazards of high surface temperature and should
to avoid burns or clothing ignition.
should be
when they are in the same room as
the appliance. Toddlers, young children and others
may be susceptible to
. A physical barrier is recommended if there
are at risk individuals in the house. To restrict access
to a replace or stove,
to keep toddlers, young children and
other at risk individuals out of the room and away
from hot surfaces.
place furniture or any other combustible
household objects within 36” of the replace front.
and all instructions carefully
before starting the installation.
these installation instructions may result in
possible re hazard and will void the warranty.
Prior to the rst ring of the replace, the
Owner’s Information section of this manual.
this appliance if any part has been
under water. Immediately, a qualied service
technician to inspect the unit and to replace any part
of the control system and any gas control that has
been under water.
Installation and repair should be
by a qualied service person. The appliance and
venting system should be before initial
use and at least annually by a professional service
person. More frequent cleaning may be required due
to excessive lint from carpeting, bedding, etc. It is
that the unit’s control compartment,
burner, and circulating air passageways
to provide for adequate combustion and
ventilation air.
Always the appliance clear and free from
combustible materials, gasoline, and other ammable
vapors and liquids.
the ow of combustion and
ventilation air. Keep the front of the appliance
of all obstacles and materials for servicing and proper
operation.
Due to the high temperature, the appliance should be
out of trafc areas and away from furniture
and draperies. Clothing or ammable material
on or near the appliance.

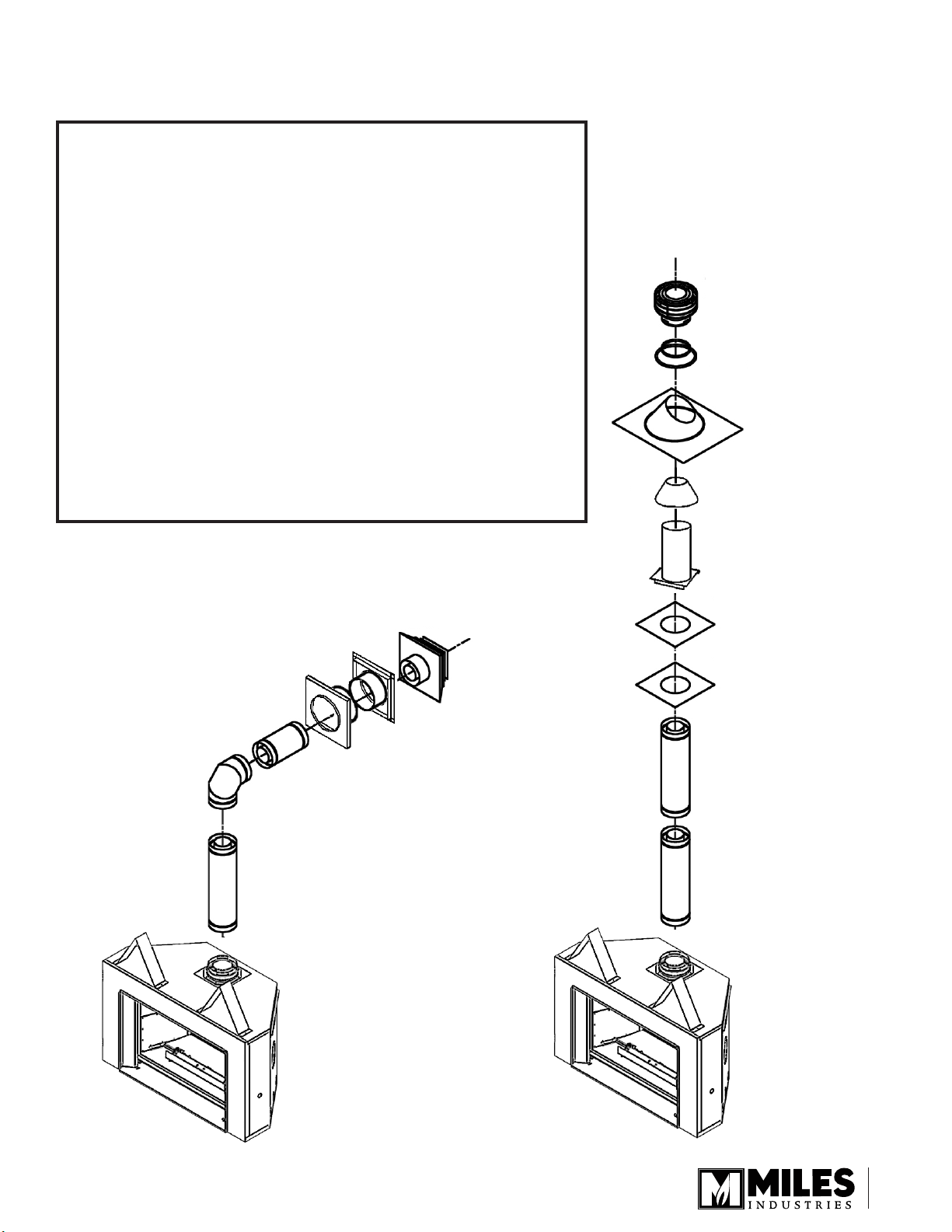

This unit MUST be used with a vent system as
described in this installation manual. vent
system or components .
This gas replace and vent assembly be
vented directly to the outside and be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance
a separate vent system. Common vent systems are
.
the external vent cap on a regular basis to
make sure that no debris, plants, trees, shrubs are
interfering with the air ow.
The glass door assembly be in place and
sealed before the unit can be placed into safe
operation.
this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed or
qualied service person. strike or slam the
glass door.
The glass door assembly be replaced
as a complete unit, as supplied by the replace
manufacturer. material may be
used.
abrasive cleaners on the glass door
assembly. to clean the glass door
when it is hot.
the gas before servicing this appliance.
It is recommended that a qualied service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
before operating this
appliance.
not to put any decorating objects
sensitive to heat to close above or around the
replace as it gets very hot when operating.
use this heater as a temporary source of
heat during construction.
This appliance is a
. It must not be used for any other purposes
such as drying clothes, etc.
5
. Be aware that, although safe,
some combustible materials and nishes, even
though installed at listed clearances may, over time,

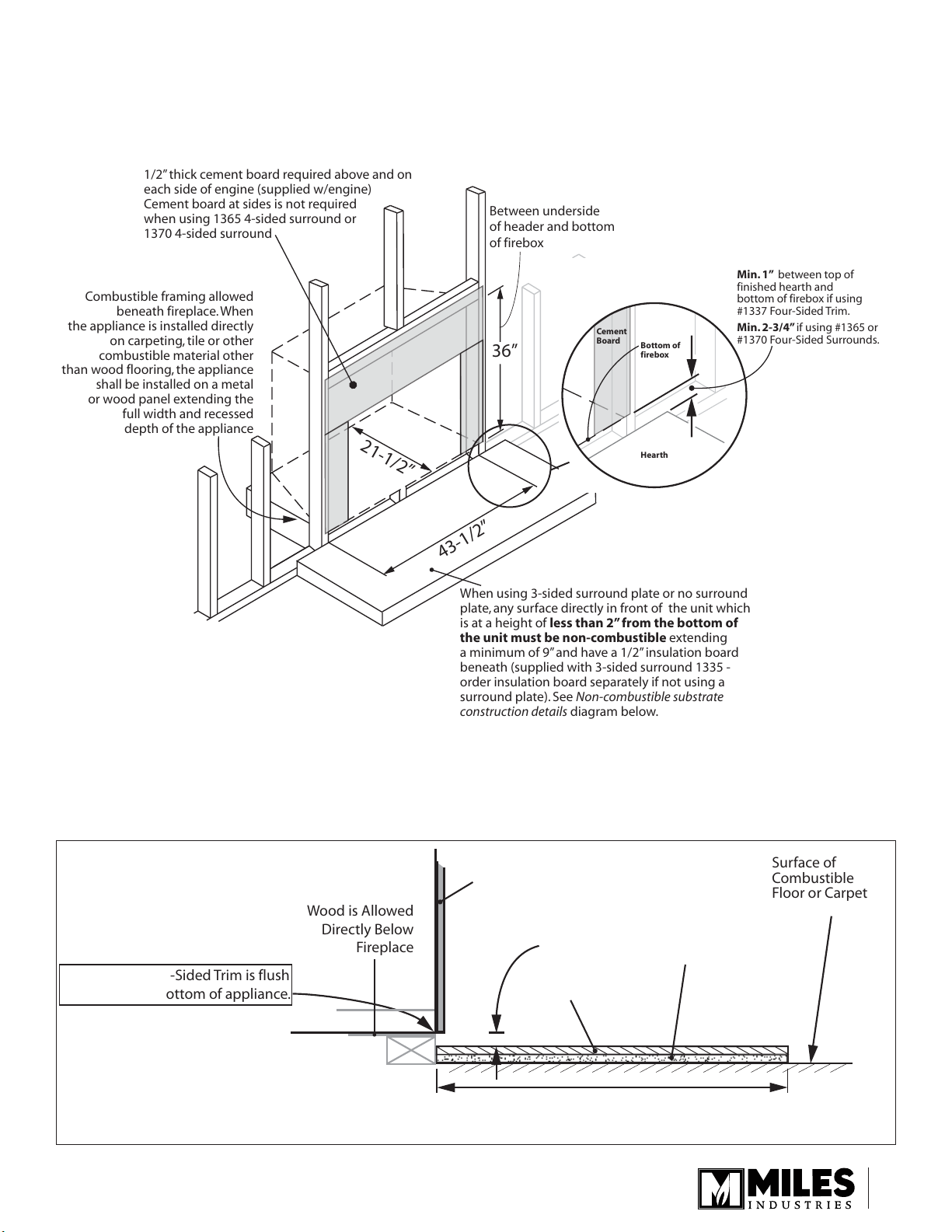

discolor, warp or show cracks. The 1300IR requires
the installation of the cement board provided with the
engine.

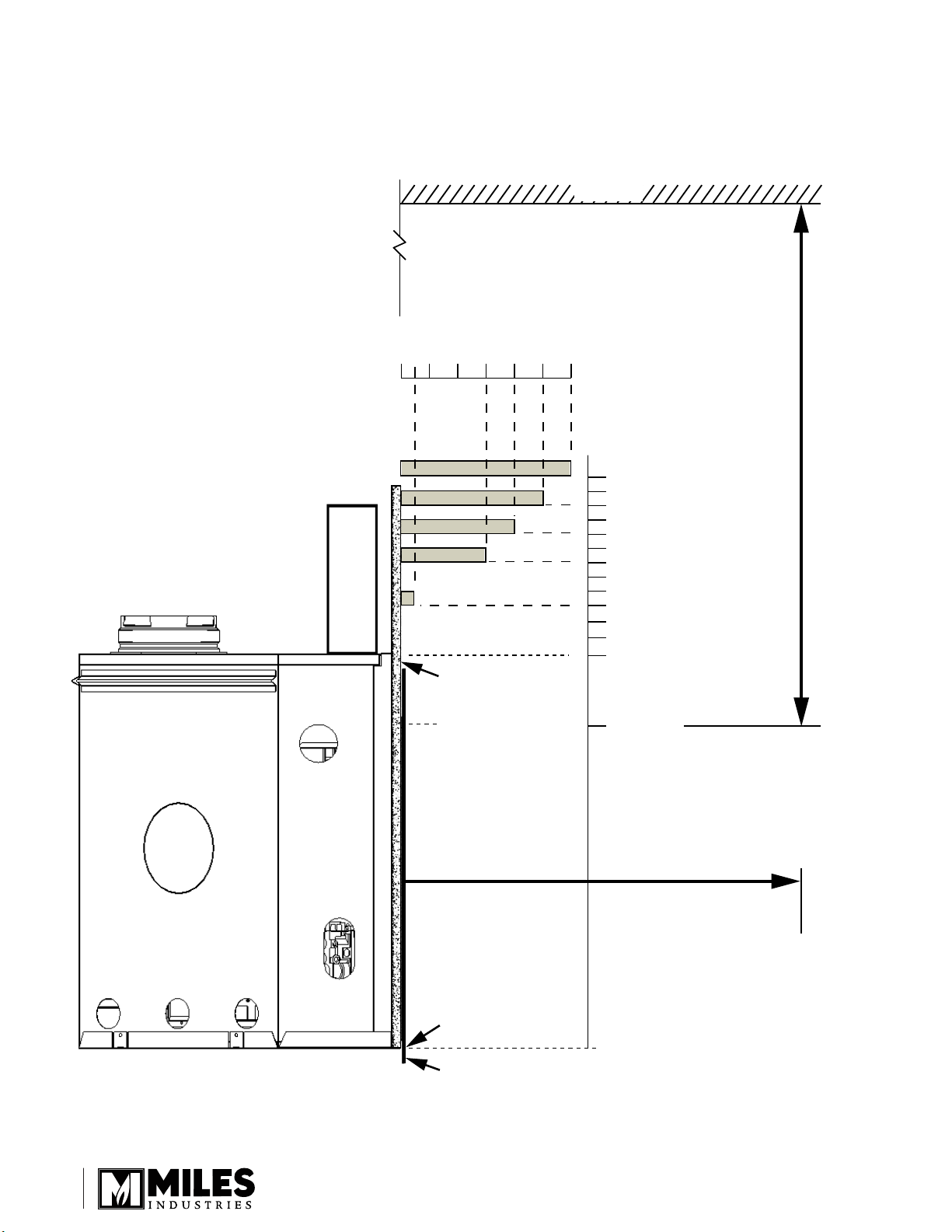

Convective heat will exit the unit and travel up the
wall surface if not impeded. Protruding mantels and
projections can help direct the heat away from the
wall. AVOID PLACING heat sensitive items such
as televisions, paintings, decorations, etc. above
replaces or near the edge of protrusions unless
appropriate.
Radiant heat can heat surfaces such as the hearth in
front of the replace to temperatures that, although
approved safe, can be quite uncomfortable to
touch or step on—particularly for children and pets.
Accessory screens and guards will reduce the radiant
heat on these surfaces.
Safety and Warning Information
When operating your new replace for the rst time,
some vapors may be released due to the burning of
curing compounds used in the manufacture of the
appliance. They may cause a slight odor and could
cause the ames to be the full height of the rebox, or
even slightly higher, for the rst few hours of operation.
It is also possible that these vapors could set off any
smoke detection alarms in the immediate vicinity.
These vapors are quite normal on new appliances. We
recommend opening a window to vent the room. After
a few hours use, the vapors will have disappeared and
the ames will be at their normal height.
Fuels used in gas, wood-burning or oil red appliances,
and the products of combustion of such fuels, contain
chemicals known to the State of California to cause
cancer, birth defects and other reproductive harm.
California Health & Safety Code Sec. 25249.6.

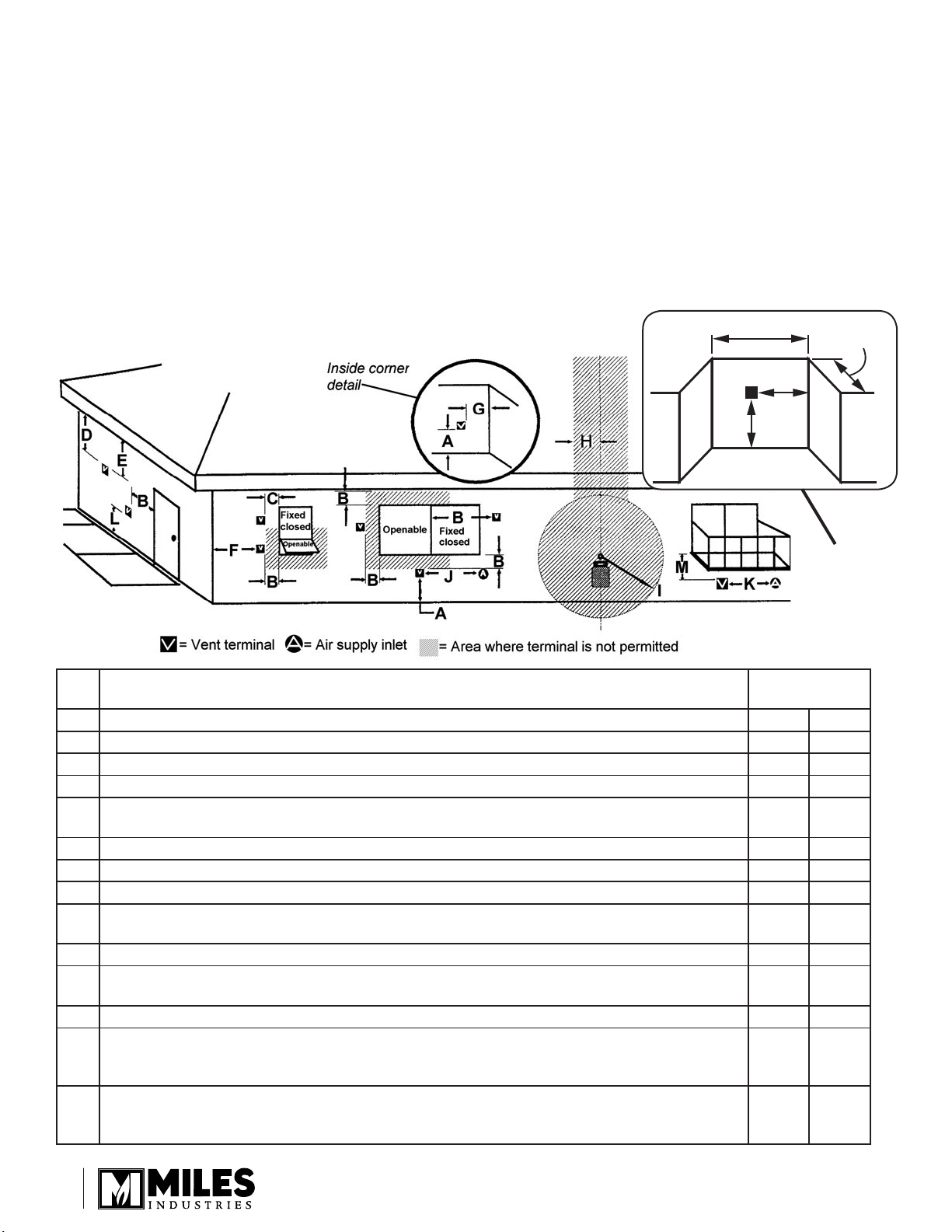

For all side wall horizontally vented gas fueled
equipment installed in every dwelling, building or
structure used in whole or in part for residential
purposes, including those owned or operated by the
Commonwealth and where the side wall exhaust
vent termination is less than seven (7) feet above
nished grade in the area of the venting, including
but not limited to decks and porches, the following
requirements shall be satised:
1. INSTALLATION OF CARBON MONOXIDE
DETECTORS. At the time of installation of the side wall
horizontal vented gas fueled equipment, the installing
plumber or gas tter shall observe that a hard wired
carbon monoxide detector with an alarm and battery
back-up is installed on the oor level where the gas
equipment is to be installed. In addition, the installing
plumber or gas tter shall observe that a battery
operated or hard wired carbon monoxide detector
with an alarm is installed on each additional level of
the dwelling, building or structure served by the side
wall horizontal vented gas fueled equipment. It shall
be the responsibility of the property owner to secure
the services of qualied licensed professionals for the
installation of hard wired carbon monoxide detectors.
a. In the event that the side wall horizontally vented
gas fueled equipment is installed in a crawl space or
an attic, the hard wired carbon monoxide detector with
alarm and battery back-up may be installed on the next
adjacent oor level.
b. In the event that the requirements of this subdivision
can not be met at the time of completion of installation,
the owner shall have a period of thirty (30) days
to comply with the above requirements; provided,
however, that during said thirty (30) day period, a
battery operated carbon monoxide detector with an
alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS.
Each carbon monoxide detector as required in
accordance with the above provisions shall comply
with NFPA 720 and be ANSI/UL 2034 listed and IAS
certied.
6
Safety and Warning Information
1. Detailed instructions for the installation of the venting
system design or the venting system components; and
2. A complete parts list for the venting system design or
venting system.
(d) MANUFACTURER REQUIREMENTS - GAS
EQUIPMENT VENTING SYSTEM NOT PROVIDED.
When the manufacturer of a Product Approved side
wall horizontally vented gas fueled equipment does
not provide the parts for venting the ue gases, but
identies “special venting systems”, the following
requirements shall be satised by the manufacturer:
1. The referenced “special venting system” instructions
shall be included with the appliance or equipment
installation instructions; and
2. The “special venting systems” shall be Product
Approved by the Board, and the instructions for that
system shall include a parts list and detailed installation
instructions.
(e) A copy of all installation instructions for all Product
Approved side wall horizontally vented gas fueled
equipment, all venting instructions, all parts lists
for venting instructions, and/or all venting design
instructions shall remain with the appliance or
equipment at the completion of the installation.
3. SIGNAGE. A metal or plastic identication plate
shall be permanently mounted to the exterior of the
building at a minimum height of eight (8) feet above
grade directly in line with the exhaust vent terminal for
the horizontally vented gas fueled heating appliance
or equipment. The sign shall read, in print size no less
than one-half (1/2) inch in size, “GAS VENT DIRECTLY
BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of
the side wall horizontally vented gas fueled equipment
shall not approve the installation unless, upon
inspection, the inspector observes carbon monoxide
detectors and signage installed in accordance with the
provisions of 248 CMR 5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt
from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled
“Equipment Not Required To Be Vented” in the most
current edition of NFPA 54 as adopted by the Board;
and
2. Product Approved side wall horizontally vented
gas fueled equipment installed in a room or structure
separate from the dwelling, building or structure used in
whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS
EQUIPMENT VENTING SYSTEM PROVIDED.
When the manufacturer of Product Approved side
wall horizontally vented gas equipment provides a
venting system design or venting system components
with the equipment, the instructions provided by the
manufacturer for installation of the equipment and the
venting system shall include:
7

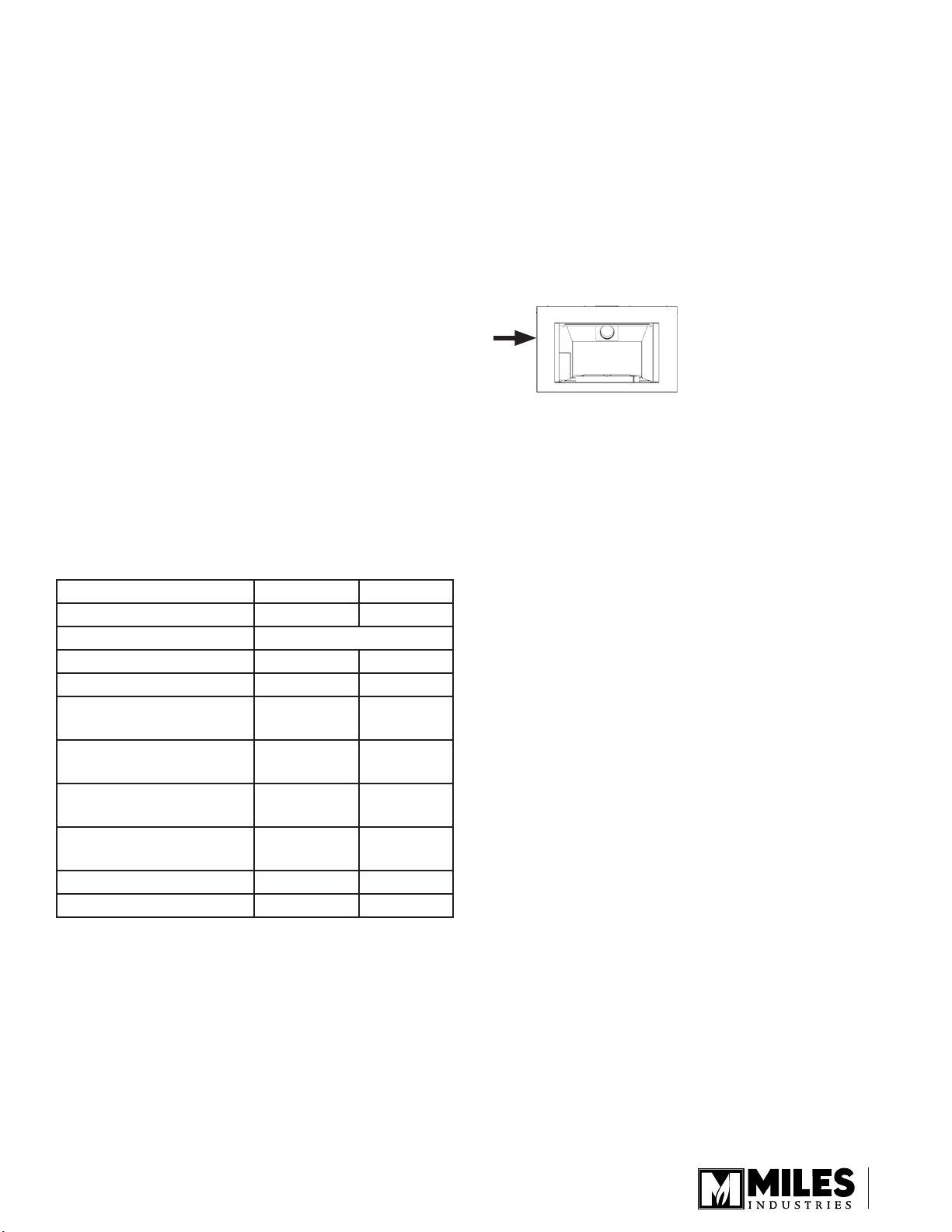

Natural Propane
0-4,500 feet*
30,000 28,000
6,500 14,500
3.7” 10.5”
5” 11”
10” 14”
Cat #
82-850
Cat #
92-300
#51 #30
Min. Rate By-Pass Screw #125 #125
Input ratings are shown in BTU per hour and are
certied without deration for elevations up to 4,500 feet
(1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas utility
to conrm.
Specications
This appliance is certied to ANSI Z21.88-2009/
CSA 2.33-2009 American National Standard / CSA
Standard for Vented Gas Fireplace Heaters for use in
Canada and USA, and to CGA 2.17-91 High Altitude
Standard in Canada. This appliance is for direct vent
installations.
This appliance complies with CSA P4.1-09 Testing
method for measuring annual replace efciencies.
The installation must conform to local codes or, in the
absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1 or the Natural Gas and Propane
Installation Code CAN/CGA-B149. Only qualied
licensed or trained personnel should install this
appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA
70 or the Canadian Electrical Code, CSA C22.1.
For installations at elevations above 4,500 feet
(1,370 m) in Canada, please consult provincial and/or
local authorities having jurisdiction.
Heater engine 1300IRN is used with natural gas.
Heater engine 1300IRP is used with propane gas.
The supply pressure must be between the limits shown
in the Ratings section above.
The supply connection is 3/8” NPT male and located
on the left hand side of the rebox. A shut-off valve (not
supplied) is required on the supply line to isolate the
unit during service.
The 1300 Vogue is supplied as natural gas or propane
gas and is eld convertible between fuels. See
instructions packaged with the conversion kit for further
information.
The 1300 does not require an electrical power source
to operate as a heater. However, it requires electrical
power to operate optional 1355LHK Lighting Harness
Kit or 1270RBK Remote Blower Kit.
X
8

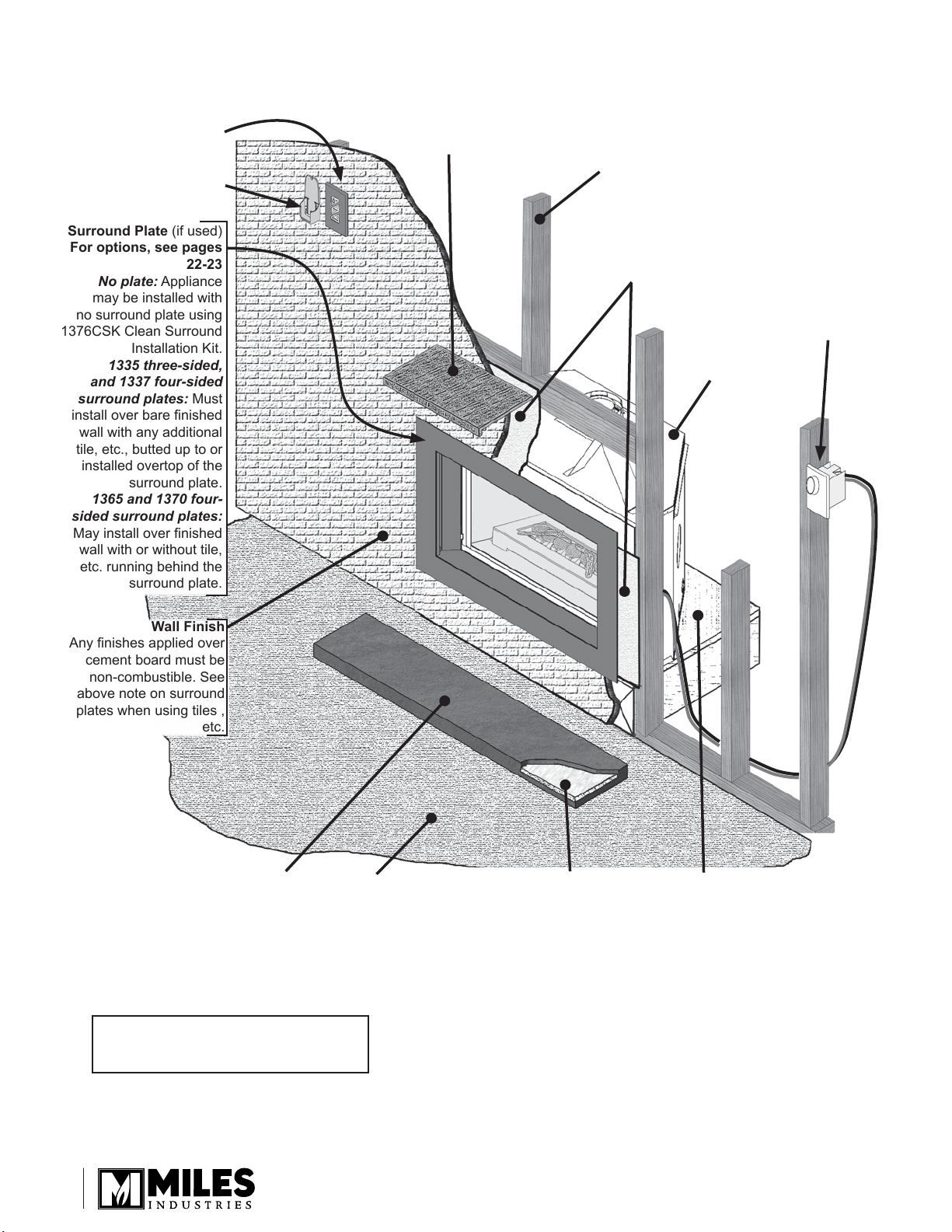

Overview
Fire On/Off Wall
Switch (optional) Mantel—See Mantel Clearances
Hearth. Non-combustible
as required—See Framing
& Hearth Requirements for
clearance
Optional
Decorative
Light Dimmer
Switch—not
provided, see
your electrician
Surround Plate (if used)
For options, see pages
22-23
No plate: Appliance
may be installed with
no surround plate using
1376CSK Clean Surround
Installation Kit.
1335 three-sided,
and 1337 four-sided
surround plates: Must
install over bare nished
wall with any additional
tile, etc., butted up to or
installed overtop of the
surround plate.
1365 and 1370 four-
sided surround plates:
May install over nished
wall with or without tile,
etc. running behind the
surround plate.
1300IR
Combustible Floor
Framing—See Framing & Hearth Requirements
Cement Board—
See Surround Plate
requirements on page
22 for positioning of
cement board
Remote Handset
Wall Holder
Wall Finish
Any nishes applied over
cement board must be
non-combustible. See
above note on surround
plates when using tiles ,
etc.
1/2” Insulation Board.
Required under non-
combustible hearth
surfaces in some cases.
See Framing & Hearth
Requirements section.
Combustible Framing Allowed
Beneath Fireplace. When the
appliance is installed directly on
carpeting, tile or other combustible
material other than wood ooring,
the appliance shall be installed on a
metal or wood panel extending the
full width and recessed depth of the
appliance.
9
Dimensions
Location
Center
Line
xx
6-5/8” dia. Venting
21-5/8”
43”
32-1/2”
26”
21-1/8”
21”
6-3/8”
7-1/2”
37-1/2” to top of cement board
36” to underside of header
Electrical
(for optional
ambient
light only)
Electrical
(for optional
ambient
light only)
Zero Clearance
to Stand-Offs
at Top
Gas
63-3/4”
45”
Zero Clearance to Stand-offs
at Back and Sides
10
Mantel Clearances
Bottom of Unit
Face of
Finished Wall
Four-Sided Trims, if used - extend
below bottom of unit (for dimensions, see
instructions packaged with trim)
0 2” 4” 6” 8” 10” 12”
38”
36”
34”
32”
29”
26”
21-1/8”
Do not put
furniture or objects
within 36” (914 mm)
of front of appliance
Mantel Projection
(from Face of Cement Board)
Mantel
Height
(from
Bottom
of Unit)
Fireplace
Opening
Firebox Height
Ceiling
36” Min. to Ceiling
11

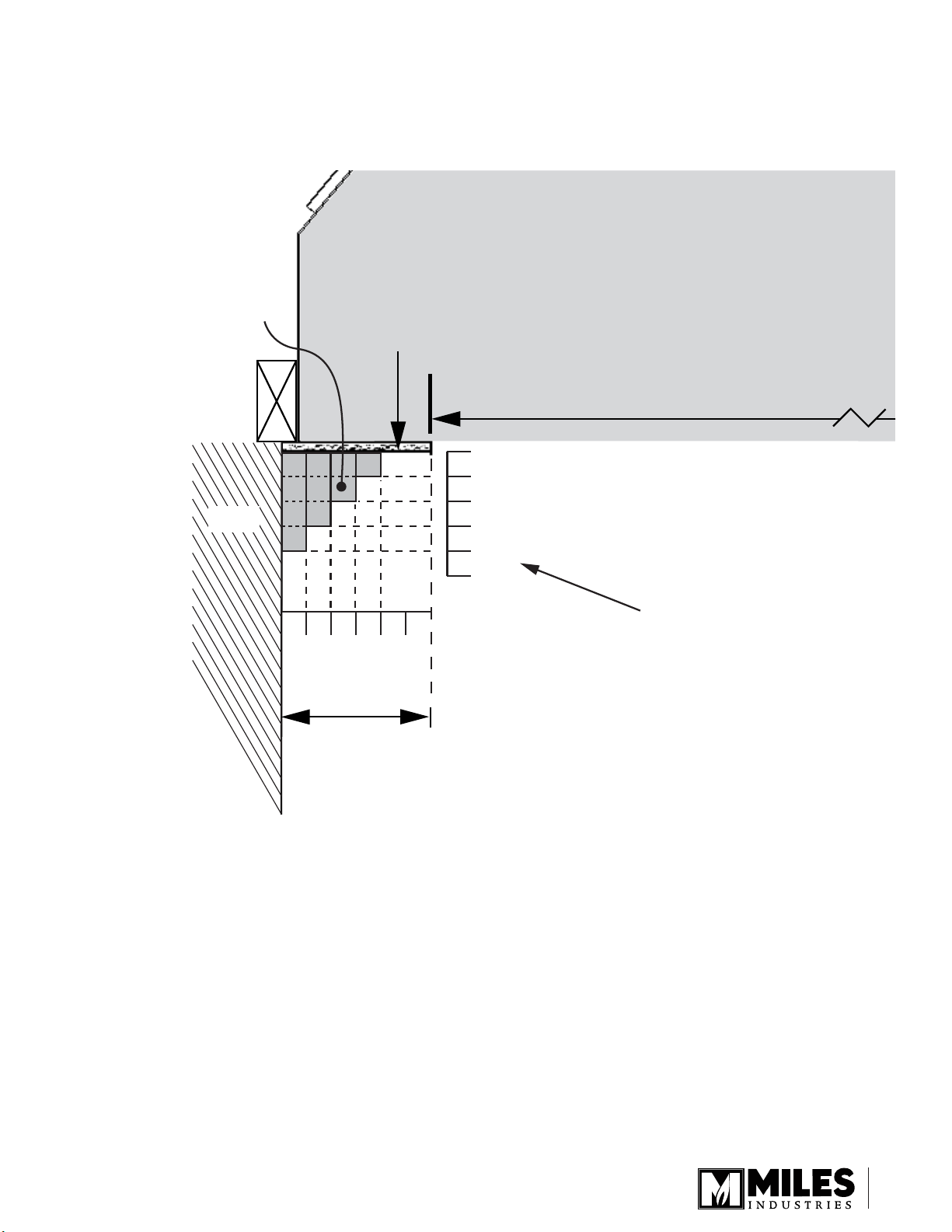

2” 1”4”5” 3”
2”
1”
4”
5”
3”
32-1/2”
Fireplace Opening
Wall
Min. 6”
between edge
of opening
and wall
Face of
Finished
Wall
Note
Right Side Clearances
are the same
Shading denotes
allowable location
for combustible
mantel legs
Mantel Clearances
FIREPLACE
12
1. When using a 3-sided surround plate or no surround plate, any hearth/oor in front of replace less than 2 inches
from bottom of unit must be non-combustible and project a minimum distance of 9 inches. The hearth/oor must
have a non-combustible nish provided with the 3-sided surround
plate 1335. Order separately if not using a surround plate. This insulation board acts as a thermal break.
2. Combustible baseboards (1 inch thick or less) located on wall below base of unit are acceptable.
3. a) Unit will need to be raised in every case by minimum of 1 inch to accommodate a four-
sided trim.
b) Bottom of heater must be at least 2 inches above combustible hearth/oor
nish in front. Non-combustible hearth applied over insulation board required if bottom of replace is less than
2 inches above combustible oor in front (see 1.).

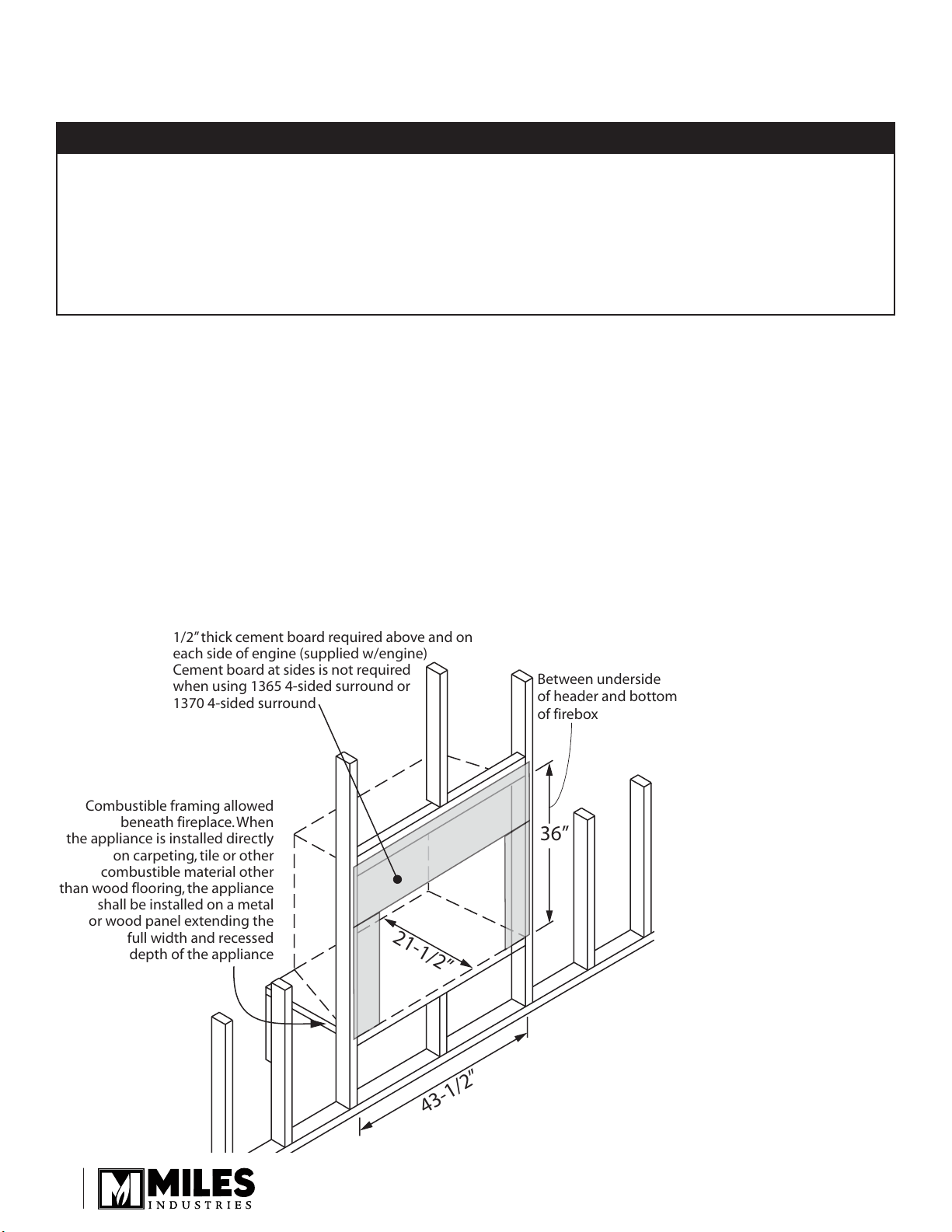

Framing & Hearth Requirements
21-1/2”
36”
43-1/2”
1/2” thick cement board required above and on
each side of engine (supplied w/engine)
Cement board at sides is not required
when using 1365 4-sided surround or
1370 4-sided surround
FRAMING DIMENSIONS without hearth
Between underside
of header and bottom
of firebox
Combustible framing allowed
beneath fireplace. When
the appliance is installed directly
on carpeting, tile or other
combustible material other
than wood flooring, the appliance
shall be installed on a metal
or wood panel extending the
full width and recessed
depth of the appliance
The Vogue is a very effective radiant heater. The hearth/oor in front of
the heater can get very hot. Locating the unit raised above the hearth/oor or adding a generic
freestanding screen in front of the unit can greatly reduce hearth temperatures. When using a
3-sided trim or when the nishing does not include a trim, any hearth within 2 inches of the base of
the heater must be constructed of non-combustible materials (see diagrams in the following pages).
Note that some materials, although safe can degrade due to heat—take this into consideration when
choosing materials.
13
Framing & Hearth Requirements
Surface of
Combustible
Floor or Carpet
#1335 Three-Sided Trim is flush
with bottom of appliance.
Wood is Allowed
Directly Below
Fireplace
Non-Combustible
Finish
Three-Sided
Trims
Less
than
2”
1/2” Insulation
Board supplied
with 3-sided
surround plate
(excess may be cut off
or run below fireplace)
Min. 9” of hearth protection required if bottom
of heater is less than 2” above combustible floor
Required when using 3-sided surround plates or
no surround plate and hearth/oor is within 2” of bottom of appliance
21-1/2”
36”
43-1/2”
When using 3-sided surround plate or no surround
plate, any surface directly in front of the unit which
is at a height of less than 2” from the bottom of
the unit must be non-combustible extending
a minimum of 9” and have a 1/2” insulation board
beneath (supplied with 3-sided surround 1335 -
order insulation board separately if not using a
surround plate). See Non-combustible substrate
construction details diagram below.
1/2” thick cement board required above and on
each side of engine (supplied w/engine)
Cement board at sides is not required
when using 1365 4-sided surround or
1370 4-sided surround
Between underside
of header and bottom
of firebox
Combustible framing allowed
beneath fireplace. When
the appliance is installed directly
on carpeting, tile or other
combustible material other
than wood flooring, the appliance
shall be installed on a metal
or wood panel extending the
full width and recessed
depth of the appliance
Hearth
Bottom of
firebox
Cement
Board
Min. 1” between top of
finished hearth and
bottom of firebox if using
#1337 Four-Sided Trim.
Min. 2-3/4” if using #1365 or
#1370 Four-Sided Surrounds.
14
Venting
This unit is approved for installation using 4 x 6-5/8 in
co-axial direct vent pipe and accessories manufactured
by Simpson Dura-Vent. Follow the installation
instructions supplied with the individual venting
accessories.
This unit may also be converted to co-linear (2 x 3 in)
venting for use in solid-fuel burning replaces and
chimneys using adapters and accessories—see list
below.
The appliance vent is suitable for penetrating a
combustible wall assembly up to 8 inches in thickness.
A non-combustible wall can be of any thickness up to
the maximum horizontal run of vent pipe allowed for the
particular installation.
When penetrating through combustible walls and
ceilings, frame a minimum of 10 in x 10 in opening and
ensure that the insulation is kept clear of the vent pipe
using either a wall thimble or an attic insulation shield.
Follow the installation instructions supplied with the
individual venting components.
10” (254 mm)
10” (254 mm)
Align the vent
center to the
center of the frame
• 46DVA-HC—Standard Co-axial Horizontal
• 46DVA-VC—Standard Co-axial Vertical
• 46DVA-VCH—High Wind Co-axial Vertical
• 46DVA-VCE—Extended Co-axial Vertical
• 46DVA-SNK14—Snorkel, 14” Rise
• 46DVA-SNK36—Snorkel, 36” Rise
• 559CLT—Co-linear Terminal (Valor)
• 46DVA-E45—Galvanized
• 46DVA-E45B—Black
• 46DVA-E90—Galvanized
• 46DVA-E90B—Black
• 46DVA-06—Galvanized, 6” long
• 46DVA-06B—Black, 6” long
• 46DVA-09—Galvanized, 9” long
• 46DVA-09B—Black, 9” long
• 46DVA-12—Galvanized, 12” long
• 46DVA-12B—Black, 12” long
• 46DVA-18—Galvanized, 18” long
• 46DVA-18B—Black, 18” long
• 46DVA-24—Galvanized, 24” long
• 46DVA-24B—Black, 24” long
• 46DVA-36—Galvanized, 36” long
• 46DVA-36B—Black, 36” long
• 46DVA-48—Galvanized, 48” long
• 46DVA-48B—Black, 48” long
• 46DVA-F6—Roof 0/12–6/12
• 46DVA-F12—Roof 7/12–12/12
• 46DVA-FF—Flat roof
• 559FSK—Flashing (Valor)
• 46DVA-GCL—Co-axial to Co-linear Adapter
• 46DVA-GK—Co-linear to Co-axial Adapter
• 46DVA-WT—Wall Thimble
• 46DVA-SC—Storm Collar
• 46DVA-DC —Decorative Plate
• 46DVA-CS—Cathedral Ceiling Support
• 46DVA-FS—Ceiling Firestop / Floor Support
• 46DVA-WS—Wall Strap
• 46DVA-VSS —Vinyl Siding Standoff
• 46DVA-ES —Elbow Strap
• 46DVA-WG—Terminal Guard
• 2280—2-ply liner approved to CAN/ULC S635
suitable for venting gas appliances
15
Co-Axial Venting
HORIZONTAL
TERMINATION
2-PIECE
WALL
THIMBLE
PIPE
LENGTH
PIPE
LENGTH
PIPE
LENGTH
PIPE
LENGTH
90˚ ELBOW
CEILING
FIRESTOP
ATTIC
FIRESTOP
ATTIC
INSULATION
SHIELD
FLASHING
STORM
COLLAR
VERTICAL
TERMINATION
It is the installer’s responsibility to ensure that vent
installations through exterior walls are caulked and
weatherproofed in such a manner as to:
• Prevent rain water from entering the wall from the weather
side by adequately caulking the outer vent plate to the
exterior wall surface.
• Prevent moisture inside the home from penetrating into the
wall structure by ensuring the inside wall plate is adequately
sealed to the inside vapor barrier.
• Prevent rain water and moisture from entering the walls by
sealing the joints between the outer vent tube and the inner
and outer wall plates.
We recommend the use of a high quality polyurethane sealant.
16

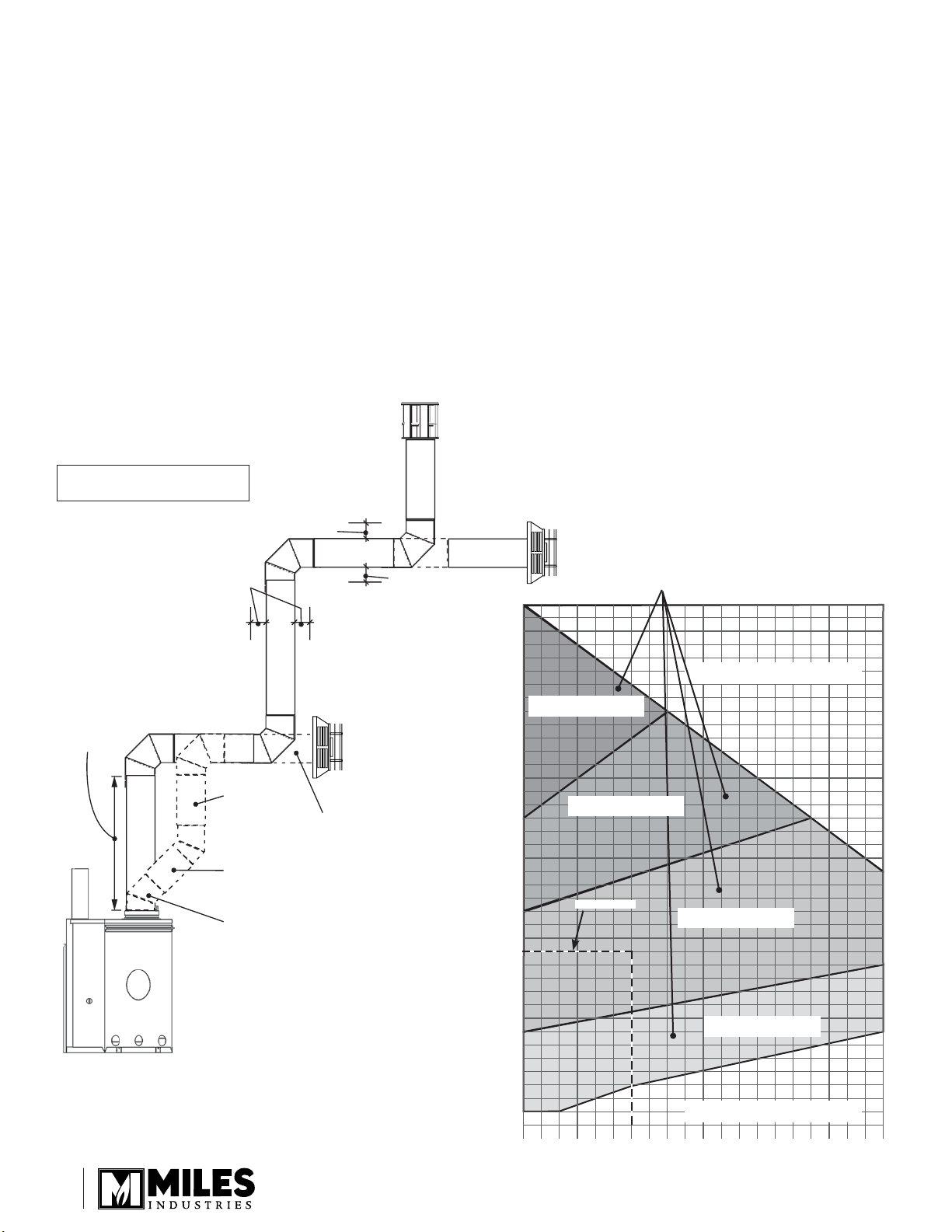

The chart below applies to co-axial roof or wall
termination.
1. The total length of the vent pipe cannot exceed
40 feet.
2. The minimum vertical height with roof termination is
6 feet.
3. Any combination of rise and run can be used as
long as they are within the allowable limits shown
on the chart below.
4. A maximum of 4 x 90 degrees elbows—or
equivalent (2 x 45 degrees = 90 degrees)—can be
used.
5. Each 90 degrees elbow installed on the horizontal
plane is equivalent to a 3 feet horizontal pipe;
therefore, 3 feet must be subtracted from allowable
horizontal run. (45 degrees elbow is equivalent to
18 inches horizontal pipe.)
6. All horizontal pipe runs must be graded 1/4 inch per
foot upwards in the direction of the exhaust ow.
The nal pipe length, when terminating through the
wall may be graded downwards slightly to prevent
water migration.
7. A restrictor is required for all installations—see next
section.
2 4 6 8 10 12 14 16 18 20
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
Min. 2’
before
elbow
MINIMUM
VERTICAL
RISE: 2’
V1
V2
V3
H1
H2
Min. 12” pipe
Max. 24” pipe if
min. vertical rise
is used
45° elbow directly
on flue collar
Max. 6” pipe if
min. vertical
rise is used
1” min.
all around
vertical pipe
3” min.
above top of
horizontal pipe
1” min. around
bottom & sides of
horizontal pipe
Co-Axial Venting
17
for
improved ame picture and performance. This unit is
supplied with a pre-tted restrictor having four different
positions or settings. The level of restriction required
depends on the vertical rise in the venting system and,
to a lesser degree, the horizontal run and number of
elbows.
The amount of restriction is based on laboratory tests.
The ideal restrictor position may vary slightly, especially
when the vent pipe length is near the limits of the
acceptable congurations for each type of restrictor.
The chart on the previous page shows the vent
restrictor required relative to the length of the vent pipe.

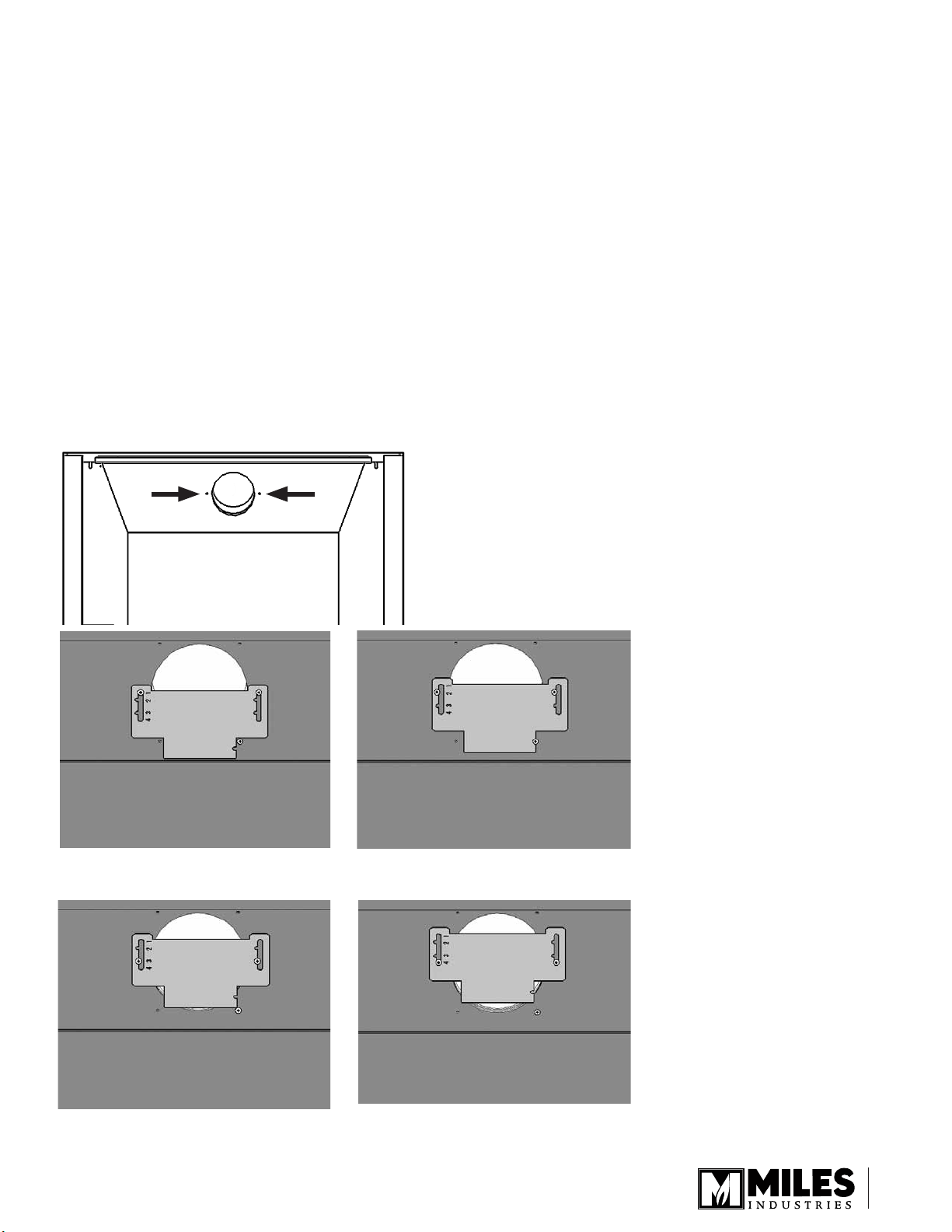

To set the restrictor position:
1. Establish the required position of the restrictor
looking up the venting table on the previous page.
2. Release the screws (2) on each side of the restrictor
already installed.
3. Slide the restrictor in the required position.
4. Tighten the screws.
Position #1 Position #2
Position #3 Position #4
Co-Axial Venting
18
• The vent terminal must be located on an outside
wall or through the roof.
• This direct vent appliance is designed to operate
when an undisturbed airow hits the outside vent
terminal from any direction.
• The minimum clearances from this terminal that
must be maintained when located on an outside
wall are shown in the gure below. Any reduction
in these clearances could result in a disruption
of the airow or a safety hazard. Local codes or
regulations may require greater clearances.
• The vent terminal must not be recessed into a wall
or siding.
• The vent terminal should be positioned where it will
not be covered by snowdrifts.
• Sidewall vent terminations within 7’ of grade require
a terminal guard.
Co-Axial Venting
V
G
A
Min. 72” Max. 72”
Alcove detail
(open on one
side) Normal
ceiling/soft
clearances
apply.
Inches Cm
A Clearance above grade, verandah, porch, deck or balcony 12 30
B Clearance to window or door that may be opened 12 30
C Clearance to permanently closed window (recommended to prevent condensation on window) 12 30
D Vertical clearance to ventilated soft located above the terminal within a horizontal distance of
2 feet (60 cm) from the center-line of the terminal
18 46
E Clearance to unventilated soft 12 30
F Clearance to outside corner 12 30
G Clearance to inside corner 12 30
H Horizontal clearance to center-line of meter/regulator assembly located within 15 feet (4,6 m)
below the terminal
36 90
I Clearance to service regulator vent outlet 36 90
J Clearance to non-mechanical air supply inlet to the building or the combustion air inlet to any
other appliance
12 30
K Clearance to a mechanical air supply inlet 72 180
L Clearance above paved sidewalk or a paved driveway located on public property
: A vent must not terminate directly above a sidewalk or paved driveway, which is located
between two single-family dwellings and serves both dwellings
84 210
M Clearance under a verandah, porch, deck or balcony
Only permitted if veranda, porch, deck or balcony is fully open on a minimum of 2 sides
beneath the oor
12 30
Note:
Local codes and regulations may require different clearances.
19
Co-Axial Venting
10-1/2”
(267 mm)
3”
(76 mm)
7-1/2”
(191 mm)
7-1/8”
(181 mm)
Co-linear portion of vent system may only be installed within a solid-fuel burning replace and chimney.
The appliance must not be connected to a chimney ue serving a separate solid-fuel burning appliance.
Requires a Co-Axial to Co-Linear appliance Adapter, two
lengths of 2-ply 3” dia. exible chimney liner approved for
venting gas appliances, a co-linear termination kit and
ashing or a co-linear to co-axial adapter and either a
high wind vertical vent terminal cap or a low prole vertical
termination. Firebox top zero clearance stand-offs supplied
with the heater are not required for this application.
• Maximum 40 feet vertical pipe
• Minimum 10 feet vertical
• Maximum offset 8 feet with liners at minimum 45 degrees
from horizontal plane
• Restrictor: Use #4 position for all co-linear installations—
refer to page 17 for restrictor positioning.
Flashing
2 x 3”
liners
3” min.
bend radius
Co-linear
adapter
2 x 3”
liners
Co-linear
adapter
Vogue
engine
Approved co-linear
termination or approved
co-linear adapter
and approved
co-axial
termination
Co-Linear Venting
Dura-Vent #46DVA-GCL
Co-Axial to Co-Linear Adapter
Vogue with co-linear adapter Co-Linear installation into existing F/P
Flat to 7/12 1'
Over 7/12 to
8/12 1.5'
Over 8/12 to
9/12 2’
Over 9/12 to
10/12 2.5’
Over 10/12 to
11/12 3.25’
Over 11/12 to
12/12 4’
Over 12/12 to
14/12 5’
20
Installation Planning
2. Unpack the appliance.
3. Check that you have everything.
4. Finish the framing.
5. If you are using the 1376CSK Clean Surround
Installation Kit, install it now.
6. Fit the appliance into framing.
7. Fix the appliance to the framing.
8. Install the venting system.
9. Position the restrictor.
10. Connect and test the gas supply.
11. Install the ceramic liners, fuel bed and rocks.
12. Ret the window.
13. Connect the electrical wiring for optional decorative
light if used.
14. Install the optional wall switch if required.
15. Put the batteries in receiver and remote control
handset.
16. Initialize the remote control system.
• Packing knife
• Claw hammer
• Screwdriver set
• Metric socket set
• Pliers
• Adjustable Wrench
• Sealant
• Dish soap/water solution
• Gloves
• Eye Protection
• Electrical outlet box, wire, wire clamp and switch if
installing optional decorative light
17. Verify the operation and adjust aeration settings.
18. Install the remote control handset wall holder.
20. Install the Trim Kit if required.
21. Finish the wall around the replace.
10”
10”
3” Inlet & Exhaust
Collars
7-5/8” dia.
collar

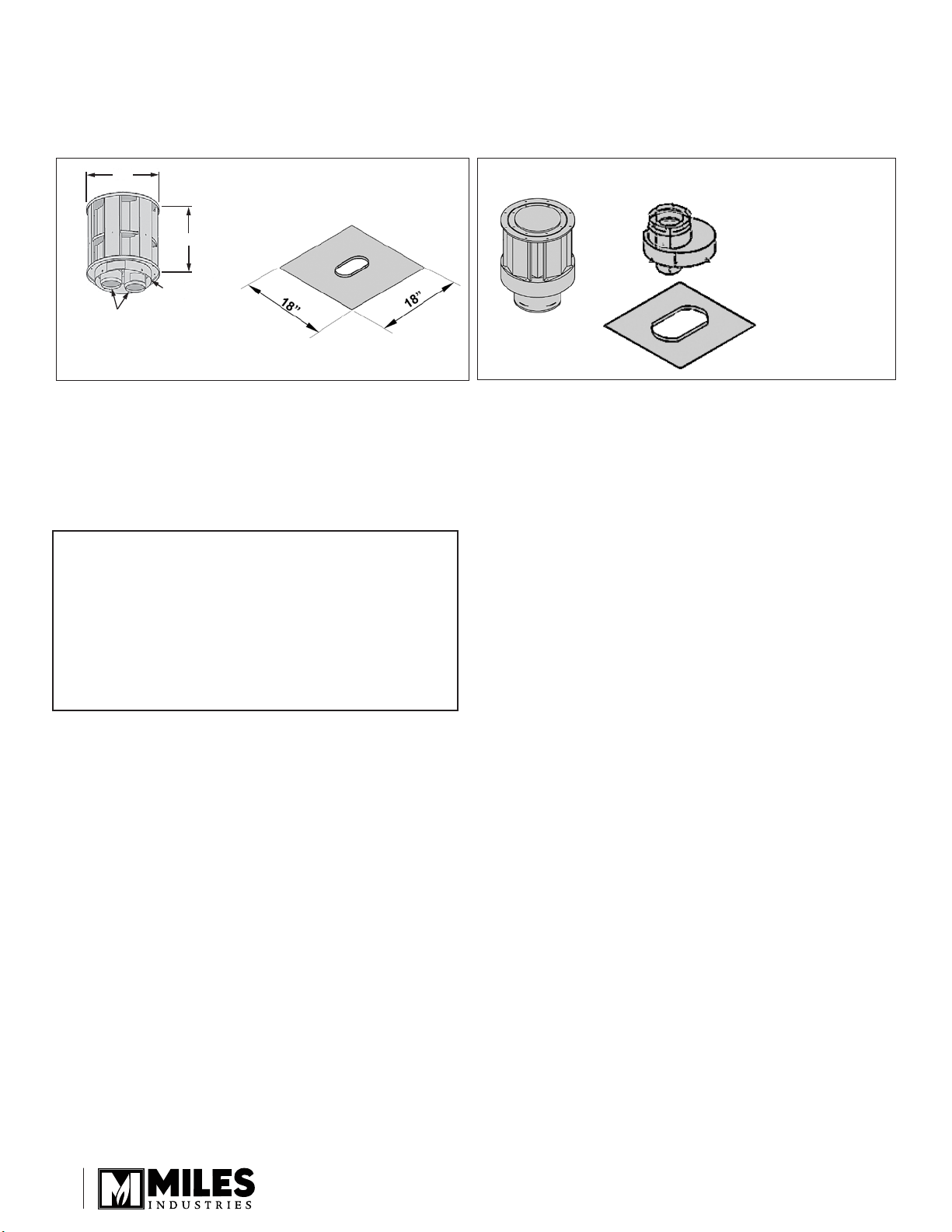

559FSK Flashing Kit559CLT Co-Linear Terminal
Terminal Cap
Co-Linear to Co-Axial
Adapter
Co-Linear Venting
Flashing
This manual suits for next models
1
Table of contents
Other Valor Indoor Fireplace manuals
Valor
Valor BR Assembly instructions
Valor
Valor LEGEND G3 739JN Operating instructions
Valor
Valor G3 739 User manual
Valor
Valor H3 1000JN Planning guide
Valor
Valor L1 Series User manual
Valor
Valor H5 1100MN User manual
Valor
Valor HORIZON 534ILN User manual
Valor
Valor HORIZON 534XAN Installation instructions
Valor
Valor AutoFire G4 User manual
Valor
Valor 1470RGL User manual
Valor
Valor MADRONA MF28JN Operating instructions
Valor
Valor COSYFLAME TURBOCHIM 528 Assembly instructions
Valor
Valor LEGEND G4 785XN Installation instructions
Valor
Valor 641 User manual
Valor
Valor HORIZON 613CCB User manual
Valor
Valor British Gas BG C-2 Assembly instructions
Valor
Valor HORIZON 535 Installation and operation manual
Valor
Valor Portrait 530ILN/ILP Manual
Valor
Valor Legend G3.5 700IN User manual
Valor
Valor 2200JN Operating instructions
Popular Indoor Fireplace manuals by other brands
Montigo
Montigo L-Series DF Planning guide
Well Straler
Well Straler PANO installation instructions
White Mountain Hearth
White Mountain Hearth BVD34FP30 Installation instructions and owner's manual
Montigo
Montigo M36PFC Installing and operating
EdilKamin
EdilKamin 809540 Installation, use and maintenance
Living Fire
Living Fire INFINITE SERIES Installation and user instructions
Town & Country Fireplaces
Town & Country Fireplaces TC36 Installation and operating instructions
Bayside Furnishings
Bayside Furnishings WINWMFP manual
Napoleon
Napoleon Ascent 36 Installation and operation manual
Empire Comfort Systems
Empire Comfort Systems DVP48FP30 Installation instructions and owner's manual
Taurus
Taurus Supra Turbo 654 Installation instructions and user manual
Alpaca
Alpaca IF-2018F quick start guide
Regency Fireplace Products
Regency Fireplace Products Alterra F175B-2 Owners & installation manual
Regency Fireplace Products
Regency Fireplace Products H2103 Owners & installation manual
Rothenberger Industrial
Rothenberger Industrial 1500000194 Instructions for use
Heatilator
Heatilator BIR42-B installation manual
Superior Fireplaces
Superior Fireplaces WRT6036RH Assembly, installation and operation instructions
TEC FLAME
TEC FLAME TT-FRPL-EF01-28 Installation and operating instructions
