Valor PORTRAIT 530IN User manual

Installation Manual
Direct Vent Zero Clearance
Gas Fireplace
natural gas 530IN
propane gas 530IP
PORTRAIT
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings
exactly could result in serious
injury, death, or property damage.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
▪Do not try to light any appliance.
▪Do not touch any electrical switch; do
not use any phone in your building.
▪Leave the building immediately.
▪Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
▪If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
Hot glass
will cause burns.
Do not touch glass
until cooled.
Never allow children
to touch glass.
A barrier designed to reduce
the risk of burns from the hot
viewing glass is provided with this
appliance and must be installed for
the protection of children and
other at-risk individuals.
DANGER
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
Installer: Place model/serial number here.
4004962-15

Ce guide est disponible en français sur demande.
This appliance is a domestic room-
heating appliance. It must not be used
for any other purposes such as drying
clothes, etc.
This appliance is suitable for
installation in a bedroom or bed
sitting room.
This manual contains instructions to
install the ENGINE ONLY. A trim kit is
REQUIRED to complete the installation.
A barrier screen is provided with the
trim kit. Refer to the manual supplied
with the trim for installation.
The information contained in this manual is believed to
be correct at the time of printing. Miles Industries Ltd.
reserves the right to change or modify any information
or specifications without notice. Miles Industries Ltd.
grants no warranty, implied or stated, for the
installation or maintenance of your heater, and
assumes no responsibility for any consequential
damage(s).
© Copyright Miles Industries Ltd., 2022. All rights reserved.
Designed and manufactured for Miles Industries Ltd.
Valor Fireplaces
190–2255 Dollarton Highway
North Vancouver, BC, Canada V7H 3B1
T 604.984.3496 F 604.984.0246
valorfireplaces.com
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where
not prohibited by local codes. This
appliance is only for use with the type
of gas indicated on the rating plate.
This appliance is not convertible for
use with other gases, unless a certified
kit is used.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
Massachusetts:
The piping and final gas connection must be
performed by a licensed plumber or gas fitter in
the State of Massachusetts. Also, see Carbon
Monoxide Detector requirements in this manual.
WARNING
This product can expose you to chemicals
including Benzene, which is known to the State
of California to cause cancer and birth defects or
other reproductive harm. For more information
go to www.P65Warnings.ca.gov.
Note: Natural gas, in its original state, contains
Benzene.
2

3
Fireplace Safety ................................................. 4
Specifications..................................................... 6
Kits & Accessories.............................................. 8
Dimensions & Clearances................................. 8
Framing............................................................... 9

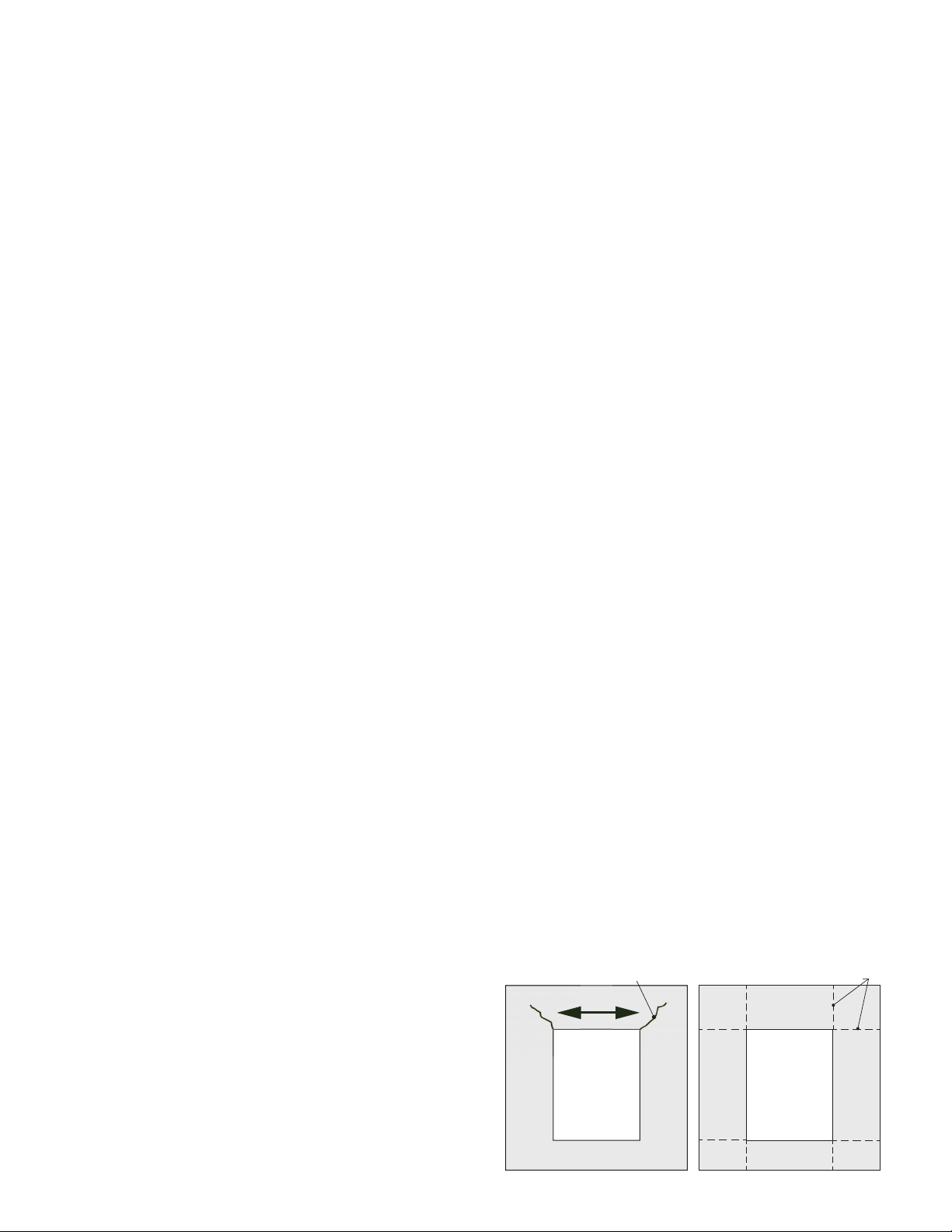

Wall Finish ......................................................................9
Venting .............................................................. 10
Overview ......................................................................10
Co-Axial ........................................................................11

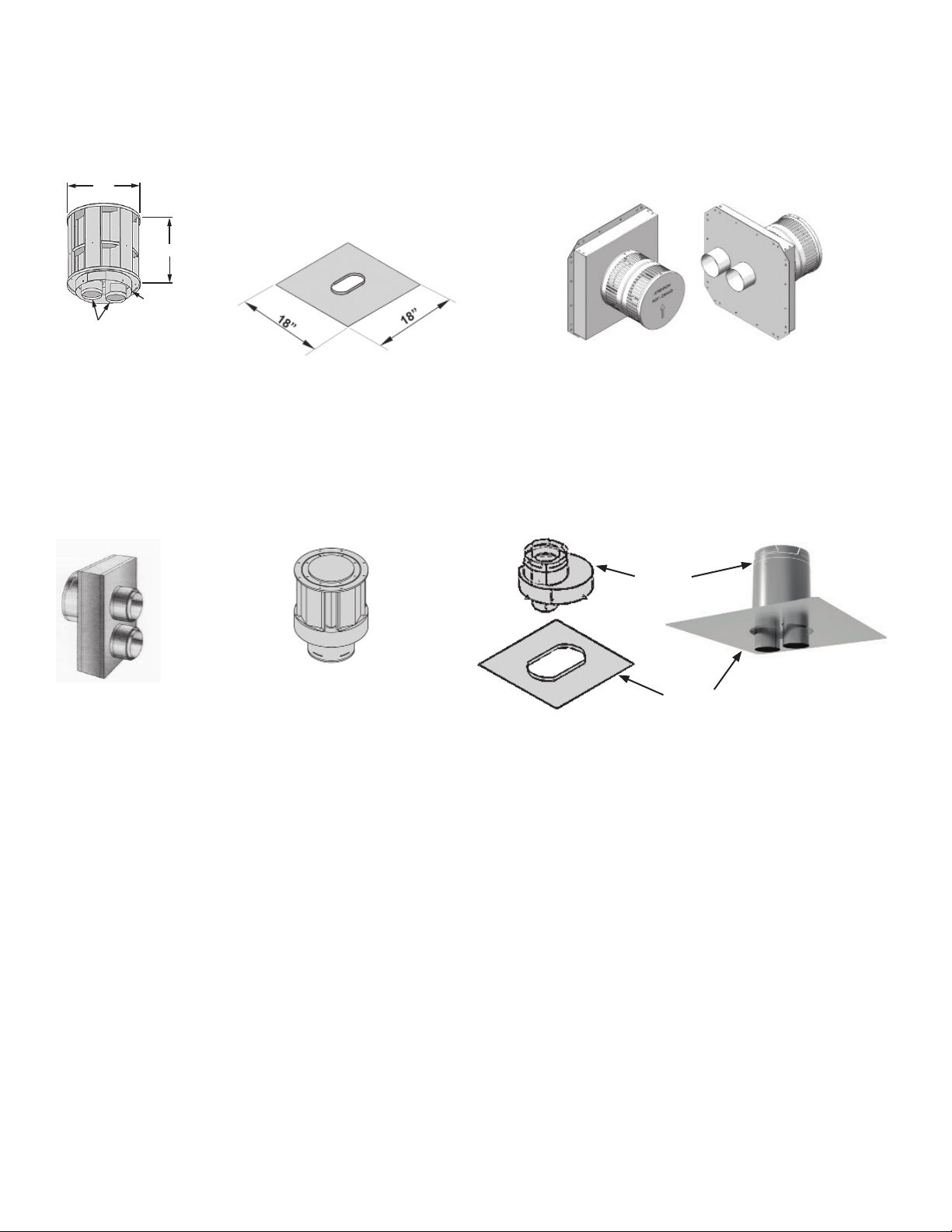

Typical Co-Axial Venting Components....................11
Rear Vent—No Vertical Rise .....................................12
Horizontal Vent Termination Location....................13

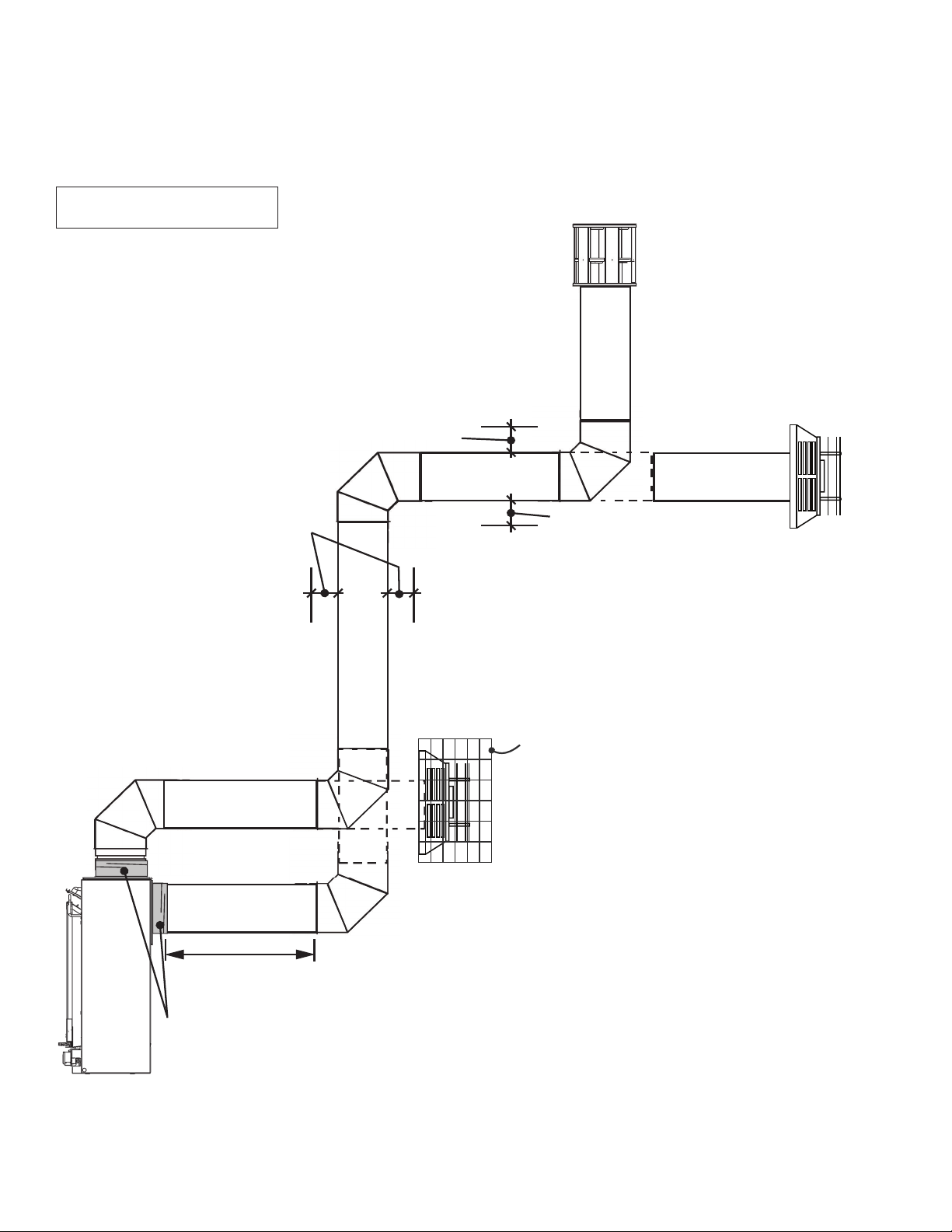

Venting Configurations—With Vertical Rise ..........14

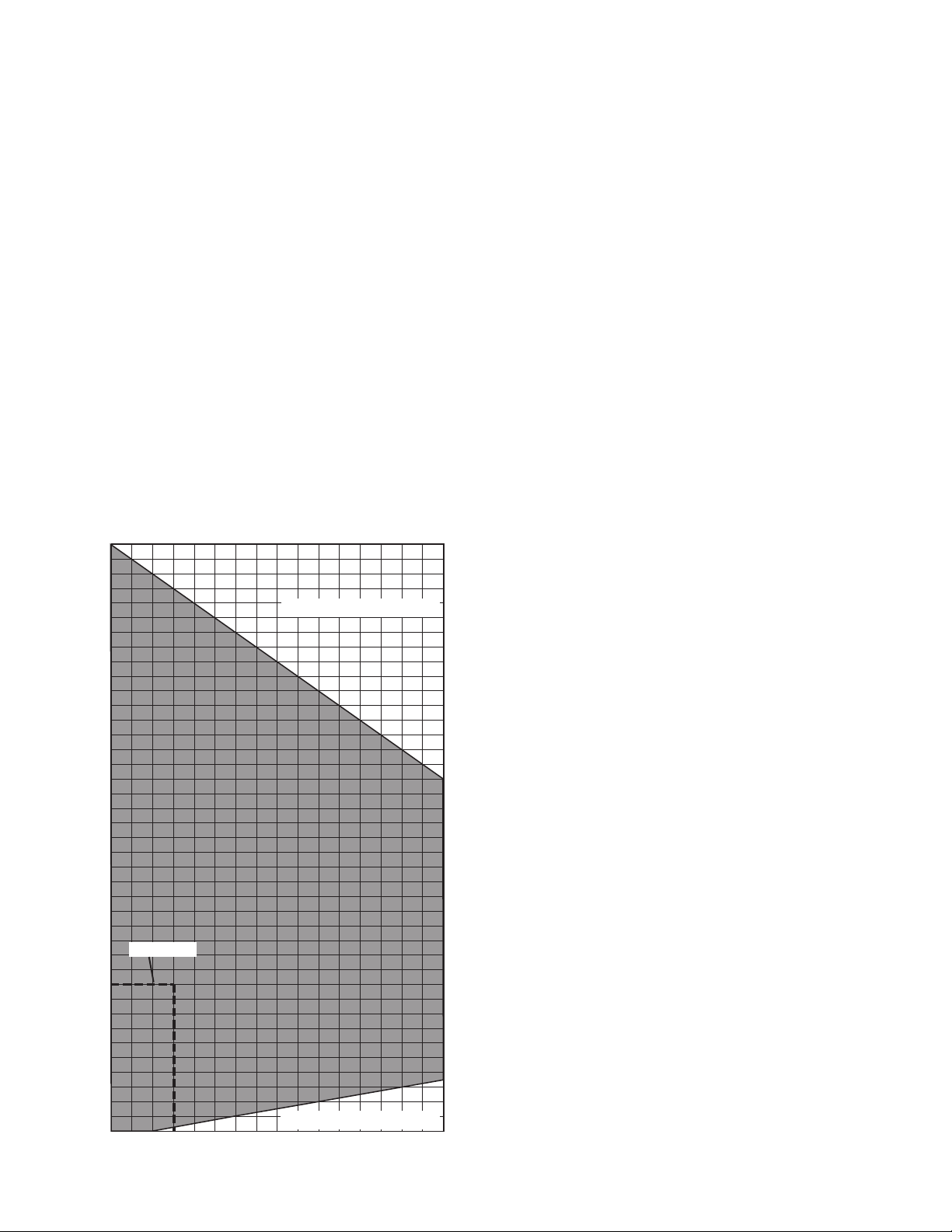

Venting Charts ............................................................15
Co-Axial Vertical Installations ..................................16
Restrictors....................................................................17
Co-Linear Conversion.................................................18
Co-Linear Vent Installations .....................................18
Co-Linear Venting Components ..............................19
Preparation ...................................................... 20
Before Installing......................................................... 20
Window & Burner Removal...................................... 21
Vent Outlet.................................................................. 22
Installation ....................................................... 24
Gas Supply................................................................... 24
Liner Panels—Traditional Logs & Coals.................. 25
Fuel Beds ..................................................................... 26
Traditional Logs Set 530LSK .....................................26
Coal Set 530CSK..........................................................27
Rock Set and Liners 530RSK.....................................28
Driftwood Kit and Liners 530DWK..........................30
Refit & Check Window............................................... 32
Battery Holder............................................................ 33
Remote Control Pairing............................................. 34
Burner aeration.......................................................... 35
Accessories ................................................................. 36
Front and Barrier Screen ..........................................36
Handset Wall Holder..................................................36
Wiring Diagram................................................ 37
Approved Venting Components .................... 38
Commonwealth of Massachusetts ............... 40
Appendix A – Lighting Instructions Plate..... 42
Appendix B – Remote Control Operation .... 43
Appendix C – Spare Parts ............................... 47
Please read this manual BEFORE
installing and operating this
appliance.
This appliance has been professionally installed by:
Dealer Name: ________________________________
Phone:______________________________________
Welcome to Valor®

4
Fireplace Safety
This manual contains very important information about the safe installation and operation of the fireplace. Read and
understand all instructions carefully before installing and operating the fireplace. Failure to follow these instructions
may result in possible fire hazard and will void the warranty.
Replacement manuals are available by contacting the Valor Customer Service at 1-800-468-2567, or by visiting
valorfireplaces.com.
WARNING: Extremely Hot!
Heat and flammability
• Some parts of the fireplace are extremely hot, par-
ticularly the glass window. Use the barrier screen
provided with the trim or a gate to reduce the risk of
severe burns.
• The glass windows can exceed 500°F at full capacity.
• Always keep the appliance clear and free from com-
bustible materials, gasoline, and other flammable
vapors and liquids.
• Be aware of hot wall surfaces! The wall directly above
the fireplace can get very hot when the fireplace
heats. Although safe, it may reach temperatures in
excess of 200ºF depending on choice of trims or op-
tional accessories. Do not touch!
• Be aware of hot hearth/floor surfaces! The hearth or
floor directly in front of the fireplace can get very hot
when the fireplace heats. Although safe, they may
reach temperatures in excess of 200º F depending on
elevation of hearth. Do not step on it! Temperature
of hearth/floor surface will be reduced when barrier
screen is installed.
• Solid wood flooring in front of the fireplace (if al-
lowed) may shrink during the heating season
due to heat.
• Some materials or items, although safe, may discolor,
shrink, warp, crack, peel, and so on because of the
heat produced by the fireplace. Avoid placing candles,
paintings, photos and other combustible objects
sensitive to heat or furniture within 36 inches (0.9m)
around the fireplace.
• Due to its high temperature, the appliance should be
located out of traffic areas and away from furniture
and draperies.
Barrier Screen and Safety
• Any safety screen, guard, or barrier removed for ser-
vicing an appliance must be replaced prior to operat-
ing the appliance
• Children and adults should be alerted to the hazards
of high surface temperature and should stay away to
avoid burns or clothing ignition.
• Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children, and others may be susceptible to
accidental contact burns. A physical barrier is recom-
mended if there are at-risk individuals in the house.
To restrict access to a fireplace or stove, install an
adjustable safety gate to keep toddlers, young chil-
dren, and other at-risk individuals out of the room
and away from hot surfaces.
• A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.

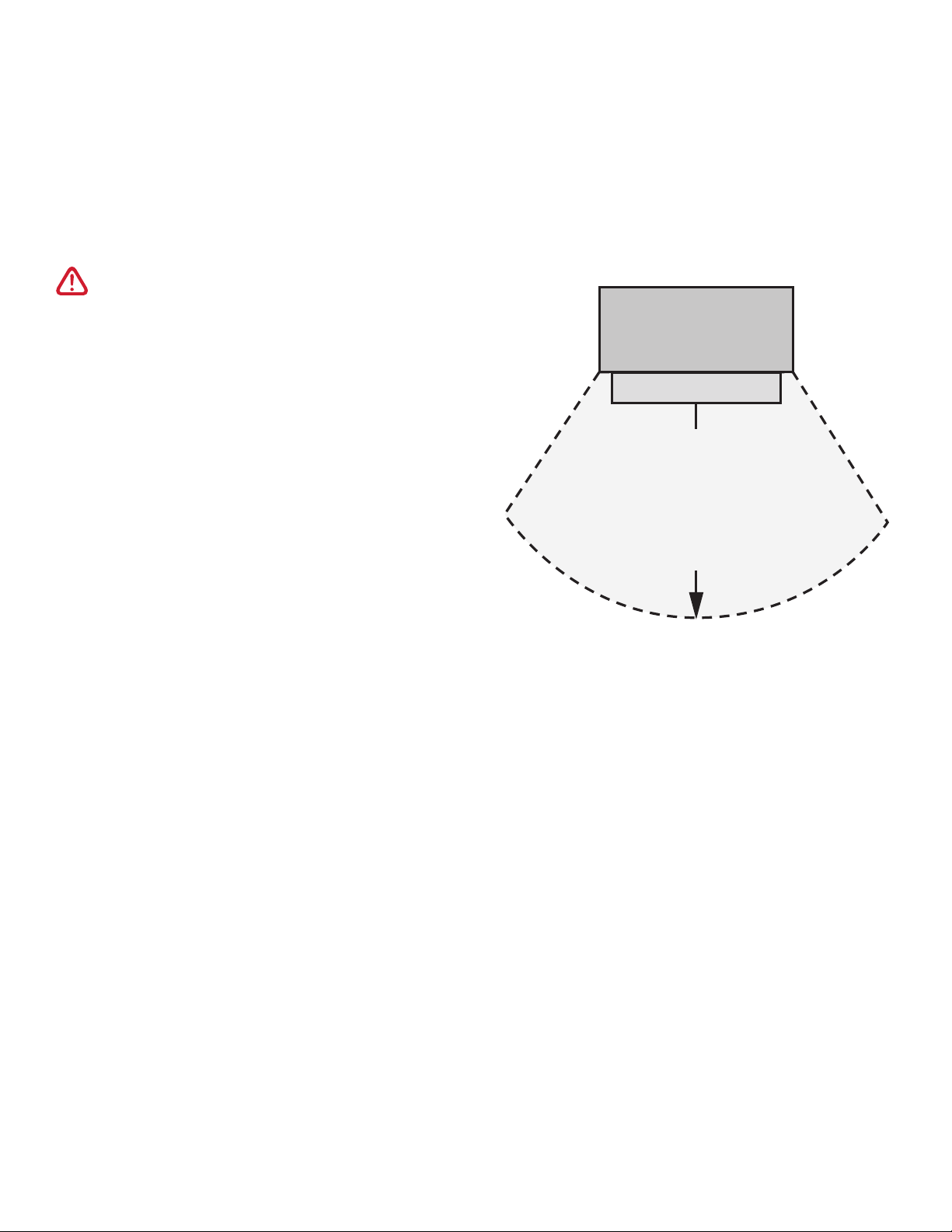

Do not put
furniture or other objects
in this space in front of
WKHȴUHSODFH
36” [0.9 m]
)LUHSODFH
Hearth

5
WARNING
Do not operate this appliance with the
glass front removed, cracked, or broken.
Replacement of the glass front should
be performed by a licensed or qualified
service person. Do not strike or slam the
glass front.
• Clothing or flammable material should not be placed
on or near the appliance.
Glass window
• The glass front assembly must be in place and sealed
before the unit can be placed into safe operation.
• The glass front assembly must only be replaced as a
complete unit, as supplied by the fireplace manufac-
turer. No substitute material may be used.
• Do not use abrasive cleaners on the glass front as-
sembly. Do not attempt to clean the glass front when
it is hot.
Venting
• This unit must be used with a vent system as de-
scribed in this manual. No other vent system or com-
ponents may be used.
• Never obstruct the flow of combustion and ventilation
air. Keep the front of the appliance clear of all obsta-
cles and materials for servicing and proper operation.
• This gas fireplace and vent assembly must be vented
directly to the outside and must never be attached to
a chimney serving a separate solid fuel burning ap-
pliance. Each gas appliance must use a separate vent
system. Common vent systems are prohibited.
Intended use
• This appliance is designed and approved as a supple-
mental heater and provides the potential for most
energy conservation when used while attended. The
use of an alternate primary heat source is advisable.
• This unit is not for use with solid fuel.
• Do not use this heater as a temporary source of heat
during construction.
Installation and Servicing
• Installation and repair should be done by a qualified
service person. The appliance should be inspected
before use and at least annually by a professional
service person. More frequent cleaning might be
required due to excessive lint from carpeting, bedding
material, et cetera. It is imperative that control com-
partments, burners, and circulating air passageways
of the appliance be kept clean.
• Do not use this appliance is any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of
the control system and any gas control that has been
under water.
Fireplace Safety

6
Approval & Codes
This appliance is certified to ANSI Z21.88/CSA 2.33
American National Standard / CSA Standard for Vented
Gas Fireplace Heaters for use in Canada and USA, and
to CGA 2.17-M91 High Altitude Standard in Canada.
This appliance is for direct vent installations.
This appliance complies with CSA P.4.1-15 Testing
method for measuring annual fireplace efficiencies.
The installation must conform to local codes or, in the
absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54 or the Natural Gas and
Propane Installation Code CAN/CGA-B149.1. Only
qualified licensed or trained personnel should install
this appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70
or the Canadian Electrical Code, CSA C22.1.
Ratings
*High Altitude Installations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to 4,500
feet (1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas
utility to confirm.
For installations at elevations above 4,500 feet
(1,370 m) in Canada, please consult provincial and/or
local authorities having jurisdiction.

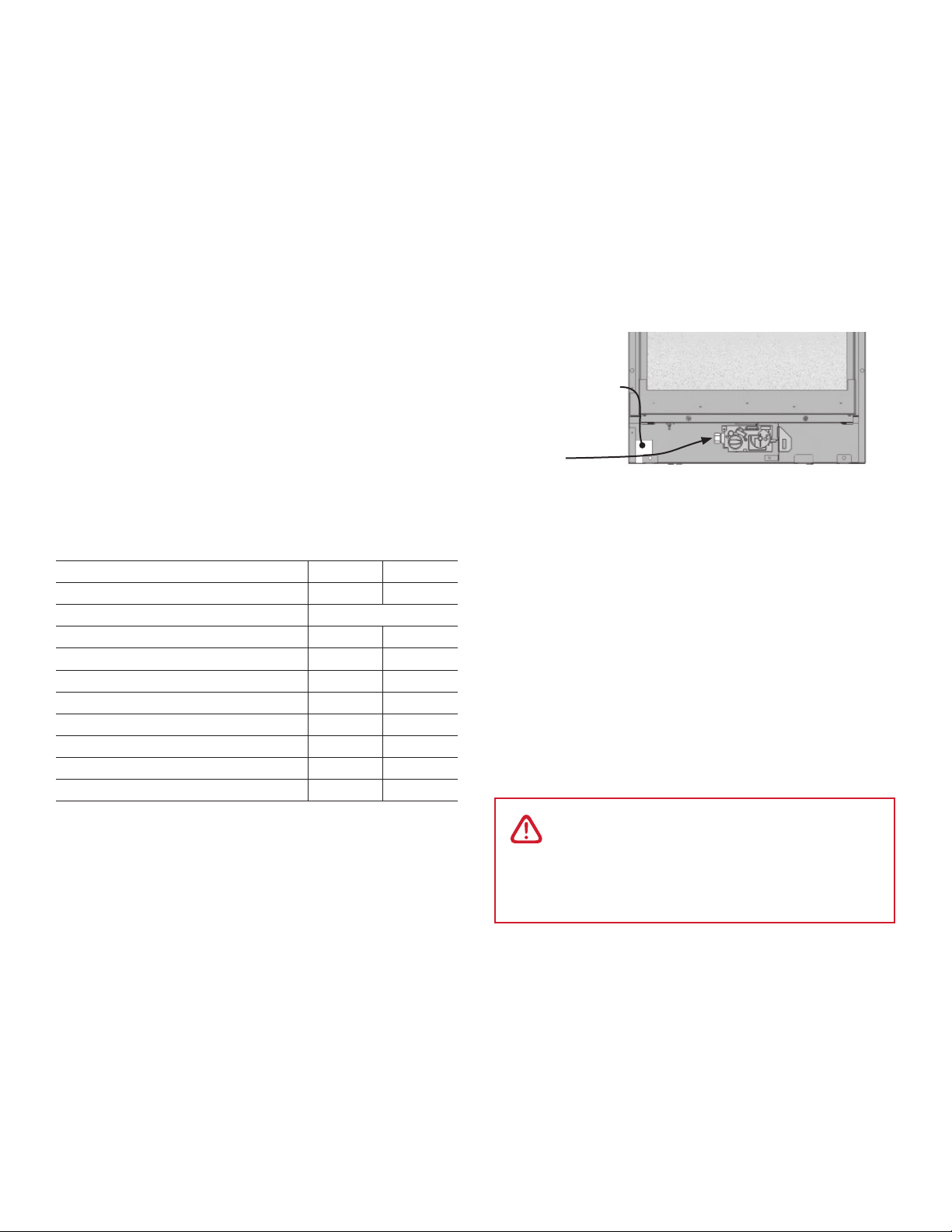

Model 530IN 530IP
Gas Natural Propane
Altitude (Ft.)* 0-4,500 feet*
Input Maximum (Btu/h) 20,500 19,000
Input Minimum (Btu/h) 6,500 12,500
Manifold Pressure (in w.c.) 3.5–3.9” 10.3–10.7”
Minimum Supply Pressure (in w.c.) 5” 11”
Maximum Supply Pressure (in w.c.) 10.5” 14”
Main Burner Injector Marking 580 200
Pilot Injector Marking 35 27
Min. Rate By-Pass Screw 125 125
Supply Gas
Heater engine 530IN is used with natural gas.
Heater engine 530IP is used with propane gas.
The supply pressure must be between the limits shown
in the Ratings table.
The supply connection is 3/8” NPT female located at the
left side of the control valve. The opening for the gas
supply line is at the rear left corner of the appliance.
Gas Conversion
The 530 fireplace is offered with natural gas or propane
gas. It can be converted from one gas to the other. See
installation manual supplied with the gas conversion kit
for more information.
Fuel Beds
The 530 engine can use a simulated logs, coals, rocks or
driftwood fuel bed with natural gas or propane.
Electrical
The 530 does not require an electrical power source
unless fitted with an optional circulating fan.
Specifications
Gas supply
connection 3/8”
NPT female at
valve
Gas line access at
rear left corner
WARNING
Optional electrical accessories ARE NOT
ALLOWED when adapting appliance for
outdoor use.

7
Specifications
Floor/Hearth
This appliance is approved for installation directly on
combustible material such as plywood and so on. Vinyl,
carpen, and soft flooring require sheet metal extending
the shole width and depth under the appliance. This
appliance does not require a hearth. Combustible
flooring may extend up to the front of the unit.
Front Trims/Stove
Various fronts are available for the 530 engine. This
engine may be installed as a free standing, zero
clearance or insert application depending on which
style front trim is selected. The front trim/stove style
affects the framing cavity. A front trim kit is required
for all applications and should be on site when the
engine is installed as the parts to make the engine
suitable for zero clearance are supplied with the front
trim kits (except 549 front).
Outdoor Conversion Kit
The 530 model is supplied standard for indoor
applications and may be adapted for installation in
specific “outcoor” applications protected from weather
as defined in the GV60CKO Outdoor Conversion Kit
manual.

8
Required Kits
Information accurate at the time of printing and subject to change without notice.
Optional Accessories
Fuel Beds (choose one)
530LSK Traditional Logs & Reversible Liners Set
530RSK Rocks & Reversible Liners Set
530CSK Coals & Reversible Liners Set
530DWK Driftwood & Reversible Liners Set
Fronts/Stove (choose one) Barrier
Screen
Zero Clearance Installations
536CXB President ZC Front 4006382
539/550 Windsor and Classic Arches 4003290
541BPC Bolero Front 4003289
545CFVZC Clearview ZC Front 4005146
563CSB Senator Front 4003291
569LFB Ledge Front 4003375
Insert Installations
536CXBI President Insert Front
(closure plate 582 or 583 required) 4006382
545CFV Clearview Insert Front
(closure plate 582 optional) 4005146
546LF Ledgeview Insert Fronts 4005099
539/549/550 Windsor and Classic Arches 4003290
Free Standing Stove Installations
531CSB President Stove FS 4006382
Gas Conversion Kits
530NGK Conversion to natural gas
530PGK Conversion to propane gas
Other Accessories
GV60CKO Outdoor Fireplace Conversion Kit
582CPB Closure Plate, black, 26”Wx 31”H
(use with 536CXBI or 545CFV)
583CPB Closure Plate, black, 30”Wx 33”H
(use with 536CXBI)
567FGP Top Grille (DO NOT USE with coals)
580RGL Reflective Glass Liners (installs on top of
liners supplied with fuel bed)
556CLA Co-Linear Adapter
555CFK Circulating Fan Kit
1265WSK Wall Switch Kit
RBWSK Remote Battery & Wall Switch Kit
RCK400
GV60VM
GV60WIFI
WiFi connection kits. See your dealer to
find out which kits are required for your
installation.
GV60PAK AC Adapter
Hearth Gate
Hearth gates such as Cardinal’s
VersaGates are available at retail stores
carrying safety products for children.
WARNING
Some materials or items, although safe,
may discolor, shrink, warp, crack, peel,
and so on because of the heat produced
by the fireplace. Avoid placing candles,
paintings, photos, and other items
sensitive to heat around the fireplace.
WARNING
HOT HEARTH/FLOOR! The hearth or floor
in front of the fireplace may become very
hot when the fireplace heats. Do not
use the hearth as a seat or shelf. Solid
wood flooring in front of the fireplace (if
allowed) may shrink during the heating
season due to heat.
The dimensions and clearances vary with each
applications and with the front trim installed. Refer to
the installation instructions of the front trim chosen for
more information.
Kits & Accessories
Dimensions & Clearances

9
The framing vary with each application and with the
front trim installed. Refer to the installation instructions
of the front trim chosen for more information.
Planning Wall Finish
Non-Combustible Materials Specifications
Non-combustible materials will not ignite and burn.
Such materials are those consisting entirely of steel,
iron, brick, tile, concrete, slate, glass or plasters, or any
combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750 °C shall be considered
non-combustible materials.
Combustible Materials Specifications
Materials made of or surfaced with wood, compressed
paper, plant fibers, plastics, or other material that can
ignite and burn, whether flame proofed or not, or
plastered or unplastered shall be considered
combustible materials.
Non-combustible cement board—ZC applications
With most front trims, the 530 fireplace installed in
a zero clearance application will require a ½” [13 mm]
thick non-combustible cement board or equivalent,
to be used as a wall surface immediately above the
unit—see front trim installation manual for more
information.
Extending the cement board well beyond the minimum
shown will help avoid cracking due to differential
expansion of materials. Pre-drill cement board with
oversized holes and do not over-tighten screws to avoid
cracking due to heat expansion.
Standard gypsum wall board may be used beyond the
perimeter of the cement board although it is preferable
not to change materials to help avoid cracking.
Finishing around trims
Additional non-combustible material such as tile and
others may be applied over top of the wall surface or
you may choose to leave it finished clean with no tile.
Be aware that a trim is always required and that the
wall finish thickness must be taken into account for
all installations.
Avoiding Cracking Wall Finishes
If a clean finish with no tile, etc. is desired, joints in the
non-combustible board and the transition to gypsum
board will require special attention if future cracking is
to be controlled.
Shrinkage and differential movement of the framing
and non-combustible wall board can transmit cracking
through to tiles, etc.
Be aware that temperatures on the non-combustible
wall surface above the appliance can exceed 185°F.
Below are some tips on how to best avoid any cracking:
• Allow materials to dry thoroughly before finishing the
wall. Cement board has the ability to absorb up to 30
percent of its weight in water and may shrink as much
as 1/8” over a 48” length when drying from a saturated
condition. Running the fireplace for an extended period
before final finishing will help drive out moisture.
• Always pre-drill screw holes through cement board
and use screws with self-milling head.
• Always use mesh tape over joints.
• Always stagger joints in wall board.
• Behind joints, double up studs or use studs “on the
flat” to add extra support to the joint. Adhesive on
the backside of wall board behind any joints can help
control differential movement.
• Use multiple, thinner coats of joint compound and al-
low to dry thoroughly between coats.
• Ensure framing materials are dry.
• After finishing the wall, introduce heat gradually to slow-
ly dry any excess moisture rather than drying too fast.
• Avoid notching cement board or tiles around corners
of window opening and instead provide a joint that
intersects the corner.
• Avoid using large, one-piece slab of material with a
cut-out in the middle as a surround for the fireplace.
Expansion above the opening will cause cracking at in-
side corners. Provide a joint that intersects the inside
corner to avoid cracking.
Framing
Cracks Provide joints either here or here
Wall Finish

10

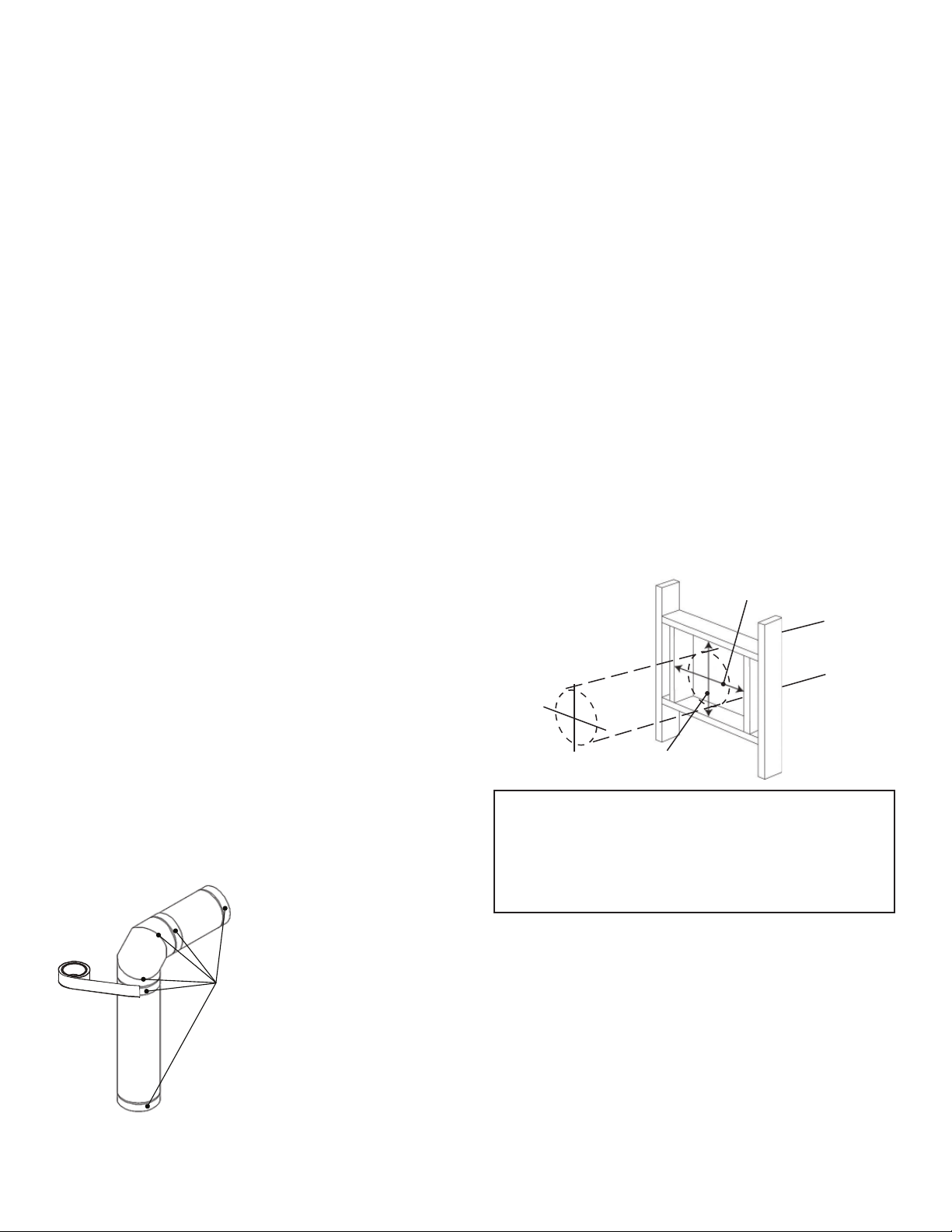

Venting
Top or Rear Facing Outlet
The 530 appliance is supplied standard with a rear
facing direct vent outlet and may be converted to a top
facing direct vent outlet with no extra parts required—
see .
The 530 appliance is supplied with a smooth 4 x 6-5/8”
co-axial collar and will require a 817VAK Vent Adapter to
convert the collar to a twist-lock type collar.
Vent Material
This appliance is approved for installation using
4 x 6-5/8-inch co-axial direct vent pipe and accessories
as listed in Approved Venting Components pages 38–39.
This appliance may also be converted to co-linear
venting with two 3-inch pipes for use in solid-fuel
burning fireplaces and chimneys using approved
adapers and accessories. See Co-Linear Conversion
pages 18–19 and Approved Venting Components pages
38–39.
Follow the installation instructions supplied with the
individual venting accessories.
Do not mix components from different manufacturers.
Do not cut pipe lengths; use adjustable lengths instead.
Vent Sealing
Seal all outer co-axial pipe and elbow joints, including
sectioned elbow joints, using high quality, high
temperature 2-inch wide self-adhesive aluminum foil
tape (Nashua-322-2 brand or similar). Wrap the tape
completely around all joints and press firmly to seal.
A high-temperature black silicone sealant may be used
in the outer joints as a substitute to foil tape.
Ensure all the pipe joints have a minimum of 1-1/4 inch
overlap.
Wall Thickness
The appliance vent is suitable for penetrating a
combustible wall assembly up to 14 inches in thickness.
A non-combustible wall can be of any thickness up to
the maximum horizontal run of vent pipe allowed for
the particular installation.
Vent Penetration Through Walls & Ceilings
Combustible
When penetrating through combustible walls and
ceilings, frame a minimum of 10 inches x 10 inches
opening and ensure that the insulation is kept clear of
the vent pipe using either a wall thinble or an attic
insulation shield. Follow the installation instructions
supplied with the individual venting components.
Non-combustible
If the wall is totally non-combustible (e.g. masonry
block or concrete), mark for a 7-inch circular hole.
In both cases, the center of the hole should line up with
the center line of the horizontal vent.
Co-Linear Direct Vent Installations for Free
Standing or Recessed Installations (flexible
piping)
Converts the appliance outlet collars to accept two
3-inch diameter flexible liners for installation into
existing solid-fuel burning fireplaces and chimneys.
Requires a co-linear adapter at the appliance and either
a co-linear terminal or co-linear-to-co-axial terminal at
the top of the chimney. Sidewall co-linear installation is
also possible using a 720WSK Sidewall Terminak Kit—
see instructions packed with the kit. A list of approved
venting accessories is shown on ....................
Overview
Tape all joints
(including all
elbow joints)
10” (254 mm)
10” (254 mm)
Align the vent
center to the
center of the
frame
All horizontal pipe runs must be graded 1/4 inch
per foot upwards in the direction of the exhaust
flow. The final pipe length, when terminating
through the wall may be graded downwards slightly
to prevent water migration.

11
HORIZONTAL
TERMINATION
2-PIECE
WALL
THIMBLE
HORIZONTAL
TERMINATION
2-PIECE
WALL
THIMBLE
PIPE
LENGTH
PIPE
LENGTH
PIPE
LENGTH PIPE
LENGTH
817VAK
817VAK
PIPE
LENGTH
90˚ ELBOW
CEILING
FIRESTOP
ATTIC
FIRESTOP
ATTIC
INSULATION
SHIELD
FLASHING
STORM
COLLAR
VERTICAL
TERMINATION
Venting
Typical Co-Axial Venting Components
See venting accessories list on for allowable
components.
Co-Axial

12
Important Installer Notice—Weather Sealing & Vapor Barrier
It is the installer’s responsibility to ensure that vent installations through exterior walls are caulked and
weatherproofed in such a manner as to:
• Prevent rain from entering the wall from the weather side by adequately caulking the outer vent plate to the
exterior wall surface.
• Prevent moisture inside the home from penetrating into the wall structure by ensuring the inside wall plate is
adequately sealed to the inside vapor barrier.
• Prevent rain water and moisture from entering the walls by sealing the joints between the outer vent tube and
the inner and outer wall plates.
We recommend the use of a high quality polyurethane sealant.
Venting Co-Axial

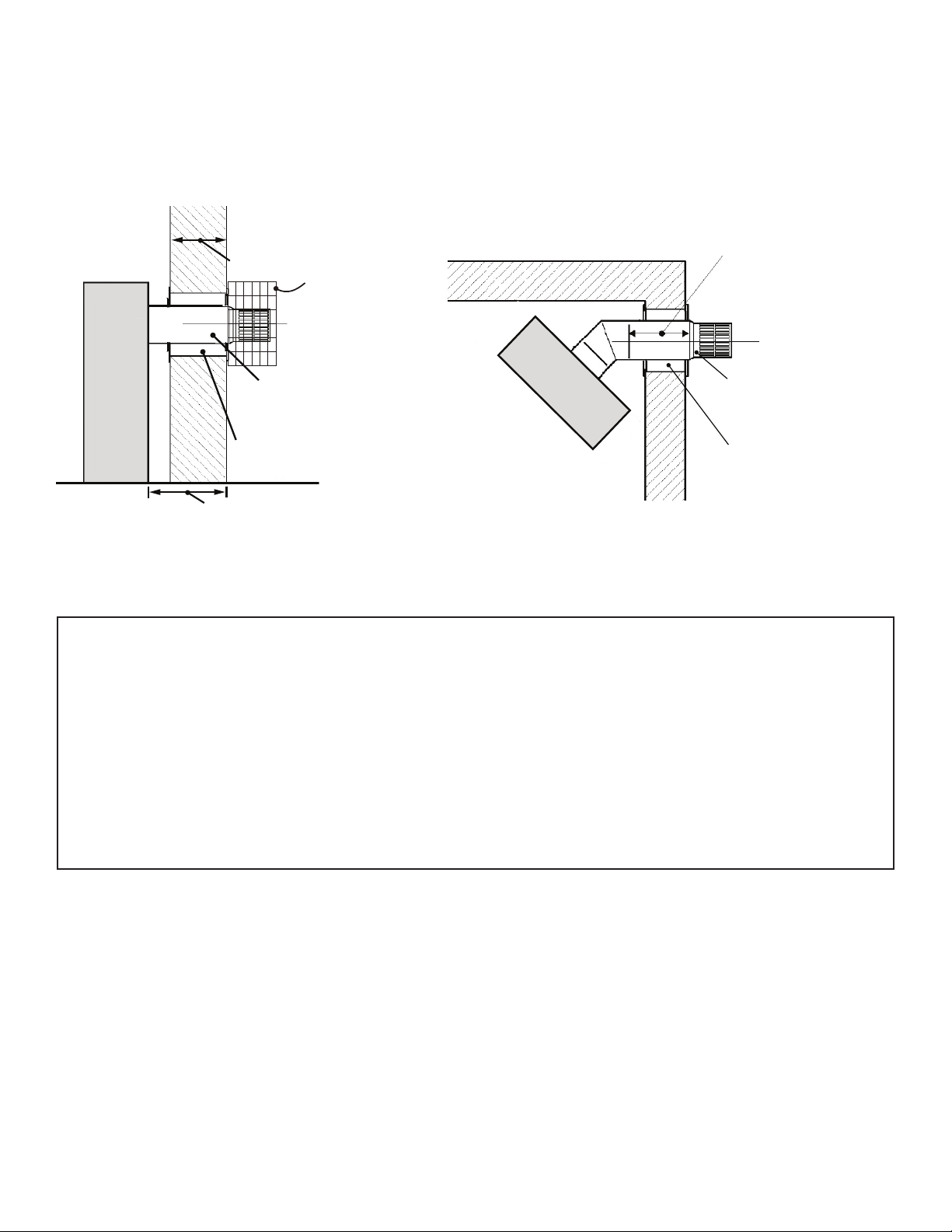

Rear Vent—No Vertical Rise
Rear vent—no vertical rise Corner rear vent—no vertical rise
Approved
trough wall
shield/thimble
Approved
side wall
termination
530
engine
Max. 26” (66 cm)
14”(36 cm) max.
within
combustible wall.
26”(66 cm) max.
vent length Use 658TG of
845TG vent
guard with a
vent terminal
located at less
than 7’ (2.13 m)
above grade
Approved
through wall
shield/thimble
Approved
side wall
termination
530
engine
12”(30 cm)
max vent pipe

13
Venting Co-Axial
Horizontal Vent Termination Location
Horizontal Vent Termination Location
• The vent terminal must be located on an outside
wall or through the roof.
• This direct vent appliance is designed to operate
when an undisturbed airȵow hits the outside vent
terminal from any direction.
• The minimum clearances from this terminal that
must be maintained when located on an outside
wall are shown in ȴgure below. Any reduction in
these clearances could result in a disruption of the
KEY VENT TERMINAL LOCATIONS - MINIMUM DISTANCES MINIMUM
CLEARANCE
Inches Cm
A Clearance above grade, verandah, porch, deck or balcony 12 30
B Clearance to window or door that may be opened 12 30
C Clearance to permanently closed window (recommended to prevent condensation on window) 12 30
DVertical clearance to ventilated soɝt located above the terminal within a horizontal distance of 2 feet (60 cm)
from the center-line of the terminal 18 46
E Clearance to unventilated soɝt 12 30
F Clearance to outside corner (measured from the center of vent) 12 30
G Clearance to inside corner (measured from the center of vent) 12 30
HHorizontal clearance to center-line of meter/regulator assembly located within 15 feet (4.6bm) below the
terminal 36 90
IClearance to service regulator vent outlet 36 90
J Clearance to non-mechanical air supply inlet to the building or the combustion air inlet to any other appliance 12 30
K Clearance to a mechanical air supply inlet 72 180
L
Clearance above paved sidewalk or a paved driveway located on public property
Note: A vent must not terminate directly above a sidewalk or paved driveway, which is located between two single-
family dwellings and serves both dwellings. THIS DOES NOT APPLY to direct vent, non-consdensing appliances in
the Province of Ontario.
84 210
MClearance under a verandah, porch, deck or balcony
Only permitted if veranda, porch, deck or balcony is fully open on a minimum of 2 sides beneath the ȵoor 12 30
Note: Local codes and regulations may require di΍erent clearances.
V
G
A
Min. 72”
Max. 72”
Alcove detail
(open on one
side) Normal
ceiling/soɝt
clearances
apply.
airȵow or a safety hazard. Local codes or regulations
may require greater clearances.
• The vent terminal must not be recessed into a wall
or siding.
• The vent terminal should be positioned where any
snowdrifts will not cover it.
• Sidewall vent terminations require a terminal guard
such as 658TG or 845TG when accessible—within 7’
of ground.

14
4 x 90º ELBOWS MAXIMUM
(or equivalent)
Venting Configurations—With Vertical Rise
Use 658TG or
845TG vent
guard with a
vent terminal
located at less
than 7’ (2.13 m)
above grade
V1
V2
H1
H2
1”min.
all around
vertical pipe
3”min.
above top of
horizontal pipe
1”min. around
bottom & sides of
horizontal pipe
817VAK adapter required
for top or rear outlet
530 heater Max. 24” before
elbow
Venting Co-Axial
Example 1
Value V = V1 (6’) + V2 (4’) = 10’
Value H = H1 (2’) + H2 (1’) = 3’

15
Horizontal Run (ft)
Vertical Rise (ft)
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
2 4 6 8 10 12 14 16
Top or Rear outlet
1
1
35
Example 1
NO INSTALLATION
NO INSTALLATION
How to Read the Venting Charts
The charts below apply to co-axial roof or wall termina-
tion in installations with vertical rise. See page 17 for
installations with no vertical rise.
1. The total length of the vent pipe cannot exceed
40 feet.
2. The minimum vertical height with roof termination is
8 feet.
3. Any combination of rise and run can be used as long
as they are within the allowable limits shown on the
chart below.
4. A maximum of 4 x 90 degrees elbows—or equivalent
(2 x 45 degrees = 90 degrees)—can be used.
Venting
Venting Charts
Co-Axial
5. Each 90 degrees elbow installed on the horizon-
tal plane is equivalent to a 3 feet horizontal pipe;
therefore, 3 feet must be subtracted from allowable
horizontal run. (45 degrees elbow is equivalent to
18inches horizontal pipe.)
6. All horizontal pipe runs must be graded 1/4 inch per
foot upwards in the direction of the exhaust flow.
The final pipe length, when terminating through the
wall may be graded downwards slightly to prevent
water migration.
7. Maximum co-linear venting is 40 feet.
8. A restrictor is required for all installations—see
Restrictors page 17 for more information.
Allowable Co-Axial Vent Configurations with Vertical Rise
Example 1
Value V = V1 (6’) + V2 (4’) = 10’
Value H = H1 (2’) + H2 (1’) = 3’

16
‘H’
Horizontal
overhang
Vertical
wall
Termination
cap
Storm
collar
Roof
flashing
Plumber’s tape
fixed to wall strap
Wall strap
Ceiling
firestop
Ceiling
support
Offset elbows
Min.
18”
Overhang should
not extend beyond
vent if within 48”of
termination cap
Min. 24”
(unvented soffit)
Min. 36”
(vented soffit)
Joists
10”
(254 mm)
10”
(254 mm)
Through-the-roof installation
Firestop hole
Co-Axial Vertical Installations
• Check the roof pitch to determine which roof flash-
ing will be needed. See Approved Venting Components
pages 38–39 for allowable components.
• The distance from the roof to the lowest terminal
discharge opening (“H” in figure) depends on the roof
pitch and must be in accordance with the manufac-
turer’s instructions supplied with the termination unit.
Note: The venting system for these appliances is consid-
ered to be Special Venting System.The rule in the CAN/
CGA-B149 Installation Code requiring a minimum vent
height of 2 feet above any portion of a building within
10 feet does not, therefore, apply.
• The minimum clearances to combustible materials
all round the vent pipes must be in accordance with
the dimensions shown in Venting Configurations—With
Vertical Rise page 14 of this manual.
• Drop a plumb from the ceiling to the center of the ap-
pliance vent opening. Mark the position on the ceiling.
Drill a small hole at the marked position.
• Determine the position where the vent will pass
through the roof. If directly above the position where
it penetrates the ceiling, drop a plumb from the roof
to the small hole in the ceiling and mark the roof at
this spot.
If rafters or other obstructions will prevent a vertical
exit or if clear attic space is desired, the roof outlet
can be offset using 45 degrees elbows.
Drill a small hole at the marked position.
• A ceiling firestop must be installed at the second floor
and higher floors.
A ceiling support should be used below the flat ceiling.
To install the firestop and support, cut and frame a
10inches (254 mm) square hole centered on the small
hole previously drilled.
• Fit vent accessory elbows a pipe lentghs as required
up through ceiling support boxes and firestops.
If installation includes offset, support the offsetting
pipes every 3 feet (1 m) with wall straps as shown.
• Cut a hole in the roof centered on the small hole. The
hole must allow for the minimum clearrences to com-
bustible materials. See Venting section in this manual.
• Fit pipe lengths through the roof. Fit roof flashing
securing it with roofing nails.
• Fit storm collar and termination cap.
• FS installations. Secure the appliance to the floor or
wall if necessary.
Venting Co-Axial
Roof Pitch Minimum
"H" [feet]
Flat to 7/12 1'
Over 7/12 to
8/12 1.5'
Over 8/12 to
9/12 2’
Over 9/12 to
10/12 2.5’
Over 10/12 to
11/12 3.25’
Over 11/12 to
12/12 4’
Over 12/12 to
14/12 5’

17
Adjustable
piece
Air Restrictor Assembly
DO NOT INSTALL HERE!
INSTALL HERE
Vent terminal Vertical vent
pipe run Use restrictor setting
Logs/Rocks Coals
Horizontal
through wall
WITH vertical
rise
Less than
4’ [122 cm]
More than 4’
[122 cm]
Vertical
through roof
Note: NO
restrictors
required with
straight out
rear venting
Install Air Restrictors—Appliances with Vertical Vent Rise Only
No restrictors are required for appliances which only have a horizontal vent run.
If installing an appliance which has a rear vent facing outlet connection and no
vertical vent pipe rise, ignore this stage.
Two restrictor sets, like the one shown at right, are supplied with each 530
appliance. The restrictors cover part of the inlet air openings in the firebox
rear wall on each side of the brick support. DO NOT install the restrictors
in the roof of the firebox!
Each restrictor set includes an adjustable piece which can be moved to
different positions depending of the vent configuration. See the table below
to find out which position is optimal for each type of installation.
• To fit the restrictors, loosen the two center screws of the left and right inlet
ports. Place the restrictor assembly under the screw heads and tighten the
center screws.
• To set the adjustable restrictor piece, loosen the two screws, position the
adjustable piece according to the diagram below and tighten the screws.
Venting Restrictors
Install restrictors in the inlet air openings
in the firebox rear wall behind the rear log
support

18
Venting Co-Linear Conversion
Co-Linear Vent Installations into Existing
Solid-Fuel Burning Fireplaces and Chimneys
See venting accessories list on pages 38-39 for
allowable components.
Co-linear adapter may be installed as top or rear facing
outlet—see page 23.
• Co-linear and co-axial venting may be combined in a
single venting system provided converstion is done
only once using approved components and maintain-
ing proper clearances;
• Three-inch liners may only be installed into solid-fuel
burning fireplaces and chimney systems (no combus-
tible construction);
• The appliance must not be connected to a chimney
flue serving a separate solid-fuel burning appliance;
• Restrictors not required for
co-linear sidewall venting
with less than 5’-0” vertical
rise. For restrictor settings
beyond 5’-0” refer to chart
on page 17.
Co-Linear Vent Installations
556CLA Rear Mounted 556CLA Top Mounted
2 x 3” liners
3/4”
25-1/4”
556CLA
9 to 11-1/2” depending
of front used - see front manual
25-1/4”
3/4”
556CLA 2 x 3”
liners
9 to 11-1/2” depending
of front used - see front manual
Flashing
2 x 3”
liners
24-1/2”
3”min.
bend radius
Co-linear
adapter
2 x 3”
liners
18”max.
horizontal run
Co-linear
adapter
530
engine
40’
max
8’
min
Approved co-linear
termination or approved
co-linear adapter
and approved
co-axial
termination
Min. 3’-0”
*Max. 5’-0”
May be used with
top or rear outlet
(requires 556CLA
Co-Linear Adapter)
720SWK
Terminal
3”Liners
3” min.
Bend
Radius
556CLA Co-Linear Adapter
* May be extended beyond 5’-0”. Refer to 720SWK
installation instructions.
Sidewall co-linear installation into existing F/P using
720SWK—for units with logs, rocks, driftwood ONLY.
Vertical co-linear installation into existing F/P

19
Venting Co-Linear Conversion
Co-Linear Venting Components
Co-Axial-to-Co-Linear
Adapter
720SWK Sidewall Horizontal Terminal
(for logs, rocks, driftwood units ONLY)
559CLT Co-linear
Termination
Co-axial Terminal Cap
Co-linear
to Co-axial
Adapter
Flashing
with...
Alternate to 556CLA/559CLT/559FSK Conversion for vertical terminations
559FSK Flashing
10”
10”
3” Inlet & Exhaust
Collars
7-5/8” dia.
collar
Front Rear

20
Preparation Before Installing
Attention
ONLY qualified licensed or trained personnel
should install this appliance.
1. BEFORE YOUR START, YOU NEED TO KNOW FROM
THE HOMEOWNER:
• Required accessories to install with fireplace (lin-
ers, fuel bed, front, trim);
• Height of appliance and hearth, if used;
• Thickness an type of wall finish around appli-
ance’s opening;
• Venting configuration;
• Optional accessories, if used.
2. Unpack the appliance, removing all items packed
inside and around it. Recycle packaging.
3. Check that you have everything required for the in-
stallation, using the Pack Content sheet. Also, check
that you have:
• Fuel bed/liner panels (packed separately);
• Front/trim/stove casing with barrier screen;
• Venting accessories;
• Gas conversion kit, if necessary;
• Optional accessories;
• Electrical accessories, if necessary.
4. Carefully read the Installer’s Checklist included
with the fireplace for the installation sequence.
Read also this manual and the fronts/trims
manuals to have all information necessary for the
installation.
WARNING
Optional electrical accessories ARE NOT
ALLOWED when adapting appliance for
outdoor use.
