Valoya RX Series User manual

Version 2021.2 www.valoya.com+358 10 2350 300 RX-Series
INSTALLATION GUIDE
RX500
RX600

www.valoya.com [phone] Version 2021.2
Warnings
2
ENGLISH
CAUTION!
Inappropriate installation may cause injury to persons
and damage to the lamp.
FRANÇAIS
ATTENTION!

corporelles et endommager les lampes.
PORTUGUÊS
ATEN�O!

luminária e ferimentos nas pessoas.
РУССКИЙ
ОСТОРОЖНО!
Ненадлежащий монтаж может привести к серьезным
травмам и повреждению лампы.
DEUTSCH
VORSICHT!
Unsachgemäße Installation kann zu Personen- und
Sachschäden führen.
SVENSKA
AKTA!

och lampan.
ESPAÑOL
PELIGRO!
Una instalación inadecuada puede provocar lesiones

日本語
注意！
不適切な取り付けは人の傷害、およびランプの
損傷の原因となる場合があります。
NEDERLANDS
LET OP!
Onjuiste installatie kan schade aan personen of de
lamp veroorzaken.
SUOMI
HUOMIO!
Valaisimen huolimaton asennus voi johtaa henkilön
loukkaantumiseen ja valaisimen vioittumiseen.
VLAAMS
LET OP!
Verkeerde aansluiting kan schade veroorzaken aan
de lamp of leiden tot lichamelijk letsel aan personen.
ITALIANO
ATTENZIONE!

persone e danni alla lampada.

Version 2021.2 www.valoya.com+358 10 2350 300
Warnings
3
RoHS PATENTS APPLY
IMPORTANT
Installation must be carried out by qualified persons, and according to the electrical safety rules & regulations
applicable in your country!
1. Please read this manual thoroughly before use, and retain it for future reference.
2. Due to our continuous program of product development, data is subject to change without notice.
3. Unauthorized product tampering invalidates warranty & is a safety risk.
4. All electrical work must be carried out by qualified persons.
5. Always follow appropriate electrical codes. Connection devices with appropriate ratings and voltage must
be used.
6. Disconnect mains power before product installation, connection, or disconnection.
7. Products are fixed luminaires for indoor use (i.e. Install out of reach / Only movable using tools).
8. LED-modules are non-replaceable light sources.
9. Do not use luminaires without LED Drivers (power units) connected (BX-, C-Series).
10. Connect LED drivers to electrical branch circuits (ensure suitable strain relief is fitted).
11. Products with an earth connection must be earthed for safety.
12. Installation of additional electrical circuit protection devices is strongly advised:
• Type C MCB’s (Miniature Circuit Breakers).
• RCD (Residual Current Device).
• ICL (Inrush Current Limiter).
• SPD (Surge Protection Device).
13. Do not high voltage test.
14. Install LED drivers against a flat surface to ensure optimal heat dissipation and lifetime (BX-, C-Series).
15. Do not connect products installed on different mains phases to the same dimming device (dimmable
products only).
16. Observe published product temperature specifications and limits.
1 7. Product surface temperature may become hot to the touch during use.
18. Do not stare directly at any bright light source.
19. As a precaution, use suitable eye protection if working for long periods under high intensity lighting.
20. Dispose of all waste in accordance with local regulations.
21. The external flexible cable of the luminaire is only replaceable by Valoya.
22. For luminaries supplied with open-end supply cables:
a. Cables should not be concealed or extended through parts of the building structure.
b. Cables should not be located above a suspended/dropped ceiling, or permanently fixed to the building
structure.
c. Cables must be visible over their full length, not strained, and protected from physical damage.
d. Cables must be used within their electrical ratings at the maximum temperature of the installed environment.
BEFORE YOU BEGIN

www.valoya.com [phone] Version 2021.2

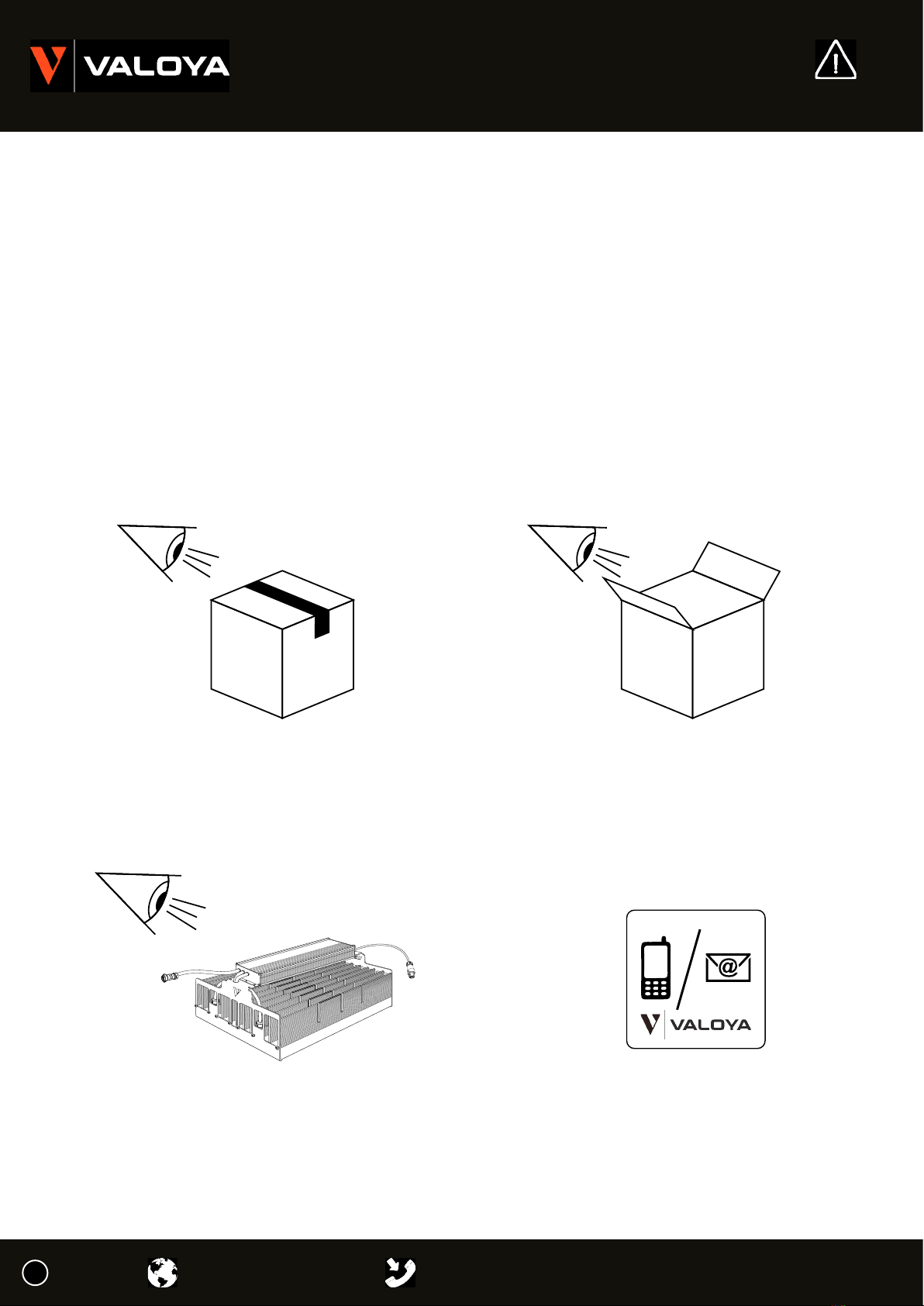

Delivery Check & Inspection
DELIVERY CHECK
• Please inspect the goods upon receipt to ensure that your delivery is complete.’
• If you detect any damage to the packaging, please notify the carrier immediately and ask them to note
that “the delivery was not delivered in good condition”.
• If the packaging shows no damage but the goods inside are either missing, defective, or show other signs
of damage, please contact us.
• In all cases please take pictures as evidence and contact us as soon as possible by phone or e-mail.
Check package Check content
Check operation If problems, contact us
4

Version 2021.2 www.valoya.com+358 10 2350 300
PART IDENTIFICATION
D E
Luminaire
Standard hangers (x2)
Optional hangers (x2) - ordered separately with product code ZHPF8100
Mains input mating connector with 1.9 m (6’) pigtail cable (field installable)
Dimming mating connector with 1.9 m (6’) pigtail cable (field installable)
D
5
Delivery Check & Inspection
D
E

www.valoya.com [phone] Version 2021.2
SPECIFICATIONS (TYPICAL) RX500 RX600
Electrical & Physical
Luminaire & LED Driver
Spectrum AP67 AP673L NS1 Solray® Solray385
Total Power (W) 465 W 474 W 496 W 564 W 655 W
Input voltage, nominal (VAC) RX500/600HV 200 - 480 VAC
RX500/600HH 220 - 480 VAC
Input current (A) 1.45 - 3.5
Frequency (Hz) 50 / 60
Power Factor > 0.95
Dimmable (IEC 60929 Annex E) Yes (0-10V/PWM): LED driver is a current source device
AC mains plug fitted No (Field installable connector)
Luminaire Insulation class Class I: For Fixed Installations (protective earth required)
16A Type-C MCB load (max.) 3 (@ 230 VAC)
Minimum cable bending radius 5x cable diameter
Luminaire weight (kg/lb) 11.6 / 25.6
Optical
Efficiency, 380-820nm (PPF) 2.2 µmol/W 2.2 µmol/W 2.0 µmol/W 2.3 µmol/W 2.6 µmol/W
Light output (µmol/s), Spectrum dependent 1030 µmol/s 1030 µmol/s 1000 µmol/s 1300 µmol/s 1700 µmol/s
Light intensity decay, Q90 / L90 (hours) 36000
Typical use life, Q70 / L70 (hours) 50000
Environmental
Luminaire only
Operational ambient temperature range (°C/°F) -10…+40 / +14…+104
Distance from flammable surface (mm/in) 300 / 11.8
Maximum Relative Humidity (%) 90 (non-condensing)
Storage temperature (°C/°F) -20...+40 / -4…+104
Ingress Protection (IP) rating IP65: Dust-tight & protected against water jets
Suitable for wet locations
Impact Protection (IK) rating IK 03
Cooling method Passive cooled
Regulations
& Approvals
CE marked X
RoHS compliant X
EMC directive compliant X
Low Voltage Directive compliant X
Eco-design (EuP) directive compliant X
Certified to UL & CSA standards X
Photobiological safety classification Risk group 1
Packaging
Pieces per box 1
Box length (mm/in) 370 / 14.6
Box width (mm/in) 460 / 18.1
Box height (mm/in) 200 / 7.9
Box weight (kg/lb) 12.8 / 28.2
Notes:
• Electrical values are typical nominal figures (variations may occur due to spectrum, component & production tolerances).
• Due to our continuous program of product development, specifications are subject to change without notice in order to
improve spectra, function, performance & reliability.
• Due to manufacturing tolerances, slight variations are possible in cable lengths, weights & package dimensions.
Technical Specifications
6

Version 2021.2 www.valoya.com+358 10 2350 300
Technical Specifications
PRODUCT DIMENSIONS
D
RX500 / RX600
A Luminaire height (mm/in) 101 mm / 3.9 in
B Height incl. driver (mm/in) 176 mm / 6.9 in
C Height incl. standard hanger (mm/in) 303 mm / 11.9 in
D Length (mm/in) 347 mm / 13.6
E Width (mm/in) 400 mm / 15.7 in
F Hole diameter ((mm/in) 5 mm / 0.2 in
F Distance between hole (mm/in) 124 mm / 4.8 in
G Mounting bolt head size (mm/in) 10 mm / 0.4 in
G Mounting bolt thread M6
Optional hanger fixing points
7
D
E
D
E
F
D
E
FD
E
F
G

www.valoya.com [phone] Version 2021.2
Technical Specifications
STANDARD HANGER 2X
A46 mm / 1.8 in
B22.5 mm / 0.9 in
C20 mm / 0.8 in
D175 mm / 6.9 in
E41 mm / 1.6 in
Holes 6.5 mm / 0.25 in (4x)
OPTIONAL HANGER 2X
Chain length (mm/in) 500 mm / 19.7 in
CABLES
A Mains cable (mm/in) 300 mm / 11.8 in
B Dimming cable (mm/in) 300 mm / 11.8 in
PRODUCT DIMENSIONS
D
E
D
8

Version 2021.2 www.valoya.com+358 10 2350 300
Installation Instructions

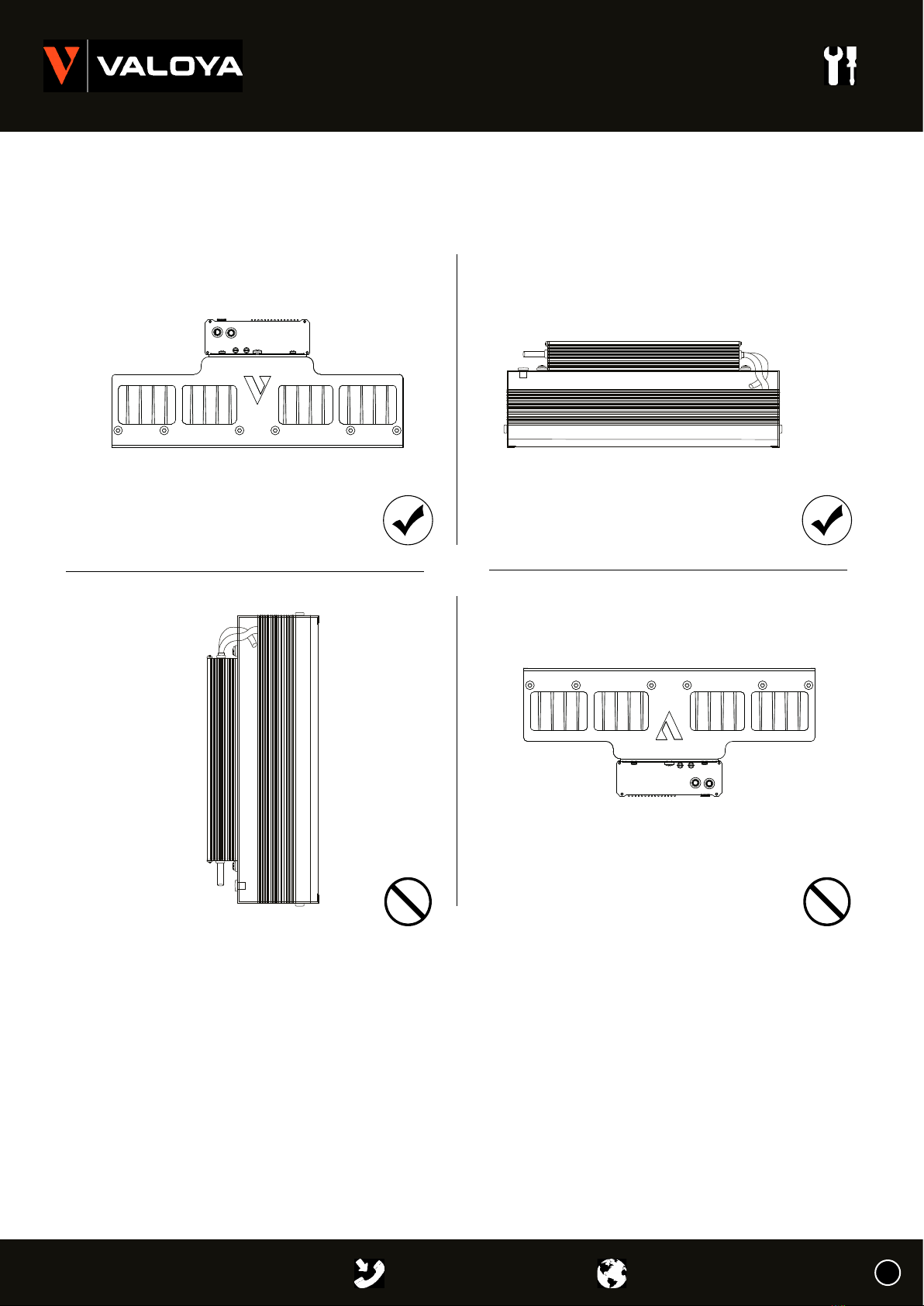

LUMINAIRE ORIENTATION
No other orientation is permitted
9
Notes:
• No other orientation permitted
• Not for intracanopy use.
• Ensure the maximum specified operational ambient temperature around a luminaire is not exceeded by utilizing
appropriate electrical or mechanical ventilation or cooling systems on the installation as necessary.
• IP rating valid in horizontal mounting position.

www.valoya.com [phone] Version 2021.2
METHOD A (STANDARD HANGER)
METHOD B (OPTIONAL HANGER)
Possible carabiner connection points
10 mm spanner
Installation Instructions
10

Version 2021.2 www.valoya.com+358 10 2350 300

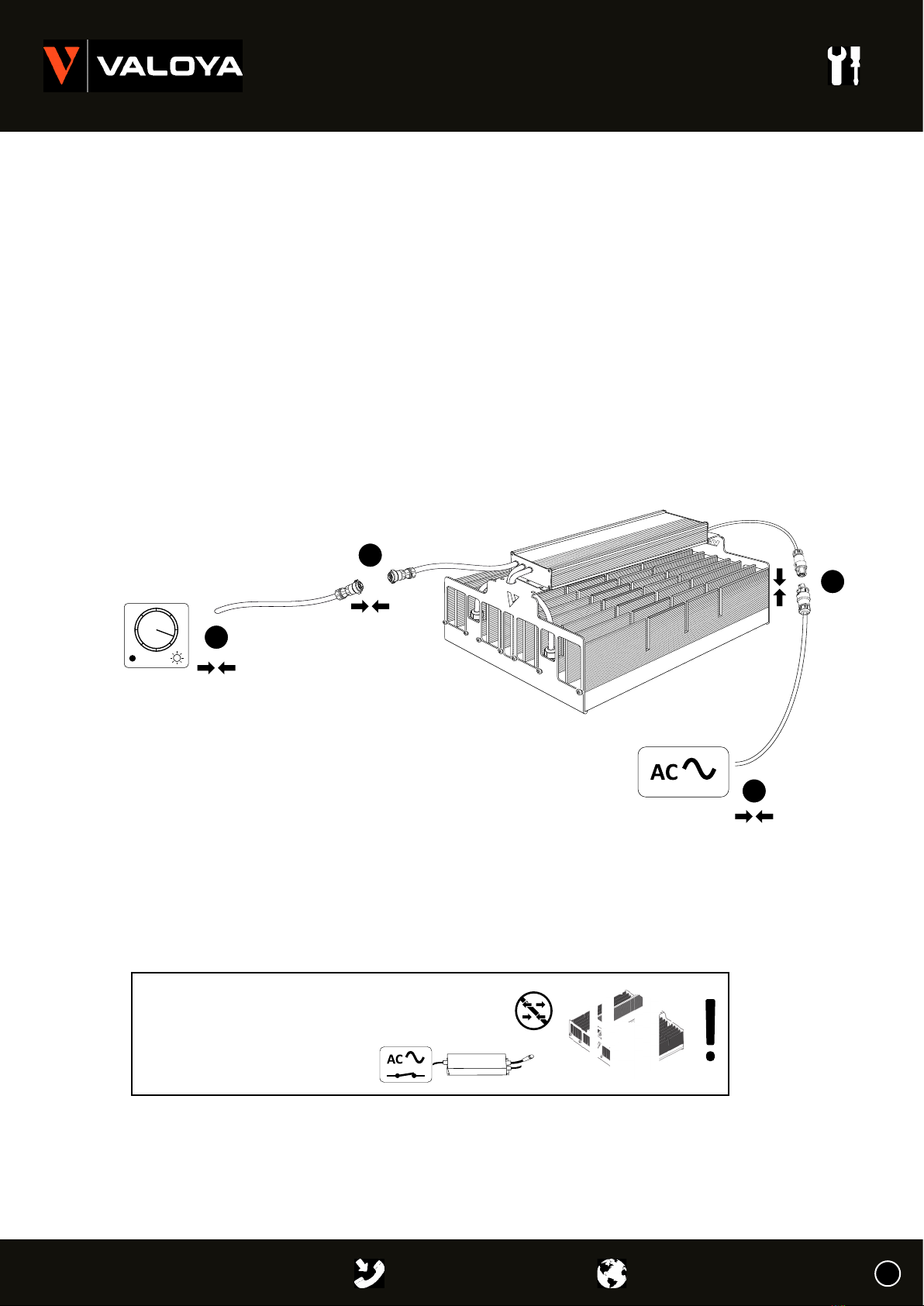

Installation Instructions
1) Connect the mating mains connector to the lamp.
2) Connect the dimming connector to the lamp.
3) If dimming is to be used, connect dimming lead’s black wire to the “+” and white wire to “-” of a compatible
current sink dimmer/controller.
4) Connect the mains cable to the mains supply.
Current sink controller
(Check compatibility)
3
2
1
4
LUMINAIRE CONNECTION
11
Do not connect or
disconnect the luminaire
from the LED driver
with the mains supply
switched ON

www.valoya.com [phone] Version 2021.2
Electrical Recommendations
MCB example
MCBS MINIATURE CIRCUIT BREAKERS
ICL INRUSH CURRENT LIMITER
An ICL can help avoid nuisance MCB tripping and can be installed between the MCB
and the load. It also enables an increase the luminaire quantity up to the maximum
RMS current limit of the Inrush Current Limiter.
ICL example
Valoya only recommend using MCB’s with “Type C” trip characteristics according to EN 60898.
MCB
TYPE
Rating
(A)
Relative
quantity
(%)
B
10 37
16 60
20 75
INRUSH CURRENT
This is the initial current surge drawn during product start-up. Total inrush current rises as the circuit load
increases and is one factor that can contribute to nuisance tripping of circuit breakers (MCB’s).
Practical performance will be affected by the MCB load, MCB tripping characteristics, site wiring impedance,
and the angle of the AC mainscycle at the specific moment power is applied.
Nuisance tripping issues may be improved by:
• Reducing the quantity of LED drivers connected to a single MCB.
• Re-distributing the load over multiple mains phases.
• Using an MCB with Type C (EN 60898) tripping characteristics.
• Installing additional inrush current limiting devices.
• Installing a zero crossing relay for powering up the LED drivers.
The maximum quantity of Valoya products recommended for a 16A Type C MCB is stated on the product’s
technical specifications datasheet (e.g installation guide). This quantity is used as the 100% reference in the
table below. The table is provided as a tool to enable calculation of the approximate maximum load for different
MCB types and ratings. Installation wiring rating, impedances and mains switch-on angle variations may also
influence the actual practical limit.
MCB
TYPE
Rating
(A)
Relative
quantity
(%)
C
10 62
16 100 (Ref.)
20 125
Example of a typical inrush current
graph
20A branch circuit is the maximum allowed per UL certification
according to LED Drivers UL Conditions of Acceptability.
12

Version 2021.2 www.valoya.com+358 10 2350 300 13
Electrical Recommendations

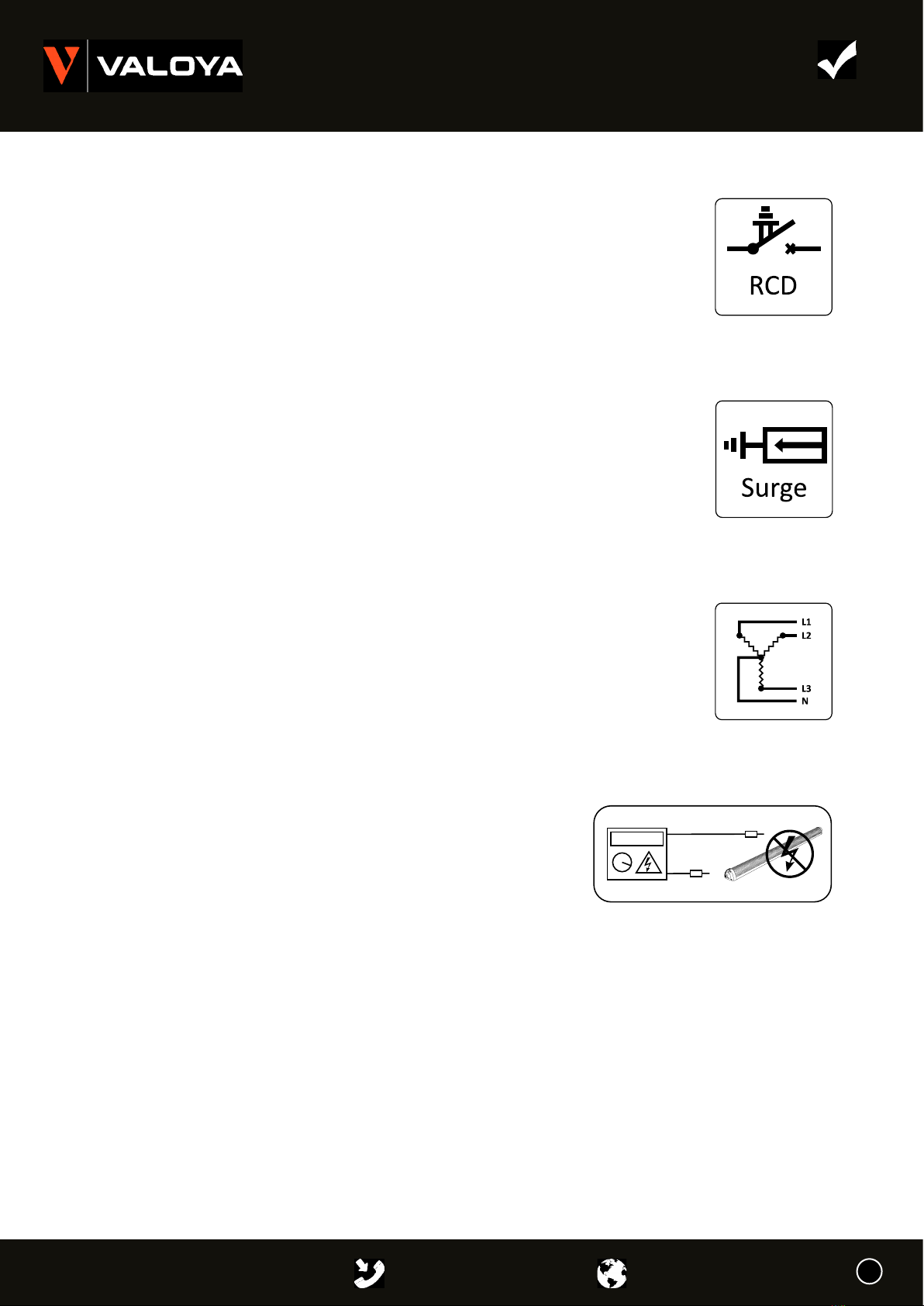

RCDS (RESIDUAL CURRENT DEVICES)
SURGE PROTECTORS
3-PHASE SUPPLIES
INSULATION RESISTANCE/ ELECTRIC STRENGTH
TESTING
An RCD is a protective safety device used to automatically disconnect
the electrical supply when an imbalance is detected between live
conductors. Requirements for use, and the needed RCD rating, will
vary depending on the type of installation. Valoya luminaires are
designed to be installed in fixed electrical installations where no plug
is permitted for connecting the luminaire to the mains supply.
Valoya LED drivers have built-in surge protection. However, to protect
against surge peaks above 4KV (e. g. Due to a lightning strike) we
recommend the installation of transient voltage surge suppression.
• Do not apply power without the Neutral connected.
• Ensure the supply is off before disconnecting the Neutral.
• To avoid erratic dimming or possible product damage, do not
connect the same dimmer or controller to luminaires supplied by
different mains phases.
• Valoya products have been fully tested during manufacture.
There is no need to test again.
• If the electrical site wiring must be tested, test with the luminaires
and LED drivers disconnected from the mains supply.
• If luminaires and LED drivers are connected to the mains supply
during the test, all Live phases and Neutral must be connected
together before the test is carried out (Remember to check cor-
rect reconnection before reapplying the mains supply).

www.valoya.com [phone] Version 2021.2
Dimming Guide
DIMMING METHODS
Differences in dimming methods exist depending on the LED driver (power unit) used by the Valoya luminaire.
• 1-10V: Minimum dimmed light output is approximately 10% (Spectra dependent). The mains supply to the
driver must be switched in order to turn the light on & off.
• 0-10V: Minimum dimmed light output is approximately 6% (Spectra dependent). Below this the light out-
put is off without the need for mains switching.
DIMMING POSSIBILITIES BY PRODUCT RANGE
BX-Series BL-Series L-Series C-Series RX-Series
1-10V - - 0-10V 0-10V
DIMMING CONTROL COMPATIBILITY
LED drivers used by Valoya comply with
International standard for current sink controls;
IEC 60929 Annex E. This specifies that the LED
driver is a current source device. Compatible
controls MUST be capable of sinking the current
provided by the LED driver. Controls supplying a
10V signal ARE NOT compatible.
Controller supply
(if applicable)
Controller
(SINK)
0V
10V
LED Driver
(SOURCE)
14

Version 2021.2 www.valoya.com+358 10 2350 300 15
Dimming Guide
Due to variations in specifications, terminology and connections between different control device manufac-
turers, it is impossible to list all possible alternatives. The controller manufacturer will be able to verify that
their product is a current sink device compatible with LED drivers designed according to IEC60929 Annex E.
ABB www.abb.com 1-10 V 2112UJ-214-510
Argus www.arguscontrols.com P1A
Dinuy www.dinuy.com RE EL5 002
Ever Shining Optotech Co., Ltd www.esop-power.com EC011
Helvar www.helvar.com 140 (TK4)
Honeywell Peha www.peha.de D 430
Jung www.lutron.com Electronic potentiometer, 1-10 V
Lutron www.jung.de
Osram www.osram.com Dim MCU 1-10V
Philips www.lighting.philips.com UID8600/00 1-10V Dimmer
Priva www.priva.com
RAM www.ram-group.com
Siemens www.siemens.com 5TC8424
Examples of manufacturers of compatible control products/systems (some example products indicated).
MANUFACTURERS WEBSITE EXAMPLE PRODUCT
Important considerations when choosing a controller
• Please check with you controller provider regarding the specification of the device.
• The number of luminaires possible to connect to a single control device will depend its specification,
specifically:
• The dimming method (1-10V or 0-10V).
• The control circuit current sink capability.
• Mains switch inrush current capacity.
• Dimming controls should only be connected to LED drivers on the same mains phase. Cross
phase connection may lead to differing control circuitry electrical potentials, reduced dimming
performance, or permanent damage to LED drivers
DIMMING CONTROL COMPATIBILITY

www.valoya.com [phone] Version 2021.2
Dimming Guide
DIMMING CONNECTION EXAMPLES
Using a simple potentiometer (1-10V / 0-10V)
One LED driver can be connected to a standard
100KOhm potentiometer. Note that connection
of multiple LED drivers to one 100KOhm poten-
tiometer is not recommended due to possibilities
for erratic dimming performance
Luminaire
LED Driver
Potentiometer
AC supply
1 (+)
DIM +
2 (-)
DIM -
Live (L)
Neutral (N)
Earth (E)
Luminaire
LED Driver
A B C D
Luminaire
LED Driver
AC supply
Live (L)
Neutral (N)
Earth (E)
1 (+)
DIM +
2 (-)
DIM - 1 (+)
DIM +
2 (-)
DIM -
Dimmer connections
A - Live (output)
B - Control (+)
C - Control (-)
D- Switched Live (Output)
Luminaire
LED Driver
A B
Luminaire
LED Driver
AC supply
Dimmer connections
Live (L)
Neutral (N)
Earth (E)
A - Control (+)
B - Control (-)
DIM + DIM +DIM - DIM -
Using a compatible current sink 1-10V dimmer
Using a compatible current sink 0-10V dimmer
16

Version 2021.2 www.valoya.com+358 10 2350 300 17
Care & Maintenance
CLEANING
BASIC FAULT FINDING
Lighting faults can be due to a rare product defect, connection error, or other external issue. Faults are unlikely
to affect both luminaire and the LED driver (power unit) together. If possible, please check if the issue is luminaire
or LED driver related. This will speed problem resolution and minimize unnecessary shipping costs.
• Switch off the mains supply.
• Disconnect the luminaire from its LED driver.
• Connect the luminaire to an unpowered, working LED driver (if available).
• Connect the mains supply to the working LED driver.
• If the problem remains, then the luminaire may be damaged.
• If the luminaire now works, then the original LED driver, or mains supply to it may be at fault.
• Note details of the problem (product type, quantity, problem description…) and contact Valoya for further
assistance.

If a problem reoccurs or affects many products at the same time, please contact Valoya (www.valoya.com/
support) for further advice and assistance.
CLEANING
Switch the supply OFF Allow to cool Do not use detergent
Clean with a soft brush Wipe with soft clothes
IP67 rated products.
Suitable for spray cleaning with
water or appropriate cleansing
solutions*
*Isopropyl alcohol (IPA) can be used for the cleaning of LEDs. If other cleansing solutions to be used, their
appropriateness must be tested beforehand. Cleansing solutions with CFCs (chlorofluoro-carbons) should not
be used.
NOTE: Power supply must be switched off and luminaire must be in an unpowered state when spray or wet
cleaning is used.

www.valoya.com [phone] Version 2021.2
Warranty & Claims
WARRANTY
CLAIMS
Products are covered by a limited warranty. Warranty starts from date of installation, but latest 3 months from
the delivery date.
The warranty offered is “Return-to-Base”, meaning suspected faulty items shall be returned to Valoya for fault
and warranty validation before any repair or replacement can be agreed.
Valoya warrants that each Product will be free from defects in material and workmanship for the duration of the
warranty period as long as the products are installed and used in accordance with our published specifications
and recommendations.
Warranty shall be void in the event any repairs or alterations not duly authorized by Valoya in writing are made
to the Product by any person.
Before returning a suspected faulty item, please contact Valoya (www.valoya.com/support) to give details of
the issue and obtain a Return Material Authorization (RMA) reference number. Please be prepared to provide
the following information about the issue:
• Product model information (e.g. B200 NS1).
• Product serial number plus YF or XF code.
• Quantity showing problems.
• Detailed problem description.
• Photograph or video showing the issue (if possible).
• Installation / invoice date (if known).
After receiving an RMA number, Products should be suitably packed and the package or shipping paperwork
clearly marked with the RMA number. Returns received without an RMA reference number may be rejected.
Valoya will inspect the returned items to validate fault and warranty validity. If Valoya determines to its satisfaction
that warranty is valid, Valoya will repair or replace the Product with one of similar age. Where a warranty claim
is justified, Valoya will pay for the return freight expenses for repaired or replaced items. Valoya reserve the
right to invoice for returning Products that are not found to be defective, or do not comply with the terms of this
warranty, together with associated freight, testing and handling costs.
* Above is a summary of our warranty and claim policy. For full details please see: www.valoya.com/
warranty.
18

Version 2021.2 www.valoya.com+358 10 2350 300
Standards / Contact
Contact:
Melkonkatu 26,
00210 Helsinki,
Finland
T [phone]
E [e-mail]
W www.valoya.com
Standards applied (where applicable):
EUROPE
EN60598-1: Luminaires. General requirements and tests.
EN60598-2-1: Luminaires. Part 2: Particular requirements. Section one – Fixed general purpose luminaires.
EN62031: LED modules for general lighting. Safety specifications.
EN 62493: Assessment of lighting equipment related to human exposure to electromagnetic fields.
EN55015: Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment.
EN61547: Equipment for general lighting purposes. EMC immunity requirements.
EN61000-3-2: Electromagnetic compatibility - Limits - Limits for harmonic current emissions.
EN61000-3-3: Electromagnetic compatibility – Limits - Limits for Voltage Fluctuations and Flicker.
IEC EN 61000-4-2: Electromagnetic compatibility (EMC)- Part 4-2: Testing and measurement techniques - electrostatic discharge immunity
test.
IEC EN 61000-4-3: Electromagnetic compatibility (EMC)- Part 4-3: Testing and measurement techniques - radiated, radio-frequency,
electromagnetic field immunity test.
IEC EN 61000-4-4: Electromagnetic compatibility (EMC) - Part 4-4: Testing and measurement techniques - Electrical fast transient/burst
immunity test.
IEC EN 61000-4-5: Electromagnetic compatibility (EMC) - Part 4-5: Testing and measurement techniques - Surge immunity test.
IEC EN 61000-4-6: Electromagnetic compatibility (EMC) - Part 4-6: Testing and measurement techniques - Immunity to conducted
disturbances, induced by radio-frequency fields.
IEC EN 61000-4-8: Electromagnetic compatibility (EMC) - Part 4-8: Testing and measurement techniques - Power frequency magnetic field
immunity test.
IEC EN 61000-4-11: Electromagnetic compatibility (EMC) - Part 4-11: Testing and measurement techniques - Voltage dips, short
interruptions and voltage variations immunity tests.
IEC 61347-2-13: Lamp controlgear. Particular requirements for d.c. or a.c. supplied electronic controlgear for LED modules.
IEC 61347-1: Lamp controlgear - Part 1: General and safety requirements.
IEC 62384: DC or AC supplied electronic control gear for LED modules. Performance requirements.
EN62471: Photobiological safety of lamps and lamp systems.
EN62560: Self-ballasted LED-lamps for general lighting services by voltage >50V - Safety specifications.
EN62776: Double-capped LED lamps designed to retrofit linear fluorescent lamps - Safety specifications.
NORTH AMERICA
UL1598: Luminare safety.
UL8750: Light Emitting Diode (LED) equipment for use In lighting products.
UL2108: Standard for Low Voltage Lighting Systems.
UL 8800: Standard for Horticultural Lighting Equipment
CSA C22.2 No.9.0: General Requirements for Luminaires.
CSA C22.2 No. 250.0: Luminaires
CSA C22.2 No. 250.13: Light Emitting Diode (LED) equipment for use in lighting products.
Distributor list can be found at:
www.valoya.com/contact
Valoya® is a registered trademark of Valoya Oy in the European Community, the USA and certain other countries.
Due to our continuous program of product development, data is subject to change without notice.
19
