Value VET-19-F Operation instructions

CORDLESS FLARING TOOL
precision
symmetry
environmental
Li-ion battery
LI-ION 1.5Ah
Value Mechanical & Electrical Products Co., LTD.
Add: Jiulong Avenue, Western industrial Park of Wenling City, Zhejiang Province, China
Tel: [phone] Fax: [phone]
E-mail: [e-mail] URL: www.worldvalue.cn
All rights reserved by Value mechanical & Electrical products co., LTD.
ORIGINAL MANUAL

Index
SAFETY GUIDE…………………………… . 2
NAME OF PARTS/ STANDARD SPECIFICATION
…… …………....
/STANDARD ACCESSORIES………………………………..6
OPERATING INSTRUCTIONS……………………………….9
APPLY TO REPAIRS OR SERVICE………………………..12
PROBLEM SOLVING………………………………………...13
Dear User:
Thank you for choosing Product. Please read this
operating manual carefully before use it. We suggest that you’d
better keep this manual with the product or the place where you
can easily find for later reference.
VET-19-F Original Manual
2
1
SAFETY GUIDE
WARNING
WARNING Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious
injury.
Save all warnings and instructions for future reference.
1. Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases or dust. Power tools create sparks which may
ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Unmodified
plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric
shock.
3. Personal safety
“WARNING-To reduce the risk of injury,
user must read instruction manual”
VET-19-F Original Manual

4
3
a) Stay alert, watch what you are doing and use common sense when operating
a power tool. Do not use a power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inattention while operating
power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the
tool. Carrying power tools with your finger on the switch or energising
power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result
in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair
can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust
collection can reduce dust-related hazards.
4. Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it
was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power
tool that cannot be controlled with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power source and/or the battery pack from the
power tool before making any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the risk of starting
the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
Instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended
could result in a hazardous situation.
5. Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger
that is suitable for one type of battery pack may create a risk of fire when
used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any
other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like
paper clips, coins, keys, nails, screws or other small metal objects, that can
make a connection from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, flush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected from the battery may
cause irritation or burns.
6. Service
Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
7. Please use designated accessories
SAFETY GUIDESAFETY GUIDE
VET-19-F Original Manual VET-19-F Original Manual

6
5
Do not use accessories and attachments other than those designated in the
operation manual or our catalogs. Accidents or injuries might result.
8. Do not let unauthorized personnel use the machine.
Do not let any people who unauthorized operate the product, especially
children. Accidents or injuries might occur.
9. Use the machine properly
Please read the operating manual carefully before operating and strictly
observe the product operating procedures.
10. For overhaul and repair of the machine, ask an appointed VALUE distributor.
Our products comply with corresponding safety standards, do not remodel.
If repair is needed, please ask an appointed VALUE distributor or contact
with VALUE company directly.
(It will be out of warranty if the product disassembled by unauthorized individual.)
11. Safe Charging
a) Avoid humid environment.
b) Do not place the charger close to an open flame.
c) Keep all flammable materials away from the charger.
d) Do not charge for more than 5 hours.
e) Pull the plug after charging finished.
12. Proper Storage
Please store the machine in a dry place away from children and locked with
a key. The environmental temperature should be below 40℃.

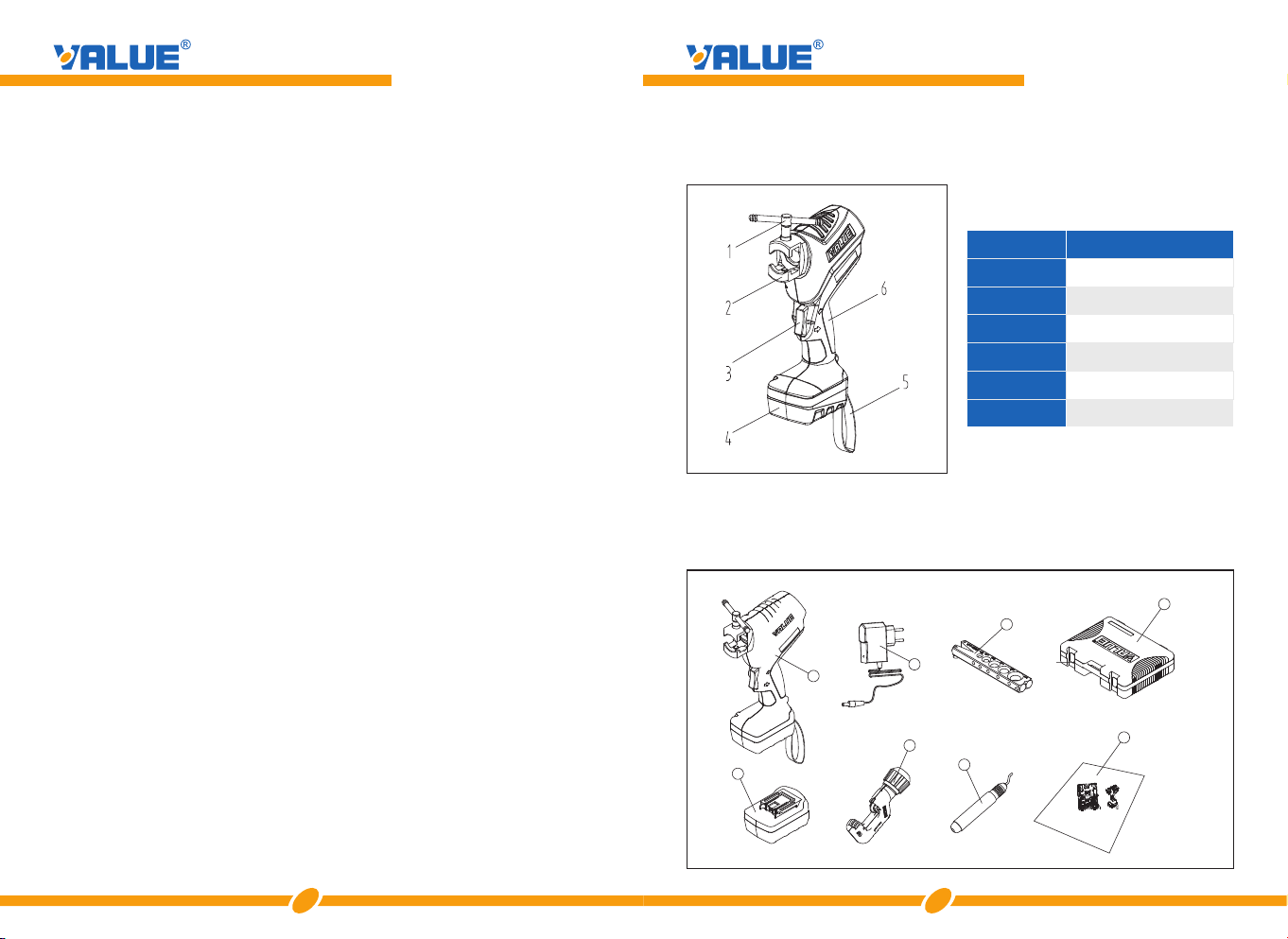

NAME OF PARTS/STANDARD SPECIFICATION/STANDARD ACCESSORIES
Fig.1
Housing
Fixing rod
Expander body
Switch
Battery
Carrier ties
1
2
3
4
5
6
No. Name
Please check the parts after unpacking to see if any parts missed
or damaged.
2
3
4
5
6
7
8
Fig.2
1
Name of Parts
SAFETY GUIDE
VET-19-F Original Manual VET-19-F Original Manual

8
7
NAME OF PARTS/STANDARD SPECIFICATION/STANDARD ACCESSORIES
Standard Specification (Dimensions and Weight)
Quantity
No. Name Dimension
(W×D×H)(mm)
Weight
(g)
6
1VET-19-F Flaring Tool
(Include One Battery) 158 68 297× × 1940 1
2
3
4
5
Backup Battery
Charger
Expander Bar (inch)
VTC-28B Pipe
/Tube Cutter
Scraper
103×71×53
79×79×26
168×35×21
150×62×48
21×147
290
70
490
350
30
1
1
1
1
1
7
8
Carrying case
Operating Manual
1500
4670
1
1
Total
395×320×90
Standard Specification
(1) Flaring Tool
INCH
Applicable Pipe/Tube
Flaring Shape
Processing Method
Power
Cone Speed
Battery Potential for Flaring
Processing time
1/4” 3/8” 1/2” 5/8” 3/4”
Copper tube
Flared
11.4V DC
240/min
Approximately 5 seconds
Applicable Pipe/Tube Size
Approximately 100 pipe/tube ends per fully charged
Eccentric cone (constant-pressure plunge rotation)
NAME OF PARTS/STANDARD SPECIFICATION/STANDARD ACCESSORIES
( ) Battery2
Battery type
Voltage
Capacity
Charging Time
Battery Recharge Aility
Charging Temperature
Li-ion
11.4V
1.5Ah
-20~60℃
Up to 500 times (May vary depending on usage)
( ) Charger3
Intelligent Control
-20～60℃
Applicable Battery
Power Supply
Charging Mode
Charging Voltage
Charging Current
Li-ion 11.4V
AC100~240V (50/60Hz)
12.6V
500mA
Charging Temperature
Approximately 180 minutes (May vary depending on usage)
Noise value
L =75.4dB(A), K= 3 dB(A)
pA
L =86.4dB(A), K= 3 dB(A)
WA
Vibration value 2 2
a : 0,919m/s , K= 1,5 m/s
h
Warning: the vibration emission during actual use of the power tool can differ
from the declared total value depending on the ways in which the
tool is used.
arning: avoid vibration risk W
Suggestion: 1) wear glove during operation;
2) limit operating time and shorten trigger time.
VET-19-F Original Manual VET-19-F Original Manual

10
9
OPERATING INSTRUCTIONS

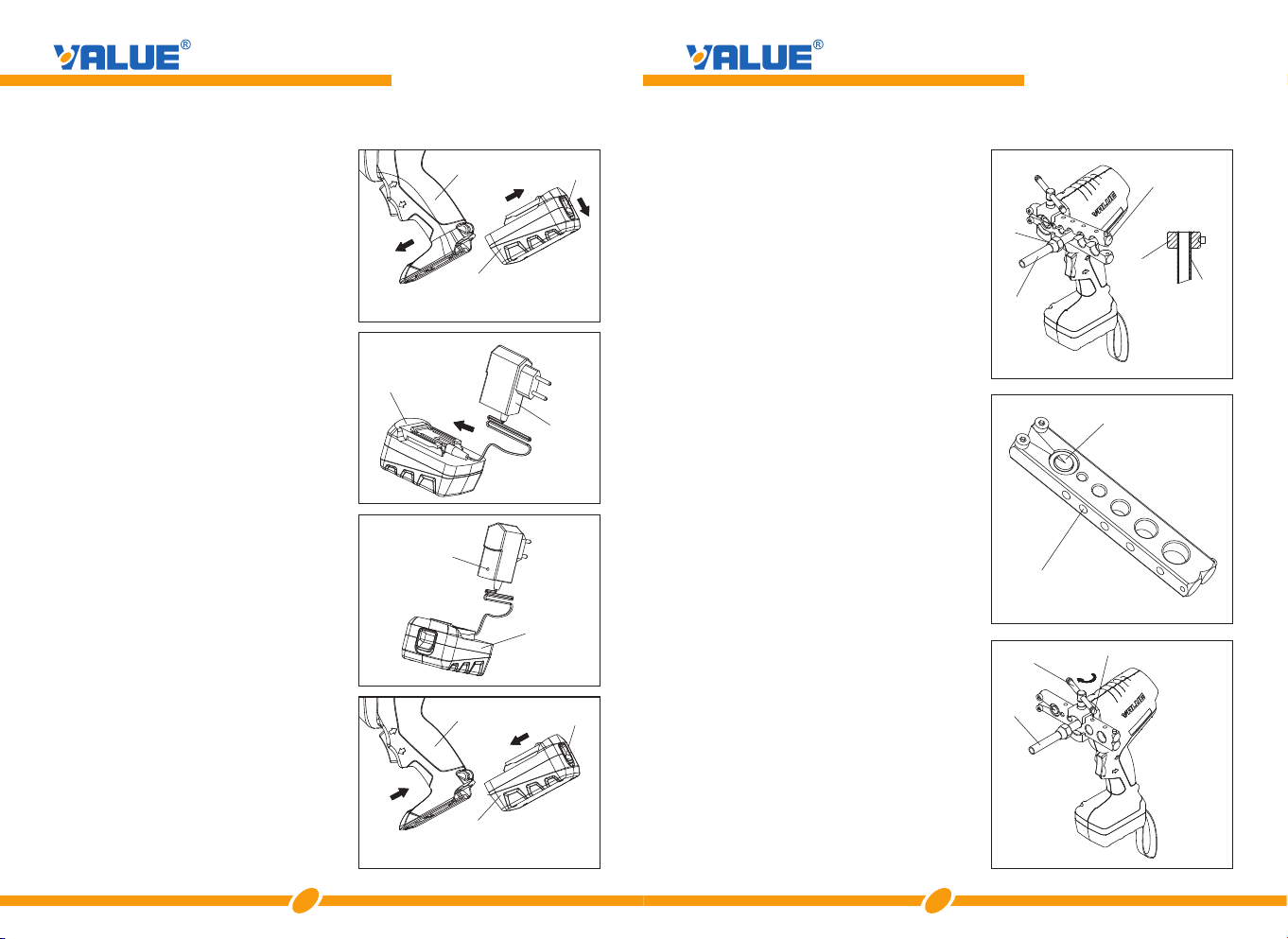

(1) Charging the Battery
① Remove the battery from the
main unit by pressing the latch
on the battery. (Push the main
unit/Pull the battery) (Fig. 3)
Hold the main unit firmly.
② Connect charger and battery.
(Fig.4)
Make sure the battery is
connected correctly as Fig4.
Plug the charger into the power
source. (Fig 5)
The red charging lamp comes
on, and charging starts.
When the green charging lamp
comes on, charging is
completed. It takes about 3
hours to complete the charging.
The input voltage for this charger
is AC100-240V (50/60Hz)
④ Remove the battery from the
charger, then attach it to the
main unit. (Fig.6)
If the battery cannot be fully
recharged even after following
correct procedure, the battery
life may have run out. Charging
the same battery as it may
damage the charger.
●
●
●
●
●
●
③
Fig.3
Main unit
Battery
Latch
Battery
Charger
Fig.4
Fig.5
Charging lamp
Battery
Fig.6
Battery
Main unit Latch
OPERATING INSTRUCTIONS

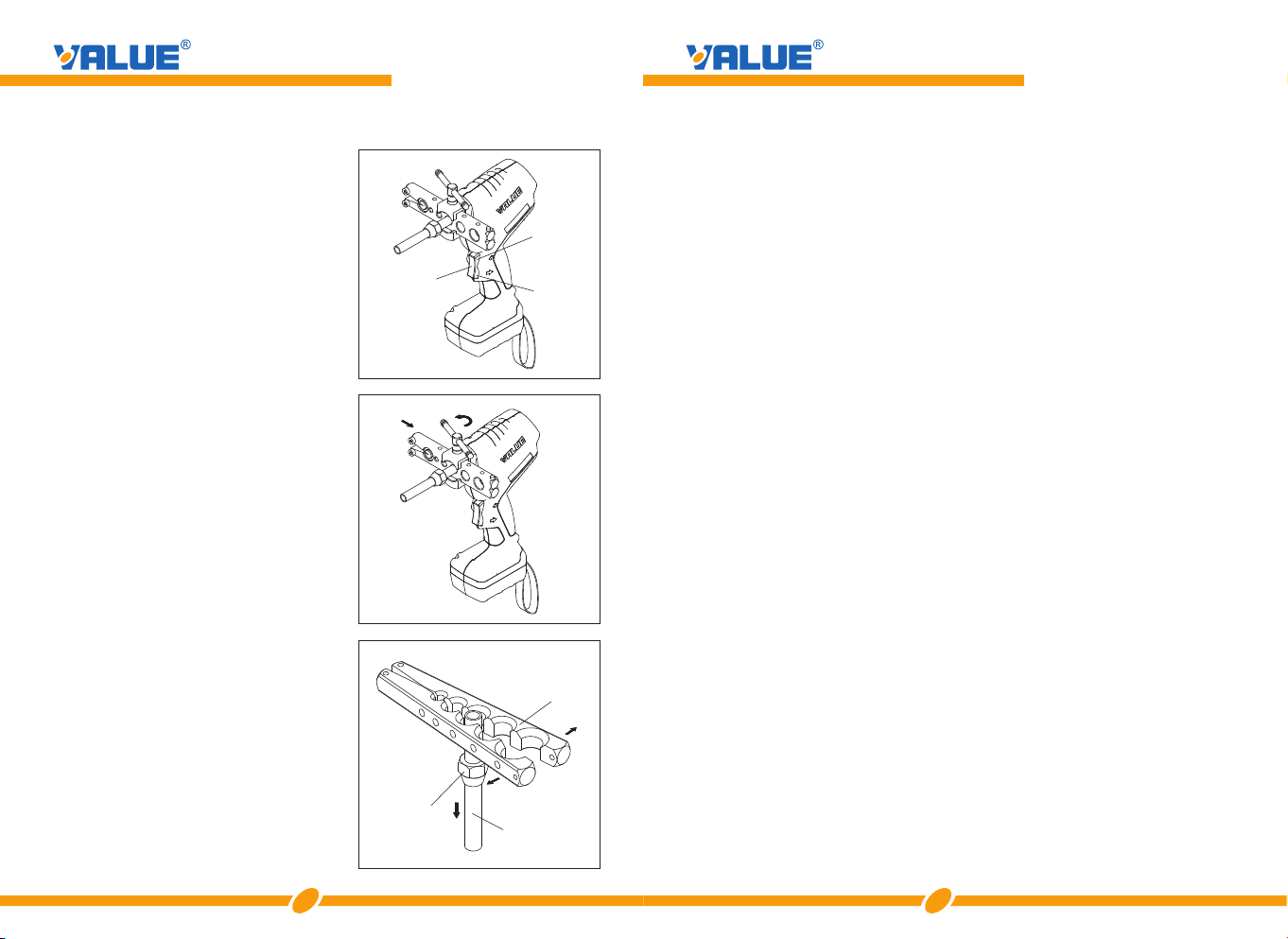

(2) Making a flare
A. Clamping the tube
Choose a hole that is
compatible with the tube size,
and then place the tube to
make that the tube end
and expander bar at same
level. (Fig. 7)
Ensure the tube is placed
properly and locked.
Please apply oil or grease if
the tube expander bar
Open/Close hard. (Fig.8)
B. Fasten the expander bar
Attach the expander bar (in which
the tube has been placed) to the
main unit. (Fig.9)
Ensure the expander bar can
be set on the main unit only
when the flare cone (on the
main unit) is fully-retracted.
Press the upper part of the
switch until you hear a clank.
(from the clutch)
①
sure
the
②
●
●
Tube Expander Bar
Tube
Tube
Flare
nut
The tube should be as
high as the plane of the
tube expander bar.
Tube
Expander
Bar
Tube expander bar
Apply grease
Tube
Fixing rod Cone hole
Aim the cone hole
at the fixingrod
andthen lock
tightly thefixing rod.
Fig.7
Fig.9
VET-19-F Original Manual VET-19-F Original Manual
Fig.8

12
11
OPERATING INSTRUCTIONS
C. Flaring the tube
pressing and
holding the lower part of the
switch. Flaring will be
completed within 3 seconds
when you hear a clank (from
the clutch). (Fig.10)
Press and hold the upper part
of the switch. (Fig.10)
Ensure the flare cone is fully
retracted. (You will hear a
clank from the clutch)
D. Removing the tube
Detach the expander bar from
the main unit by reversing the
installation steps. (Fig.11)
Ensure the flare cone is fully
retracted.
Open the expander bar and the
out the copper tube. (Fig.12)
① Start flaring by
②
①
②
●
●
Fig.10
Fig.11
Tube expander ear
Copper tube
Flare nut
Fig.12
Reverse
rotation
Foward
rotation
Switch
APPLY TO REPAIRS AND SERVICE
If an abnormality occurs with the product, please check the
following troubleshooting form. If cannot solve, please
contact the manufacturer or the sales distributor from whom
you purchased the product.
Do not repair or disassemble it by yourself. (Any
self-repair or disassemble will be regarded as
voluntary renunciation of warranty.)
Caution:
VET-19-F Original Manual VET-19-F Original Manual

14
PROBLEM SOLVING
Problem
The flaring diameter is too
small
Possible Causes Solving Method
The tube end was pinched
due to feeding the blade too
quickly when the tube was cut
Feed the cutter blade slowly
to cut the tube.
Burrs were left on the tube end
Remove the burrs.
There was a space between
the tube end and the stopper
plate
Place the tube taking care
not to leave a space
between the tube end and
the stopper plate.
The idling time from when
the clutch started operating
was too short
Make the idling time longer.
Flaring pressure is diminished
Ask for inspection or repairs.
Ring-shaped flaws occur on
the flared inner surface of
the tube
A large burr was on the pipe end.
Remove the burrs
The idling time from when
the clutch started operating
was too short
Flaring pressure is diminished
Make the idling time longer.
Ask for inspection or repairs
Flaws other than ring-shaped
ones(vertical flaws, dents,
etc.) occur on the flared inner
surface of the tube
Flaws were made while
removing burrs on the inner
surface of the tube
Remove the burrs without
making any flaws on the
inner surface of the tube
Dust or metal chips adhered
to the flare cone or the inner
surface of the tube
Remove dust and metal
chips
Flaring pressure is diminished
Ask for inspection or repairs
The flaring tool does not
operate even when the
switch is turned ON
The battery has run out Recharge the battery
There are insulators, such
as dust, between the battery
and the conductive part of
the flaring tool
Remove the insulators
The wiring or the motor is faulty
Ask for inspection or repairs
The lamp on the charger
doses not light up or not
change to Green even
charging finished
Connection between battery
and charger
The wiring or the motor is faulty
Ensure battery and charger
connect properly
Ask for inspection or repairs
Cool the charger and then
recharge the battery
The temperature of the
charger is too high
13
Environmental protection
CAUTION!
Electrical products must not be thrown out with domestic waste. They
must be taken to a communal collecting point for environmentally
friendly disposal in accordance with local regulations. Contact your
local authorities or stockist for advice on recycling.
Hiermit erklären wir,
We herewith declare,
Zhejiang VALUE Mechanical and Electrical Products Co., Ltd.
Jiulong Avenue, Western Industrial Park of Wenling City,
317500 Wenling, Zhejiang P. R. China
that the following machine complies with the appropriate basic safety and health requirements
of the EC Directive based on its design and type, as brought into circulation by us.
daß die nachfolgend bezeichnete Maschine aufgrund ihrer Konzipierung und Bauart
sowie in der von uns in Verkehr gebrachten Ausführung den einschlägigen grundlegenden
Sicherheits- und Gesundheitsanforderungen der EG-Richtlinien entspricht.
Bei einer nicht mit uns abgestimmten Änderung der Maschine verliert diese Erklärung
ihre Gültigkeit.
In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity
Bezeichnung der Maschine:
Machine Description:
Handelsmarke:
Trade name:
Maschinentyp:
Machine Type:
Maschinen-Nr.:
Serial Number:
Cordless flaring tool
VET-19-F
VALUE
N/A
Einschlägige EG-Richtlinien:
Applicable EC Directives:
EG-Maschinenrichtlinie 2006/42/EG
EC Machinery Directive: 2006/42/EC
EG-Richtlinie über elektromagnetische Verträglichkeit
(EMV) 2004/108/EWG
EC Directive of Electromagnetic Compatibility 2004/108/EEC
Angewandte harmonisierte Normen:
Applicable Harmonized Standards:
EN 60745-1:2009, EN ISO 12100-2/A1 :2009
EN61000-6-3:2007, EN55014-1:2006, EN55014-2/A1:2001
Herstellerunterschrift/Datum:
Authorized Signature/Date/Place:
Angaben zum Unterzeichner:
Title of Signatory:
April 3, 2010
Product Manager
EG-Konformitätserklärung
EC Declaration of Conformity
VET-19-F Original Manual VET-19-F Original Manual
