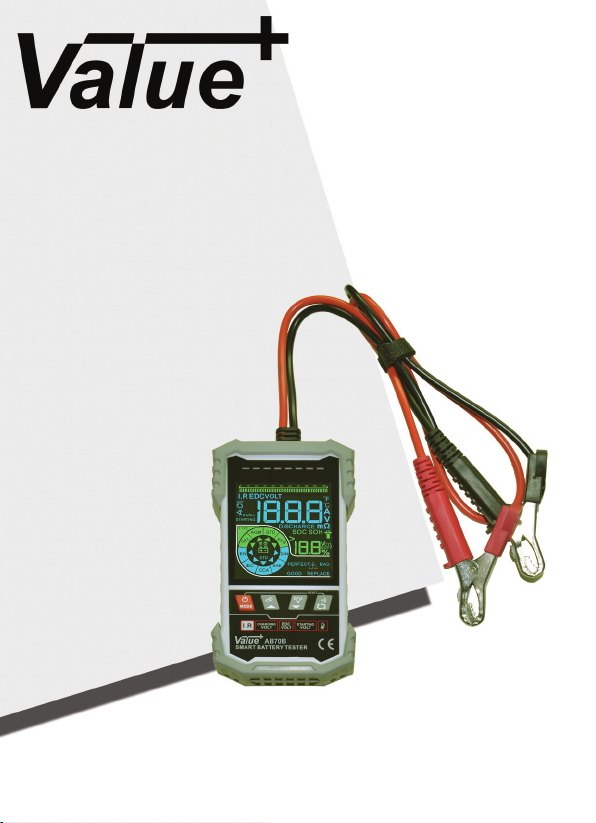

Value AB70 User manual
AB70
Manual
The Value+ Automotive Battery Tester (the Tester) is designed for a
stationary battery system. It can automatically identify 12V and 24V
battery.
The Tester is designed to help user understanding the overall state of the
battery health, state of charge and discharge.
The Tester can quickly, easily and acccurately :
- provide battery health information;
- provide the state of charge information;
- check battery level;
- check battery internal resistance; and
- the discharge capability.
The Tester have:
- overload protection;
- bad contact indication;
- revese polarity protection; and etc.
Features of the tester include:
- battery internal resistance measurement;
- battery voltage measurement;
- discharge volts test;
- ripple voltage test;
- auto hold; and
- auto save.
The Tester is powered by the battery being test. It is no need to provide
any additional power to the tester. It is no need to take the battery being
test from the car. The Tester was designed to test the battery installed in
cars.
With careful use, the Tester will provide years of reliable service
Read Before Use – Safety Information ............................... 1
Symbols .................................................................. 2
The Tester ................................................................... 3
Tester Strurcture .................................................................. 3
Display ................................................................................................ 4
Push Buttons ..................................................................................... 5
Operating the Meter .................................................... 6
A. Test Battery Internal Resistance .................................................... 6
B. Test Battery Internal Resistance .................................................... 8
E. Measuring Temperature .............................................................. 12
Specifications .................................................................... 13
Maintenance ..................................................................... 14
Power ..................................................................................... 14
................. 14
Page 1
To prevent possible electrical shock, fire, personal injury and ensure safety
operation and service of the Tester, please follow these guidelines:
• Read the instruction before use and follow all safety instructions.
• Use the Tester only as specified in the instruction card; otherwise, the Tester's safety
features may not protect you.
• Do not use the Tester and/or the accessory if they look damaged and / or wet.
• Do not use the Tester if it operates incorrectly.
• Do not use the Tester just before, during or just after an electrical storm (electrical
shock / high energy overvoltage!). Please make sure that your hands, your shoes,
your clothing, the floor, switches and switching components are dry.
• Never use the Tester if it just brought from a place with great temperature difference.
between the terminals or between each terminal and earth ground.
the conductor could result in electric shock.
• Avoid to use the equipment in the environment with strong magnetic fields, strong
electrostatic fields and strong RF fields.
• Avoid simultaneous contact with battery and frame racks or hardware that may be
grounded.
(approved rubber gloves, face protection, and flame-resistant clothes) to prevent
• Keep fingers behind the finger guards on the probes.
• Use only probes, clips, and adapters supplied with the Product.
common clip.
• Disable the Tester if it is damaged.
• Only use probes, test clips, and accessories that have the same measurement
category, voltage, and amperage ratings as the Tester.
• Do not apply more than the rated voltage, between the terminals or between each
Page 2
terminal and earth ground.
• Use the correct terminals, function, and range for measurements.
• Do not touch the probes to a voltage source when the clips are connected to the
current terminals.
• Personal injury or damage to the equipment can occur if you attempt to make a
measurement with a clip in an incorrect terminal.
• A " " statement identifies hazardous conditions and actions that could
cause bodily harm or death.
• A “ ” statement identifies conditions and actions that could damage the
equipment or the object under test.
Symbol Meaning
Risk of Danger
Page 3

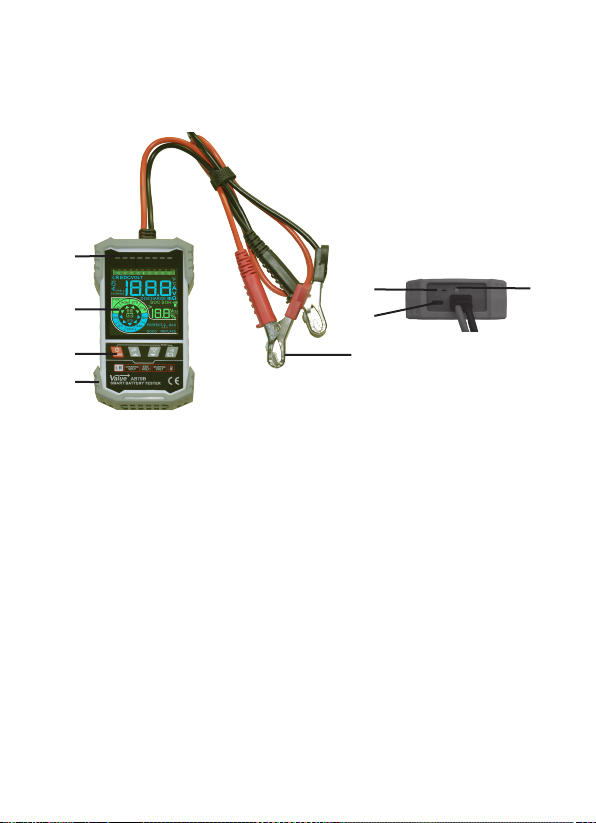

1) Process Indicators
2) Display
3) Push Button 7) USB Power Socket
4) Holster
6
7
8
1
2
3
4
5
Page 4

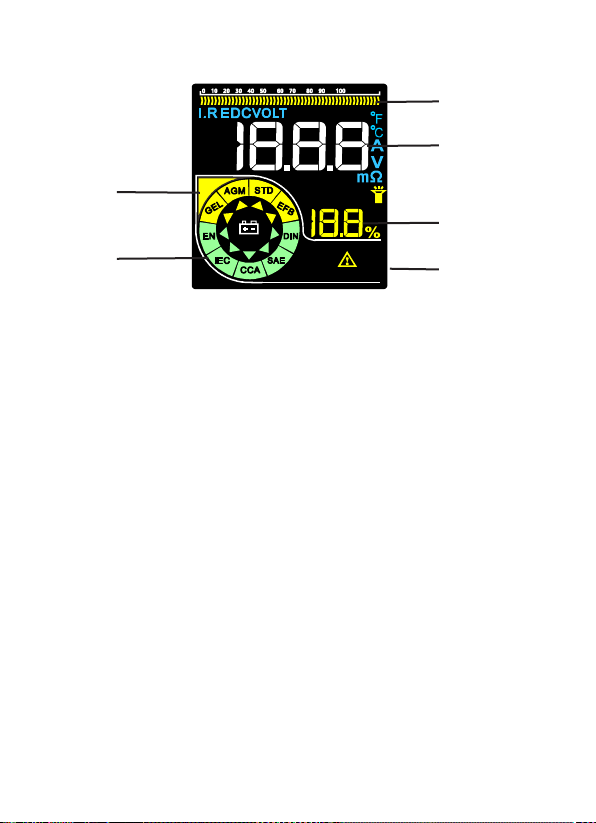

1) Battery Type
2) Battery Standard
3) Analogue Bargraph
4) Testing Result
SOC SOH
STD
T YP E
PE RF ECT
GOOD
BAD
REPLAC E
DISC HARGE
S TART IN G
CY L
DUTY
>
v
1
4
2
5
6
3
Page 5

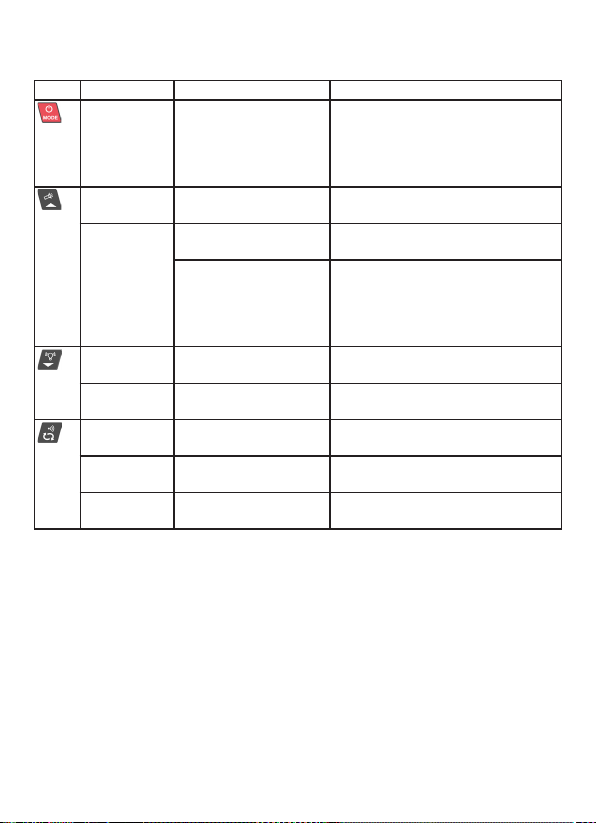

Mode Function Access
Function setting Press to switch between:
internal resistance test, charging
voltage test, discharge voltage test,
starting voltage test, & temperature
measuring
Any Flashlight Switch Press & hold for a few seconds to
switch off / on the flashlight
Internal
Resistance
Setting the discharging
current of Step 3 (P3)
Press once to increase 5A, press &
hold to increase the value rapidly
Select the test results
showing on display after
internal resistance test
completed
Press to switch to display between:
- internal resistance & state of
charge;
- voltage & battery life; &
- current & battery life.
Any Backlight Switch Press & hold for a few seconds to
switch off / on the display backlight
Internal
Resistance
Setting the discharging
current of Step 3 (P3)
Press once to decrease 5A, press &
hold to decrease the value rapidly
Any Sound Switch Press & hold for a few seconds to
switch off / on the sound
Internal
Resistance
Setting the discharging
current of Step 3 (P3)
Press to start the internal resistance
test
Temperature
mesaurement
Unit Selection
Page 6
overload protection will be activiated and no test is allowed.
• The Tester is powered by the battery being test. It cannot work if the battery
voltage is lower than 8V. Please fully charge the battery before test.
• If the battery power is not enough, charge the battery before test.
on and ready at the battery internal resistance mode.
of the battery being test;
the battery being test;
3) Display of the Tester will switch on if the
connection is good;
4) U.12V will be shown if the battery is 12V
or U.24V will be shown if the tester is
connected to 24V battery;
5) P1 will also show on the state of charge area;
6) Select the battery type by pressing
or ;
7) Press
to confirm;
Page 7
8) P2 will show on the state of charge area;
9) Select the battery standard by by pressing
or ;
Press
to confirm;
11) P3 will show on the state of charge area;
12) Press
or
discharge value of the battery being test (Press
and hold the button to change the value rapidly;
13) Press
to confirm;
14) P4 will appear. The Testing Result area
will also display the progress (from 9 to 1).
Please wait for the result;
15) After the test is completed, battery data
will be shown;
16) Press
or to switch the display between
internal resistance, voltage, discharging ability,
Replace) will also be displayed;
18) If any errors happen during test, press
and
together to reset the Tester and restart
the test.
ST D
TY P E
ST D
T YP E
ST D
TY P E
SOC
PERF ECT
ST D
TY P E
SOH
PERFECT
Page 8
3.3 55 28
4 65 31
5 33
6 38
7
8 45
9 155 425
55 445
12 465
14 65
15 75
17
18 265 85
285
24
25 755
26 995
Table A1
Note :
If the battery parameters cannot be found, please refer to table A1 to
set the discharge current.
This test is target on the battery charging system.
1) Start the car engine;
Page 9
3) The Tester will automatically switch on;
4) Press to select this function;
5) Press to start the test. The testing
6) After the test is completed, the test result
will be shown on the display.
Note :
If charging voltage is smaller than 12.8V for 12V battery, or smaller
than 25.6V for 24V battery, check the drive belt and the wires
conditions.
Test Results :
12V Battery - need to press the accelarator.

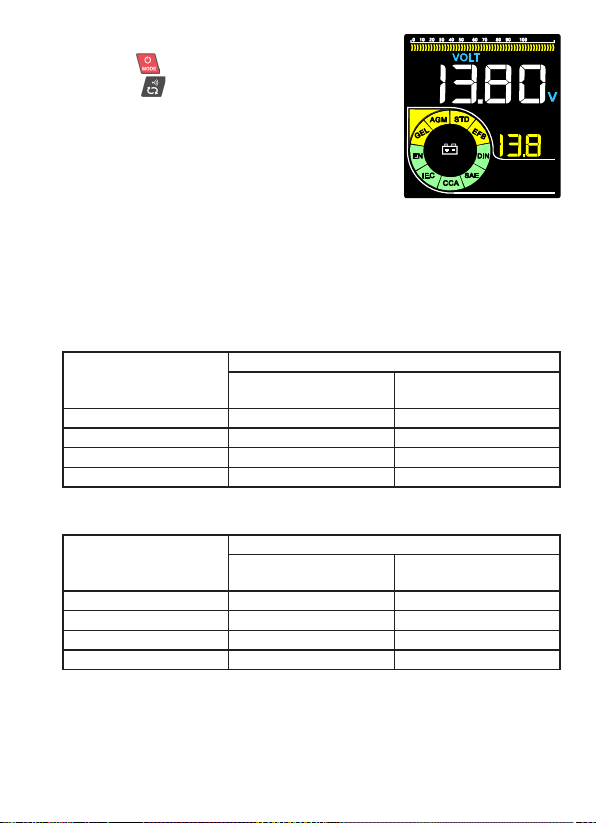

Battery Voltage
When headlamps & air
conditions are switch off
When headlamps & air
conditions are switch on
> 13.5 13.4 - 14.6
13.2 - 13.5 13.2 - 13.4
BAD > 13.2
24V Battery - need to press the accelarator.
Battery Voltage
When headlamps & air
conditions are switch off
When headlamps & air
conditions are switch on
> 27.2
26.8 - 27.2
BAD 25.2 - 26.8
< 25.2
ST D
TY P E
PERF ECT
CHARGE
>
v
1) Start the car engine;
battery;
3) The Tester will automatically switch on;
4) Press to select this function;
5) Press to start the test. The testing
state of charge) will be shown on the display.
Note :
If charging voltage is smaller than 12.8V for 12V battery, or smaller
than 25.6V for 24V battery, check the drive belt and the wires
conditions.
S TD
TY P E
>
v
Page 11

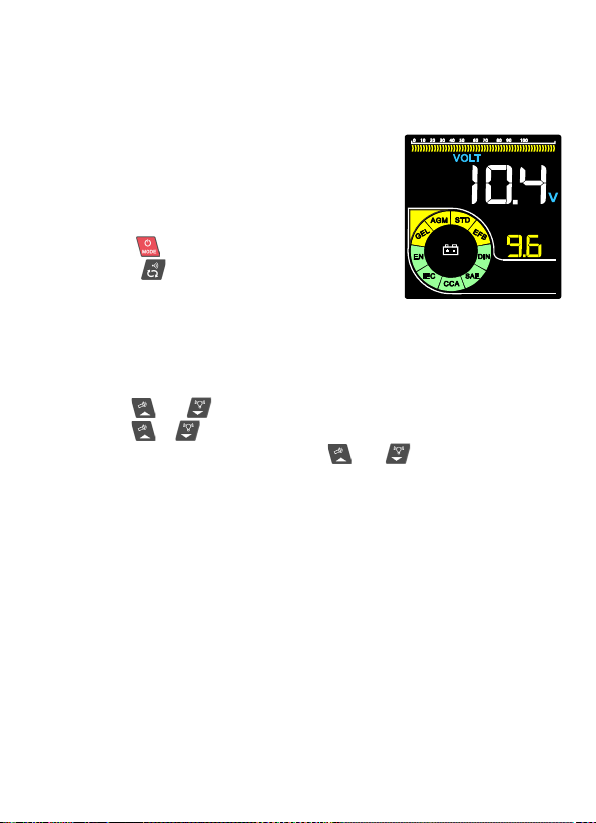

This test is target on checking whether the battery in car can provide
enougy energy for starting.
1) Turn off the engine before test. Turn the
key to off position (if any);
battery;
3) The Tester will automatically switch on;
4) Press to select this function;
5) Press to start the test. The testing
6) After the test is completed, the test
state of charge) will be shown on the display.
Note :
For 12V battery system, the system is in good condition if voltage >
For 24V battery system, the system is in good condition if voltage >
17.5V. Please refer to the following table if voltage is < 17.5V.

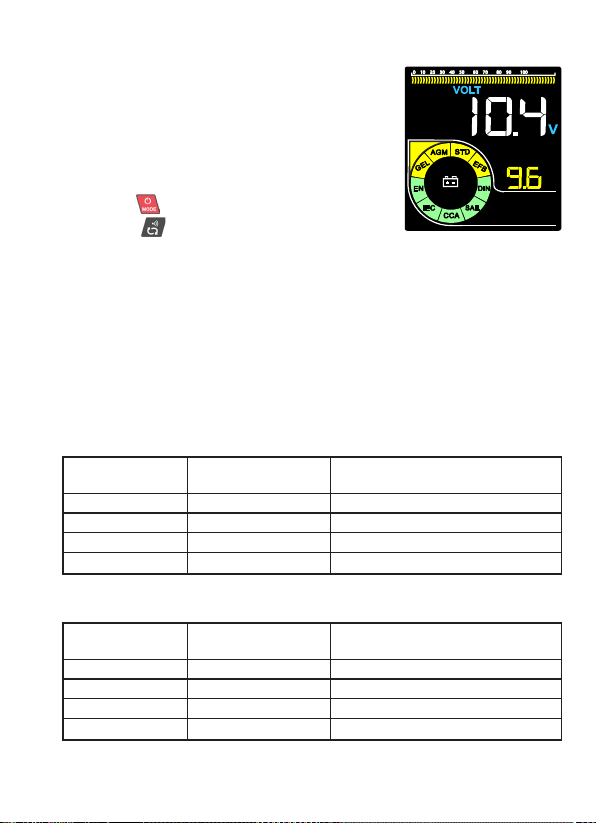

For reference of 12V battery system,
Starting Voltage Battery Discharging
Ability
Suggested Solutions
No action is needed
Keep Monitoring
BAD
< 9.6V
For reference of 24V battery system,
Starting Voltage Battery Discharging
Ability
Suggested Solutions
> 17.5V No action is needed
Keep Monitoring
BAD
ST D
TY P E
START IN G
>
v
PERF ECT
Page 12
This function is to measure temperature by using the k-type
temperature probe.
1) Power the Testers
a)by connecting the red and black clips to
a car battery; or
b)by connecting USB power source;
2) The Tester will automatically switch on;
3) Press to select this function;
4) Press to start the test. The testing
6) Place the temperature probe to the object being test;
7) The measured temperature will be shown on the display.
Users can calibrate the functions by following procedures:
• Press and together to enter the temperature calibration mode.
• Press or to adjust the value.
• After calibration is completed, press and together again to save
the changes.
ST D
TY P E
STA RT IN G
>
v
PERFECT
Page 13
Temperature
Relative Humidity
Battery N/A
Size
Weight
Functions
Battery Type
Internal Resistance Measurement
Battery Quality
Display Backlight
Flashlight
Temperature Measurement
Overload Protection
Reverse Input Protection
Resistance measurement method Four (4) terminal Kelvin connections
Battery Standard
DIN
Screen
Powered by The battery being test /
Page 14
The Tester is powered by the battery being test. It is no need to power by
Wipe the case with a damp cloth and mild detergent. Do not use abrasives
or solvents. Dirt or moisture in the jacks can affect the measurement.
All Rights Reserved
This manual suits for next models
2
Table of contents
Other Value Test Equipment manuals
Popular Test Equipment manuals by other brands
ED&D
ED&D LT-952HC user manual
Harvest TEC
Harvest TEC 453 Installation and operation instruction manual
Ocean Safety
Ocean Safety Jon Buoy mk4 operating instructions
Hartridge
Hartridge HB385 operating & maintenance manual
Teledyne
Teledyne LeCroy T3DSO2000A Series user manual
WHALETEQ
WHALETEQ SECG 4.0 user manual
