Van Der Valk ValkTriple User manual

Installation manual ValkTriple
Version 01 |December 2021

Pay attention
• This manual is not project specic.
• This manual is not legally binding.
• No rights may be derived from this installation manual.
• See datasheet ValkCableCare for cable management.
• The system is placed in the middle zone of the roof.
Index
Disclaimer
Select wind area Page -
Required ballast Page -
Required tools Page 00a
Required materials Page 00b
General dimensions Page 00c
Placing roof carriers Page 01
A-frame connector Page 02
Push rods Page 03
Aluminium proles Page 04
Aluminium proles Page 04.2
Push rods Page 05
Ballast Page 06
Placing panels Page 07
Placing panels Page 08
Cable clamp Page 09
Installation manual ValkTriple

The ValkTriple mounting system is a product of:
Van der Valk Solar Systems BV
Netherlands Chamber of Commerce: 27355116
www.valksolarsystems.com
Installation manual ValkTriple
Disclaimer
This installation manual composed with the greatest possible care and contains specic information for correct and safe installation of the solar mounting system, including
installation drawings and ballast tables, calculated according to the Eurocode regulations. The standard values used for input of these calculations, always need to be checked
in advance by the installer for correctness. In case values are different, a project case specic calculation needs to be made. Please contact Van der Valk Solar Systems in this
situation.
At all times all currently applicable structural, safety and building regulations must be observed prior to installation of the solar mounting system. The building in question will
be subject to a load as a result of the solar mounting system installed/mounted. Solar mounting systems installed on roofs will be exposed to wind and snow loads. Therefore, you
are at all times responsible to obtain and use a design calculation to establish whether or not the building will be able to withstand the (extra) load at all times. Where necessary,
modications need to be made by you. Van der Valk will not accept any form of liability upon you not having obtained and used such a required design calculation.
Mounting systems for PV-panels placed on at roofs should either be mechanically attached to the roof or need to be supported by ballast, to make sure that the solar mounting
system is unable to be lifted, tipped over or slide. The required ballast weight per system shown in the tables in this manual ensures that the mounting system can be installed
and used safely. In case the inclination of the roofs is 5 degrees or more, the PV-mounting system must always be mechanically xed to the construction of the roof.
The calculations do not take into account obstacles in the near surrounding such as, for example, high buildings, cliffs and mountains. Restrictions also apply for the position of
the solar mounting system on a roof. The solar panels must be installed at a certain distance from the edge of the roof: the middle zone.
The standard warranty is 10 years, which can be extended under certain conditions. The guarantee provided is subject to the guarantee conditions stated in the general terms and
conditions stipulated by Van der Valk Solar Systems B.V.. Our terms and conditions shall apply to all our products at all times and can be found on our website:
www.valksolarsystems.com
Van der Valk Solar Systems B.V. does not accept any liability for any direct and/or indirect consequences of any act (or omission) ensuing from the information in or failure to
observe the instructions provided in this installation manual. The use of the installation manual will at all times be subject to Dutch law.
Van der Valk Solar Systems holds the right to amend this document without further notice.

Panel: maximum dimensions 1800x1100 mm (21 kg) Panel: maximum dimensions 2100x1100 mm (24 kg)

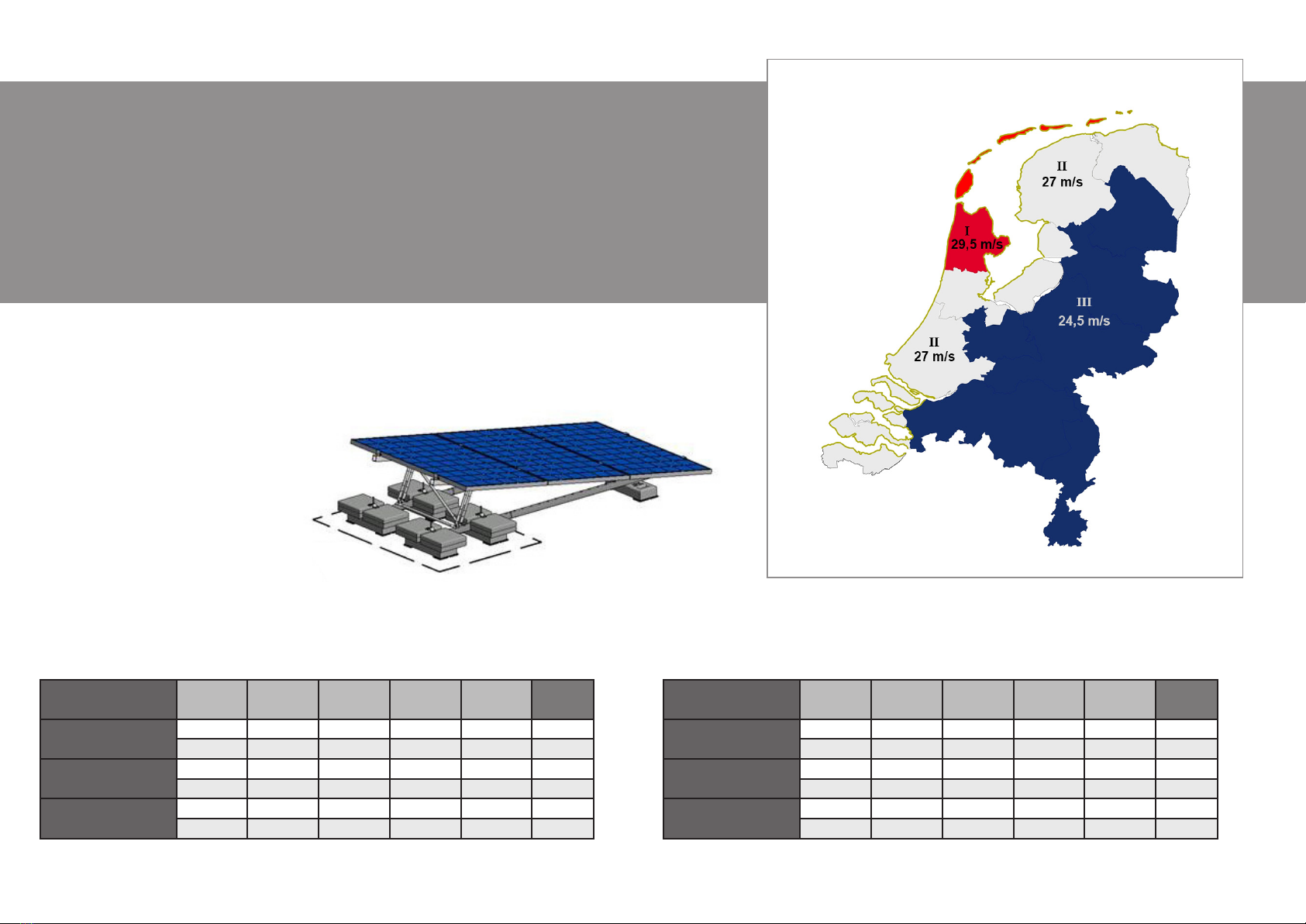

Windmap The Netherlands
Required ballast | The Netherlands
General
The ValkTriple® mounting system must be reinforced by means of tiles, which must be placed on the
indicated ballast foundations. In three steps you can easily calculate the required ballast;
• determine the wind area on the windmap
• choose the wind area and building height in the table
• you can now read the number of tiles / kg
Note 1: The extra ballast must be equally divided over the ballast foundations.
Note 2: The max. of 32 tiles can be placed for extra ballast (288 kg).
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
I (29,5 m/s) 213,0 213,0 264,0 X X kg
24,0 24,0 29,5 X X tiles
II (27 m/s) 142,0 142,0 184,0 235,0 276,0 kg
16,0 16,0 20,5 26,5 31,0 tiles
III (24,5 m/s) 78,0 78,0 112,0 154,0 187,0 kg
9,0 9,0 12,5 17,5 21,0 tiles
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
I (29,5 m/s) 273,0 273,0 X X X kg
30,5 30,5 X X X tiles
II (27 m/s) 190,0 190,0 240,0 X X kg
21,5 21,5 27,0 X X tiles
III (24,5 m/s) 115,0 115,0 156,0 204,0 242,0 kg
13,0 13,0 17,5 23,0 27,0 tiles
X= the required ballast is higher than will t under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems.
* If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.
Environmental factors
Position Middle zone roof
Terrain category Builded environment
Roong materials Bitumen
Ballast foundations

Panel: maximum dimensions 1800x1100 mm (21 kg) Panel: maximum dimensions 2100x1100 mm (24 kg)
Windmap Belgium
Required ballast | Belgium
General
The ValkTriple® mounting system must be reinforced by means of tiles, which must be placed on the
indicated ballast foundations. In three steps you can easily calculate the required ballast;
• determine the wind area on the windmap
• choose the wind area and building height in the table
• you can now read the number of tiles / kg
Note 1: The extra ballast must be equally divided over the ballast foundations.
Note 2: The max. of 32 tiles can be placed for extra ballast (288 kg).
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
23 m/s 11,0 45,0 71,0 103,0 128,0 kg
1,5 5,0 8,0 11,5 14,5 tiles
24 m/s 30,0 67,0 96,0 130,0 158,0 kg
3,5 7,5 11,0 14,5 18,0 tiles
25 m/s 50,0 90,0 121,0 158,0 188,0 kg
6,0 10,0 13,5 18,0 21,0 tiles
26 m/s 70,0 113,0 147,0 188,0 220,0 kg
8,0 13,0 16,5 21,0 24,5 tiles
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
23 m/s 38,0 77,0 108,0 145,0 174,0 kg
4,5 9,0 12,0 16,5 19,5 tiles
24 m/s 60,0 103,0 136,0 176,0 209,0 kg
7,0 11,5 15,5 20,0 23,5 tiles
25 m/s 83,0 129,0 166,0 209,0 244,0 kg
9,5 14,5 18,5 23,5 27,5 tiles
26 m/s 106,0 157,0 196,0 244,0 281,0 kg
12,0 17,5 22,0 27,5 31,5 tiles
Environmental factors
Position Middle zone roof
Terrain category III (villages, suburban terrain, permanent forest)
Roong materials Bitumen
X= the required ballast is higher than will t under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems.
* If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.
Ballast foundations

Ballast foundations
Panel: maximum dimensions 1800x1100 mm (21 kg) Panel: maximum dimensions 2100x1100 mm (24 kg)
Windmap Germany
Required ballast | Germany
General
The ValkTriple® mounting system must be reinforced by means of tiles, which must be placed on the
indicated ballast foundations. In three steps you can easily calculate the required ballast;
• determine the wind area on the windmap
• choose the wind area and building height in the table
• you can now read the number of tiles / kg
Note 1: The extra ballast must be equally divided over the ballast foundations.
Note 2: The max. of 32 tiles can be placed for extra ballast (288 kg).
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
1 (22,5 m/s) 15,0 15,0 15,0 15,0 15,0 kg
2,0 2,0 2,0 2,0 2,0 tiles
2 (25 m/s) 65,0 65,0 65,0 65,0 65,0 kg
7,5 7,5 7,5 7,5 7,5 tiles
3 (27,5 m/s) 121,0 121,0 121,0 121,0 121,0 kg
13,5 13,5 13,5 13,5 13,5 tiles
4 (30 m/s) 183,0 183,0 183,0 183,0 183,0 kg
20,5 20,5 20,5 20,5 20,5 tiles
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
1 (22,5 m/s) 42,0 42,0 42,0 42,0 42,0 kg
5,0 5,0 5,0 5,0 5,0 tiles
2 (25 m/s) 101,0 101,0 101,0 101,0 101,0 kg
11,5 11,5 11,5 11,5 11,5 tiles
3 (27,5 m/s) 166,0 166,0 166,0 166,0 166,0 kg
18,5 18,5 18,5 18,5 18,5 tiles
4 (30 m/s) 238,0 238,0 238,0 238,0 238,0 kg
26,5 26,5 26,5 26,5 26,5 tiles
Environmental factors
Position Middle zone roof
Terrain category IV (city)
Height above sea level 350 m
Exclusief North German Lowland
Roof materials Bitumen
X= the required ballast is higher than will t under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems.
* If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.

Ballast foundations
Panel: maximum dimensions 1800x1100 mm (21 kg) Panel: maximum dimensions 2100x1100 mm (24 kg)
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
22 m/s 81,0 138,0 161,0 231,0 231,0 kg
9,0 15,5 18,0 26,0 26,0 tiles
23 m/s 107,0 170,0 195,0 271,0 271,0 kg
12,0 19,0 22,0 30,5 30,5 tiles
24 m/s 134,0 203,0 230,0 X X kg
15,0 23,0 26,0 X X tiles
25 m/s 163,0 237,0 267,0 X X kg
18,5 26,5 30,0 X X tiles
26 m/s 193,0 273,0 X X X kg
21,5 30,5 X X X tiles
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
22 m/s 119,0 186,0 212,0 X X kg
13,5 21,0 24,0 X X tiles
23 m/s 149,0 222,0 252,0 X X kg
17,0 25,0 28,0 X X tiles
24 m/s 181,0 261,0 XXXkg
20,5 29,0 X X X tiles
25 m/s 215,0 X X X X kg
24,0 X X X X tiles
26 m/s 249,0 X X X X kg
28,0 X X X X tiles

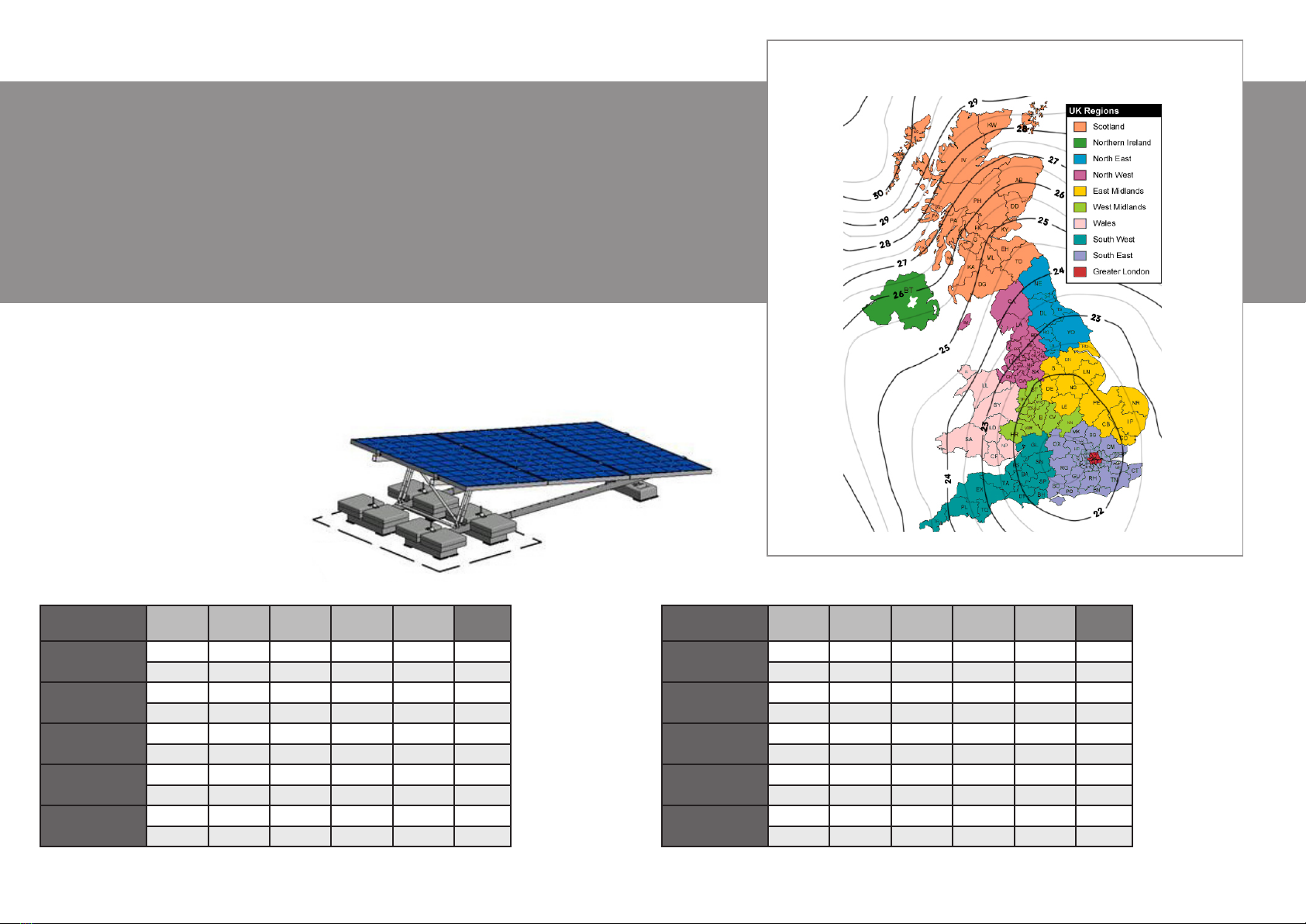

Windmap United Kingdom
Required ballast | United Kingdom
General
The ValkTriple® mounting system must be reinforced by means of tiles, which must be placed on the
indicated ballast foundations. In three steps you can easily calculate the required ballast;
• determine the wind area on the windmap
• choose the wind area and building height in the table
• you can now read the number of tiles / kg
Note 1: The extra ballast must be equally divided over the ballast foundations.
Note 2: The max. of 32 tiles can be placed for extra ballast (288 kg).
Environmental factors
Position Middle zone roof
Terrain category Builded environment
Height above sea level 50 m
Distance to coast line 5 km
Distance to city border 5 km
Roof materials Bitumen
X= the required ballast is higher than will t under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems.
* If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.

Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
25 m/s 163,0 237,0 267,0 X X kg
18,5 26,5 30,0 X X tiles
26 m/s 193,0 273,0 X X X kg
21,5 30,5 X X X tiles
27 m/s 224,0 X X X X kg
25,0 X X X X tiles
28 m/s 256,0 X X X X kg
28,5 X X X X tiles
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
25 m/s 215,0 X X X X kg
24,0 X X X X tiles
26 m/s 249,0 X X X X kg
28,0 X X X X tiles
27 m/s 285,0 X X X X kg
32,0 X X X X tiles
28 m/s X X X X X kg
X X X X X tiles
Panel: maximum dimensions 1800x1100 mm (21 kg) Panel: maximum dimensions 2100x1100 mm (24 kg)
Windmap Ireland
Required ballast | Ireland
General
The ValkTriple® mounting system must be reinforced by means of tiles, which must be placed on the
indicated ballast foundations. In three steps you can easily calculate the required ballast;
• determine the wind area on the windmap
• choose the wind area and building height in the table
• you can now read the number of tiles / kg
Note 1: The extra ballast must be equally divided over the ballast foundations.
Note 2: The max. of 32 tiles can be placed for extra ballast (288 kg).
X= the required ballast is higher than will t under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems.
* If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.
Ballast foundations
Environmental factors
Position Middle zone roof
Terrain category Builded environment
Height above sea level 50 m
Distance to coast line 5 km
Distance to city border 5 km
Roof materials Bitumen

Ballast foundations
Windmap Norway
Required ballast | Norway
General
The ValkTriple® mounting system must be reinforced by means of tiles, which must be placed on the
indicated ballast foundations. In three steps you can easily calculate the required ballast;
• determine the wind area on the windmap
• choose the wind area and building height in the table
• you can now read the number of tiles / kg
Note 1: The extra ballast must be equally divided over the ballast foundations.
Note 2: The max. of 32 tiles can be placed for extra ballast (288 kg).
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
22 m/s 55,0 55,0 67,0 98,0 122,0 kg
6,5 6,5 7,5 11,0 14,0 tiles
25 m/s 129,0 129,0 145,0 185,0 217,0 kg
14,5 14,5 16,5 21,0 24,5 tiles
27 m/s 184,0 184,0 203,0 249,0 286,0 kg
20,5 20,5 23,0 28,0 32,0 tiles
29 m/s 244,0 244,0 265,0 X X kg
27,5 27,5 29,5 X X tiles
31 m/s X X X X X kg
X X X X X tiles
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
22 m/s 88,0 88,0 103,0 138,0 167,0 kg
10,0 10,0 11,5 15,5 19,0 tiles
25 m/s 175,0 175,0 194,0 240,0 277,0 kg
19,5 19,5 22,0 27,0 31,0 tiles
27 m/s 240,0 240,0 261,0 X X kg
27,0 27,0 29,0 X X tiles
29 m/s XXXXXkg
XXXXXtiles
31 m/s X X X X X kg
XXXXXtiles
For determining the wind
area see next page.
Panel: maximum dimensions 1800x1100 mm (21 kg) Panel: maximum dimensions 2100x1100 mm (24 kg)
X= the required ballast is higher than will t under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems.
* If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.
Environmental factors
Position Middle zone roof
Terrain category III (villages, suburban terrain, permanent forest)
Height above sea level 175 m
Roong materials Bitumen

m/s
Provincie Østfold 22
Except Municipalities:
Halden 24
Moss 24
Rygge 24
Råde 24
Sarpsborg 24
Våler 24
Fredrikstad 26
Hvaler 27
Provincie Akershus 22
Except Municipality:
Vestby 24
Provincie Oslo 22
Provincie Hedmark 22
Except Municipalities:
Alvdal 24
Folldal 24
Folldal near Trøndelag 24
Os 24
Os near Trøndelag 24
Tolga 24
Tynset 24
Tynset Kvikne 24
Tynset near Trøndelag 24
Provincie Oppland 22
Except Municipalities:
Vågå 23
Dovre 24
Dovre near Trøndelag 24
Lom 24
Lom near Sogn og Fj. 24
Vang 24
Vang near Sogn og Fj. 24
Lesja 25
Lesja near Trøndelag/
Møre og Romsdal 25
Skjåk 25
Skjåk near Sogn og Fj./
Møre og Romsdal 25
Provincie Buskerud 22
Except Municipalities:
Hemsedal 24
Hemsedal near Sogn og Fj. 24
Hol 24
Hol near Hordeland /
Sogn og Fjordane 24
Hurum 24
m/s
Nore og Uvdal 24
Nore og Uvdal near Hordeland 24
Ål 24
Ål near Sogn og Fj. 24
Provincie Vestford 23
Except Municipalities:
Hof 22
Lardal 22
Nøtterøy 24
Sandefjord 24
Stokke 24
Tønsberg 24
Larvik 25
Tjøme 26
Provincie Telemark 22
Except Municipalities:
Bamble 23
Porsgrunn 23
Fyresdal 24
Kragerø 24
Tinn 24
Tokke 24
Vinje 24
Vinje near Rogaland/Hordaland 24
Provincie Aust-Agder 24
Except Municipalities:
Arendal 26
Grimstad 26
Lillesand 26
Risør 26
Tvedestrand 26
Provincie Vest-Agder 24
Except Municipalities:
Flekkefjord 26
Flekkefjord near Rogaland 26
Kristiansand 26
Lyngdal 26
Søngne 26
Farsund 28
Lindesnes 28
Mandal 28
Provincie Rogaland 26
Except Municipalities:
Hjelmeland 24
Sauda 24
Suldal 24
Vindafjord 24
Eigersund 27
m/s
Sokndal 27
Bokn 28
Haugesund 28
Klepp 28
Randaberg 28
Rennesøy 28
Sola 28
Time 28
Hå 29
Kvitsøy 29
Karmøy 30
Utsira 30
Ølen Municipality isn’t in the
Wind standard
Provincie Hordaland 26
Except Municipalities:
Etne 24
Etne near the Folgefonna 24
Granvin 24
Kvam 24
Modalen 24
Samnanger 24
Ulvik 24
Vaksdal 24
Voss 24
Osterøy 25
Radøy 27
Austevoll 28
Austrheim 28
Bømlo 28
Fjell 28
Sund 28
Øygarden 29
Fedje 30
Provincie Sogn og Fjordane 24
Except Municipalities:
Aurland 25
Eid 26
Fjaler 26
Førde 26
Førde near the Jostedalsbreen 26
Gaular 26
Gloppen 26
Gloppen near the Ålfotbreen and
Jostedalsbreen 26
Hornindal 26
Hyllestad 26
Høyanger 26
Lӕ rdal 26
Naustdal 26
Askvoll 28
m/s
Flora 28
Gulen 28
Bremanger 29
Bremanger near the Ålfotbreen 29
Solund 29
Selje 31
Vågsøy 31
Provincie Møre og Romsdal 30
Except Municipalities:
Rindal 25
Surnadal 25
Nesset 26
Norddal 26
Stordal 26
Stranda 26
Sunndal 27
Gjemnes 28
Rauma 28
Sykkylven 28
Tingvoll 28
Volda 28
Ørskog 28
Ørsta 28
Eide 29
Halsa 29
Hareid 29
Molde 29
Skodje 29
Sula 29
Ålesund 29
Sandøy 31
Frei Municipality isn’t in the
Wind standard
Tustna Municipality isn’t in the
Wind standard
Provincie Sør-Trøndelag 25
Except Municipalities:
Malvik 26
Oppdal 26
Rennebu 26
Trondheim 26
Agdenes 27
Rissa 27
Snillfjord 27
Hemne 28
Bjugn 29
Osen 29
Roan 29
Åfjord 29
Frøya 30
Hitra 30
Ørland 30
m/s
Provincie Nord-Trøndelag 26
Except Municipalities:
Lierne 24
Meråker 25
Røyrvik 25
Snåsa 25
Flatanger 29
Fosnes 29
Leka 29
Leka on the mainland 29
Nӕ røy 29
Vikna 30
Provincie Nordland 29
Except Municipalities:
Beiarn 26
Evenes 26
Fauske 26
Grane 26
Hattfjelldal 26
Hemnes 26
Rana 26
Saltdal 26
Sørfold 26
Ballangen 27
Tjeldsund 27
Tysfjord 27
Hamarøy 28
Narvik 28
Sortland 28
Vefsn 28
Vefsn along the fjord 28
Vefsn Mosjøen 28
Vevelstad 28
Alstahaug 30
Bindal 30
Bodø 30
Dønna 30
Flakstad 30
Herøy 30
Leirfjord 30
Lurøy 30
Lurøy on the mainland 30
Nesna 30
Sømna 30
Vega 30
Vestvågøy 30
Andøy 31
Moskenes 31
Røst 31
Trӕ na 31
Vӕ røy 31
Skjerstad Municipality isn’t in the
Wind standard
m/s
Provincie Troms 26
Except Municipalities:
Bardu 24
Målselv 24
Strofjord 24
Gáivuona/Kåfjord 25
Balsfjord 26
Gratangen 26
Ibestad 26
Lavangen 26
Lyngen 26
Salangen 26
Skånland 26
Sørreisa 26
Dyrøy 27
Harstad 27
Lenvik 27
Nordreisa 27
Tranøy 27
Tromsø 27
Bjarkøy 28
Kvӕ nangen 28
Skjervøy 28
Karlsøy 29
Berg 30
Torsken 30
Provincie Finnmark 29
Except Municipalities:
Kárájoga / Karasjok 24
Guovdageaidnu / Kautokeino 24
Deanu/Tana 27
Porsanger 27
Unjárgga / Nesseby 27
Alta 28
Berlevåg 30
Gamvik 30
Hasvik 30
Måsøy 30
Nordkapp 30
Vardø 30
Provincie Svalbard 30
Wind area | Norway

Ballast foundations
Panel: maximum dimensions 1800x1100 mm (21 kg) Panel: maximum dimensions 2100x1100 mm (24 kg)
Windmap Sweden
Required ballast | Sweden
General
The ValkTriple® mounting system must be reinforced by means of tiles, which must be placed on the
indicated ballast foundations. In three steps you can easily calculate the required ballast;
• determine the wind area on the windmap
• choose the wind area and building height in the table
• you can now read the number of tiles / kg
Note 1: The extra ballast must be equally divided over the ballast foundations.
Note 2: The max. of 32 tiles can be placed for extra ballast (288 kg).
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
22 m/s 0,0 0,0 22,0 49,0 70,0 kg
0,0 0,0 2,5 5,5 8,0 tiles
23 m/s 0,0 19,0 43,0 72,0 95,0 kg
0,0 2,5 5,0 8,0 11,0 tiles
24 m/s 5,0 38,0 65,0 96,0 121,0 kg
1,0 4,5 7,5 11,0 13,5 tiles
25 m/s 23,0 59,0 87,0 121,0 149,0 kg
3,0 7,0 10,0 13,5 17,0 tiles
26 m/s 41,0 80,0 111,0 148,0 177,0 kg
5,0 9,0 12,5 16,5 20,0 tiles
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
22 m/s 0,0 25,0 51,0 81,0 106,0 kg
0,0 3,0 6,0 9,0 12,0 tiles
23 m/s 11,0 47,0 75,0 108,0 135,0 kg
1,5 5,5 8,5 12,0 15,0 tiles
24 m/s 30,0 69,0 100,0 137,0 166,0 kg
3,5 8,0 11,5 15,5 18,5 tiles
25 m/s 51,0 93,0 127,0 166,0 198,0 kg
6,0 10,5 14,5 18,5 22,0 tiles
26 m/s 72,0 118,0 154,0 197,0 232,0 kg
8,0 13,5 17,5 22,0 26,0 tiles
X= the required ballast is higher than will t under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems.
* If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.
Environmental factors
Position Middle zone roof
Terrain category III (villages, suburban terrain, permanent forest)
Roong materials Bitumen

Panel: maximum dimensions 1800x1100 mm (21 kg) Panel: maximum dimensions 2100x1100 mm (24 kg)
Windmap Finland
Required ballast | Finland
General
The ValkTriple® mounting system must be reinforced by means of tiles, which must be placed on the
indicated ballast foundations. In three steps you can easily calculate the required ballast;
• determine the wind area on the windmap
• choose the wind area and building height in the table
• you can now read the number of tiles / kg
Note 1: The extra ballast must be equally divided over the ballast foundations.
Note 2: The max. of 32 tiles can be placed for extra ballast (288 kg).
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
21 m/s 11,0 44,0 70,0 101,0 126,0 kg
1,5 5,0 8,0 11,5 14,0 tiles
22 m/s 31,0 68,0 97,0 131,0 158,0 kg
3,5 8,0 11,0 15,0 18,0 tiles
26 m/s 124,0 175,0 215,0 263,0 Xkg
14,0 19,5 24,0 29,5 Xtiles
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
21 m/s 37,0 76,0 107,0 143,0 172,0 kg
4,5 8,5 12,0 16,0 19,5 tiles
22 m/s 61,0 104,0 137,0 177,0 209,0 kg
7,0 12,0 15,5 20,0 23,5 tiles
26 m/s 169,0 229,0 275,0 X X kg
19,0 25,5 31,0 X X tiles
Environmental factors
Position Middle zone roof
Terrain category III (villages, suburban terrain, permanent forest)
Roong materials Bitumen
• Mainland across the country = 21 m/s
• Sea areas:
Open sea, scattered islands on open sea = 22 m/s
• In Lappland: at the top of the mountains = 26 m/s
• In Lappland: at the foot of the mountains = 21 m/s
X= the required ballast is higher than will t under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems.
* If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.
Ballast foundations

Panel: maximum dimensions 1800x1100 mm (21 kg) Panel: maximum dimensions 2100x1100 mm (24 kg)
Ballast foundations

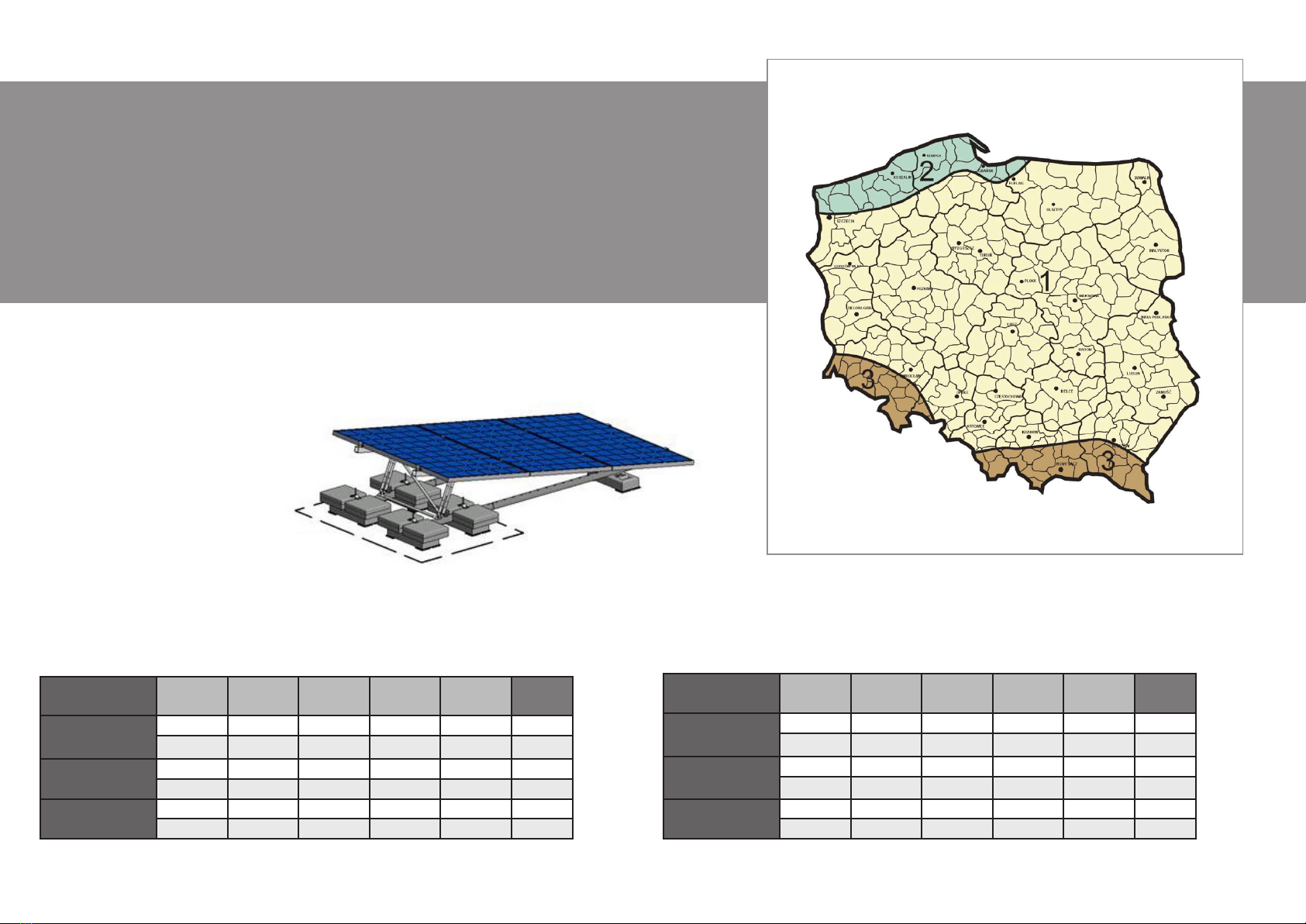

Windmap Poland
Required ballast | Poland
General
The ValkTriple® mounting system must be reinforced by means of tiles, which must be placed on the
indicated ballast foundations. In three steps you can easily calculate the required ballast;
• determine the wind area on the windmap
• choose the wind area and building height in the table
• you can now read the number of tiles / kg
Note 1: The extra ballast must be equally divided over the ballast foundations.
Note 2: The max. of 32 tiles can be placed for extra ballast (288 kg).
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
158,0 82,0 101,0 124,0 144,0 kg
6,5 9,5 11,5 14,0 16,0 tiles
2161,0 194,0 221,0 254,0 281,0 kg
18,0 22,0 25,0 28,5 31,5 tiles
358,0 82,0 101,0 124,0 144,0 kg
6,5 9,5 11,5 14,0 16,0 tiles
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
192,0 120,0 142,0 170,0 192,0 kg
10,5 13,5 16,0 19,0 21,5 tiles
2212,0 251,0 282,0 X X kg
24,0 28,0 31,5 X X tiles
392,0 120,0 142,0 170,0 192,0 kg
10,5 13,5 16,0 19,0 21,5 tiles
Environmental factors
Position Middle zone roof
Terrain category III (villages, suburban terrain, permanent forest)
Roong materials Bitumen
X= the required ballast is higher than will t under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems.
* If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.

Panel: maximum dimensions 1800x1100 mm (21 kg) Panel: maximum dimensions 2100x1100 mm (24 kg)

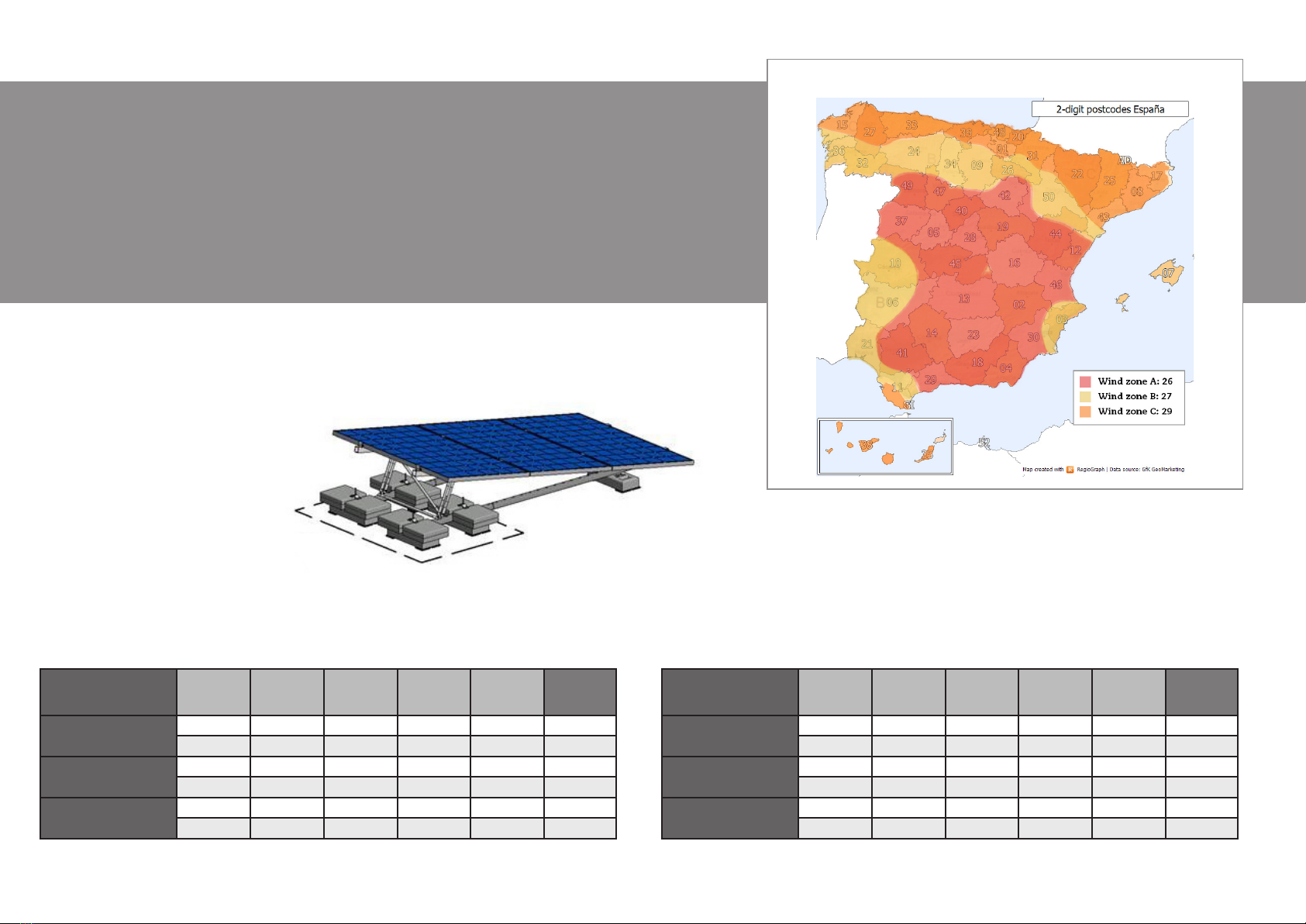

Windmap Spain
Required ballast | Spain
General
The ValkTriple® mounting system must be reinforced by means of tiles, which must be placed on the
indicated ballast foundations. In three steps you can easily calculate the required ballast;
• determine the wind area on the windmap
• choose the wind area and building height in the table
• you can now read the number of tiles / kg
Note 1: The extra ballast must be equally divided over the ballast foundations.
Note 2: The max. of 32 tiles can be placed for extra ballast (288 kg).
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
26 m/s 125,0 147,0 184,0 228,0 264,0 kg
14,0 16,5 20,5 25,5 29,5 tiles
27 m/s 150,0 174,0 214,0 262,0 Xkg
17,0 19,5 24,0 29,5 Xtiles
29 m/s 205,0 232,0 278,0 X X kg
23,0 26,0 31,0 X X tiles
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
26 m/s 170,0 196,0 239,0 X X kg
19,0 22,0 27,0 X X tiles
27 m/s 200,0 228,0 275,0 X X kg
22,5 25,5 31,0 X X tiles
29 m/s 263,0 X X X X kg
29,5 X X X X tiles
Environmental factors
Position Middle zone roof
Terrain category III (villages, suburban terrain, permanent forest)
Height above sea level < 1000 m
Roong materials Concrete
X= the required ballast is higher than will t under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems.
* If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.
Ballast foundations

Panel: maximum dimensions 1800x1100 mm (21 kg) Panel: maximum dimensions 2100x1100 mm (24 kg)
Windmap Portugal
Required ballast | Portugal
General
The ValkTriple® mounting system must be reinforced by means of tiles, which must be placed on the
indicated ballast foundations. In three steps you can easily calculate the required ballast;
• determine the wind area on the windmap
• choose the wind area and building height in the table
• you can now read the number of tiles / kg
Note 1: The extra ballast must be equally divided over the ballast foundations.
Note 2: The max. of 32 tiles can be placed for extra ballast (288 kg).
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
27 m/s 150,0 174,0 214,0 262,0 Xkg
17,0 19,5 24,0 29,5 Xtiles
30 m/s 233,0 262,0 X X X kg
26,0 29,5 X X X tiles
Building height 0 - 5
meter
5 - 7
meter
7 - 9
meter
9 - 12
meter
12 - 15
meter
27 m/s 200,0 228,0 275,0 X X kg
22,5 25,5 31,0 X X tiles
30 m/s X X X X X kg
X X X X X tiles
X= the required ballast is higher than will t under the system. The system must be mechanically attached to the roof. Please contact Van der Valk Solar Systems.
* If you use tiles of different sizes and thus another weight, you need to adjust the number of tiles to get the right weight.
Ballast foundations
Environmental factors
Position Middle zone roof
Terrain category III (villages, suburban terrain, permanent forest)
Height above sea level < 1000 m
Roong materials Concrete

00
Recommended installation tools
ValkTriple
Cordless drill
(for socket 13 and bit T-30)
Socket 13
Torx bit T-30
Measuring tape
Wrench 13

00
Required materials
ValkTriple
Roof carrier profile 1000mm (741801000)
Roof carrier profile 1500mm (741801500)
Installation: Page 01
Concrete mass block (750520)
Installation: Page 01
Rubber tile carrier (729610)
Installation: Page 01
SS bolt M8x65 (774065)
Installation: Page 01
SS washer M8 125A (774009)
Installation: Page 01
Threaded rod M8x220 (7479740)
Installation: Page 01
SS flange nut M8 (774006)
Installation: Page 01/03/04/05/06
A-frame connector (724420)
Installation: Page 02
Alu. support (G13032208250000)
Installation: Page 03
Hammerheadbolt M8x20 (774220)
Installation: Page 03
Alu. profile 2100mm (7272100)
Alu. profile 1010mm (7271010)
Alu. extension profile:
757050 = 1010-1046 mm
757051 = 1038-1065 mm
757052 = 1065-1100 mm
Installation: Page 04
Alu. hinge 50mm (724450)
Installation: Page 04
A-frame connector (724414)
Installation: Page 04
SS bolt M8x20 (774020)
Installation: Page 04
SS bolt M8x80 (774081)
Installation: Page 04
Alu. support (G13057703800000)
Installation: Page 05
Alu. support (G13032208656565)
Installation: Page 05
Alu. tile clamp (725140)
Installation: Page 06
Ballast tile (7506303045)
Installation: Page 06
Not included in kit
End clamp (721552)
Installation: Page 07
Panel clamp (721550)
Installation: Page 08
Cable clamp (732001)
Installation: Page 09
Coupling set (774221)
Installation: Page 01
Alu. profile coupling (004850)
Installation: Page 04

00
IPN.
IAM.
10°
3109
680
6001700
3128
Advised pitch measure 5000 (Based on sun angle of 14,5°)
2700
825
Panel Length
Panel thickness 28-50

AE
AF
AG
B.1
B.2
B.3
01
Valk Hint!
1) Place the mass block on the correct
locations before mounting the roof
carriers.
Detail A
A
Front view
Detail B.1 Detail B.2
Front view
IPN.
IAM.
825
3rd hole
Place the mass block on
the rubber tile carriers.
Detail B.3
15 Nm
Attention! the 1600mm roof
carrier is placed in front of the
1000mm roof carrier.

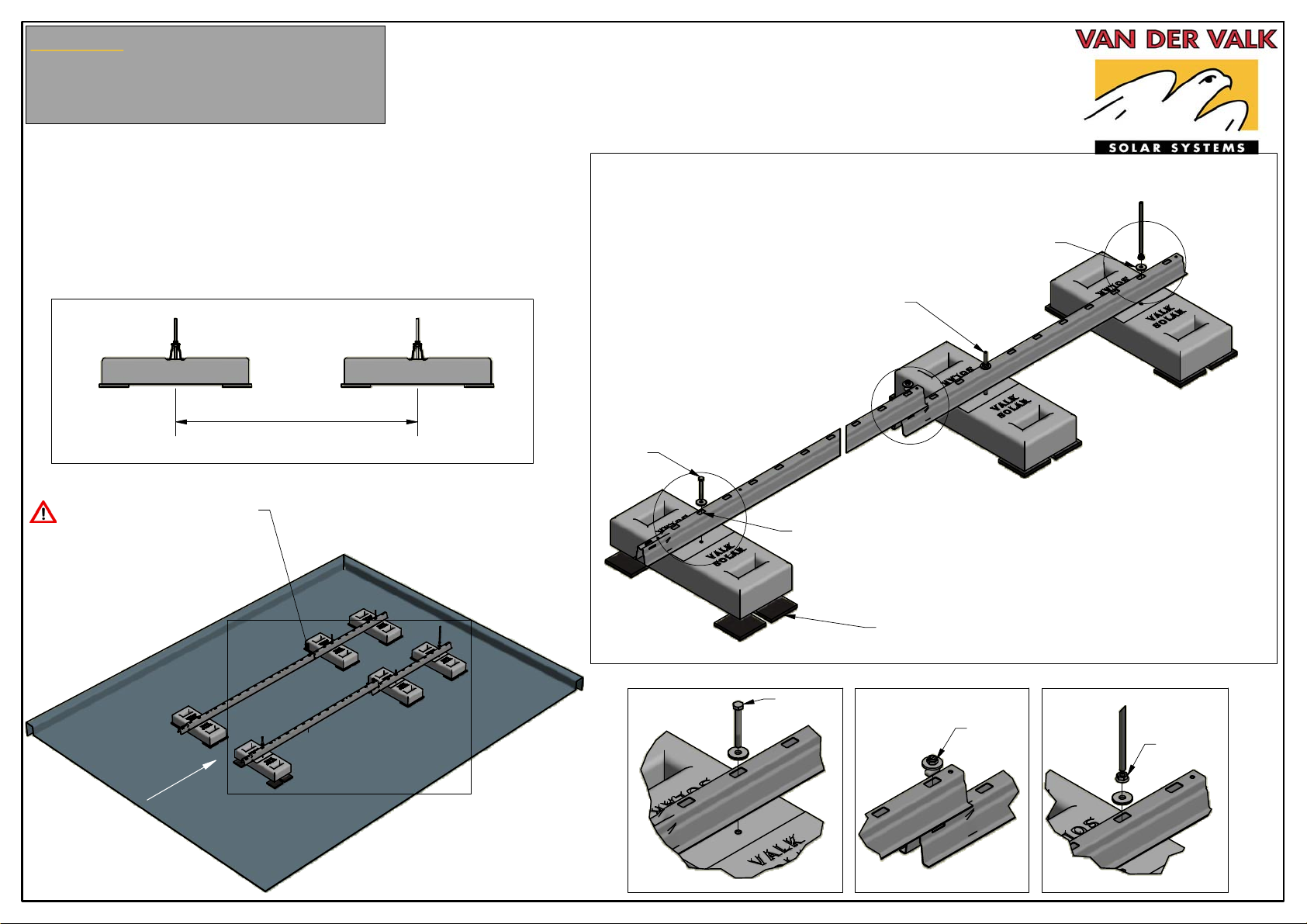

Mount the mass block to the roof carriers in the correct positions.
8th hole from end roof carrier.
2nd to last hole
15 Nm
15 Nm
M8x65

AJ
AK
B
AL
AM
02
Detail A
A
Front view
Front view
IPN.
IAM.
The groove on the bolt
corresponds with the orientation
of the bolt head!
A
A
A
5th to last hole
2nd hole
Detail B
15 Nm
Mount the connector pieces on the roof carriers. Make sure they are
placed as shown in the drawing.
