Vanco Evolution EV4K7014 User manual

Vanco Part Number:
EV4K7014
4K 1x4 HDMI®
Splitter over Cat6
Cable with HDMI
Loop-Out
www.vanco1.com • 800.626.6445
4K 1x4
HDMI® Splitter
over Cat6 Cable with HDMI
Loop-out

www.vanco1.com 800.626.6445 2
1. Do not expose this unit to water, moisture, or
excessive humidity.
2. Do not install or place this unit in a built-in
cabinet, or other conned space without
adequate ventilation.
3. To prevent risk of electrical shock or re
hazard, due to overheating do not obstruct
unit’s ventilation openings.
4. Do not install near any source of heat,
including other units that may produce heat.
5. Do not place unit near ames.
6. Only clean unit with a dry cloth.
7. Unplug unit during lightening storms or when
not used for an extended period of time. A
surge protector is strongly recommended.
8. Protect the power cord from being walked on
or pinched, particularly at the plugs.
9. Use unit only with accessories specied by
the manufacturer.
10. Refer all servicing to qualied personnel.
CAUTION
HDMI is a very complex technology requiring continuous authentication of the signal and the same
video resolution and audio settings on all electronic equipment in the system. When there are multiple
sources and displays, the video resolution and audio setting on all connected units must be adjusted
to correspond with that of the display having the lowest video and audio capability.
WARNING
DEAR CUSTOMER
Thank you for purchasing this product.
For optimum performance and safety, please
read these instructions carefully before connecting, operating or
adjusting this product. Please keep this manual for future reference.
This product is 100% inspected and tested in the United States to verify
HDMI performance parameters.

www.vanco1.com 800.626.6445 3
INTRODUCTION
The EV4K7014 is an HDMI splitter that allows one HDMI input to be split and sent to up to ve displays simultaneously.
With four outputs over UTP, and one output over HDMI, the EV4K7014 allows for a local display connected, or to daisy chain
additional units to gain more outputs. The EV4K7014 includes four receivers (EV4K7014-RX) as a kit, which are PoE, which
do not require any power supplies at the display end. Extends 4K@60Hz 4:4:4 with HDR10 and IR control up to 230ft/70m
over a single Cat6 cable. IR accessories are included to allow IR pass through for controlling the source at each UTP display
location. For splitting and distributing one single source to multiple displays, while extending over Cat6, the EV4K7014 is a
great solution for any application with the ability to expand.
*NOTE - All specications and ratings for the EV4K7014 have been tested and conrmed using Cat6 cabling.
Cat6 or better is strongly recommended for optimum performance, achieve rated distance, and to maximize
resolution capabilities of this product. Cat5e is not recommended and may not achieve distance and/or
resolution expectations.
FEATURES
Evolution 4K 1x4 HDMI Splitter over Cat6 Cable with HDMI Loop-out
Part # EV4K7014
• Allows a single source to be split and extended to multiple displays
• Complete kit with (4) PoE Receivers included
• Features an additional HDMI output which can be used for a local display or to cascade to another
splitter for a larger distribution system
• Transmission Range: Extends 4K@60Hz, 4:4:4 Chroma with HDR10 and IR up to 230ft/70m and 1080p
up to 330ft/100m over a single Cat6 cable
• Features Power over Ethernet (PoE) Technology which transmits power over Cat6, allowing the receivers
to be powered without connecting a power supply
• Latency under 30ms
• Supports bi-directional IR (20~60kHz) for source or display control
• IR accessories included allowing for source control from each UTP display location
• Features auto and manual EDID options for compatibility with source and displays
• Digital audio breakout on the receivers for source audio extraction
• HDCP 1.4/2.2 compliant
• Slim and compact design
• RS232 control of splitter
• Pure uncompressed 7.1 ch digital audio
• Supports DTS-HD and Dolby TrueHD high bit rate audio
• Splitter Dimensions: 14.3” L x 4.09 W x 0.9” H (264.40mm L x 104 mm W x 23.85mm H)
• Receiver Dimensions: 4.17” L x 3.8” W x 0.75” H (106 mm L x 99mm W x 19.20mm H)

www.vanco1.com 800.626.6445 4
SPECIFICATIONS
Power....................................................................... 12V, 3A power supply included
Dimensions .............................................................. Splitter Dimensions: 14.3” L x 4.09 W x 0.9” H
(264.40mm L x 104 mm W x 23.85mm H); Receiver Dimensions: 4.17” L x 3.8” W x 0.75” H (106 mm L x
99mm W x 19.20mm H)
Weight…………………………. ................................ Splitter: 1.4 lbs (640g); Receiver: 0.5 lbs (210g)
Resolution and Distance over Cat6 .............................. 4K@60Hz, 4:4:4 Chroma and HDR10 up to
230ft/70m, 1080P@60Hz up to 330ft/100m
Audio Formats........................................................... PCM, Dolby True HD and DTS master
HDMI Interface Standard ............................................ HDMI 2.0b, HDCP 1.4/2.2
Remote IR................................................................. 20~60KHZ wide frequency carrier
ESD Level ................................................................. HBM +/- 4kv (contact discharge)
Temperature Range.................................................... 0~60 degrees Celsius
(Operate), -20~70 degrees Celsius
Compliance ............................................................... FCC, CE, RoHS
• (1) EV4K7014 1x4 Splitter
• (4) EV4K7014 PoE Receivers
• (1) IR Blaster
• (4) IR Receivers (display)
• (1) 3-pin terminal block (phoenix connector)
• (1) 12V/3A power supply
• (1) Set of mounting hardware and screws
• (1) Product Manual
PACKAGE CONTENTS

www.vanco1.com 800.626.6445 5
PANEL DESCRIPTIONS
1. Power Indicator: Illuminates blue when the power is turned on
2. Reset Button: Reboots the splitter
3. IR IN: Connect the included IR Receiver (RX) to receive the IR signal from a remote
4. IR OUT: Connect the included IR Blaster (TX) and place at the source for IR control
5. RJ45 Output Ports: Connect to receivers with Cat6 cabling
Note: Home-run cabling strongly recommended without any couplings, punch-downs, or patch panels;
Cat5e not recommended
6. HDMI Output Port: Connect to an HDMI display, or connect to an additional EV4K7014 to cascade to
create additional outputs
7. HDMI Input Port: Connect an HDMI source device
8. EDID Dip Switch: Set output compatibility resolution
9. RS-232 Port: Connects to control the splitter
10. Power: Connect the provided DC 12V/3A power adapter
1
23 4 56 7 89
10
EV4K7014 Splitter

www.vanco1.com 800.626.6445 6
1. Reset button: Reboots the receiver
2. Cat6 Input: Connect a single Cat6 with other end of cable connected to the splitter unit (home-run cabling
strongly recommended without any couplings, punch-downs, or patch panels)
3. Power/Signal LED: When there is power and no HDMI source signal, the indicator will ash; when there is
power and a source HDMI signal, the indicator will emit solid blue
4. DC 12V Port: No power supply needed, splitter will provide power over Cat6 (PoE) to the receiver units
5. S/PDIF OUT: Digital Optical Audio break out that will output source signal audio; connect to an external
amplier, soundbar, and/or audio distribution component
6. HDMI OUT: Connect a display such as an HDTV or HD Projector
7. IR IN: Connect the included IR Receiver (RX); see IR section for setup
8. IR OUT: Connect the included IR Blaster (TX); see IR section for setup
12 3
4
PANEL DESCRIPTIONS
5
67 8
EV4K7014 Receiver

www.vanco1.com 800.626.6445 7
CONNECTION DIAGRAM
CONNECT AND OPERATE
1. Connect a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc.
to the HDMI input
2. Connect the Cat6 runs (home run cabling recommended) to the UTP output(s); connect to the EV4K7014
RX Receivers
3. Connect displays such as an HDTV or HD Projector to the HDMI output of the EV4K7014 RX Receivers
4. (Optional) Connect a display such as an HDTV or HD Projector to the HDMI output of the EV4K7014; or
connect an additional EV4K7014 to cascade to create additional outputs
5. For power, connect the provided power supply
HDTV
IR Blaster
HDTV
HDMIHDMIHDMIHDMI
HDMI HDMI
Source
HDTV
HDTV
IR Receiver
Cat6 Cat6 Cat6 Cat6
IR Receiver IR Receiver
IR Receiver

www.vanco1.com 800.626.6445 8
EDID MANAGEMENT
There are 16 built-in EDIDs in the product, which can be adjusted via the DIP switches. The upward DIP switch
indicates “1”, and the downward DIP switch indicates“0”. After the adjustment is made, power cycle the
EV4K7014. View displays for changes.

www.vanco1.com 800.626.6445 9
RS-232 CONTROL
The default conguration is as follows:
Baud rate: 9600, Data bits: 8, Stop bits: 1, Parity: 0

www.vanco1.com 800.626.6445 10

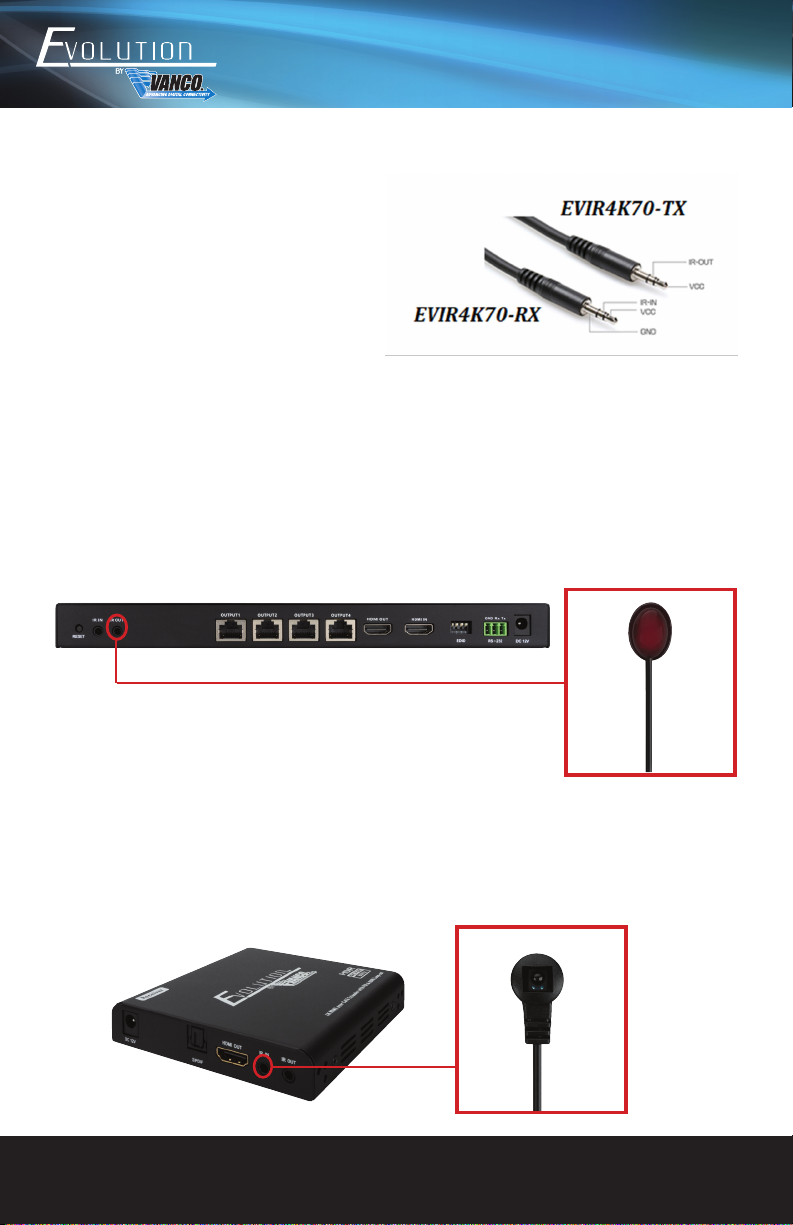

IR PASS-THROUGH
The IR system allows you to control the source that
is connected to the splitter unit, from the display(s).
The IR system also allows you to control the
display(s) from the splitter location (see “To Control
the Displays” section”). Additional IR receivers
(EVIR4K70-RX) and IR blasters (EVIR4K70-TX) are
sold separately.
To Control the Source:
1. Plug the IR blaster into the
IR OUT port of the splitter unit;
place blaster in front of the IR
eye of the source
2. Plug the IR Receiver into the
IR IN Port of the receiver unit;
place receiver at or near display

www.vanco1.com 800.626.6445 11

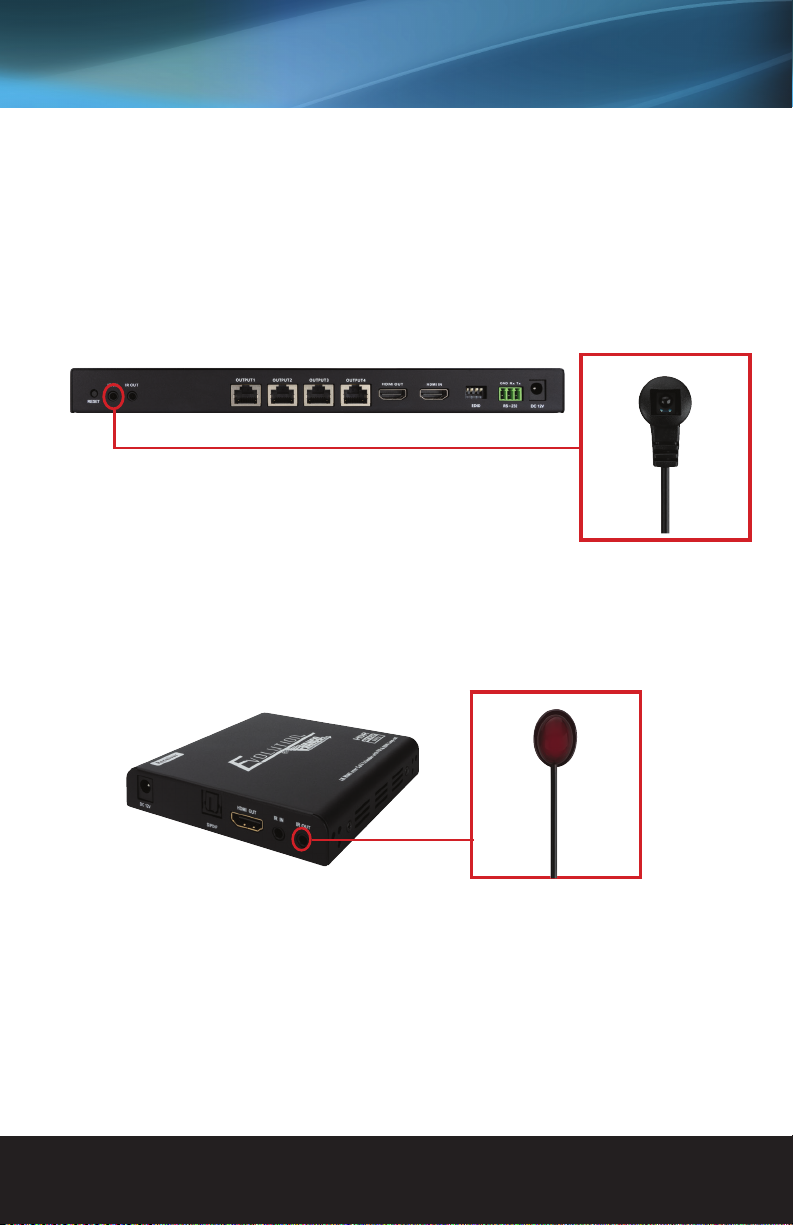

To Control the Displays:
1. Plug the IR receiver into
the IR IN port of the splitter
unit; place receiver in a location
where it can receive display IR
commands
2. Plug the IR blaster into the
IR OUT port of the receiver unit;
place blaster in front of the IR
eye of the display(s)

www.vanco1.com 800.626.6445 12
TROUBLE-SHOOTING
1. Best results are usually achieved when the source and display resolutions are the same. If resolutions differ, the
extenders will try to adjust the signal to match the resolution of the HDTV with the lowest resolution. This will result in a
picture with a lower resolution on the other HDTV sets.
2. If you do not get audio and video, access the “setup” menu on the TV to adjust the audio and video settings. If the HDMI
control circuit cannot establish a handshake, then there usually will be no audio or video in addition to a blue or black
screen with a statement similar to “this protocol not supported” or “weak signal”.
3. If the above mentioned messages display, reset the receiver by disconnecting the power supply. You can also disconnect
all of the HDMI and power cables, wait 15 minutes for any voltages to decay and then reconnect all of the cables.
4. If you are still encountering issues, attempt the “hot-plug concept. With all of the HDMI cables disconnected, turn on
the source and plug in the HDMI cable into it’s output, then power up the Vanco unit and plug the HDMI cable into it’s
input, nally turn on the display and plug the HDMI cable from the receiver into it. This activates all of the devices in
corresponding order and results in a signal being plugged into a device that is on and will attempt to connect the signal.
5. Most of the major source and display manufacturers employ a proprietary control channel to communicate between
devices from the same manufacturer. Sometimes this can interfere with the HDMI control circuit or the authentication
of the signal. Call the manufacturer if you experience this issue. Sometimes a player, an audio/video receiver, or a cable/
satellite box may not have the latest software update, usually this can be downloaded from the manufacturer’s website.
Problems Potential Causes Solutions
Color losing or no video signal
output in HDMI display
The connecting cables may not be
connected correctly or may be broken
Check whether the cables are connected
correctly and in working condition
The display is not compatible with the
present output resolution
Make sure the resolution of the display(s)
is compatible with the present resolution
No HDMI signal output while local
HDMI input is in normal working
state
The connecting cables may not be
connected correctly or it may be broken
Check whether the cables are connected
correctly and in working condition
Splash screen in output devices Poor quality of the connecting cable Change for another cale of good quality
Static becomes stronger when
connection the video connectors
Bad grounding Check the grounding and make sure it is
connected well

www.vanco1.com 800.626.6445 13
SAFETY AND NOTICE
The EV4K7014 has been tested for conformance to safety regulations and requirements, and has been
certied for international use. However, like all electronic equipment, the EV4K7014 should be used with care.
Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk
of damage to the unit.
• Follow all instructions and warnings marked on this unit.
• Do not attempt to service this unit yourself, except where explained in this manual.
• Provide proper ventilation and air circulation and do not use near water.
• Keep objects that might damage the device and assure that the placement of this unit is on a stable
surface.
• Use only the power adapter and power cords and connection cables designed for this unit.
• Do not use liquid or aerosol cleaners to clean this unit.
• Always unplug the power to the device before cleaning
LIMITED WARRANTY
With the exceptions noted in the next paragraph, Vanco warrants to the original purchaser that the equipment
it manufactures or sells will be free from defects in materials and workmanship for a period of two years from
the date of purchase. Should this product, in Vanco’s opinion, prove defective within this warranty period,
Vanco, at its option, will repair or replace this product without charge. Any defective parts replaced become
the property of Vanco. This warranty does not apply to those products which have been damaged due to
accident, unauthorized alterations, improper repair, modications, inadequate maintenance and care, or use in
any manner for which the product was not originally intended.
Items integrated into Vanco products that are made by other manufacturers, notably computer hard
drives and liquid crystal display panels, are limited to the term of the warranty offered by the respective
manufacturers. Such specic warranties are available upon request to Vanco. A surge protector, power
conditioner unit, or an uninterruptible power supply must be installed in the electrical circuit to protect against
power surges.
If repairs are needed during the warranty period the purchaser will be required to provide a sales receipt/sales
invoice or other acceptable proof of purchase to the seller of this equipment. The seller will then contact Vanco
regarding warranty repair or replacement.

www.vanco1.com 800.626.6445 14
TECHNICAL SUPPORT
In case of problems, please contact Vanco Technical Support by dialing 1-800-626-6445. You can also email
technical support issues to [email protected].
When calling, please have the Model Number, Serial Number (afxed to the bottom of the unit) and Invoice
available for reference during the call.
Please read this Instruction Manual prior to calling or installing this unit, since it will familiarize you with the
capabilities of this product and its proper installation.
All active electronic products are 100% inspected and tested to insure highest product quality and trouble-
free installation and operation. The testing process utilizes the types of high-denition sources and displays
typically installed for entertainment and home theater applications.
For additional information, such as helpful installation videos, etc. please visit www.vanco1.com
LIABILITY STATEMENT
Every effort has been made to ensure that this product is free of defects. The manufacturer of this product
cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising
from its use. It is the responsibility of the user and installer of the hardware to check that it is suitable for
their requirements and that it is installed correctly. All rights are reserved. No parts of this manual may be
reproduced or transmitted by any form or means electronic or mechanical, including photocopying, recording
or by any information storage or retrieval system without the written consent of the publisher.
Manufacturer reserves the right to revise any of its hardware and software following its policy to modify and/or
improve its products where necessary or desirable. This statement does not affect the legal rights of the user
in any way.

www.vanco1.com 800.626.6445 15

Vanco®International
506 Kingsland Drive
Batavia, Illinois 60510
call: 800.626.6445
fax: [phone]
visit: www.vanco1.com
