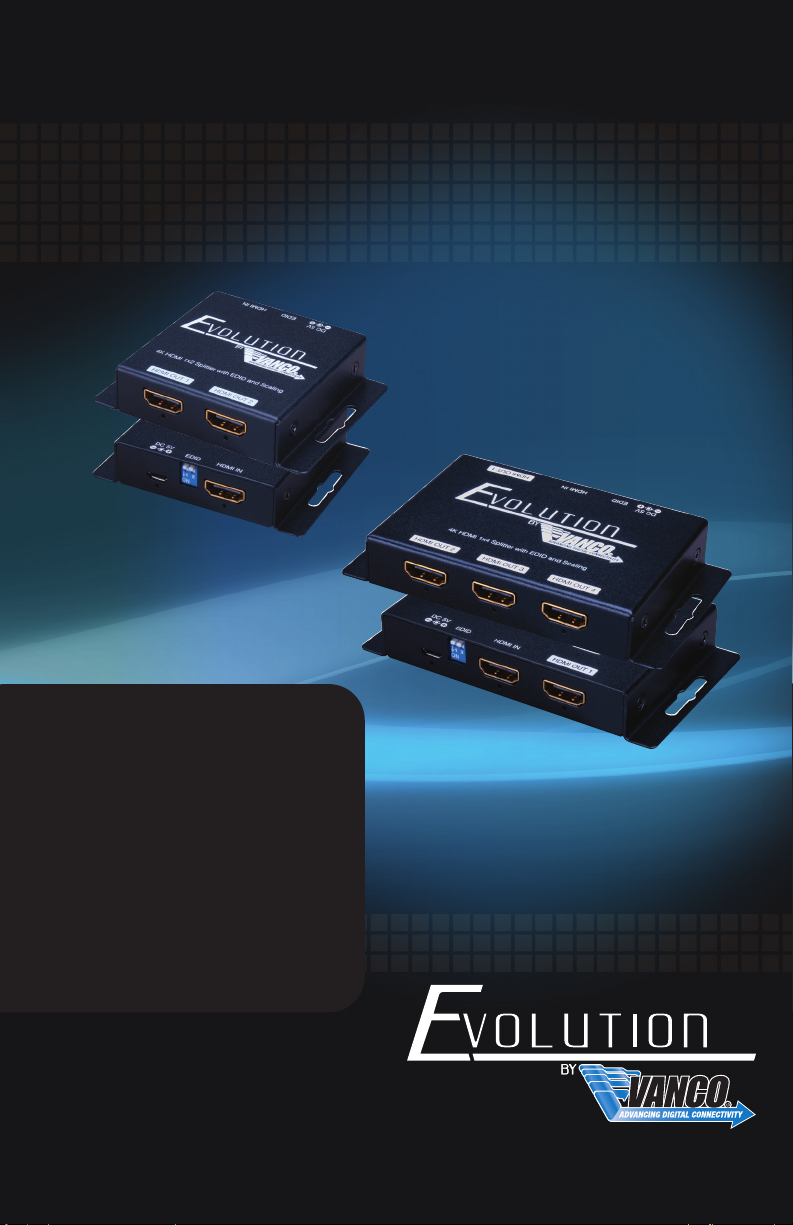

Vanco Evolution EVSP12SC User manual
4K HDMI® Splitters
with EDID and Scaling
Part Numbers:
EVSP12SC 1x2
EVSP14SC 1x4
www.vanco1.com • 800.626.6445
4K HDMI
®
Splitters
with EDID and Scaling
www.vanco1.com 800.626.6445
2
1. Do not expose this unit to water, moisture, or
excessive humidity.
2. Do not install or place this unit in a built-in
cabinet, or other conned space without
adequate ventilation.
3. To prevent risk of electrical shock or re
hazard, due to overheating do not obstruct
unit’s ventilation openings.
4. Do not install near any source of heat,
including other units that may produce heat.
5. Do not place unit near ames.
6. Only clean unit with a dry cloth.
7. Unplug unit during lightening storms or when
not used for an extended period of time. A
surge protector is strongly recommended.
8. Protect the power cord from being walked on
or pinched, particularly at the plugs.
9. Use unit only with accessories specied by
the manufacturer.
10. Refer all servicing to qualied personnel.
CAUTION
HDMI is a very complex technology requiring continuous authentication of the signal and the same
video resolution and audio settings on all electronic equipment in the system. When there are multiple
sources and displays, the video resolution and audio setting on all connected units must be adjusted
to correspond with that of the display having the lowest video and audio capability.
WARNING
DEAR CUSTOMER
Thank you for purchasing this product.
For optimum performance and safety, please
read these instructions carefully before connecting, operating or
adjusting this product. Please keep this manual for future reference.
This product is 100% inspected and tested in the United States to verify
HDMI performance parameters.
www.vanco1.com 800.626.6445 3
INTRODUCTION
The Evolution by Vanco EVSP12SC and EVSP14SC HDMI splitters with 4K, 4:4:4, and HDR pass-through, splits one source
signal to multiple displays. Both splitters are also able to downscale to 1080p, allowing 4K resolution to be maintained
on other outputs. Also features EDID management, with different modes to ensure compatibility with source and display
combinations. Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio for advanced audio setups. Take any 4K
source and split the signal to multiple displays, while being able to connect both 4K and 1080p displays, to ensure the highest
quality possible resolution. A great solution for applications with a mix of 4K and 1080p displays!
FEATURES
4K HDMI® 1x2 Spiltter with EDID and Scaling
Part # EVSP12SC
• Transmits audio and video from a single source to 2 HDMI outputs up to 4K2K (2160p) Ultra High
Denition resolution without any loss of quality or resolution
• Supports 4K and 1080p resolutions simultaneously; downscales to 1080p for lower resolution displays
while maintaining 4K on other outputs
• Supports up to 4K@60Hz with 8 bit YCBCR and 4:4:4 color sampling
• Supports up to 4K@60Hz with 10 bit YCBCR, 4:2:0 color sampling and HDR
• HDCP 2.2 and 1.4 compliant
• Wide frequency range: 25MHz~600MHz
• High bandwidth:18Gbps
• Features EDID management
• Micro-USB rmware update for expanding compatibility
• Dimensions: 3.75” W x 2.25” H x 1.6” D
PACKAGE CONTENTS
• EVSP12SC 4K HDMI 1x2 Splitter
• DC 5V Power Supply
• Product Manual
www.vanco1.com 800.626.6445
4
4K HDMI® 1x4 Spiltter with EDID and Scaling
Part # EVSP14SC
• Transmits audio and video from a single source to 4 displays up to 4K (2160p) Ultra High Denition
resolution without any loss of quality or resolution
• Supports 4K and 1080p resolutions simultaneously; downscales to 1080p for lower resolution displays
while maintaining 4K on other outputs
• Supports up to 4K@60Hz with 8 bit YCBCR and 4:4:4 color sampling
• Supports up to 4K@60Hz with 10 bit YCBCR, 4:2:0 color sampling and HDR
• HDCP 2.2 and 1.4 compliant
• Wide frequency range: 25MHz~600MHz
• High bandwidth: 18Gbps
• Features EDID management
• Micro-USB rmware update for expanding compatibility
• Dimensions: 4.43” W x 3.43” H x 1.6” D
PACKAGE CONTENTS
• EVSP14SC 4K HDMI 1x4 Splitter
• DC 5V Power Supply
• Product Manual
www.vanco1.com 800.626.6445 5
SPECIFICATIONS
HDMI Compliance ...................................................... HDMI 2.0a
HDCP Compliance...................................................... HDCP 2.2/1.4
Video Bandwidth ........................................................ 600MHz/18Gbps
Video Support ........................................................... HDR 4K@60Hz (4:2:0 10 bits)/ 4k@60Hz (4:4:4 8
bits)
Audio Support ........................................................... DTS-HD Master Audio, Dolby TrueHD Dolby Digital,
DTS, LPCM
ESD Protection .......................................................... Human Body model: ±15kV (air-gap discharge) ±8 kV
(contact discharge)
Firmware Update ....................................................... Feasible via Micro-USB port
Input Ports................................................................ 1 × HDMI (Female type)
Output Ports ............................................................. 2 or 4 × HDMI (Female type)
HDMI Connector ........................................................ Type A (19-pin female)
Dip Switch ................................................................ EDID Mode Selection
Dimensions ............................................................... 1x2: 3.75” W x 2.25” H x 1.6”D; 1x4: 4.43” W x
3.43” H x 1.6” D
Weight ..................................................................... 1x2: 0.2 lbs; 1x4: 0.3 lbs
Chassis Material........................................................ Metal
Mounting .................................................................. Wall-Mounting Case
Power Supply ............................................................ 5V 1A DC
Power Consumption (Max) .......................................... 3 Watts (maximum)
Operating Temperature............................................... 0 °C~40 °C/ 32 °F~104 °F
Storage Temperature ................................................. −20 °C ~ 60 °C/−4 °F ~140 °F
Relative Humidity....................................................... 20~90 % RH (non-condensing)
www.vanco1.com 800.626.6445
6
PANEL DESCRIPTIONS
EVSP12SC
1
2
3
6
7
1. Power LED: Illuminates when the splitter is connected to power
2. Micro-USB Port: Connect the included 5V DC power supply to power the unit
3. EDID MODE: Default EDID mode has been tested for compatibility with most source and display
combinations, however to manually adjust EDID, see below for DIP Switch adjustments
NOTE: The default settings on the DIP Switch is “OFF” for both switches. OFF is in the “Up” position, while ON
is in the “Down” position
4. Input Signal LED: Illuminates when the source is connected and powered on
5. HDMI IN: Connect a source such as a Set Top Box, Game Console, media player, NVR/DVR, etc.
6. Output Signal LED: Illuminates when a display is connected and powered on
7. HDMI OUT 1-2: Connect HDMI displays to each output
NOTE: Automatic EDID learning will detect all the connected HDMI displays and will analyze the content. The
maximum resolution support will automatically be chosen unless manually adjusted as shown above in the EDID
table; Connect the lowest resolution display to output 1
5
4
Dip Switch Position Description
Off Off Ultra HD (4K@60) - 8/10/12bit 3D HDR video & 7.1 ch audio
On Off Ultra HD (4K@60) - 8/10/12bit 3D HDR video & 2 ch audio
Off On Ultra HD (1080p@60) - 12bit 3D video & 7.1 ch audio
On On Learning EDID from output 1
www.vanco1.com 800.626.6445 7
PANEL DESCRIPTIONS
EVSP14SC
1. Power LED: Illuminates when the splitter is connected to power
2. Micro-USB Port: Connect the included 5V DC power supply to power the unit
3. EDID MODE: Default EDID mode has been tested for compatibility with most source and display
combinations, however to manually adjust EDID, see below for DIP Switch adjustments
NOTE: The default settings on the DIP Switch is “OFF” for both switches. OFF is in the “Up” position, while ON
is in the “Down” position
4. Input Signal LED: Illuminates when the source is connected and powered on
5. HDMI IN: Connect a source such as a Set Top Box, Game Console, media player, NVR/DVR, etc.
6. Output Signal LED: Illuminates when a display is connected and powered on
7. HDMI OUT 1-3: Connect HDMI displays to each output
NOTE: Automatic EDID learning will detect all the connected HDMI displays and will analyze the content. The
maximum resolution support will automatically be chosen unless manually adjusted as shown above in the EDID
table; Connect the lowest resolution display to output 1
1
2
3
6
7
5
4
Dip Switch Position Description
Off Off Ultra HD (4K@60) - 8/10/12bit 3D HDR video & 7.1 ch audio
On Off Ultra HD (4K@60) - 8/10/12bit 3D HDR video & 2 ch audio
Off On Ultra HD (1080p@60) - 12bit 3D video & 7.1 ch audio
On On Learning EDID from output 1
www.vanco1.com 800.626.6445
8
CONNECT AND OPERATE
EVSP12SC
EVSP14SC
Source In
HDTV HDTV
HDMI
HDMI
HDMI
HDMI Out 2HDMI Out 1
HD
TV HDTV HDTV
HDTV
Source In
HDMI HDMI
HDMI HDMI
HDMI Out 2 HDMI Out 3 HDMI Out 4
HDMI Out 1
www.vanco1.com 800.626.6445 9
1. Ensure all components including splitter, displays, and source are turned off.
2. Connect the displays to the splitter, with the lowest resolution display connected to output 1
3. Connect a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc.
to the HDMI input
4. Plug in 5V DC power supply to power the splitter, then power on the displays, followed by the source
NOTE: If using a mix of 4K and 1080p displays, verify resolution on each display by pressing “info” on display
remote(s). The splitter will automatically downscale for 1080p displays, as long as lowest resolution display is
connected to Output 1.
NOTE: If intending to pass HDR, activate HDR on the display’s settings. De-activate HDR if not intending to
pass HDR.
FIRMWARE UPDATE
A Firmware update can be done when necessary and available through the Micro-USB port. Any available
rmware updates will be posted within the “Downloads tab” of this product on www.vanco1.com.
1. Save the rmware le (.bin) & software in the same folder from the product page on the Vanco website
2. Connect the Micro-USB cable to connect the splitter to a Windows based PC
3. Open rmware update software and then device will start to update rmware automatically
4. After update process is completed, the software will display a “Success” message, and then will
automatically close the Firmware Update prompt
5. Power cycle the splitter
www.vanco1.com 800.626.6445
10
SAFETY AND NOTICE
These splitters have been tested for conformance to safety regulations and requirements, and has been
certied for international use. However, like all electronic equipment, these splitters should be used with care.
Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk
of damage to the unit.
• Follow all instructions and warnings marked on this unit
• Do not attempt to service this unit yourself, except where explained in this manual
• Provide proper ventilation and air circulation and do not use near water
• Keep objects that might damage the device and assure that the placement of this unit is on a stable
surface
• Use only the power adapter and power cords and connection cables designed for this unit
• Do not use liquid or aerosol cleaners to clean this unit
• Always unplug the power to the device before cleaning
LIMITED WARRANTY
With the exceptions noted in the next paragraph, Vanco warrants to the original purchaser that the equipment
it manufactures or sells will be free from defects in materials and workmanship for a period of two years from
the date of purchase. Should this product, in Vanco’s opinion, prove defective within this warranty period,
Vanco, at its option, will repair or replace this product without charge. Any defective parts replaced become
the property of Vanco. This warranty does not apply to those products which have been damaged due to
accident, unauthorized alterations, improper repair, modications, inadequate maintenance and care, or use in
any manner for which the product was not originally intended.
Items integrated into Vanco products that are made by other manufacturers, notably computer hard
drives and liquid crystal display panels, are limited to the term of the warranty offered by the respective
manufacturers. Such specic warranties are available upon request to Vanco. A surge protector, power
conditioner unit, or an uninterruptible power supply must be installed in the electrical circuit to protect against
power surges.
If repairs are needed during the warranty period the purchaser will be required to provide a sales receipt/sales
invoice or other acceptable proof of purchase to the seller of this equipment. The seller will then contact Vanco
regarding warranty repair or replacement.
www.vanco1.com 800.626.6445 11
TECHNICAL SUPPORT
In case of problems, please contact Vanco Technical Support by dialing 1-800-626-6445. You can also email
When calling, please have the Model Number, Serial Number (afxed to the bottom of the unit) and Invoice
available for reference during the call.
Please read this Instruction Manual prior to calling or installing this unit, since it will familiarize you with the
capabilities of this product and its proper installation.
All active electronic products are 100% inspected and tested to insure highest product quality and trouble-
free installation and operation. The testing process utilizes the types of high-denition sources and displays
typically installed for entertainment and home theater applications.
For additional information, such as helpful installation videos, etc. please visit www.vanco1.com
LIABILITY STATEMENT
Every effort has been made to ensure that this product is free of defects. The manufacturer of this product
cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising
from its use. It is the responsibility of the user and installer of the hardware to check that it is suitable for
their requirements and that it is installed correctly. All rights are reserved. No parts of this manual may be
reproduced or transmitted by any form or means electronic or mechanical, including photocopying, recording
or by any information storage or retrieval system without the written consent of the publisher.
Manufacturer reserves the right to revise any of its hardware and software following its policy to modify and/or
improve its products where necessary or desirable. This statement does not affect the legal rights of the user
in any way.
Vanco®International
506 Kingsland Drive
Batavia, Illinois 60510
call: 800.626.6445
fax: 630.879.9189
visit: www.vanco1.com
This manual suits for next models
1
Table of contents
Other Vanco Cables And Connectors manuals
