Frame Size 17.7 inches (45CM)
Suggested Rider Height 5’5”–6’3" 165 cm–190 cm
ASeat Tube Length 17.7 inches 450 mm
B Reach 14.6 inches 372 mm
C Standover Height 29.5 inches 450 mm
D Wheelbase 46.8 inches 1093 mm
EBottom Bracket Height 11.8 inches 300 mm
Let’s get into the bike’s geometry.
Dimensions
Choosing the right size can guarantee
safety and comfort when riding your
electric bike. Please seek professional help
if you are not sure which size fits you well.

Check the entire box and make sure every single part is present.
Please open all the boxes, gently take out the parts, and check all the
contents according to the information on Pages 8–9. In the case of any
missing or damaged parts, please contact Vanpowers Bike Service Center.
Package Contents

Accessories Box
Bell Pedals Charger
Front Reflector Rear ReflectorCable Ties

Accessories Box
0.12-inch (3 mm) Allen Key
0.16-inch (4mm) Allen Key 0.2-inch (5mm) Allen Key
0.24-inch (6mm) Long Allen Key 0.32-inch (8mm) Long Allen Key
8-10 open-end Wrench 13-15 open-end Wrench
Phillips Screwdriver
0.12-inch (3 mm) Allen Key

1. Remove the bolts on the fork with 4
mm and 5 mm Allen keys and 8-10
open-end wrench, as shown in Figure 1.
2. Mount the front fender on the fork, then
tighten the bolts back, as shown in Figure 2.
STEP 1: Mount the front fender
Figure 2.
Figure 1.
0.2-inch (5 mm)
Allen Key
8-10 open-end
wrench
0.16-inch (4 mm)
Allen Key
front fender
Assembly Guide

STEP 2: Mount the front wheel
1. Remove the quick release lever from in
between the forks.
2. Mount the front wheel on the fork, then insert
the quick release lever on the same side as the
brake rotor, as shown in Figure 3.
Figure 3.
quick release lever
nut
conical spring
conical
spring rotor
Assembly Guide

3. Tighten the quick release lever clockwise.
Adjust the direction of the quick release handle
to the position as shown in Figure 4.
Tips:
•Test the tension by opening the lever again. If
it is easy to open, tighten the quick release
lever further and try again. Make sure the
wheel is on securely.
•Do not over-tighten the lever, as this can
cause malfunction.
Figure 4.
nut
rotor
direction of the lever
after tightening
Assembly Guide

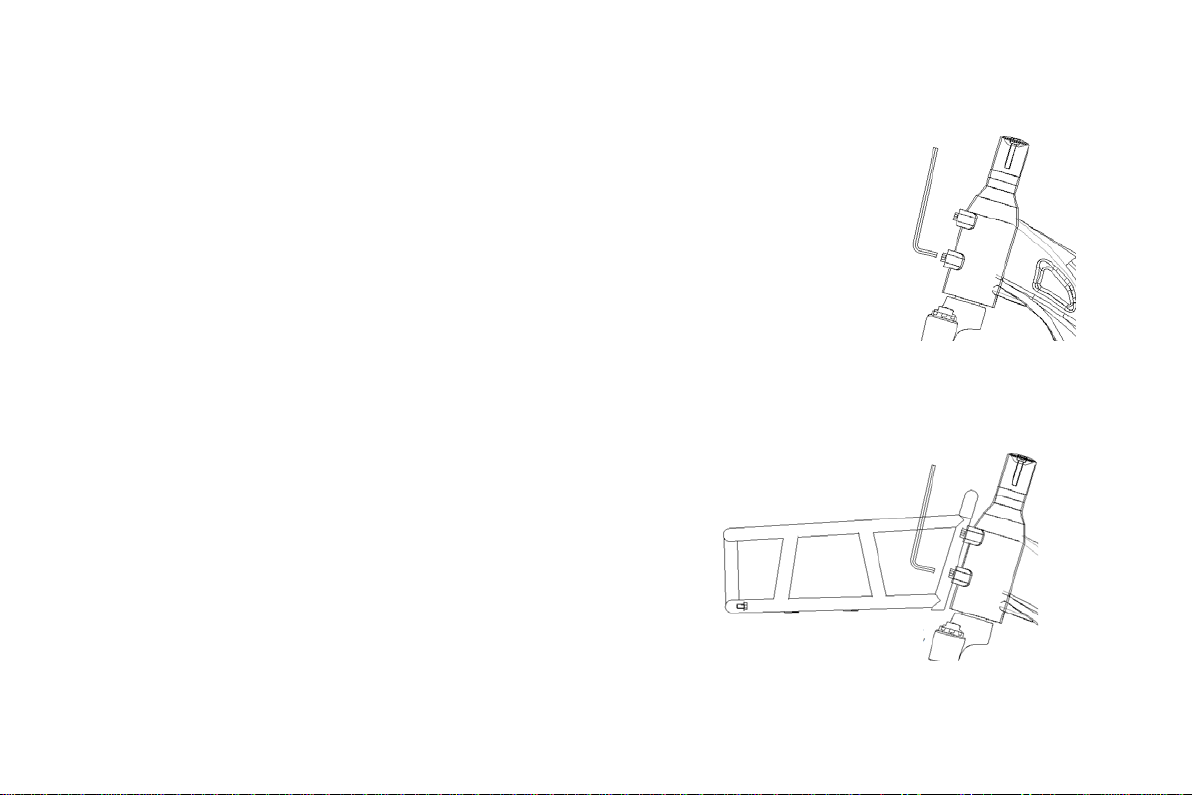

2. Mount the basket on the head tube, then
tighten the 4 bolts with the 5 mm Allen key, as
shown in Figure 6.
STEP 3: Mount the basket and front light
1. Remove the 4 bolts on the head tube with the 5
mm Allen key, as shown in Figure 5.
Figure 6.
Figure 5.
0.2-inch (5 mm)
Allen Key
0.2-inch (5 mm)
Allen Key
Assembly Guide

3. Remove the bolts on the basket with the 4
mm Allen key, as shown in Figure 7.
4. Take off the front light that is tied on the
frame and mount it on the basket with 4 mm
Allen key, as shown in Figure 8. Then, tie the
light cables to the bottom of the basket with the
cable.
Figure 7.
Figure 8.
0.16-inch (4 mm)
Allen Key
front light 0.16-inch (4 mm)
Allen Key
Assembly Guide

STEP 4: Mount the stem and handlebar
1. Remove the bolt on the fork with the 5 mm
Allen key, then take off the top cap and alloy-
sleeve and discard them, as shown in Figure 9.

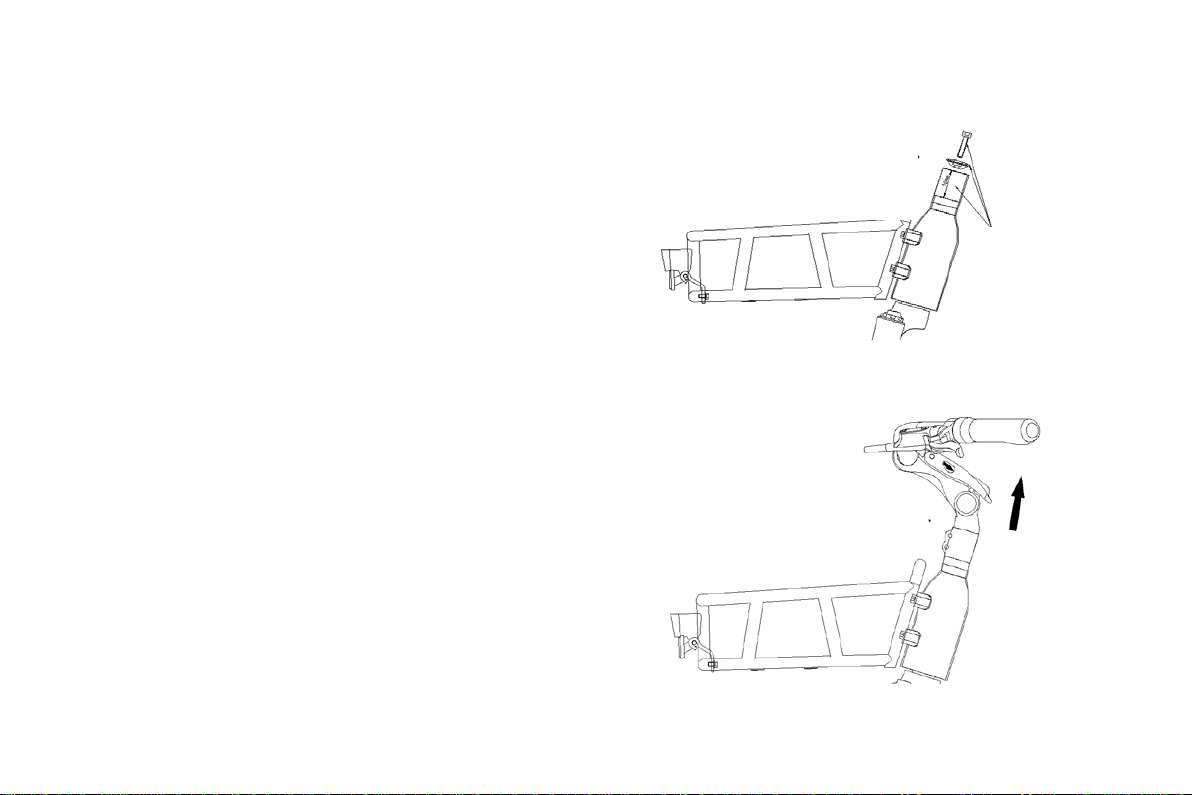

2. Mount the stem on top of the fork, then open
the clamp on the handlebars by sliding the switch
in the direction of the arrow and lifting the latch,
as shown in Figure 10.
Figure 9.
Figure 10.
bolt
top cap
alloy-sleeve
take out and
discard
Assembly Guide

3. Slide the handlebars onto the stem, angle the
handlebars up/down, use the 5 mm Allen key to
tighten the stem bolt down inside the tube, as
shown in Figure 11.
4. Stand in front of the bike and make sure the
handlebars are perpendicular to the two wheels
and parallel with the ground, then close the
clamp, as shown in Figure 12.
Figure 12.
Figure 11.
0.2-inch (5 mm)
Allen Key
horizontal
Assembly Guide

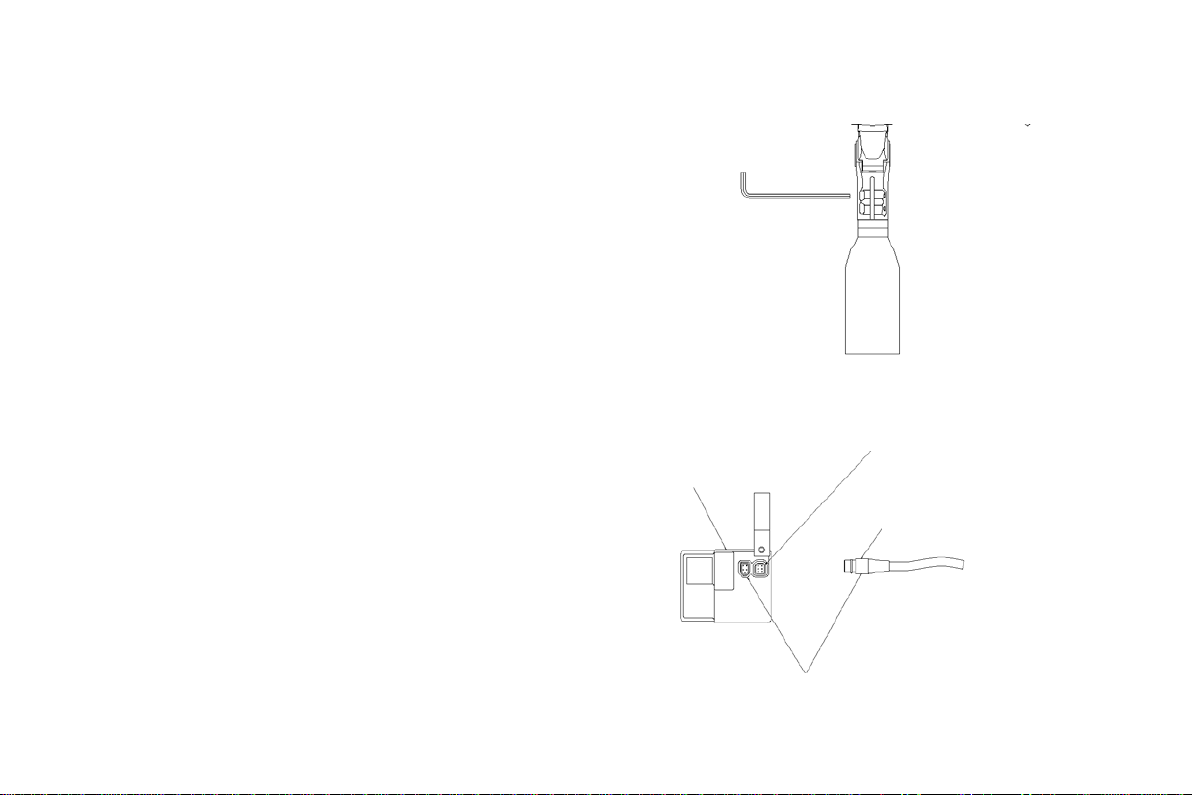

5. Use the 4 mm Allen key to alternately tighten
the 2 bolts on the side of the handlebar stem
until fully locked, as shown in Figure 13.
Figure 13.
2 bolts
0.16-inch (4 mm)
Allen Key
1. Plug the display cable (green) into the display
port (green).
STEP 5: Connect the display
display
Display cable
connect
display button cable
(already connected)
Figure 14.
Assembly Guide

STEP 6: Mount the seat/bell/front and
rear reflectors
1. Adjust the seat so that it is at a comfortable
height, and make sure the seat is pointing
towards and perpendicular to the handlebars.
Figure 15.
2. Take out the bell/front reflector/rear reflector
and Phillips screwdriver from the accessories box.
Fix the transparent front reflector and bell to the
right of the handlebars.
bell
front reflector
Figure 16.
Assembly Guide

3. Fix the red rear reflector to the seat post，
as shown in Figure 17.
Figura 17.
STEP 7: Mount the pedals
1. Check the end cap on both pedals and find the
letter L on the left pedal and the letter R on the
right pedal.
Assembly Guide
Rear Reflector

2. Mount the left pedal on the left crank and
tighten counterclockwise with the 15 mm end of
a 13-15 open-end wrench. Mount the right
pedal on the right crank and tighten clockwise
with the 15 mm end of a 13-15 open-end
wrench. As shown in Figure 18. clockwise
Remove the key from the front of the handlebars
and keep it after you finish the assembly.
The key will not affect the use of this electric
bicycle; it can only be used when the battery is
removed. Please keep it safe.
STEP 8: Remove the key
counterclockwise
Figure 18.
