IBOX6425E | User Manual www.vantrontech.com
IBOX6425E
Embedded Industrial Computer
User Manual
Version: 1.0
© Chengdu Vantron Technology Co., Ltd. All rights reserved.

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX6425E | User Manual www.vantrontech.com
Revision History:
No. Version Description Date
1 V1.0 First release Oct. 28, 2022

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX6425E | User Manual www.vantrontech.com
Table of Contents
Foreword .................................................................................................................................. 1
CHAPTER 1 INTRODUCTION................................................................................................... 5
1.1 Product Overview............................................................................................................ 6
1.2 Product Feature............................................................................................................... 6

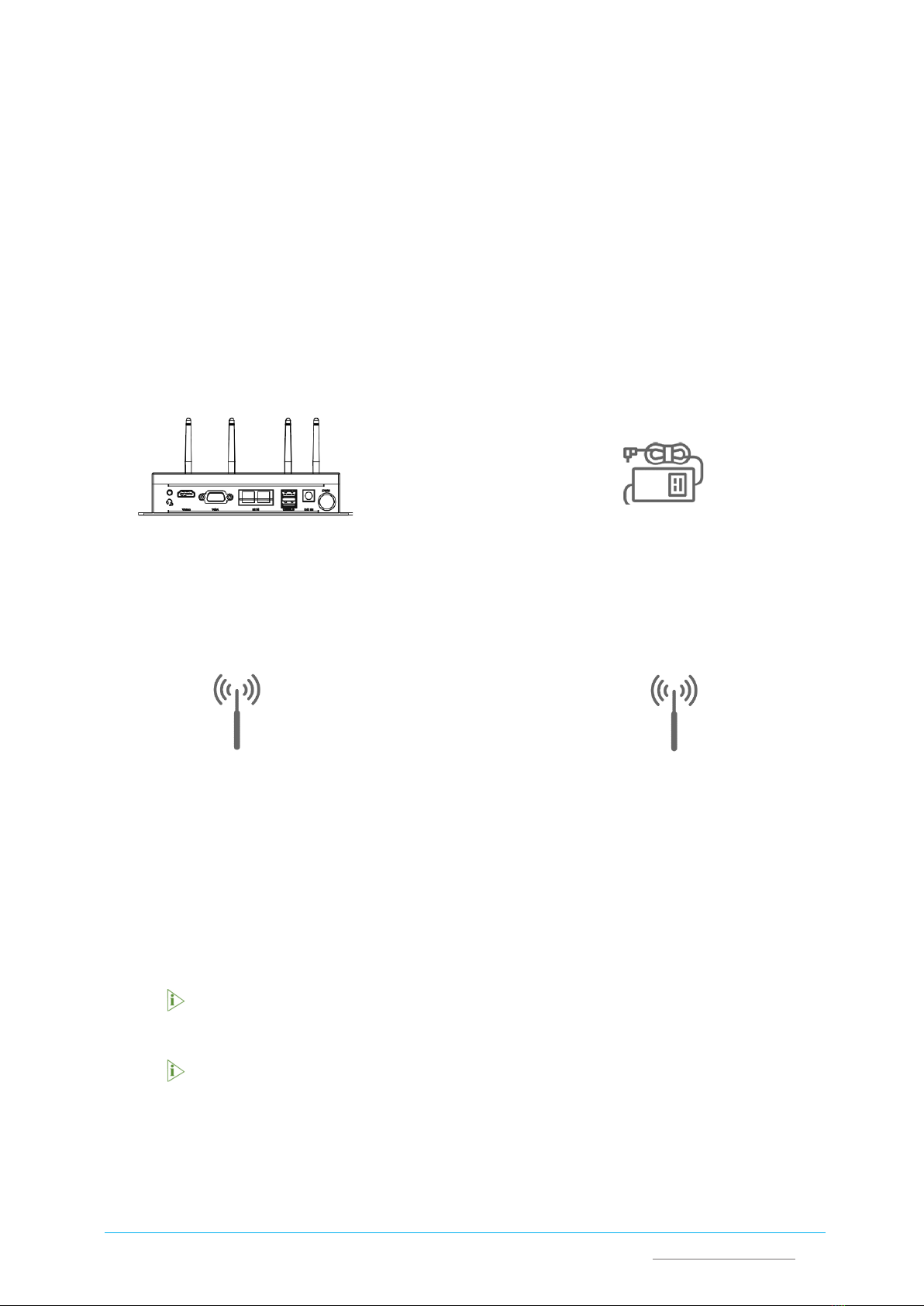

1.3 Unpacking ....................................................................................................................... 7
1.4 Specifications .................................................................................................................. 8

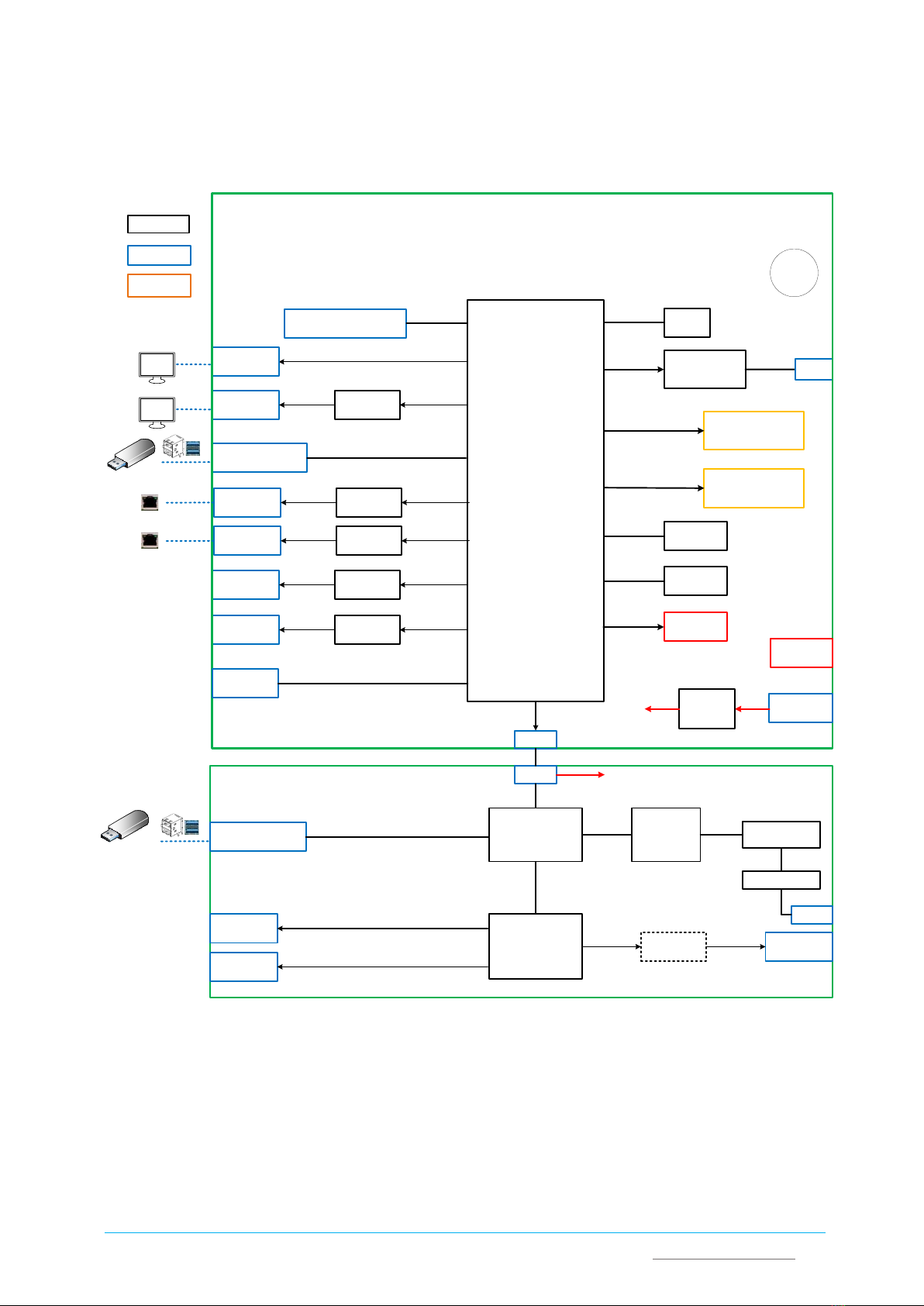

1.5 Block Diagram ................................................................................................................. 9
1.6 Product Layout .............................................................................................................. 10
1.7 Operating System .......................................................................................................... 11
1.8 Mechanical Dimensions ................................................................................................ 11
1.9 Power Supply and Consumption ................................................................................... 11
CHAPTER 2 GETTING STARTED............................................................................................. 12
2.1 Hardware Connection ................................................................................................... 13
2.2 Connecting a Host Computer........................................................................................ 16
2.3 Turning on/off the Device ............................................................................................. 17
CHAPTER 3 HARDWARE DESCRIPTION ................................................................................ 18
3.1 Power jack ..................................................................................................................... 19
3.2 ON/OFF button.............................................................................................................. 19
3.3 Ethernet jack ................................................................................................................. 20
3.4 HDMI port ..................................................................................................................... 21
3.5 VGA port........................................................................................................................ 22
3.6 USB 3.0 .......................................................................................................................... 23
3.7 USB Type-C .................................................................................................................... 23
3.8 Serial port...................................................................................................................... 24
3.9 Audio jack...................................................................................................................... 25
3.10 Micro SIM slot ............................................................................................................... 25
3.11 M.2 slots........................................................................................................................ 26
3.12 Antenna connectors ...................................................................................................... 26
CHAPTER 4 SOFTWARE SETUP ............................................................................................. 27
4.1 BIOS Introduction.......................................................................................................... 28
4.2 Check BIOS Version ....................................................................................................... 28
4.3 BIOS Setup..................................................................................................................... 29
4.3.1 Entering setup ............................................................................................................... 29
4.3.2 Secure Boot ................................................................................................................... 30
4.3.3 Setup Utility – Main ...................................................................................................... 32
4.3.4 Setup Utility – Advanced ............................................................................................... 33
4.3.5 Setup Utility – Security.................................................................................................. 34
4.3.6 Setup Utility – Power .................................................................................................... 35
4.3.7 Setup Utility – Boot ....................................................................................................... 36
4.3.8 Setup Utility – Exit......................................................................................................... 37
4.4 Serial Configuration....................................................................................................... 38

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX6425E | User Manual www.vantrontech.com
4.5 Install Windows 10 System............................................................................................ 39
4.5.1 Prerequisites ................................................................................................................. 39
4.5.2 Make a Bootable USB Drive for Windows 10................................................................ 39
4.5.3 Install Windows 10........................................................................................................ 40
CHAPTER 5 DISPOSAL AND WARRANTY............................................................................... 41
5.1 Disposal ......................................................................................................................... 42
5.2 Warranty ....................................................................................................................... 43
Appendix Regulatory Compliance Statement.................................................................. 44

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX6425E | User Manual 1 www.vantrontech.com
Foreword
Thank you for purchasing IBOX6425E Embedded Industrial Computer (“the Device” or “the
Product”). This manual intends to provide guidance and assistance necessary on setting up,
operating or maintaining the Product. Please read this manual and make sure you understand
the structure and functionality of the Product before putting it into use.
Intended Users
This manual is intended for:
•Operator of the Product
•Technical support engineers
•Other users
Copyright
Chengdu Vantron Technology Co., Ltd. (“Vantron”) reserves all rights of this manual, including
the right to change the content, form, product features, and specifications contained herein
at any time without prior notice. An up-to-date version of this manual is available at
www.vantrontech.com.
The trademarks in this manual, registered or not, are properties of their respective owners.
Under no circumstances shall any part of this user manual be copied, reproduced, translated,
or sold. This manual is not intended to be altered or used for other purposes unless otherwise
permitted in writing by Vantron. Vantron reserves the right of all publicly released copies of
this manual.
Disclaimer
While all information contained herein has been carefully checked to assure its accuracy in
technical details and typography, Vantron does not assume any responsibility resulting from
any error or features of this manual, nor from improper uses of this manual or the software.
It is our practice to change part numbers when published ratings or features are changed, or
when significant construction changes are made. However, some specifications of the Product
may be changed without notice.

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX6425E | User Manual 2 www.vantrontech.com
Technical Support and Assistance
Should you have any question about the Product that is not covered in this manual, contact
your sales representative for solution. Please contain the following information in your
question:
•Product name and PO number;
•Complete description of the problem;
•Error message you received, if any.
US Office: Vantron Technology, Inc.
Address: 48434 Milmont Drive, Fremont, CA 94538
Tel: [phone]
Email: [e-mail]
China Office: Chengdu Vantron Technology Co., Ltd.
Address: 6th Floor, 1st Building, No.9, 3rd WuKe East Street, WuHou District, Chengdu, P.R.
China 610045
Tel: [phone]/3931, 86-28-8515-7572/6320
Email: [e-mail]
Regulatory Information
The Product is designed to comply with:
•EMC 3 Class B
•State Radio Regulation of China (SRRC)
•RoHS
Please refer to the Appendix for Regulatory Compliance Statement.
Symbology
This manual uses the following signs to prompt users to pay special attention to relevant
information.
Caution for latent damage to system or harm to personnel
Attention to important information or regulations

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX6425E | User Manual 3 www.vantrontech.com
General Safety Instructions
The Product is supposed be installed by knowledgeable, skilled persons familiar with local
and/or international electrical codes and regulations. For your safety and prevention of
damage to the Product and other equipment connected to it, please read and observe
carefully the following safety instructions prior to installation and operation. Keep this manual
well for future reference.
•Do not disassemble or otherwise modify the Product. Such action may cause heat
generation, ignition, electronic shock, or other damages including human injury, and may
void your warranty.
•Keep the Product away from heat source, such as heater, heat dissipater, or engine casing.
•Do not insert foreign materials into any opening of the Product as it may cause the
Product to malfunction or burn out.
•To ensure proper functioning and prevent overheating of the Product, do not cover or
block the ventilation holes of the Product.
•Follow the installation instructions with the installation tools provided or recommended.
•The use or placement of the operation tools shall comply with the code of practice of
such tools to avoid short circuit of the Product.
•Cut off the power before inspection of the Product to avoid human injury or product
damage.

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX6425E | User Manual 4 www.vantrontech.com
Precautions for Power Cables and Accessories
Use proper power source only. Make sure the supply voltage falls within the specified
range. The Product is designed to use 9-36V DC. Always check whether the Product is DC
powered before applying power.
Place the cables properly at places without extrusion hazards.
Use only approved antenna(s). Non-approved antenna(s) may produce spurious or
excessive RF transmitting power which may violate FCC limits.
Cleaning instructions:
•Power off before cleaning the Product
•Do not use spray detergent
•Clean with a damp cloth
•Do not try to clean exposed electronic components unless with a dust collector
Power off and contact Vantron technical support engineer in case of the following faults:
•The Product is damaged
•The temperature is excessively high
•Fault is still not solved after troubleshooting according to this manual
Do not use in combustible and explosive environment:
•Keep away from combustible and explosive environment
•Keep away from all energized circuits
•Unauthorized removal of the enclosure from the device is not allowed
•Do not replace components unless the power cable is unplugged. In some cases,
the device may still have residual voltage even if the power cable is unplugged.
Therefore, it is a must to remove and fully discharge the device before replacement
of the components.

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX6425E | User Manual 5 www.vantrontech.com
CHAPTER 1
INTRODUCTION

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX6425E | User Manual 6 www.vantrontech.com
1.1 Product Overview
Vantron IBOX6425E Embedded Industrial Computer is powered by Intel® Elkhart Lake
Atom® x6425E high-performance processor that has four cores capable of delivering high
computing power for various embedded applications while keeping the CPU performance
at 12W of low power consumption. The Device supports two Ethernet ports transmitting
at 10/100/1000Mbps. As to internal expansion, it offers two M.2 slots, one for Wi-Fi 802.11
a/b/g/n/ac and BT 5.0 and the other optionally expandable for 4G/5G connection to keep
the communication uninterrupted.
The Device comes with an HDMI interface and a VGA interface to optimize image display.
Two serial ports are available to communicate with external devices to ensure a reliable,
error-free data path.
As the Device provides rich peripheral interfaces, a wide range of peripherals can be
connected for extended applications, including barcode scanners, cameras, barcode
printers and keyboard plates. Above all, its strong performance, reliable and stable quality,
and excellent cost performance are second to none for smart business applications.
1.2 Product Feature
IBOX6425E
Intel® Elkhart Lake Atom® x6425E quad-core processor
HDMI/VGA for video output
Rich interface for expansion
Wi-Fi/BT/5G/ETH for communication
Industrial-grade wide temperature design
Ability to withstand harsh environments
Industrial longevity

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX6425E | User Manual 7 www.vantrontech.com
1.3 Unpacking
The Product has been carefully packed with special attention to quality. However, should
you find any component damaged or missing, please contact your sales representative in
due time.
Accessories:
1 x IBOX6425E 1 x Power adapter
2 x Wi-Fi & BT antenna (Optional) 2 x 5G antenna (Optional)
Since the Wi-Fi & BT module shares the same M.2 slot with the 5G module, users do
not necessarily choose both Wi-Fi & BT antennas and 5G antennas.
Actual accessories might vary slightly from the list above as the customer order might
be different from the standard configuration options.

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX6425E | User Manual 8 www.vantrontech.com
1.4 Specifications
IBOX6425E
System
CPU
Intel® Elkhart Lake Atom® x6425E processor, Quad-core,
3.0 GHz (Max.)
GPU
Intel® HD Graphics 500
Memory
4GB DDR4 (Optional: 16GB)
Storage
32GB eMMC
1 x SATA slot
SSD supported by an M.2 B-Key
Communication
Ethernet
2 x RJ45, 10/100/1000Mbps
5G
Supported (expansion by M.2 B-Key)
Wi-Fi & Bluetooth
Wi-Fi 802.11 a/b/g/n/ac + BT 5.0 (expansion by M.2 B-Key)
Media Display 1 x Standard HDMI 2.0b (4096 x 2160 @60Hz)
1 x VGA (1920 x 1080 @60Hz)
Audio
1 x 3.5mm combo audio jack
I/Os
Serial port
2 x RS232/RS485/RS422
USB
2 x USB 3.0 Type-A
1 x USB 3.0 Type-C
SIM card slot
1 x SIM card slot
RTC
Supported
Watchdog
Supported
TPM
1 x TPM 2.0
Expansion
M.2 slot
1 x M.2 B-Key (2242/2280) for SSD
1 x M.2 B-Key (3042/3052) for Wi-Fi & BT or 5G (an either-or option)
From USB 3.0 Type-C
2 x USB 2.0 Type-A
2 x RS232/RS485
1 x CAN
8 x GPIO
System Control Button
1 x ON/OFF button
1 x Reset button
LED
1 x ON/OFF LED indicator
Software
OS
Windows 10 (IoT)
Power
Input
1 x Power jack (12V/5A, 24V/3A)
Mechanical
Dimensions
171mm x 128mm x 38mm (Enclosure only)
196mm x 128mm x 38mm (With bracket)
Weight
750g
Shock test
IEC 60068-2-27
Water and dust
resistance
IP40
Cooling mode
Fanless
Environment
Condition
Temperature
Operating: -20℃~+70℃
Storage: -40℃~+85℃
Humidity
Operating: RH 10%~90%
Storage: RH 5%~95%
Certification
EMC 3 Class B, SRRC, RoHs
ESD: ±4KV (contact) and ±8KV (air)

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX6425E | User Manual 9 www.vantrontech.com
1.5 Block Diagram
Processor
Intel® Atom™
4C4T
X6425e
2.0GHz
TDP:12W
PKG:FCBGA1493
BIOS
SPI
High-Definition
Audio Codec
ES8336
I2S HP/MIC
Combo
Jack
DDR SO-DIMM
4GB
DDR
HDMI
HDMI
Connector
VGA
Connector
DDIVGA
CH7517A-BFI
2*USB3.0 Type-A USB3.0
RJ45 PCIE
LAN7430
RJ45 PCIE LAN7430
M.2 B-KEY
For SATA/5G/VPU
PCIE&SATA&USB
M.2 B-KEY
For WLAN/BT
PCIE&USB
TPM 2.0
SPI
EMMC 32G
EMMC
RS232/485/4
22
UART
Digital
Isolator
RS232/485/4
22
UART
Digital
Isolator
Module
Conn
IC
VT-IPC-6425E
Operating Temperature: -20 ~ 70℃
OS:Windows 10
RS232/485 UART
RS232/485 UART
BAT
CR2032
USB 2.0 HUB
USB2514I
USB to UART
XR21V1414
2*USB2.0 Type-A USB2.0
GPIO*8
GPIO
USB2.0
USB3.0&2.0
Level Shifter GPIO
DC JACK
System
Power DC/DCs
SATA Conn SATA
LED
GPIO
SYS LEDs
I/O Expander Board
I/O Board
Power
12~24V Input
Type-C
Type-C
USB2.0 USB to UART
XR21V1410
UART STM32F105RBT6
TJA1043T
CAN H/L CAN
USB2.0

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX6425E | User Manual 10 www.vantrontech.com
1.6 Product Layout
1.6.1 Front view
1.6.2 Back view
Audio jack
HDMI
VGA
2 x
Ethernet jack
2 x USB 3.0
Power jack
ON/OFF
4G/5G primary
antenna
RS232/RS422/
RS485
SIM card slot
Reset
Wi-Fi antenna
4G/5G diversity
antenna
Wi-Fi
antenna
USB Type-C

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX6425E | User Manual 11 www.vantrontech.com
1.7 Operating System
IBOX6425E supports Windows 10 IoT operating system.
1.8 Mechanical Dimensions
•171mm x 128mm x 38mm (Enclosure only)
•196mm x 128mm x 38mm (With bracket)
1.9 Power Supply and Consumption
IBOX6425E works with 12V 5A/24V 3A DC power input supplied by a power jack.
The power consumption of the Device is about 15W. It should be pointed out that the
power consumption is largely dependent on the RAM, storage capacity, peripherals, and
other configurations of the Device.

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX6425E | User Manual 12 www.vantrontech.com
CHAPTER 2
GETTING STARTED

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX6425E | User Manual 13 www.vantrontech.com
2.1 Hardware Connection
Before you proceed with the configuration of IBOX6425E, follow the steps below to finish
hardware connection.

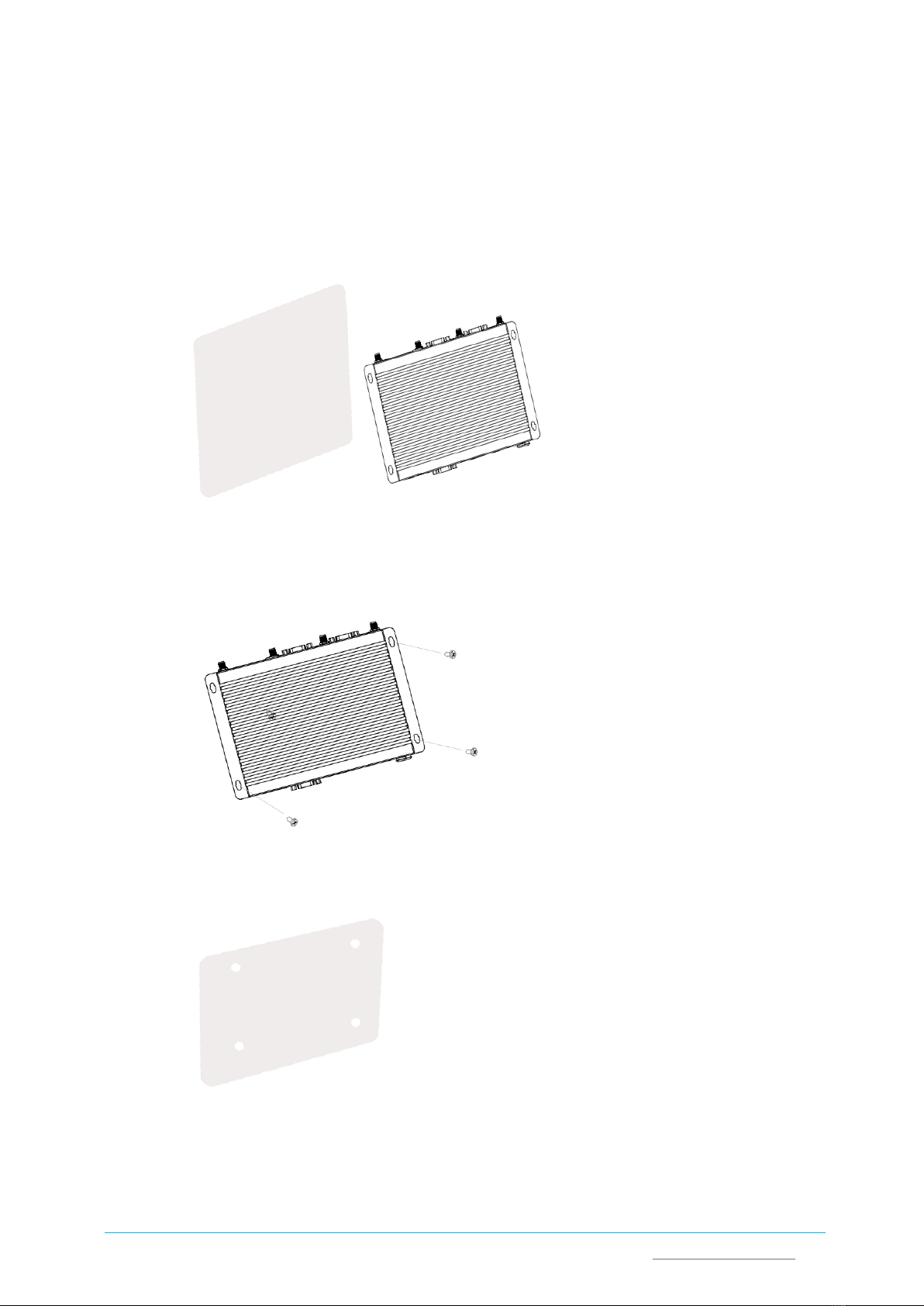

1. Position the Device on a desired place, for instance, a wall or a desktop;
2. Align the screws (M4 x 6 / M4 x 8 recommended) to the screw holes reserved on the
mounting bracket, and mark the position of the screws on the wall or the desktop;
3. Drill four screw holes on the marks made in the prior step;

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX6425E | User Manual 14 www.vantrontech.com
4. Place the Device back and adjust the position of the bracket, if needed, then use a
screwdriver to tighten the screws and secure the Device;
5. Insert an active SIM card, if any, into the corresponsive slot with the gold-colored
contacts facing down;
6. Install the antennas to the antenna connectors and tighten the connectors;
SIM

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX6425E | User Manual 15 www.vantrontech.com
7. When necessary, plug one end of an Ethernet cable into an Ethernet jack of IBOX6425E
and the other end to a live Ethernet port;
8. Insert the connector end of the power adapter into the DC connector of IBOX6425E;
9. Plug in the power adapter to power on the Device.

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX6425E | User Manual 16 www.vantrontech.com
2.2 Connecting a Host Computer
1. Insert one end of a display cable to the VGA/HDMI interface of the Device and the other
end to a host computer;
The display cable shall vary with the interface to be connected, and adapter connectors
are sometimes needed (HDMI interface for illustration here).
2. Connect the mouse and keyboard to the USB interfaces on the Device for easier
operation;
3. To use the Device as an ADB device, use a USB cable to connect the host computer and
the USB Type-C interface on the Device;
If you connect a touch monitor other than a host computer, remember to use a data
cable to connect the touch monitor and IBOX6425E to enable touch control.
